OEV-WIRELESSWireless video transmitter

Ken-A-Vision Manufacturing Company, Inc.
Wireless video transmitter - FCC ID OEV-WIRELESS - Ken-A-Vision Manufacturing Company, Inc.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
May 07, 2000
Application Purpose
Original Equipment
Date of Application
Mar 29, 2000
Equipment Note
Wireless video transmitter
Frequency Range
905.00000000 - 918.00000000
Company
Ken-A-Vision Manufacturing Company, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

โ†—
โ†—

Block Diagram

โ†—

Cover Letter(s)

โ†—
โ†—

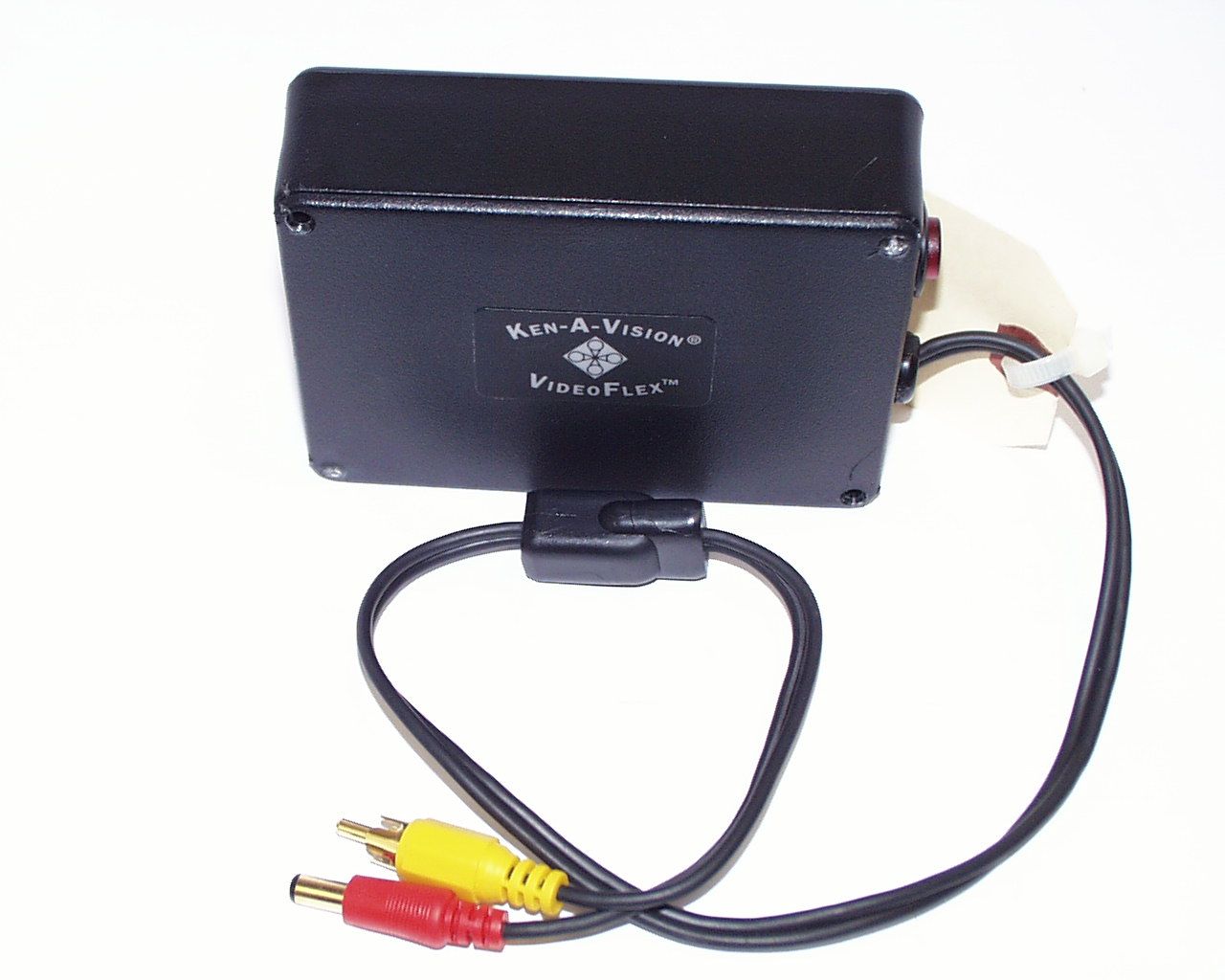

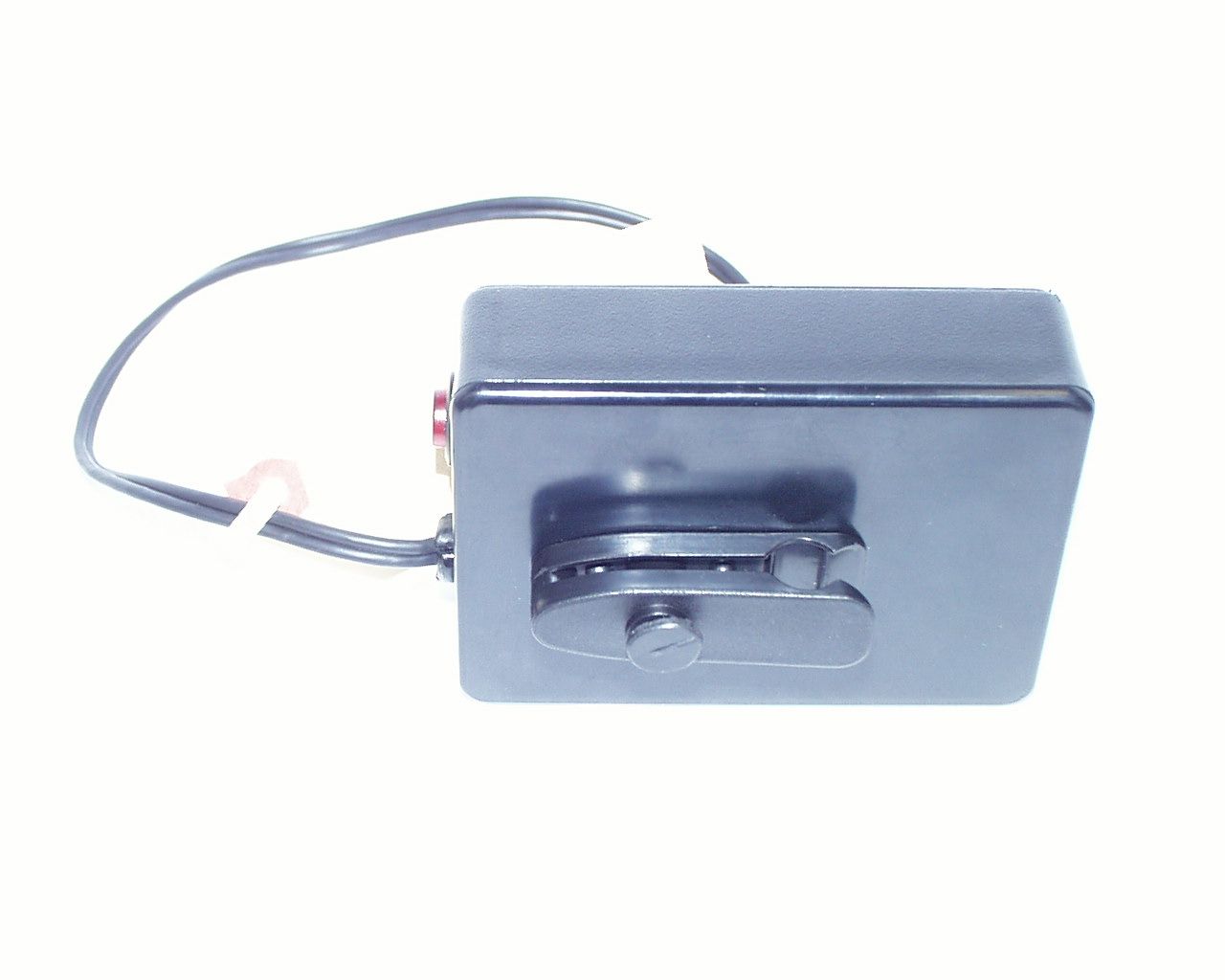

External Photos

โ†—
โ†—

ID Label/Location Info

โ†—
โ†—

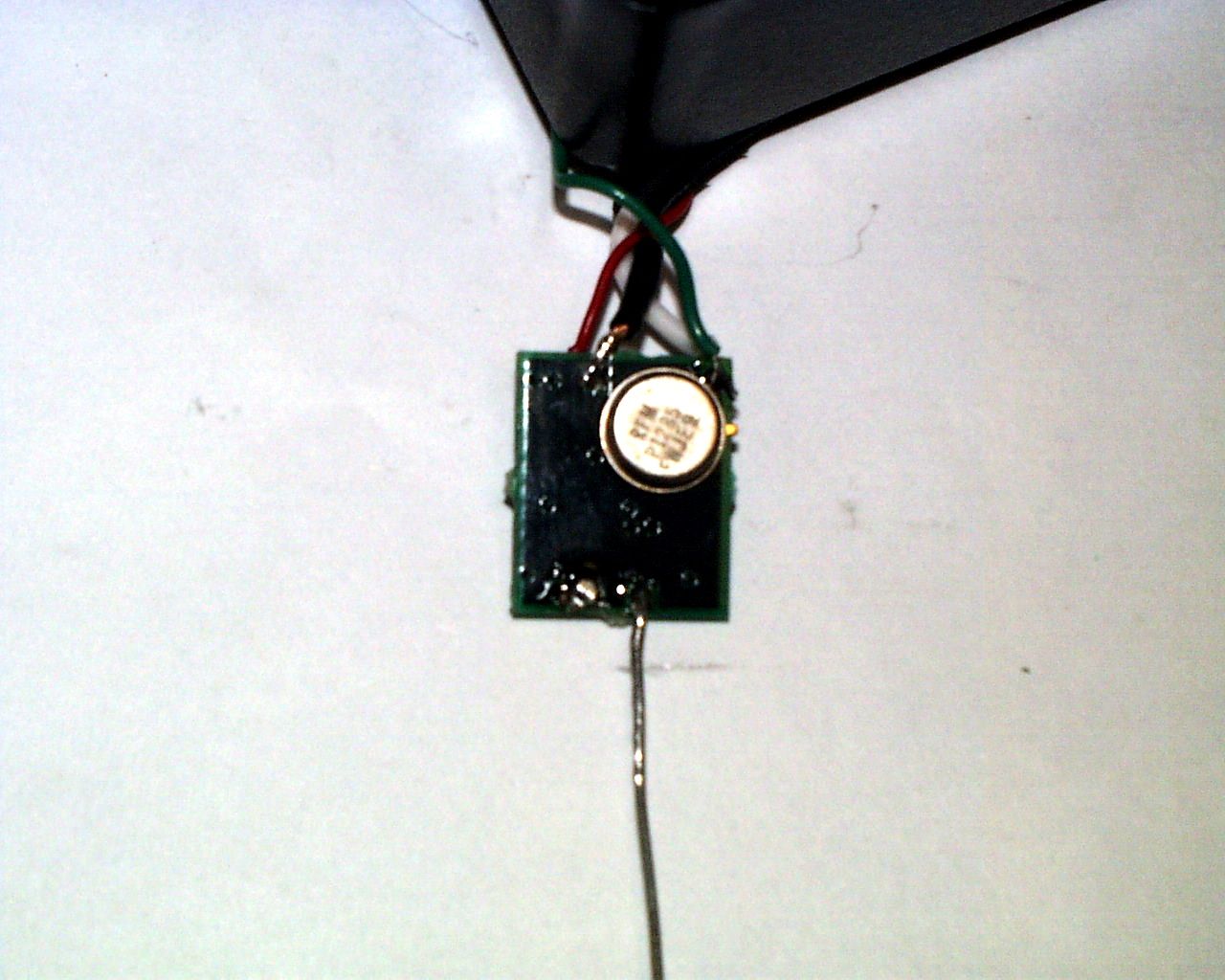

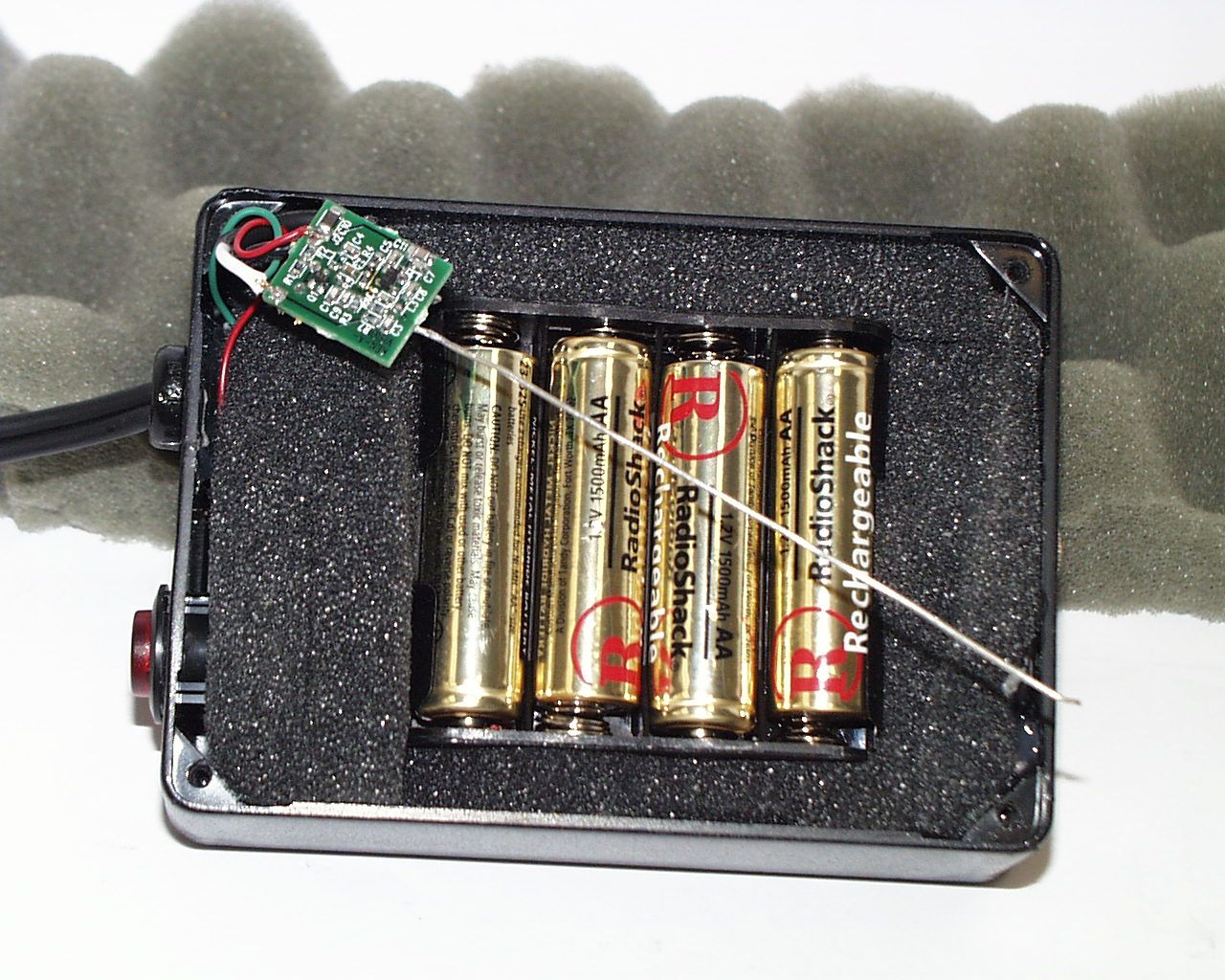

Internal Photos

โ†—
โ†—
โ†—

Operational Description

โ†—

Schematics

โ†—

Test Report

โ†—
โ†—

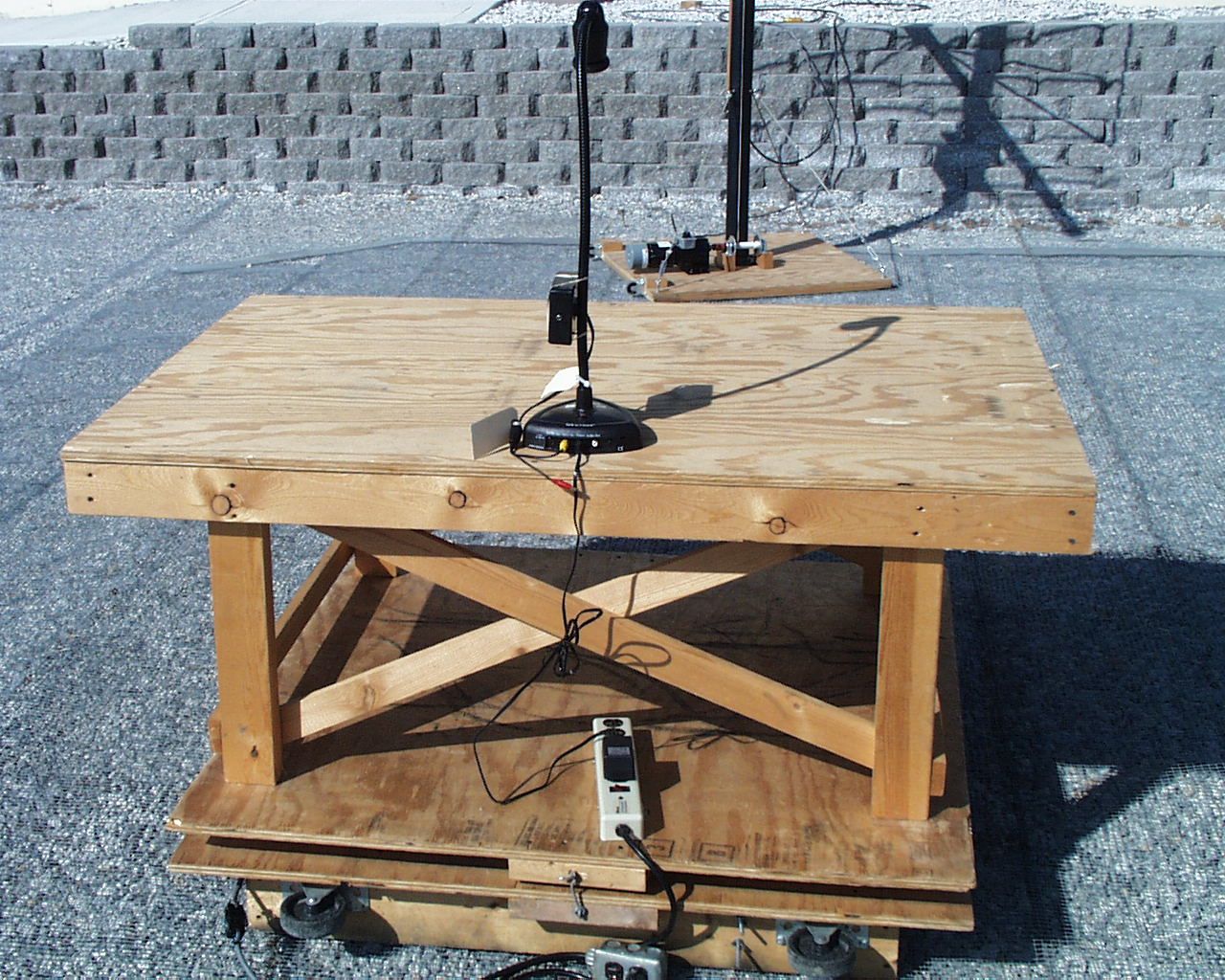

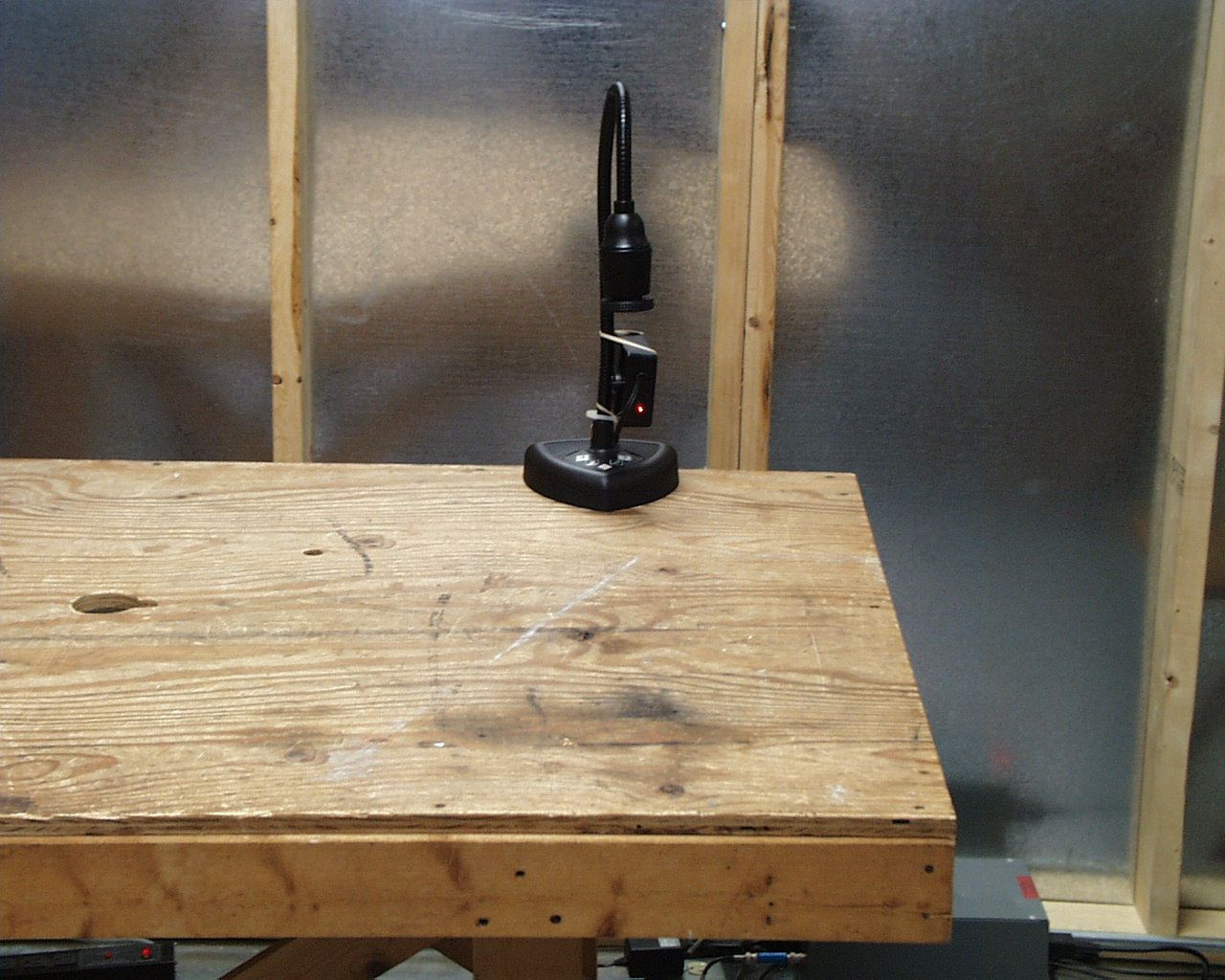

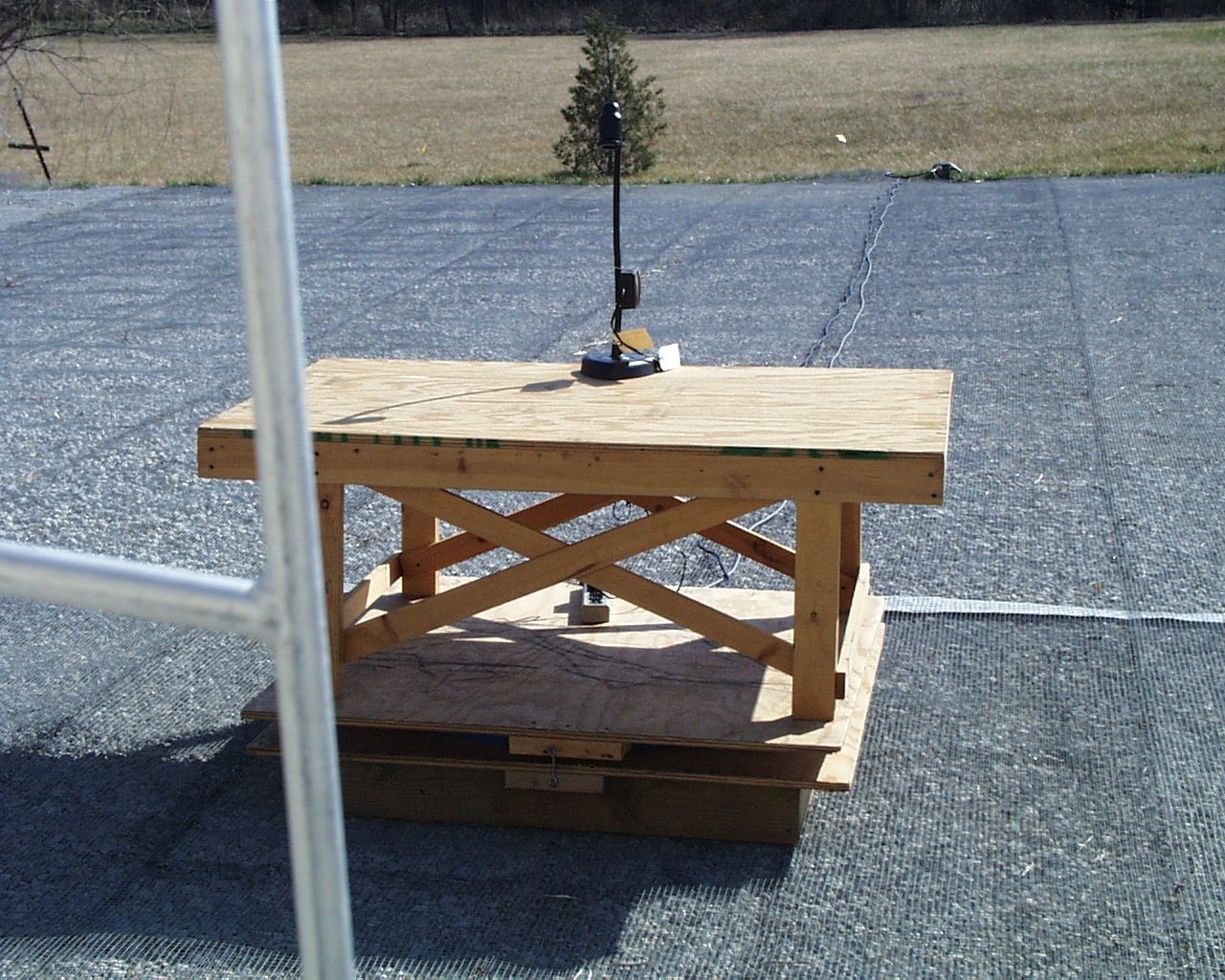

Test Setup Photos

โ†—
โ†—
โ†—
โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Manual Addendum for Ken-A-Vision Wireless

Cover Letter(s)

March 29, 2000 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant:Ken-A-Vision Mfg. Co., Inc. Equipment:FCC ID: OEV-WIRELESS FCC Rules:Parts 2 and 15 Gentlemen: Please find enclosed Application Form 159 with filing fees attached for Certification of Intentional Radiators operated in the band of 902 โ€“ 928 MHz. The 731 form and application have been electronically submitted and any attachments will be up loaded to the FCC web site. It is requested that the schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the schematics at the time of submittal. The special fee for request of confidentiality will be submitted with the application. Should you require any further information, please contact the undersigned who is the authorized agent for Ken-A-Vision Mfg. Co., Inc. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

Cover Letter(s)

May 4, 2000 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant:Ken-A-Vision Mfg. Co., Inc. Equipment:FCC ID: OEV-WIRELESS FCC Rules:Parts 2 and 15 Gentlemen: Please find the test report addendum including a mid and low band of operation for the above- mentioned device. Please proceed with the process of issuing a grant for Certification of an Intentional Radiator operated in the band of 902 โ€“ 928 MHz. We are requesting of you to amend the 731 form to include the operating band of 905 โ€“ 918 MHz. The original 731 form limited the frequency band to use of 914 โ€“ 918 MHz. The additional data requested has been uploaded to the FCC web site. Should you require any further information, please contact the undersigned who is the authorized agent for Ken-A-Vision Mfg. Co., Inc. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

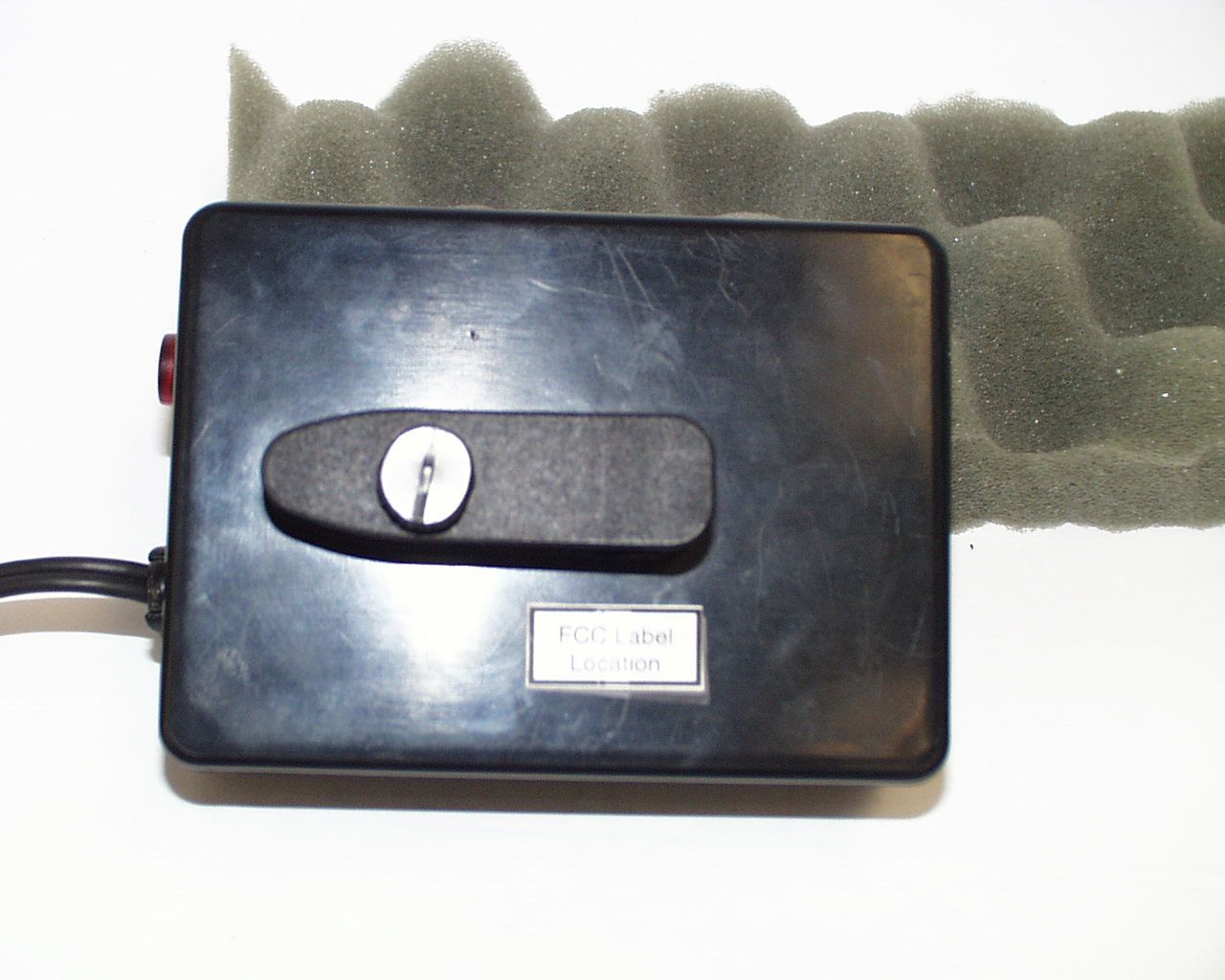

ID Label/Location Info

Ken-A-Vision FCC ID Label

Schematics

123456 A B C D 654321 D C B A KEN-A-VISION Approved Checked Drawn Date Date Date Title SizeNumberRevision Date:Sheetof Filename: B 16-Mar-2000 900MHz VIDEO TRANSMITTER 31600 D:\KEN\900MHZ\900MHZTR.SCH A1.1 11 REVISIONS REVECNCHG.DESC.DRAPDATE 0ENGRELEASE UNLESS OTHERWISE SPECIFIED RESISTORS ARE 1/4WATT AND VALUES ARE IN OHMS. CAPACITOR VALUES ARE IN MICROFARADS. 1 3 2 SAW1 RP1285/RFM Q1 R33 R1 10K R2 2.4K L1 6.8nH R3 1K C1 1pF C4 100pF C2 1pF C9 5pF +5V +5V C10 .1uF R4 1.6K R5 330 R6 220 R7 220 C5 100pF C6 100pF L2 56nH C11 1000pF C7 100pF C8 100pF C3 1pF L3 15nH +5V +5V J1 VIDEO IN J2 +5V J3 GND J4 ANTENNA +5V NE85639 NE68130 Q2 R28

Test Report

TEST REPORT For APPLICATION of CERTIFICATION For KEN-A-VISION MFG., CO., INC. 5615 Raytown Road Kansas City, MO 64133 Thomas Dunn, President MODEL: WIRELESS CLIP KIT Frequency Range 914 โ€“ 918 MHz FCC ID: OEV-WIRELESS Test Date: March 6, 2000 Certification Date:March 6, 2000 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.KEN-A-VISION Mfg., Co., Inc. 4405 W. 259th TerraceMODEL: Wireless Clip Kit Louisburg, KS 66053Test #: 000306FCCID#: OEV-WIRELESS Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15c (15.249)Page 2 of 34 CERTIFICATION\KENAVISIONRF Module 03/23/2000 TABLE OF CONTENTS FORWARD:.....................................................................................................................3 1)APPLICABLE STANDARDS & TEST PROCEDURES............................................3 2.1033(b) Application for Certification...........................................................................................................4 2)EQUIPMENT TESTED..............................................................................................5 3)EQUIPMENT FUNCTION AND TESTING PROCEDURES......................................5 4)EQUIPMENT AND CABLE CONFIGURATIONS......................................................5 Conducted Emission Test Procedure................................................................................................................5 Radiated Emission Test Procedure...................................................................................................................6 5)LIST OF TEST EQUIPMENT....................................................................................6 6)UNITS OF MEASUREMENTS..................................................................................7 7)TEST SITE LOCATIONS..........................................................................................7 8)SUBPART B โ€“ UNINTENTIONAL RADIATORS......................................................8 Conducted EMI:..................................................................................................................................................8 Radiated EMI:...................................................................................................................................................12 Data: Conducted (6 Highest Emissions):..........................................................................................................17 Data: Radiated (6 Highest Emissions) :............................................................................................................17 Summary of Results for Conducted Emissions:................................................................................................17 Summary of Results for Radiated Emissions:...................................................................................................18 Statement of Modifications:..............................................................................................................................18 9)SUBPART C - INTENTIONAL RADIATORS..........................................................18 15.203 Antenna Requirements........................................................................................................................18 Restricted Bands of Operation Per 15.205.....................................................................................................18 Data 15.205:......................................................................................................................................................19 15.209 Radiated Emissions Limits; General Requirements..........................................................................19 Radiated EMI:...................................................................................................................................................19 Data 15.209:......................................................................................................................................................20 Summary of Results for Radiated Emissions:...................................................................................................21 15.249 Operation in the Band 902-928 MHz.................................................................................................21 Radiated Emissions of Intentional Radiator:.....................................................................................................22 Statement of Modifications:..............................................................................................................................23 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.KEN-A-VISION Mfg., Co., Inc. 4405 W. 259th TerraceMODEL: Wireless Clip Kit Louisburg, KS 66053Test #: 000306FCCID#: OEV-WIRELESS Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15c (15.249)Page 3 of 34 CERTIFICATION\KENAVISIONRF Module 03/23/2000 FORWARD: The following is submitted for consideration in obtaining a Grant of Certification for low power intentional radiators operated under CFR 47, paragraph 15.249. Name of Applicant: KEN-A-VISION MFG., CO., INC. 5615 Raytown Road Kansas City, MO 64133 Model: WIRELESS CLIP KIT FCC I.D.: OEV-WIRELESS Frequency Range: 914 MHz to 918 MHz Operating Power: 35.08 mV/m @ 3 Meters (90.9 dBฮผV/m @ 3 meters) 1)Applicable Standards & Test Procedures a)In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 1998, Part 2, Subpart J, Paragraphs 2.907, 2.911โ€ฆ

Text truncated - open the document above for the full version.

Test Report

TEST REPORT ADDENDUM For APPLICATION of CERTIFICATION For KEN-A-VISION MFG., CO., INC. 5615 Raytown Road Kansas City, MO 64133 Thomas Dunn, President MODEL: WIRELESS CLIP KIT Frequency Range 905 โ€“ 918 MHz FCC ID: OEV-WIRELESS Test Date: May 4, 2000 Certification Date:May 4, 2000 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.KEN-A-VISION Mfg., Co., Inc. 4405 W. 259th TerraceMODEL: Wireless Clip KitADDENDUM Report Louisburg, KS 66053Test #: 000504FCCID#: OEV-WIRELESS Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15c (15.249)Page 2 of 6 CERTIFICATION\KENAVISIONRF ModuleADDENDUM 05/04/2000 TABLE OF CONTENTS FORWARD:.....................................................................................................................3 1)APPLICABLE STANDARDS & TEST PROCEDURESERROR! BOOKMARK NOT DEFINED. 2.1033(b) Application for Certification..............................................................Error! Bookmark not defined. 2)EQUIPMENT TESTED..............................................................................................3 3)EQUIPMENT FUNCTION AND TESTING PROCEDURESERROR! BOOKMARK NOT DEFINED. 4)EQUIPMENT AND CABLE CONFIGURATIONSERROR! BOOKMARK NOT DEFINED. Conducted Emission Test Procedure...................................................................Error! Bookmark not defined. Radiated Emission Test Procedure......................................................................Error! Bookmark not defined. 5)LIST OF TEST EQUIPMENT........................ERROR! BOOKMARK NOT DEFINED. 6)UNITS OF MEASUREMENTS......................ERROR! BOOKMARK NOT DEFINED. 7)TEST SITE LOCATIONS..............................ERROR! BOOKMARK NOT DEFINED. 8)SUBPART B โ€“ UNINTENTIONAL RADIATORSERROR! BOOKMARK NOT DEFINED. Conducted EMI:.................................................................................................Error! Bookmark not defined. Radiated EMI:....................................................................................................Error! Bookmark not defined. Data: Conducted (6 Highest Emissions):...........................................................Error! Bookmark not defined. Data: Radiated (6 Highest Emissions) :.............................................................Error! Bookmark not defined. Summary of Results for Conducted Emissions:.................................................Error! Bookmark not defined. Summary of Results for Radiated Emissions:.....................................................................................................4 Statement of Modifications:...............................................................................Error! Bookmark not defined. 9)SUBPART C - INTENTIONAL RADIATORS............................................................4 15.203 Antenna Requirements.............................................................................Error! Bookmark not defined. Restricted Bands of Operation Per 15.205..........................................................Error! Bookmark not defined. Data 15.205:........................................................................................................................................................4 15.209 Radiated Emissions Limits; General Requirements...............................Error! Bookmark not defined. Radiated EMI:....................................................................................................Error! Bookmark not defined. Data 15.209:.......................................................................................................Error! Bookmark not defined. Summary of Results for Radiated Emissions:....................................................Error! Bookmark not defined. 15.249 Operation in the Band 902-928 MHz...................................................................................................5 Radiated Emissions of Intentional Radiator:.......................................................................................................6 Statement of Modifications:................................................................................................................................6 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.KEN-A-VISION Mfg., Co., Inc. 4405 W. 259th TerraceMODEL: Wireless Clip KitADDENDUM Report Louisburg, KS 66053Test #: 000504FCCID#: OEV-WIRELESS Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15c (15.249)Page 3 of 6 CERTIFICATION\KENAVISIONRF ModuleADDENDUM 05/04/2000 FORWARD: The following is submitted as an addendum to the test report used for consideration in obtaining a Grant of Certification for low power intentional radiators operated under CFR 47, paragraph 15.249. Name of Applicant: KEN-A-VISION MFG., CO., INC. 5615 Raytown Road Kansas City, MO 64133 Model: WIRELESS CLIP KIT FCC I.D.: OEV-WIRELESS Frequency Range: 905 MHz to 918 MHz Operating Power: 35.08 mV/m @ 3 Meters (90.9 dBฮผV/m @ 3 meters) 1)Equipment Tested EQUIPMENTMODEL/PART# FCC I.D. EUTWIRELESS CLIP KITOEV-WIRELESS VIDEO FLEXVideo FlexN/A Sample Calculations: RFS = Radiated Field Strength dBฮผV/m @ 3m = dBฮผV + A.F. - Amplifier Gain 25.0 + 32.6 - 25 = 32.6 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.KEN-A-VISION Mfg., Co., Inc. 4405 W. 259th TerraceMODEL: Wireless Clip KitADDENDUM Report Louisburg, KS 66053Test #: 000504FCCID#: OEV-WIRELESS Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15c (15.249)Page 4 of 6 CERTIFICATION\KENAVISIONRF ModuleADDENDUM 05/04/2000 2โ€ฆ

Text truncated - open the document above for the full version.

Contact Information

Applicant

Steve Dunn(Manager Operations)
[email protected]816-353-4787Fax: 816-358-5072

Technical Contact

Rogers Labs, IncScot D Rogers
[email protected]913 837-3214

4405 West 259th Terrace ยท Louisburg, Kansas ยท United States

Non-Technical Contact

Rogers Labs, Inc.Scot D Rogers
[email protected]913 837-3214

Test Firm

Rogers Labs, Inc.Scot Rogers
[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#Rule PartsFrequency RangePower Output
115C905 MHz - 918 MHz-
