OFHQV-7T-TXTour Guide System

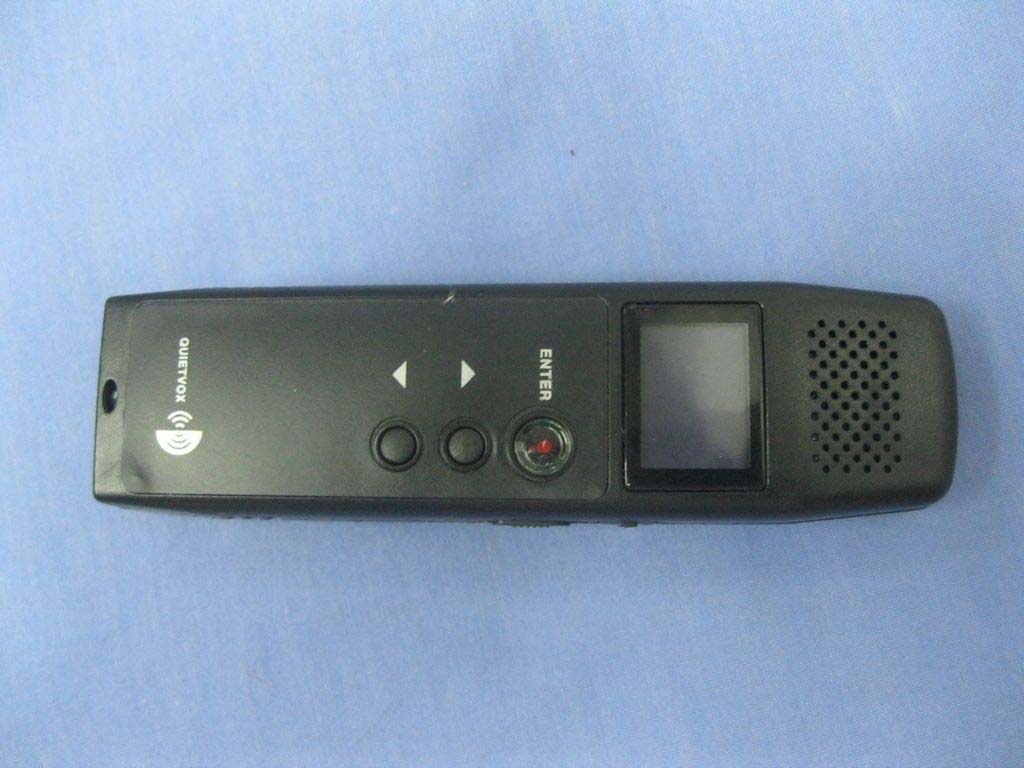

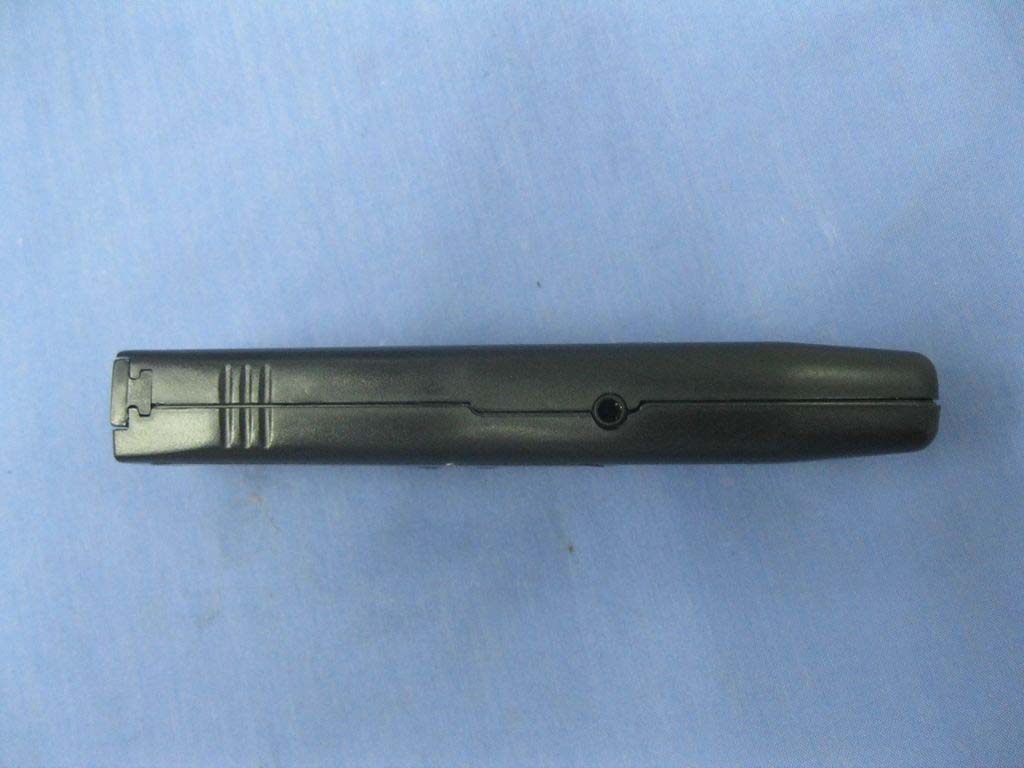

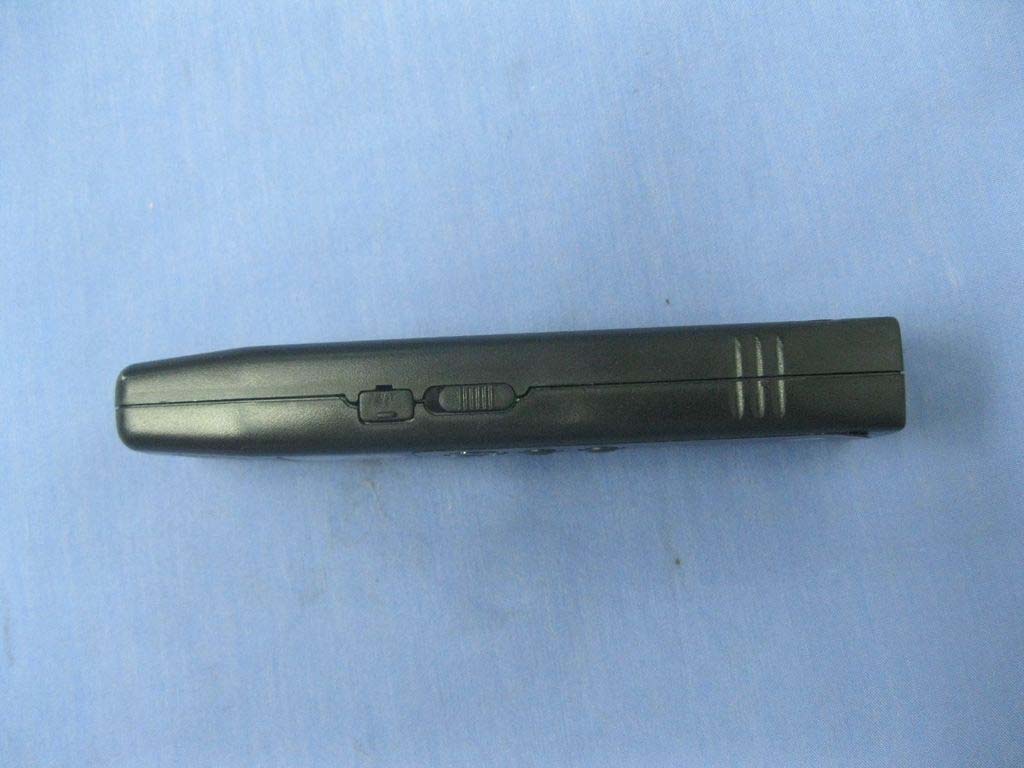

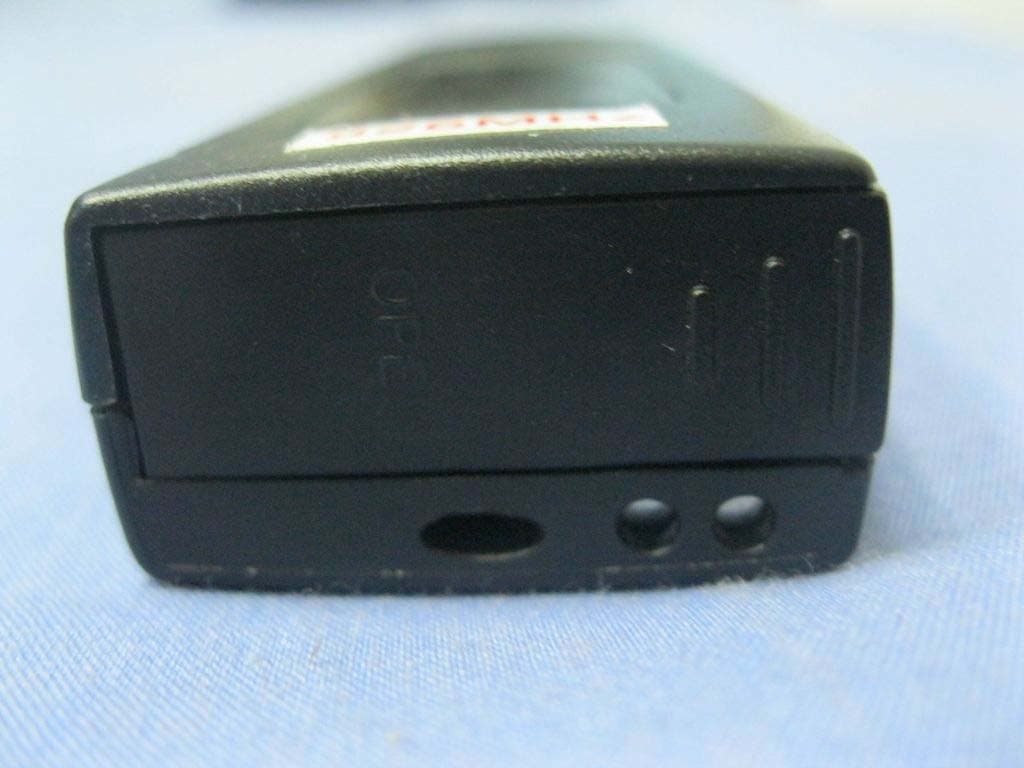

- 1 - QUIETVOX AG Sägereistrasse 20 CH-8152 Glattbrugg Switzerland http://www.quietvox.com Product Specifications QV -7T Series Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - 2 - Product Overview The QV 7T series product is designed specifically for the tour excursions and commercially named as Tour Guide System (TGS). The TGS consisting a low power transmitter which provides a one way communication addressing to multiple receivers operating on the same channel. FM Transmitter FM Receiver Model No. QVT197T Model No. QVR297T There are two versions available in the QVT7T series, the CE version and FCC version identifies by extension of the model number, color codes and display ID as per the following: 1) Model No. QVT197T864 Description : FM Transmitter, CE version, 40 Channels, 863.000~865.000MHz. Color Code : White Display ID : EU 1) Model No. QVR297T864 Description : FM Receiver, CE version, 40 Channels, 863.000~865.000MHz. Color Code : White Display ID : EU 1) Model No. QVT197T926 Description : FM Transmitter, FCC version, 40 Channels, 925.000~927.000MHz. Color Code : Red Display ID : US 1) Model No. QVR297T926 Description : FM Receiver, FCC version, 40 Channels, 925.000~927.000MHz. Color Code : Red Display ID : US - 3 - Initial setup The transmitter (Tx) and Receiver (Rx) must perform an initial setup prior to operation. The setup is simply program the corresponding channel number between the Tx and Rx. Setup the Tx 1) Press and hold the [\/] button and power up by sliding the [Power] switch located on the right side simultaneously as shown below: [ENTER] button [/\] button [\/] button [Power] on position 2) Release the [\/] button after powered, a screen similar to below is displayed: Channel number Operating Frequency Relative to EU or US versions “US”= FCC Version 926MHz “EU”= CE Version 864MHz 2) While the “>” cursor is pointing the Ch=xx, momentary press the [ENTER] button to adjust the channel selection 1~40 as shown below: 3) While the channel number is highlighted, press the [/\] button to increase or [\/]button to decrease. 4) Press the [ENTER] button once to exit channel selection when done. The“>”cursor should have moved back to most left position and channel highlighting is off. 5) Press the [\/] button once and move the “>”cursor next to “Exit”. 6) Press the [ENTER] button to exit channel selection and setting is saved. 7) Reset power of the Tx for normal operation. - 4 - Setup the Rx 1) Connect the external display to the bottom of the Rx as shown below: External display 2) Press and hold the [Volume Up] button and power up by sliding the [power switch] on the side. [Volume Down] [Power switch] up position to power. [Volume Up] 3) Release the [Volume UP] button and note that the display is on as shown below: US= FCC Version 926MHz EU= CE Version 864MHz Channel number Operating Frequency Relative to US or EU Versions 4) While the “>” cursor is pointing the Ch=xx, momentary press the [Volume Down] button to enter the channel selection as shown below: - 5 - 5) While the channel number is highlighted, press the [Volume Up] button to increase. 6) Press the [Volume Down] button once to exit channel selection when done. The“>”cursor should have moved back to most left position and channel highlighting is off. 5) Press the [Volume Up] button once and move the“>”cursor next to“Exit”. 6) Press the [Volume Down] button to exit channel selection mode and setting is saved. 7) Turn off the Rx and remove the external display. 8) Reset power of Rx for normal operation. Channel No. vs Operating Frequency 926MHz 864MHz Chan.No. Freq.MHz Chan.No. Freq.MHz 01 925.025 01 863.025 02 925.075 02 863.075 03 925.125 03 863.125 04 925.175 04 863.175 05 925.225 05 863.225 06 925.275 06 863.275 07 925.325 07 863.325 08 925.375 08 863.375 09 925.425 09 863.425 10 925.475 10 863.475 11 925.525 11 863.525 12 925.575 12 863.575 13 925.625 13 863.625 14 925.675 14 863.675 15 925.725 15 863.725 16 925.775 16 863.775 17 925.825 17 863.825 18 925.875 18 863.875 19 925.925 19 863.925 20 925.975 20 863.975 21 926.025 21 864.025 22 926.075 22 864.075 23 926.125 23 864.125 24 926.175 24 864.175 25 926.225 25 864.225 26 926.275 26 864.275 27 926.325 27 864.325 28 926.375 28 864.375 29 926.425 29 864.425 30 926.475 30 864.475 31 926.525 31 864.525 32 926.575 32 864.575 33 926.625 33 864.625 34 926.675 34 864.675 35 926.725 35 864.725 36 926.775 36 864.775 37 926.825 37 864.825 38 926.875 38 864.875 39 926.925 39 864.925 40 926.975 40 864.975 - 6 - Operating – Tx (Stand alone operation) 1) Turn the Tx to on by sliding the [Power Switch] to upward position. 2) Hold the Tx in vertical position to transmit, opposite to stop transmit. 3) Maintain a distance of about 5cm between the mouth and microphone for best result. The integrated microphone is located above the display as shown. Integrated Microphone Active Standby Transmit on Transmit off 5) Turn power to off when not in use. Operating – Tx (External Microphone) 1) Turn the Tx to on by sliding the [Power Switch] to upward position. 2) Connect the external microphone to the 3.5mm jack. 3) Switch the microphone switch to“ON”position to make commentary or“OFF”position to stop transmission. 4) Maintain a distance of about 5cm between the mouth and microphone for best result. 5) Turn power to off when not in use. External Microphone Microphone Switch - 7 - Operating – Rx 1) Turn the Rx to on by sliding the power switch to upward position. 2) Note that the Green LED is blinking signifies in standby condition. 3) Insert th…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 QUIETVOX AG Jul. 20, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ QUIETVOX AG hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Tour Guide System, model name: QV-7T Series, FCC ID: OFHQV-7T-TX We affirm that between SIEMIC and __ _ QUIETVOX AG __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Yingchun Tang / Manager Contact information / address: Sagereistrasse 20 CH-8152 Glattbrugg Switzerland

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 QUIETVOX AG Jul. 20, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: OFHQV-7T-TX We hereby request confidential treatment of information accompanying this application as outlined below: -Schematics - Detailed Block diagrams - Detailed Operational/Functional Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Yingchun Tang / Manager Contact information / address: Sagereistrasse 20 CH-8152 Glattbrugg Switzerland

FCC label information:

Report No. : EESZE06210019-2 Page 1 of 25 FCC TEST REPORT Product : Tour Guide System Trade mark : QUIETVOX Model/Type reference : QV-7T Series Serial Number : N/A Ratings : DC 3V FCC ID : OFHQV-7T-TX Report Number : EESZE06210019-2 Date : Jul. 20, 2012 Regulations : See below Prepared for QUIETVOX AG Sagereistrasse 20 CH-8152 Glattbrugg Switzerland Prepared by Centre Testing International Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3919 FAX: +86-755-3368 3385 Test Standards Results 47 CFR FCC Part 15 Subpart C 15.249: 2011 PASS Report No. : EESZE06210019-2 Page 2 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................... 3 2. TEST SUMMARY ........................................................................................................ 3 3. MEASUREMENT UNCERTAINTY .............................................................................. 3 4. TEST EQUIPMENT LIST ............................................................................................. 4 5. SUPPORT EQUIPMENT LIST .................................................................................... 4 6. PRODUCT INFORMATION ......................................................................................... 4 7. 20DB BANDWIDTH MEASUREMENT ........................................................................ 5 7.1 LIMITS ............................................................................................................ 5 7.2 BLOCK DIAGRAM OF TEST SETUP ............................................................ 5 7.3 TEST PROCEDURE ....................................................................................... 5 7.4 TEST RESULT ................................................................................................ 5 9. RADIATED EMISSIONS MEASUREMENT ................................................................ 8 9.1 LIMITS ............................................................................................................ 8 9.2 BLOCK DIAGRAM OF TEST SETUP ............................................................ 8 9.4 TEST RESULT .............................................................................................. 10 10. BAND EDGE EMISSION MEASUREMENT ............................................................ 20 10.1 LIMITS ........................................................................................................ 20 10.2 BLOCK DIAGRAM OF TEST SETUP ........................................................ 20 10.3 TEST PROCEDURE ................................................................................... 20 10.4 TEST RESULT ............................................................................................ 20 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ....................................................... 22 APPENDIX 2 PHOTOGRAPHS OF EUT ...................................................................... 23 (Note: N/A means not applicable) Report No. : EESZE06210019-2 Page 3 of 25 1. GENERAL INFORMATION The above equipment was tested by Centre Testing International for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart C and the measurement procedure according to ANSI C63.4:2003. 2. TEST SUMMARY The complete list of measurements is given below: No. Test Item Rule Result 1 20dB Bandwidth FCC 15.215(c) PASS 2 Radiated Emission FCC 15.209 FCC 15.249(a) (d) PASS 3 Out of Band Emission FCC 15.249 (d) PASS 4 Antenna Requirements * FCC 15.203 PASS *: According to Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The EUT has a built in antenna which is a short wire solder on the PCB, this is permanently attached antenna and meets the requirements of this section. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions 4.5 dB Applicant: QUIETVOX AG Sagereistrasse 20 CH-8152 Glattbrugg Switzerland Manufacturer: QUIITVOX Suite 2116, Block C, Huang Du plaza 3008, Yitian Road, Fu Tian District, Shenzhen Equipment Authorization: FCC Part 15 Certification FCC ID: OFHQV-7T-TX Product: Tour Guide System Trade mark: QUIETVOX Model/Type reference: QV-7T Series Serial Number: N/A Report Number: EESZE06210019-2 Date of Test: Jun. 25, 2012 to Jul. 20, 2012 Report No. : EESZE06210019-2 Page 4 of 25 4. TEST EQUIPMENT LIST Equipment Manufacturer Model Number Serial Number Due Date 3M Chamber & Accessory Equipment ETS-LINDGREN FACT-3 3510 07/09/2013 Spectrum Analyzer Agilent E4440A MY46185649 03/07/2013 TRILOG Broadband Antenna schwarzbeck VULB 9163 401 07/06/2013 Multi device Controller ETS-LINGREN 2090 00057230 N/A Horn Antenna ETS-LINGREN 3117 00057407 07/06/2013 Microwave Preamplifier Agilent 8449B 3008A02425 03/29/2013 Loop Antenna ETS-LINDGERN 6502 71730 07/06/2013 5. SUPPORT EQUIPMENT LIST No. Device Type Brand Model Series No. Data Cable Power Cord ---- ---- ---- ---- ---- ---- ---- 6. PRODUCT INFORMATION Operating frequency 925.025MHz – 926.975MHz Type of Modulation (ITU designation) 50KF3E Channel separation 50kHz Number of channels 40 Frequency stability 5ppm Antenna type and length Tx Micro strip integrated antenna, 1/4 Wave, Unity Gain. FM Deviation (Normal) 2.5kHz FM Deviation (Maximum) 5.0kHz Microphone (Internal and External) Electret Condenser Microphone, Impedance: <2.2kΩ Sensitivity: -55dB±3dB Transmitter control Up down directional on/off switch and Voice operated Duty Cycle - Class Continuous transmission possible Power supply Tx : 2 x AAA battery (1.5V Each) Report No. : EESZE06210019-2 Page 5 of 25 7. 20DB BANDWIDTH MEASUREMENT 7.1 LIMITS None 7.2 BLOCK DIAGRAM OF TEST SETUP 7.3 TEST PROCEDURE 1. The …
