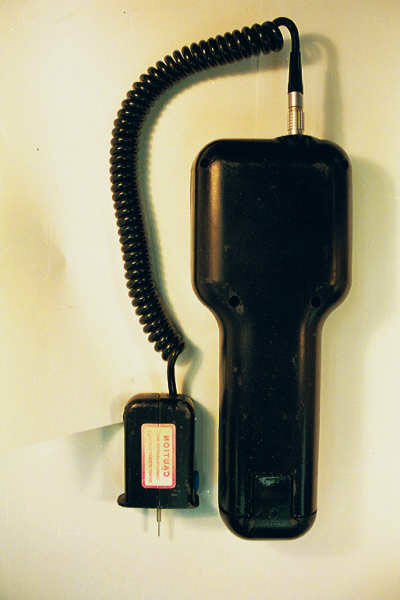

OFY-ACM-0001Audit Tire Survey Tools

March 1, 1999 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Maximum Permissible Exposure calculations for FCC ID: OFY-ACM-0001 To whom it may concern, ACM is submitting a low power transmitter for the Audit-Data and Audit-Air devices. The unit has a low power Transmitter that operates at 916.5 with a radiated output power of .025 mW. Assuming a worst case of no duty cycle. For an Isotropic radiator the surface area of a sphere can be used to determine the area over which the transmitter energy is radiated. Surface area of a sphere = 4*Π*radius 2 In this case where the antenna is an integral part of the unit and cannot be removed. The exposure level can be calculated as follows for the 1.0 dBi antenna gain: MPE distance = (output power*duty cycle*10(antenna gain/10)/(4*Π*Exposure Limit (mW/cm 2 ) 1/2 OFY-ACM-0001 MPE distance = (.025 mW*1*/4*3.14*1) 1/2 = .045 cm = .017 in If you have any questions please do not hesitate to call me. Sincerely, Chris Byleckie Technical Director Electronic Compliance Laboratories

A804006.DOC1 CFR Title 47 PartsCFR Title 47 Parts 15.249 Certification15.249 Certification FCC ID: OFY-ACM-0001FCC ID: OFY-ACM-0001 EMI TEST REPORTEMI TEST REPORT onon Audit Tire Survey Tools Audit Tire Survey Tools Prepared ForPrepared For Advanced Concepts Manufacturing Inc.Advanced Concepts Manufacturing Inc. 325 Paul Avenue Suite 80325 Paul Avenue Suite 80 St. Louis, MO 63135St. Louis, MO 63135 TEL: (314)524-9870TEL: (314)524-9870 FAX: (314)524-9877FAX: (314)524-9877 Prepared byPrepared by Electronic Compliance Laboratories, Inc.Electronic Compliance Laboratories, Inc. Test Report Number: A901007Test Report Number: A901007 Date of Test: April 1, 1998Date of Test: April 1, 1998 If this document is reproduced, it must be reproducedIf this document is reproduced, it must be reproduced in its entirety.in its entirety. A804006.DOC 2 Table of Contents 1.0 Certification of Compliance ........................................................................3 2.0 General Information .....................................................................................4 3.0 Test Facility....................................................................................................5 4.0 Test equipment..............................................................................................5 5.0 Data Reporting Format..................................................................................6 6.0 Detector Functions........................................................................................6 7.0 Frequency Range of Investigation...............................................................6 8.0 FCC Class Types...........................................................................................7 9.0 FCC Limits.....................................................................................................8 10.0 Test Methods...............................................................................................9 11.0 Labeling Requirements...............................................................................11 12.0 Summary of Measurements........................................................................12 APPENDIX A Restricted Band Data....................................................................14 APPENDIX B Radiated Emissions......................................................................16 APPENDIX C Antenna Drawing...........................................................................20 APPENDIX D Set-up Photos................................................................................22 A804006.DOC 3 1.0 Certification of Compliance Description:Audit Tire Survey Tools – Tire inspection system consisting of: - Air Audit Tool - Data Audit Tool - Tread Audit Tool Serial Number: Prototype Applicant: Advanced Concepts Manufacturing, Inc. Type of Test: FCC-15, Class A ( Certification) part 15.249 Date of Test: January 11 and 26 th , 1999 Tested By:Suresh Kondapalli The above equipment was tested by Electronic Compliance Laboratories, Inc. and found to be in compliance with the requirements set forth in the FCC Rules and Regulations, Part 15, Subpart C (15.203, 15.205, 15.209, 15.249). The equipment, in the configuration described in this report, shows that the maximum emission levels emanating from this equipment are within the compliance requirements. ____________________________________ Chris ByleckieDate Technical Director A804006.DOC 4 2.0 General Information Applicant:Advanced Concepts Manufacturing, Inc. 325 Paul Ave. Suite 80 St. Louis, MO 63135 Contact Person: Tim Pace Equipment Under Test: Audit Tire Survey Tolls Serial Number: Prototype FCC ID#:OFY-ACM-0001 Report Number: A901007 Date of Test: January 11 and 26, 1999 Manufacturer: Advanced Concepts Manufacturing, Inc. Type of Test:FCC part 15, Subpart C, (15.203, 15.205, 15.209, 15.247), Class A Digital Device. Frequency Range:30 MHz to 1000 MHz - Radiated Emissions, Class A 902 MHz to 928 MHz - part 15.249 Up to the 10th harmonic of the fundamental (9270 MHz) part 15.35(a) Summary Pass/Fail: Passed 15.209 Radiated Emissions: The Audit Tire Survey Tools met all the requirements for Part 15.209 Class A limit. See Appendix D for Data Sheet and plots. 15.249 Operation within the 902 - 928 MHz band: The Audit Tire Survey Tools met all the requirements for 15.249. See attached data and plots in Appendix A and Appendix B. A804006.DOC 5 3.0 Test Facility Name:Electronic Compliance Laboratories Location:1249 Birchwood Drive Sunnyvale, CA 94089 Site Filing:A site description is on file at the Federal Communications Commission P.O. Box 429 Columbia, MD 21045 Types of Sites:Open Field Radiated and Indoor (Screen Room). Line Conducted: All sites are constructed and calibrated to meet ANSI C63.4-1994 requirements. Test facility is recognized by the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. NVLAP Code:20089 effective through: March 31, 1999 4.0Test Equipment The following list contains equipment used at EC Laboratories, Inc. for compliance testing. The equipment conforms to the American National Standard Specifications for Electromagnetic Interference and Field Strength Instrumentation from 10 kHz to 1000 MHz. DescriptionManufacturerS/NModel No.Cal. Due Date EMI ReceiverHP3325A001378456A5/3/99 Pre-ampHP313A068298447F5/10/99 Pre-ampHP3008A005278449B4/5/99 LISNEM2532ANS-25/26/12/99 Spectrum AnalyzerHP3137A011838563A5/22/99 PlotterHP2644V003657470AN/A Power MeterHP2342A07307435B4/4/99 Power SensorHPN/A8482A4/12/99 Biconical AntennaEM677EM-69123/3/99 Log-Periodic AntennaEM858EM-69504/18/99 Horn AntennaEM6231RGA-606/6/98 1.2 - 4GHz FilterFSY001HM1160-11SS3/25/99 4 - 10 GHz FilterFSY001HM2950-15SS3/25/99 10 - 18 GHz FilterFSY001HP8601-7SS3/25/99 HP = Hewlett Packard EM = Electro Metrics The antenna used at the time the data was taken is indicated on each data page. The an…
