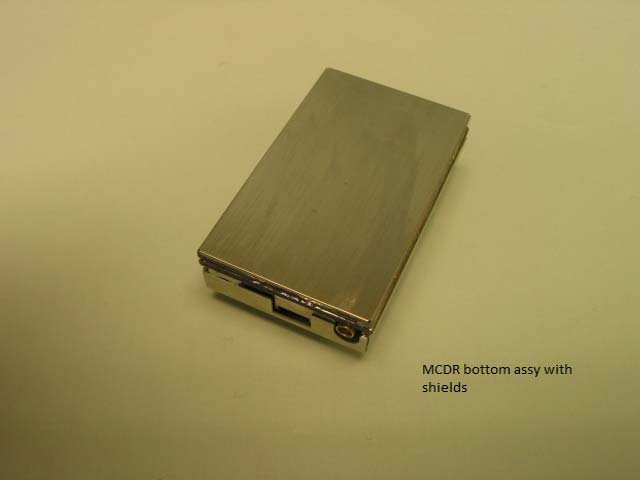

OGEQTIMIDSLBMCDRMODULAR RECEIVER

QTI Page 1 of 15 Revision: C Form #: 30Z0266 Effective Date: 5 October 2012 9409 E. 55th Pl. S. • Tulsa, OK 74145 • Ph: (918) 622-7052 • Fax: (918) 664-8557 M M C C D D R R I I N N S S T T R R U U C C T T I I O O N N M M A A N N U U A A L L MCDR Multi-Channel Data Receiver P/N 10D1068-L, M, H All rights reserved. No part of this book may be reproduced or utilized in any form or by any means, electronic or mechanical, without the prior written permission of Qual-Tron, Inc. QTI Page 2 of 15 Revision: C Form #: 30Z0266 Effective Date: 5 October 2012 MCDR Instruction Manual Table of Contents Section 1: MCDR Multi-Channel Data Receiver ................................................................. 3 Description .................................................................................................................................................. 3 Model Numbers (3 models) ......................................................................................................................... 3 Design Features ........................................................................................................................................... 4 Physical Characteristics ............................................................................................................................... 4 Section 2: MCDR Operation .................................................................................................. 5 Start Up ........................................................................................................................................................ 5 Receiving ..................................................................................................................................................... 6 Items Required ............................................................................................................................................. 6 Setup ............................................................................................................................................................ 6 RF Link ........................................................................................................................................................ 6 Section 3: FCC RF Exposure Limits ..................................................................................... 6 Caution ........................................................................................................................................................ 6 Section 4: Serial Interface ....................................................................................................... 6 Message Serial Format ................................................................................................................................ 7 Status Code Table ........................................................................................................................................ 8 Command List ............................................................................................................................................. 9 Checksum .................................................................................................................................................... 12 Example Checksum ..................................................................................................................................... 13 Section 5: Maintenance ........................................................................................................... 14 Operator Maintenance ................................................................................................................................. 14 Depot Maintenance ...................................................................................................................................... 14 Equipment Storage ...................................................................................................................................... 14 Warranty ...................................................................................................................................................... 14 Return Procedures ....................................................................................................................................... 14 Troubleshooting Guide ................................................................................................................................ 14 Section 6: Frequency/Channel Calculations ......................................................................... 15 Channel to Frequency Calculation .............................................................................................................. 15 Frequency to Channel Calculation .............................................................................................................. 15 HISTORY Revision Changes Date C Corrected max channels from 600 to 640. Removed transmitting references 10/05/2012 B Updated Figure 2. Corrected mechanical layout J2 location 08/16/2012 A Added updated images 05/30/2012 O/I Original Issue 04/20/2012 QTI Page 3 of 15 Revision: C Form #: 30Z0266 Effective Date: 5 October 2012 Section 1: MCDR Multi-Channel Data Receiver Description The Multi-Channel Data Receiver (MCDR) is an OEM modular modem for users who need low power and small size with serial communications. The MCDR is a smaller version of the MCDT-R and is fully compatible. The MCDR is equipped with a RS-485 communications port which is a simple, low- cost interface, utilizing few components and allows for daisy-chaining multiple receivers. The MCDR is capable of receiving SEIWG-005 data messages, which includes a distinct ID and a status code, over a selectable frequency range. This frequency is selectable via the synthesizer control circuit, providing a selection of up to 1920 RF channels, depending on the model’s fr…

Text truncated - open the document above for the full version.

QTI Page 5 of 15 Revision: C Form #: 30Z0266 Effective Date: 5 October 2012 Section 2: MCDR Operation Using the settings provided in Section 3: Serial Interface, open a serial communication program such as HyperTerminal and supply power to the MCDR. A USB to RS485 cable is available that can connect directly to the MCDR. The USB port from a computer is capable of powering the MCDR. Start Up When the MCDR is initially powered on, a “BL<CR>” output string is sent to indicate the opportunity for entering the “Boot Loader” mode. The ability to enter the boot loader mode will timeout after 1 second. The next serial output that is sent after the BL timeout indicates the reason for the reset or restart. It can be one of the following messages: "PWR-ON RST", "EXT RST PIN", "COP RST", "ILLEGAL OP RST", "ICG RST", "LVD RST", or "UNKNOWN RST". After the reset message, the version information is sent “MCDR 029A 003G<CR>” for example. (See the VER command for the description). NOTE: The “BL” (Boot Loader) response provides the opportunity to enter the programming mode for one (1) second at start up. Sending a “P” (no “<CR>”) will enter the firmware upgrade mode and could cause the firmware to be erased. Therefore, the user is advised not to send any characters to the unit, especially not a character “P” followed by a character “Y” to the MCDR before the version information is received. Figure 2. MCDR Receiver FCC ID Label Location

FCC PART 15 B SUBPART B RECEIVER TEST REPORT Applicant Qual-Tron, Inc. Address 9409 E. 55h PLACE SOUTH TULSA OK 74145-8157 USA FCC ID OGEQTIMIDSLBMCDR Product Description MODULAR RECEIVER Date Tested 11/10/2013 Tested By NAM NGUYEN Approved By MARIO R DE ARANZETA Report Number 343UT13TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 2 of 10 rev 2 mdea 09.20.2008 TABLE OF CONTENTS GENERAL REMARKS....................................................................................................................... 3 REPORT SUMMARY ........................................................................................................................ 4 TEST ENVIRONMENT ...................................................................................................................... 4 TEST SETUP SUMMARY .................................................................................................................. 4 DUT SPECIFICATION ...................................................................................................................... 5 TEST EQUIPMENT LIST................................................................................................................... 6 TEST PROCEDURES ....................................................................................................................... 7 RADIATED SPURIOUS EMISSIONS .................................................................................................. 8 POWER LINE CONDUCTED INTERFERENCE ................................................................................... 9 RADIATED EMISSIONS TEST SETUP PHOTO ................................................................................ 10 APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 3 of 10 rev 2 mdea 09.20.2008 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 2/25/13 APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 4 of 10 rev 2 mdea 09.20.2008 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) Pt 15.109, Pt 15.107, ANSI C63.4: 2003 Related Report None TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ºC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 5 of 10 rev 2 mdea 09.20.2008 DUT SPECIFICATION DUT Description MODULAR RECEIVER FCC ID OGEQTIMIDSLBMCDR DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Laboratory Test Conditions Temperature: 26ºC Humidity: 55% Modifications to DUT: No Yes (explanation below) APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 6 of 10 rev 2 mdea 09.20.2008 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 10/28/11 10/28/13 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 10/28/11 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 10/28/11 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 10/28/11 10/28/13 Antenna: Biconnical Eaton 94455-1 1057 05/31/11 05/31/13 Antenna: Biconnical Eaton 94455-1 1096 05/04/11 05/04/13 Antenna: Biconnical Electro- Metrics BIA-25 1171 06/13/12 06/13/14 Antenna: Log- Periodic Eaton 96005 1243 05/31/11 05/31/13 Antenna: Log- Periodic Electro- Metrics LPA-25 1122 05/04/11 05/04/13 LISN Electro- Metrics ANS-25/2 2604 10/28/11 10/28/13 LISN Electro- Metrics EM-7820 2682 02/01/11 02/01/13 Signal Generator HP 8640B 2308A21464 02/23/12 02/23/14 APPLICANT: Qual-Tron, Inc. FCC ID: OGEQTIMIDSLBMCDR REPORT: Q\Qual_OGE\343UT13\343UT13TestReport.doc Page 7 of 10 rev 2 mdea 09.20.2008 TEST PROCEDURES Power line conducted Emission: The test procedure used was ANSI C63.4-2003. The spectrum was scanned from 0.15 to 30 MHz. Radiation Interference: The test procedure used was ANSI C63.4-2003 using a spectrum …
