VOSTEK ELECTRONICS AUDIO/VIDEO TRANSMITTER MX 3000 FOR ISM BAND 2.4 GHz FCC ID: OGR-MX3000 USER’S MANUAL 1 CONTENTS: 1. BLOCK DIAGRAM FOR MX 3000......................................PAGE 3 2. TRANSMITTER INFO / INTRODUCTION...........................PAGE 4 3. TECHNICAL CHARACTERISTICS....................................PAGE 5, 6 4. FREQUENCY ALLOCATION / SETTINGS. ........................PAGE 7 5. FCC LABELING / INSTRUCTIONS....................................PAGE 8, 9 6. INTERNAL PHOTOS.......................................................PAGE 10 7. NOTE TO MANUFACTURERS WHO EMPLOYS OUR WIRELESS MODULE MX-3000..................................PAGE 11 2 BLOCK DIAGRAM MX-3000 FILTER / FINAL AMPLIFIER STAGE ANTENNA PLL SYNTHESIZER / REFERENCE OSCILLATOR 4 MHz VCO / MIXER AUDIO AMPLIFIER AUDIO INPUT MICRO - PROCESSOR CONTROLLER / FREQUENCY SETTINGS VIDEO PREEMPHASIS FILTER VIDEO INPUT Thank you for your purchase of the VOSTEK ELECTRONICS’ MX 3000 Video Transmitter Module. The MX 3000 is part of a series of innovative low power Video transmitters. MX 3000 can be used for various applications in custom Wireless Video Transmission systems, including Wireless Video Surveillance Systems, fully duplex, remote video monitoring equipment. A practical application for these Video Transmitters includes law enforcement and security applications. They have been employed by the military, in research, by industry, and in a variety of recreational applications both mobile and fixed. The Instruction Manual contains information’s MX 3000 and provides service details, alignment instruction and schematic diagram for this transmitter. 3 2.4 GHz AUDIO/ VIDEO TRANSMITTER MX 3000 MX 3000 is a smallest Audio/ Video transmitter for 2,4 GHz and measures only 1.5” X 1” X 0.3”. It is fully synthesized 8 channels PLL unit, made for SECURITY applications, testing and experiments! This transmitter has built a preemphasis filter for the best picture quality! Power supply is 9 -12 V/ 140 m A. The video level can be adjusted with the potentiometer on the board. VRX 24 L receiver is matching unit for this transmitter. It comes with a full 1-year warranty. The antenna connector is an SMA type. The range can be increased using the special high gain antennas. Sound is excellent quality with a microphone built-in. Recommended receiver is VRX 24L (PART 15 FCC rules). Recommended antenna for the transmitter is a small dipole 0 dBi or less for a short range or directional high gain antenna up to 14 dBi. Two channels have been in use: 2452 MHz and 2481 MHz. FEATURES: • SIZE: 1.5” X 1” X 0.3”. • BATTERY POWERED 9 V – 12V • CURRENT CONSUMPTION 140mA/12V • MODULATION WFM ( 0-6 MHz) • SOUND CARRIER 6 MHz 25 kHz deviation • MICROPROCESSOR FREQUENCY 4 MHz • HIGH STABILITY • TWO CHANNELS IN 2.4 GHz RANGE • TEMPERATURE RANGE –40 +75*C • BUILT-IN PREEMPHASIS FILTER • VIDEO INPUT 1V PEP/75 ohm • AUDIO INPUT 8 mV (microphone input) • OPTIONAL EXTERNAL ANTENNA (SMA connector) • BROADCAST QUALITY PICTURE • REVERSE POLARITY PROTECTED • MATCHING RECEIVER VRX 24L • FCC PART 90 APPROVED • 1 Y WARRANTY Model No: MX 3000 WARRANTY VOID IF MODIFIED! MAX. VOLTAGE ALLOWED 12.6 V! 4 MX 3000 TECHNICAL INFORMATION: Operating Distance 3000 ft line of sight (US / Canadian version), more or less depending on conditions, antennas used, elevation, etc. Government & Export version will have considerably more range. Operating Frequency 2300 MHz – 2500 MHz in 8 user selectable channels. Up to 8 systems may be used in the same area simultaneously with VRX 24L receiver. According to FCC rules only channels 7 and 8 can be used. Frequency 2452 MHz and 2481 MHz. Transmission Type FM, Crystal referenced, synthesized phase locked loop. Frequency controlled by microprocessor. Crystal reference 4 MHz. Frequency stability (-40 to +75º`C, ± 0.003% Radiated power (US & Canadian version) Spurious & harmonic response < 50dBc Video System NTSC or PAL Video level (internally adjustable) 1.0 Volt p-p into 75 Ohms Impedance 75 Ohms Video deviation ± 6 MHz (adjustable from ± 1 to ± 5 MHz) Antenna US/Canada: 0-14 dB gain. Flexible helical type (Rubber Duck), or PANEL (YAGI) SMA male connector Audio Modulation Type FM Maximum deviation ± 25 kHz System signal to noise ratio at 50kHz deviation 65 dBA Pre & deemphasis 75μ Second Audio Input & Outputs All dB figures referenced to 0 dB = 0.774Vrms Microphone input level (full gain to minimum gain) -37 dB to -6 dB for ± 50 kHz deviation (5 mV) Microphone input impedance 2k Ohms Power for Electret microphones (switchable) +9 VDC @ 1mA max. Line input impedance 10k Ohms 5 Frequency response at 20 dB below full deviation 40 Hz to 15 kHz +1, -3 dB, 60 Hz to 10 kHz ± 1 dB (Option: may be extended to -3 @ 30kHz.) Total harmonic distortion (before limiting) 0.5% at 400 Hz (0.25% typical) Audio Carrier frequency 6.0 MHz Audio Carrier level 25 dB bellow the carrier Power 9 V-12 VDC Nominal. See below for details. Transmitted power levels, current consumption and maximum voltage Type of Transmitter: CVT-1000 Transmitted Power Levels Current Consumption / Maximum Voltage US & Canada version 135 mA / 9.0V Max POWER AMP VERSION Government & Export version Mechanical Size 1.5" X 1" X 0.3" Weight 8 grams With antenna 11 grams Connectors Power & Audio N/A Video IN RCA male 75 Ohm Antenna SMA Environmental Operating temperature -40ºC to +60ºC Storage temperature -40ºC to +70ºC (-40ºF to + 158ºF) Humidity (non-condensing) 90% 6 FREQUENCY SETTINGS AND POWER UP: Powerup At powerup, the unit will retrieve the last used channel, program the PLL with this channel, and display the channel by blinking the LED the same number as the channel number 7 or 8. Displaying Current Channel Push button is located on the board. To display the current channel, press the pushbutton once and release. The current channel will blink. After approx. 5 seconds, the current channel will again blink. Changing to a New Channel / Frequency allocation / Important message to users To change…

Text truncated - open the document above for the full version.

Required additional info: Per FCC TCB request, please provide us the following information. 1. Shrinking tube enclosure: The shrinking tube if an RF shielding which is used to replace to shielded can as per FCC Modular Approval Requirement. Please find the data sheet below: 2. Please find the labeling instruction to OEM Manufacturer who employs your product in their system on Page 11 of the Revised Users Manual. 3. Compliance with Part 90.203(e) is stated on Page 7 of the Revised Users Manual. 4. Part 2.1033(c)(8): Please, provide the dc voltages applied to and dc currents for the final state amplifier specified in the SGA-6586 Data Sheet. From VOSTEK ELECTRONICS RPO 60043, 1032 PAPE AVE TORONTO, ONT M4K 3Z3 TEL. 416 423-0882 Vasco B Here is the additional info required by TCB: 1. Product Heat shrink tube used for our unit MX 3000 is made by ALPHA. Information are listed bellow: Explanation: Dielectric "Any insulating material between two conductors, which permits electrostatic attraction and repulsion to take place across it." Volume Resistivity "The electrical resistance between opposite forces of a one cm. cube of insulating material, commonly expressed in ohms-centimeter." CONTINUES: 2. Revised user manual in PDF form sent to Ultratech labs. Required info can be find on page 11 in revised manual for MX 3000 wireless audio/video transmitter 2.4 GHz- information about using a label for OEM manufacturers who using our module MX 3000. 3. Attestation showing compliance with this section, that the user cannot or does not have any control to change channels outside the authorized frequency band can be find in revised manual on page 7. 4. DC voltages applied to and DC currents into the several elements of the final radio frequency amplifying device for normal operation over the power range, as specify in this section are supplied . Also revised schematic diagram of the unit MX-3000 that contains same information provided as well. Amplifier final stage in MX-3000 is using a state-of-the-art small signal amplifier made by Sirenza Microdevices model SGA 6586. The exciter stage is using a 5 V regulator on the board that guarantees normal operation of the unit and stable driving. Also an attenuator is supplied in between strip-line filters- combination of resistors R15, R16 and R17 that make an excellent low power driving to amplifier stage free of unwanted emissions. Resistor R18 controls bias of the final amplifier stage. Higher or lower supply voltage won’t change the normal operation of the unit required by FCC rules. Electrical Properties: ƒ Dielectric Strength: 400V/mil (158 kV/cm) ƒ Volume Resistivity : 10 11 ohm-cm SPECIFICATIONS: ƒ MIL-I-23053/2C, Class 1* ƒ UL Standard 224 ƒ CSA Standard 198 ƒ Passes UL VW-1 Flame Test ƒ Passes CSA OFT Flame Test Please do if you need any additional info do not hesitate to ask us, we will be more then happy to help. Regards For Vostek electronics Vasco Bjelica RF eng. Designer

Date of report: OKT 22. 03. Toronto, Ont FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: VOSTEK ELECTRONICS Product: AUDIO / VIDEO TRANSMITTER 2.4 GHz Model: MX 3000 FCC ID: OGR-MX 3000 Dear Sir/Madam, VOSTEK ELECTRONICS would like to request that the schematic diagrams, system block diagrams, parts list and operational description, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact us by our telephone number: 416 423-0882 Mon – Fri 8 am – 3 pm ET Yours truly, For Vostek electronics Mr.Vasco Bjelica, RF Eng. Designer

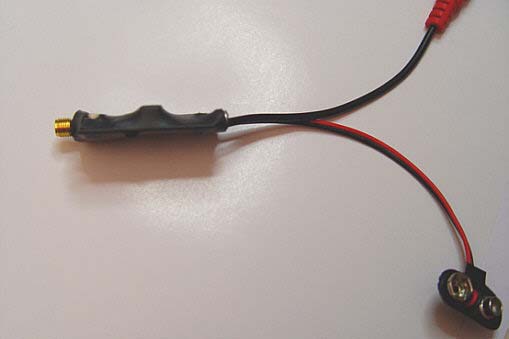

ANNEX 2 – EXTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 1 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000 ANNEX 2 – EXTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 2 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000 ANNEX 2 – EXTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 3 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000 ANNEX 2 – EXTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 4 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000

FCC ID Label & its Location Vostek Audio/Video Transmitter, Model MX3000 FCC ID: OGR-MX3000 FCC ID Label & its Location Vostek Audio/Video Transmitter, Model MX3000 FCC ID: OGR-MX3000

ANNEX 3 – INTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 1 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000 ANNEX 3 – INTERNAL PHOTOGRAPHS OF EQUIPMENT UNDER TESTS PHOTO # 2 Audio/Video Transmitter, Mode l MX3000 FCC ID: OGR-MX3000

FREQUENCY SETTINGS AND POWER UP FOR MX 3000: Powerup At powerup, the unit will retrieve the last used channel, program the PLL with this channel, and display the channel by blinking the LED the same number as the channel number 7 or 8. Displaying Current Channel Push button is located on the board. To display the current channel, press the pushbutton once and release. The current channel will blink. After approx. 5 seconds, the current channel will again blink. Changing to a New Channel / Frequency allocation To change to a new channel, press the pushbutton once and release. The current channel will blink. Press and release the pushbutton again before 5 seconds has elapsed and the channel will increment by 1 and the LED will blink the new channel. Repeat this step until the desired channel is reached, waiting for the blinking to stop each time before pressing the button again. Once your desired channel is reached (7 or 8), wait 5 seconds until the LED again blinks your desired channel. Your new channel is now saved in memory. Channels 7 and 8 have been in use FREQUENCIES: 2450 MHz and 2481 MHz

RF EXPOSURE REQUIREMENTS @ 1.1310 & 2.1091 FCC INFO: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC ID: MODEL: MX 3000 VOSTEK ELECTRONICS

Oct. 23, 2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 USA Subject: Type Acceptance Application under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Licensed Non-Broadcast Radio Transmitter Operating in the 2450-2483.52 MHz Band Applicant: Vostek Electronics Product: Audio/Video Transmitter Model: MX3000 FCC ID: OGR-MX3000 Dear Sir/Madam, As appointed agent for Vostek Electronics, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to TIMCO website. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Oct. 23, 2003 Vostek Electronics P.O. BOx 60043 1032 Pape Ave. Toronto, Ontario Canada M4K 3Z3 Attn.: Vasco Bjelica Subject: Certification Testing in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Licensed Non-Broadcast Radio Transmitter Operating in the 2450-2483.52 MHz Band Product: Audio/Video Transmitter Model: 1000 Dear Mr. Bjelica, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Licensed Non-Broadcast Radio Transmitter Operating in the 2450-2483.52 MHz Band , and the results and observation were recorded in the engineering report, Our File No.: VOS-09FCC90 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Audio/Video Transmitter Model No.: MX3000 FCC ID: OGR-MX3000 Applicant: Vostek Electronics P.O BOX 60043 1032 Pape Ave. Toronto, Ontario M4K 3Z3 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, PARTS 2 and 90 (Subpart I) UltraTech's File No.: VOS-09FCC90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Oct. 23, 2003 Report Prepared by: Tri Luu Issued Date: Oct. 23, 2003 Tested by: Hung Trinh, EMI/RFI Technician Test Dates: Oct. 20 - 22, 2003 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Parts 2 & 90, Subpart I, Licensed Non-Broadcast Radio Transmitter Contents i Audio/Video Transmitter, Model MX3000 FCC ID: OGR-MX3000 ULTRATECH GROUP OF LABS File #: VOS-09FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Oct. 23, 2003 Tel.: 905-829-1570, Fax. : 905-829-8050 All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................... 1 EXHIBIT 2. INTRODUCTION................................................................................................ 2 2.1. SCOPE ........................................................................................................................................ 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................. 2 2.3. NORMATIVE REFERENCES ................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT................................................................ 3 3.1. CLIENT INFORMATION.......................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................ 3 3.3. EUT’S TECHNICAL SPECIFICATIONS................................................................................... 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS 5 4.1. CLIMATE TEST CONDITIONS ............................................................................................... 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ............ 5 EXHIBIT 5. SUMMARY OF TEST RESULTS................................................................. 6 5.1. LOCATION OF TESTS.............................................................................................................. 6 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ............................. 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ...... 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS 7 6.1. TEST PROCEDURES ................................................................................................................ 7 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................... 7 6.3. MEASUREMENT EQUIPMENT USED ................................................................................... 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ....... 7 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205( L)] ........................................................................ 8 6.5.1. Limits @ FCC 90.205(l).......…
