OGZKR-400Handheld two way radio

Handheld two way radio FCC ID : OGZKR‐400 Brand: KLUTCH RADIO Model : KR-400 Frequency Range： 400-470MHz 3065 Silver Dr Columbus OH 43224 www.KlutchRadio.com SAFETYTRAINING INFORMATION Yo u r Klutch Radio LLC radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your Klutch Radio LLC radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:  FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.  American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.  American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave.  The following accessories are authorized for use with this product. Use of accessories other than those (listed in the instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure. To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines:  DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio.  DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch.  ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the HYT belt-clip which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. T he information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as‐sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Klutch Radio LLC radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Occupational/Controlled Use The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure.

July 3, 2012 PHOENIX TESTLAB GmbH Koenigswinkel 10 D‐32825 Blomberg， Germany Subject: FCC ID: OGZKR-400 Attestation statement that the end user can’t tune the transmitter. Gentlemen; The equipment meets the requirements of the FCC Rules, Part 90.203(e) and (g), as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personal. The operator cannot be program transmit frequencies using the equipment’s external operation controls. Klutch Radio LLC Mike Miller/G.M.

July 3, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: OGZKR-400 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5:Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Klutch Radio LLC Mike Miller/G.M.

July 3, 2012 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 Subject: FCC ID: OGZKR‐400 Justification Letter for Expanded Frequency Range 400‐470 MHz Gentlemen; You have asked Klutch Radio LLC for justification to have the freq range 400‐470 MHz appears on the face of the FCC Grant of Certification for a Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) Klutch Radio LLC’s Marketing Department plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands 400‐406 MHz, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in 400‐406 MHz frequency range. Sincerely, Klutch Radio LLC Mike Miller/G.M.

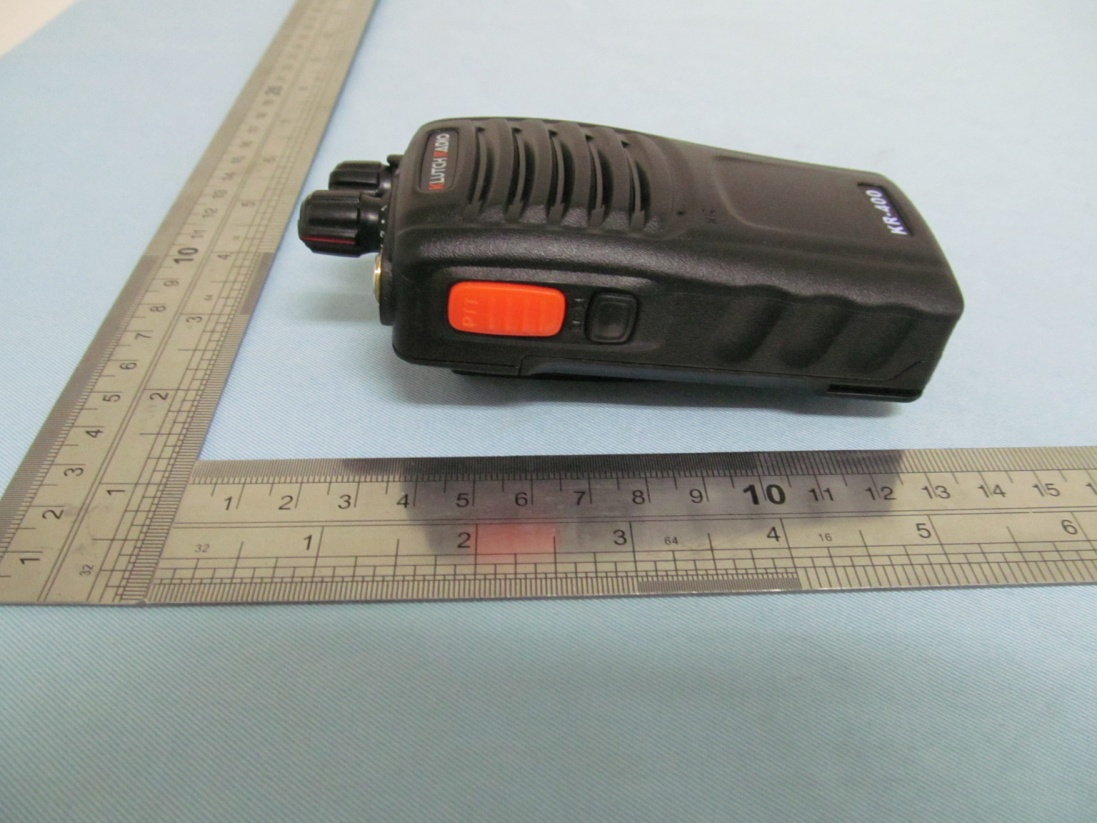

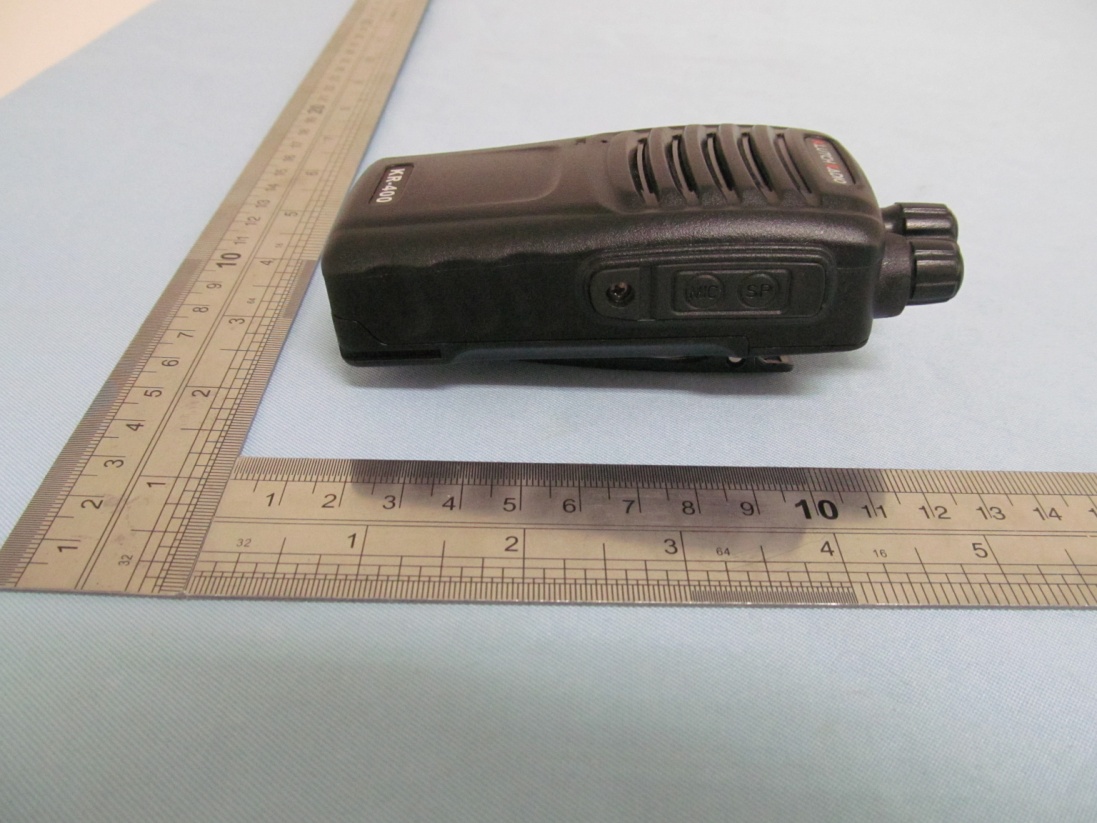

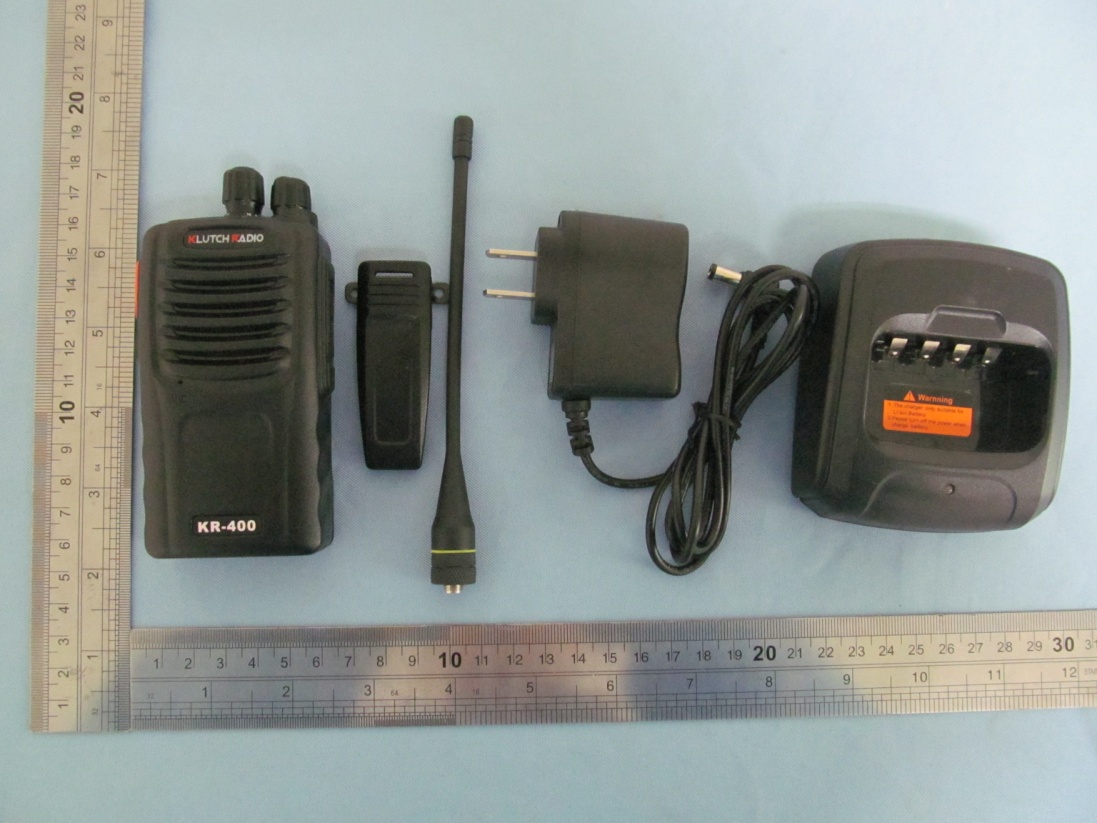

TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Product Name FCC RF Warning Label Handheld two way radio FCC ID : OGZKR‐400 Brand: KLUTCH RADIO Model : KR-400 Frequency Range： 400-470MHz

SAR Test Report Report No.: AGC20N120601S1 FCC ID : OGZKR‐400 Product Designation : Handheld two way radio Brand Name : KLUTCH RADIO Model Name : KR‐400 Client : Klutch Radio LLC Date of Issue : Jun. 26, 2012 STANDARD(S) : FCC Oet65 Supplement C June 2001 IEEE Std. 1528‐2003,47CFR § 2.1093 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Applicant Applicant Manufact Manufact Product N Brand Na Model Na EUT Volta Applicabl Te s t D a te Te s t R e su Performe t Name t Address turer Name turer Addres Name ame ame age e Standard e ults ed Location Test : Klu : 306 : Klu ss : 306 : Han : KLU : KR : DC : FCC IEE : Ju n : M A Hea Bod : Att e 2F, Gu s Tested Checke d Authorize t Repo tch Radio LL 65 Silver Driv tch Radio LL 65 Silver Driv ndheld two w UTCH RADI -400 C 7.5V,1500m C Oet65 Su EE Std. 1528 n. 26, 2012 AX SAR MEA ad: 2.854 W dy: 7.119 W/ estation of G Building 2 shu, Xixiang By d By ed By ort Ce LC ve Columbus LC ve Columbus way radio O mA by batter pplement C 8-2003,47CF ASUREMEN W/Kg /Kg (Scaling Global Comp 2, No.1-No. g Street, Bao Angela L Forrest L Solger Zh a ertifica s, Ohio 4322 s, Ohio 4322 ry June 2001 FR § 2.10 NT(1g) g SAR= 7.61 pliance (She 4, Chaxi S o'an District Li Ju Lei Ju ang Ju Report N ation 24 USA 24 USA 93 1 W/Kg) enzhen)Co., Sanwei Tech , Shenzhen, un. 26, 2012 un. 26, 2012 un. 26, 2012 No.: AGC20 Pa with 50% d with 50% d Ltd. hnical Indus , China 2 2 2 0N120601S1 age 1 of 60 uty cycle uty cycle strial Park, 1 Report No.: AGC20N120601S1 Page 2 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................................... 4 1.1. EUT DESCRIPTION .................................................................................................................................... 4 1.2. TEST PROCEDURE ................................................................................................................................... 4 1.3. TEST ENVIRONMENT ................................................................................................................................ 4 2. SAR MEASUREMENT SYSTEM ............................................................................................................................................ 5 2.1. COMOSAR SYSTEM DESCRIPTION ......................................................................................................... 5 2.1.2. AREA SCANS ........................................................................................................................................... 6 2.1.3. ZOOM SCAN (CUBE SCAN AVERAGING) .............................................................................................. 6 2.2.1. ISOTROPIC E-FIELD PROBE SPECIFICATION ..................................................................................... 7 2.3 ROBOT ........................................................................................................................................................ 7 2.4. VIDEO POSITIONING SYSTEM ................................................................................................................. 8 2.5. DEVICE HOLDER ....................................................................................................................................... 8 2.6. ELLIPTIC PHANTOM .................................................................................................................................. 9 3. TISSUE SIMULATING LIQUID ............................................................................................................................................ 10 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ..................................................................................... 10 3.2. TISSUE CALIBRATION RESULT .................................................................................................................................... 10 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ........................................................... 11 4. SAR MEASUREMENT PROCEDURE ............................................................................................................................... 12 4.1. SAR SYSTEM VALIDATION ..................................................................................................................... 12 4.1.1. VALIDATION DIPOLES .......................................................................................................................... 12 4.1.2. VALIDATION RESULT ............................................................................................................................ 13 4.2. SAR MEASUREMENT PROCEDURE ...................................................................................................... 14 5. SAR EXPOSURE LIMITS .................................................................................................................................................... 15 6. TEST EQUIPMENT LIST ...................................................................................................................................................... 16 7. MEASUREMENT UNCERTAINTY ....................................................................................................................................... 17 8. CONDUCTED POWER MEASUREMENT .......................................................................................................................... 18 9. TEST RESULTS .................................................................................................................................................................... 19 9.1. SAR TEST RESULTS SUMMARY .............................................................................…

Text truncated - open the document above for the full version.

FCC Part 90 Test Report Report No.: AGC20N120601F1 TEST NAME : FCC Part 90 FCC ID : OGZKR‐400 PRODUCT DESIGNATION : Handheld two way radio BRAND NAME : KLUTCH RADIO TEST MODEL NAME : KR‐400 CLIENT : Klutch Radio LLC DATE OF ISSUE : Jun. 25, 2012 STANDARD(S) : FCC Part 90 Rules Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC20N120601F1 Page 1 of 52 VERIFICATION OF COMPLIANCE Applicant: Klutch Radio LLC 3065 Silver Drive Columbus, Ohio 43224 USA Manufacturer: Klutch Radio LLC 3065 Silver Drive Columbus, Ohio 43224 USA Product Description: Handheld two way radio Brand Name: KLUTCH RADIO Model Name: KR-400 File Number: AGC20N120601F1 Date of Test: Jun. 12 ,2012to Jun. 21, 2012 We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003 and TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 90 requirements. The test results of this report relate only to the tested sample identified in this report. Tested By Bart Xie Jun. 25, 2012 Reviewed By Forrest Lei Jun. 25, 2012 Approved By Solger Zhang Jun. 25, 2012 Report No.: AGC20N120601F1 Page 2 of 52 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................. 4 1.1 PRODUCT DESCRIPTION ....................................................................................................................... 4 1.3 TEST METHODOLOGY ........................................................................................................................... 5 1.4 TEST FACILITY ........................................................................................................................................ 5 1.5 SPECIAL ACCESSORIES ....................................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS ............................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ................................................................................. 6 2.1 EUT CONFIGURATION ............................................................................................................................ 6 2.2 EUT EXERCISE ........................................................................................................................................ 6 2.3 GENERAL TECHNICAL REQUIREMENTS............................................................................................. 6 2.4 CONFIGURATION OF TESTED SYSTEM ............................................................................................. 6 3. SUMMARY OF TEST RESULTS .................................................................................... 7 4. DESCRIPTION OF TEST MODES .................................................................................. 8 5. CONDUCTED LIMITS ..................................................................................................... 9 5.1 PROVISIONS APPLICABLE .................................................................................................................... 9 5.2 MEASUREMENT PROCEDURE .............................................................................................................. 9 5.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 10 5.4 TEST EQUIPMENT USED ..................................................................................................................... 10 5.5 TEST RESULT ........................................................................................................................................ 11 6. FREQUENCY TOLERANCE ......................................................................................... 13 6.1 PROVISIONS APPLICABLE .................................................................................................................. 13 6.2 MEASUREMENT PROCEDURE ............................................................................................................ 13 6.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 14 6.4 TEST EQUIPMENT USED: .................................................................................................................... 14 6.5 TEST RESULT ........................................................................................................................................ 14 7. EMISSION BANDWIDTH .............................................................................................. 17 7.1 PROVISIONS APPLICABLE .................................................................................................................. 18 7.2 MEASUREMENT PROCEDURE ............................................................................................................ 18 7.3 TEST SETUP BLOCK DIAGRAM .......................................................................................................... 18 7.4 MEASUREMENT EQUIPMENT USED: ................................................................................................. 18 7.5 MEASUREMENT RESULT: .................................................................................................................... 19 8. UNWANTED RADIATION ............................................................................................. 20 8.1 PROVISIONS APPLICABLE ..............................................................................…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST SETUP RADIATED TEST SETUP
