OH360981000002Radio Control Toy Transmitter (2.4GHz)

www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 9 of 17 1.6 User Manual www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 10 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 11 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 12 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 13 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 14 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 15 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 16 of 17 www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 17 of 17

Page 1 / 1 GUANGDONG SHANTOU CHENGHAI HUAJUN AEROMODELLING PLASTIC TOYS FACTORY ADD:MEIHUA PUMEI GUANGYI CHENGHAI SHANTOU GUANGDONG CHINA To Whom It May Concern: Please be advised that Applicant Name: GUANGDONG SHANTOU CHENGHAI HUAJUN AEROMODELLING PLASTIC TOYS FACTORY Address: MEIHUA PUMEI GUANGYI City: CHENGHAI SHANTOU Country: GUANGDONG CHINA authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: Manager

Page 1 / 1 GUANGDONG SHANTOU CHENGHAI HUAJUN AEROMODELLING PLASTIC TOYS FACTORY ADD:MEIHUA PUMEI GUANGYI CHENGHAI SHANTOU GUANGDONG CHINA Applicant Name: GUANGDONG SHANTOU CHENGHAI HUAJUN AEROMODELLING PLASTIC TOYS FACTORY Address: MEIHUA PUMEI GUANGYI City: CHENGHAI SHANTOU Country: GUANGDONG CHINA Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: OH360981000002 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: Manager Date: 2015.6.26

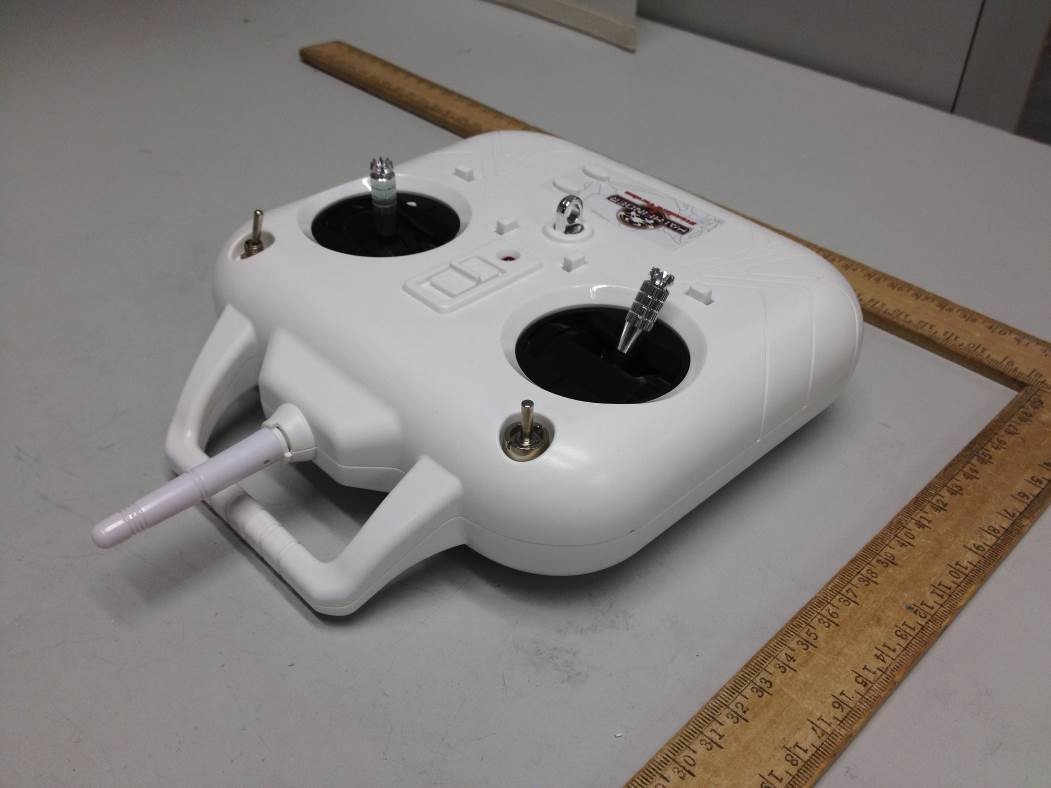

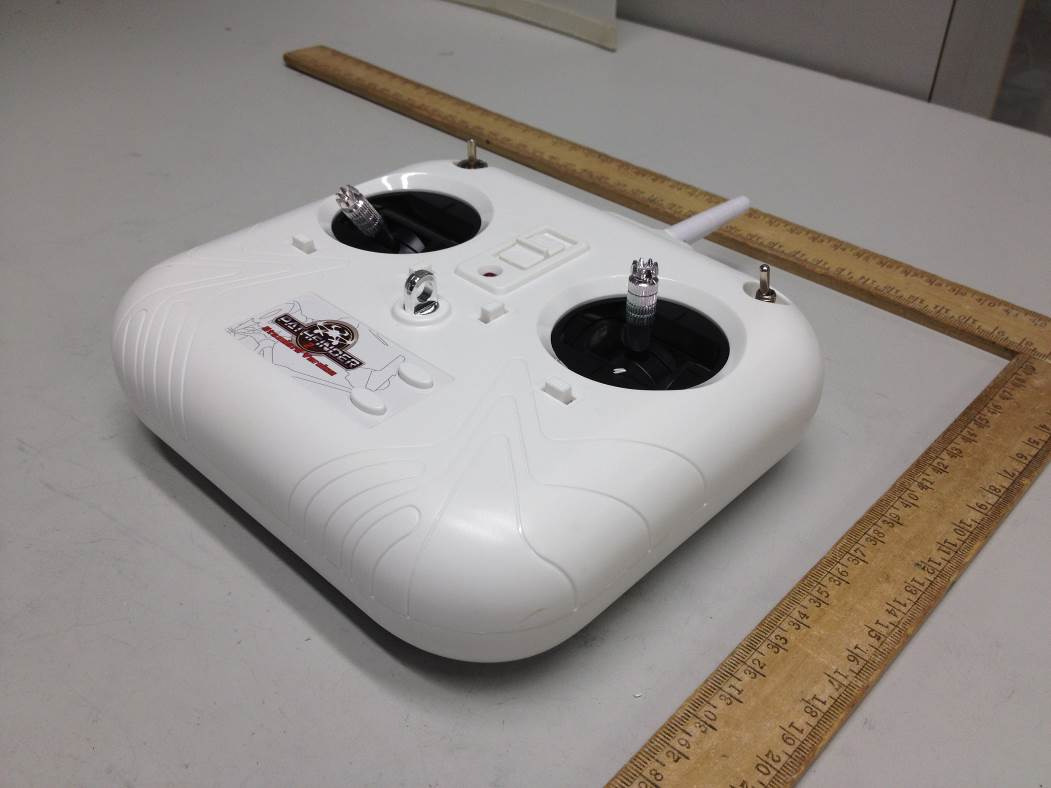

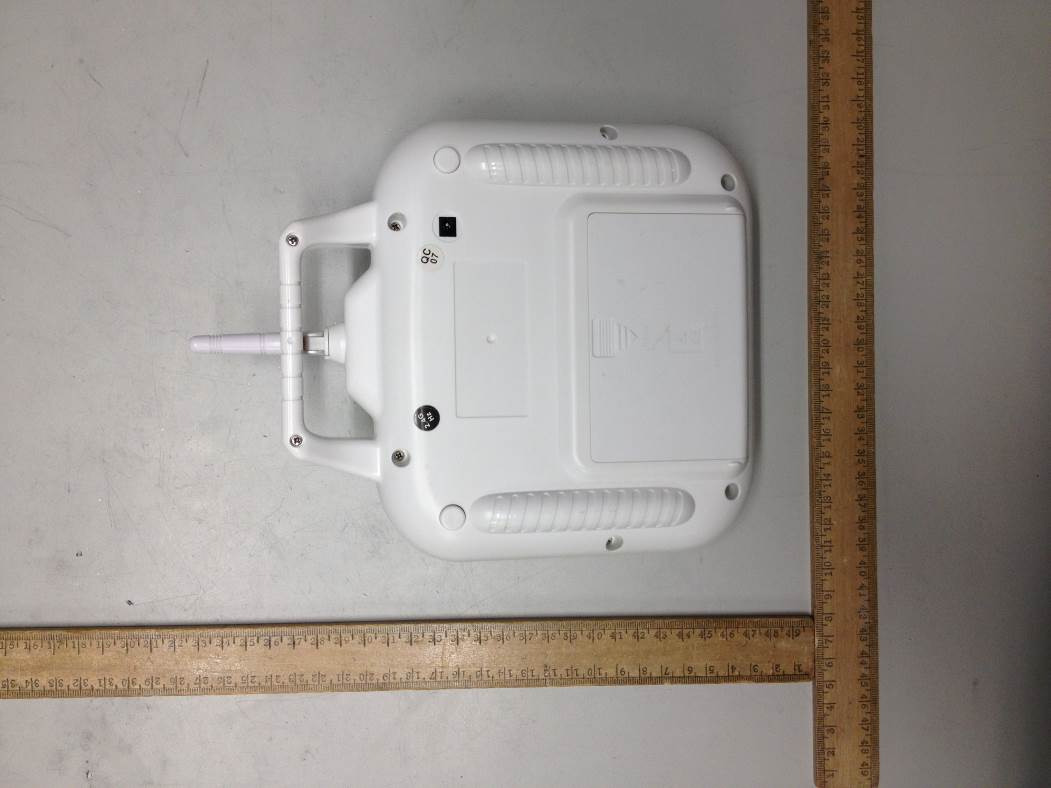

www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 2 of 11 External View External View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 3 of 11 External View External View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 4 of 11 External View

www.tuv.com Test Report No.: 14040276 001 Appendix 4 page 2 of 17 1.1 FCCID Label Artwork

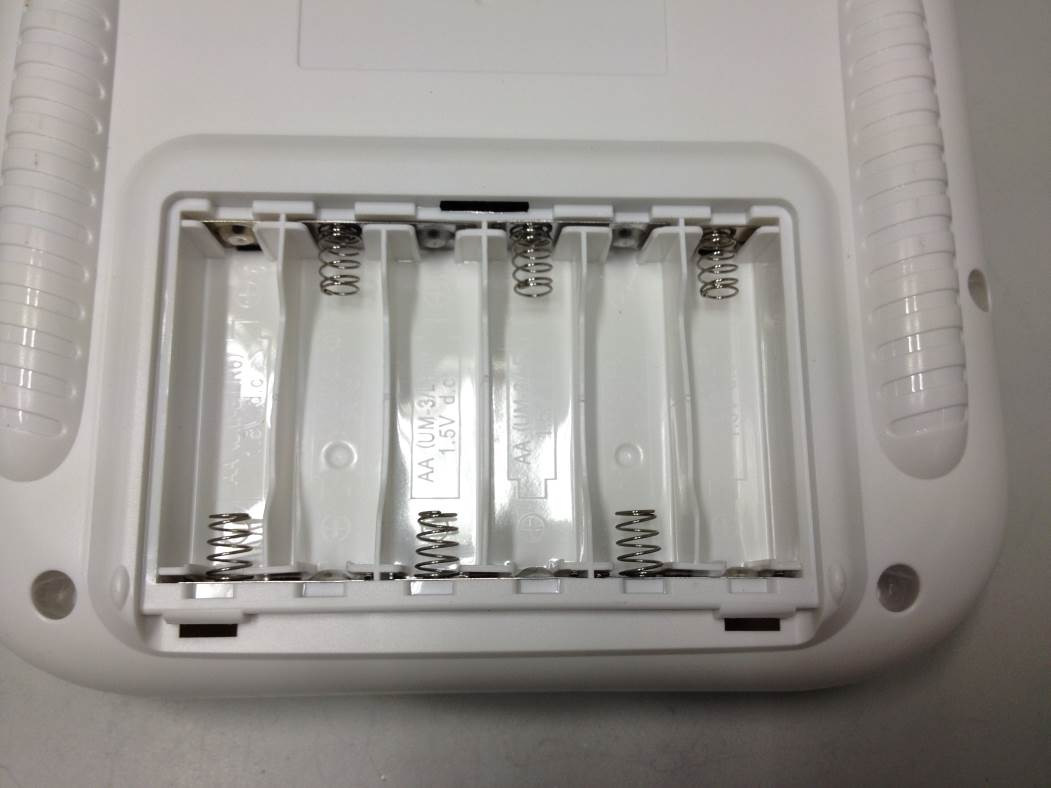

www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 5 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 6 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 7 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 8 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 9 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 10 of 11 Internal View Internal View www.tuv.com Test Report No.: 14040276 001 Appendix 3 page 11 of 11 Internal View

www.tuv.com Test Report No.: 14040276 001 Date: 31.08.2015 page 2 of 9 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ......................................................... N/A ........... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................. Pass ........... 6 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ........................... Pass ........... 6 Subclause 15.249(d) – Spurious Emissions – Band edge ................................................. Pass ........... 8 Subclause 15.249 (d) – Emissions radiated outside of the specified frequency bands . Pass ........... 9 Appendix 1 – Test Results 3 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 11 pages Appendix 4 – Product documentation 17 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14040276 001 Date: 31.08.2015 page 3 of 9 Product information Manufacturers declarations Transmitter Operating frequency range 2410 - 2474 MHz Type of modulation GFSK Number of channels 65 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage 6.0 V Product function and intended use The equipment under test (EUT) is a radio control transmitter operating at 2.4GHz. It is powered by battery only. FCCID: OH360981000002 Models Product description W908-1, W908-2, W908-3, W908-4, W908-5, W908-6, W908-7, W908-8, W908-9, W808-1, W808-2, W808-3, W808-4, W808-5, W808-6, W808-7, W808-8, W808-9, W608-1, W608-2, W608-3, W608-4, W608-5, W608-6, W608-7, W608-8, W608-9, W609-6, W609-7, W609-8, W505-1, W505-2, W505-3, W505-4, W505-5, W505-6, W505-7, W505-8, W505-9, W506-1, W506-2, W506-3, W506-4, W506-5, W506-6, W506-7, W506-8, W506-9, W508-1, W508-2, W508-3, W508-4, W508-5, W508-6, W508-7, W508-8, W508-9, W509-1, W509-2, W509-3, W509-4, W509-5, W509-6, W509-7, W509-8, W509-9 Radio Controlled Toy Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: Nil www.tuv.com Test Report No.: 14040276 001 Date: 31.08.2015 page 4 of 9 Independent Operation Modes The basic operation mode is transmitting control signal for the RC drone. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14040276 001 Date: 31.08.2015 page 5 of 9 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. interval Last cal. 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 2 year 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- N/A N/A ESU EMI Test Receiver R&S ESU26 --- 1 year 08 Jun 2015 Loop Antenna Zhinan ZN30900A --- 1 year 08 Jun 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 1 year 09 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 1 year 09 Mar 2015 RF Amplifier HP 8347A --- 1 year 08 Jun 2015 RF Amplifier HP 8349B --- 1 year 08 Jun 2015 EMI Test Software AUDIX E3 --- 1 year N/A Coaxial cable GTS N/A --- 1 year 08 Jun 2015 Coaxial Cable GTS N/A --- 1 year 08 Jun 2015 Thermo meter N/A N/A --- 1 year 08 Jun 2015 Spectrum Analyzer Rohde & Schwarz FSP30 100007 1 year 12 Jan 2015 www.tuv.com Test Report No.: 14040276 001 Date: 31.08.2015 page 6 of 9 Results FCC Part 15 – Subpart C Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.215 (c) – 20 dB Bandwidth Pass Test Specification : ANSI C63.4 – 2009 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz Supply voltage : 9.0VDC, 6 x 1.5V AA size new battery Temperature : 23ºC Humidity : 50% Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Results: For test protocols refer to Appendix 1, page 2-3. Frequency (MHz) 20 dB left (MHz) Limit (MHz) 20 dB right (MHz) Limit (MHz) 2410 2409.000 > 2400 2411.220 < 2483.5 2442 2440.930 > 2400 2443.190 < 2483.5 2474 2472.980 > 2400 2475.280 < 2483.5 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics Pass Test Specification : ANSI C63.4 – 20…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14040276 001 Appendix 1 page 1 of 3 Appendix 1 Test Results www.tuv.com Test Report No.: 14040276 001 Appendix 1 page 2 of 3 20dB Bandwidth Tx frequency: 2410MHz Ref 10 dBm 2.41056 GHz Att 40 dB 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz 2.41056 GHz A 2.41056 GHz 1 PK 2.41056 GHz MAXH 2.41056 GHz Center 2.41 GHz 2.41056 GHz Span 5 MHz 2.41056 GHz 500 kHz/ 2.41056 GHz * 2.41056 GHz RBW 100 kHz 2.41056 GHzVBW 300 kHz 2.41056 GHz SWT 2.5 ms 2.41056 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.41056 GHz 1 Marker 1 [T1 ] -8.63 dB m 2.410560000 GHz 2 Delta 2 [T1 ] -20.08 dB -1.560000000 MHz 3 Delta 3 [T1 ] -20.12 dB 660.000000000 kHz MARKER 1 2.41056 GHz Comment: test print Date: 11.AUG.2015 10:41:23 Tx frequency: 2442MHz Ref 10 dBm 2.44258 GHz Att 40 dB 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz 2.44258 GHz A 2.44258 GHz Center 2.442 GHz 2.44258 GHz Span 5 MHz 2.44258 GHz 500 kHz/ 2.44258 GHz * 2.44258 GHz RBW 100 kHz 2.44258 GHzVBW 300 kHz 2.44258 GHz SWT 2.5 ms 2.44258 GHz 1 PK 2.44258 GHz MAXH 2.44258 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.44258 GHz 1 Marker 1 [T1 ] -4.91 dBm 2.442580000 GHz 2 Delta 2 [T1 ] -21.85 dB -1.650000000 MHz 3 Delta 3 [T1 ] -20.55 dB 610.000000000 kHz MARKER 1 2.44258 GHz Comment: test print Date: 11.AUG.2015 10:37:16 www.tuv.com Test Report No.: 14040276 001 Appendix 1 page 3 of 3 Tx frequency: 2474MHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz 2.47464 GHz A 2.47464 GHz * 2.47464 GHz RBW 100 kHz 2.47464 GHzVBW 300 kHz 2.47464 GHz SWT 2.5 ms 2.47464 GHz 1 PK 2.47464 GHz MAXH 2.47464 GHz Ref 20 dBm 2.47464 GHz Att 50 dB 2.47464 GHz Center 2.474 GHz 2.47464 GHz Span 5 MHz 2.47464 GHz 500 kHz/ 2.47464 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.47464 GHz 1 Marker 1 [T1 ] 4.22 dBm 2.474640000 GHz 2 Delta 2 [T1 ] -20.81 dB -1.660000000 MHz 3 Delta 3 [T1 ] -22.01 dB 640.000000000 kHz MARKER 1 2.47464 GHz Comment: test print Date: 11.AUG.2015 10:04:08

www.tuv.com Test Report No.: 14040276 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14040276 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBuV/m) Output power (mW) 2.410 78.07 0.0192 2.442 86.41 0.1313 2.474 90.20 0.3141 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.0192/5)* √2.410 = 0.0060 <3.0 (0.1313/5)*√2.442 = 0.0410 <3.0 (0.3141/5)*√2.474 = 0.0988 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14040276 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14040276 001 Appendix 2 page 3 of 3 Setup for radiated emission
