OHA1225TRNSCVR

Applied Technology Solutions, Inc.
DSS - Part 15 Spread Spectrum Transmitter - FCC ID OHA1225TRNSCVR - Applied Technology Solutions, Inc.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Feb 28, 2000
Application Purpose
Original Equipment
Date of Application
Apr 05, 1999
Frequency Range
925.00000000 - 925.00000000
Company
Applied Technology Solutions, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—
β†—
β†—
β†—
β†—
β†—

Cover Letter(s)

β†—
β†—
β†—
β†—
β†—

ID Label/Location Info

β†—
β†—

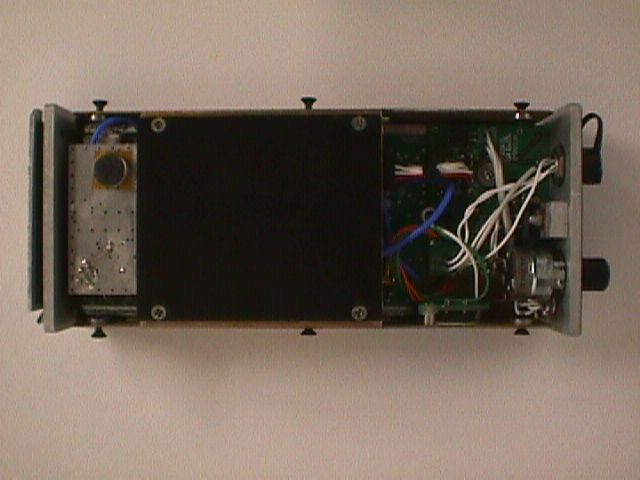

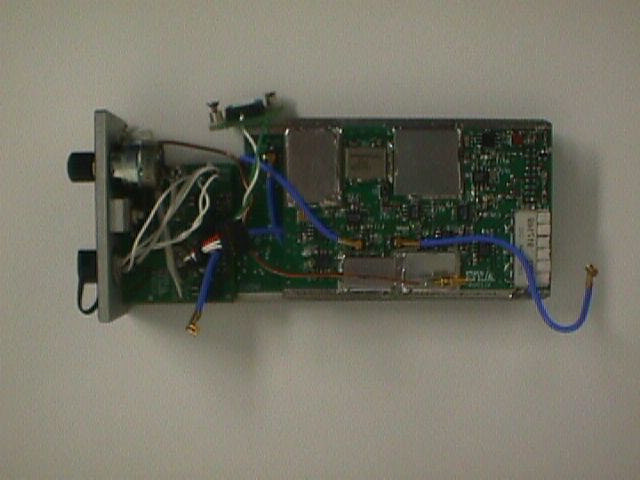

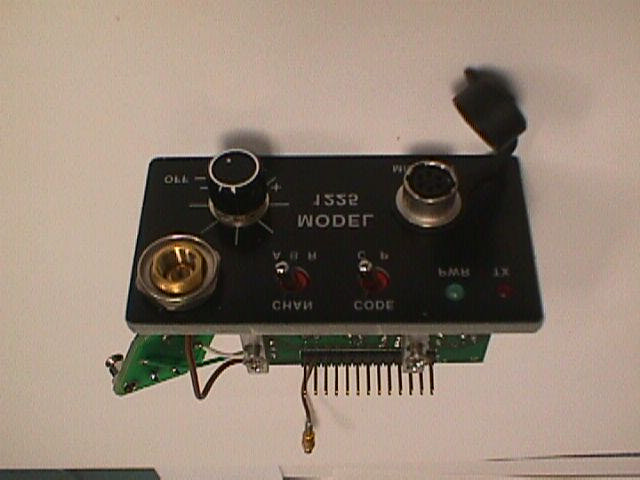

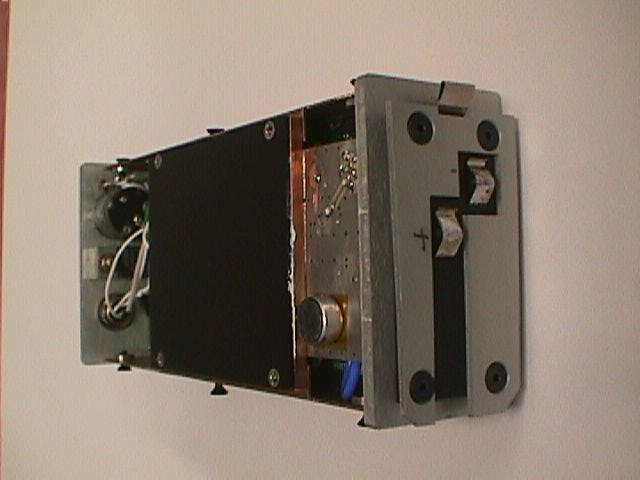

Internal Photos

β†—

Operational Description

β†—

RF Exposure Info

β†—

Schematics

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

A A T T APPENDIX G: USER’S MANUAL A A T T MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 This manual contains information proprietary to Applied Technology Solutions, Inc. and may not be re-produced without expressed permission. A A T T Document: FCC1225manual.wpdissued: jan99 revised:(original)page: iii MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised:(original)page: iv TABLE OF CONTENTS SECTIONTITLEPAGE ONEINTRODUCTION......................................................................................................................1 1.0GENERAL.................................................................................................................................1 1.1SPECIFICATIONS.....................................................................................................................1 1.2CONTROLS, INDICATORS, USER I/O....................................................................................3 TWOOPERATION.............................................................................................................................4 2.0GENERAL.................................................................................................................................4 2.1ATS 1200 SYSTEM COMPONENTS.........................................................................................4 2.2MODEL 1225 OPERATION......................................................................................................4 2.3BATTERY.................................................................................................................................5 2.4PRIVACY CODES.....................................................................................................................5 THREETHEORY OF OPERATION.......................................................................................................6 3.0GENERAL.................................................................................................................................6 3.1FUNCTIONAL DESCRIPTION.................................................................................................6 3.1.1Audio/Digital Section....................................................................................................6 3.1.2RF/IF Section................................................................................................................7 3.2RF CHARACTERISTICS...........................................................................................................8 FOURMAINTENANCE.......................................................................................................................9 4.0TROUBLESHOOTING..............................................................................................................9 4.1MAINTENANCE.......................................................................................................................9 4.2REPAIRS...................................................................................................................................9 APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised:(original)page: 1 SECTION ONE INTRODUCTION 1.0GENERAL This document is the Operating Manual for the Model 1225 Hand Held Transceiver produced by Applied Technology Solutions, Inc. The Model 1225 is one component of the Voice Privacy Low Probability of Detection (VPLPD) System 1200. Other System 1200 components include the Model 1245 Monitor System and the Series 1250 Transmitters. The System 1200 uses spread spectrum modulation to provide secure, low probability of detection and interception communications to the user. The transmitted voice data is scrambled with a user selected key, to provide voice privacy and an additional level of security. The System 1200 employs an ATS proprietary self- synchronizing design. This design provides nearly instantaneous receiver synchronization and provides improved performance over other spread spectrum designs in a rapid fade, multi-path environment. The Model 1225 Hand Held Transceivers can be used for direct communications with other System 1200 devices. 1.1SPECIFICATIONS The specifications for the Model 1225 Transceiver follow. Unless otherwise noted all specifications are at 25 o C with full capacity batteries. APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised:(original)page: 2 RF CHARACTERISTICS RF Channels:2, Crystal Controlled Normal Mode:Transmit/Receive Channel A or B Repeater Mode:Transmit Channel A, Receive on Channel B Transmit Power Output:900 mW Emissions Spurious:-55 dBc Out Of Band:-20 dBc Freq. Stability:+100 ppm -25 o C to +68 o C Receive Sensitivity:-95 dBm Selectivity Adjacent Channel:-65 dB Spurious & Image:-85 dB Antenna System Antenna:Β½ Wavelength, flexible RF Output Compatibility:50 Ω AUDIO CHARACTERISTICS Frequency Response:+ 6 dB, 300 - 5800 Hz Microphone:Internal or external Mic Audio Processing:Dual Time Constant AGC Dynamic Range:55 dB, Minimum Speaker:Internal or Remote Rated Audio Output:400mW into 16 Ω (less than 5% distortion) Remote Speaker/Mic:Model 1230-04 VOICE DATA SCRAMBLING Type: Synchronous Key Stream Key Generation:External, Hand Held, Model 1260 Key Loader Key Storage:Internal, non-volatile memory Number of Keys:Two sets, Private and Common USER CONTROLS On-Off/Volume Channel (Mode) Select Code Select PTT INDICATORS Power/Battery Low Transmit POWER REQUIREMENTS Battery Pack:1200 mAh, Nickel Cadmium, rechargeable (1800 mAh available) TEMPERATURE Operating:-25 o C to +68 o C Storage:-40 o C to +85 o C PHYSICAL DIMENSIONS Less Battery:6.25" x 2.75" x 1.50" (HxWxD), 1lbs. With 1200 mAh battery:8.625" x 2.75" x 1.5" (HxWxD), 1lbs. APPLIED …

Text truncated - open the document above for the full version.

Users Manual

A A T T S S MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 This manual contains information proprietary to Applied Technology Solutions, Inc. and may not be re-produced without expressed permission. A A T T S S Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: ii MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: iii TABLE OF CONTENTS SECTIONTITLEPAGE ONEINTRODUCTION...................................................................................................................................1 1.0GENERAL...............................................................................................................................................1 1.1SPECIFICATIONS..................................................................................................................................1 1.2CONTROLS, INDICATORS, USER I/O...............................................................................................3 TWOOPERATION...........................................................................................................................................4 2.0GENERAL...............................................................................................................................................4 2.1ATS 1200 SYSTEM COMPONENTS...................................................................................................4 2.2MODEL 1225 OPERATION..................................................................................................................4 2.2.1Safety Considerations................................................................................................................4 2.3EARPIECE/MICROPHONE ASSEMBLY............................................................................................5 2.4BATTERY...............................................................................................................................................5 2.5ANTENNA..............................................................................................................................................5 2.6PRIVACY CODES..................................................................................................................................5 THREETHEORY OF OPERATION...................................................................................................................6 3.0GENERAL...............................................................................................................................................6 3.1FUNCTIONAL DESCRIPTION.............................................................................................................6 3.1.1Audio/Digital Section................................................................................................................6 3.1.2RF/IF Section............................................................................................................................7 3.2RF CHARACTERISTICS.......................................................................................................................8 FOURMAINTENANCE....................................................................................................................................9 APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: iv 4.0TROUBLESHOOTING..........................................................................................................................9 4.1MAINTENANCE....................................................................................................................................9 4.2REPAIRS.................................................................................................................................................9 APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: v APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: 1 SECTION ONE INTRODUCTION 1.0GENERAL This document is the Operating Manual for the Model 1225 Hand Held Transceiver produced by Applied Technology Solutions, Inc. The Model 1225 is one component of the Voice Privacy Low Probability of Detection (VPLPD) System 1200. Other System 1200 components include the Model 1245 Monitor System and the Series 1250 Transmitters. The System 1200 uses spread spectrum modulation to provide secure, low probability of detection and interception communications to the user. The transmitted voice data is scrambled with a user selected key, to provide voice privacy and an additional level of security. The System 1200 employs an ATS proprietary self-synchronizing design. This design provides nearly instantaneous receiver synchronization and provides improved performance over other spread spectrum designs in a rapid fade, multi-path environment. The Model 1225 Hand Held Transceivers can be used for direct communications with other System 1200 devices. 1.1SPECIFICATIONS The specifications for the Model 1225 Transceiver follow. Unless otherwise noted all specifications are at 25 o C with full capacity batteries. APPLIED TECHNOLOGY SOLUTIONS, INC. Document: FCC1225manual.wpdissued: jan99 revised: July 27, 1999page: 2 RF CHARACTERISTICS RF Channels:2, Crystal Controlled Normal Mode:Transmit/Receive Channel A or B Repeater Mode:Transmit Channel A, Receive on Channel B Transmit Power Output:900 mW Emissions Spurious:-55 dBc Out Of Band:-20 dBc Freq. Stability:+100 ppm -25 o C to +68 o C Receive Sensitivity:-95 dBm Selectivity Adjacent Channel:-65 dB Spurious & Image:-85 dB Antenna System Antenna:Β½ Wavelength, flexible RF Output Compatibility:50 Ω AUDIO CHAR…

Text truncated - open the document above for the full version.

Users Manual

To: Bruno Clavier Rhein Tech Laboratories, Inc. From: Anthony J. Coviello Applied Technology Solutions, Inc Subject: Response to FCC questions and revised Model 1225 Operating Manual Date: September 5, 1999 A. The training is provided as a lecture with extensive question and answers. Training also includes hands on demonstrations. The class normally takes approximately 4 hours and the class size is limited. The training material previously submitted is presented to the class in its entirety. As shown, this material includes information pertaining to controlling exposure limits. This material and the Operating Manual is provided to each attendee. The Operating Manual is also provided with the equipment. B. Manual has been revised. See section 1.0 C. The Model 1240 is not part of this filing. RF energy substituted for electronic energy. D. For covert surveillance applications, the microphone/earpiece assembly allows the unit to be hidden from sight, i.e. clipped on a belt or placed inside another object such as a backpack, and the earpiece used to monitor reception. The earpiece disables the internal speaker so others can not overhear radio traffic. Typically, when used in this mode of operation, the transmit capability of the radio is not used. Section 2.3 has be modified. MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 This manual contains information proprietary to Applied Technology Solutions, Inc. and may not be re-produced without expressed permission. MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 TABLE OF CONTENTS SECTION TITLE PAGE ONE INTRODUCTION 1 1.0 GENERAL 1 1.1 SPECIFICATIONS 1 1.2 CONTROLS, INDICATORS, USER I/O 3 TWO OPERATION 4 2.0 GENERAL 4 2.1 ATS 1200 SYSTEM COMPONENTS 4 2.2 MODEL 1225 OPERATION 4 2.2.1 Safety Considerations 4 2.3 EARPIECE/MICROPHONE ASSEMBLY 5 2.4 BATTERY 5 2.5 ANTENNA 5 2.6 PRIVACY CODES 5 THREE THEORY OF OPERATION 6 3.0 GENERAL 6 3.1 FUNCTIONAL DESCRIPTION 6 3.1.1 Audio/Digital Section 6 3.1.2 RF/IF Section 7 3.2 RF CHARACTERISTICS 8 FOUR MAINTENANCE 9 4.0 TROUBLESHOOTING 9 4.1 MAINTENANCE 9 4.2 REPAIRS 9 SECTION ONE INTRODUCTION 1.0 GENERAL This document is the Operating Manual for the Model 1225 Hand Held Transceiver produced by Applied Technology Solutions, Inc. The Model 1225 is one component of the Voice Privacy Low Probability of Detection (VPLPD) System 1200. Other System 1200 components include the Model 1245 Monitor System and the Series 1250 Transmitters. The System 1200 uses spread spectrum modulation to provide secure, low probability of detection and interception communications to the user. The transmitted voice data is scrambled with a user selected key, to provide voice privacy and an additional level of security. The System 1200 employs an ATS proprietary self- synchronizing design. This design provides nearly instantaneous receiver synchronization and provides improved performance over other spread spectrum designs in a rapid fade, multi-path environment. The Model 1225 Hand Held Transceivers can be used for direct communications with other System 1200 devices. This device is authorized by the FCC for occupational use by law enforcement officials only. Individuals must receive training on how to control RF exposure conditions and durations to satisfy FCC RF requirements. Refer to Section 2.2.1 for further guidance. 1.1 SPECIFICATIONS The specifications for the Model 1225 Transceiver follow. Unless otherwise noted all specifications are at 25o C with full capacity batteries. RF CHARACTERISTICS RF Channels: 2, Crystal Controlled Normal Mode: Transmit/Receive Channel A or B Repeater Mode: Transmit Channel A, Receive on Channel B Transmit Power Output: 900 mW Emissions Spurious: -55 dBc Out Of Band: -20 dBc Freq. Stability: +100 ppm -25o C to +68o C Receive Sensitivity: -95 dBm Selectivity Adjacent Channel: -65 dB Spurious & Image: -85 dB Antenna System Antenna: Β½ Wavelength, flexible RF Output Compatibility: 50 AUDIO CHARACTERISTICS Frequency Response: + 6 dB, 300 - 5800 Hz Microphone: Internal or external Mic Audio Processing: Dual Time Constant AGC Dynamic Range: 55 dB, Minimum Speaker: Internal or Remote Rated Audio Output: 400mW into 16 (less than 5% distortion) Remote Speaker/Mic: Model 1230-04 VOICE DATA SCRAMBLING Type: Synchronous Key Stream Key Generation: External, Hand Held, Model 1260 Key Loader Key Storage: Internal, non-volatile memory Number of Keys: Two sets, Private and Common USER CONTROLS On-Off/Volume Channel (Mode) Select Code Select PTT INDICATORS Power/Battery Low Transmit POWER REQUIREMENTS Battery Pack: 1200 mAh, Nickel Cadmium, rechargeable (1800 mAh available) TEMPERATURE Operating: -25oC to +68oC Storage: -40oC to +85oC PHYSICAL DIMENSIONS Less Battery: 6.25" x 2.75" x 1.50" (HxWxD), 1lbs. With 1200 mAh battery: 8.625" x 2.75" x 1.5" (HxWxD), 1lbs. 1.2 CONTROLS, INDICATORS, USER I/O This section describes the user interfaces and indicators provided by the Model 1225 Hand Held Transceiver. USER CONTROLS VOLUME Dual function rotary switch. It is the power on/off switch plus volume control CHAN The channels are A, B and R where R refers to repeater operation. CODE A two position switch allowing selection of either the common (C) or private (P) code. PTT A momentary push button switch that places the Model 1225 in the transmit mode. STATUS INDICATORS PWR Green, multi-function LED. Steady illumination indicates that power is on and battery condition is normal. Blinking LED indicates that the battery voltage is low and approximately 180 minutes of receive or 15 minutes of transmit operation remain from the time the light starts blinking. TX Red LED, when illuminated, indicates that unit is in transmit mode. USER CONNECTIONS Key Loader A rear panel connector accessed by sliding the door. Connecting the Model 1260 Key Loader to this port, privacy cod…

Text truncated - open the document above for the full version.

Users Manual

Covert Surveillance System Overview What is spread spectrum? What differentiates the ATS System? General characteristics Characteristics, capabilities, use and maintenance Model 1250 Transmitter and ancillary equipment Model 1245 Monitor System Model 1225 Hand Held Transmitter Operational Scenarios General care, maintenance and storage Other devices and equipment Questions and answers What is Spread Spectrum? Generally a wideband signal Bandwidth much wider than message Low Probability of Interception (LPI) Low Probability of Detection (LPD) What Differentiates the ATS System? Bandwidth and chip rate is much greater virtually non-detectable Nearly instantaneous synchronization No lost words or syllables More robust performance in multi-path environment i.e buildings, city, etc. High quality audio Rated power output over life of battery No sloping power output No clipping General Characteristics Voice privacy Digital system High quality audio - 56 KBps CVSD Flat audio response No special batteries Terminated inputs All equipment compatible Relatively inexpensive Versatile Data is scrambled Characteristics of the Model 1250 Transmitter Single transmitter - multiple carriers with integral antenna Standard batteries Internal microphone Capability to use externals Microphone On/Off switch Antenna Power converters Transmits a battery low bit Does not heat up Model 1250 Installation Considerations Internal microphone is very sensitive Careful of wind conditions Careful of clothing External connectors should slide on easily Face antenna away from body Insure proper selection of code and channel Always use fresh batteries Avoid cheap batteries Insert battery pack in proper direction Turn unit off while inserting/removing battery pack Model 1245 Monitor System Self contained unit can be operated in any position with case closed AC, DC, internal batteries Unit will determine operating power Supports simultaneous charging and operation Internal batteries support in excess of 8 hours receiving and recording Recorder operates from Model 1245 power Manual or automatic control Three head Marantz - common to LEA's Built in antenna's - can use external for "better" reception Internal speaker Can be turned off Headphone output Line outputs for dubbing Meters and indicators Receives and displays battery low condition (internal and transmitter) Model 1245 Installation Considerations Power On Unit performs self test Select channel and code Select recorder control Manual or Automatic Select Antenna Internal or External Model 1225 Hand Held Transmitter PTT walkie talkie style Microphone sensitive Need not be close to mouth Should be held away from face/body when transmitting Earpiece - Mic operation Common battery No squelch Power LED flashes when battery low Safety Considerations When using the Model 1225 Keep antenna away from body when transmitting Keep transmit durations short Operational Scenarios Direct Listening post only Monitor Monitor and communication Repeater Operation Channel C General Care, Maintenance and Storage Care No alignment procedures Charge batteries Maintenance Recorder can be removed for servicing Internal battery (Model 1245) can be removed and replaced Storage Sensitive equipment should be secured Should not divulge frequency FCC Identifiers Model 1250 - OHA1250-044502PAT Model 1245 - Part 15, Subpart B Model 1225 - Certification not complete Only to be used with provided antenna Other Devices and Equipment Model 1230 Concealment Model 1240 Repeater/Transceiver Model 1260 Key Loader Key Loader Adapters Power Converters Questions or Help For operational assistance, technical support, questions call ATS directly at 1-888-327-0107 ask for Rick or Tony email to [email protected]

Users Manual

To: Bruno Clavier Rhein Tech Laboratories, Inc. From: Anthony J. Coviello Applied Technology Solutions, Inc Subject: Response to FCC questions and revised Model 1225 Operating Manual Date: September 5, 1999 A. The training is provided as a lecture with extensive question and answers. Training also includes hands on demonstrations. The class normally takes approximately 4 hours and the class size is limited. The training material previously submitted is presented to the class in its entirety. As shown, this material includes information pertaining to controlling exposure limits. This material and the Operating Manual is provided to each attendee. The Operating Manual is also provided with the equipment. B. Manual has been revised. See section 1.0 C. The Model 1240 is not part of this filing. RF energy substituted for electronic energy. D. For covert surveillance applications, the microphone/earpiece assembly allows the unit to be hidden from sight, i.e. clipped on a belt or placed inside another object such as a backpack, and the earpiece used to monitor reception. The earpiece disables the internal speaker so others can not overhear radio traffic. Typically, when used in this mode of operation, the transmit capability of the radio is not used. Section 2.3 has be modified. MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 This manual contains information proprietary to Applied Technology Solutions, Inc. and may not be re-produced without expressed permission. MODEL 1225 TRANSCEIVER TECHNICAL MANUAL produced by: APPLIED TECHNOLOGY SOLUTIONS, INC. 4200-F Technology Court Chantilly, VA 20151 TABLE OF CONTENTS SECTION TITLE PAGE ONE INTRODUCTION 1 1.0 GENERAL 1 1.1 SPECIFICATIONS 1 1.2 CONTROLS, INDICATORS, USER I/O 3 TWO OPERATION 4 2.0 GENERAL 4 2.1 ATS 1200 SYSTEM COMPONENTS 4 2.2 MODEL 1225 OPERATION 4 2.2.1 Safety Considerations 4 2.3 EARPIECE/MICROPHONE ASSEMBLY 5 2.4 BATTERY 5 2.5 ANTENNA 5 2.6 PRIVACY CODES 5 THREE THEORY OF OPERATION 6 3.0 GENERAL 6 3.1 FUNCTIONAL DESCRIPTION 6 3.1.1 Audio/Digital Section 6 3.1.2 RF/IF Section 7 3.2 RF CHARACTERISTICS 8 FOUR MAINTENANCE 9 4.0 TROUBLESHOOTING 9 4.1 MAINTENANCE 9 4.2 REPAIRS 9 SECTION ONE INTRODUCTION 1.0 GENERAL This document is the Operating Manual for the Model 1225 Hand Held Transceiver produced by Applied Technology Solutions, Inc. The Model 1225 is one component of the Voice Privacy Low Probability of Detection (VPLPD) System 1200. Other System 1200 components include the Model 1245 Monitor System and the Series 1250 Transmitters. The System 1200 uses spread spectrum modulation to provide secure, low probability of detection and interception communications to the user. The transmitted voice data is scrambled with a user selected key, to provide voice privacy and an additional level of security. The System 1200 employs an ATS proprietary self- synchronizing design. This design provides nearly instantaneous receiver synchronization and provides improved performance over other spread spectrum designs in a rapid fade, multi-path environment. The Model 1225 Hand Held Transceivers can be used for direct communications with other System 1200 devices. This device is authorized by the FCC for occupational use by law enforcement officials only. Individuals must receive training on how to control RF exposure conditions and durations to satisfy FCC RF requirements. Refer to Section 2.2.1 for further guidance. 1.1 SPECIFICATIONS The specifications for the Model 1225 Transceiver follow. Unless otherwise noted all specifications are at 25o C with full capacity batteries. RF CHARACTERISTICS RF Channels: 2, Crystal Controlled Normal Mode: Transmit/Receive Channel A or B Repeater Mode: Transmit Channel A, Receive on Channel B Transmit Power Output: 900 mW Emissions Spurious: -55 dBc Out Of Band: -20 dBc Freq. Stability: +100 ppm -25o C to +68o C Receive Sensitivity: -95 dBm Selectivity Adjacent Channel: -65 dB Spurious & Image: -85 dB Antenna System Antenna: Β½ Wavelength, flexible RF Output Compatibility: 50 AUDIO CHARACTERISTICS Frequency Response: + 6 dB, 300 - 5800 Hz Microphone: Internal or external Mic Audio Processing: Dual Time Constant AGC Dynamic Range: 55 dB, Minimum Speaker: Internal or Remote Rated Audio Output: 400mW into 16 (less than 5% distortion) Remote Speaker/Mic: Model 1230-04 VOICE DATA SCRAMBLING Type: Synchronous Key Stream Key Generation: External, Hand Held, Model 1260 Key Loader Key Storage: Internal, non-volatile memory Number of Keys: Two sets, Private and Common USER CONTROLS On-Off/Volume Channel (Mode) Select Code Select PTT INDICATORS Power/Battery Low Transmit POWER REQUIREMENTS Battery Pack: 1200 mAh, Nickel Cadmium, rechargeable (1800 mAh available) TEMPERATURE Operating: -25oC to +68oC Storage: -40oC to +85oC PHYSICAL DIMENSIONS Less Battery: 6.25" x 2.75" x 1.50" (HxWxD), 1lbs. With 1200 mAh battery: 8.625" x 2.75" x 1.5" (HxWxD), 1lbs. 1.2 CONTROLS, INDICATORS, USER I/O This section describes the user interfaces and indicators provided by the Model 1225 Hand Held Transceiver. USER CONTROLS VOLUME Dual function rotary switch. It is the power on/off switch plus volume control CHAN The channels are A, B and R where R refers to repeater operation. CODE A two position switch allowing selection of either the common (C) or private (P) code. PTT A momentary push button switch that places the Model 1225 in the transmit mode. STATUS INDICATORS PWR Green, multi-function LED. Steady illumination indicates that power is on and battery condition is normal. Blinking LED indicates that the battery voltage is low and approximately 180 minutes of receive or 15 minutes of transmit operation remain from the time the light starts blinking. TX Red LED, when illuminated, indicates that unit is in transmit mode. USER CONNECTIONS Key Loader A rear panel connector accessed by sliding the door. Connecting the Model 1260 Key Loader to this port, privacy cod…

Text truncated - open the document above for the full version.

Users Manual

Covert Surveillance System Overview What is spread spectrum? What differentiates the ATS System? General characteristics Characteristics, capabilities, use and maintenance Model 1250 Transmitter and ancillary equipment Model 1245 Monitor System Model 1225 Hand Held Transmitter Operational Scenarios General care, maintenance and storage Other devices and equipment Questions and answers What is Spread Spectrum? Generally a wideband signal Bandwidth much wider than message Low Probability of Interception (LPI) Low Probability of Detection (LPD) What Differentiates the ATS System? Bandwidth and chip rate is much greater virtually non-detectable Nearly instantaneous synchronization No lost words or syllables More robust performance in multi-path environment i.e buildings, city, etc. High quality audio Rated power output over life of battery No sloping power output No clipping General Characteristics Voice privacy Digital system High quality audio - 56 KBps CVSD Flat audio response No special batteries Terminated inputs All equipment compatible Relatively inexpensive Versatile Data is scrambled Characteristics of the Model 1250 Transmitter Single transmitter - multiple carriers with integral antenna Standard batteries Internal microphone Capability to use externals Microphone On/Off switch Antenna Power converters Transmits a battery low bit Does not heat up Model 1250 Installation Considerations Internal microphone is very sensitive Careful of wind conditions Careful of clothing External connectors should slide on easily Face antenna away from body Insure proper selection of code and channel Always use fresh batteries Avoid cheap batteries Insert battery pack in proper direction Turn unit off while inserting/removing battery pack Model 1245 Monitor System Self contained unit can be operated in any position with case closed AC, DC, internal batteries Unit will determine operating power Supports simultaneous charging and operation Internal batteries support in excess of 8 hours receiving and recording Recorder operates from Model 1245 power Manual or automatic control Three head Marantz - common to LEA's Built in antenna's - can use external for "better" reception Internal speaker Can be turned off Headphone output Line…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Antonny Coviello(President)
[email protected]703-968-4105Fax: 703-968-4109

Technical Contact

Rhein Tech Laboratories, Inc.Desmond A Fraser
[email protected]703-689-0368

360 Herndon Parkway Β· Herndon, Virginia Β· United States

Non-Technical Contact

Rhein Tech Laboratories, Inc.Dixie L Shetter
[email protected]703-689-0368

Technical Specifications

#Rule PartsFrequency RangePower OutputTolerance
215C925 MHz - 925 MHz900.00 mWppm
