OHN-B1000-2Narrow Band Repeater

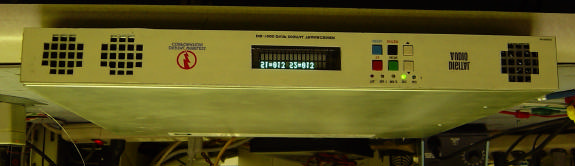

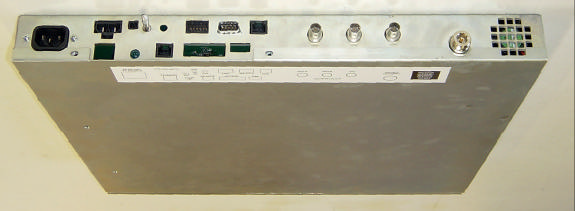

User Manual 09-05-0001-00 DB-1000 Digital Station 216-222 MHz 25 watts DIGITAL WIRELESS CORPORATION FCC Interference Warning The FCC requires that manuals pertaining to Class A and Class B computing devices must contain warnings about possible interference with local residential radio and TV reception. This warning reads as follows: NOTE: This equipment has been tested and found to comply with the limited for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial or residential environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Computer Software Copyrights The product described in this Instruction Manual includes copyrighted Digital Wireless Corporation computer programs stored in semiconductor memory or other storage media. Laws in the United States and other countries preserve for Digital Wireless Corporation certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted computer programs contained in the product described in this Instruction Manual may not be copied or reproduced in any manner without the express written consent of Digital Wireless Corporation, a Delaware corporation. The purchase of the product described in this Instruction Manual shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Digital Wireless Corporation, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Modifications Any modifications or changes to the circuitry or settings not approved by Digital Wireless Corporation could void the user’s authority to operate this product. Digital Wireless Corporation 696 Moulton Avenue, Unit E Los Angeles, California 90031 United States of America Tel +1 (323) 276-5300 www.digitalwireless.com The product described in this Instruction Manual was manufactured in the United States of America. This document is copyrighted as of May 20, 2005. i2way is a registered trademark of Digital Wireless Corporation. 1 General Overview The DM-1000-2 Digital Station is a narrowband repeater specifically designed for DV/IP format digital transmissions used on the i2way Network. The station receives i2way Network signals on one frequency, decodes, processes, reformats the data, and rebroadcasts it on another frequency. i2way Network signals contain call control information, streaming digital voice and customer payload data. i2way format stations do not respond to or repeat analog transmissions, or any other form of digital transmission. The DM-1000 Digital Station is available in various models that cover the 138-520 MHz bands. The station receives and transmits data at 10,000 bps using four level frequency shift keying (“4FSK”) in 12.5 kHz channels. The station’s construction is modular, and may be field repaired by simply replacing plug-in modules. It may be configured in single channel “conventional” or multi-channel “trunked” modes. Multi-channel systems are typically trunked, with one channel operating as the “control channel” and the remaining channels as “transaction channels”. This manual details the version for 12.5 kHz spaced channels in the 216-222 MHz bands. 2 Installation The DB-1000 station is designed to be installed indoors, typically in an electronic equipment rack. DWC manufactures equipment cabinets specifically for this purpose although a large number of commercially available “rack cabinets” are suitable. The station may also be installed in a specifically-designed “outdoor” cabinet intended for the housing of sensitive electronic equipment. A trained technician should perform the installation. 2.1 Unpacking after Shipment Receipt The station is normally shipped in a cardboard carton protected by foam. The unit is ready-to-operate, and generally the only included accessories not attached are the power cord and rack-mounting brackets. If the rear panel power switch is protected by tape or other method, remove this before operating. Do not apply power to the station unless a suitable antenna or load is connected to the transmitter output. DB-1000 Station - Instruction Manual Publication PN 09-05-0001-01 (c) 2005 Digital Wireless CorporationPage 1 Version -01 20 JUN 05 File: Base Station Manual.lwp 2.2 Mounting The station is intended to be installed in a standard EIA “19 inch” rack. The station is “one rack unit” high (or about 1.75 inches), and requires about 19 inches of depth to provide space for rear panel connectors. The station is designed to draw fresh air in from the front panel and left front side panel, and exhaust air from the rear and right rear side panels. So, the front and rear of the station should be unobstructed to allow air to freely flow. The 19 inch rack mounting brackets may be installed in any one of several locations. 6-32 machine screws are provided to attach the brackets to the chassis, and the brackets may be installed using the appropriate tapped holes, six per bracket, located at the front, middle and rear of each side of the chassis. Consequently, the station may be installed in a standard EIA 19 inch rack frame, either from the front or the rear. The station may also be installed in an “open-frame” rack where equipment is generally center mounted. DWC base station cabinets further allow for simultaneous front and rear mounting to provide additional earthquake stability, and have additional air filtering and forced air cooling to allow for less than ideal air quality conditions. It is highly recommended that the station be installed in one of the follo…
