SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 (Shenzhen Lepow Creative Technology Co., Ltd.) (2015-12-10) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Shenzhen Lepow Creative Technology Co., Ltd._____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description:Hismart Model name:B01 FCC ID:OHUB01 Sincerely, Client’s signature Ryan Zhou / Vice President Company Name: Shenzhen Lepow Creative Technology Co., Ltd. Address: Room No.1622, Haosheng Business Center, East Shore Road, Nanshan District, Shenzhen, China Email: [email protected]

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (obsolete) 2.03.0Jan-31-2012 Added IC confidentiality letter form (obsolete)3.04.0March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.05.0Nov 19 2015 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 5.0 (Shenzhen Lepow Creative Technology Co., Ltd.) (2015-12-10) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:OHUB01 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: -BlockDia gram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Ryan Zhou / Vice President Company Name: Shenzhen Lepow Creative Technology Co., Ltd. Address: Room No.1622, Haosheng Business Center, East Shore Road, Nanshan District, Shenzhen, China Email: [email protected]

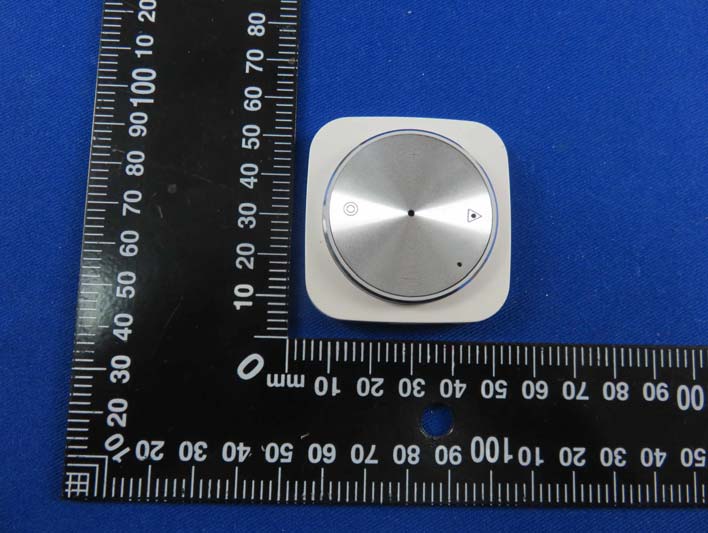

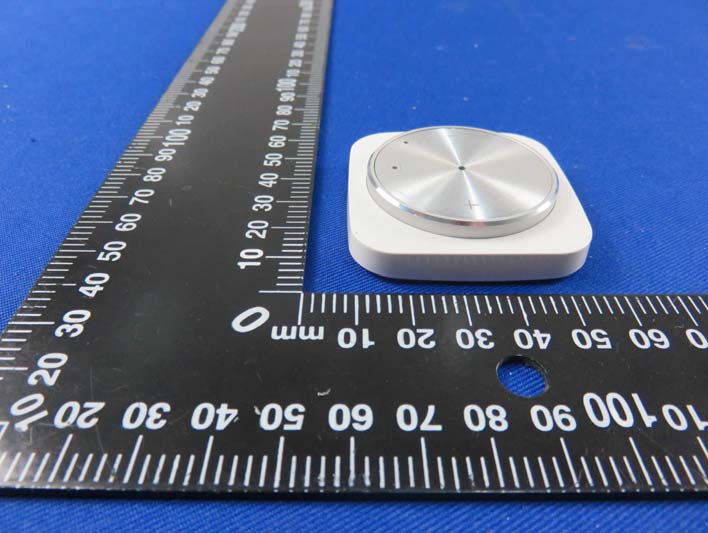

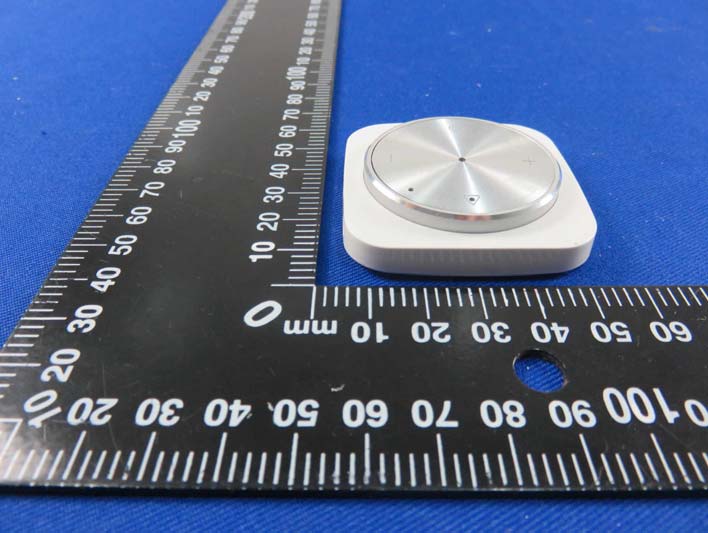

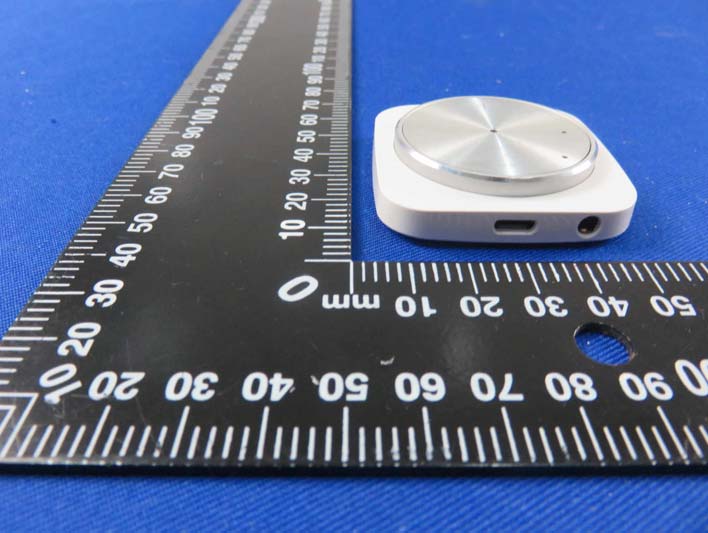

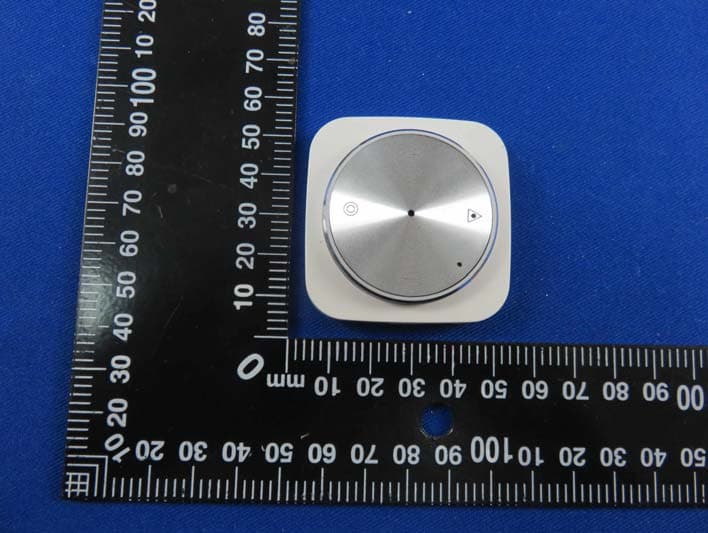

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Product Name:Hismart Model No.:B01 FCC ID:OHUB01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Figure 9 PCB of the EUT-Front View Figure 10 PCB of the EUT-Back View Figure 11 PCB of the EUT-Front View Figure 12 PCB of the EUT-Back View Antenna(Chip CSR8635) Antenna(Chip nRF51822) Chip CSR8635 Chip nRF51822 Figure 13 PCB of the EUT-Front View Figure 14 PCB of the EUT-Back View Figure 15 PCB of the EUT-Front View Figure 16 PCB of the EUT-Back View

RF EXPOSURE EVALUATION FCC ID ： OHUB01 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. BT Module 1: Chip: CSR8635 The maximum output power for low channel is: 0.974dBm= 1.251mW Tune up tolerance is: 0.974 ± 1dBm The Max. Tune up Power =1.974dBm= 1.575mW The calculation results= 1.575/5*√2.402 =0.488 ＜ 3 The maximum output power for middle channel is: 1.097dBm= 1.287mW Tune up tolerance is: 1.097 ± 1dBm The Max. Tune up Power =2.097dBm=1.621mW The calculation results= 1.621/5*√2.440=0.506 ＜ 3 The maximum output power for high channel is: 1.530dBm= 1.422mW Tune up tolerance is: 1.530 ± 1dBm The Max. Tune up Power =2.530dBm= 1.791mW The calculation results= 1.791/5*√2.480=0.564 ＜ 3 Test Results:PASS. BT Module 2: Chip: nRF51822 The maximum output power for low channel is: 0.704dBm= 1.176mW Tune up tolerance is: 0.704 ± 1dBm The Max. Tune up Power =1.704dBm= 1.480mW The calculation results= 1.480/5*√2.402 =0.459 ＜ 3 The maximum output power for middle channel is: 0.935dBm= 1.240mW Tune up tolerance is: 0.935 ± 1dBm The Max. Tune up Power =1.935dBm=1.561mW The calculation results= 1.561/5*√2.440=0.488 ＜ 3 The maximum output power for high channel is: 1.514dBm= 1.417mW Tune up tolerance is: 1.514 ± 1dBm The Max. Tune up Power =2.514dBm= 1.784mW The calculation results= 1.784/5*√2.480=0.562 ＜ 3 Test Results:PASS.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 1 of 55 Report No.: R011509174I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Shenzhen Lepow Creative Technology Co., Ltd. Hismart Model No.: B01 Report Number : R011509174I Date of Test:Sept. 10~ Nov. 24, 2015 Date of Report:Nov. 25, 2015 Preparedfor: Shenzhen Lepow Creative Technology Co., Ltd. Address: Room No.1622, Haosheng Business Center, East Shore Road, Nanshan District, Shenzhen, China PreparedBy: Shenzhen Anbotek Compliance Laboratory Limited Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 2 of 55 Report No.: R011509174I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ...................................................................................................... 4 1.1. Description of Device (EUT) ................................................................................................................ 4 1.2. Auxiliary Equipment Used during Test ................................................................................................ 5 1.3. Description of Test Facility .................................................................................................................. 5 1.4. Measurement Uncertainty ..................................................................................................................... 5 2. TEST METHODOLOGY ............................................................................................................ 6 2.1. Summary of Test Results ...................................................................................................................... 6 2.2. Description of Test Modes .................................................................................................................... 6 3. CONDUCTED EMISSION TEST .............................................................................................. 7 3.1. Block Diagram of Test Setup ................................................................................................................ 7 3.2. Power Line Conducted Emission Measurement Limits (15.207) ......................................................... 7 3.3. Configuration of EUT on Measurement ............................................................................................... 7 3.4. Operating Condition of EUT ................................................................................................................ 7 3.5. Test Procedure ...................................................................................................................................... 8 3.6. Test equipment ...................................................................................................................................... 8 3.7. Power Line Conducted Emission Measurement Results ...................................................................... 8 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................. 13 4.1 Test Setup ............................................................................................................................................. 13 4.2 6dB Bandwidth .................................................................................................................................... 13 4.3. Maximum Peak output power test ...................................................................................................... 17 4.4. Band Edges Measurement ................................................................................................................... 20 4.5. Peak Power Spectral Density .............................................................................................................. 31 4.6. Radiated Emissions ............................................................................................................................. 34 5. ANTENNA APPLICATION ..................................................................................................... 45 5.1. Antenna requirement ........................................................................................................................... 45 5.2. Result .................................................................................................................................................. 45 6. PHOTOGRAPH ......................................................................................................................... 46 6.1 Photo of Conducted Emission Test ...................................................................................................... 46 6.2 Photo of Radiation Emission Test ........................................................................................................ 46 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 48 APPENDIXII(INTERNAL PHOTOS) ....................................................................................... 51 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 3 of 55 Report No.: R011509174I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Shenzhen Lepow Creative Technology Co., Ltd. Manufacturer: Shenzhen Lepow Creative Technology Co., Ltd. EUT: Hismart Model No.: B01 Serial No.: N.A. Trade Mark: lepow Rating: DC 5V, 100mA Measurement Procedure Used: FCC Part15 Subpart C 2015, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating…

Text truncated - open the document above for the full version.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 1 of 55 Report No.: R011509174V Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Shenzhen Lepow Creative Technology Co., Ltd. Hismart Model No.: B01 Report Number : R011509174V Date of Test:Sept. 10~ Nov. 24, 2015 Date of Report:Nov. 25, 2015 Preparedfor: Shenzhen Lepow Creative Technology Co., Ltd. Address: Room No.1622, Haosheng Business Center, East Shore Road, Nanshan District, Shenzhen, China PreparedBy: Shenzhen Anbotek Compliance Laboratory Limited Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 2 of 55 Report No.: R011509174V Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ...................................................................................................... 4 1.1. Description of Device (EUT) ................................................................................................................ 4 1.2. Auxiliary Equipment Used during Test ................................................................................................ 5 1.3. Description of Test Facility .................................................................................................................. 5 1.4. Measurement Uncertainty ..................................................................................................................... 5 2. TEST METHODOLOGY ............................................................................................................ 6 2.1. Summary of Test Results ...................................................................................................................... 6 2.2. Description of Test Modes .................................................................................................................... 6 3. CONDUCTED EMISSION TEST .............................................................................................. 7 3.1. Block Diagram of Test Setup ................................................................................................................ 7 3.2. Power Line Conducted Emission Measurement Limits (15.207) ......................................................... 7 3.3. Configuration of EUT on Measurement ............................................................................................... 7 3.4. Operating Condition of EUT ................................................................................................................ 7 3.5. Test Procedure ...................................................................................................................................... 8 3.6. Test equipment ...................................................................................................................................... 8 3.7. Power Line Conducted Emission Measurement Results ...................................................................... 8 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................. 13 4.1 Test Setup ............................................................................................................................................. 13 4.2 6dB Bandwidth .................................................................................................................................... 13 4.3. Maximum Peak output power test ...................................................................................................... 17 4.4. Band Edges Measurement ................................................................................................................... 20 4.5. Peak Power Spectral Density .............................................................................................................. 31 4.6. Radiated Emissions ............................................................................................................................. 34 5. ANTENNA APPLICATION ..................................................................................................... 45 5.1. Antenna requirement ........................................................................................................................... 45 5.2. Result .................................................................................................................................................. 45 6. PHOTOGRAPH ......................................................................................................................... 46 6.1 Photo of Conducted Emission Test ...................................................................................................... 46 6.2 Photo of Radiation Emission Test ........................................................................................................ 46 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 48 APPENDIXII(INTERNAL PHOTOS) ....................................................................................... 51 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: OHUB01 Page 3 of 55 Report No.: R011509174V Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Shenzhen Lepow Creative Technology Co., Ltd. Manufacturer: Shenzhen Lepow Creative Technology Co., Ltd. EUT: Hismart Model No.: B01 Serial No.: N.A. Trade Mark: lepow Rating: DC 5V, 100mA Measurement Procedure Used: FCC Part15 Subpart C 2015, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating…

Text truncated - open the document above for the full version.

1 Photo of Conducted Emission Test 2 Photo of Radiation Emission Test
