OI6SD26095Tag Deactivation System

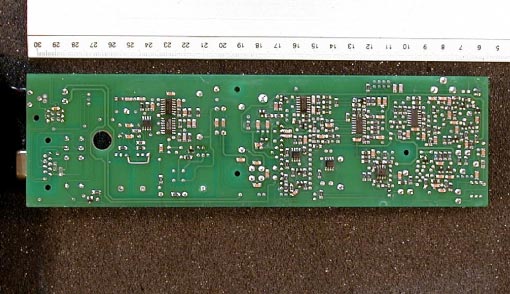

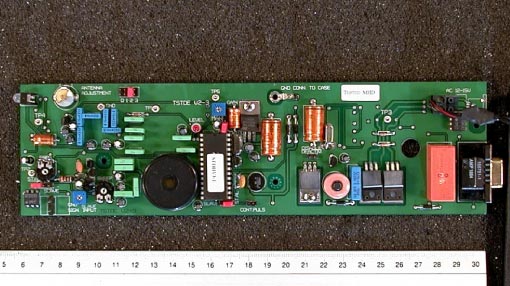

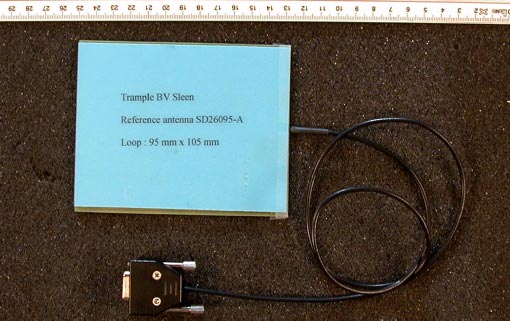

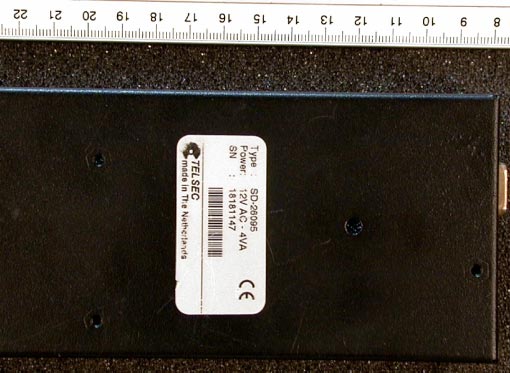

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Registration number: 10111788.p03Page 1 of 10 PHOTOGRAPHS OF THE STICKER DEACTIVATOR, BRAND TRAMPLE, TYPE SD26095, Accredited by Competent body Notified body Designated laboratory Notified test service FCC listed VCCI listed Certification body : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive Number 0122 TTE Directive TTE Directive Automotive Directive 31040/SIT R 592 and C 507 Electrical Products Safety Regulation Hong Kong Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 2 of 10 Table of contents 1Photographs of the test item ............................................................................................................ 3 1.1Front view of exterior of sticker deactivator .............................................................................................3 1.2Back side view of exterior of the sticker deactivator ...............................................................................4 1.3Labelling of the sticker deactivator............................................................................................................5 1.4Inclosure view of the sticker deactivator ...................................................................................................6 1.5Component-side view of the deactivator PCB ...........................................................................................7 1.6Solder-side view of the deactivator PCB ....................................................................................................8 1.7External power adapter for the deactivator ..............................................................................................9 1.8Dummy antenna for type testing the sticker deactivator .......................................................................10 Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 3 of 10 1 Photographs of the test item 1.1 Front view of exterior of sticker deactivator Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 4 of 10 1.2 Back side view of exterior of the sticker deactivator Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 5 of 10 1.3 Labelling of the sticker deactivator Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 6 of 10 1.4 Inclosure view of the sticker deactivator Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 7 of 10 1.5 Component-side view of the deactivator PCB Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 8 of 10 1.6 Solder-side view of the deactivator PCB Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 9 of 10 1.7 External power adapter for the deactivator Test specification: Description of EUT: Manufacturer: Brand mark: Type: FCC Part 15 Sticker deactivator Trample b.v. Telsec SD26095 Registration number: 10111788.p03Page 10 of 10 1.8 Dummy antenna for type testing the sticker deactivator

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems Nederlands Meetinstituut P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] NMi B.V. (Chamber of Commerce Haaglanden No. 27228701) Offices: Delft, Bergum, Dordrecht, Niekerk, Utrecht, Tinton Falls NJ (USA), Kawasaki (Japan), Hortolândia SP (Brazil) Subsidiary companies: NMi Certin B.V. (27233418) NMi Van Swinden Laboratorium B.V. (27228703) NMi International B.V. (27239176) Project number: 10111788.R03Page 1 of 17 EMISSION MEASUREMENTS IN ACCORDANCE WITH FCC PART 15 AND ANSI C63.4-1992 ON AN ELECTRONIC DEACTIVATION SYSTEM, BRAND TRAMPLE, TYPE SD26095. Accredited by Competent body Notified body nr. 0122 Certification body Designated laboratory Notified test service FCC listed VCCI registered : : : : : : : : STERLAB accreditation number L029 D.A.R., TTI-P-G.127/96-00 Article 10-2 EMC Directive Article 10-5 EMC Directive Low Voltage Directive TTE Directive Electrical Products Safety regulation, Hong Kong TTE Directive Automotive Directive 31040/SIT R-592 C-607 FCC report layout endorsed by the FCC by Public Notice of March 11, 1992. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: Electronic deactivation system Trample B.V. Trample SD26095 OI6SD26095 Project number: 10111788.R03Page 3 of 17 Table of contents 1General Information. ..........................................................................................................................................4 1.1Product description. ....................................................................................................................................4 1.2Related Submittal(s)/grant(s). .....................................................................................................................4 1.3Test Methodology. ......................................................................................................................................4 1.4Test facility. ..................................................................................................................................................4 1.5List of measurement equipment.................................................................................................................5 1.6Bandwidth and antenna factors. ................................................................................................................5 2Product labelling.................................................................................................................................................5 3System test configuration. .................................................................................................................................6 3.1Justification. .................................................................................................................................................6 3.2Equipment modifications. ...........................................................................................................................6 3.3Description of tested EUT............................................................................................................................7 4Conducted and radiated measurement photos. ...............................................................................................8 5Conducted emission data. ................................................................................................................................12 6Radiated emission data. ...................................................................................................................................13 6.1Radiated field strength measurement (30 MHz - 1000 MHz, E-field).....................................................13 6.2Radiated field strength measurement (9 kHz - 30 MHz, H-field) ...........................................................14 7Photos of tested EUT. .......................................................................................................................................15 Description of EUT: Manufacturer: Brand mark: Type: FCC ID: Electronic deactivation system Trample B.V. Trample SD26095 OI6SD26095 Project number: 10111788.R03Page 4 of 17 1 General Information. 1.1 Product description. The product tested is a stickerdeactivator, brand Trample, type SD26095. This stickerdeactivator is an instrument to deactivate the paper label tags so that they will not be detected by the anti-shoplifting system located at the shops’ exit. The average area for the external antenna loop is 0.011 m 2 . 1.2 Related Submittal(s)/grant(s). The stickerdeactivator, brand Trample, type SD26095 can be installed and operate as slave in an anti- shoplifting system or can operate stand-alone. The anti-shoplifting, brand Trample, type ?? has been granted under OI6??. 1.3 Test Methodology. The Test methodology of ANSI C63.4-1992 has been applied to provide adequate measuring data. Complete data of the tested model has been recorded. According to FCC Part 15, § 101 the EUT shall be classified as an intentional radiator and is therefore subject to certification. 1.4 Test facility. The FCC has per Public Notice declared that the measurement facilities located at the NMi Certin B.V. testsite Niekerk, Smidshornerweg 18, The Netherlands, have been reviewed and found to be in compliance with the requirements of section 2.948 (previously section 15.38) of the FCC rules per August 4, 1994. The description of the measuring facilities have been filed with reference 31040/SIT, 1300B3 at the FCC's Offices. Description of EUT: Manufacturer: Brand mark: Type: FCC ID: Electronic deactivation system Trample B.V. Trample SD26095 OI6SD26095 Project number: 10111788.R03Page 5 of 17 1.5 List of measurement equipment. NMi number Description Marketing …
