OIOELM-1700SLCD Monitor

” &” For the latest updates and more information, visit our website at www.doublesight.com RL Click on the "Finish" button Check Cable Out of range Limited Warranty INTRODUCTION This Warranty covers DoubleSight Displays, LLC’s (“DSD”) DS-1700S & DS-1900S DoubleSight Dual 17” & 19” LCD Monitors (“Product”) sold by DSD or DSD’s authorized resellers. DSD provides a limited warranty for the originally purchased Products for use, not resale (“Original Purchase”), located in the United States. No DSD authorized reseller may claim any right or interest under this limited warranty. Notice DoubleSight Displays now include a 3year standard warranty for DS-1700S and DS- 1900S models only from Original Date of Purchase. Thank you for your support! DoubleSight Displays LLC LIMITED WARRANTY DSD warrants this Product to be free from defects in material and workmanship for a period of three (3) year from the date of Original Purchase. Spare parts are warranted for ninety (90) days. Subject to the conditions set forth below, if a Product proves to be defective in material or workmanship during the warranty period, DSD will, at its sole option, repair or replace the Product with a similar Product. Replacement Product or parts may include remanufactured or refurbished parts or components and will meet the specifications of the original parts or unit. This warranty is extended by DSD only to the original purchaser (“you”) of the Product and is not transferable. During the warranty period, DSD shall provide you with limited telephone technical support providing assistance to you solely for the purpose of defining any problem. Repair or replacement of the Product is limited to the United States. CUSTOMER RESPONSIBILITIES As the original purchaser you have thirty (30) days in which to review the contents of the Product’s packaging for any missing or broken items. After the first thirty (30) days of ownership, beginning from the date of Original Purchase, a charge will be incurred for replacement of any item you, the original purchaser, may wish to order from DSD. Such charges will include handling and shipping costs incurred for delivery of any such items. WARRANTY EXCLUSIONS This warranty does not cover: 1. Any Product on which the serial number has been defaced,modified or removed. 2. Damage, deterioration or malfunction resulting from: A. Accident, disaster, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions and environment specifications supplied with the Product. B. Repair or attempted repair by anyone not authorized by DSD. C. Customer supplied interfacing. D. Improper site preparation and maintenance. E. Damage to or loss of any programs, data or removable storage media. F. Software or data loss occurring during repair or replacement. G. Any damage of the Product due to shipment. H. Removal or installation of the Product. I. Causes external to the Product, such as electric power fluctuations or failure. J. Use of supplies or parts not meeting DSD’s specifications. K. Normal wear and tear. L. Subjecting the Product to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects) or image burn-in. M. Any other cause which does not relate to a product defect. 3. Removal, installation, and set-up service charges. HOW TO OBTAIN WARRANTY SERVICE 1. For information on warranty service, call DSD customer service toll-free in the U.S.A. by calling 1-877-TwoLCDs (1-877-896-5237), or email DSD at [email protected]. 2. To obtain warranty service, you will be required to provide A. The original dated sales slip. B. Your name. C. Your address. D. The serial number of the product. E. A description of the problem. 3. Bring or ship the Product prepaid and insured in the original container, with the associated accessories, to the DSD depot repair site. All Products returned to the DSD depot repair site for service MUST have prior approval which may be obtained by calling the telephone number above. DISCLAIMER OF WARRANTIES THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN. THE WARRANTIES CONTAINED HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DSD MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY OR CONDITION WHETHER WRITTEN OR ORAL. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MIGHT ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. EXCLUSIVE REMEDIES THE REMEDIES PROVIDED IN THIS STATEMENT OF LIMITED WARRANTY ARE YOUR SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT, WILL DOUBLESIGHT DISPLAYS, LLC BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR CONTRACT OR ANY TORT (INCLUDING NEGLIGENCE) OR UNDER ANY OTHER LEGAL THEORY, INCLUDING LOST PROFIT, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY, AND ANY COSTS OF RECOVERING, REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA SORTED IN OR USED WITH THIS PRODUCT, EVEN IF DSD OR A DSD AUTHORIZED RESELLER FOR THIS PRODUCT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BASED ON ANY THIRD PARTY CLAIM. DSD LIABILITY WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. THIS IS THE MAXIMUM AMOUNT FOR WHICH DSD WILL BE RESPONSIBLE. SOME STATES DO NOT ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. This Product is warranted in accordance with the terms of this limited warranty. You are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator cont…

Text truncated - open the document above for the full version.

REALTEK IMAGE SCALER RTD2523 SyncMOS SM5964 KEY PAD BACKLIGHT INVERTER LCD MODULE M170E7-L01 D-SUB Conn. DVI-D Conn. ON/OFF DIMMING LED CTRL KEY INT. AG_DDC SCL AG_DDC SDA DT_DDC SDA DT_DDC SCL R+ R- G+ G- B+ B- CLK+ CLK- EVEN0+ EVEN0- EVEN1+ EVEN1- EVEN2+ EVEN2- EVEN3+ EVEN3- EVENCLK+EVENCLK- ODD0+ ODD0- ODD1+ ODD1- ODD2+ ODD2- ODD3+ ODD3- ODDCLK+ ODDCLK- 650Vrms 6.5mArms 24.576 MHz DC 2.5V G B H Sync V Sync POWER BLOCK ---- 최초설계 REVISION 00 DS-1700S 43210 김지훈 -- E80-U022-00-BD00 1/1 2006. 5. 25 엄정호 BACK L I G H T DC 5V DC 3.3V DC 2.5V DC 12V IN DC 3.3V DC 12V IN DC 5V DC 5V R 작성검토설계승인 모델명 도면번호 페이지 작성일자 이레전자산업 ( 주 )

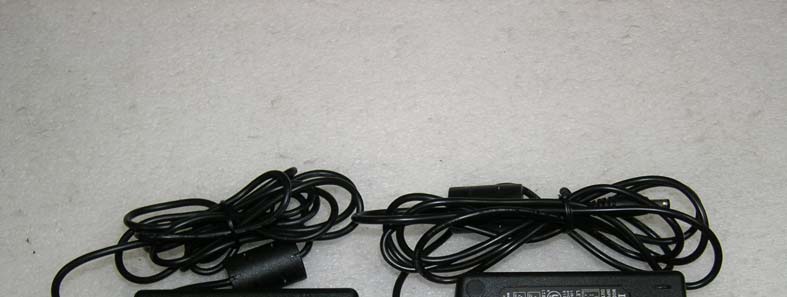

Appendix C. External Photographs Report no. ETLE060529.239, Page C1 of C2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Front View of EUT Rear View of EUT Appendix C. External Photographs Report no. ETLE060529.239, Page C2 of C2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Front side view of adapter Rear side view of adapter

Appendix A. FCC ID Label and Location Report no. ETLE060529.239, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Erae Electronics Industry Co., Ltd. LCD Monitor FCC ID : OIOELM-1700S Model No. : DS-1700S POWER : Input Æ AC 110-240 V, 50/60 Hz, 70 W Output Æ DC 12 V, 3.5 A Serial No. : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : Erae Electronics Industry Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE060529.239, Page D1 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Inside I Appendix D. Internal Photographs Report no. ETLE060529.239, Page D2 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of Inside II Appendix D. Internal Photographs Report no. ETLE060529.239, Page D3 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of main(left) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D4 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Bottom side view of main(left) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D5 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of main(right) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D6 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Bottom side view of main(right) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D7 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of inverter(left) board Bottom side view of inverter(left) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D8 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of inverter(right) board Bottom side view of inverter(right) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D9 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of OSD(left) board Bottom side view of OSD(left) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D10 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of OSD(right) board Bottom side view of OSD(right) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D11 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of panel(left) board Bottom side view of panel(left) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D12 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of panel(right) board Bottom side view of panel(right) board Appendix D. Internal Photographs Report no. ETLE060529.239, Page D13 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Label side view of panel(left) Label side view of panel(right) Appendix D. Internal Photographs Report no. ETLE060529.239, Page D14 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 View of adapter label View of adapter inside Appendix D. Internal Photographs Report no. ETLE060529.239, Page D15 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Top side view of adapter board Bottom side view of adapter board – step 1 Appendix D. Internal Photographs Report no. ETLE060529.239, Page D16 of D16 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Bottom side view of adapter board – step 2

Operational Description Operational Description Operational Description

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr E-RAE Testing Laboratory Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD Monitor, Model DS-1700S has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel : 82-31-885-0072 Fax : 82-31-885-0074 PRODUCT : LCD Monitor MODEL/TYPE NO : DS-1700S FCC ID : OIOELM-1700S APPLICANT : Erae Electronics Industry Co., Ltd. #371-51, Kasan-Dong, Keumcheon-Ku, Seoul, 153-803, Korea Attn.: Woon Seok, Yu / Deputy General Manager MANUFACTURER : Erae Electronics Industry Co., Ltd. #371-51, Kasan-Dong, Keumcheon-Ku, Seoul, 153-803, Korea FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : ERAE TEST REPORT No. : ETLE060529.239 DATES OF TEST : June 02, 2006 REPORT ISSUE DATE : June 12, 2006 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE060529.239, Page 2 of 15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 5.4 Antenna Power Conduction Measurement 5.5 Picture Sensitivity 5.6 Noise figure measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE060529.239, Page 3 of 15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : LCD Monitor z Model Number : DS-1700S z FCC ID : OIOELM-1700S z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : Class B personal computers and peripherals z Dates of Tests : June 02, 2006 z Place of Tests : ETL Inc. EMC Testing Lab. (FCC Registration Number : 95422) #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel : 82-31-885-0072 Fax : 82-31-885-0074 z Test Report No. : ETLE060529.239 Applicant Name : Erae Electronics Industry Co., Ltd. Address : 371-51,Kasan-Dong,Keumcheon-Ku,Seoul, 153-803, Korea Attention : Woon Seok, Yu / Deputy General Manager Report no. ETLE060529.239, Page 4 of 15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Erae Electronics Industry Co., Ltd., Model: DS-1700S. Report no. ETLE060529.239, Page 5 of 15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Erae Electronics Industry Co., Ltd., Model: DS-1700S. 2.2 General Specification Model Name DS-1700S Visible Screen Area 337.92(H) × 270.336(V) 17.0 inch Pixel Pitch 0.264(H) × 0.264(W) Maximum Visible Angle 75 °/ 60 °/ 75 °/ 75 ° (Top/Bottom/Left/Right) Displayed Colo…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE060529.239, Page B1 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE060529.239, Page B2 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETLQP-21-F22-0 Radiated Emission Test Setup
