Please observe all safety precautions when using this product. Please read this manual carefully before using this product. Product Manual PDP 50" Power Supply- Caution Power Supply- Warning Pow er Supply- W arning 2 Safety precautions Do not use damaged electric cord/ plug, or loose outlet. It can cause an electric shock or a fire. Do not use multiple devices in an outlet at the same time to avoid the overload. It may c aus e a fire due to ov erheating from the outlet. Fully insert the plug into the outlet. If the connection is unstable, it may c a u s e a fire. AC plug s houl d not be t ouc hed with wet hands. It may cause an electric shock. It can cause an electrical shock. Be sure to ground the PDP power source. It may cause an electric shock if it has a failure or electrical leakage. Only use the pr oper pow er c or d supp lied w it h PDP and c onnec t it to an outlet with a ground terminal. Be careful not to forcibly bend the electric cords or press them with a heavy object. It may caus e an electr ic shock or a fire. When unplugging the AC cord, pull out by holding the plug itself and not by pulling on the cord. If the power cord is damaged. it may cause a fire. This manual describes how to operate the PDP properly and saf ely. Please read this manual carefully. This manual should be retained for future reference. I n s t a l l a t i o n- Caution I n s t a l l a t i o n- Warning I n s t a l l a t i o n- Warning 33 Do not install the PDP where water (rain) drops can enter the enclosure, or where there is oil or humidity. It ma y c aus e an elec t ric shock, a fire, failure or trans- formation. Do not use or keep it in a place where combust ible sprays or i nf lammable materials are kept. It may cause an explosion or a fire. Do not install in poorly ventilat- ed locations such as bookcas- es or closets. It may cause a fire due to high tem- perature. Do not place the electric cord or t he plug near an elec tric h e a t e r . The coating on the elec tric cords and the plug may melt and c ause a fir e or an electric s hock . Do not put candles, mosquito incense, ci garet te l ighters, a heat er, or any ot her source of heat on or near the PDP. It may cause a fire. The PDP should be inst alled a small distance away from walls or other solid object s in order to maint ain ventilation and to prevent heat damage. Blockage of the ventilat ior with t able cov er s or c urtains can c aus e a f ir e due t o t he increased t emperature ins ide t he monitor. Be sure t o inst all the monitor on a level surf ace. W a r n i ng : Serious injury or fatal i njury m ay oc cur, if the indicated warning is not followed. C a u t i on : Mi nor injury or product damage m ay oc cur, if the indicated caution is not follow ed. Do not place any liquid and foreign objects on or above the PDP. It may cause an electric shock and a fire. Contact your dealer for service. Do not install the PDP in an uns table locat ion w ith a smaller support area than the PDP. I t may f all and cause injury. It should be installed on a flat, stable location. Usage and Maintenance - Caution Usage and Maintenance - W a r n i n g 4 Safety precautions Do not insert any f oreign objects such as wires and drills into the PDP ventilation slots or the A/V terminal. It may caus e an elec tr ic shock or a fire. Do not allow children to play with the PDP. It may falls or flip over and may cause serious injury. Nev er att empt t o disas - s emble, repair or modify the PDP. It may caus e an elec tric shock or a fire. If it requires repair , contac t your dealer. During a thunders torm, unplug t he pow er c ord and ne ver t ouc h t he antenna cable. I t c an c aus e a n elec t ric shock or a fire. Unplug t he PDP if you do not intend t o us e it for a long time. The generation of heat, insulation degrada- tion or the accumulation of dust may cause an electric f i r e . When removing the batter- ies in t he remot e control, please place the batteries in a locat ion out of c hil- dren's reach . It mus t be disposed properly. The plugs and connect ors must be f ree of dust or water bef ore use. It may cause an electric shock or a fire. When transporting the PDP, at least t wo people should carry it. If it is dropped, seri- ous injury may occur. To clean the interior of the PDP, contact your dealer for service. A fire or failure may occur, if it is not cleaned. When moving the PDP, turn off the power switch and unplug the power cord from the outlet. Make sure that the external connection c ords are unplugged (s uch as antenna cable and input cabl es) prior to moving. Th e e le c tri ca l co rd s m ay g e t da mag ed an d ca use an el ectric shock or a fire. W he n cle an ing t he P DP, u n pl u g t h e e le ct ric co rd a nd wipe with a so ft an d dry cloth. Never clean with chemicals such as industri- a l g la ze , wa x, b e nz en e , a lco hol, thin ner, arom atic, lu brica nt , d e te rg e nt , o r a damp cloth. If the PDP is emitting smoke or an unusual smell, immedi- ately turn off the power and unplug the power cord. It may cause an electric shock or a fire. Contact y our dealer for the service. 5 Considerations for Usage Still image (immovable) screen may cause permanent damage to PDP. 1. Lengthy display of still images from video games, banners, graphics and others may fatally damage the screen. 2. When using Picture-In-Picture, permanent damage may occur if the sub-image screen stays on the corner of screen for a long time. 3. When using the PDP in 4 : 3 formats with sidebars for a long period of time, it may cause damage to the plasma panel. It is recommended that you use 16 :9 or Panorama format. (Image burn-in can be avoided by using "Panel Protection" function or a screen-saver. However, once image burn-in occurs, it may not disappear completely. An image will be dimmed as the image is displayed long time or repeatedly.) Any damage to the PDP caused by improper usage (such as image burn-in) shall not be covered by the warranty. Defectiv…

Text truncated - open the document above for the full version.

2 7 wide 4 : 3 Zoom 1 Zoom 2 Panorama 14 : 9 Press (Aspect Ratio Controller). widePanoramaZoom1Zoom2 4 : 3 (normal) 14 : 9 In PC/ DVI input mode, you can only select either the wide or the normal (4 : 3) mode. In Component 2(1080i) input mode, you can't Select Zoom2. Changing Screen Size Screen Size wide - It makes 16 : 9 format for input signal. Panorama - It makes 4 : 3 format fit into 16 : 9 format with minimal loss in content. Zoom 1 - It enlarges the natural screen factor by approx. 5 % Zoom 2 - It enlarges the natural screen factor by approx. 10 % 4 : 3 - It is the standard format of broadcasting. 14 : 9 - It makes 14 : 9 format for input signal. 2 8 Viewing Picture in Picture Viewing Picture in Picture Or press . Sound from only one of the screens may be heard. Use to move to . Press to move to "Mode". Press to select. Press . Use to select the "On". Press to go back to the previous menu. Or press . The sub-screen can be changed to display picture from the desired input source. Press to move to "Input Source". Press to select. Use to select the desired input source. Press to go back to t he previous menu. External Input <In c as e, main sourc e is Component 1/2, P C, DV I> <In c as e, main sourc e is Composite, S-V ideo> 2 9 Or press . Press to move to "Size". Press to select. Use to select the desired size. Press to go back to the previous menu. Changing the Screen Size Selecting Position Or press . Sub-screen position can be selected only from the . Press to move to "Position". Press to select. Use to select the desired position. Press to go back to the previous menu. Viewing Picture in Picture 3 0 Viewing Picture in Picture Auto Volume Level Stereo Settings Selecting Sub Screen Sound Or pre ss . The main screen and the sub screen will swap. Press to move to "PIP Swap". Press to select. Use to select the "Yes". Press to select "OK". Press to go back to the previous menu. Or pre ss . The sound of t he sub screen can be selected when PIP is being displayed. Press to move to "Sound Select". Press to select. Use to select the "Main" or "Sub". Press to go back to the previous menu. Main Screen/Sub Screen Swap Viewing Picture in Picture 3 1 Auto Volume Level Stereo Settings Use to move to . Press to move to "MTS". Press to select. Press . Use to select the desired category. Press to go back to the previous menu. This feature maintains an equal Volume level ; even if you change channels. Use to move to . Press to move to "Auto Volume Level". Press to select. Press . Use to select the "O n". Press to go back to the previous menu. 3 2 Resetting PDPSettings Setting Digital Noise Reduction Panel Safety It resets all of the parameters to the factory default. The PDP will turn off. The parameters will be set to f actory default. Use to move to . Press to move to "Reset". Press to select. Press . Use to select the "Yes". Press to select Resetting PDPSettings 3 3 Use when screen is noissy or lines appear. Use to move to . Press to move to "Digital N/R". Press to select. Use to select the "On". Press to select. Press . Use to move to . Press to move to "Panel Safety". Press to select. Use to select desired category. Press to select. Press . Setting Digital Noise Reduction Panel Safety Image Inversion- Enable signal for preventing im age sticking. Scroll -On : The screen will move every 10 seconds. (CL) (LC) (CU) (UC) (CR) (RC) (CD) (DC) -Off : The screen will be in place opposire way of scroll On. Power Saving -Mode 1 : Normal mode.(Default) -Mode 2 : Supporting high power save mode. -Mode 3 : Supporting middle power save mode. -Mode 4 : Supporting low power save mode. 3 4 Setting Time Automatic Power on/off Setting Time Use to move to . Press to move to "Clock". Press to move one step. Use to adjust the desired hour. Press to move one step. Use to adjust the desired minute. Press to go back to the previous menu. Press . 3 5 Setting Time for Power On Setting Time f or Power Off Setting Hour Use to select, to set Setting Minu te Use to select, to set S e t / C a n c e l Use to select, to select the "On" or "Off" Volume Con trol Use to select, to set volume press . It automatically turns off the PDP after a designated period of time Depending on the number of times the "Sleep" but ton is pressed, the PDP will be turned off after 30, 60, 90, 120, 150 or 180 minutes. To have the PDP turn off after you fall a sleep Clock time must be set Use to move to . Press to move to desired category. Press to select. Press . Automatic Power on/off 3 6 Using PDPas a Monitor Adjusting PC Screen Adjusting Colour Tone PC Mode must be on in order for you to use the PDP as a monitor. Using as a Monitor Use to move to "PC/ DVI". Press to select. Press . Use this function to remove or reduce noise impacts in case PDP vibrates and image boundary is unstable. Use to move to . Press to move to "PC". Press to select. Use to move to desired cat egory. Use to adjust the setting. Press to go back to the previous menu. Press . Auto Adjustment : Use when the screen is not focused or centered. Phase : It adjusts the phase shift of the image. Use when image appears blurry or out of focus. H-Position : It moves the image on the screen horizontally. V-Position : It moves the image on the screen vertically. Using PDPas a Monitor Adjusting PC Screen Auto Adjustment, Phase, H-Position, V-Position are not adjustable in DVI input. 3 7 Cool 1: This results in a blueish tone. Cool 2: This results in a more blueish tone. Normal : This is standard colour setting. Warm1 : This results in a reddish tone. Warm2 : This results in a more reddish tone. Use to move to . Press to move to "PC". Press to select. Use to move to "Colour Tone" Press to select. Use to select the desired category. Press to go back to the previous menu. Press . Adjusting Colour Tone 3 8 External adjustment Set ID <Back view of the PDP> Use the RS-232C jack to control monitor's functions externally by external equipment. How connect a external equipment External adjustment …

Text truncated - open the document above for the full version.

Appendix E. Block Diagram E05.0204.FCC.099N, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

Appendix C. External Photographs E05.0204.FCC.099N, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location E05.0204.FCC.099N, Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Erea Electronics Industry Co., Ltd. PDP Monitor FCC ID : OIOEPM-5010 Model No. : EPM-5010 POWER : Input Æ AC 100-240 V, 50 / 60 Hz, 5 A Power Consumption Æ 450 W Serial No. : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : Erae Electronics Industry Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location E05.0204.FCC.099N, Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

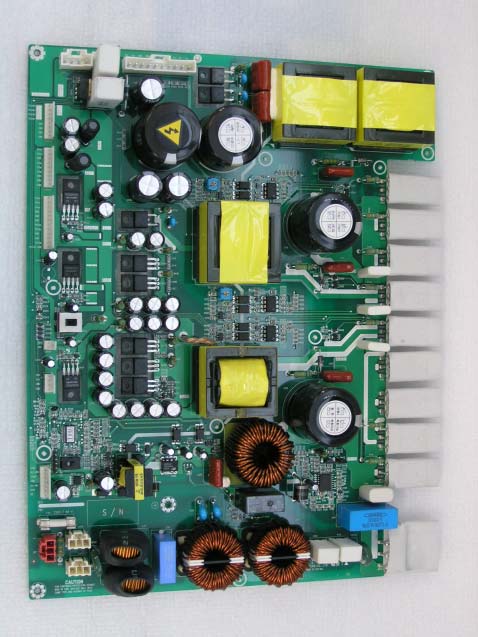

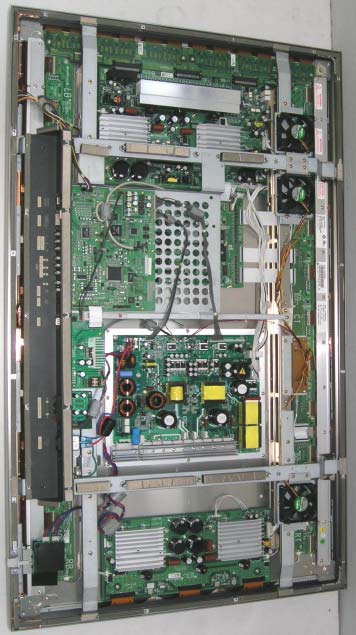

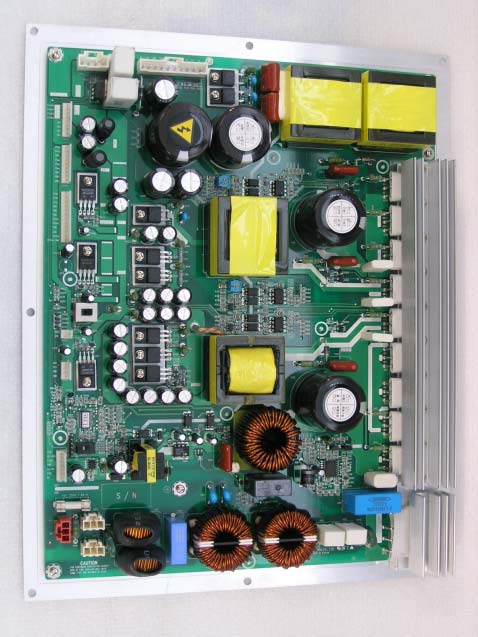

Appendix D. Internal Photographs E05.0204.FCC.099N, Page 1 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Inside View of EUT I Appendix D. Internal Photographs E05.0204.FCC.099N, Page 2 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Inside View of EUT II Appendix D. Internal Photographs E05.0204.FCC.099N, Page 3 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Main Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 4 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side View of Main Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 5 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Power Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 6 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Power Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 7 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side View of Power Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 8 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of OSD Board Solder side View of OSD Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 9 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Audio-out Board Solder side View of Audio-out Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 10 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of SUB Board Solder side View of SUB Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 11 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Power Switch Board Solder side View of Power Switch Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 12 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of FAN Power Board Solder side View of FAN Power Board Appendix D. Internal Photographs E05.0204.FCC.099N, Page 13 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of PDP Panel Solder side View of PDP Panel Appendix D. Internal Photographs E05.0204.FCC.099N, Page 14 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of PDP Panel Label View of Noise Filter

FCC TEST REPORT E05.0204.FCC.099N, Page 5 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2.1 General Remark The tested model is EPM-5010. Models are same as model EPM-5010 and EPM-5010A for all electric and electronics components. The difference are only front implement design equipment and model designation. 2.2 Equipment Description The Equipment Under Test (EUT) is the Erae Electronics Industry Co., Ltd., Model: EPM-5010. 2.3 General Specification Aspect Ratio 16 : 9 Screen Size (H * V) 1106.5 * 622.1 mm Resolution 1366 * 768 (Wide VGA) Cell pitch (H * V) 0.270 (H) * 0.810 (V) mm Displayable Colors 16.77 M (256 * 256 * 256) Brightness 1000 / (w/o filter) Contrast 5000 : 1 Viewing Angle over 160 Input Signal PAL, SECAM, NTSC SD, HD, VGA, SVGA, XGA RGB Input D-Sub (15pin), DVI AC Input AC 100-240 V, 50 / 60 Hz, 5A Power Consumption 450W

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This PDP Monitor Model EPM-5010 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2001 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : PDP Monitor MODEL/TYPE NO : EPM-5010 FCC ID : OIOEPM-5010 APPLICANT : Erae Electronics Industry Co., Ltd. #371-51, Kasan-Dong, Keumcheon-Ku, Seoul, 153-803, Korea Attn.: Woon Seok, Yu / Deputy General Manager FCC CLASSIFICATION: Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Erae TEST REPORT No. : E05.0204.FCC.099N DATES OF TEST : January 27 – February 04, 2005 DATES OF ISSUE : February 04, 2005 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT E05.0204.FCC.099N, Page 2 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual FCC TEST REPORT E05.0204.FCC.099N, Page 3 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : PDP Monitor z Model Number : EPM-5010 z FCC ID : OIOEPM-5010 z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2001 z FCC Classification : Class B personal computers and peripherals z Dates of Tests : February 04, 2005 z Place of Tests : ETL Inc. EMC Testing Lab. (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 z Test Report No. : E05.0204.FCC.099N Applicant Name : Erae Electronics Industry Co., Ltd. Address : 371-51,Kasan-Dong,Keumcheon-Ku,Seoul, 153-803, Korea Attention : Woon Seok, Yu / Deputy General Manager FCC TEST REPORT E05.0204.FCC.099N, Page 4 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in the america national standard for method of measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the Erae Electronics Industry Co., Ltd., Model: EPM- 5010. FCC TEST REPORT E05.0204.FCC.099N, Page 5 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2.1 General Remark The tested model is EPM-5010. Models are same as model EPM-5010 and EPM-5010A for all electric and electronics components. The difference are only front implement design equipment and model designation. 2.2 Equipment Description The Equipment Under Test (EUT) is the Erae Electronics Industry Co., Ltd., Model: EPM-5010. 2.3 General Specification Aspect Ratio 16 : 9 Screen Size (H * V) 1106.5 * 622.1 mm Resolution 1366 * 768 (Wide VGA) Cell pitch (H * V) 0.2…
