OIOEPT-4210PDP TV/Monitor

42 ̋ PDP TV User's Guide Sample Test product Please observe all safety precautions when using this product. Please read this manual carefully before using this product. Supports HDCP 2 CONTENTS Important Safety Instructions Important safeguards for you and your new product4 Note to Cable/TV Installer6 Warning6 Regulatory Information Considerations For Usage User Guidance Information Name of each part8 Controls and Functions9 Mounting on a Desktop1 0 Installation Precautions1 0 Installing an Antenna1 1 Remote controller1 2 Precautions 1 3 Connection VCR Connections1 4 Cable TV Connections1 5 Camcorder/ Game Console Connections1 6 DVD Connections1 7 DTV Connections1 8 PC Connections1 9 Basic Use Powering the PDP TV2 0 Initial Settings2 0 Watching TV2 1 Memorizing the channels2 2 ~ 2 3 Selecting input source2 3 Changing Picture Settings2 4 Changing Sound Settings2 5 Selecting the Menu Language2 6 Setting OSD Tone Menu Background2 6 Setting Blue Background2 7 l Quick and Easy Installation l Versatility and Expendability l That doesn’t make you feel fatigue on your Eyes. l Flat-Panel Digital Display easy on the Eyes. 3 CONTENTS Application Changing Screen Size2 8 Adjusting Unclear Screen2 9 LNA (Low Noise Amplifier)2 9 Using the V-Chip3 0 ~ 3 2 Viewing the Closed Captions3 3 Viewing Picture in Picture3 4 ~ 3 5 Auto Volume Level3 6 Listening to Stereo Sound / MTS(Multi Television Sound)3 6 Resetting PDP TV Settings / Panel Protection3 7 Setting Time3 8 Automatic Power On/ Off 3 9 Monitor Using TV as a Monitor4 0 Adjusting PC Screen4 0 Adjusting Color Tone4 1 External adjustment External adjustment4 2 Set ID4 3 Special features4 4 RS232C Communication Protocol4 5 ~ 4 9 Maintenance and Service Trouble shooting5 0 Trouble shooting Tip5 1 Supported Display Modes5 2 Important Safety Instructions 4 Important Safety Instructions Important safeguards for you and your new product 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any of the ventilation openings. Ins tall in acc ordance w ith the manufac turer's instructions. 8) Do not install near any heat sourc es such as radiators , heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into y our outlet, cons ult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinc hed particularly at plugs, c onvenience receptacles, and the point where they exit from the apparatus. 11) Only use the attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. Always be careful when using your LCD TV. To reduce the risk of fire, electrical shock, and other injuries , keep these s afety precautions in mind when installing, using, and m aintaining your machine. Important Safety Instructions 5 Important Safety Instructions 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply c ord or plug is damaged, liquid has been s pilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Appar atus s ha ll no t be exp os ed to dri pping or s plas hi ng and n o obje cts fille d wi th liq uids , suc h as v ase s, s hall b e plac ed on the ap paratus CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION :TO REDUCE THE RISK OF ELE- CTRIC SHOCK , DO NOT RE MOVE COVER (OR B ACK). NO USER S ERVICEABLE PARTS I NSIDE. REFER SERV ICING TO QUALIFIED S ERVICE PERSONNEL . This symbol indicate s hig h voltage is p resen t insid e. It is da ngerous to ma ke any kind o f conta ct with any in side pa rt of th is product. Th is s ymb o l a le rts yo u th a t imp o rta nt lite ra tu re c on ce min g ope ratio n a nd ma inte na nce has been inclu ded with this product. This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The c ode prov ides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. NOTE TO CABLE/TV INSTALLER : TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARNING Important Safety Instructions 6 Important Safety Instructions One Federal C ourt has held that unauthoriz ed rec ording of c opyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights. Important : This equipment has been tested and found to comply w ith the limits for a Clas s B digital dev ic e, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection agains t harmful interference when the equipment is operated in a residential i ns tall ation. T his equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. How ev er, there is no guarantee that interference w ill not oc cur in a partic ular ins tallation. If this e…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 E-RAE Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN

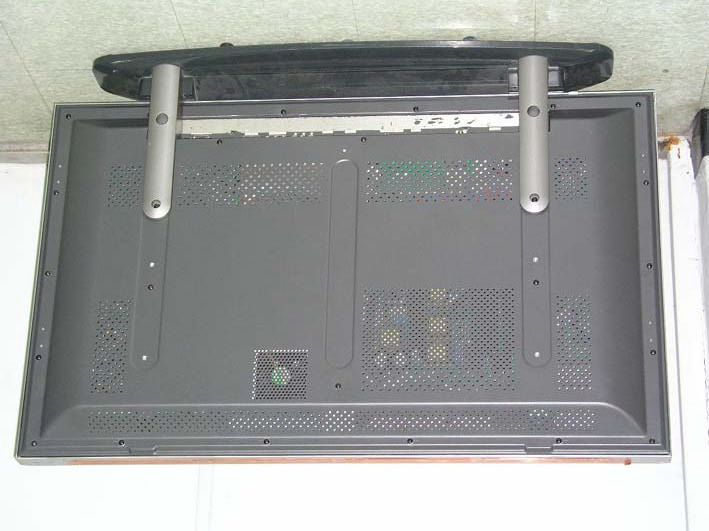

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 5 E-RAE Electronics Co., Ltd. PDP TV Model: EPT- 4210BN View of Front View of Rear Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 5 E-RAE Electronics Co., Ltd. PDP TV Model: EPT- 4210BN View of In, out port Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 5 E-RAE Electronics Co., Ltd. PDP TV Model: EPT- 4210BN View of Cover Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 5 E-RAE Electronics Co., Ltd. PDP TV Model: EPT- 4210BN Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 5 E-RAE Electronics Co., Ltd. PDP TV Model: EPT- 4210BN

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 E-RAE Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. E-RAE Electronics Industry Co., Ltd. PDP TV FCC ID : OIOEPT- 4210 Model NO : EPT-4210BN POWER : AC 100-240V~, 50/60Hz, 4A Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured: E-RAE Electronics Industry Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 E-RAE Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. (Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN View of Inside Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Main Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Solder side view of Main Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Tuner board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Solder side view of Tuner board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Power board Solder side view of Inverter board

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 7 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Solder side view of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 8 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Switch board Solder side view of Switch board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 9 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Speaker board Component side view of Speaker board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 10 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Component side view of Power switch board Solder side view of Power switch board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 11 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN View of Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 12 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 13 of 13 E-RAE Electronics Industry Co., Ltd. PDP TV Model: ELT- 4210BN View of Panel label

FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 5 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN 2.1 Equipment Description The Equipment Under Test (EUT) is the E-RAE Electronics Industry Co., Ltd. PDP TV, EPT-4210BN 2.2 General Specification l Chassis Type : Metal l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-Tal: 18.432, 20.25, 20.00MHz OSC: 80.00MHz l Aspect Ratio : 16:9 l Screen Size (H x V) : 920.1 x 518.4mm l Displayable Colors : 16.77M(256 x 256 x 256) l Brightness : 1000cd/ (w/o filter) l Contrast : 1200:1 l Viewing Angle : 160 l Input signal : NTSC, SD, HD, VGA, SVGA l Tuner : NTSC-M l RGB Input : D-Sub (15pin), DVI-D with HDCP l AC Input : AC 100 – 240V, 50/60Hz, 4A l Power Consumption : 320W

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This PDP TV, Model EPT-4210BN has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : PDP TV MODEL/TYPE NO : EPT- 4210BN FCC ID : OIOEPT- 4210 APPLICANT : E-RAE Electronics Industry Co., Ltd. #371-51, Kasan-Dong, Keumcheon-Ku, Seoul, 153-023, Korea Attn.: Woon Seok, Yu / Deputy General Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : E-RAE TEST REPORT No. : E04.0302.FCC.138N DATES OF TEST : February 25 ~ 27, 2004 DATES OF ISSUE : March 02, 2004 TEST LABORATORY : ETL Inc (FCC Registration Number: 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel: (031) 885-0072 Fax: (031) 885-0074 FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 2 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User’s Manual FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 3 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type: PDP TV l Model Number: EPT-4210BN l FCC ID: OIOEPT- 4210 l S/N: N/A l FCC Rule Part(s): FCC Part 15 Subpart B l Test Procedure: ANSI C63.4-1992 l FCC Classification: Class B personal computers and peripherals l Dates of Tests: February 25 ~ 27, 2004 l Place of Tests: ETL Inc EMC Testing Lab (FCC Registration Number: 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel: (031) 885-0072 Fax: (031) 885-0074 l Test Report No.: E04.0302.FCC.138N Applicant Name : E-REA Electronics Industry Co., Ltd. Address : 371-51,Kasan-Dong,Keumcheon-Ku,Seoul, 153-023, Korea Attention : Woon Seok, Yu / Deputy General Manager FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 4 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number: 95422). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the E-RAE Electronics Industry Co., Ltd., Model: EPT- 4210BN FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 5 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN 2.1 Equipment Description The Equipment Under Test (EUT) is the E-RAE Electronics Industry Co., Ltd. PDP TV, EPT-4210BN 2.2 General Specification l Chassis Type : Metal l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-Tal: 18.432, 20.25, 20.00MHz OSC: 80.00MHz l Aspect Ratio : 16:9 l Screen Size (H x V) : 920.1 x 518.4mm l Displayable Colors : 16.77M(256 x 256 x 256) l Brightness : 1000cd/ (w/o filter) l Contrast : 1200:1 l Viewing Angle : 160 l Input signal : NTSC, SD, HD, VGA, SVGA l Tuner : NTSC-M l RGB Input : D-Sub (15pin), DVI-D with HDCP l AC Input : AC 100 – 240V, 50/60Hz, 4A l Power Consumption : 320W FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea. 6 of 16 E-REA Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN 3.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with § 12.2 in ANSI C63.4-1992 "Measurement of Information Technology Equipment ". The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 /50uH LISN as the i…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 E-RAE Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 E-RAE Electronics Industry Co., Ltd. PDP TV Model: EPT- 4210BN Conducted Emission Test Setup
