OIRCE23849MHz Homodyne Walkie Talkie

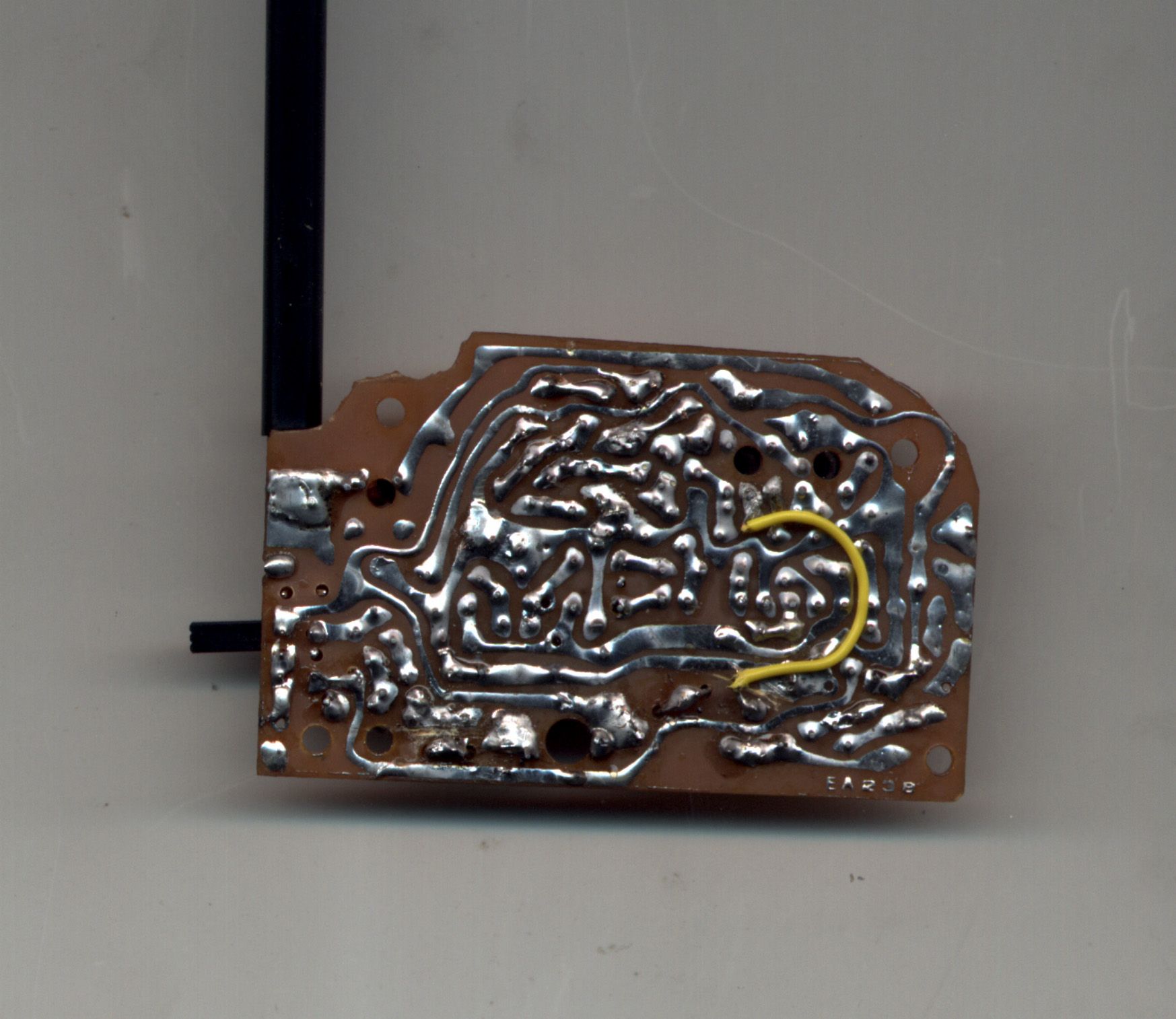

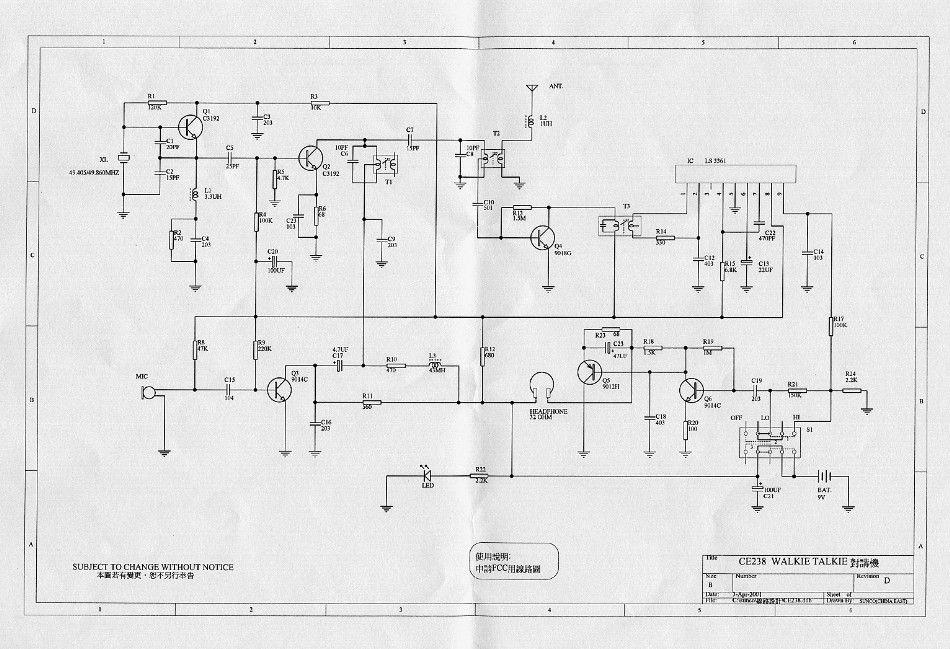

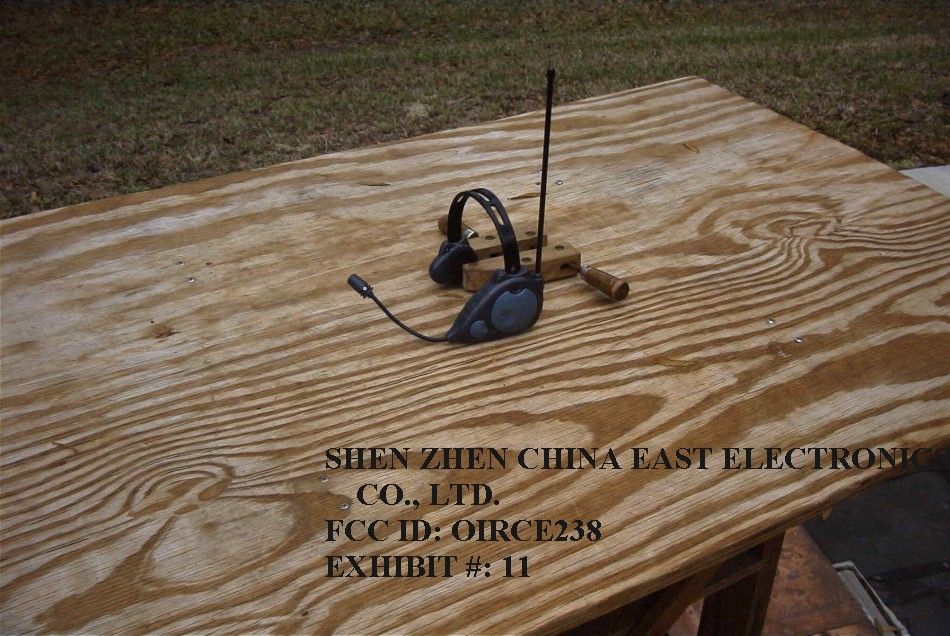

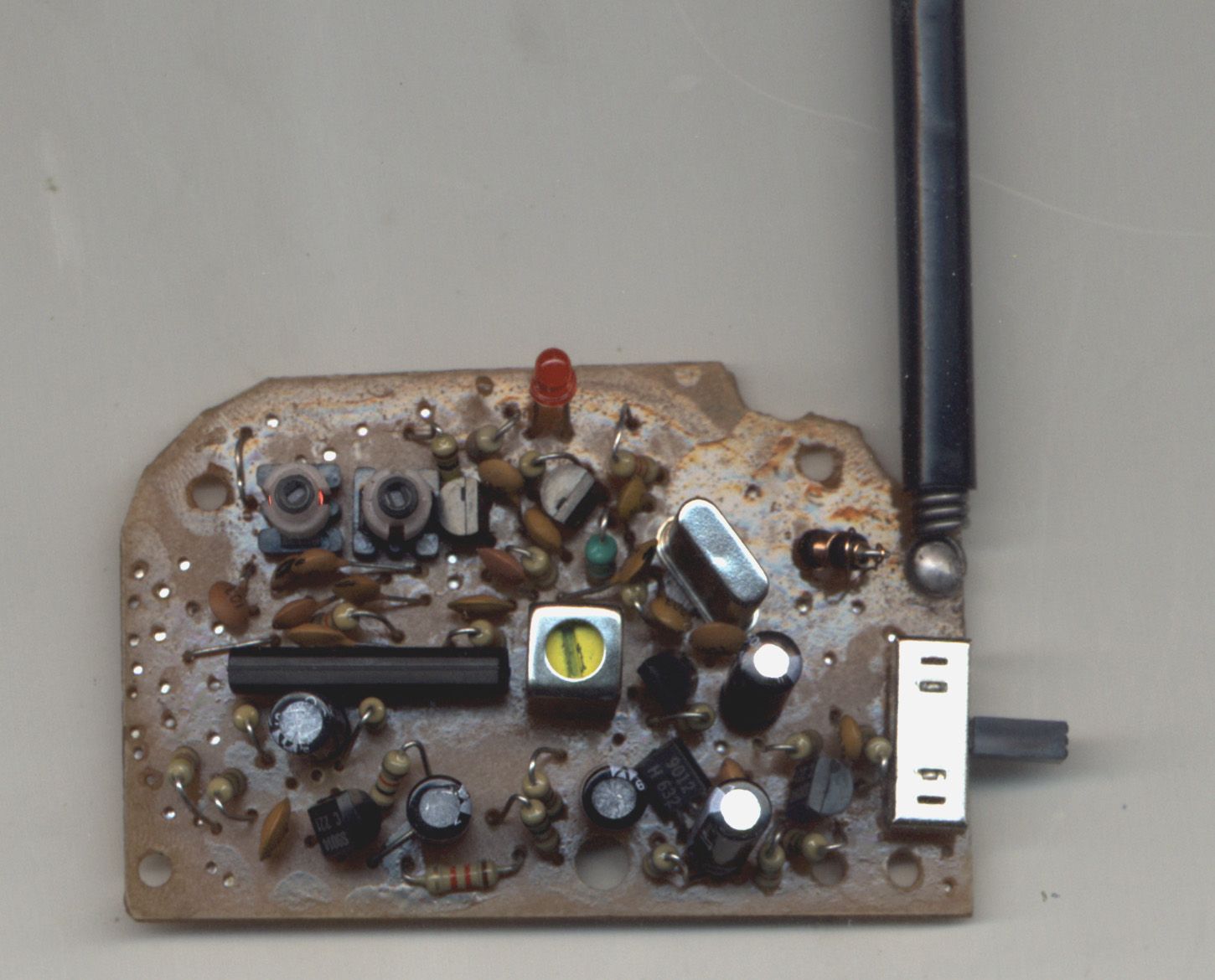

TABLE OF CONTENTS APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 TEST REPORT CONTAINING: PAGE 1........TEST EQUIPMENT PAGE 2........TEST PROCEDURE PAGE 3........49.86MHz Tx RADIATION INTERFERENCE TEST DATA PAGE 4........49.405MHz Tx RADIATION INTERFERENCE TEST DATA PAGE 5........OCCUPIED BANDWIDTH TEST DATA PAGE 6A-6B....OCCUPIED BANDWIDTH PLOTS EXHIBITS ATTACHMENTS: EXHIBIT 1........BLOCK DIAGRAM EXHIBIT 2........SCHEMATIC EXHIBIT 3........INSTRUCTION MANUAL EXHIBIT 4........FCC ID LABEL SAMPLE EXHIBIT 5........FCC ID LABEL LOCATION EXHIBIT 6........FRONT VIEW EXTERNAL PHOTOGRAPH EXHIBIT 7........REAR VIEW EXTERNAL PHOTOGRAPH EXHIBIT 8A-B.....INTERNAL COMPONENT SIDE PHOTOGRAPHS EXHIBIT 9A-B.....INTERNAL COPPER SIDE PHOTOGRAPHS EXHIBIT 10.......CIRCUIT DESCRIPTON EXHIBIT 11.......TEST SET UP PHOTO APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 REPORT #: S\SHEN\175ZH1\175ZH1RPT.doc TABLE OF CONTENTS APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 1/19/01 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal 3/15/00 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 3/16/01 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Cal. 3/15/00 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Cal. 3/15/00 6.___Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Cal. 1/21/01 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 11/20/00 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545, Cal. 1/26/01 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/21/00 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/00 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 2/1/01 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 11/16/00 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 2/1/01 APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 REPORT #: S\SHEN\175ZH1\175ZH1RPT.doc PAGE #: 1 APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was &tempr& with a humidity of &humr&. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 REPORT #: S\SHEN\175ZH1\175ZH1RPT.doc PAGE #: 2 APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M * Harmonics must be less than the fundamental. TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 49.9 25.8 v 0.80 11.00 37.60 42.40 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. WITH THE TRANSMITTER SECTIONS OF THIS UNIT DISABLED BY REMOVING R11, THE SPECTRUM WAS SCANNED FROM 30 TO 1000 MHz. NO SIGNIFICANT EMISSIONS WERE NOTED. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. TEST RESULTS: THE UNIT does MEET THE FCC REQUIREMENTS. PERFORMED BY: JOSEPH SCOGLIO DATE: APRIL 20, 2001 APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 REPORT #: S\SHEN\175ZH1\175ZH1RPT.doc PAGE #: 3 APPLICANT: SHEN ZHEN CHINA EAST ELECTRONICS CO., LTD. FCC ID: OIRCE238 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.209 REQUIREMENTS: 1.705 to 30 MHz: 49.54 dBuV/m @ 3 METERS 30 to 88 MHz: 40.00 …
