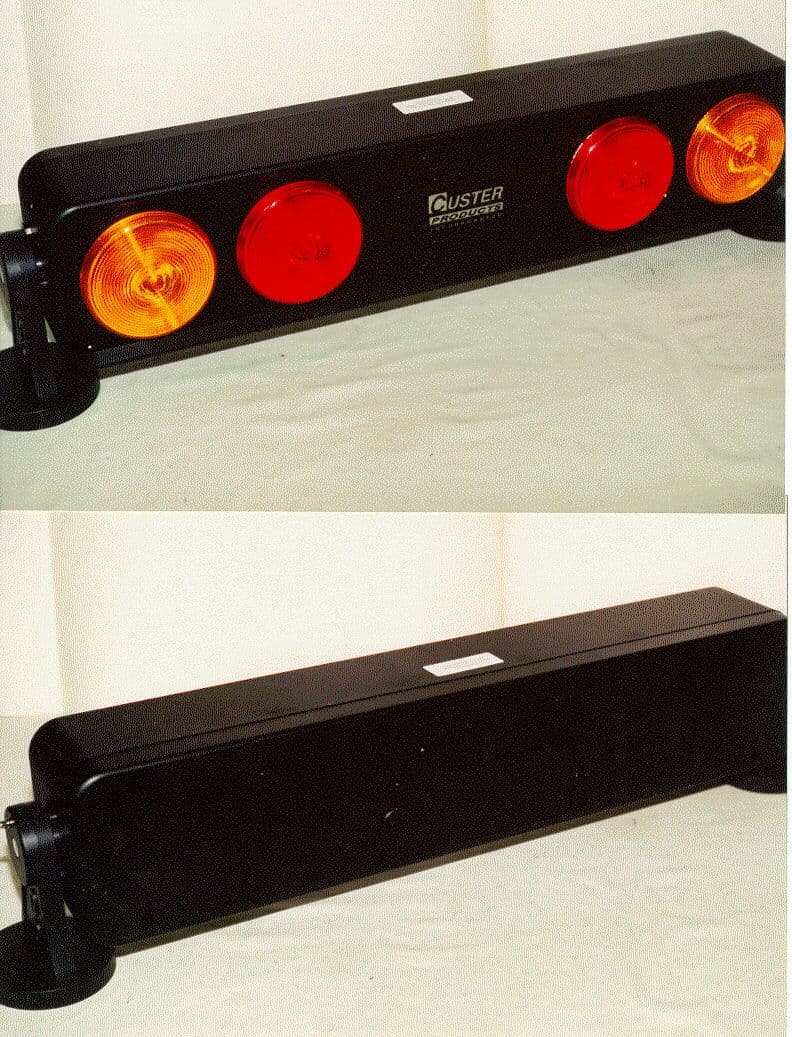

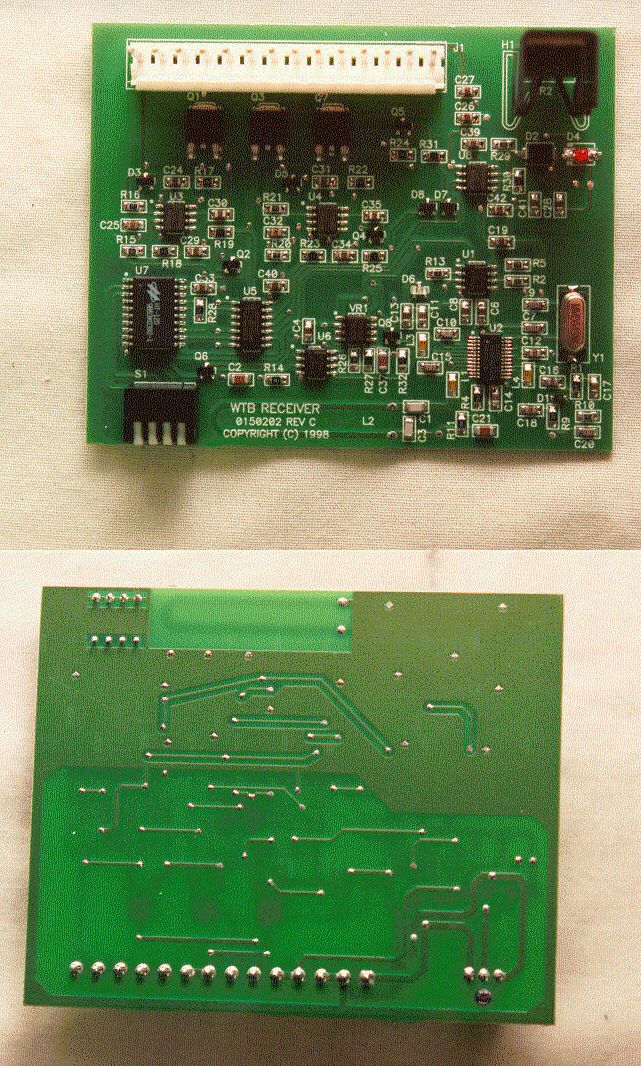

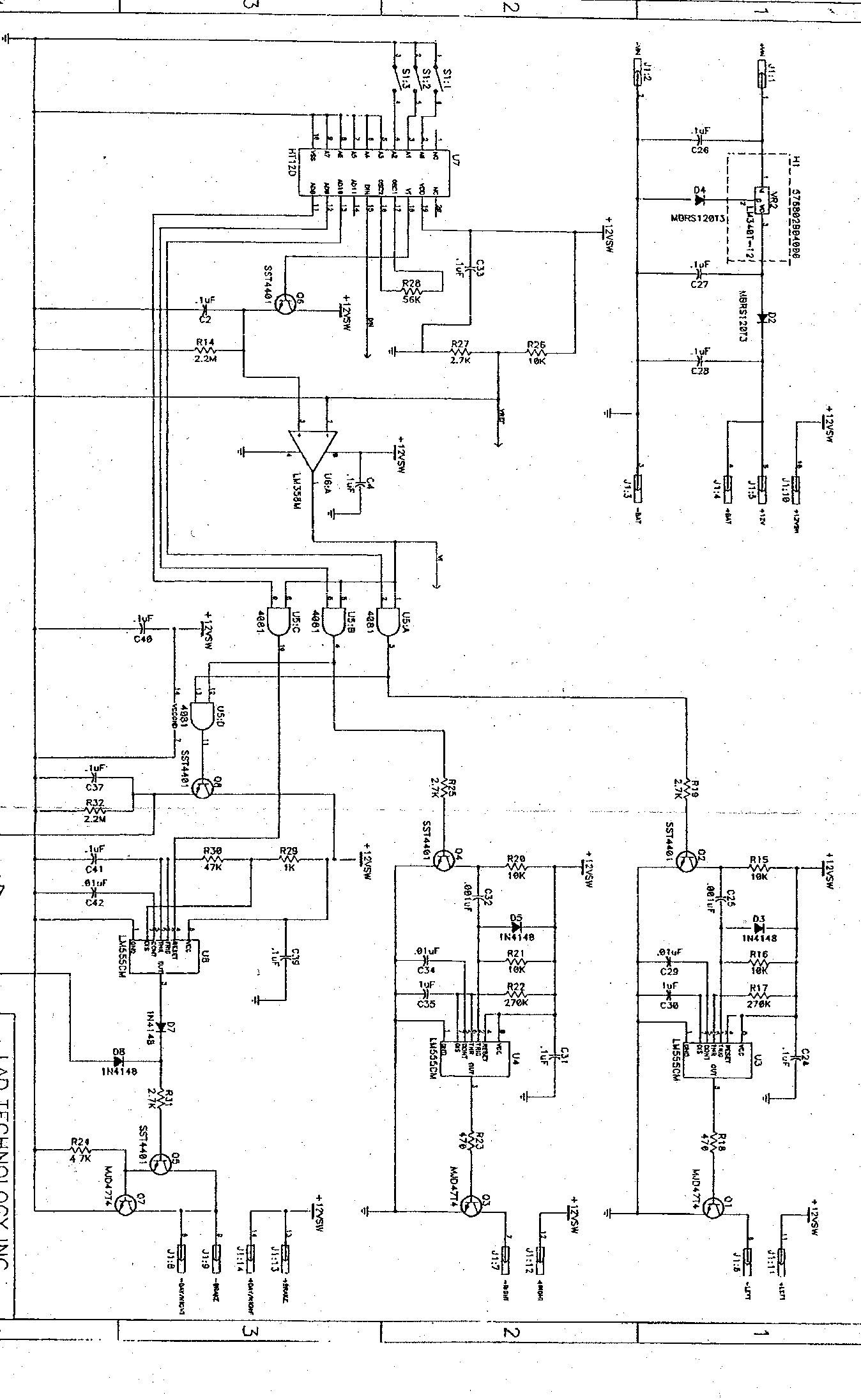

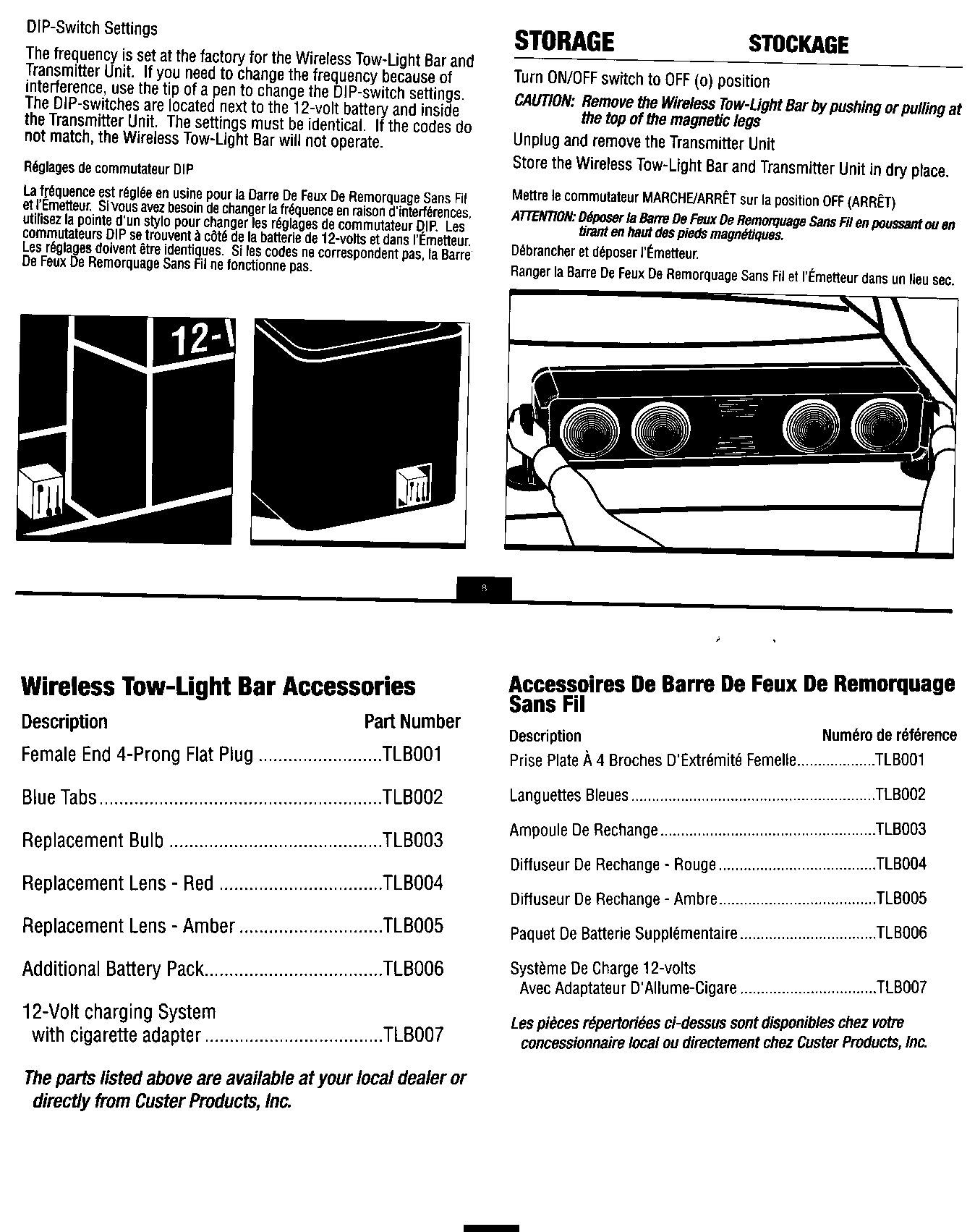

NATIONAL CERTIFICATION LABORATORY 8370 Court Avenue, Suite B-1 Ellicott City MD 21043 (410) 461-5548 FCC REPORT OF RADIO INTERFERENCE for Custer Products Inc. 4101 Shuffel Drive, N.W., Suite 100 North Canton, Ohio 44720 FCC ID: OJN-TLB100B May 5, 1999 TABLE OF CONTENTS Application Form 731 Label Format 1.0 Introduction 1.1 Summary 2.0 Description of Equipment Under Test (EUT) 3.0 Test Configuration 4.0 Conducted Emissions Scheme 5.0 Radiated Emissions Scheme TABLES Table 1.Measurement Equipment EXHIBITS Exhibit 1.EUT Photographs Exhibit 2.Schematics Exhibit 3. User Manual NCL PROJ.# CUSTER-488 FCC ID #: OJN-TLB100B 1 1.0 Introduction This report has been prepared on behalf of Custer Products, Inc. to support the attached Application for Certification of a Part 15 Unintentional Radiator. The Equipment Under Test was the Wireless Tow- Light Bar Receiver. Radio-Noise Emissions tests were performed according to ANSI C63.4- 1992 "Methods of Measurement of RFI from Low-Voltage Electronic Equipment in the Range of 9 KHz - 40 GHz" . The measuring equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and Field Strength Instrumentation. Testing was performed at National Certification Laboratory in Ellicott City, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch. FCC acceptance was granted on May 26, 1993. 1.1 Summary The Custer Products Wireless Tow-Light Bar Receiver complies with the Part 15 Radio Limits for an Unintentional Radiator. 2.0 Description of Equipment Under Test (EUT) The EUT Features: FEATURES FREQUENCY Relay Activation 315.115 MHz Superregenerative Design PCM Decoding FCC ID #: OJN-TLB100B 2 ON/OFF Light Control 3.0 Test Configuration The EUT was setup on the test table in a manner which follows the general guidelines of ANSI C63.4, Section 6 "General Operating Conditions and Configurations" . An RF signal generator was used to cohere the spectral components of the emissions, as prescribed in ANSI C63.4, Section 12.1.1.1. An output level of -20 dBm at 315 MHz (CW) was fed into a 10 inch whip antenna in order to create a field level sufficient to accomplish this. The EUT was configured in 3 orthogonal positions to determine the maximum RF level at each emission frequency. The data tables give the EUT postion designation that produces worst-case field strength, in an X, Y, Z system. This is described below: 3 4.0 Conducted Emissions Scheme The EUT is battery powered only. 5.0 Radiated Emissions Scheme The EUT was initially scanned in the frequency range 30 to 2000 MHz indoors, at a distance of 1 meter to determine its emissions profile. The EUT was then placed on an 80 cm high 1 X 1.5 meter non-conductive motorized turntable for radiated testing on the 3- meter open area test site. The emissions from the EUT are measured continuously at every azimuth by rotating the turntable. Waveguide horn and log periodic broadband antennas are mounted on an antenna mast to determine the height of maximum emissions. The height of the antenna is varied between 1 and 4 meters. Cables are varied in position to produce maximum emissions. Both the horizontal and vertical field components are measured. FCCID: OJN-TLB100B 4 The output from the antenna is connected to the input of the spectrum analyzer. The detector function is set to PEAK. The resolution bandwidth of the spectrum analyzer system is set at 120 kHz, for measurements in the range 30 MHz -1 GHz, and 1 MHz for measurements in the range of 1 - 2 GHz, with all post-detector filtering no less than 10 times the resolution bandwidth. All emissions within 20 dB of the limit are recorded in the data tables. To convert the spectrum analyzer reading into a quantified E-field level to allow comparison with the FCC limits, it is necessary to account for various calibration factors. These factors include cable loss (CL) and antenna factors (AF). The AF/CL in dB/m is algebraically added to the Spectrum Analyzer Voltage in dbμV to obtain the Radiated Electric Field in dBμV/m. This level is then compared with the FCC limit. Example: Spectrum Analyzer Volt: VdBuV Composite Factor: AF/CLdB/m Electric Field: EdBμV/m = VdBμV + AF/CLdB/m Linear Conversion: EuV/m = Antilog (EdBμV/m/20) FCC CLASS B RADIATED EMISSIONS DATA APPLICANT: CUSTER PRODUCTS, INC. MODEL: WIRELESS TOW LIGHT RECEIVER FREQUENCY: 315.115 MHZ _______________________________________ FCCID: OJN-TLB100B 5 DETECTOR: PEAK TEST DISTANCE: 3 METERS TEST ENGINEER: STEVEN DAYHOFF ___________________________________________________________________ FREQUENCY ANT. POL. READING AF/CL E-FIELD E-FIELD LIMIT MARGIN MHz H/V dBuV dB/m dBuV/m uV/m uV/m dB ___________________________________________________________________________________________ -------------------------------------------------------------------------------------------------------------------------------------------- 323.6 H 28.0 14.0 42.0 125.9 200.0 -4.0 333.3 V 27.0 14.0 41.0 112.2 200.0 -5.0 843.3 H 16.0 24.0 40.0 100.0 200.0 -6.0 877.2 H 18.0 24.0 42.0 125.9 200.0 -4.0 1109.7 V 21.0 25.0 46.0 199.5 500.0 -8.0 1669.7 V 15.0 29.0 44.0 158.5 500.0 -10.0 Table 1 Measurement Equipment Used The following equipment is used to perform measurements: FCCID: OJN-TLB100B EQUIPMENT SERIAL NUMBER Wavetek 2410A 1100 MHz Signal Generator 1362016 HP Model 8449B Preamplifier 12A533-A EMCO Model 3146 Log Periodic Antenna 1222 Solar 8012-50-R-24-BNC LISN 924867 Advantest Model R4131D Spectrum Analyzer 54378A EMCO Model 3115 Ridge Horn Antenna 1238 4 Meter Antenna Mast None Motorized Turntable None RG-233U 50 ohm coax Cable None
