CX-1 TV-BOX 《 Fast usage instruction 》 1 Content Power on 1.Connect power Outer connection equipment 2. Connect television 3. Connect mouse Use 4. Connect internet 5. Fix resolution of the screen 6. Fix voice 7. Copy files 2 8. Install and delete the apps Update software Power on Connect power 1. Put the power supply into the jack 2. Connect one head of the USB into power supply, and the other into the Micro USB interface of CX-1. 3. The CX-1 can begin to work normally and the LED light will flash once after finishing the above actions. 4. Wait until the CX-1 totally powered on, the TV screen will show the primary desktop （ see below picture) 3 4 If it does not work,please refer to "common problem" Outer connection equipment Connect television 1. Put the CX-1 HDMI plug into the TV's HDMI jack. Or use the HDMI wire to connect the TV and CX-1. 2. Turn on TV, find the TV programme menu with the monitor and select the corresponding HDMI of the "signal origin". (refer to the TV instruction for the detailed information) Connect mouse 1. The mouse is used to control CX-1.It is the same usage as it is used with a computer. An ordinary wired mouse is enough. 5 Or a standard 2.4G wireless mouse is OK.Connecting the mouse with CX-1 USB. Note:After normally power on,click the mouse once on the left(not twice) to run the programme or select on the menu. 6 Use Connect internet CX-1 is equipped with Wi-Fi. It is can be connected to the Internet through Wi-Fi. For the first use, set the Wi-Fi wireless net . 1.Click "Setting" once. 7 2. In the menu ’ Setting->Wi-Fi ’ , select Wi-Fi, choose Wi-Fi router name, 8 3. After keying in the code(if there is),select "Connection" to finish connection. The Wi-Fi icon will appear after finishing all the actions. Fix resolution of the screen If the HDMI output of TV screen is not complete, entering "Display-output settings" and fix the resolution of the screen by mouse. Entering "output settings-Resolution", and set it as automatic selection. 9 1 0 Fix voice Click the mouse once on the voice icon to up and down the voice. 11 Cope files(connect with the computer) 1. Insert the CX-1 USB wire into computer USB,wait it to power on. 2. Click the mouse on the right below corner of the screen, then the menu appears, click the items in the red circle. 1 2 3. After the below desktop appears, click the button in the red circle. 1 3 4. In the computer, wait for the driver （ like U flash) appears. The usage is the same as U flash. Install and delete the apps Install the apps ： 1.Click the right above corner, the installed apps will appear. 1 4 2.Choose"electronic market"(or choose to use a other "software market" to choose to install apps.) 1 5 3. If it is the first time to run the "electronic market", then it needs to key in the Google email account to be the electronic market" account. Delete apps ： 1. Running "Setting", the downloaded and installed apps will appear. Click the unloading apps, the apps and its information desktop will appear. Then click "Unloading" 1 6 Update software 1.copy the update file into the CX-1 save content.(Note:the update file is named update.zip and its name can not be changed) 2.Running "Setting",select "About tablet",chose"System udate" 1 7 3.Enter ‘ System udate ’ ,chose ‘ From NAND Storage ’ 4.Warning to start to update by reset 1 8 5.Enter the update mode, After the scroll bar finished ,it will reset, and update finish. Common problems: 1. If the LED is not on, please check the connection of power. 2. If the LED is on without turning on of TV or Android desktop, please check the connection of HDMI and check whether the signal origin connects to corresponding HDMI. 3. If the mouse is connected,but it is not showed on the screen,please check the connection of the mouse. If it is the 2.4G wireless mouse, please check if it need the correctly installed butterfly(some not standard mouses are not suitable for CX-1 ， please contact the mouse supplier) 1 9 4. If the wireless net is already setted , but you can still not able to connect the net,please check the right below corner whether the icon is totally grey. If the signal is weak, please contact the net supplier. 5. When needing to key in words and no soft keyboard appears, please click the "Keyboard " icon on the right below corner and choose to close the "Physical Keyboard" 6. Some apps are designed specially for cellphone,so they can not completely showed. 7. If some apps can not work, it may be the reason that they are not optimizated for Android 4.0 2 0 FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance co…

Text truncated - open the document above for the full version.

We, (the approval holder) Company name YI MEI(SHENZHEN)LIMITED AddressRoom 905,West Block,Qiushi Building,Zhuzilin,Shennan Road,Futian District,Shenzhen City,Guangdong Province,China 518040 CityShenzhen CountryChina declare that the following representative (agent): Name (person)Jackie Company nameAsia Institute Technology limited AddressNo.6, Bin-He Roan Tian-Xin Village, Huang-jiang CityDongGuan, GuangDong CountryChina is hereby authorized to apply the following equipment for certification on our behalf: Product DescriptionIt’s a Cloud TV Dongle. Type or Model(s)YM-8XXX Tradename or Brand(s)@Cloud We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen City,Guangdong Province,China 07/04/2012Lucas DengGeneral manager

To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name YI MEI(SHENZHEN)LIMITED AddressRoom 905,West Block,Qiushi Building,Zhuzilin,Shennan Road,Futian District,Shenzhen City,Guangdong Province,China 518040 CityShenzhen CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:OJOYM-8XXX to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription xOperational Description xBlock Diagrams xSchematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen City,Guangdong Province,China 07/04/2012Lucas DengGeneral manager

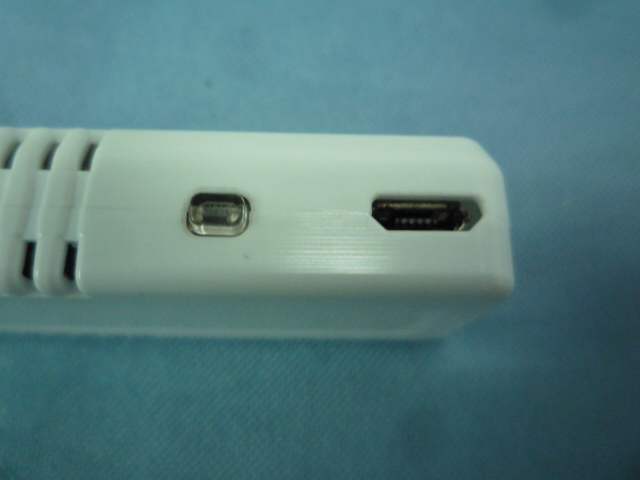

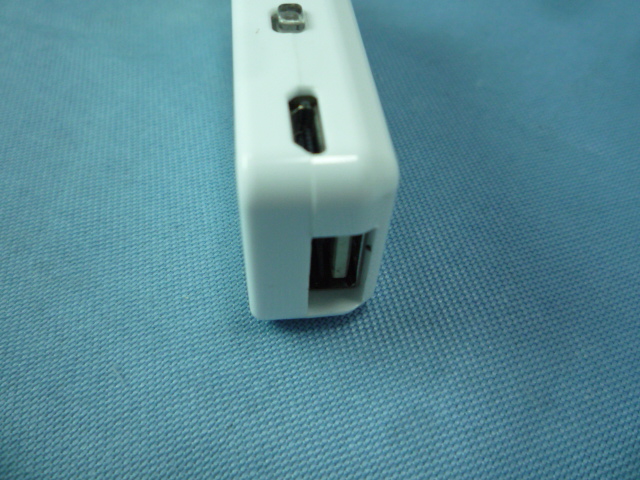

Report No.: E-R1206001 Page 1 of 2 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. External View of EUT Model: YM-8XXX Photo 1 Model: YM-8XXX Photo 2 Report No.: E-R1206001 Page 2 of 2 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Model: YM-8XXX Photo 3 Model: YM-8XXX Photo 4

Label Design FCC ID: OJOYM-8XXX NCC ID: XXXXXXXXX

Report No.: E-R1206001 Page 1 of 5 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Internal View of EUT Model: YM-8XXX Photo 1 Model: YM-8XXX Photo 2 Report No.: E-R1206001 Page 2 of 5 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Model: YM-8XXX Photo 3 Model: YM-8XXX Photo 4 Report No.: E-R1206001 Page 3 of 5 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Model: YM-8XXX Photo 5 Model: YM-8XXX Photo 6 Report No.: E-R1206001 Page 4 of 5 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Model: YM-8XXX Photo 7 Model: YM-8XXX Photo 8 Report No.: E-R1206001 Page 5 of 5 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Model: YM-8XXX Photo 9 Model: YM-8XXX Photo 10

Report No.: E-F1207002 Page 1 of 35 Rev: None FCC Verification Test Report For YI MEI(SHENZHEN)LIMITED EUT Name: Cloud Wifi TV Dongle Model No.: YM-8XXX Brand Name: a-Cloud Prepared By: Asia Institute Technology (Dongguan) Limited Date of Receipt: Jul. 05, 2012 Date of Test: Jul.09 ~10, 2012 Date of Issue: Jul. 11, 2012 Test Result: Pass This report shall not be reproduced except in full, without the written approval of Asia Institute Technology (Dongguan) Limited. Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Report No.: E-F1207002 Page 2 of 35 Rev: None Verification of Compliance Client Information: Applicant: YI MEI(SHENZHEN)LIMITED Applicant add.: Room 905, West Block, Qiushi Building, Zhuzilin, Shennan Road, Futian District, Shenzhen City, Guangdong Province, China 518040 EUT Information: EUT Name: Cloud Wifi TV Dongle Model No.: YM-8XXX Brand Name: a-Cloud Test procedure used: FCC Part 15 Subpart B Class B ICES-003 This device described above has been tested by Asia Institute Technology (Dongguan) Limited, and the test results show that the equipment under test (EUT) is in compliance with the FCC and IC requirements. And it is applicable only to the tested sample identified in the report. Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Reviewed by: Approved by: Test director Technical director Report No.: E-F1207002 Page 3 of 35 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ...........................................................................................................................................................3 2 TEST SUMMARY ..................................................................................................................................................4 2.1 MEASUREMENT UNCERTAINTY............................................................................................................................5 3 TEST FACILITY.....................................................................................................................................................6 3.1 DEVIATION FROM STANDARD...............................................................................................................................6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................6 4 GENERAL INFORMATION ...................................................................................................................................7 4.1 GENERAL DESCRIPTION OF EUT ........................................................................................................................7 4.1.1 EUT Test Mode ...................................................................................................................7 4.2 DESCRIPTION OF TEST SETUP.............................................................................................................................8 4.3 PERIPHERAL LIST...............................................................................................................................................9 4.4 EUT PERIPHERAL LIST........................................................................................................................................10 5 EQUIPMENTS LIST FOR ALL TEST ITEMS .....................................................................................................11 6 EMISSION TEST RESULTS ...............................................................................................................................12 6.1 MAINS TERMINALS DISTURBANCE VOLTAGE MEASUREMENT..............................................................................12 6.1.1 E.U.T. Operation ...............................................................................................................12 6.1.2 Test Specification ..............................................................................................................12 6.1.3 Measurement Data............................................................................................................13 6.1.4 Test Setup Photograph .....................................................................................................18 6.2 RADIATED EMISSION MEASUREMENT................................................................................................................19 6.2.1 E.U.T. Operation ...............................................................................................................19 6.2.2 Test Specification ..............................................................................................................19 6.2.3 Measurement Data............................................................................................................20 6.2.4 Test Setup photograph......................................................................................................27 7 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS ...........................................................29 Report No.: E-F1207002 Page 4 of 35 Rev: None 2 Test Summary Test Test Requirement Test Method CriterionResult Mains Terminals Disturbance Voltage, 150kHz to 30MHz FCC Part 15 Subpart B ICES-003 FCC Part 15 Subpart B ANSI C63.4: 2009 Limits PASS Radiated Emissions 30MHz to 1GHz FCC Part 15 Subpart B ICES-003 FCC Part 15 Subpart B ANSI C63.4: 2009 Limits PASS Remark: None Model description: YM-8XXX, 8: Representative appearance, the first X: Representative clients, the second X: Representative exporter, the third X: Representative version Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Report No.: E-F1207002 Page 5 of …
