OJZJM201327RC Monster Car

Block Diagram Control key k2 k3 k4 k5 Encoder IC1 RF power amplifier and Modulator Q1 Q2 Oscillator X1 27.145MHz Filter L1, C2, C1 27.145MHz ANT

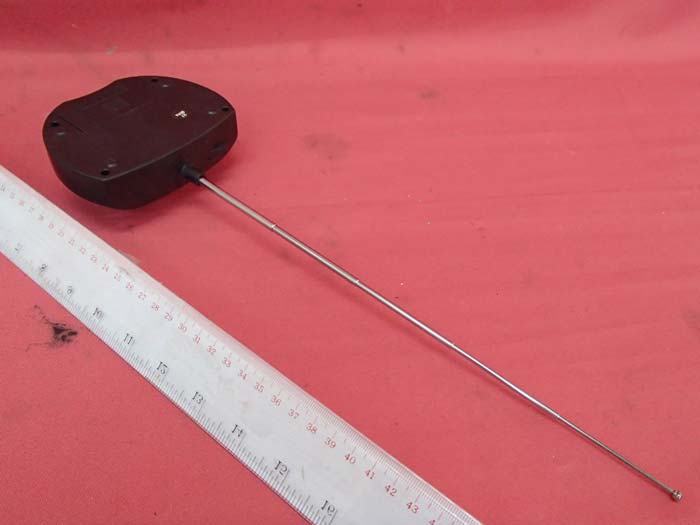

INTERTEK TESTING SERVICE Report No.: HK12120217-1 FCC ID: OJZJM201327 Equipment Photographs Model : JM2013 (External)

40 mm 19 mm

INTERTEK TESTING SERVICE Report No.: HK12120217-1 FCC ID: OJZJM201327 Equipment Photographs Model: JM2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120217-1 FCC ID: OJZJM201327 Equipment Photographs Model: JM2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120217-1 FCC ID: OJZJM201327 Equipment Photographs Model: JM2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120217-1 FCC ID: OJZJM201327 Equipment Photographs Model: JM2013 (Internal)

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C2,C1 RF IC Encode, logic control and sent out SD signal IC1 Crystal Generate 27.145MHz carrier X1, Q2 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q1 Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation Frequency Range: 27.145MHz single channel Antenna Gain: 0dBi Nominal rated field strength: 67.6dBuV/m at 3m Maximum allowed field strength error: +/- 3dB

Analysis Report Report No.: HK12120217-1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a power ON/OFF switch and two forward / backward control lever for the left and right wheel of RC car respectively. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: Telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 67.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.6dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00344mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00344mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

INTERTEK TESTING SERVICES Report No.: HK12120217-1(FCC) Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Att 10 dB * A PS Ref -20 dBm 32 kHz/Start 26.96 MHzStop 27.28 MHz RBW 10 kHz VBW 30 kHz SWT 5 ms 3DB DC 1 PK VIEW -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -36.03 dBm 27.144320000 MHz 1 Delta 1 [T1 ] -34.03 dB 135.680000000 kHz Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)
