OK475A00-2PROXIMITY ACCESS READER

Model 75A00-2 Access Control Reader Home Automation, Inc. 4330 Michoud Blvd. | New Orleans, LA 70129 | 800-229-7256 | 504-736-9810 | www.homeauto.com 75I00-2 DESCRIPTION The 75A00-2 Access Control Reader is a 125 KHz high security, digitally encrypted, 26-bit proximity card reader that connects to a serial port on an HAI Home Control System for access control. Multiple 75A00-2 readers may be multi-dropped on a single serial interface configured for RS-485 communications. The 75A00-2 incorporates three inputs: 1 input for an exit push button, and 2 general purpose inputs. The 75A00-2 also incorporates one output for the electric door strike or magnetic lock. PLANNING The 75A00-2 requires 4 wires for operation (2 for power and 2 for communications). The maximum distance between the 75A00-2 and the connected 12V Power Supply or HAI 83A00 Power Hub is based on two factors: 1) the current draw of the connected door lock device, and 2) the wire gauge/type used. To maintain proper operation of the 75A00-2 and the connected door lock device, do not exceed the "Maximum Cable Length" based on the Total Current Draw and the Wire Gauge/Type per the table below (Table 1). 75A00-2 Only (no Door Lock connected): 130mA maximum 75A00-2 and 79A00-1 Electric Door Strike (450mA): 580mA maximum Wire Gauge Wire Type Number of positive conductors Number of ground conductors Maximum Cable Length (feet) Wire Gauge Wire Type Number of positive conductors Number of ground conductors Maximum Cable Length (feet) 24 solid 1 1 233 24 solid 1 1 58 24 solid 2 2 466 24 solid 2 2 117 24 solid 3 3 699 24 solid 3 3 175 22 solid 1 1 413 22 solid 1 1 103 22 solid 2 2 826 22 solid 2 2 207 22 stranded 1 1 381 22 stranded 1 1 95 18 solid 1 1 1000 18 solid 1 1 261 18 stranded 1 1 963 18 stranded 1 1 241 16 solid 1 1 1000 16 solid 1 1 415 16 stranded 1 1 1000 16 stranded 1 1 383 75A00-2 and Door Lock (800mA): 930mA maximum 75A00-2 and Door Lock (1A): 1.13A maximum Wire Gauge Wire Type Number of positive conductors Number of ground conductors Maximum Cable Length (feet) Wire Gauge Wire Type Number of positive conductors Number of ground conductors Maximum Cable Length (feet) 24 solid 1 1 37 24 solid 1 1 30 24 solid 2 2 74 24 solid 2 2 61 24 solid 3 3 110 24 solid 3 3 91 22 solid 1 1 65 22 solid 1 1 54 22 solid 2 2 130 22 solid 2 2 108 22 stranded 1 1 60 22 stranded 1 1 50 18 solid 1 1 165 18 solid 1 1 136 18 stranded 1 1 152 18 stranded 1 1 126 16 solid 1 1 262 16 solid 1 1 217 16 stranded 1 1 242 16 stranded 1 1 200 Table 1 Note: If cable with multiple conductors is used (such as Cat-5 cable), it is possible to connect multiple conductors together to achieve greater distance. Page 2 INNSTALLATION The 75A00-2 requires the use of one serial port on the HAI controller. Run the cable (as determined by Table 1) from the HAI controller or HAI 83A00 Power Hub to the location of the Model 75A00-2 Access Control Reader and install as follows: 1) Remove the cover from the 75A00-2 by gently prying the top and bottom of the cover with a small blade screwdriver. 2) Drill a ½” hole in the center of the mounting location for the 75A00-2. The 75A00-2 may be mounted on a mullion or wall. 3) Insert the connections cable from the 75A00-2 into the hole. Mark the mounting holes locations on the top-right and bottom left. 4) Make the connections to the 75A00-2 as shown in Figure 2 or Figure 3. 5) Secure the 75A00-2 to the mounting surface using the supplied mounting hardware. 6) Install the cover by gently pushing it onto the reader until it snaps in place. 7) Configure the serial interface on the HAI controller for RS-485 communications by moving the corresponding interface jumper (JP1-JP5) to the "485" position. SPECIFICATIONS Read Range: 78A00-1 Cards = 4 inch; 78A00-2 Key Tags = 2 inch Door Open Time: 5 Seconds (default), 1-60 Seconds (selectable) Current Consumption: 130mA maximum Communications: RS-485 Inputs: 3 inputs (Exit Button, Input 1, Input 2) Lock Output: 12VDC, 1A maximim Lock Type: Fail Safe or Fail Secure (selectable) LED Indicators: Array of 3 LED indicators (Red and Green) Beeper: Piezoelectric Operating Temperature: -31°F to 140°F Operating Humidity: 10% to 90% relative humidity, non-condensing Dimensions: 1.8”W x 4.9”H x 0.8”D Weight: 80g (0.18 lb.) Federal Communications Commission (FCC) Statement: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of the following measures. (1) Reorient or relocate the receiving antenna, (2) Increase the separation between the equipment and receiver, (3) Connect the equipment into an outlet on another circuit, (4) Consult the dealer or an experienced radio/TV technicia…

Text truncated - open the document above for the full version.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name DAWEI COMMUNICATION CO.,LTD Addresss UNIT B 6/F MG TOWRR 133 HOI RUN ROAD KWUN TONG KOWLOON City Country Hong Kong request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: OK4 75A00-2 of the following materials submitted within this certification application: Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2012/7/25 jianming zhu Manager

DAWEI COMMUNICATION CO.,LTD UNIT B 6/F MG TOWRR 133 HOI RUN ROAD KWUN TONG KOWLOON HONGKONG Model Difference FCC ID: OK475A00-2 All model(75A00-2,DC10,DC20,DC30) ,Olny model name is difference ,the other is same . Signature Name: jianming zhu Title: Manager Tel: 00852-27970620 E mail: [email protected]

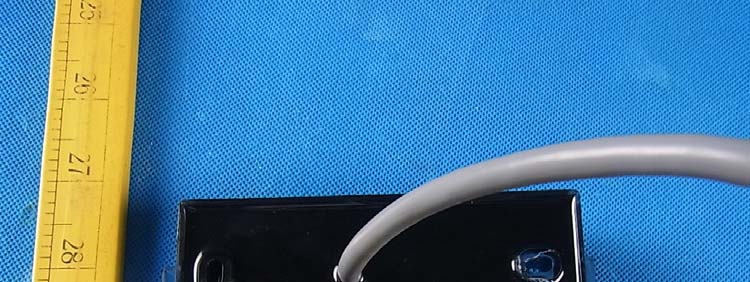

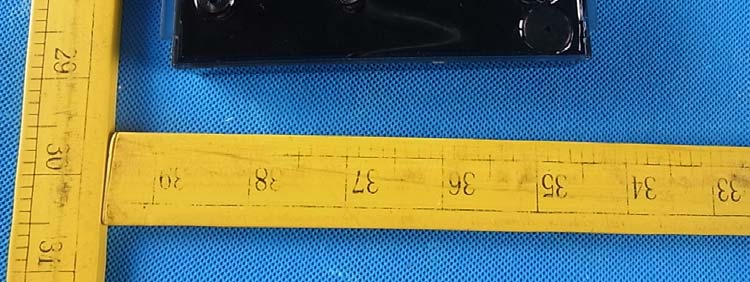

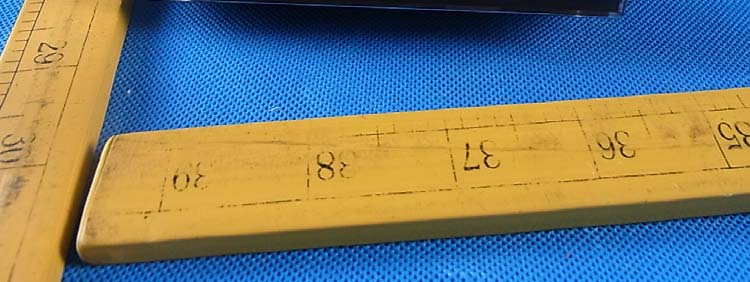

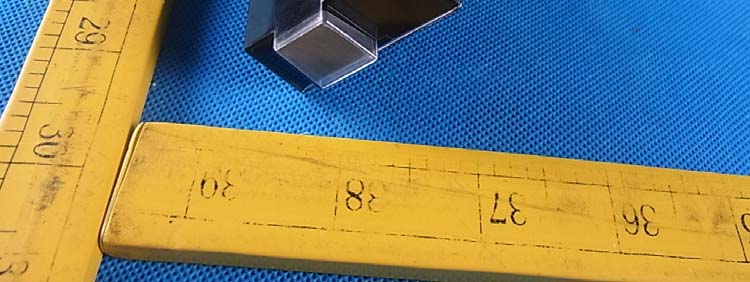

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

2.5*3.6cm

Photo 7 Photo 8 Photo 9

FCC PART15C TEST REPORT FCC ID: OK475A00-2 Product： PROXIMITY ACCESS READER Trade Name： N/A Model Name： 75A00-2 Serial Model： DC10,DC20,DC30 Report No.： PTS2012072345F Prepared for DAWEI COMMUNICATION CO.,LTD UNIT B 6/F MG TOWRR 133 HOI RUN ROAD KWUN TONG KOWLOON HONGKONG, China Prepared by DongGuan Precise Testing Service Co.,Ltd. F616A Room, 6th Floor, Meixin Business Center, Dongcheng Middle Road, Dongguan, Guangdong, China Tel: 86-769-23368601 Fax: 86-769-23368602 http:// www.pts-testing.com Page 2 of 22 Report No.: PTS2012072345F TEST RESULT CERTIFICATION Applicant’s name ................. : DAWEI COMMUNICATION CO.,LTD Address ................................. : UNIT B 6/F MG TOWRR 133 HOI RUN ROAD KWUN TONG KOWLOON HONGKONG, China Manufacture's Name ............ : DAWEI COMMUNICATION CO.,LTD Address ................................. : UNIT B 6/F MG TOWRR 133 HOI RUN ROAD KWUN TONG KOWLOON HONGKONG, China Product description Product name ........................... : PROXIMITY ACCESS READER Model and/or type reference : 75A00-2 Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.209:2011 ANSI C63.4: 2009 This device described above has been tested by PTS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTS, this document may be altered or revised by PTS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 15 Jul. 2012 ~25 Jul. 2012 Date of Issue ........................................... : 25 Jul. 2012 Test Result ............................................... : Pass Testing Engineer : Assistant Technical Manager : Supervisor Authorized Signatory : Jack Ou / Manager Page 3 of 22 Report No.: PTS2012072345F Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 DESCRIPTION OF TEST SETUP 8 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.5 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 EUT OPERATING CONDITIONS 16 3.2.5 TEST RESULTS(Blow 30MHZ) 17 3.2.6 TEST RESULTS( 30MHZ-1GHZ) 18 3.2.7 TEST RESULTS(Above 1GHz) 20 4 . EUT TEST PHOTO 21 Page 4 of 22 Report No.: PTS2012072345F 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Judgment Remark FCC Part15.207 Conducted Emission PASS FCC Part15.209 Radiated Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 5 of 22 Report No.: PTS2012072345F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd. Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration Number:238937; IC Registration Number:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKC01 ANSI150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKA01 ANSI30MHz ~ 1000MHz 4.7 1GHz ~6GHz 5.0 Page 6 of 22 Report No.: PTS2012072345F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment PROXIMITY ACCESS READER Brand Name N/A Model No. 75A00-2 Serial No. DC10,DC20,DC30 Model Difference Model name is difference ,the other is same Product Description The EUT is a PROXIMITY ACCESS READER.. TX frequency:125KHz Number of Channels1 Antenna Designation:Inductive Loop Coil Antenna modulation typeRFID Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Power Source DC 12V by battery Battery N/A Page 7 of 22 Report No.: PTS2012072345F 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX mode For Conducted Test Final Test Mode Description Mode 1 TX mode For Radiated Test Final Test Mode Description Mode 1 TX mode Page 8 of 22 Report No.: PTS2012072345F 2.3 DESCRIPTION OF TEST SETUP Mode 1: E-1 EUT Page 9 of 22 Report No.: PTS2012072345F 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 PROXIMITY ACCESS READER N/A75A00-2 N/A EUT Item Shielded Type Ferrite CoreLength Note Note: (1) The support equipment was authorized by Declaration of Confirmation. (2) For detachable type I/O cable should be specified the length in cm in『Length』column. (3) “YES” is means “shielded” “with core”; “NO” is means “unshielded” “without core”. Page 10 of 22 Report No.: PTS2012072345F 2.5 MEASUREMENT INS…
