OLO-VSP-TXWireless A/V System

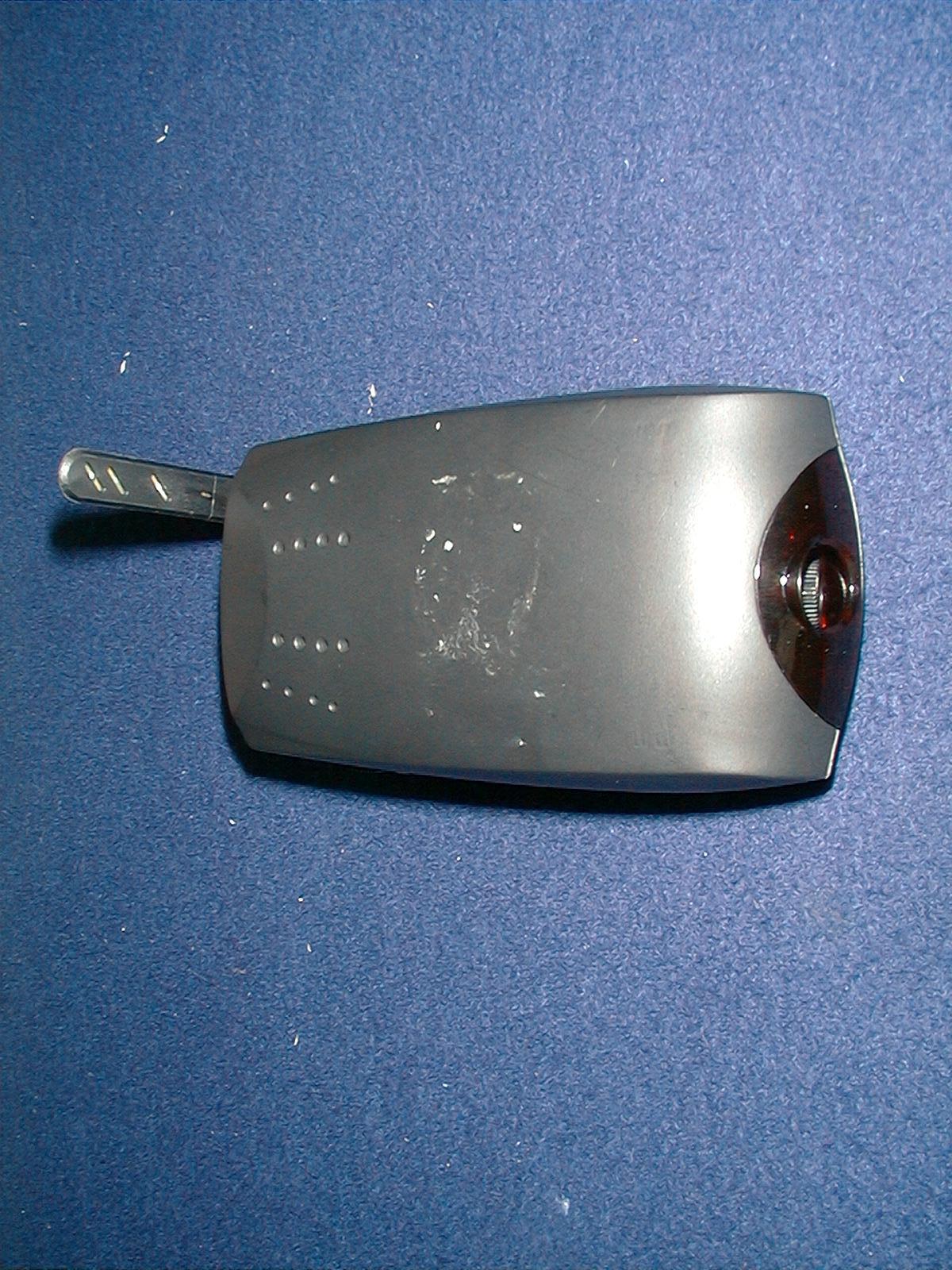

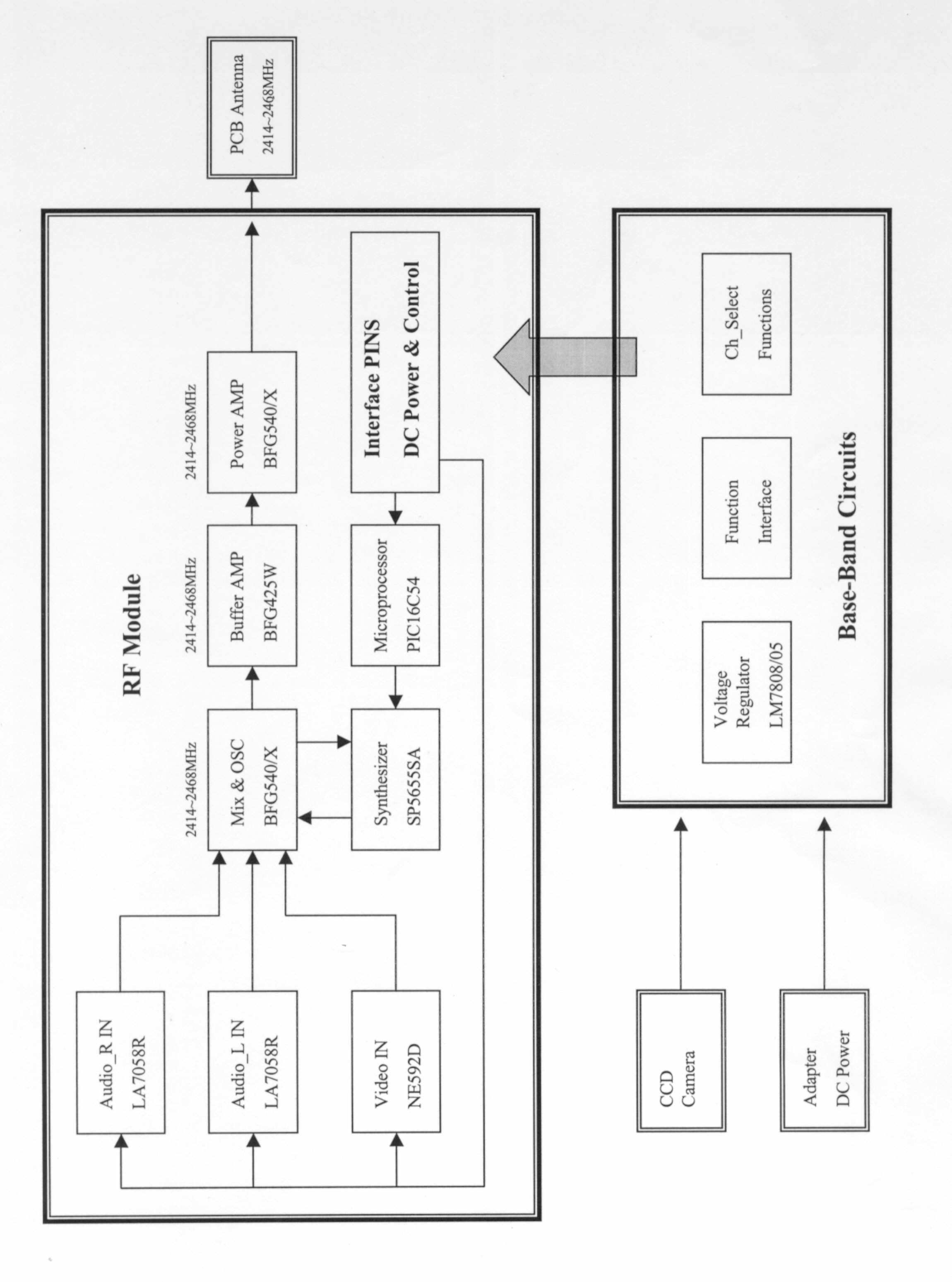

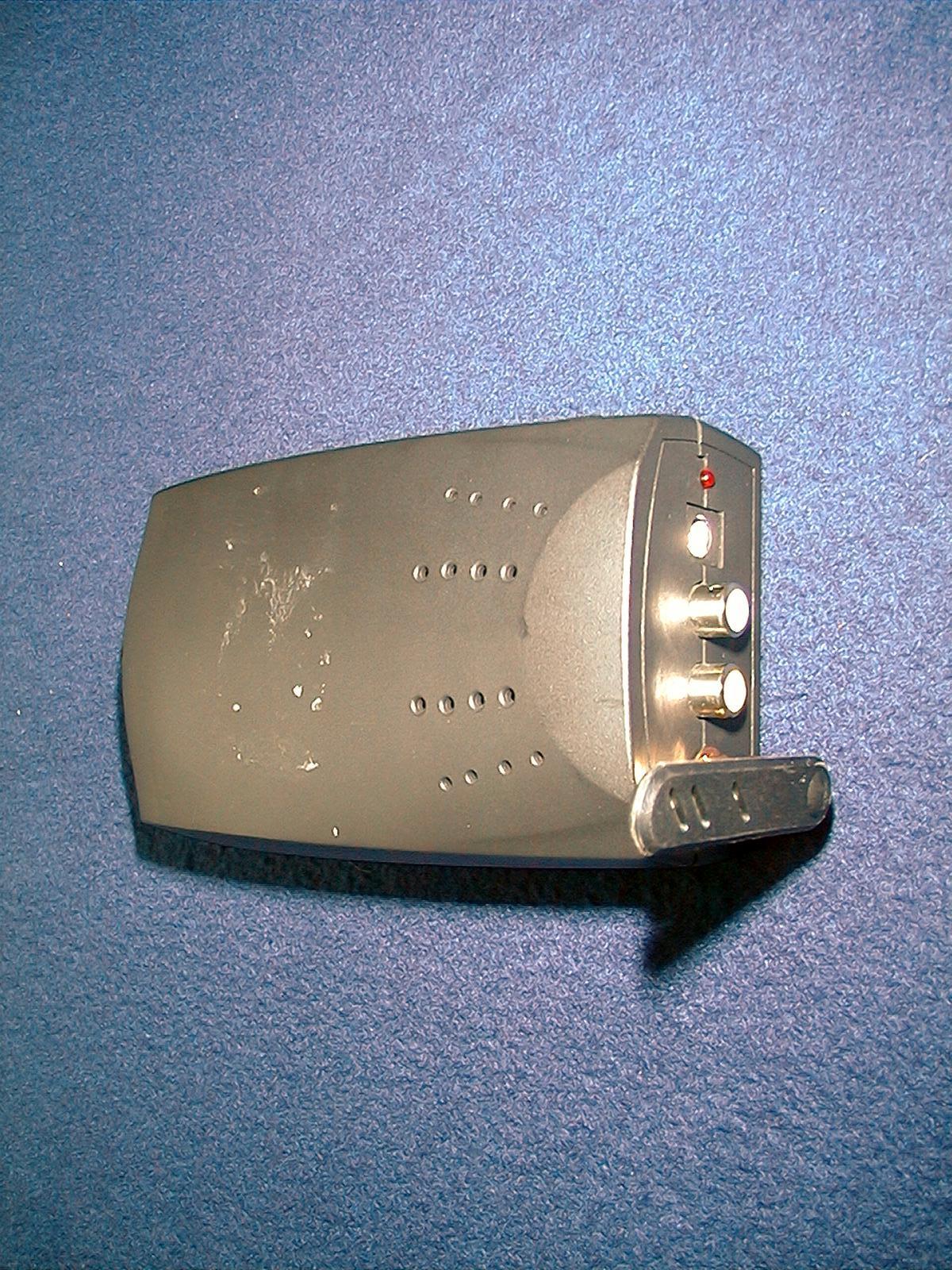

2.4 GHz Wireless A/V System, using FM method for Audio/Video signal modulation. It has better signal to noise ratio than Amplitude Modulation. There are four channels to relative to the following frequences : CH 1 : 2415 MHz, CH 2 : 2431 MHz, CH 3 : 2450 MHz, CH 4 : 2468 MHz, this device is used for surveying enviromenet sitnation or similar applications of Audio and Video signals transmission.

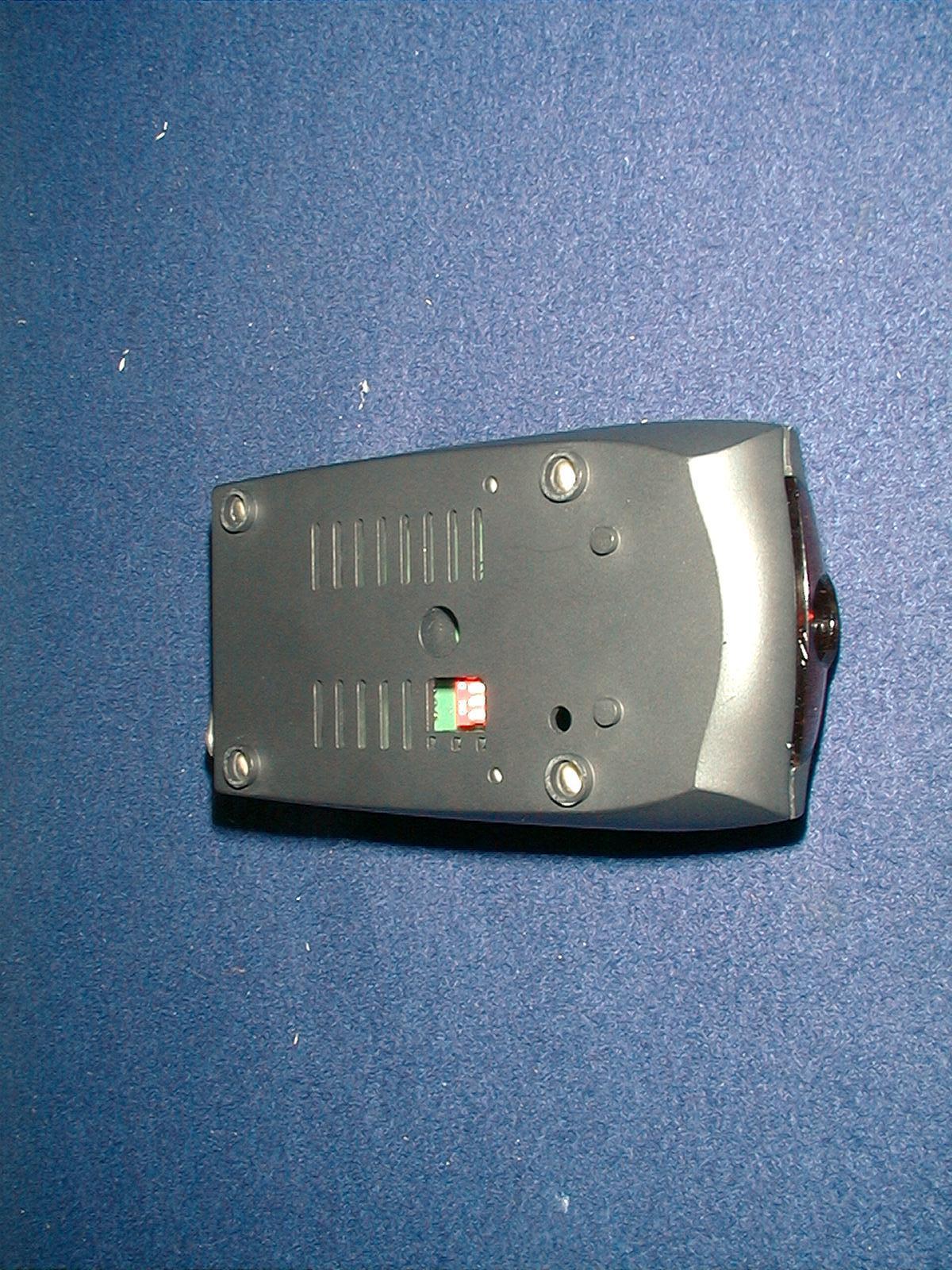

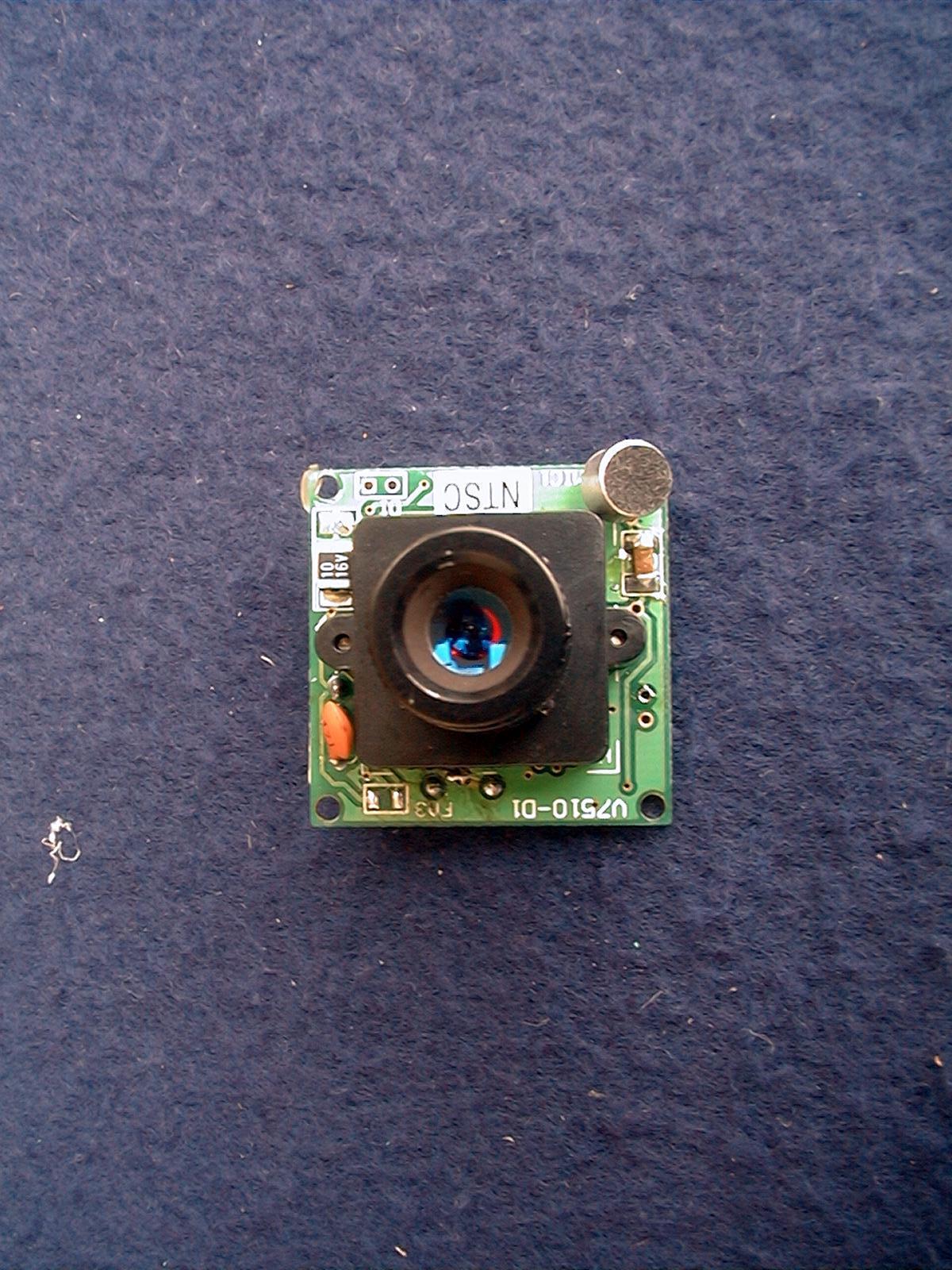

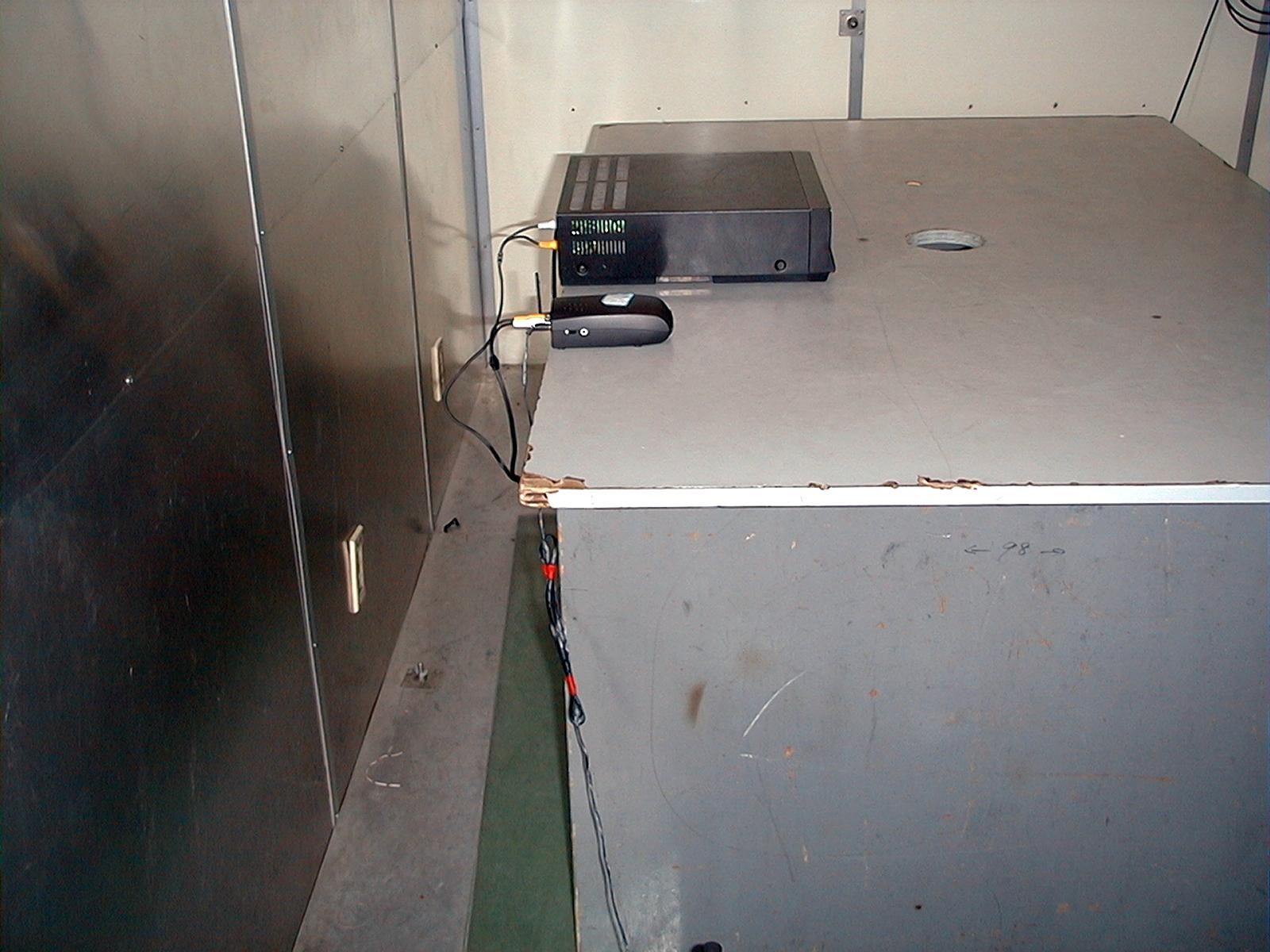

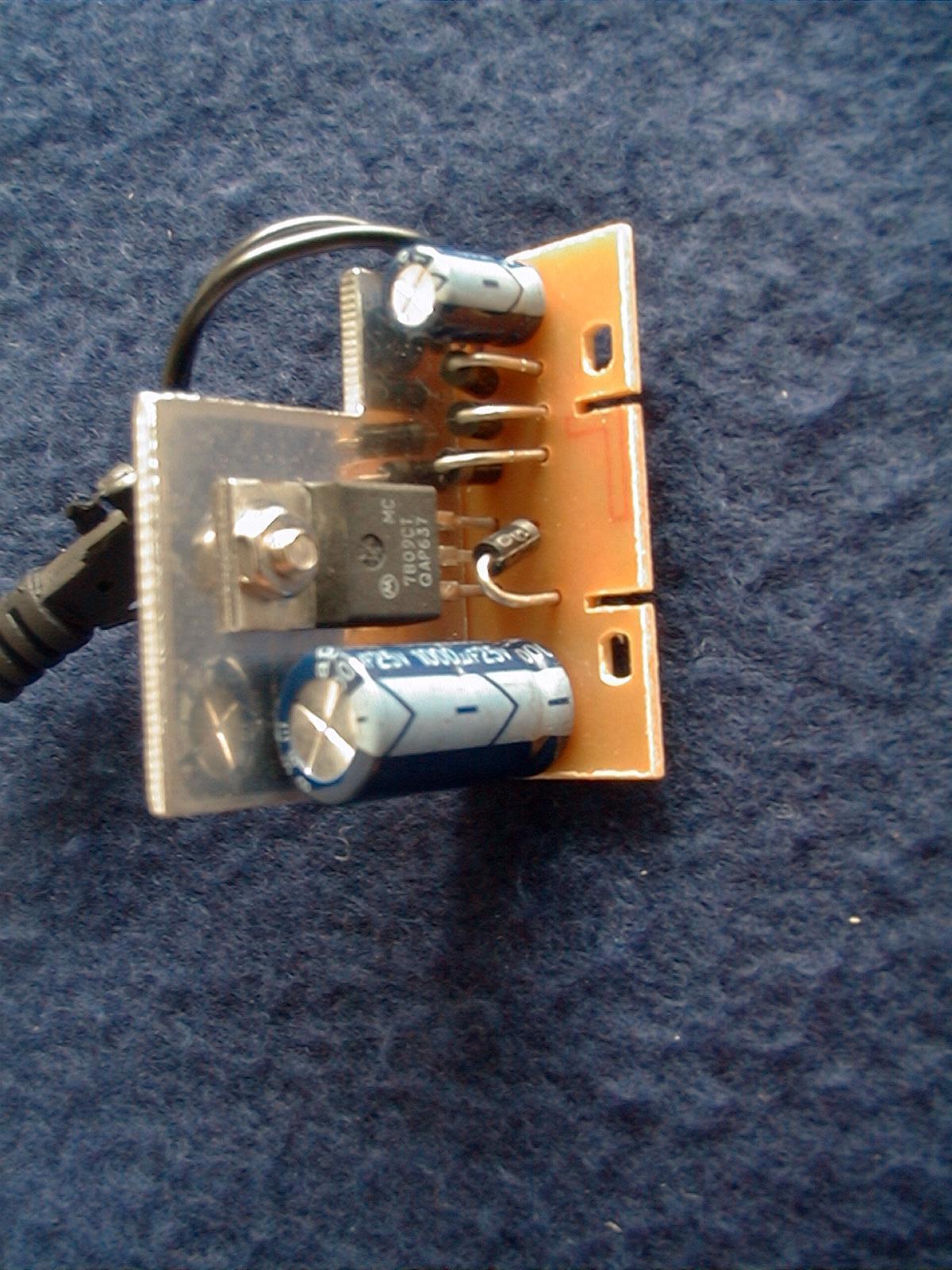

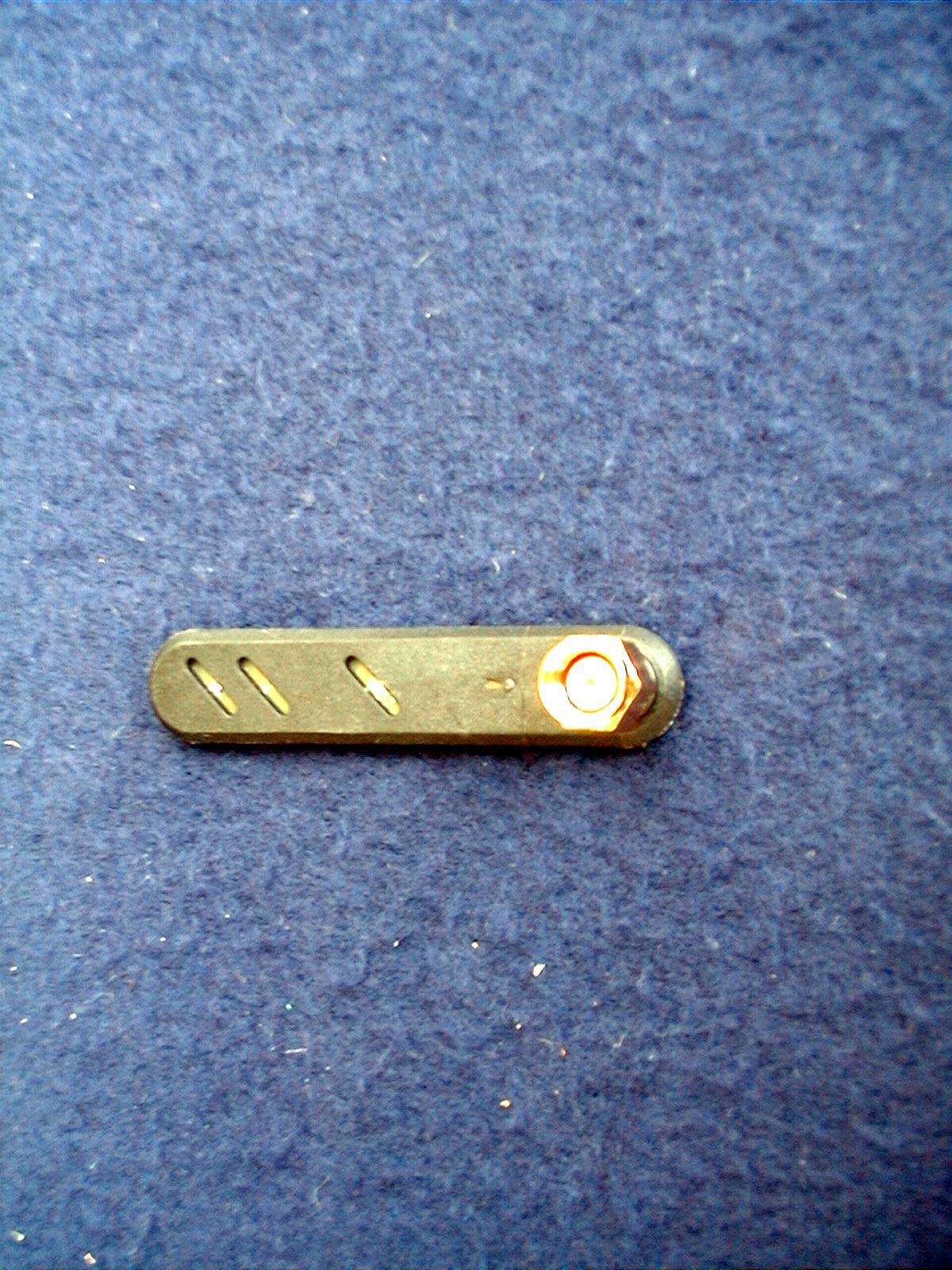

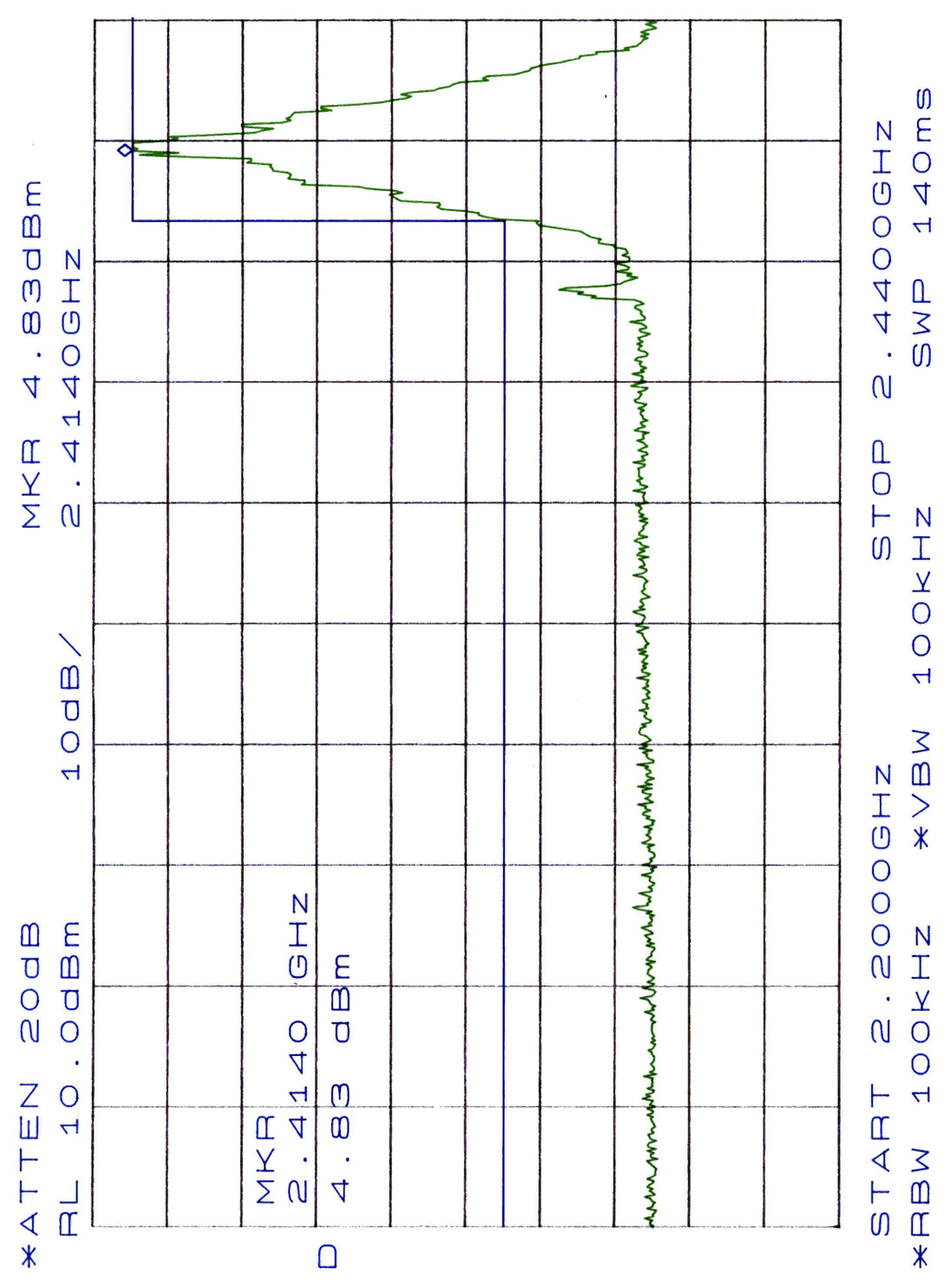

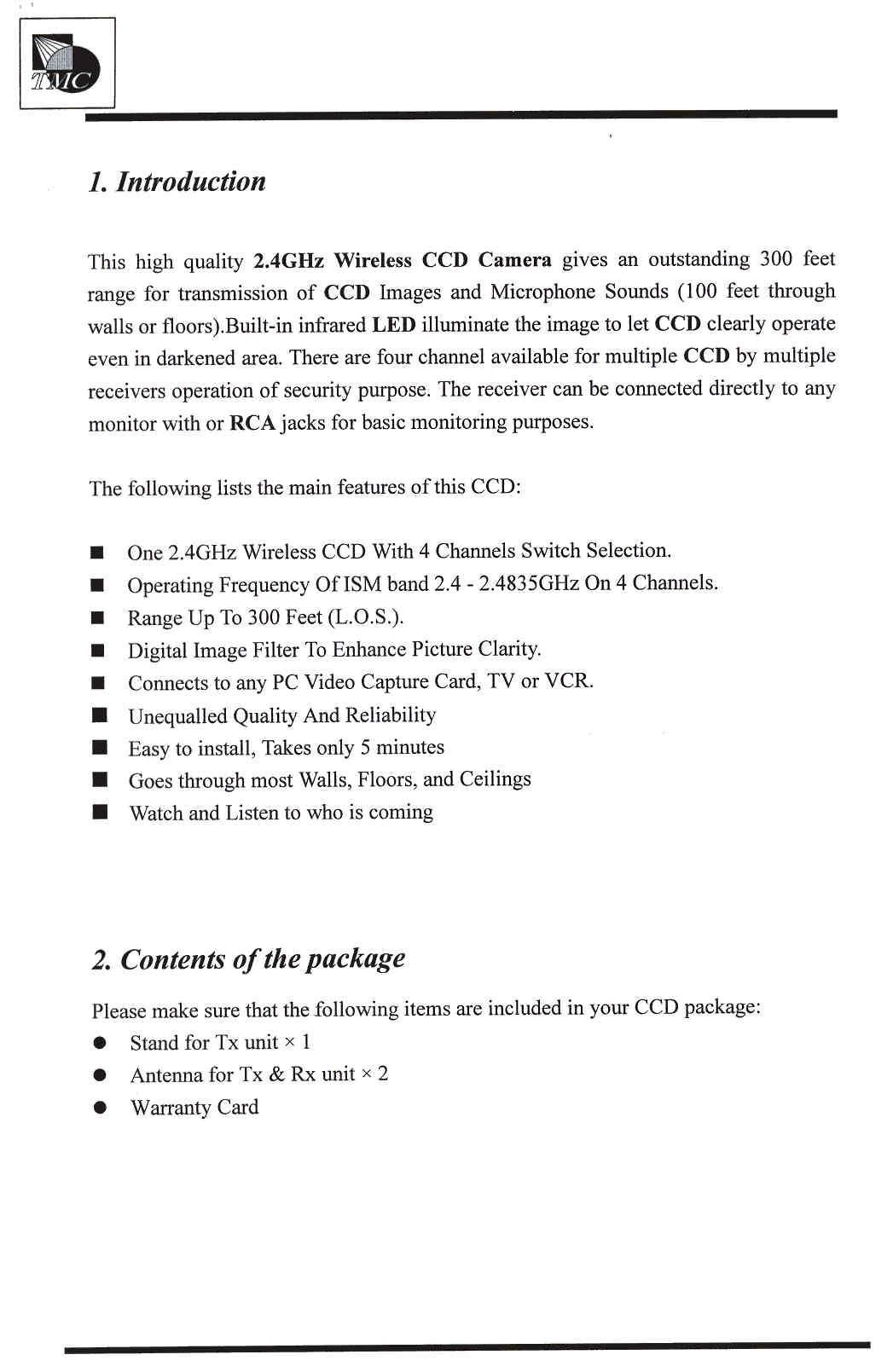

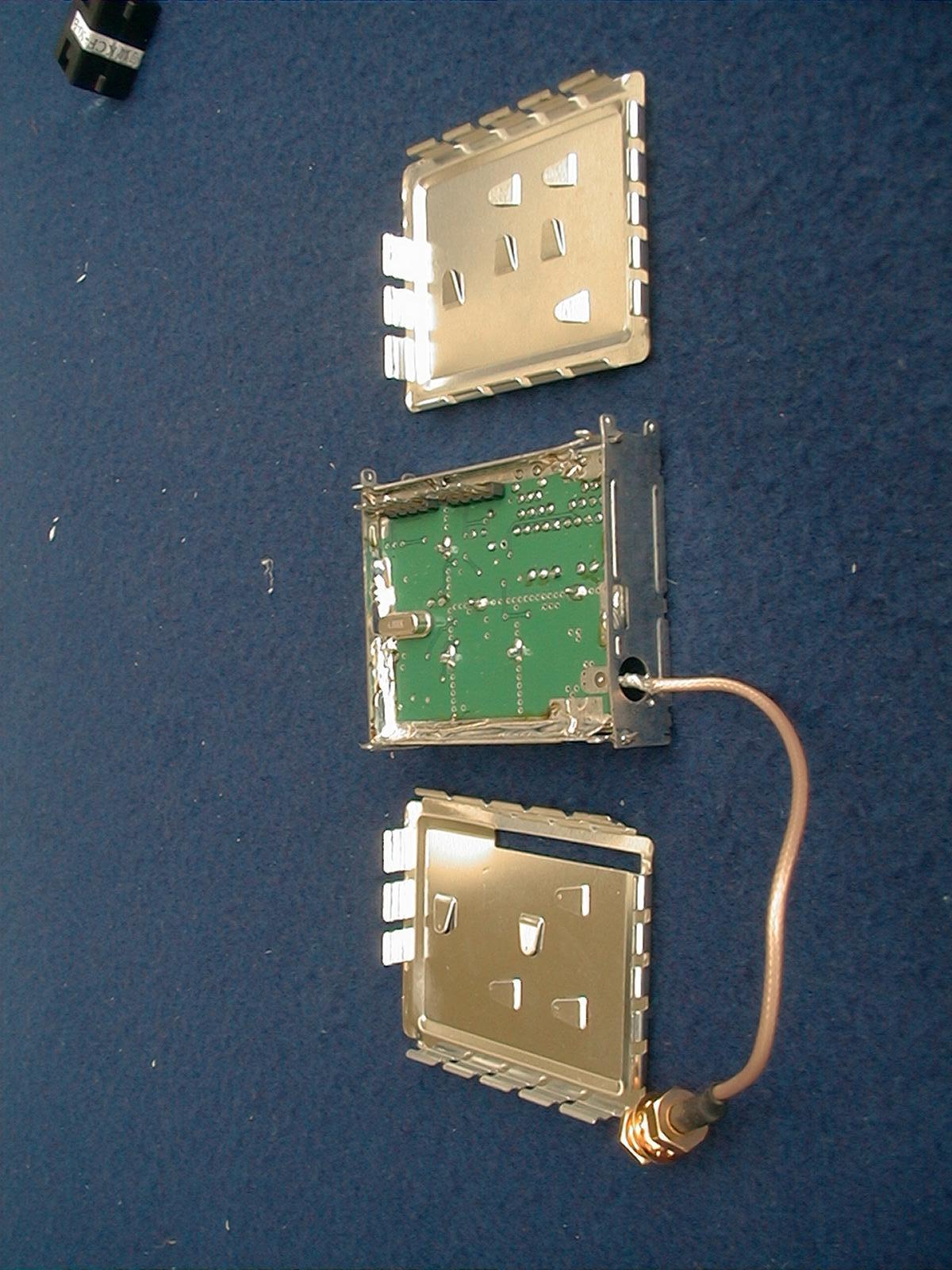

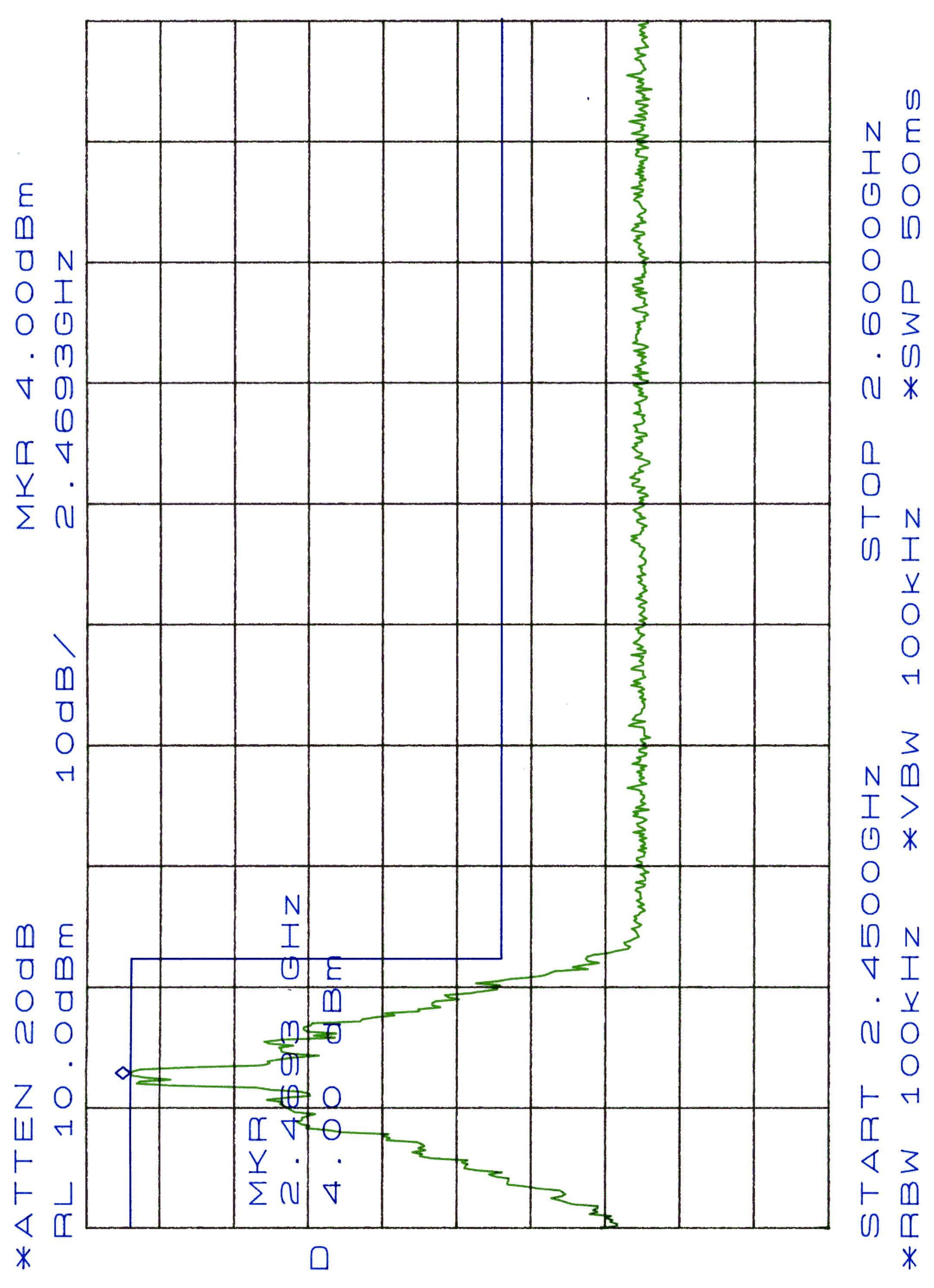

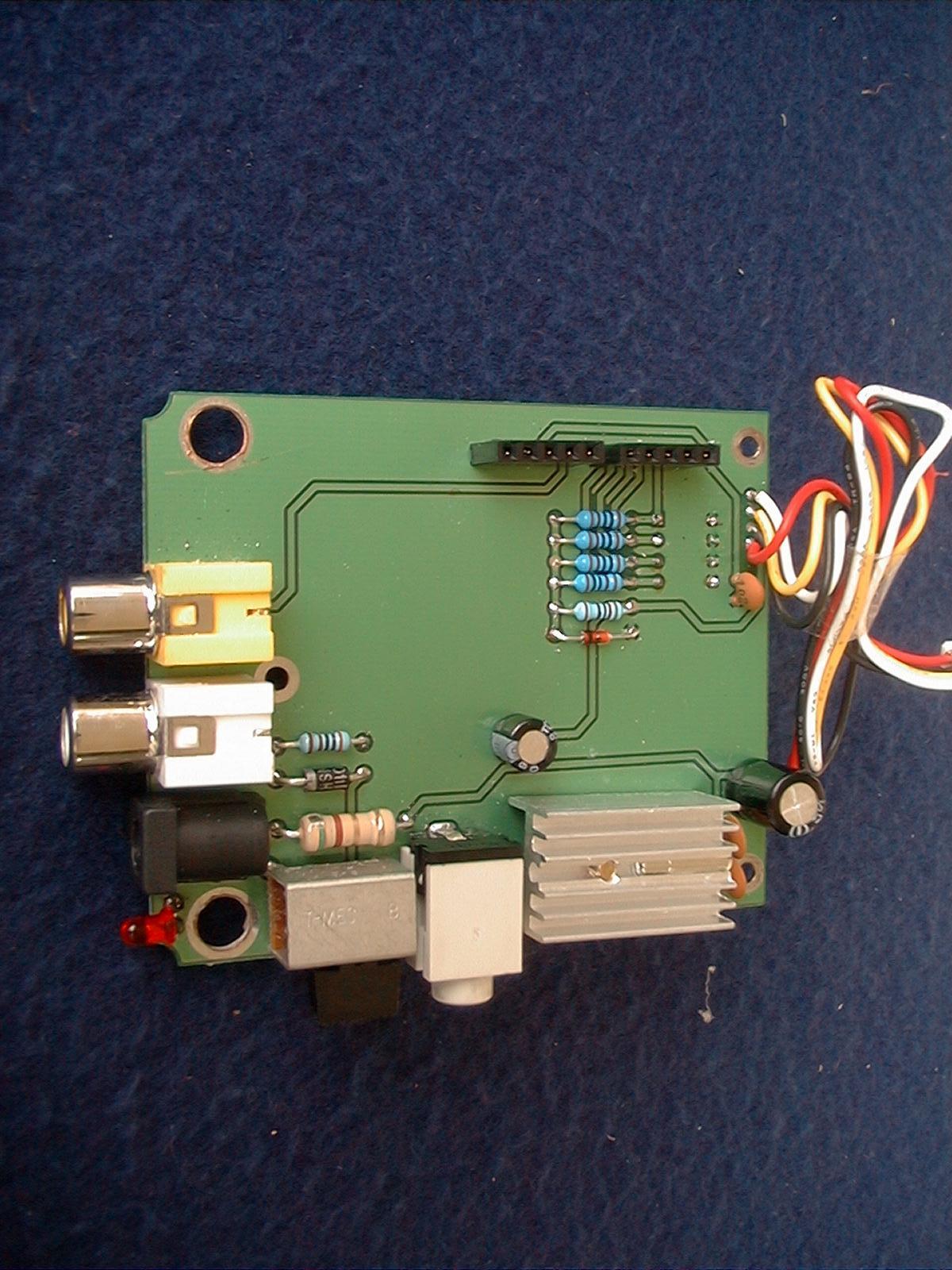

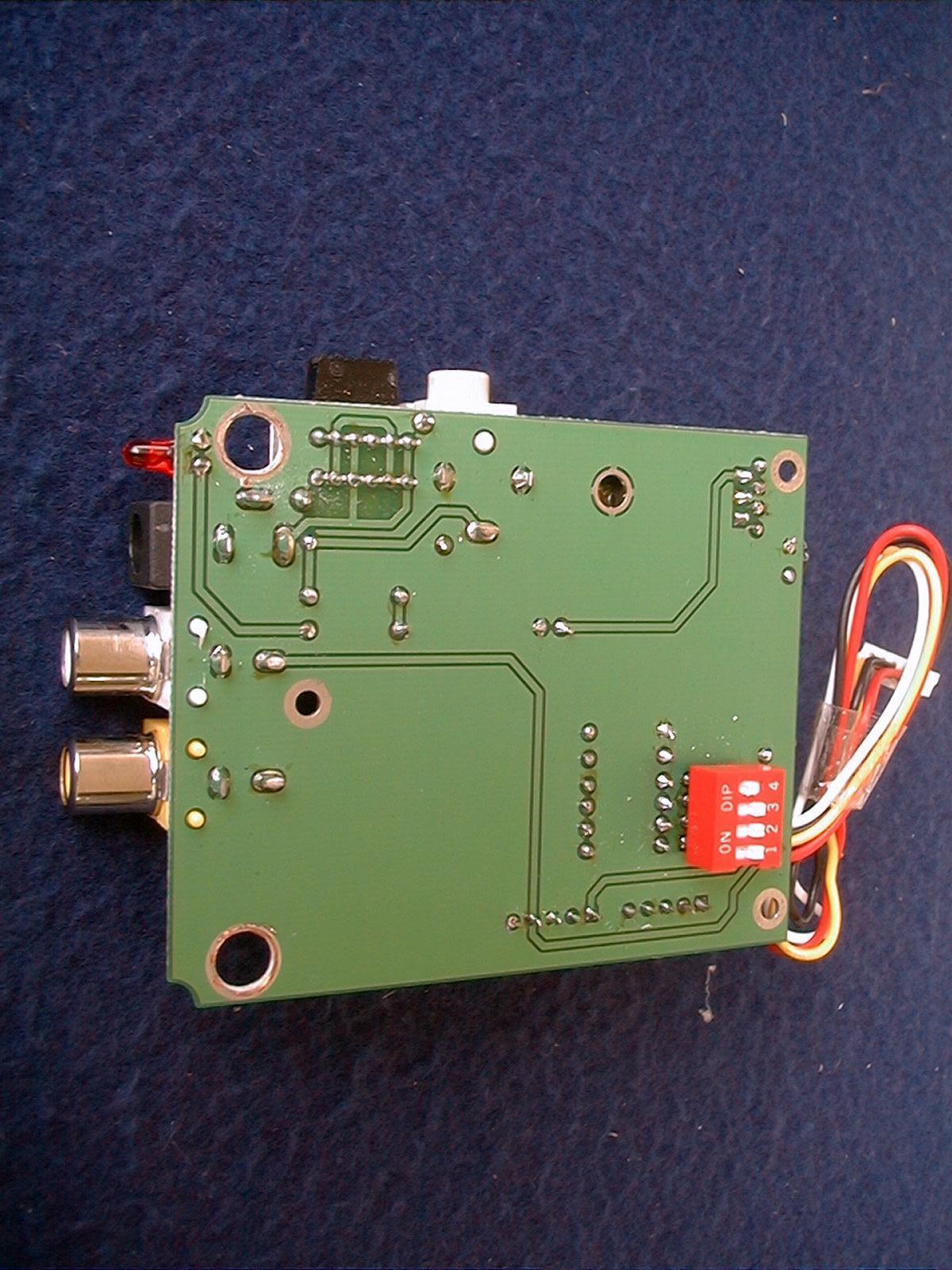

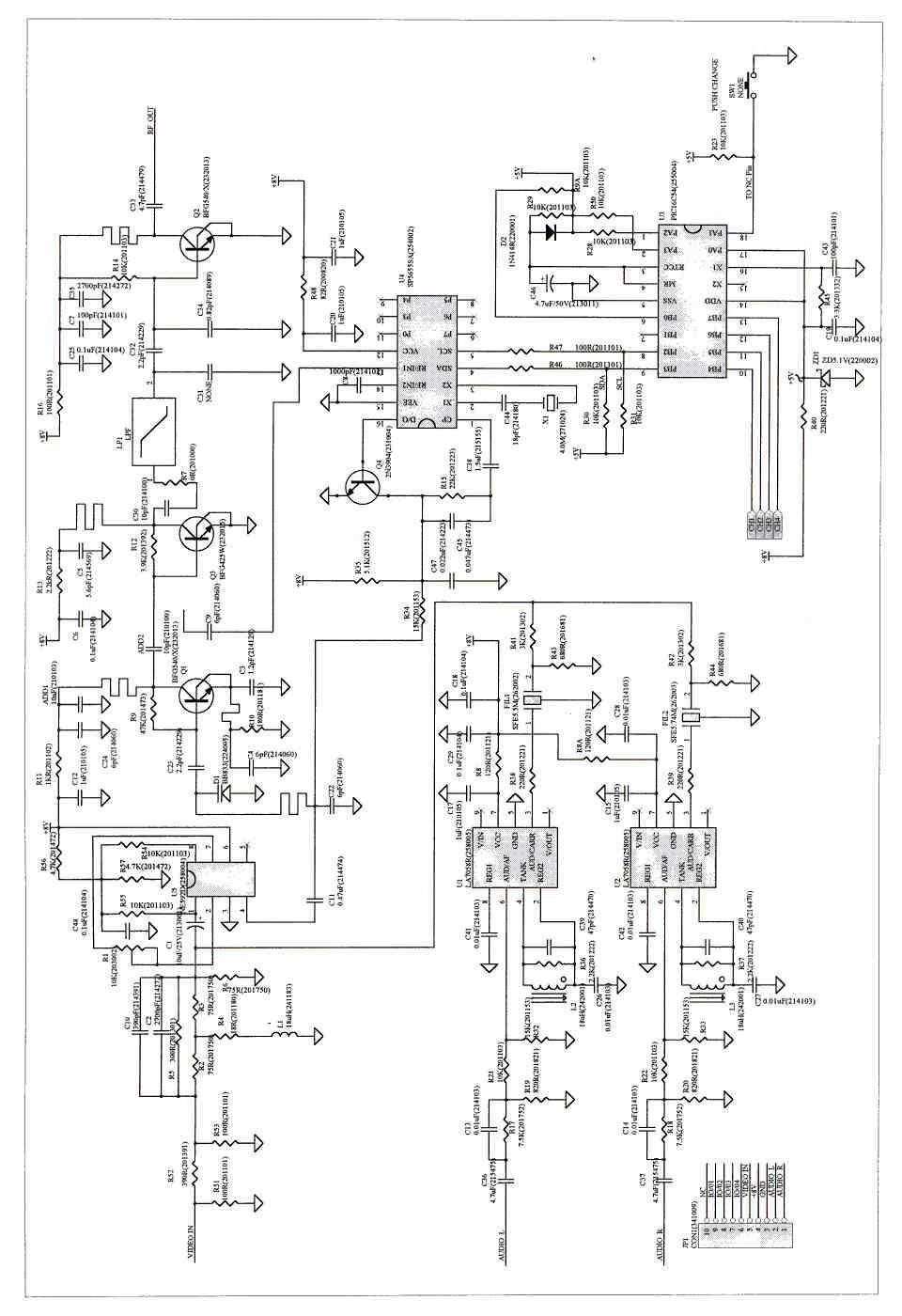

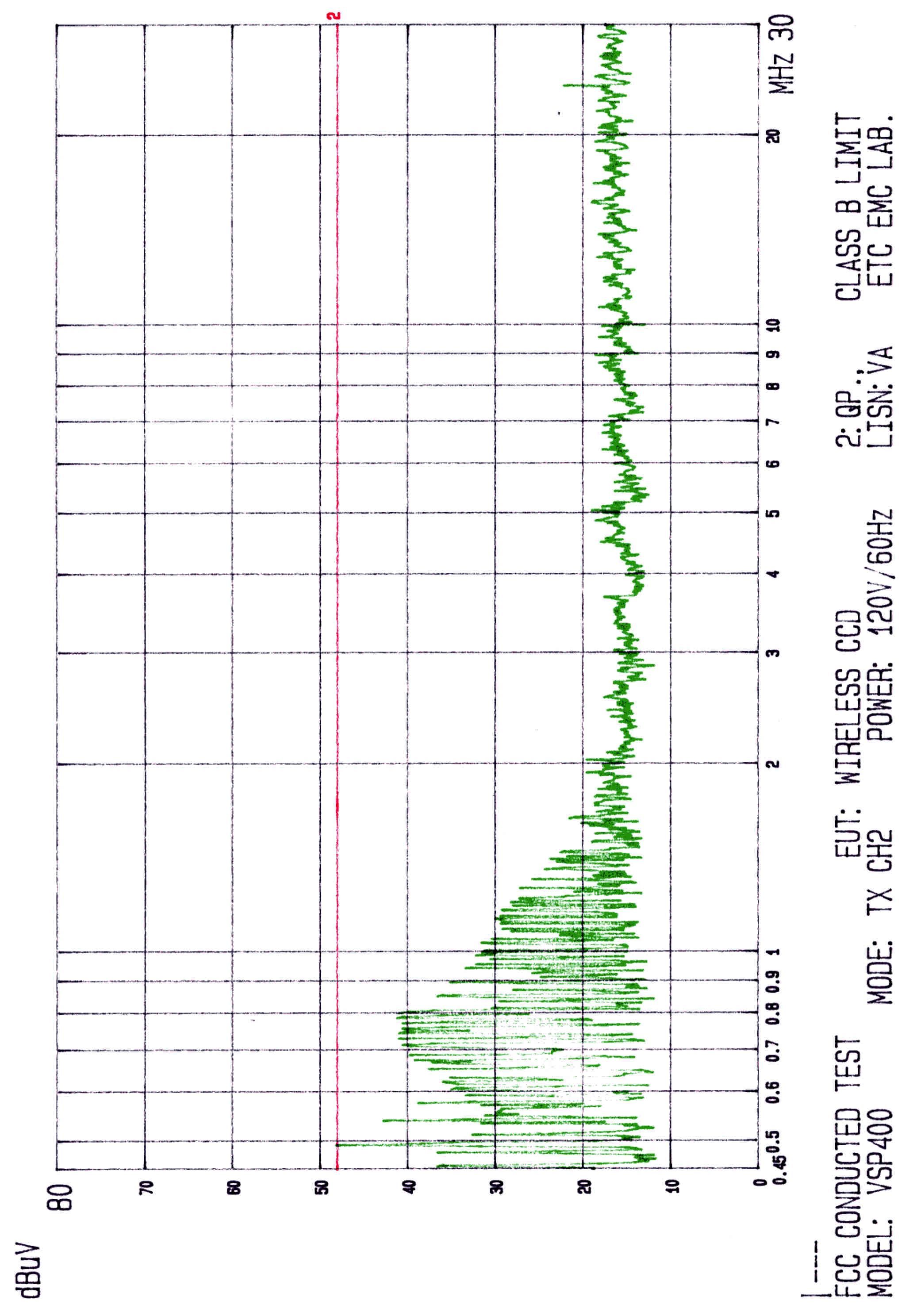

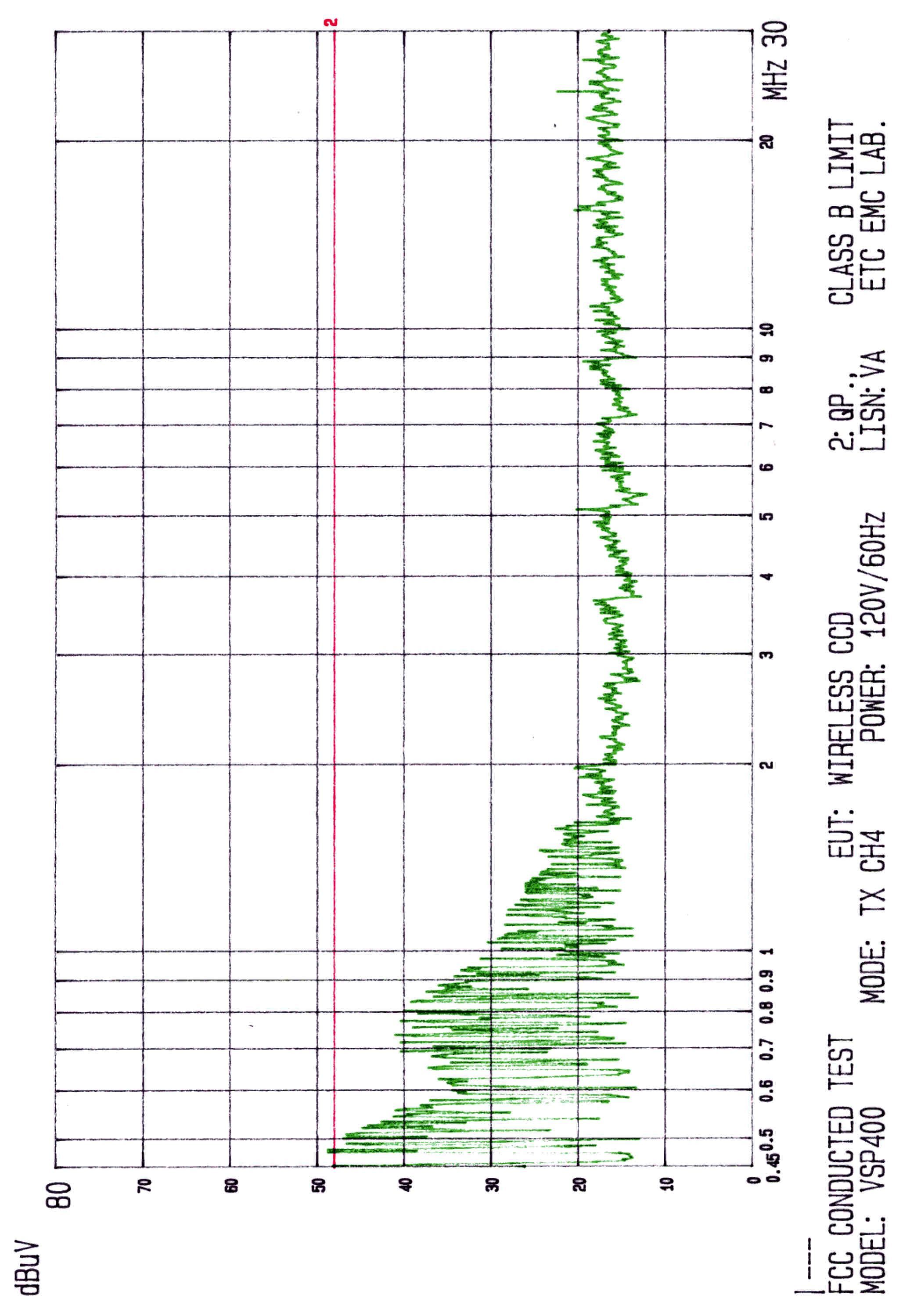

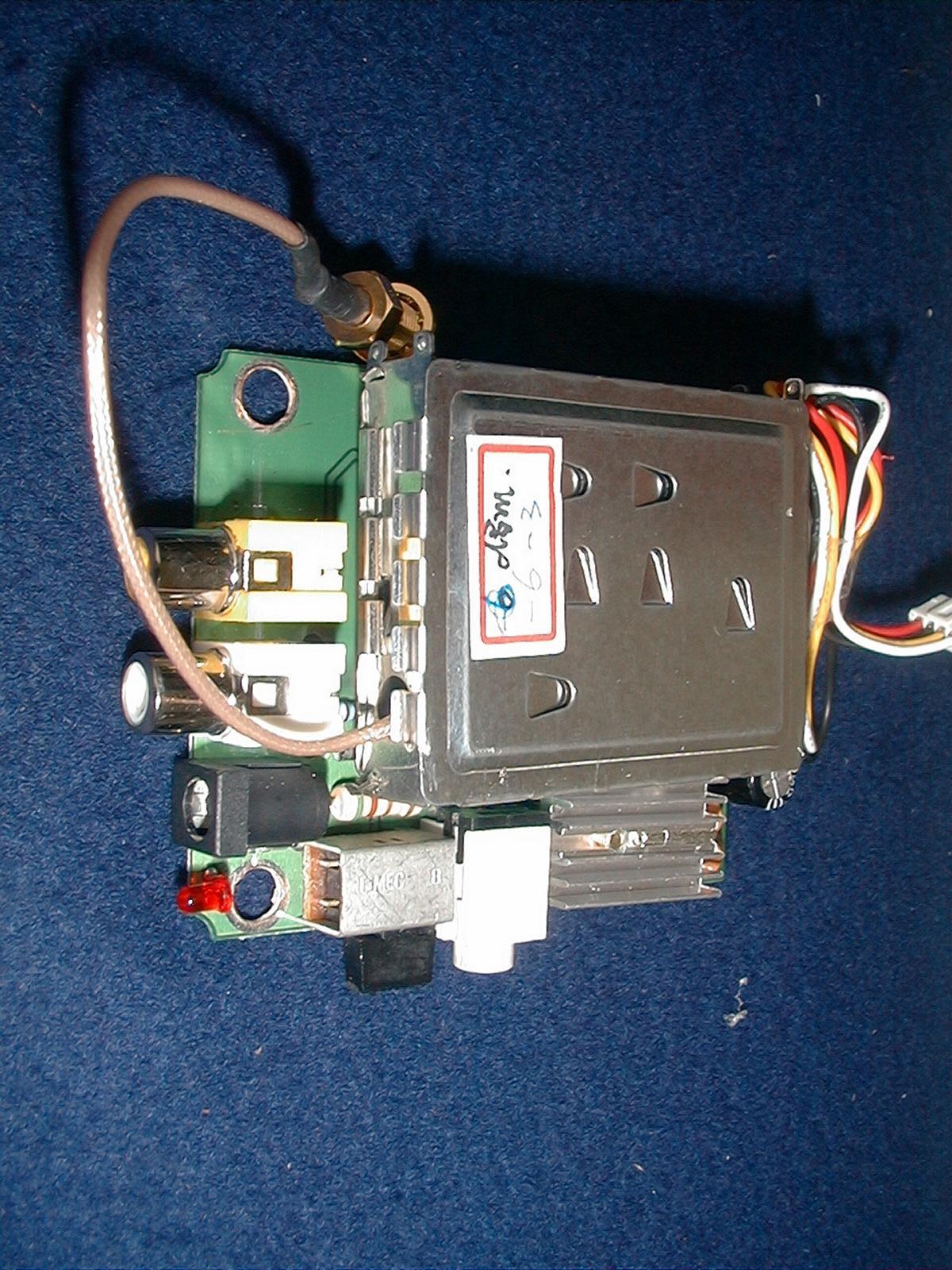

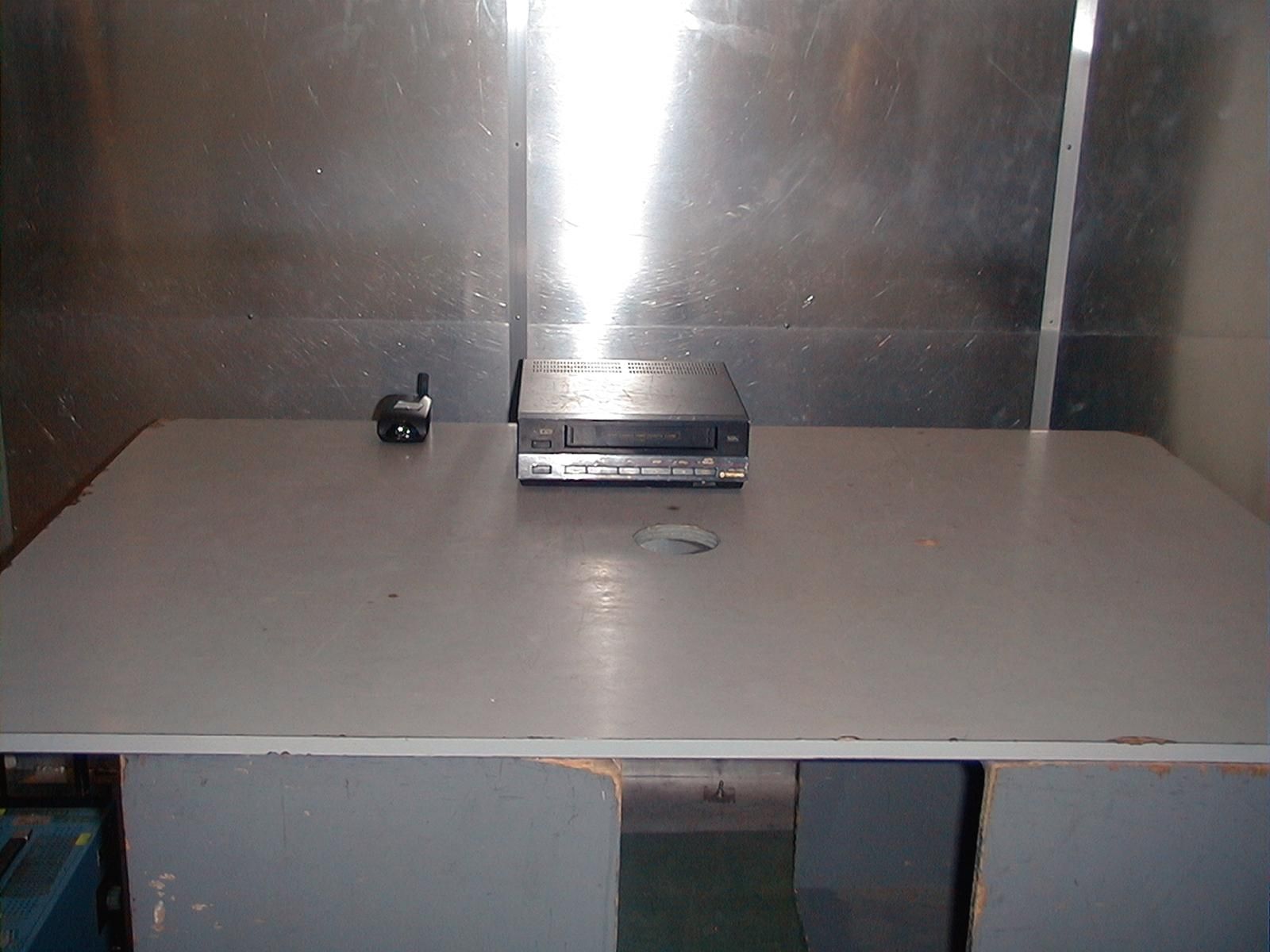

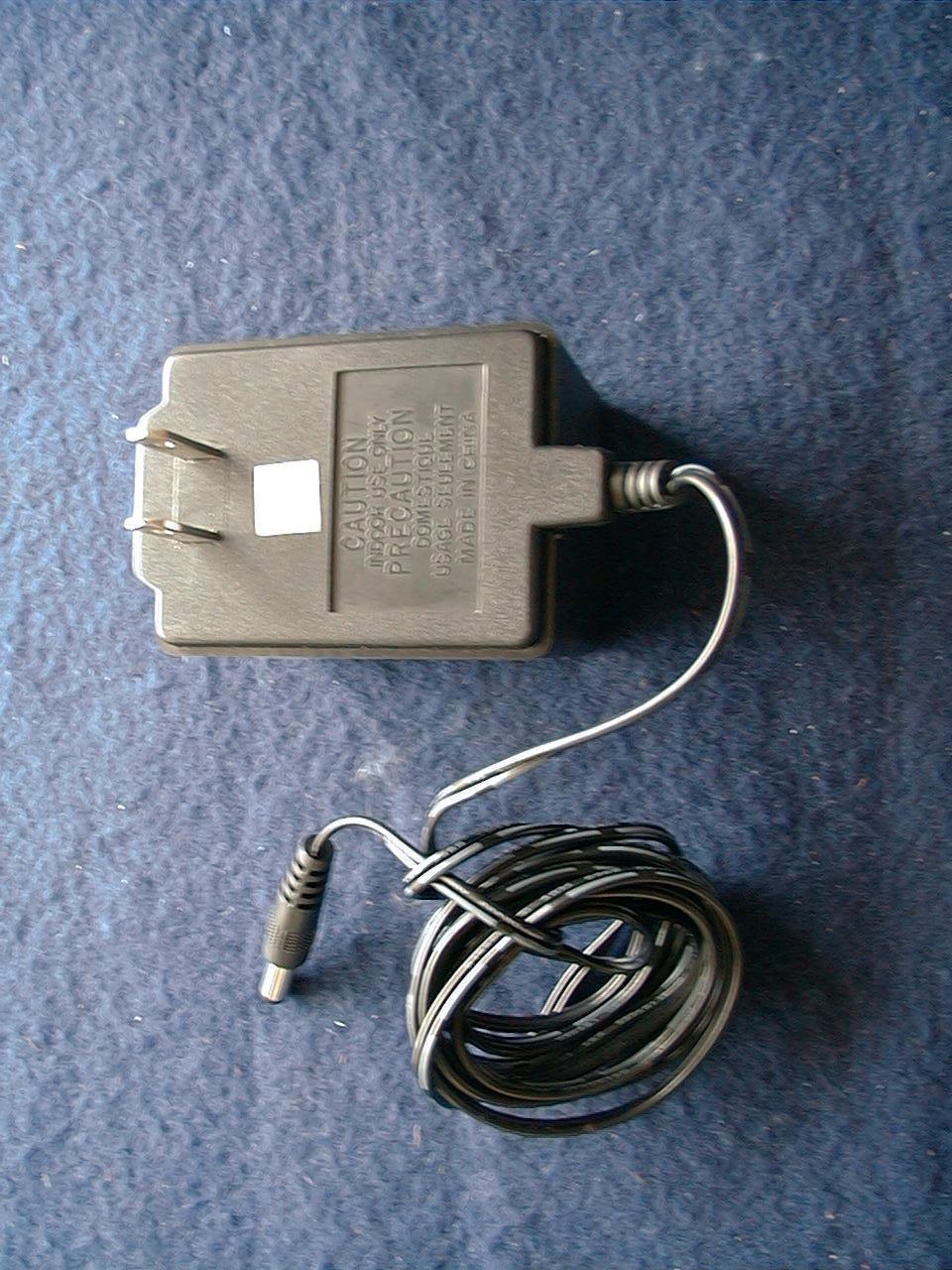

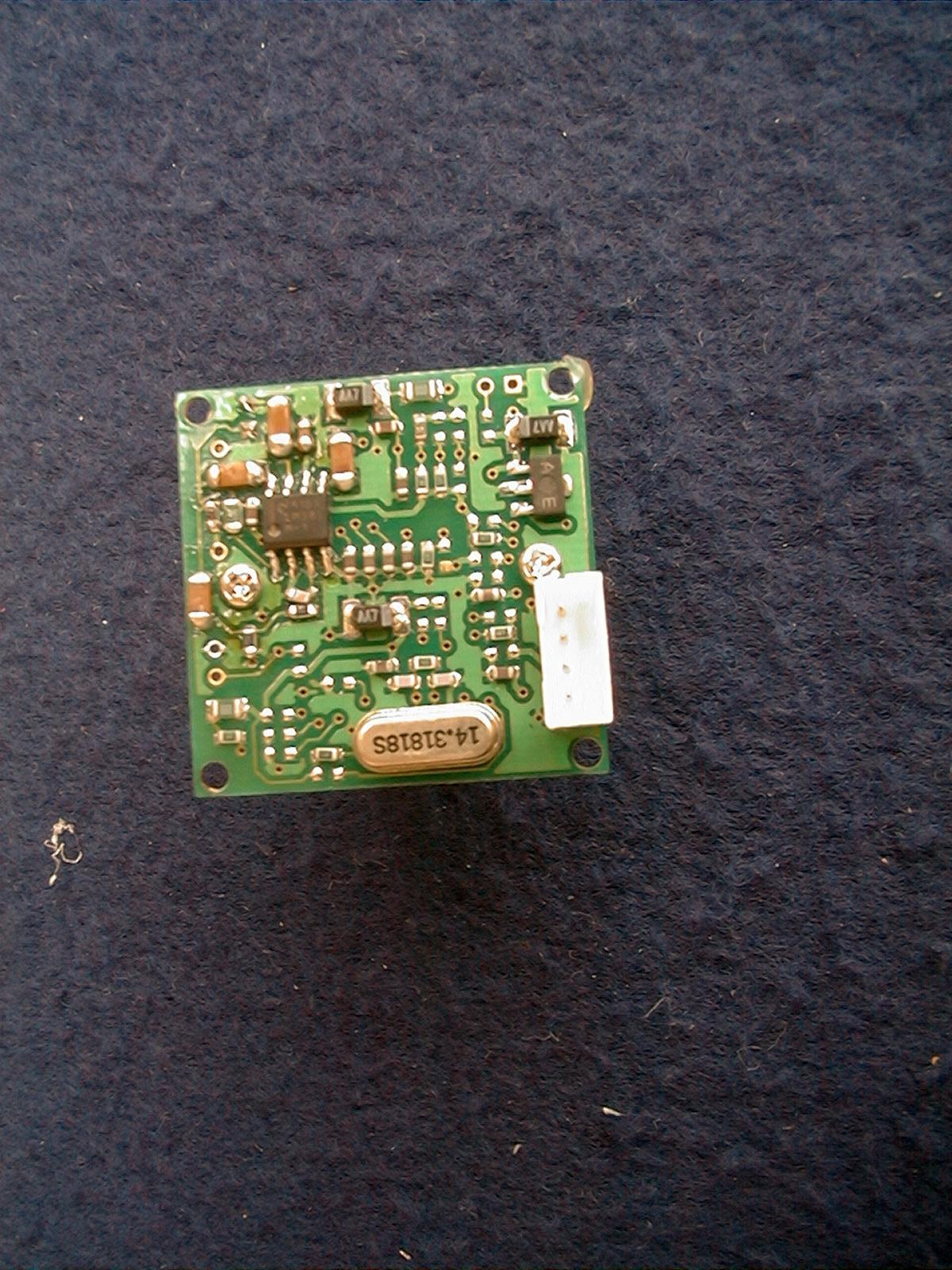

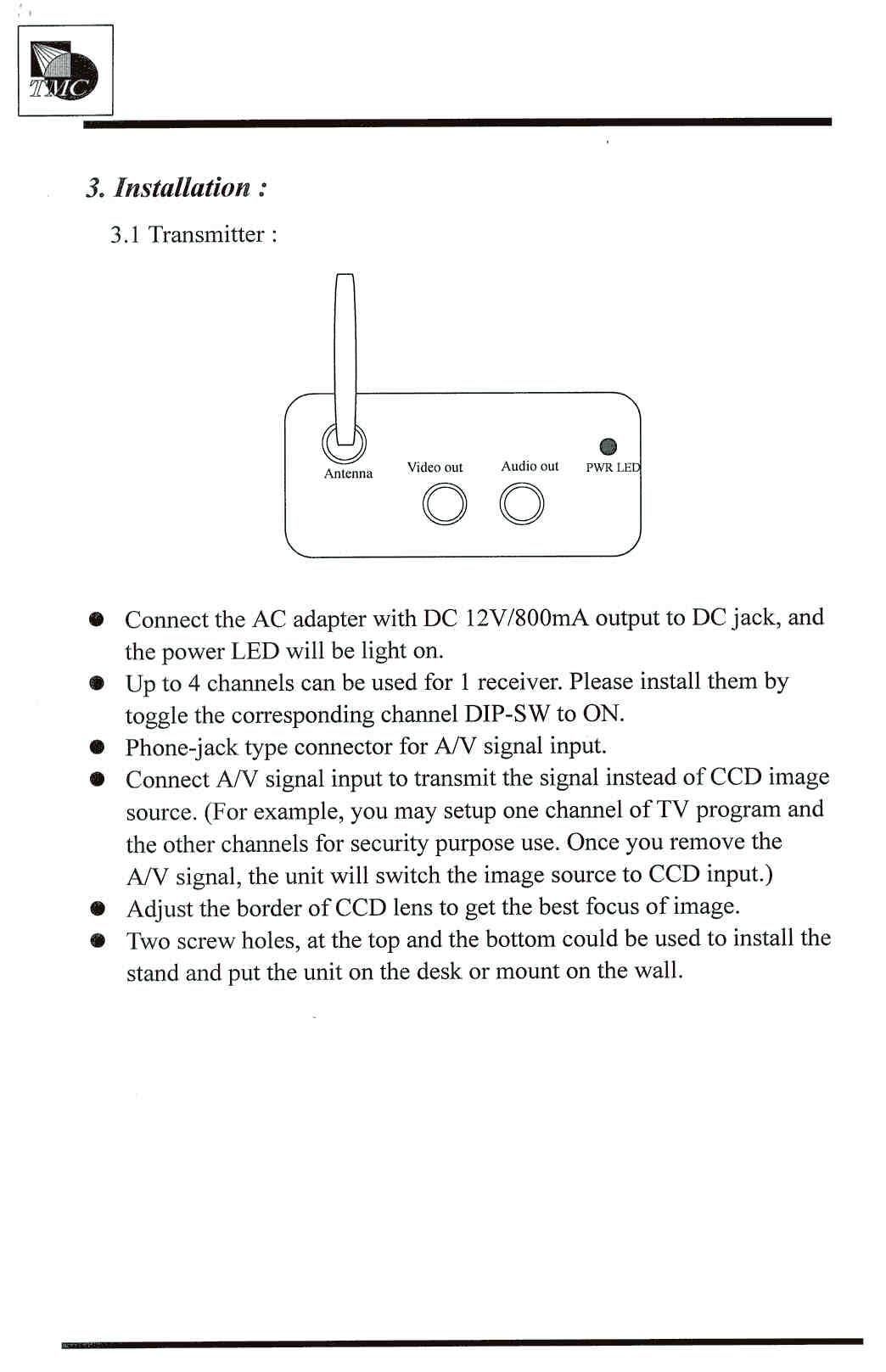

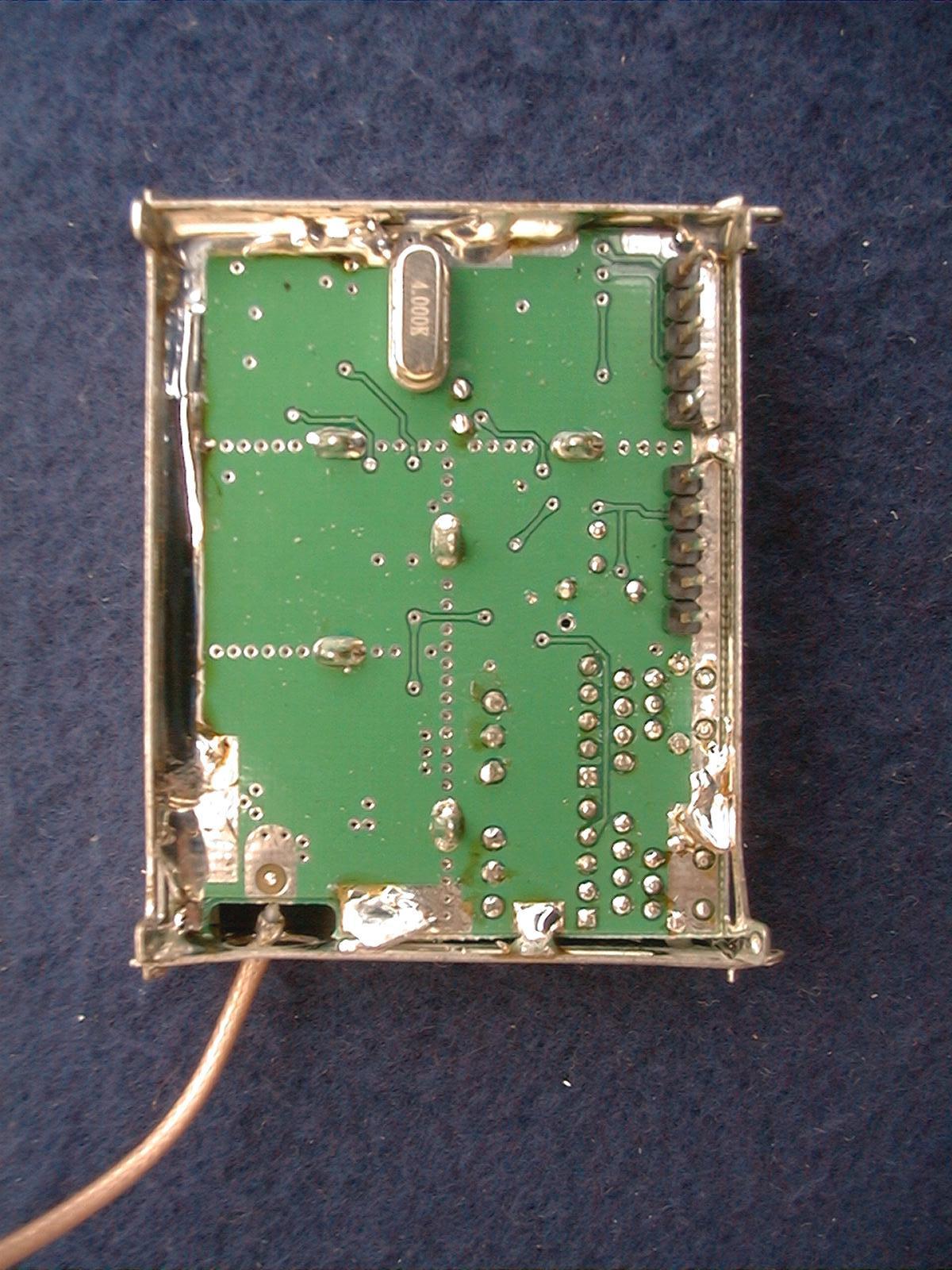

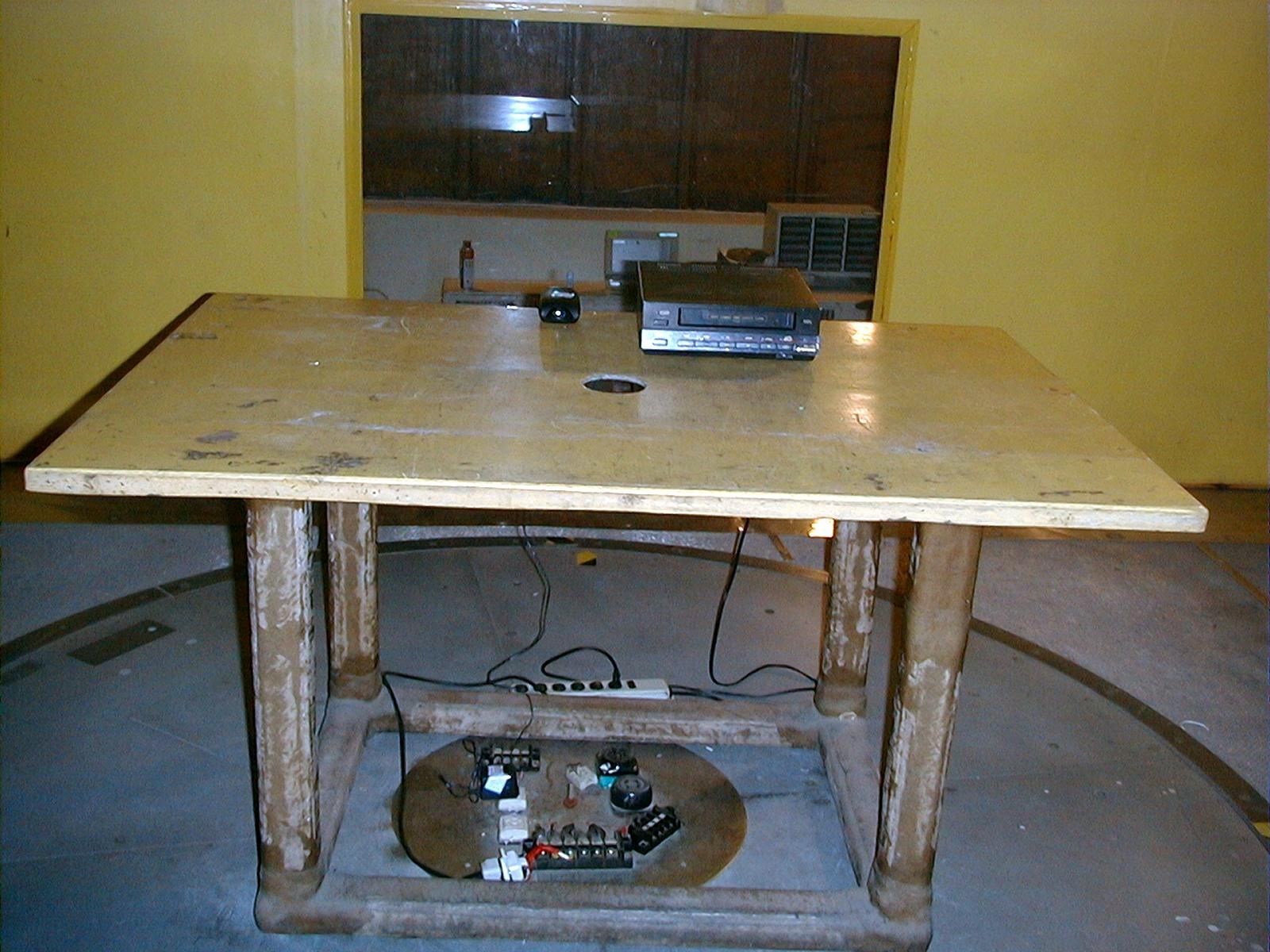

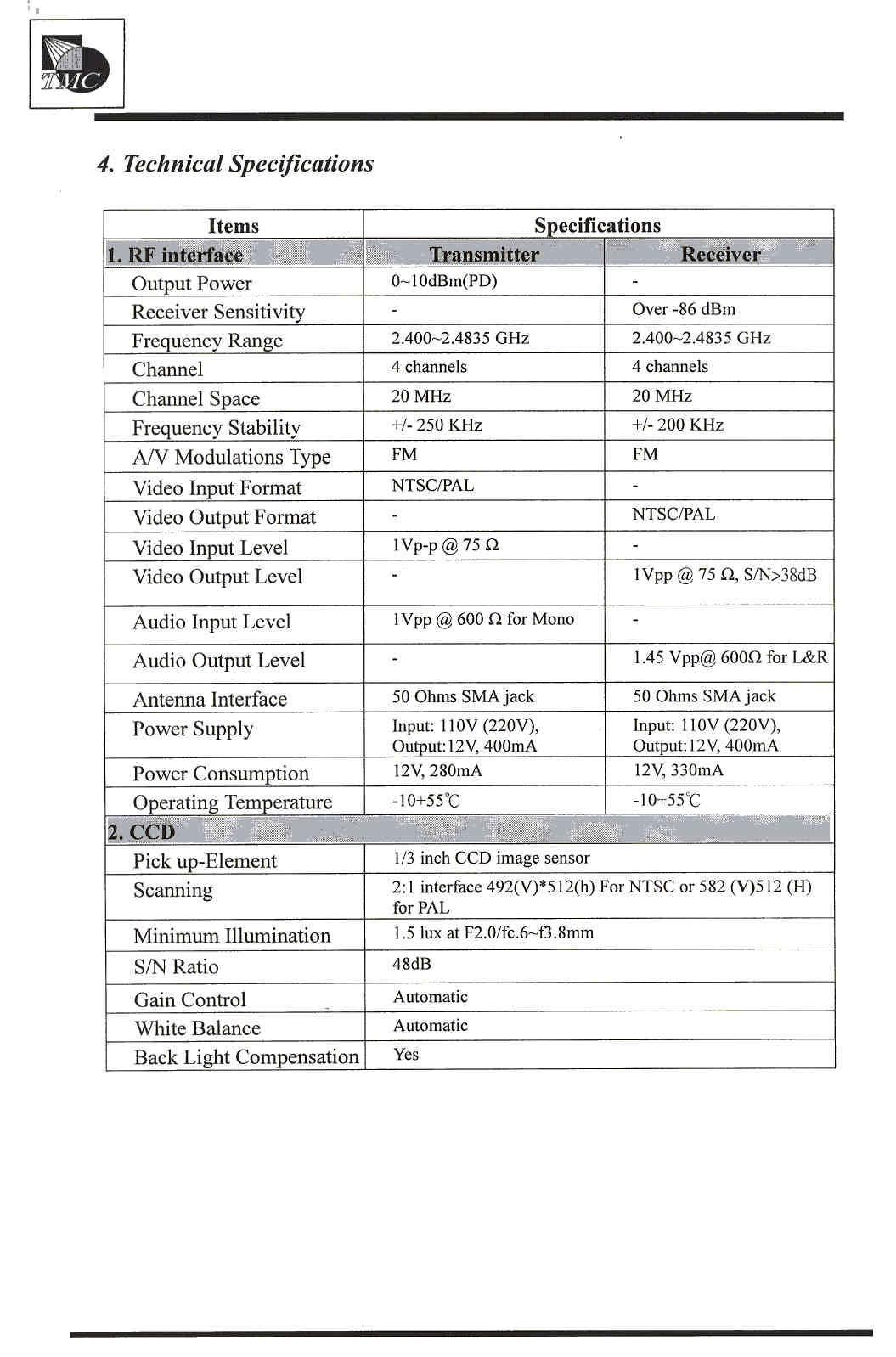

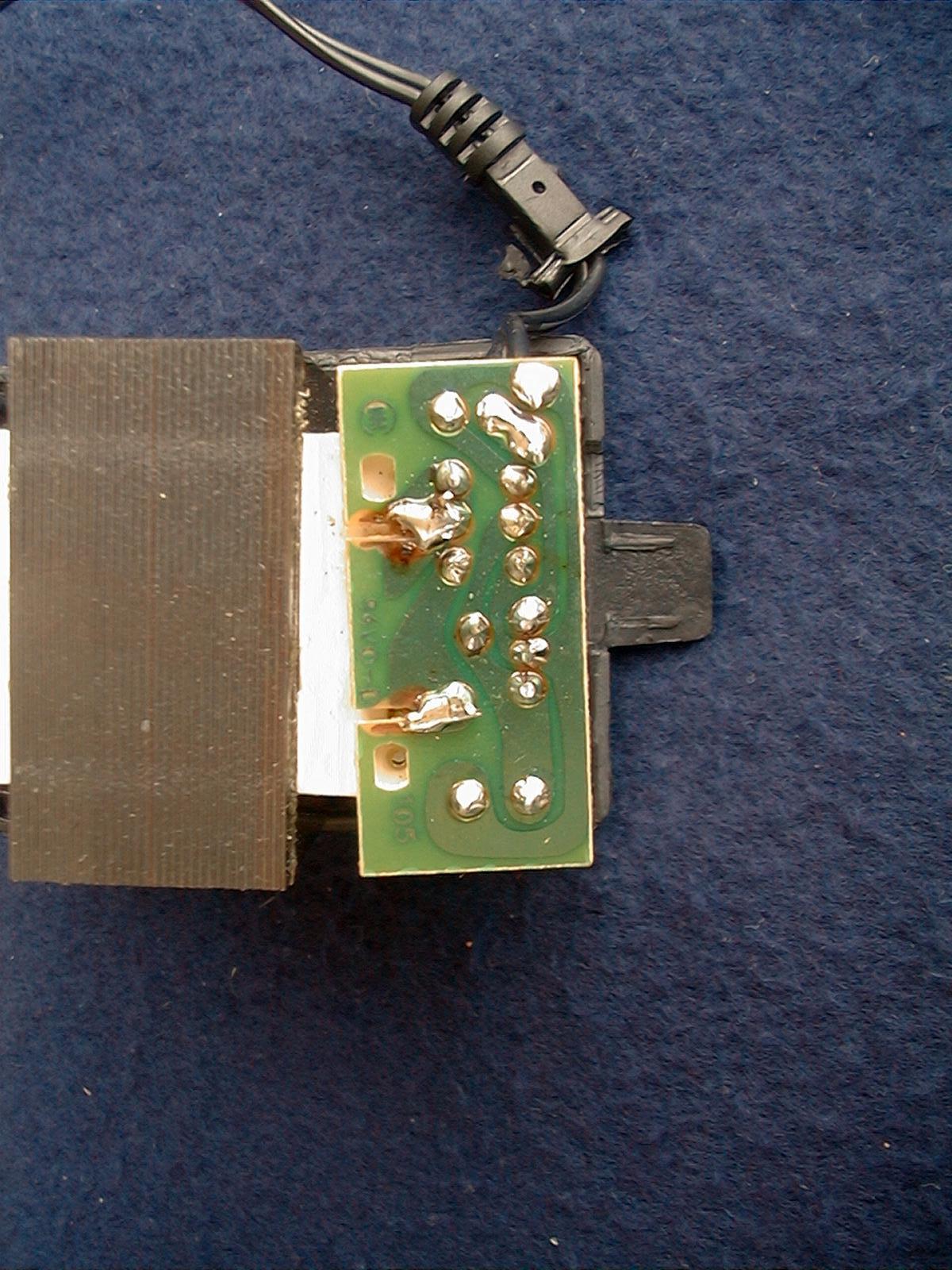

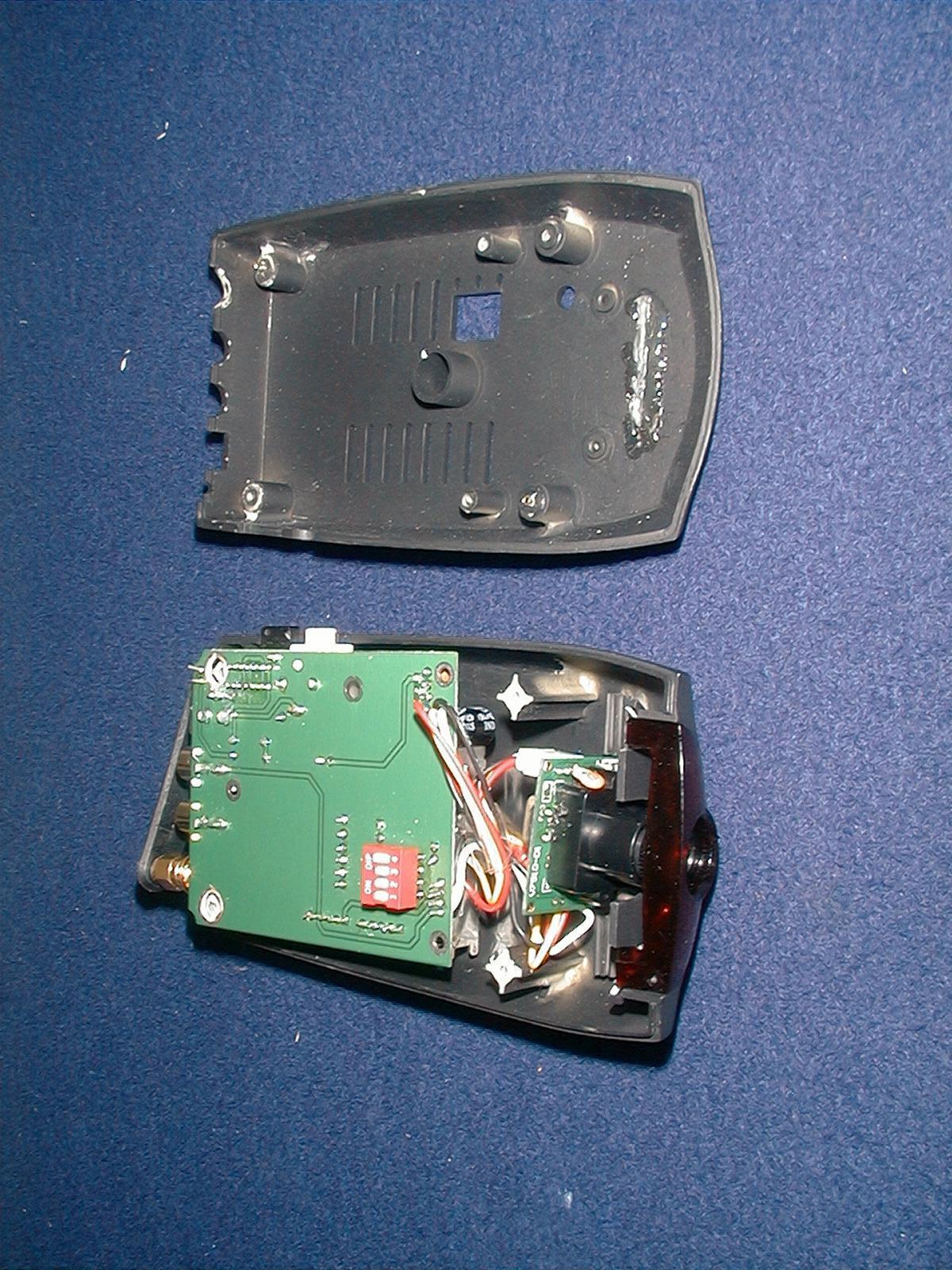

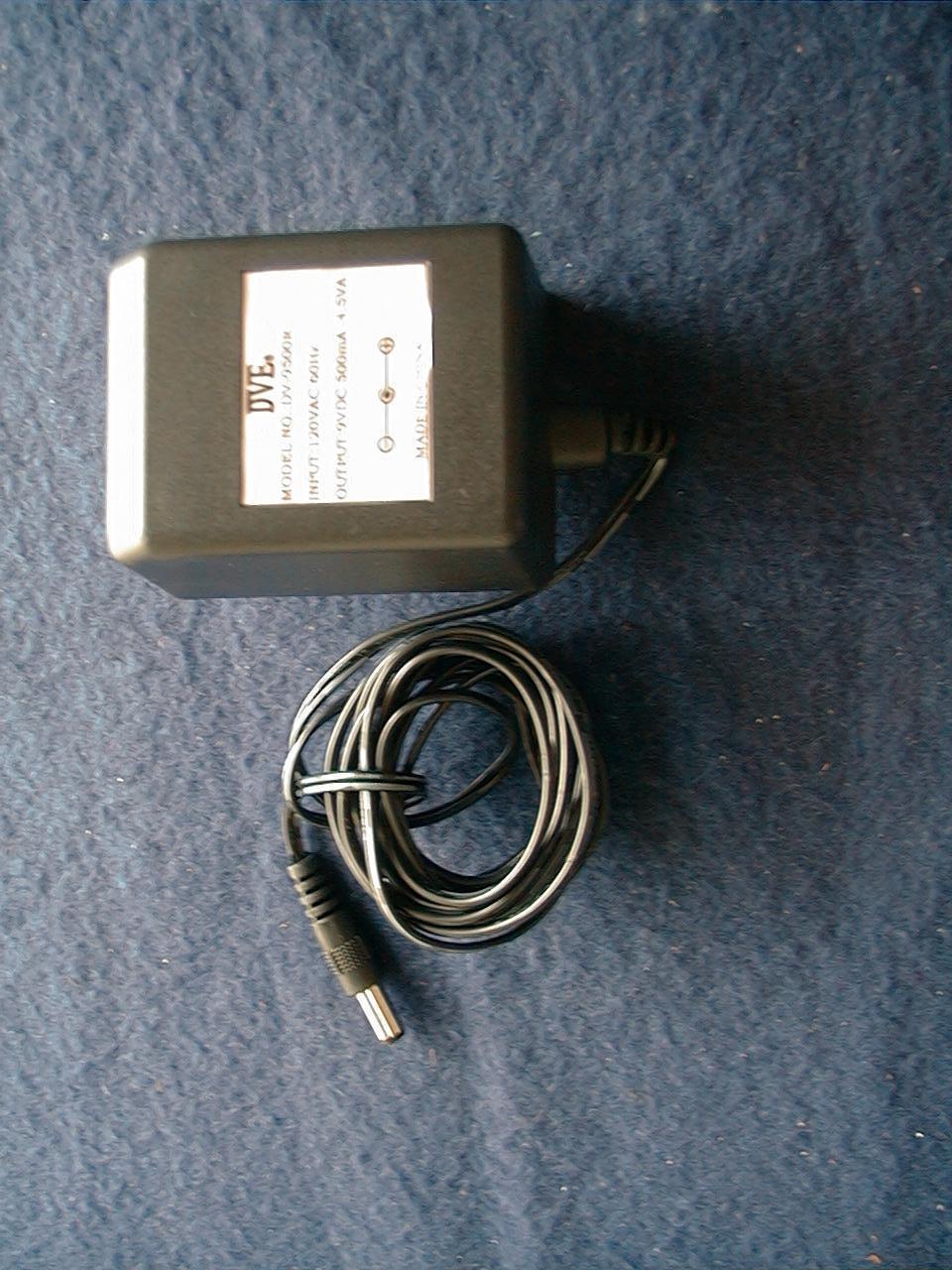

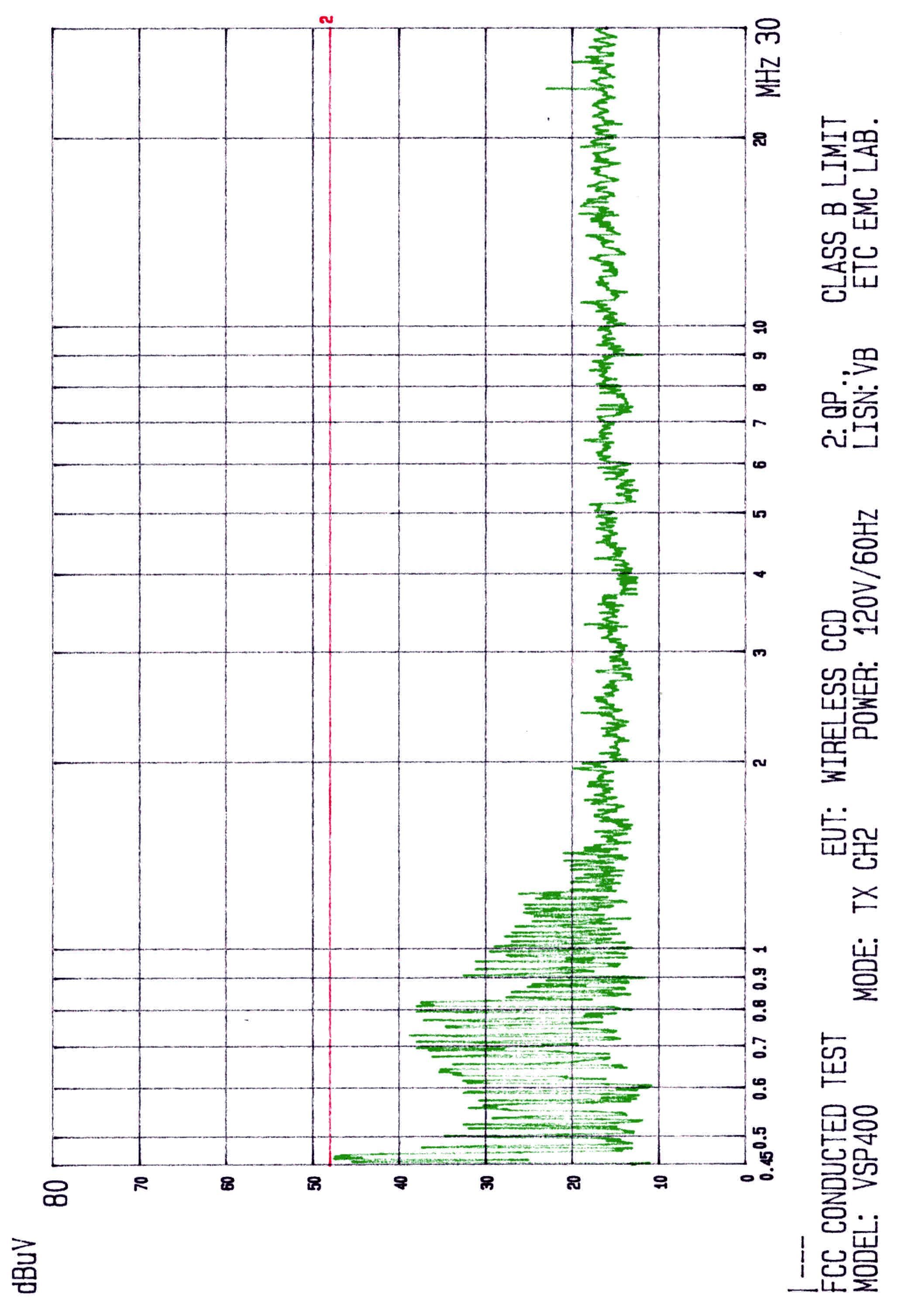

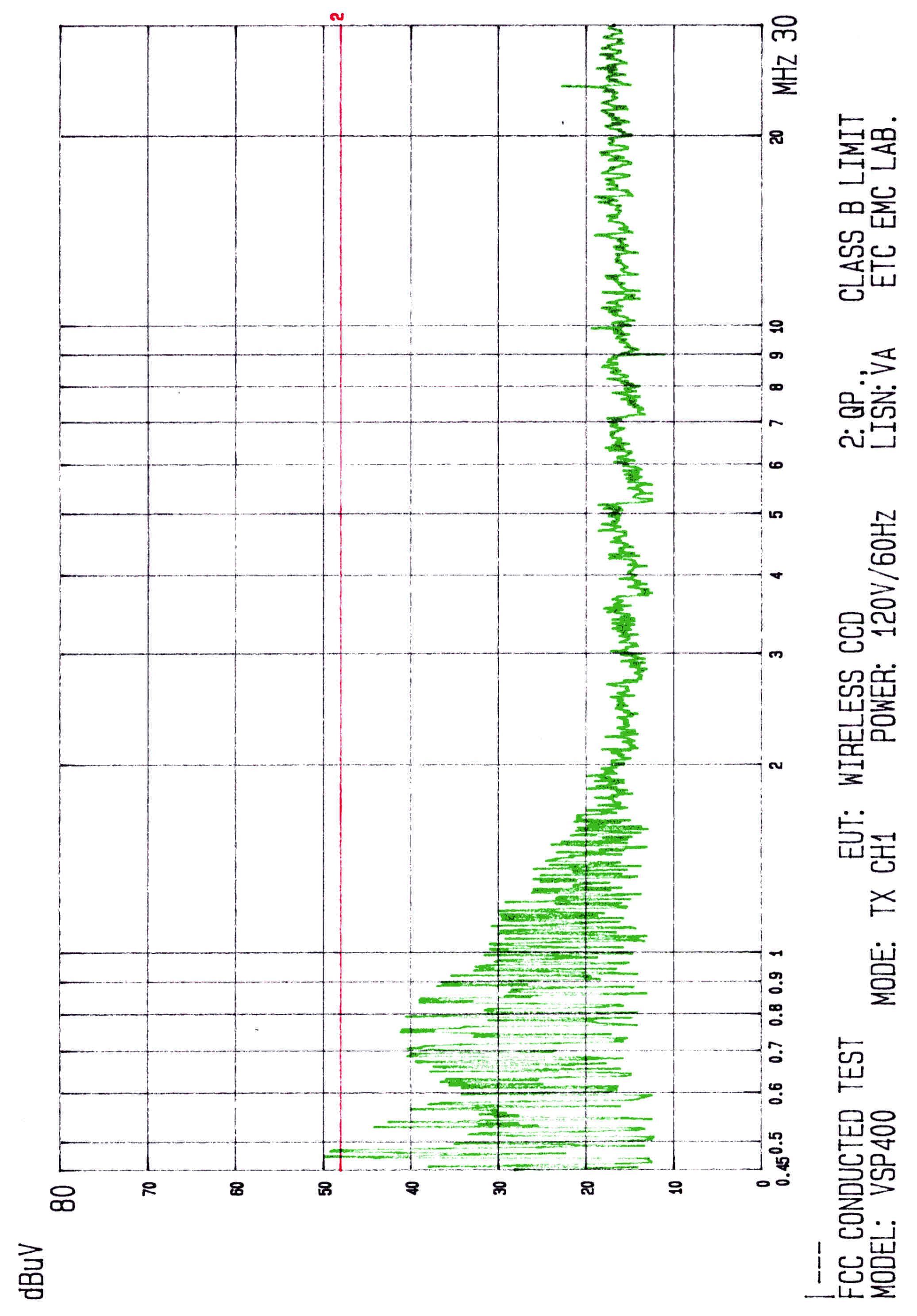

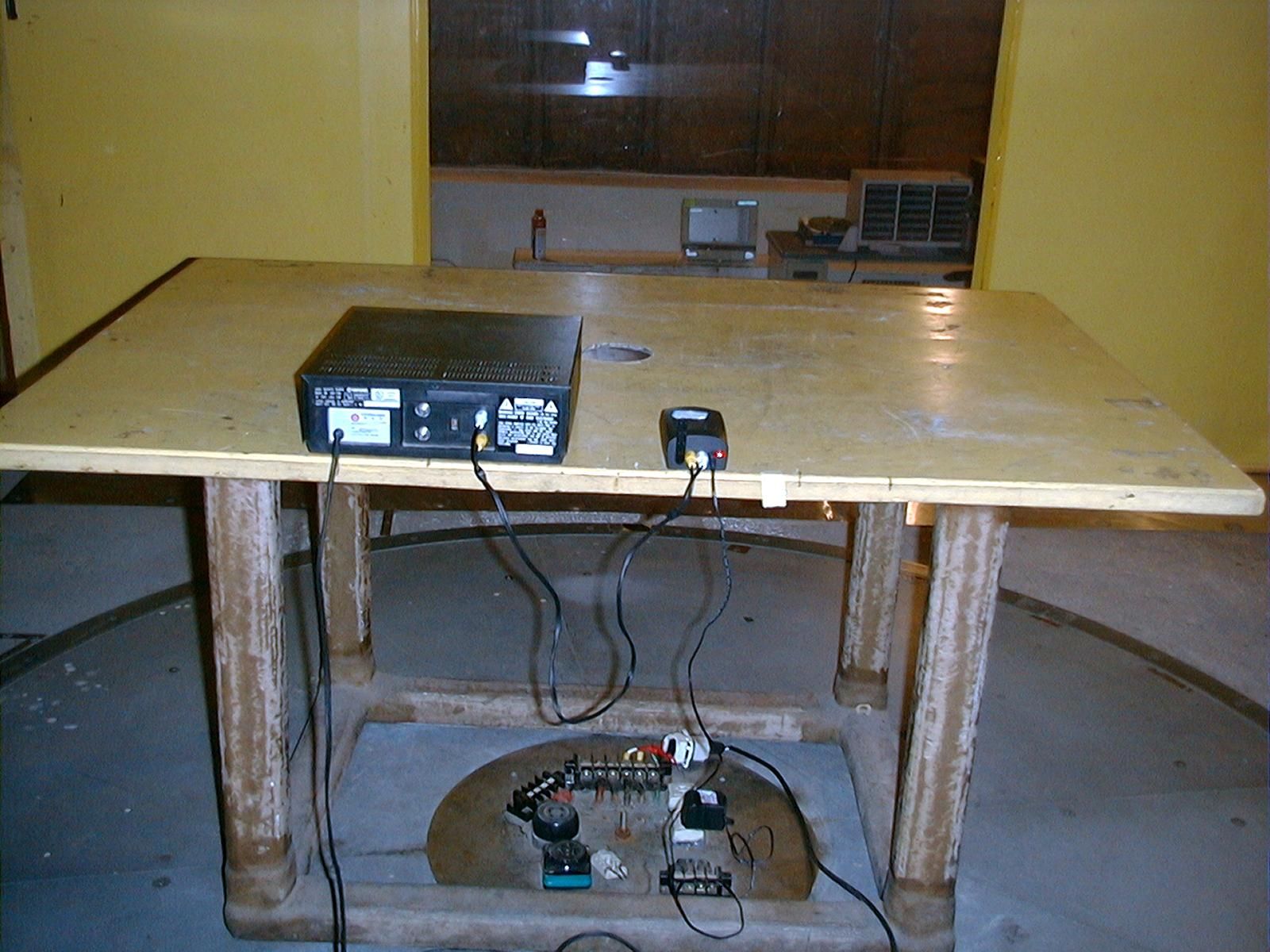

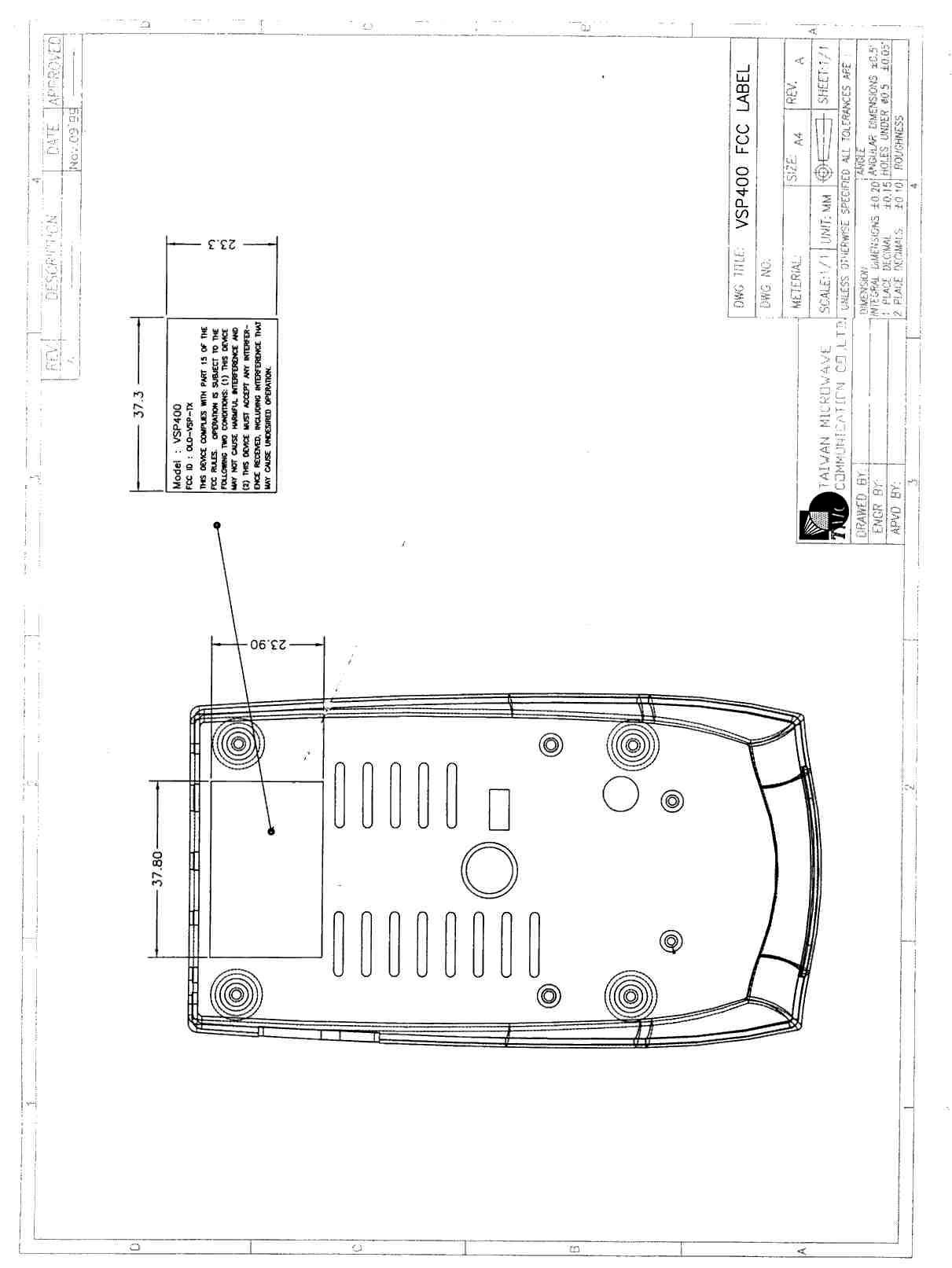

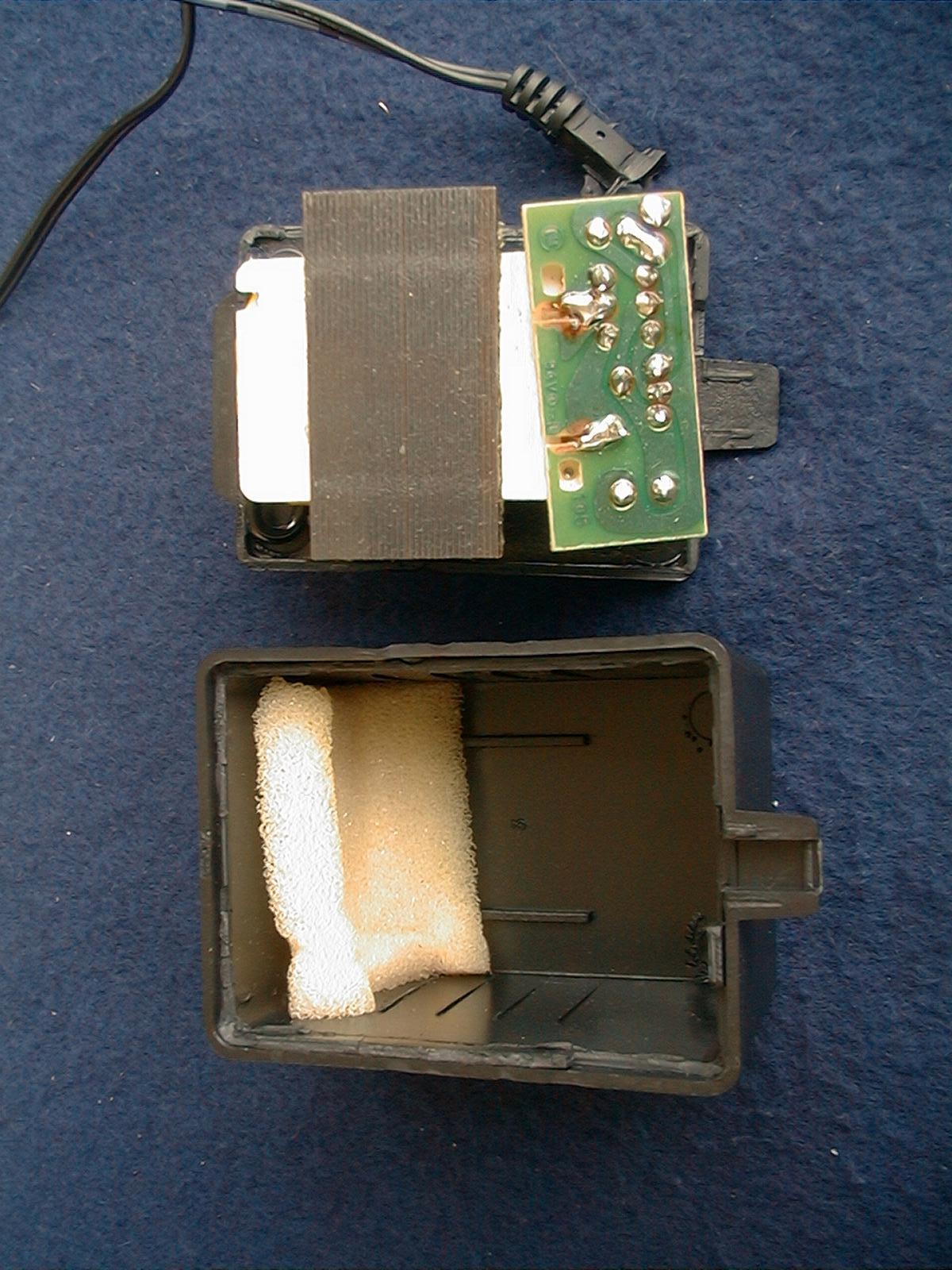

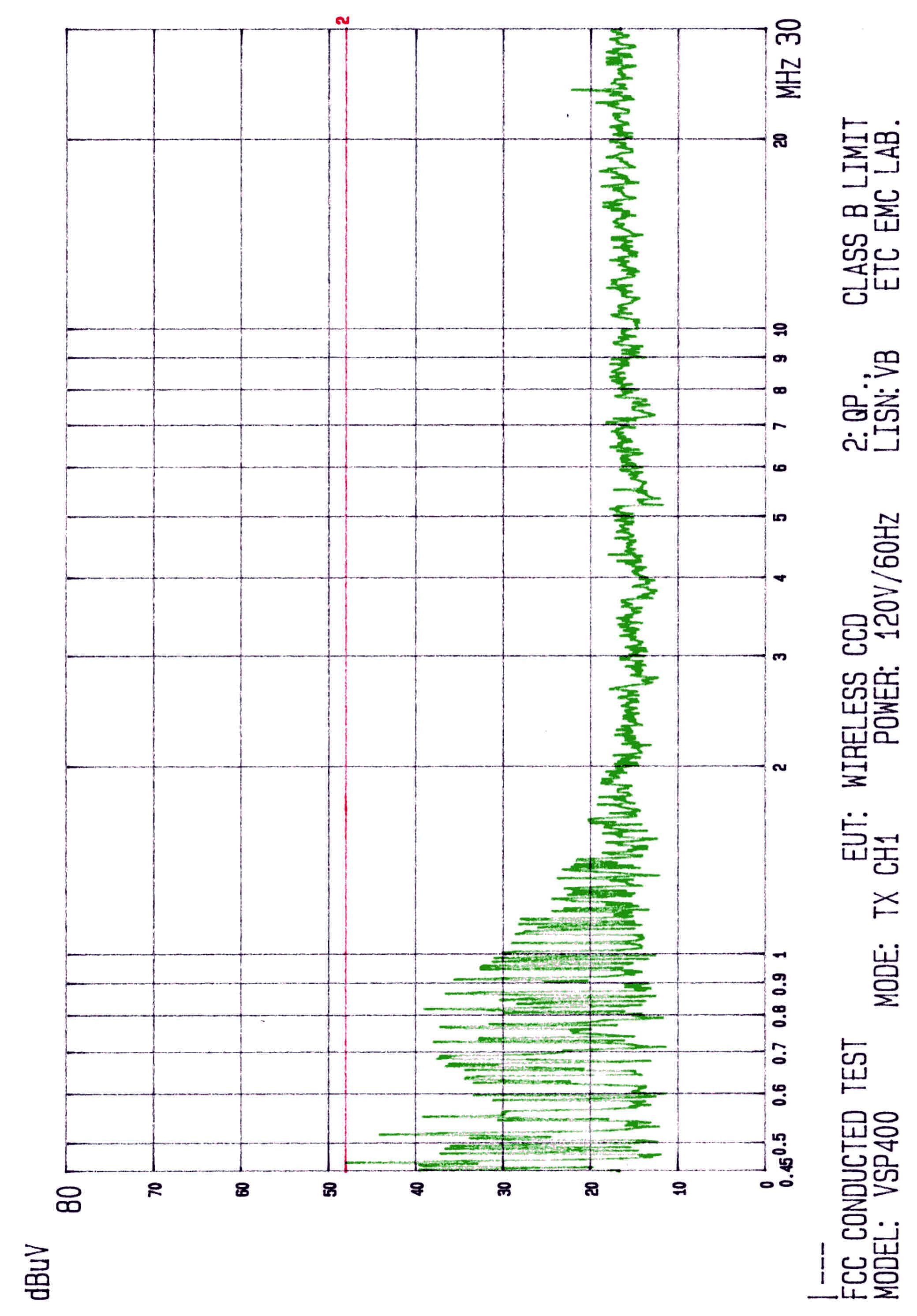

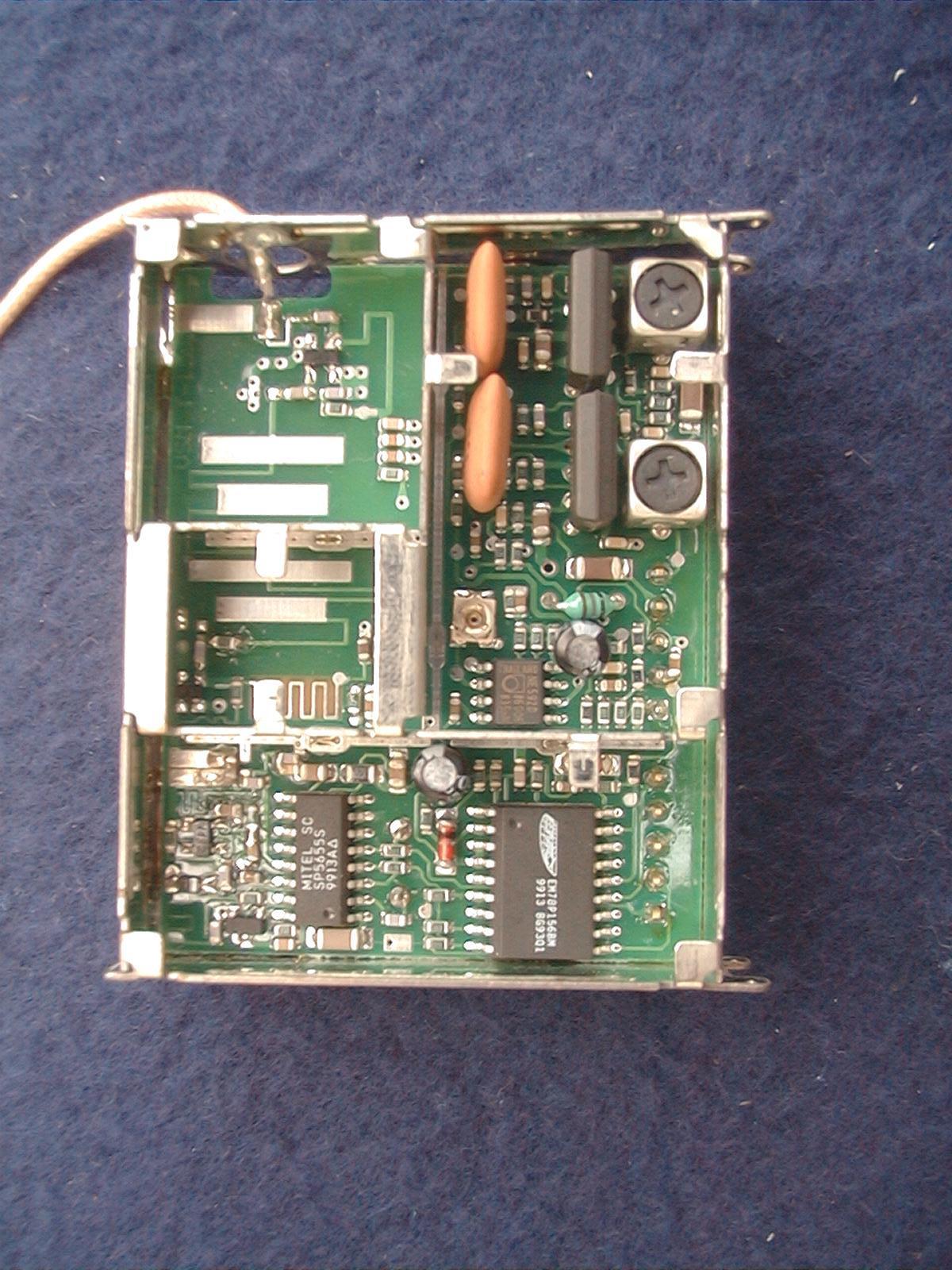

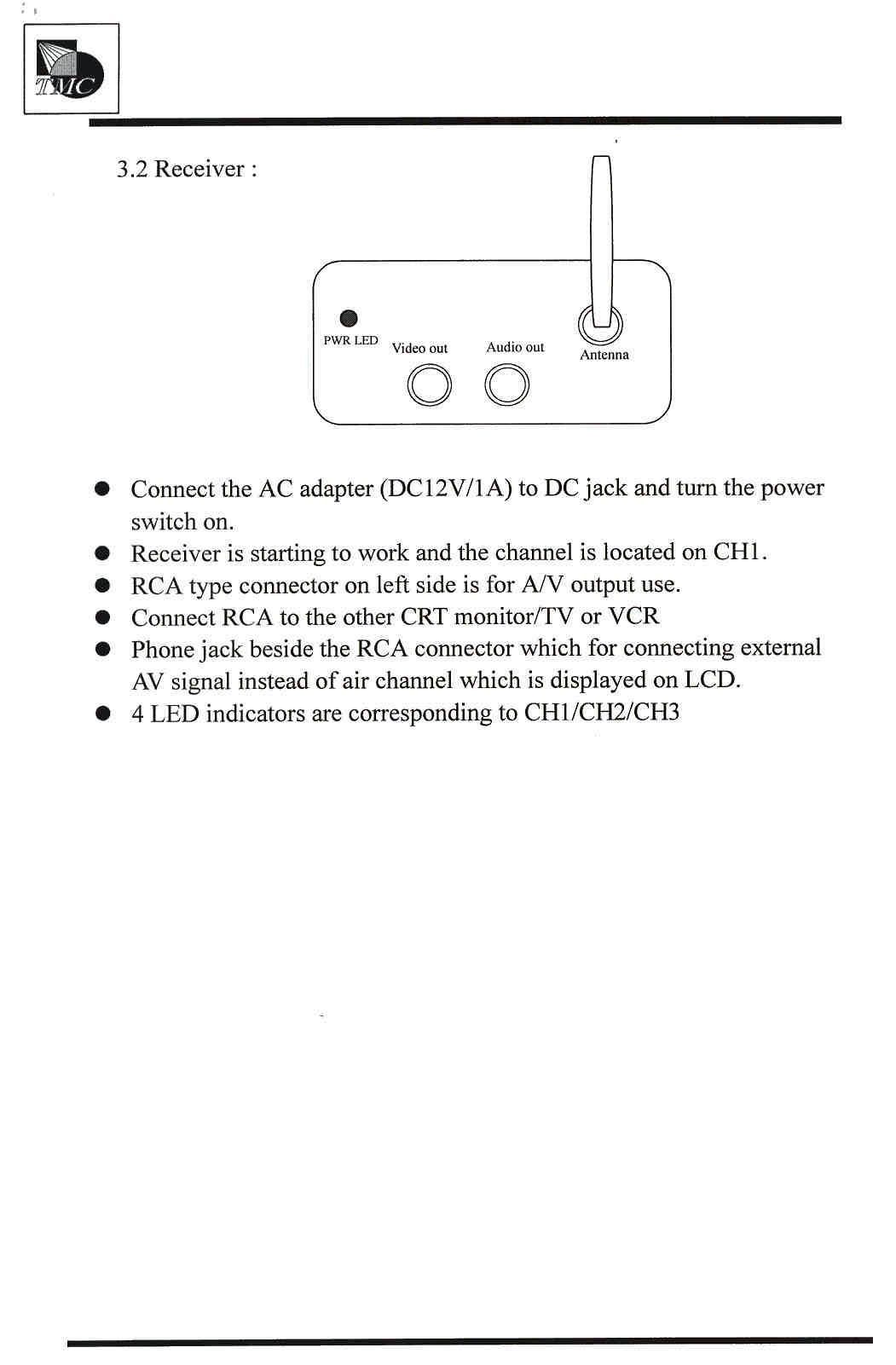

FCC ID. : OLO-VSP-Tx Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4 GHz Wireless A/V System MODEL : VSP400 FCC ID. : OLO-VSP-Tx for APPLICANT : TAIWAN MICROWAVE COMMUNICATION CO., LTD. ADDRESS: NO. 16, PROSPERITY ROAD 2, HSINCHU SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-10-052-01 ETC Report No. : ET88R-10-052-01FCC ID. : OLO-VSP-Tx Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: TAIWAN MICROWAVE COMMUNICATION CO., LTD. NO. 16, PROSPERITY ROAD 2, HSINCHU SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Manufacturer: TAIWAN MICROWAVE COMMUNICATION CO., LTD. NO. 16, PROSPERITY ROAD 2, HSINCHU SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: 2.4 GHz Wireless A/V System b) Trade Name: EMERSON c) Model No.: VSP400 d) AC Power Adaptor : Model : TEAD-41-120500U I/P: 120V,60Hz; O/P: DC 12V Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :NOV. 09, 1999 Test Engineer : ( Chin Cheng Yeh ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-10-052-01FCC ID. : OLO-VSP-Tx Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Modist List......................................................................................................................................... 1 1.4 Test Methodology.............................................................................................................................. 1 1.5 Test Facility ....................................................................................................................................... 1 2 PROVISIONS APPLICABLE........................................................................................................... 2 2.1 Definition........................................................................................................................................... 2 2.2 Requirement for Compliance............................................................................................................. 3 2.3 Restricted Bands of Operation........................................................................................................... 5 2.4 Labeling Requirement ....................................................................................................................... 5 2.5 User Information................................................................................................................................ 6 3 SYSTEM TEST CONFIGURATION............................................................................................... 7 3.1 Justification........................................................................................................................................ 7 3.2 Devices for Tested System ................................................................................................................ 7 4 RADIATED EMISSION MEASUREMENT................................................................................... 8 4.1 Applicable Standard .......................................................................................................................... 8 4.2 Measurement Procedure .................................................................................................................... 8 4.3 Measuring Instrument ...................................................................................................................... 10 4.4 Radiated Emission Data .................................................................................................................. 11 4.4.1 Tx Portion................................................................................................................................................ 11 4.4.2 Other Emissions ...................................................................................................................................... 14 4.5 Field Strength Calculation ............................................................................................................... 14 4.6 Photos of Radiation Measuring Setup ............................................................................................. 15 5 CONDUCTED EMISSION MEASUREMENT ............................................................................ 16 5.1 Standard Applicable ........................................................................................................................ 16 5.2 Measurement Procedure .................................................................................................................. 16 5.3 Conducted Emission Data ............................................................................................................... 17 5.4 Result Data Calculation ..................................................................................................…
