OLXWLM200N5-49WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD

KBC Networks Limited 2 x 2 802.11N MIMO mini-PCI Modules Radio module WLM200N5-23-4.9 WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Features • Atheros XSPAN family chipset • 4.9GHz IEEE 802.11n compliant and backward compatible with 802.11a • 4.9GHz Single-band MIMO 2x2 spatial multiplexing technique • Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ① • Supports up to 300Mbps physical data rates • Delivers 10 times the throughput and nearly twice the range of legacy 802.11a network • Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard) • 2 x MMCX or 2 x U.FL Antenna Connectors ② WLM200N5-23 ESD MIMO MINIPCI CARD RADIO TX SPECIFICATIONS DataRate TX Power Tolerance 6-24Mbps 21dBm ±2dB 36Mbps 20dBm ±2dB 48Mbps 19dBm ±2dB 802.11a 54Mbps 18dBm ±2dB DataRate TX Power (per chain) Tolerance MCS 0/8 20dBm ±2dB MCS 1/9 20dBm ±2dB MCS 2/10 19dBm ±2dB MCS 3/11 19dBm ±2dB MCS 4/12 17dBm ±2dB MCS 5/13 16.5dBm ±2dB MCS 6/14 16dBm ±2dB 5GHz 11n HT 20 MCS 7/15 16dBm ±2dB RX SPECIFICATIONS Data Rate Sensitivity (2 chains) Tolerance 6M -97dBm ±2dB 9M -97dBm ±2dB 12M -96dBm ±2dB 802.11a 18M -94dBm ±2dB MCS0 -97dBm ±2dB MCS1 -94dBm ±2dB MCS2 -92dBm ±2dB MCS3 -87dBm ±2dB MCS4 -84dBm ±2dB MCS5 -80dBm ±2dB MCS6 -79dBm ±2dB 5GHz 11n HT 20 MCS7 -77dBm ±2dB Technical Specifications Chipset Atheros AR9220 Host Interface PCI Interface v2.3 (Type III-A Mini PCI form factor) Operating Voltage 3.3 VDC 11a Cont. Tx @6M 3.5W 11na Cont. Tx@HT20 MCS03W 11na Cont. Tx@HT40 MCS03W 11a Cont. Rx 0.9W Power Consumption Standby 0.7W Antenna Connector 2 x MMCX or 2 x U.FL ② IEEE 802.11a : 54Mbps 48Mbps36Mbps24Mbps 18Mbps 12Mbps 9Mbps 6Mbps 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.) Data Rate IEEE 802.11n : Frequency Range IEEE 802.11a/n: 4.900-4.98 GHz Modulation Techniques OFDM: BPSK, QPSK, 16QAM, 64QAM Radio & EMC Certification FCC RoHS Compliance Yes Temperature Range Operating: -20ºC to 70ºC Storage: -40ºC to 90ºC Humidity Operating:5% to 95% (non-condensing) Storage: Max.90% (non-condensing) Dimension 59.6mm x 51.5mm x 6mm ESD CABLE SPECIFICATION Cable Dimensions 26cm length Terminal Material Copper Attachment Procedure End of ESD Cable tied to Earth Ground Ordering Information ③ CODES Antenna Connectors type Carton Dimension WLM200N5-23 6AA1300ESD4.9 U.FL For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG c Module grounding cable included d Depends on your order configuration e Configurations are subject to change without notice Please contact Compex sales representatives for other available configurations Compliance Information FCC Compliance Statement: This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device must accept any interference received, including interference that may cause undesired operation. Product that is a radio transmitter is labeled with FCC ID. FCC Caution: (1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. (2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. (3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. WARNING: The antenna gain which being use must less than 17 dBi. (1) the modules FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not have straight forward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: Contains Transmitter Module FCC ID: OLXWLM200N5-49 or Contains FCC ID: OLXWLM200N5-49 must be used. Dimensions Drawing Compex Systems Pte Ltd Compex (Suzhou) Co Ltd 135 Joo Seng Road, PM Industrial Building #08-01, Singapore 368363 Tel: (65) 6286 2086 Fax: (65) 6280-9947 Email: [email protected] NO.12, ChuangTou Industrial Square, LouFeng North, Suzhou Industrial Park, Suzhou, Jiangsu Province, China 215122 Tel: (86)-512-62950050 Fax: (86)-512-62950026 Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. Atheros and other trademarks are properties of their respective owners. While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may arise. Specification is subject to change without notice. DS V: 2.2.1 Rocky100526 For more information, visit www.compex.com.sg

KBC Networks Limited Date: 2012-08-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: OLXWLM200N5-49 ATTESTATION FCC ID: OLXWLM200N5-49 Product: WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Model: WLM200N5-23-4.9 KBC software will not provide any controls allowing operation outside USA frequency bands when sold or deployed in the United States. Sincerely, __________________ Dwayne Smith /Manager KBC Networks Limited

Module approval cover letter I: The module will have its own RF shielding II: The module will have buffered modulation/data inputs. All input to the modules are buffered through the radio circuitry. III: The module will have its own power supply regulation. IV: The module will have its own antenna. V: The module is tested in a stand-alone configuration .Please see section photographs of test configuration in the test report. VI: The module labeled with its permanently affixed FCC ID; VII: The module will comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; VIII: The module will comply with RF exposure requirements. Sincerely, __________________ Dwayne Smith /Manager KBC Networks Limited

RF_160, Issue 02 KBC Networks Limited Declaration of Authorization We Name: KBC Networks Limited Address: 1301 Bank of America Tower 12 Harcourt Road, City: ......... Central Hong Kong ................................................................ Country:.........China ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Type designation: WLM200N5-23-4.9 on our behalf. Date: 2012-08-30 City: Hong Kong Name: Dwayne Smith (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

KBC Networks Limited Date: 2012-08-30 Federal Communications Commission Authorization and Evaluation Division FCC ID: OLXWLM200N5-49 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dwayne Smith /Manager KBC Networks Limited

KBC Networks Limited Date: 2012-9-21 Federal Communications Commission Authorization and Evaluation Division FCC ID: OLXWLM200N5-49 Statement Letter This modular is not able to connect to PC directly for data transmission. Due to above reasons, this device needn’t perform Part 15B DOC testing, and FCC logo shouldn’t be on the label. Your understanding will be highly appreciated. Sincerely, Dwayne Smith /Manager KBC Networks Limited

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

Label&location

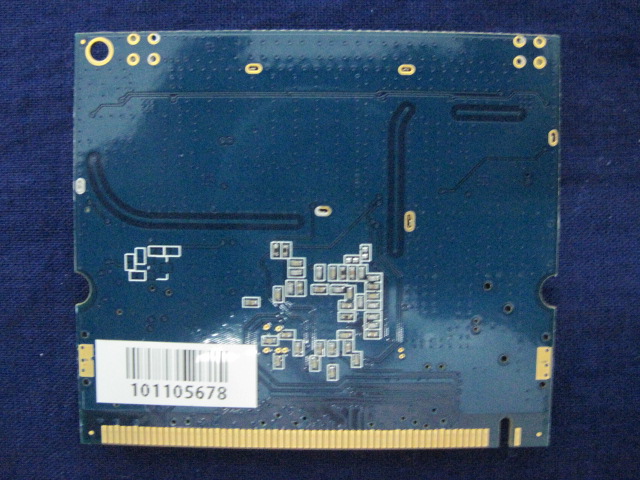

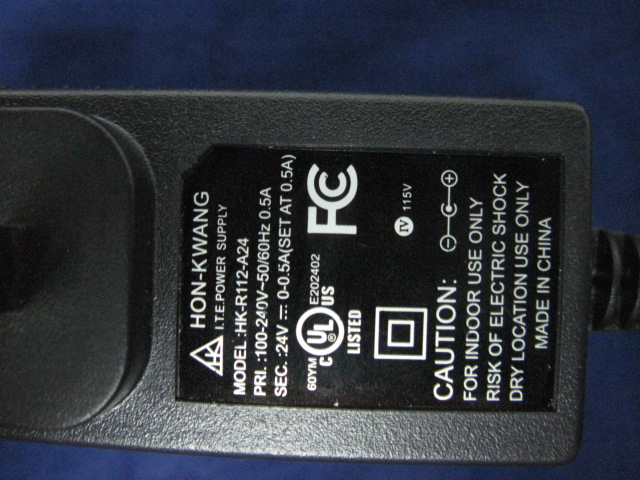

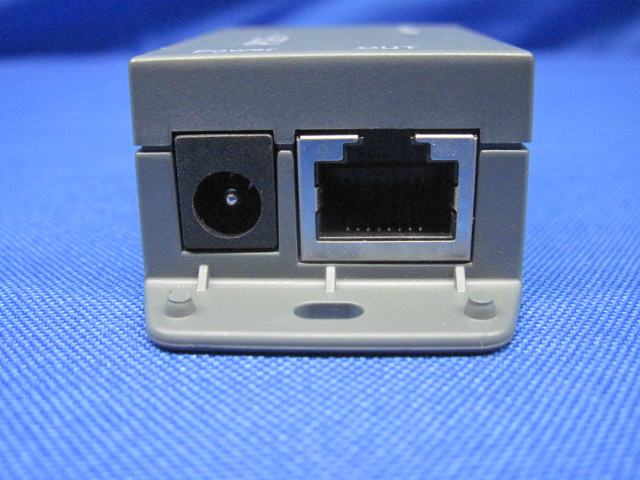

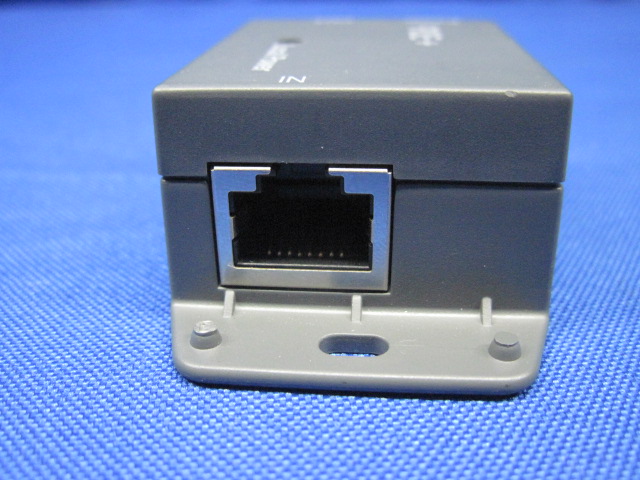

1. EUT Photograph (1) EUT Photo (2) EUT Photo Report No: 128S072R-RF-US-P11V01 Page: 2 of 2 (3) EUT Photo (17dBi Antenna) (4) EUT Photo (17dBi Antenna)

RF Exposure Evaluation Declaration Product Name : WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Model No. : WLM200N5-23-4.9 FCC ID : OLXWLM200N5-49 Applicant : KBC Networks Limited Address : 1301 Bank of America Tower 12 Harcourt Road Central Hong Kong Date of Receipt : 30/08/2012 Issued Date : 31/08/2012 Report No. : 128S072R-RF-US-P20V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 128S072R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : 31/08/2012 Report No. : 128S072R-RF-US-P20V01 Product Name : WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Applicant : KBC Networks Limited Address : 1301 Bank of America Tower 12 Harcourt Road Central Hong Kong Manufacturer : KBC NETWORKS Address : 25691 Atlantic Ocean Drive Suite B-3 Lake Forest, CA 92630 Model No. : WLM200N5-23-4.9 FCC ID : OLXWLM200N5-49 EUT Voltage : 24Vdc, 500mA Brand Name : KBC Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 128S072R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 128S072R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 128S072R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 17dBi in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 4960~4980 15.0661 0.150221 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report FCC Part90 Subpart Y Product Name : WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Model No. : WLM200N5-23-4.9 FCC ID : OLXWLM200N5-49 Applicant : KBC Networks Limited Address : 1301 Bank of America Tower 12 Harcourt Road Central Hong Kong Date of Receipt : 30/08/2012 Test Date : 30/08/2012~24/09/2012 Issued Date : 25/09/2012 Report No. : 128S072R-RF-US-P11V01 Report Version : V1.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 128S072R-RF-US-P11V01 Page: 2 of 62 Test Report Certification Issued Date : 25/09/2012 Report No. : 128S072R-RF-US-P11V01 Product Name : WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Applicant : KBC Networks Limited Address : 1301 Bank of America Tower 12 Harcourt Road Central Hong Kong Manufacturer : KBC NETWORKS Address : 25691 Atlantic Ocean Drive Suite B-3 Lake Forest, CA 92630 Model No. : WLM200N5-23-4.9 FCC ID : OLXWLM200N5-49 EUT Voltage : DC 3.3V Brand Name : KBC Applicable Standard : FCC CFR Title 47 Part 90 Subpart Y: 2011 FCC CFR Title 47 Part 2: 2011 ANSI TIA-603-C-2004 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 128S072R-RF-US-P11V01 Page: 3 of 62 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 128S072R-RF-US-P11V01 Page: 4 of 62 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................7 1.3. Tested System Details................................................................................................8 1.4. Configuration of Tested System .................................................................................9 1.5. EUT Exercise Software ............................................................................................10 2. Technical Test .............................................................................................................. 11 2.1. Summary of Test Result ........................................................................................... 11 2.2. Test Environment.....................................................................................................12 3. Maximum Conducted Output Power ............................................................................13 3.1. Test Equipment ........................................................................................................13 3.2. Test Setup ................................................................................................................13 3.3. Limit..........................................................................................................................13 3.4. Test Procedure.........................................................................................................14 3.5. Uncertainty ...............................................................................................................14 3.6. Test Result...............................................................................................................15 4. Peak Power Spectral Density.......................................................................................22 4.1. Test Equipment ........................................................................................................22 4.2. Test Setup ................................................................................................................22 4.3. Limit..........................................................................................................................22 4.4. Test Procedure..............................................................................…

Text truncated - open the document above for the full version.

1. Test Setup Photograph Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Above 1GHz Description: Radiated Emission Test Setup for Above 18GHz
