OMERDBTKBBluetooth Keyboard

RD-RFK858BT Bluetooth Keyboard User’s Manual Thanks for purchasing this Bluetooth Keyboard. It’s with standard 78 keys. This creative and easy-to-use Bluetooth 3.0 keyboard will bring you a whole new wireless life experience. 1.0 System Requirement iPad, Mac OS Windows OS (Windows XP, Windows Vista, Windows 7) 2.0 Installation Guide Before use the keyboard, please make sure the battery is installed well in the keyboard. Open the cover of the battery slot and install two pieces of 1.5V AAA battery. Then cover the battery slot. Make sure that the batteries’ poliarities are in accordance with the polarity marks in the battery slot. Photo (1) Photo (2) 2.0.1 Connecto to iPad Step 1: Put the power switch on keyboard to “ON”, and press pairing key on the keyboard, the Bluetooth Synch LED will wink, now the keyboard is in pairing mode. Step 2: On your iPad, enter "Setting"---"General", turn on "Bluetooth". Step 3: After turning on "Bluetooth", it will search bluetooth devices automatically. Step 4: After finding "Bluetooth Keyboard", press the device, it will start connecting, and there will be a password displayed. Step 5: Press the password in your Bluetooth Keyboard, and "Enter", then it will connect with your iPad. Now you can use your Bluetooth Keyboard. 2.0.2 Connect to Computer Step 1: Push the Power Switch to "ON" and then press the PAIR button. The Bluetooth Synch LED will wink. Step 2: Make sure the Bluetooth function has been activated in your computer (if not, you need to buy a separate Bluetooth USB receiver to connect to the computer). Double click the Bluetooth Icon on the Task Bar or in the Control Panel, open the "Bluetooth management" window, click "add", tick off "facility is ready for searching", click "Next". Step 3: The Bluetooth keyboard will automatically search for Bluetooth paired device after the PAIR button was pressed. A corresponding dialog box will pop up on the screen of the PC or Notebook. Input the security code which displays on the dialog box by the Bluetooth keyboard and press Enter. When the Bluetooth Synch LED stop winking, it means the Bluetooth connection was established successfully between the keyboard and the computer. Step 4: It will take a few seconds for the computer to automatically install some drivers once the Bluetooth connection has been established. Upon installation of the drivers, the Bluetooth keyboard is ready to work. As long as the PAIR button was not pressed again or the Paired device was not removed, users no need to make pairing any more after the pairing process was accomplished, even the batteries were took out from battery slot. 3.0 FAQ: If unable to connect the Bluetooth Keyboard to the computer, or the keyboard works unconventionally, please try the steps below: 1. Make sure that the computer is connected to the Bluetooth keyboard. If they are matched to each other before, then under the standby state, just click the “Enter” key of the keyboard; 2. Make sure that the keyboard is within the effective range – 10M; 3. Make sure that there’s no change of the Bluetooth facility. If anything changed, please kindly rematch; 4. If your Bluetooth facility is connected to other Bluetooth products, please kindly confirm that the speed of the bluetooth facility is enough; 5. Please kindly check the batteries. If they’re short of power, replace them for new ones. 4.0 FCC statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

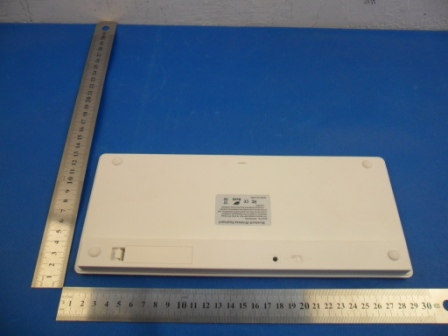

1 Photographs - EUT Constructional Details Test Model No.: RD-RFK858BT

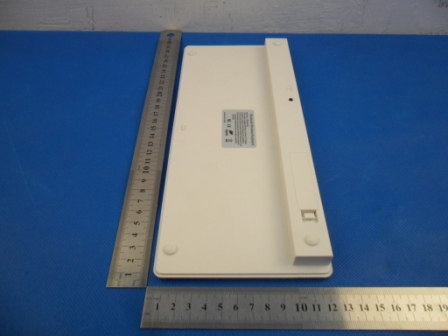

1 Photographs - EUT Constructional Details Test Model No.: RD-RFK858BT

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120600349002 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page Cover PageCover Page Cover Page SAR Evaluation Report Application No.: SZEM1206003490RF Applicant: Shenzhen W.Rider Technology Co., Ltd. Manufacturer: Shenzhen W.Rider Technology Co., Ltd. Product Name: Bluetooth hands-free system Model No.(EUT): RD-RFK858BT Add Model No.: RD-RFK8001BT, RD-RFK8550BT, RD-RFK826BT, RD-RFK827BT, RD-RFK828BT, RD-RFK8050BT, RD-RFK8150BT, RD-RFK8250BT, RD-RFK8350BT, RD-RFK8450BT, RD-RFK8650BT, RD-RFK8750BT, RD-RFK8850BT, RD-RFK8950BT. Standard: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) FCC ID: OMERDBTKB Date of Receipt: 2012-06-27 Date of Test: 2012-06-27 to 2012-07-13 Date of Issue: 2012-08-08 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120600349002 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents 1 11 1 COVER PAGE..............................................................................................................................................................1 2 22 2 CONTENTS..................................................................................................................................................................2 3 33 3 GENERAL INFORMATION........................................................................................................................................3 3.1 CLIENT INFORMATION............................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT ............................................................................................................................3 3.3 TEST LOCATION.....................................................................................................................................................3 3.4 TEST FACILITY.......................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS...............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................4 3.7 OTHER INFORMATION REQUE…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120600349001 Page: 1 of 43 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1206003490RF Applicant: Shenzhen W.Rider Technology Co., Ltd. Manufacturer: Shenzhen W.Rider Technology Co., Ltd. Product Name: Bluetooth Keyboard Model No.(EUT): RD-RFK858BT Add Model No.: RD-RFK8001BT, RD-RFK8550BT, RD-RFK826BT, RD-RFK827BT, RD-RFK828BT, RD-RFK8050BT, RD-RFK8150BT, RD-RFK8250BT, RD-RFK8350BT, RD-RFK8450BT, RD-RFK8650BT, RD-RFK8750BT, RD-RFK8850BT, RD-RFK8950BT. FCC ID: OMERDBTKB Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-06-27 Date of Test: 2012-06-27 to 2012-07-13 Date of Issue: 2012-08-08 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120600349001 Page: 2 of 43 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: RD-RFK858BT, RD-RFK8001BT, RD-RFK8550BT, RD-RFK826BT, RD-RFK827BT, RD-RFK828BT, RD-RFK8050BT, RD-RFK8150BT, RD-RFK8250BT, RD-RFK8350BT, RD-RFK8450BT, RD-RFK8650BT, RD-RFK8750BT, RD-RFK8850BT, RD-RFK8950BT. Only the model RD-RFK858BT was tested, since the electrical circuit design, layout, components used and internal wiring were identical for the above models, with only difference …

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: RD-RFK858BT) 1.1 Radiated Emission Test Setup
