OMZ-MCEPCNPCone

elite elite Team System User Manual Overview miCoach Elite represents the latest advancement in performance monitoring. The state of the art system gives athletes and teams a powerful, yet easy to use tool to help them achieve and maintain peak physical performance and gain an edge on their competition. Teams can now accurately plan, monitor, analyze and report on the performance of athletes with one integrated system. The miCoach Elite Team System is designed to perform tasks that aid training and coaching staff, including: n Provide real time insights during training n Track total training impact and benefits n Simplify the collection and management of data n Add flexibility with a highly portable system How it works miCoach Elite Team system uses a collection of technologies along with compact electronics, specialized fab- rics/fibers and wireless communication to provide non-invasive monitoring of athletes in near real time. adidas brings together GPS, WiFi, accelerometers, heart rate monitoring and other technologies along with an understanding of elite athletes and their training and developmental needs. elite elite What it measures miCoach Elite was designed to take millions of points of data and boil them down to simple, intelligent feedback for coaches who want to understand how training is impacting athletes and their ability to perform. Metrics Heart rate During a training session, a coach can use the live dashboard to monitor heart rate recovery making sure not to begin the next training interval until the majority of athletes are ready. Power This is a precise measure of how hard the athlete is working. Power training is widely used in cycling where it’s been possible to measure by putting a meter on the bike. Advanced sensor technology and algorithms in the micoach elite system will now enable power to be used in football/soccer. By combining Power and Heart Rate coaches now have a complete picture of how hard an athlete is working and how their body is responding to the work. This combination of metrics allows coaches to look at the overall efficiency of a player. Athletes that are putting out more work per heart beat are in better condition. Speed By monitoring speed a coach can see if the athletes are training at the level that’s required to succeed in a game. When a coach plans a speed training session he can customize the live dashboard to view speed related data including peak speed, average speed and number of high intensity sprints. The ability to manage speed training carefully is essential to prevent overtraining and risk of injury. Distance The distance an athlete runs during a game or scrimmage can vary. A real time measure of distance allows a coach to set individual or team targets for distance and ensure that all athletes have met the goal. At the end of a scrimmage a coach can use the live app to check distance covered. Athletes that fell short of the target will continue to run. Acceleration/Deceleration These measures are critical in sports where rapid change of direction is required. Understanding the rate and frequency of accelerations and decelerations is an important part of overall training load. Field Position This allows a coach to see where the athletes have been on the field giving insight into tactical movements of the players. elite elite miCoach Elite Team System The miCoach Elite system consists of five components. elite elite 1. miCoach Elite PLAYER_CELL This small sensing device captures key metrics of athletic performance during training and on the field of play. Data is transmitted wirelessly and in near real time to the base. 2. Techfit Elite base layer Each athlete is outfitted with a sleeveless, medium compression base layer that works with the PLAYER_CELL. Specialized fibers are woven into the base layer to transmit data to the PLAYER_CELL. The base layer is available in a range of sizes for optimum fit and accurate data collection. The PLAYER_CELL rests between the shoulder blades so it does not interfere with training or game play. 3. miCoach Elite Base Station The Base Station is a portable receiver that collects data from up to 30 PLAYER_CELLS and can transmit that data in near real time to the miCoach Elite Dash via WiFi. Data from three sessions can be stored locally on the base. When connected to the Internet, the base station uploads data to a team’s secure web server for post-session analysis and reporting. The Base Station also serves as a storage and charging port for all the PLAYER_CELLS and iPads used with the Team System. The unit is portable, rugged and weather resistant. 4. miCoach Elite Dash This app runs on a iPad connected to the Base via WiFi and allows for on-field planning and drill management. It also provides coaches and trainers data for live monitoring of athletes. Information on heart rate, speed, distance, acceleration and power can be viewed in near real time and through a range of user-selected formats. Both individual and team data can be reviewed through simple touch-screen commands. 5. miCoach Elite Web App Analysis of training and game data is performed with tools located on the miCoach Elite website. Simple to use reporting tools provide insight into athletes’ performance and workout intensity. The app enables users to load player data, track results through custom tools and share findings though easy to read reports. The app and all data is secure and accessible by authorized team personnel only. elite elite miCoach Elite Team System elite elite miCoach Elite PLAYER_CELL This small sensing device captures key metrics of athletic performance during training and on the field of play. Data is transmitted wirelessly and in near real time to the base. Name On/Off Button elite elite Techfit Elite base layer Each athlete is outfitted with a sleeveless, medium compression base layer that works with the PLAYER_CELL. Specialized fibers are woven into the base layer to transmit data to the PLAYER_CELL. The base…

Text truncated - open the document above for the full version.

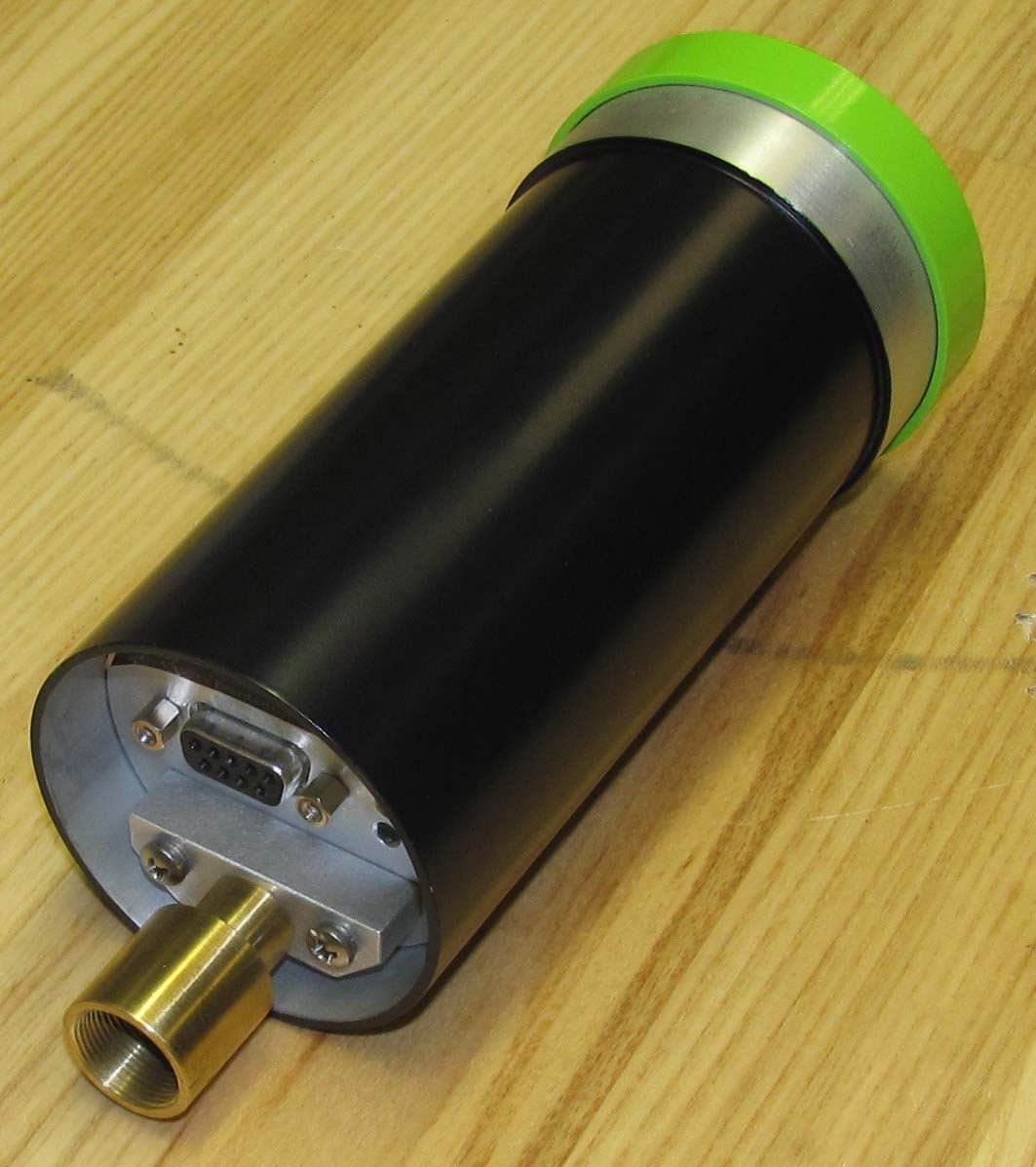

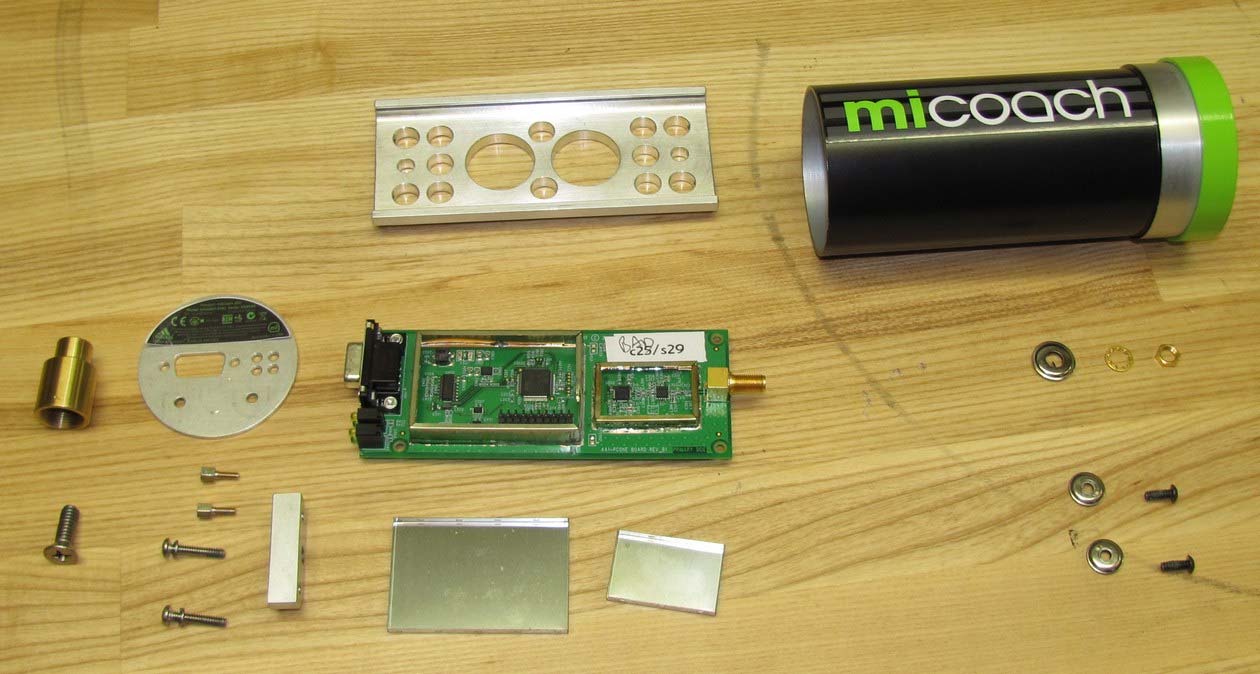

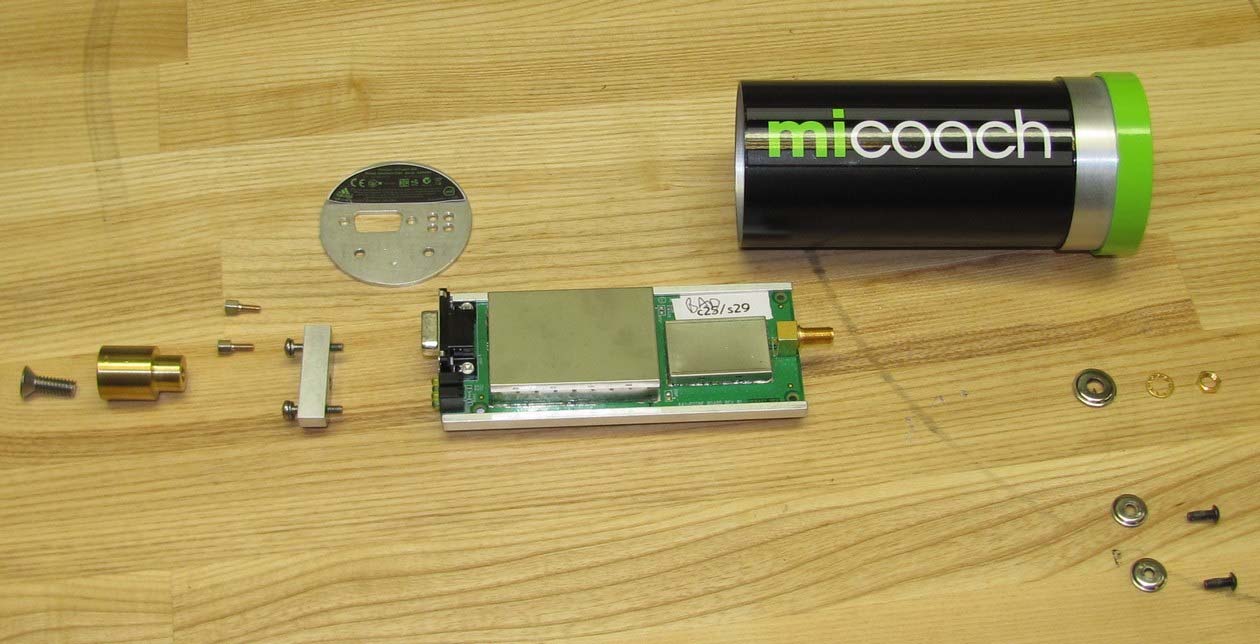

miCoach Elite Team SystemPCone Images / Assembly Pcone – View from Bottom Outside 2 3 Pcone – View from Top Outside 4 Pcone – View from Top Outside Pcone – Outside Multi-directional View of Cylinder Housing 5 Production Version – Pattern/Colors 6 Pcone – Internal Components – Shield Covers Off 7 Pcone - Internal Parts – Assembly PCone - Assembly 8

“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)The devices may not cause harmful interference, and (2) The devices must accept any interference received, including interference that may cause undesired operation.” Assembled in USAadidas America,Inc. Portland, OR USA Product: miCoach elite Model: AA40967-11 FCC: OMZ-MCEPCN IC:9722C-MCEPCN N23156 R Type converted to path version MICOACH GREEN: PANTONE 376C MCEPCN Markings 9.6.2012 center line R 1.045" 0.764" 2.231" 4006479 Pcone – Label Placement 1

“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)The devices may not cause harmful interference, and (2) The devices must accept any interference received, including interference that may cause undesired operation.” Assembled in USAadidas America,Inc. Portland, OR USA Product: miCoach elite Model: AA40967-11 FCC: OMZ-MCEPCN IC:9722C-MCEPCN N23156 R Type converted to path version MICOACH GREEN: PANTONE 376C MCEPCN Markings 9.6.2012 center line R 1.045" 0.764" 2.231" 4006479 Pcone – Label Placement 1

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Emissions Report for Adidas International on the P-Cone Page 1 of 68 EMISSIONS TEST REPORT Report Number: 100719224BOX-007b Project Number: G100719224 Report Issue Date: 10/25/2012 Product Designation: P-cone, Model/Article: AA40967-11 Standards: FCC Part 15:2012 Subpart C Section 15.247, FCC Part 15:2012 Subpart B Class B, RSS-210 Issue 8 December 2010, ICES-003 Issue 5 August 2012, RSS-Gen Issue 3 December 2010+Notice DRS 2012-DRS0126, CENELEC EN 55022:2010, AS/NZS CISPR 22:2009 Tested by: Client: Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 Adidas International 1895 J. W. Foster Boulevard Canton, MA 2021 Report prepared by Report reviewed by Kouma Sinn / Senior Project Engineer, EMC Nicholas Abbondante / Staff Engineer, EMC Intertek Report Number: 100719224BOX-007b Issued: 10/25/2012 Emissions Report for Adidas International on the P-Cone Page 2 of 68 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2 Test Summary Section Test full name Result 3 Client Information -- 4 Description of Equipment Under Test -- 5 System Setup and Method -- 6 RF Output Power, Duty Cycle, and Human RF Exposure (CFR47 FCC Part 15 Subpart C 15.247(b)(3), KDB 558074v01 01/18/2012, IC RSS-210 A8.4(4), IC RSS-102 Issue 4 March 2010) Pass 7 Transmitter Radiated Spurious Emissions (CFR47 FCC Part 15 Subpart C 15.247(d), IC RSS-210 A8.5, KDB 558074v01 01/18/2012 Section 5.4) Pass 8 6 dB Bandwidth (CFR47 FCC Part 15 Subpart C 15.247(a)(2), IC RSS-210 A8.2(a), IC RSS-Gen Section 4.6.2, KDB 558074v01 01/18/2012 Section 5.1) Pass 9 Peak Power Spectral Density (FCC 15:2011 Subpart C Section 15.247 (e), RSS-210 Issue 8 December 2010, A8.2 (b), KDB 558074v01 01/18/2012 Section 5.3) Pass 10 Band Edge Compliance (FCC 15:2011 Subpart C Section 15.247 (d), RSS-210 Issue 8 December 2010, A8.5, KDB 558074v01 01/18/2012 Section 5.4.2.2.4) Pass -- Receiver Radiated Spurious FCC Part 15:2012 Subpart B Section 15.109 (a) RSS-Gen 3 December 2010, Section 6 Exempt, above 960MHz 11 Digital Device Radiated Spurious Emissions (CFR47 FCC Part 15 Subpart B 15.109, IC ICES-003 Issue 4 February 2004, AS/NZS CISPR 22:2009, CENELEC EN 55022:2010) Pass 12 AC Mains Conducted Emissions FCC Part 15:2011 Section 15.207 (a) RSS-Gen Issue 3 December 2010, 7.2.2 (Table 2) Pass 13 Revision History -- 2 1 1 1 1 Intertek Report Number: 100719224BOX-007b Issued: 10/25/2012 Emissions Report for Adidas International on the P-Cone Page 3 of 68 3 Client Information This EUT was tested at the request of: Company: Adidas International 1895 J. W. Foster Boulevard Canton, MA 2021 Contact: Mr. Evan Locke Telephone: (781) 401-7260 Fax: Not Available Email: [email protected] 4 Description of Equipment Under Test Equipment Under Test Description Manufacturer Article/Model Number Serial Number MiCoach P-cone Adidas International AA40967-11 BOX1205300925-001 (Intertek Assigned) MiCoach P-cone Adidas International AA40967-11 P-CONE 5 Receive Date: 05/29/2012, 06/26/2012 Received Condition: Good Type: Production Description of Equipment Under Test (provided by client) The PCONE is part of a MiCoach Wireless Data Collection System. Wireless communication to a host via a Maxstream external dipole whip antenna model: A24-HASM-450 with 2.14 dBi gain and Zigbee application with O-PQSK modulation is used. The Zigbee transceiver operates in the 2400-2483.5MHz band from 2405-2480MHz. Equipment Under Test Power Configuration Rated Voltage Rated Current Rated Frequency Number of Phases 3.7 VDC From Base Station N/A N/A N/A 3.7VDC From USB Power Adapter N/A N/A N/A Notes: Both the Base Station and USB Power Adapter powered from 120VAC/60Hz. Operating modes of the EUT: No. Descriptions of EUT Exercising 1 Transmit 2 Receive 3 RF Communication Link Intertek Report Number: 100719224BOX-007b Issued: 10/25/2012 Emissions Report for Adidas International on the P-Cone Page 4 of 68 5 System Setup and Method Cables (PCONE on Tripod) ID Description Length (m) Shielding Ferrites Termination 1 RS232 1.76 Foil None Junction Point 2 RS232 0.59 Foil None USB Adapter 3 USB 0.55 Braid None Power Supply 4 USB 0.32 Braid None Laptop 5 RS232 0.59 Foil None Not Terminated Support Equipment (PCONE on Tripod) Description Manufacturer Model Number Serial Number Serial-To-USB Adapter Staple Not Labeled Not Labeled Laptop HP Compaq nc6400 None PCONE USB Power Adapter Touch Electronics, Ltd SA01-3US05R-A None Cables…
