  1. Home/
  2. MAXWEST TELECOM/
  3. ONGANDROID330

ONGANDROID330MOBILE PHONE

MAXWEST TELECOM
MOBILE PHONE - FCC ID ONGANDROID330 - MAXWEST TELECOM
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Jan 07, 2014
Application Purpose
Original Equipment
Date of Application
Jan 06, 2014
Equipment Note
MOBILE PHONE
Frequency Range
1850.20000000 - 1909.80000000
Company
MAXWEST TELECOM
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 User Manual 2 LEGAL INFORMATION All rights reserved. No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, modifications on print errors or update specifications in this guide without prior notice. Version No.: 1.0 Edition Time: 2013.12.17 3 Contents For Your Safety........................................................8 General Safety...............................................................8 Distraction......................................................................9 Driving......................................................................9 Operating Machinery ................................................9 Product Handling ...........................................................9 General Statement on Handling and Use..................9 Small Children ........................................................11 Demagnetization.....................................................11 Electrostatic Discharge (ESD).................................11 Antenna..................................................................11 Normal Use Position...............................................11 Air Bags..................................................................12 Seizures/ Blackouts ................................................12 Repetitive Motion Injuries........................................12 Emergency Calls ....................................................12 Loud Noise .............................................................13 Phone Heating........................................................13 Electrical Safety ...........................................................13 Accessories............................................................13 Connection to a Car................................................13 Faulty and Damaged Products................................14 Interference..................................................................14 General Statement on Interface..............................14 4 Pacemakers........................................................... 14 Hearing Aids .......................................................... 14 Medical Devices..................................................... 15 Hospitals................................................................ 15 Aircraft ................................................................... 15 Interference in Cars................................................ 16 Explosive Environments .............................................. 16 Petrol Stations and Explosive Atmospheres ........... 16 Blasting Caps and Areas........................................ 16 Getting Started.......................................................17 Overview ..................................................................... 17 Keys Explained............................................................ 18 Starting up................................................................... 18 Installing the SIM/SD Card and Battery .................. 18 Removing the Battery and SIM/SD Card ................ 19 Charging the Battery .............................................. 19 Switching Your Phone On/Off...................................... 19 Setting Up Your Phone for the First Time............... 20 Switching to Sleep Mode........................................ 20 Working Up Your Phone......................................... 20 Getting Around Your Phone......................................... 21 Touch Control ........................................................ 21 Home Screen......................................................... 21 Status and Notification Icons.................................. 22 Using the Notification Panel ................................... 23 5 Phone Calls............................................................24 Making Calls ................................................................24 Calling from the Phone ...........................................24 Calling from Your Contacts.....................................24 Calling from Your Call Log......................................24 Calling from a Text Message ..................................25 Receiving Calls ............................................................25 Answering a Call.....................................................25 Rejecting a Call ......................................................25 Muting a Call...........................................................25 Turning the Speakerphone On/Off ..........................26 Ending a Call..........................................................26 Contacts.................................................................26 Creating a Contact.......................................................26 Searching for a Contact................................................26 Messages ...............................................................27 The Message Box........................................................27 Sending an Message ...................................................27 Message Settings ........................................................28 Touch Input Settings ....................................................28 Getting Connected to the Internet........................28 Adding a New Network Connection.....................29 Turning On Wi-Fi..........................................................29 Connecting to a Wi-Fi Network.....................................30 Checking the Wi-Fi Network Status..............................30 6 USB tethering & portable hotspot................................. 30 Enabling USB tethering.......................................... 30 Disabling USB tethering ......................................... 31 Enabling the Wi-Fi Hotspot..................................... 31 Disabling the Wi-Fi Hotspot.................................... 32 Brow…

Text truncated - open the document above for the full version.

Cover Letter(s)

MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 U FCC Authorization Letter Number: CF304 Version: V03 Date: 11-27-2013 We, (the approval holder) Company name MAXWEST TELECOM Address 11037 warner ave #201 fountain valley, ca, 92708 U City fountain valley Country United States declare that the following representative (agent): Name (person) Miro Company name Cerpass Technology (Suzhou) Co.,Ltd Address No.66,Tangzhuang Road City Suzhou Industrial Park, Jiangsu 215006, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description MOBILE PHONE Type or Model(s) ANDROID 330 Tradename or Brand(s) MAXWEST We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) fountain valley, United States 2014/01/06 ADAM YU General Manager

Cover Letter(s)

MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 U FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name MAXWEST TELECOM Address 11037 warner ave #201 fountain valley, ca, 92708 U City fountain valley Country United States request for this certification filing under: Grantee Code Product Number FCC ID: ONG ANDROID330 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Tune-up procedure showing power range or specific operating power levels of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) fountain valley, California, United States 2014/01/06 ADAM YU General Manager

External Photos

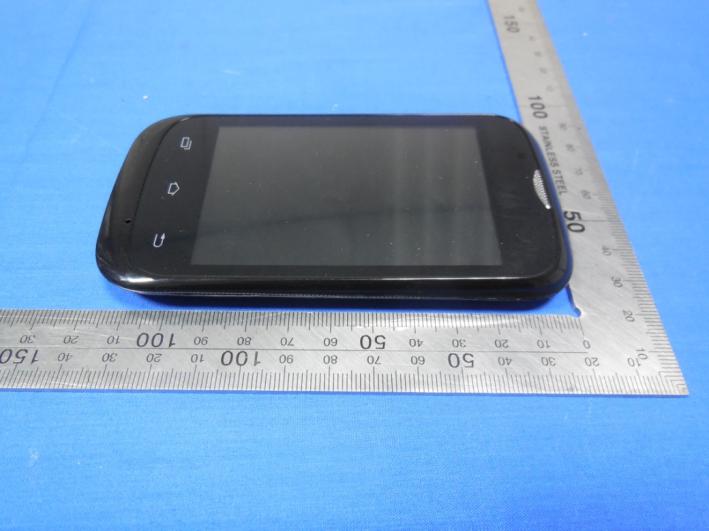

Antenna Location Photographs EUT Photographs Front Rear EDGE of the EUT(Closed)

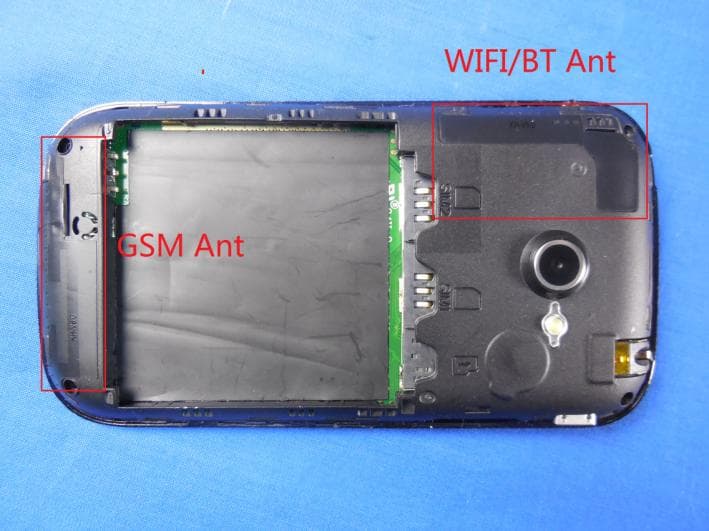

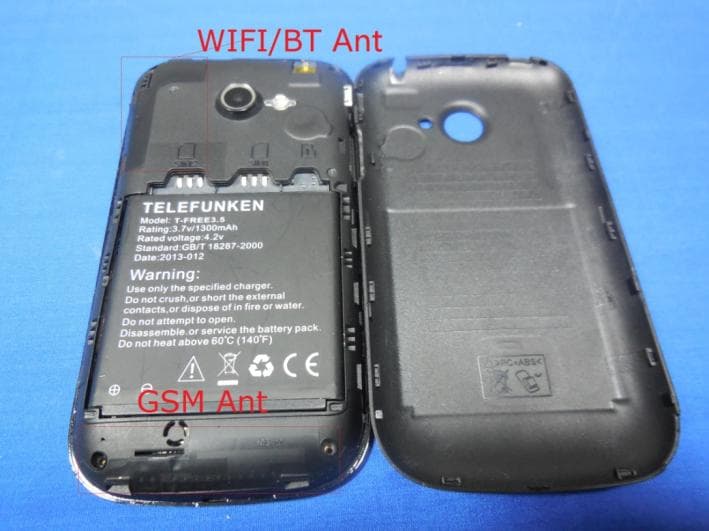

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1312117 Cerpass Technology Corp. Issued date : Jan 6,2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo(module) CERPASS TECHNOLOGY CORP. Report No.: SEFI1312117 Cerpass Technology Corp. Issued date : Jan 6,2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1312117 Cerpass Technology Corp. Issued date : Jan 6,2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo

RF Exposure Info

CERPASS TECHNOLOGY CORP. Report No.: SESF1312177 Report No.:1312177 Client : MAXWEST TELECOM Product : MOBILE PHONE Trade Brand MAXWEST Model : ANDROID 330 FCC ID : ONGANDROID330 Manufacturer/ supplier : MAXWEST TELECOM. Date test campaign completed : January 2 nd ,2014 Date of issue : January 3 rd ,2014 Test Result : █Compliance □Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC KDBs and IEEE Std.1528-2013. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 142 pages The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. Test Engineer: Approved by: ___________________ __________________ Leo Chen Miro Chueh SAR Evaluation Report for IEEE Std1528-2013, FCC KDB Publication 648474 D04 Handset SAR v01r01 and 47CFR § 2.1093 Cerpass Technology Corp. Issued Date : January 3 rd ,2014 Tel:886-512-6917-5888 Fax:886-512-6917-5666 Page No. : 1 of 142 CERPASS TECHNOLOGY CORP. Report No.: SESF1312177 Applicant Information Client : MAXWEST TELECOM Address : 11037 warner ave #201 fountain valley, ca, 92708 USA Manufacturer : MAXWEST TELECOM Address : 11037 warner ave #201 fountain valley, ca, 92708 USA EUT : MOBILE PHONE Model No. : ORBIT ANDROID 330 Standard Applied : IEEE Std1528-2013 and 47CFR § 2.1093 FCC KDB Publication 648474 D04 Handset SAR v01r01 FCC KDB Publication 447498 D01v05r01 FCC KDB Publication 865664 D01v01r01 Laboratory : CERPASS TECHNOLOGY CORP. No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China. Max. Average : GSM850: 26.89dBm Output Power GSM1900: 26.39dBm WLAN: 15.23dBm BT: 2.42dBm Max. SAR Value : Head GSM850: 1.14 W/kg(1g) PCS1900: 0.959 W/kg(1g) WLAN: 0.055 W/kg(1g) Body GSM850: 1.33 W/kg(1g) PCS1900: 1.26 W/kg(1g) WLAN: 0.089 W/kg(1g) Max. Simultaneous SAR Value : Head: 1.195 W/kg(1g) Body: 1.419 W/kg(1g) Cerpass Technology Corp. Issued Date : January 3 rd ,2014 Tel:886-512-6917-5888 Fax:886-512-6917-5666 Page No. : 2 of 142 CERPASS TECHNOLOGY CORP. Report No.: SESF1312177 Contents 1. General Information ..................................................................................................................................4 1.1. Executive Summary ..........................................................................................................................4 1.2. Description of Equipment under Test ................................................................................................4 1.3. Simultaneous Transmission Configurations......................................................................................6 1.4. SAR Test Exclusions Applied ............................................................................................................7 1.5. Power Reduction for SAR .................................................................................................................7 1.6. Environment Condition......................................................................................................................7 1.7. Test Standards ..................................................................................................................................7 1.8. RF Exposure Limits ...........................................................................................................................8 2. The SAR Measurement Procedure ..........................................................................................................9 2.1. System Performance Check .............................................................................................................9 2.2. Test Requirements ......................................................................................................................... 13 3. DASY5 Measurement System ............................................................................................................... 17 3.1. Uncertainty of Inter-/Extrapolation and Averaging ......................................................................... 18 3.2. DASY5 E-Field Probe .................................................................................................................... 18 3.3. Data Acquisition Electronics (DAE) ................................................................................................ 19 3.4. Robot.............................................................................................................................................. 19 3.5. Light Beam Unit ............................................................................................................................. 19 3.6. Measurement Server ..................................................................................................................... 20 3.7. SAM Phantom ................................................................................................................................ 20 3.8. Device Holder ................................................................................................................................ 21 3.9. Test Equipment List ........................................................................................................................ 22 4. Results .................................................................................................................................................... 23 4.1. Summary of Test Results ............................................................................................................... 23 4.2. Description for EUT test position .....…

Text truncated - open the document above for the full version.

Test Report

CERPASS TECHNOLOGY CORP. Report No.:SEFI1312177-G FCC ID: ONGANDROID330 Cerpass Technology Corp. Issued Date : Dec 24,2013 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 76 FCC TEST REPORT According to FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E Applicant : MAXWEST TELECOM Address : 11037 warner ave #201 fountain valley, ca, 92708 USA Manufacturer : MAXWEST TELECOM Address : 11037 warner ave #201 fountain valley, ca, 92708 USA Equipment : MOBILE PHONE Model No. : ANDROID 330 Trade Name : MAXWEST FCC ID : ONGANDROID330 ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.:SEFI1312177-G FCC ID: ONGANDROID330 Cerpass Technology Corp. Issued Date : Dec 24,2013 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 76 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Test Manner ..................................................................................................................................... 8 2.3. Description of Test System .............................................................................................................. 8 2.4. General Information of Test ............................................................................................................. 9 2.5. Measurement Uncertainty ............................................................................................................... 9 3. Test of Conducted Emission.................................................................................................................... 10 3.1. Test Limit........................................................................................................................................ 10 3.2. Test Procedures............................................................................................................................. 10 3.3. Typical Test Setup...........................................................................................................................11 3.4. Measurement Equipment ...............................................................................................................11 3.5. Test Result and Data ..................................................................................................................... 12 4. FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ......................................................... 12 4.1. Test Limit........................................................................................................................................ 14 4.2. Test Procedures............................................................................................................................. 14 4.3. Typical Test Setup.......................................................................................................................... 15 4.4. Measurement Equipment .............................................................................................................. 16 4.5. Test Result and Data ..................................................................................................................... 17 5. Occupied Bandwidth................................................................................................................................. 29 5.1. Test Limit........................................................................................................................................ 41 5.2. Test Procedures............................................................................................................................. 41 5.3. Test Setup Layout .......................................................................................................................... 41 5.4. Measurement Equipment .............................................................................................................. 41 5.5. Test Result and Data ..................................................................................................................... 42 6. Maximum Peak Output Power.................................................................................................................. 50 6.1. Test Limit........................................................................................................................................ 50 6.2. Test Procedure............................................................................................................................... 50 6.3. Test Setup Layout .......................................................................................................................... 50 6.4. Measurement Equipment .............................................................................................................. 50 6.5. Test Result and Data ..................................................................................................................... 51 7. ERP & EIRP MEASUREMENT................................................................................................................... 53 7.1. Test Limit........................................................................................................................................ 53 7.2. Test Procedure..................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Band850, Band1900 and WIFI Test Setup Head Touch-Left Tilt-Left Touch-Right Tilt-Right Band850, Band1900 Test Setup Body Back with gap 10mm Front with gap 10mm Left side with gap 10mm Right side with gap 10mm Bottom with gap 10mm WIFI Test Setup Body Back with gap 10mm Front with gap 10mm Right side with gap 10mm Top with gap 10mm CERPASS TECHNOLOGY CORP. Report No.: SEFI 1312177 Cerpass Technology Corp. Issued date : Jan 6,2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 1 TEST SETUP PHOTOGRAPHS OF EUT RADEATED EMISSION TEST

Contact Information

Applicant

ADAM YU
[email protected]9498007607Fax: 9498007607

Technical Contact

TeleconformityMark Koop
[email protected](31)848395876

Rietven 31 · Enschede, Overyssel · Netherlands

Test Firm

Cerpass Technology Corporation Test LaboratoryBen Wang
[email protected]+886-3-3226888Fax: +886-3-3226881

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
424E1.85 GHz - 1.91 GHz511.00 mW281KG7W0.03 ppm
Confidentiality
Long Term
Grant Notes
This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. Power Output listed is ERP for Part 22, and EIRP for Part 24. SAR compliance for body-worn operation is based on a separation distance of 10mm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values for head, body-worn accessory, product specific and simultaneous transmission use conditions are: 1.14 W/kg; 1.33 W/kg; 1.42 W/kg, 1.42 W/kg.
