1 Chapter 1 Brief knowledge 1.1 Brief introduction It is very pleasure that you choose this color-screen and GSM/GPRS digital phone. This phone is double screen clamshell mobile phones. Before you use and fix our products, please read carefully all the information of our manual, it will help you using our products well and knowing the utility of the phone and enjoying its perfect functions and easy operation means. This kind of color-screen phone are designed for the specific environment GSM/GPRS and provide for you such functions as stereo bell with high quality, clock/alarm, stopwatch, calculator, bluetooth, MP3 player, dual SIM and dual standby except the basic function of making calls to meet your various needs. This phone meets the GSM/GPRS technical standards, and is certificated by the relative authorized organizations. We reserve the right to make changes to this manual without making acknowledgements. 1.2 Safety and Precautions
If your phone has been stolen, please note the telecom company which provides you the SIM card to acquire their help to prohibit the phone to make call from your missing SIM card.
The telecom company may need the IMEI number of your missing phone when you turn to them for help. You can find this number when you take off the battery. Please make a copy of such an IMEI to make you know it when you need it.
In order to protect your phone from being used in a wrong way, please notice the following suggestions: Preset the PIN code for your SIM card and make sure keep it to yourself Take your phones close to you 2 Preset call prohibition 1.3 General notice items
Please use the battery and charger designated by our company. It will lead to leek, burst, fire by using other products.
Please don’t crush, hit or throw the phone to avoid breaking the phone or causing fire.
Keep the phone, battery and the charger away from microwave oven or other high-pressure apparatus.
Switch off the phone in the vicinity of chemical plants, gas stations and other locations containing explosive objects.
Avoid using the phone in too high or too low temperature environments. Never leave the phone exposed under direct sunlight or in high humidity or dusty environment.
Keep the phone away from children to avoid causing harm to them.
Don’t put the phone on the uneven or unstable places to avoid its falling off and being broken. 1.4 Notice items for using phone
Please turn off your phone in such places as hospital, air-plane. Your phone will interrupt the normal work of the electric machine and medical machine. Please observe the prescription. the phone have the auto-open function in designed time, please check your alarm set and make sure that it will not open in improper time.
Please don’t use your phone nearing the weak signal or electric machine .radio waves will make the wrong work and other problems. Pay attention to such machine as pacemakers, hearing aids and other electro-medical equipments, fire dictator, auto-door and other automatic machine. Please consult the producer or local retailer about the impaction on the medical machine made by phone.
Please do not strike the LCD screen or use the phone hit other things , or the LCD panel will be broken and cause the leak of the liquid. It will cause your eyes blind for the leak of the LCD 3 liquid. Washing your eyes immediately, don’t rub with your hands and go to hospital at once.
Please do not disassemble the phone, or it will cause the broken, leakage and circuit fault.
At scare time, the phone will cause ill condition to the electric apparatus in the car. Please, don’t use your phone lest it lost security.
Please don't press the keypad by using the needle, pen or other sharp things, or it will cause wrong operation or damage your phone.
Please don't use your phone in case the broken of the antenna to avoid damaging to others health.
Please don't contact with such magnetic things as the credit card, saving cards and soft disk to avoiding the lost of information.
Please keep the pushing away from your phone. The magnetic loudspeaker will insult the little metal things when it work ,that will cause the damage of your body or broken your phone.
Please avoid water or other liquid fluid in your phone resulting in the overheating, leakage or failure. 1.5 Notice items for using the battery
Please don't put your battery in fire which will lead to explosion.
Please don't push hard with force when install the battery or it will cause the leakage and overheating and explosion.
Please don’t short circuit the battery, and avoid putting the battery together with necklace, needles or other metal things. Short circuit can cause liquid leak, overheat, explosion and fire
Please don't join the ends of the battery, or liquid leak, overheat, explosion and fire might happen.
It will have the risk of losing your eyesight for the liquid splash in eyes and don't rub your eyes, washing with water and going to hospital. 4
Don't dissemble the battery, or it will lead to leakage , overheating or explosion of the battery.
Please don't use or lay your batter near fire or other high temperature place, or the overheating, leakage or explosion will happen.
Please stop use the high temperature and changing color or deformed battery and exchange the new one.
It will harmful to your skin if the battery liquid splash your body, you must wash by use of water and go to hospital.
Please take the battery away from fire if it emits strange smell or leakage liquid to avoid explosion.
Please don't make your battery damped, or it will cause overheating, smoke or corrode your battery.
Please don't expose your battery under the sunlight or close to the high temperature place to avoid the leakage or overheating, or it will shorten the span of your battery.
Please don't charge your phone over 24 hours. 1.6 Notice items for using the charger
Please use the 220v alternating current power. Using other voltage might cause leakage, fire and damage …

Text truncated - open the document above for the full version.

MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 U FCC Authorization Letter Number: CF304 Version: V03 Date: 11-27-2013 We, (the approval holder) Company name MAXWEST TELECOM Address 11037 warner ave #201 fountain valley, ca, 92708 U City fountain valley Country United States declare that the following representative (agent): Name (person) Miro Company name Cerpass Technology (Suzhou) Co.,Ltd Address No.66,Tangzhuang Road City Suzhou Industrial Park, Jiangsu 215006, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description GSM MOBILE PHONE Type or Model(s) MX-210TV Tradename or Brand(s) MAXWEST We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) fountain valley, United States 2013/11/27 ADAM YU General Manager

MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 U FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name MAXWEST TELECOM Address 11037 warner ave #201 fountain valley, ca, 92708 U City fountain valley Country United States request for this certification filing under: Grantee Code Product Number FCC ID: ONG MX210TV to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Tune-up procedure showing power range or specific operating power levels of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) fountain valley, California, United States 2013/11/27 ADAM YU General Manager

MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 U FCC Declaration of Conformity Number: CF302 Version: V05 Date: 21-05-2012 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: MAXWEST TELECOM Address: 11037 warner ave #201 fountain valley, ca, 92708 U Postal/Zip: 92708 City: fountain valley State/Province: California Country: United States Contact Person: Mr. Ms. Name: ADAM Function: General Manager Email: [email protected] Web: Phone: 213-249-3371 Fax: declare for the equipment identified by: Product Description MOBILE PHONE Type or Model(s) MX-210TV Tradename or Brand(s) MAXWEST that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Testing Laboratory name: City and Country: Lab accreditation Number: Test Report Number: Date of issue: Cerpass Technology Corp. Taiwan TW1049, TW1061, 488071, 390316 SEFD1311104 Dec 06. 2013 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name, City and Country: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) fountain valley, United States 2013/11/27 ADAM YU General Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

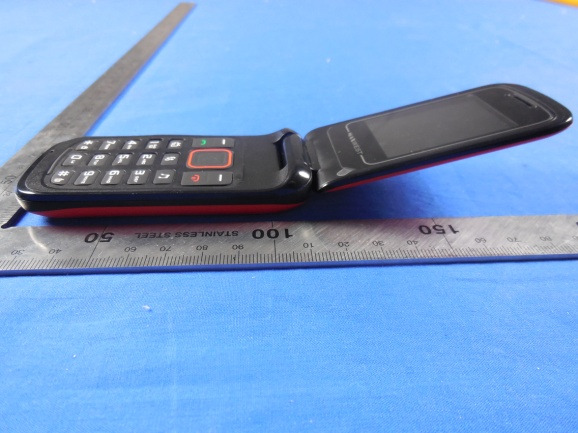

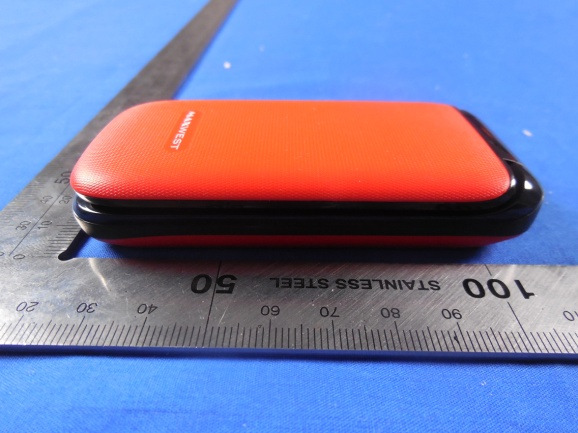

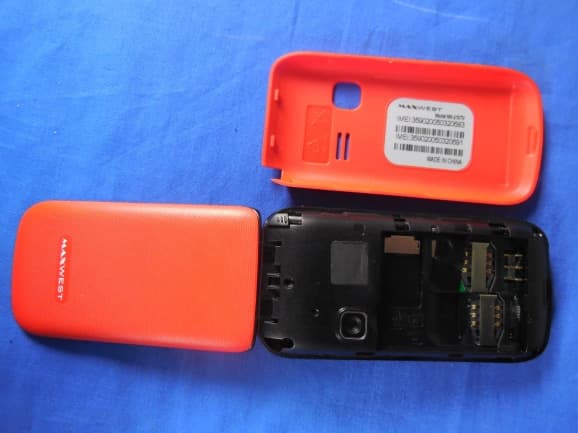

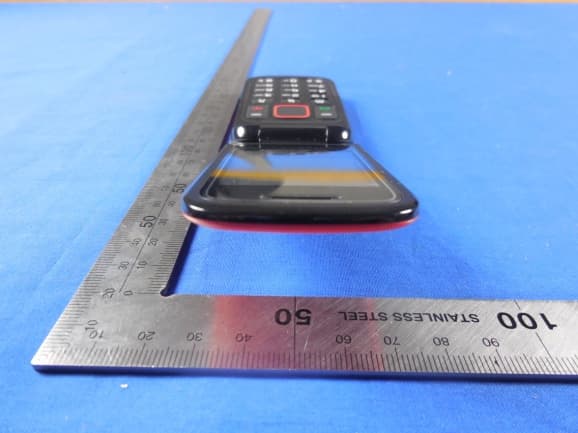

EUT Photographs Front (Closed) Front (Opened) Rear (Closed) Rear (Opened) EDGE of the EUT(Closed) EDGE of the EUT (Opened)
