ONGORBIT5700TWCDMA MOBILE PHONE

User Manual Model: Orbit 5700T Brand: MAXWEST FCC ID: ONGORBIT5700T -1- Content 1 General Information ................................................................................................................................................. 5 1.1 Profile .............................................................................................................................................................. 5 1.2 Safety warning and Attentions ........................................................................................................................ 5 2 Your phone ................................................................................................................................................................. 8 2.1 Phone keys overview ................................................................................................................................... 8 2.2 Functions of Keys ........................................................................................................................................... 9 2.3 Functions of icons ........................................................................................................................................... 9 2.4 Status bar ......................................................................................................................................................... 9 3 Getting started ......................................................................................................................................................... 11 3.1 Installing the SIM Card and the Battery ........................................................................................................ 11 3.2 Charging the Battery ..................................................................................................................................... 12 3.3 Linking to the Networks and devices ............................................................................................................ 14 3.4 Using the touch screen .................................................................................................................................. 16 3.5 Using the onscreen keypad ........................................................................................................................... 17 3.6 Dialing Calls ................................................................................................................................................. 17 -2- 4 Using the Menus ...................................................................................................................................................... 18 4.1 Browser ......................................................................................................................................................... 18 4.2 Calculator ...................................................................................................................................................... 21 4.3 Calendar ........................................................................................................................................................ 21 4.4 Camcorder ..................................................................................................................................................... 23 4.5 Camera .......................................................................................................................................................... 23 4.6 Clock ............................................................................................................................................................. 23 4.7 Currents ......................................................................................................................................................... 23 4.8 Downloads .................................................................................................................................................... 24 4.9 Email ............................................................................................................................................................. 24 4.10 File Explorer ................................................................................................................................................. 25 4.11 FM Radio ...................................................................................................................................................... 26 4.12 Gallery .......................................................................................................................................................... 26 4.13 Gmail ............................................................................................................................................................ 26 4.14 Latitude ......................................................................................................................................................... 26 4.15 Local ............................................................................................................................................................. 26 4.16 Maps .............................................................................................................................................................. 26 -3- 4.17 Messaging ..................................................................................................................................................... 26 4.18 Video studio .................................................................................................................................................. 27 4.19 Music ............................................................................................................................................................ 27 4.20 Navigation ..........................................…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Date: 25 March 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: ONGORBIT5700T To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards , MAXWEST TELECOM Contact person: ADAM YU Title: General Manager Tel: 213-249-3371

Ma Fed Aut FCC Re: Pur s requ 1: B 2: C 3: O 4: P 5: T Th e rele app Th e all a app Sin c , MA X Con Title Te l : rch 25, 20 deral Comm thorization C ID: ONG : Confiden suant to Se uests confid Block Diagra Circuit Diagra Operational D Parts List Tune Up Proc e above mat ased to the licant and p e Applicant u accompanyi lication. cerely, XWEST TEL ntact person e: General M 213-249-33 013 munication and Evalu GORBIT570 ntiality Re ctions 0.457 ential treatm m am Description cedure terials conta e public. The rovide unjus understands ng docume n LECOM : ADAM YU Manager 371 n Commiss uation Divis 00T quest 7 and 0.459 ment of infor ain trade se e public dis stified benef that pursua ntation will sion sion 9 of the Com rmation appl ecrets and p sclosure of t fits to its com nt to Rules 0 not be mad mmission’s R ied this app proprietary these matte mpetitors. 0.457, disclo e before th Rules, the a lication as o information ers might be osure of this e date of th applicant he outlined belo not custom e harmful to s Application he Grant for ereby ow: marily o the n and r this

Ersteller: D. Brandhorst Revision: 01 Erstelldatum: 07.03.2008 Datum: 27.06.2011 Seite 1 von 1 MAXWEST TELECOM 11037 warner ave #201 fountain valley, ca, 92708 USA PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: Mar.25,2013 FCC ID: ONGORBIT5700T Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID: ONGORBIT5700T are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “FCC Declaration of Conformity” procedure, based on testing from a FCC accredited testing laboratory or involvement of a CB. And we will settle the JBP parts with DOC. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Regards , MAXWEST TELECOM Contact person: ADAM YU Title: General Manager Tel: 213-249-3371

ON bat the Re , M A Co Ti t Tel 11037 We, NGORBIT ttery com ey purch gards AXWEST ntact pe tle: Gene l: 213‐24 M 7 warner MAXWE T5700T, mpartm hase the T TELECO erson: AD eral Man 49‐3371 MAXW ave #20 St EST TELE has no ent of t h product OM DAM YU ager 1 WEST T 01 founta tateme ECOM st space t his devic ts and in ELECO ain valley ent tates tha to put t ce. It is v stall the OM y, ca, 927 Date: Ma at our de the labe visible to battery. 708 USA ar. 25, 2013 evice, FC el except o the use . A 3 C ID: t the ers as

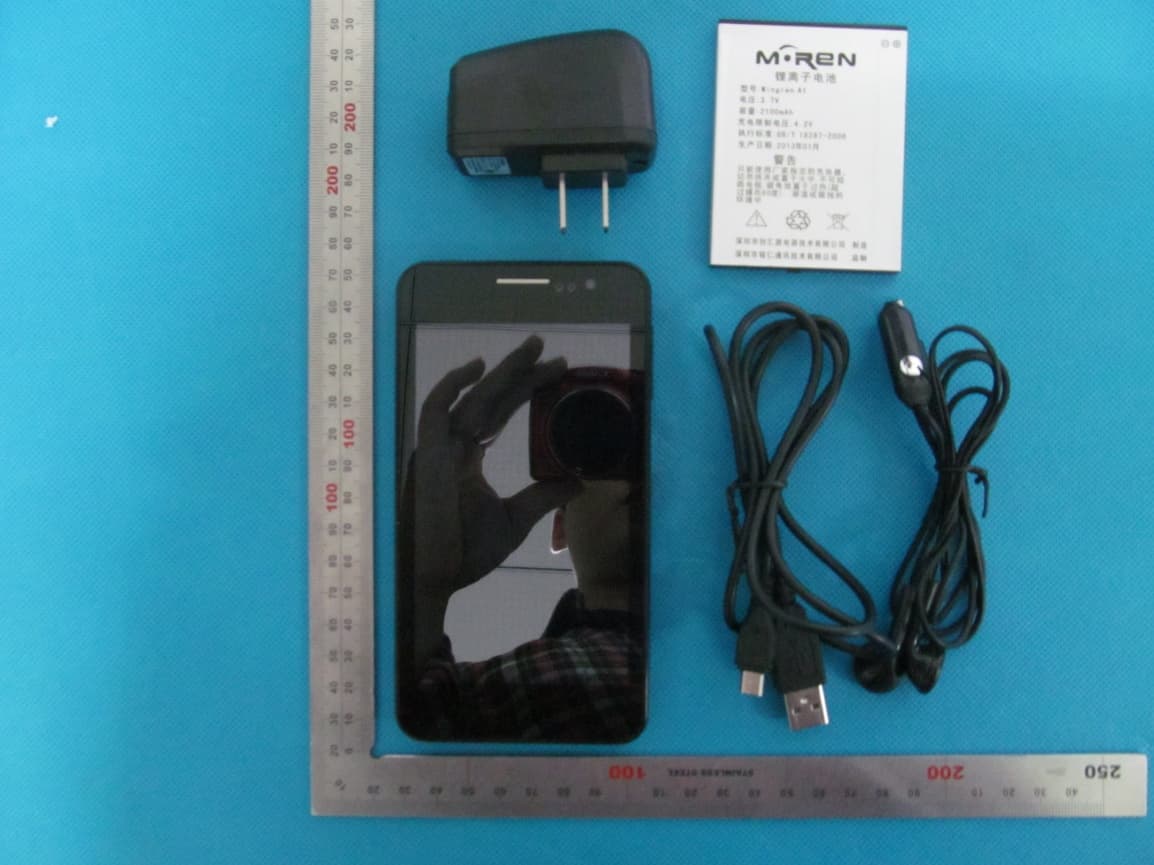

PHOTOGRAPHS OF EUT TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID WC FCC Label Lo DMA MOBIL Model: Orb Brand: MA X ID: ONGOR ocation LE PHONE it 5700T XWEST RBIT5700T

OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 GSM&W CDMA Antenna WIFI&BT Antenna GPS Antenna OPEN VIEW OF EUT-3 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

Report No.: AGCX0M130301S1 Page 1 of 154 SAR Test Report Report No.: AGCX0M130301S1 FCC ID : ONGORBIT5700T APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION WCDMA MOBILE PHONE BRAND NAME : MAXWEST MODEL NAME : Orbit 5700T CLIENT : MAXWEST TELECOM DATE OF ISSUE : Mar.22, 2013 STANDARD(S) : FCC Oet65 Supplement C June 2001 IEEE Std. 1528‐2003, 47CFR § 2.1093 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGCX0M130301S1 Page 2 of 154 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar.22, 2013 Valid Original Report Applica Applica Manufa Manufa Product Brand N Model N Differen EUT Vo Applica Te s t Da Te s t Re Perform Report T nt Name nt Address cturer Name cturer Addre t Designatio Name Name nt Descriptio oltage ble Standard ate esults med Location Template Tes : M : 11 e : M ess : 11 n : W : M : O on N/ : D d : F C IE 47 : M : M H H ( M n At 2 G A Docume Check e Authoriz st Rep MAXWEST T 1037 warner MAXWEST T 1037 warner WCDMA MOB MAXWEST Orbit 5700T /A C3.7V by ba CC Oet65 S EEE Std. 152 7CFR § 2.10 Mar.21, 2013 MAX SAR ME ead:0.385 W ead: 0.427W Maximum Sc ttestation of F, Building 2 ushu, Xixian GCRT-US-3 nted By ed By zed By port C TELECOM r ave #201 f TELECOM r ave #201 f BILE PHON attery Supplement 28-2003, 093 EASUREME W/Kg Bod W/Kg Bod caling SAR S fGlobal Com 2, No.1-No.4 ng Street, B 3G3/SAR (20 Vivi Ze Angela Solger Z Certific fountain valle fountain valle NE C June 200 ENT(1g) dy:0.379W/K dy:0.433 W/K SAR=0.441 mpliance(Sh 4, Chaxi San ao'an Distric 013-03-01) eng a Li hang Rep cation ey, ca, 9270 ey, ca, 9270 1 Kg (2G) Kg (3G) W/Kg ) enzhen) Co nwei Techni ct, Shenzhe Mar.22, 201 Mar.22, 201 Mar.22, 201 port No.: AG n 08 USA 08 USA o., Ltd. cal Industria n, China 3 3 3 GCX0M1303 Page 3 o al Park, 01S1 of 154 Report No.: AGCX0M130301S1 Page 4 of 154 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1. EUT DESCRIPTION ...................................................................................................................................... 5 1.2. TEST PROCEDURE ...................................................................................................................................... 7 1.3. TEST ENVIRONMENT .................................................................................................................................... 7 2. SAR MEASUREMENT SYSTEM ..................................................................................................................... 8 2.1. COMOSAR SYSTEM DESCRIPTION .............................................................................................................. 8 2.2. COMOSAR E-FIELD PROBE ..................................................................................................................... 10 2.3. ROBOT ..................................................................................................................................................... 10 2.4. VIDEO POSITIONING SYSTEM ...................................................................................................................... 11 2.5. DEVICE HOLDER ........................................................................................................................................ 11 2.6. SAM TWIN PHANTOM ................................................................................................................................ 12 3. TISSUE SIMULATING LIQUID ..................................................................................................................... 13 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 13 3.2. TISSUE CALIBRATION RESULT ..................................................................................................................... 14 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 15 4. SAR MEASUREMENT PROCEDURE ......................................................................................................... 16 4.1. SAR SYSTEM VALIDATION .......................................................................................................................... 16 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 18 5. SAR EXPOSURE LIMITS ............................................................................................................................ 19 6. TEST EQUIPMENT LIST ............................................................................................................................. 20 8. CONDUCTED POWER MEASUREMENT .................................................................................................... 22 9. TEST RESULTS .......................................................................................................................................... 26 9.1. SAR TEST RESULTS SUMMARY .................................................................................................................. 26 APPENDIX A. SAR SYSTEM VALIDATION DATA .......................................................................................... 36 APPENDIX B. SAR MEASUREMENT DATA.................................................................................................... 42 APPENDIX C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPHS ...................................................... 106 APPENDIX D. PROBE CALIBRATION DATA ..............................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGCX0M130301S1 Page 36 of 154 Appendix A. SAR System Validation Data Test Laboratory: AGC Lab Date: Mar.21, 2013 System Check Head 850 MHz DUT: Dipole 900 MHz Type: SID 900 Communication System CW; Communication System Band: D850 (850.0 MHz); Duty Cycle: 1:1; Conv.F=6.05 Frequency: 850 MHz; Medium parameters used: f = 850 MHz; σ=0.91 mho/m; εr =41.68; ρ= 1000 kg/m³ ; Phantom section: Flat Section ; Input Power=10dBm Ambient temperature (°C): 21, Liquid temperature (°C): 21 Satimo Configuration: Probe: EP159; Calibrated: 12/11/2012 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/System Check GSM850 Head/Area Scan: Measurement grid: dx=8mm,dy=8mm Configuration/System Check GSM850 Head/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=0.00 SAR 10g (W/Kg) 0.067895 SAR 1g (W/Kg) 0.110372 Report No.: AGCX0M130301S1 Page 37 of 154 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1175 0.0789 0.0421 0.0264 3D screen shot Hot spot position Report No.: AGCX0M130301S1 Page 38 of 154 Test Laboratory: AGC Lab Date: Mar.21, 2013 System Check Head 1700MHz DUT: Dipole 1800 MHz; Type: SID 1800 Communication System: CW; Communication System Band: D1700 (1700.0 MHz); Duty Cycle: 1:1; Conv.F=5.22 Frequency: 1700MHz; Medium parameters used: f = 1700 MHz; σ=1.43 mho/m; εr =41.36; ρ= 1000 kg/m³ ; Phantom section: Flat Section; Input Power=10dBm Ambient temperature (°C): 21, Liquid temperature (°C): 21 Satimo Configuration: Probe: EP159; Calibrated: 12/11/2012 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/System Check WCDMA1700 Head/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/System Check WCDMA1700 Head/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=0.00 SAR 10g (W/Kg) 0.210410 SAR 1g (W/Kg) 0.390526 Report No.: AGCX0M130301S1 Page 39 of 154 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.4182 0.2349 0.1336 0.0803 3D screen shot Hot spot position Report No.: AGCX0M130301S1 Page 40 of 154 Test Laboratory: AGC Lab Date: Mar.21, 2013 System Check Head 1900MHz DUT: Dipole 1900 MHz; Type: SID 1900 Communication System: CW; Communication System Band: D1900 (1900.0 MHz); Duty Cycle:1:1; Conv.F=5.73 Frequency: 1900 MHz; Medium parameters used: f = 1900 MHz; σ=1.39 mho/m; εr =40.18; ρ= 1000 kg/m³ ; Phantom section: Flat Section ; Input Power=10dBm Ambient temperature (°C): 21, Liquid temperature (°C): 21 Satimo Configuration: Probe: EP159; Calibrated: 12/11/2012 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/System Check PCS1900 Head/Area Scan: Measurement grid: dx=8mm,dy=8mm Configuration/System Check PCS1900 Head/Zoom Scan: Measurement grid: dx=8mm, dy=8mm, dz=5mm SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=0.00 SAR 10g (W/Kg) 0.209792 SAR 1g (W/Kg) 0.411357 Report No.: AGCX0M130301S1 Page 41 of 154 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.4433 0.2442 0.1359 0.0808 3D screen shot Hot spot position Report No.: AGCX0M130301S1 Page 42 of 154 Appendix B. SAR measurement Data Test Laboratory: AGC Lab Date: Mar.21, 2013 GSM 850 Mid-Touch-Left <SIM 1> DUT: WCDMA MOBILE PHONE ; Type: Orbit 5700T Communication System: Generic GSM; Communication System Band: GSM 850; Duty Cycle: 1:8.3; Conv.F=6.05 Frequency: 836.6 MHz; Medium parameters used: f = 850 MHz; σ=0.91 mho/m; εr =41.68; ρ= 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (°C): 21.0, Liquid temperature (°C): 21.0 Satimo Configuration: Probe: EP159; Calibrated: 12/11/2012 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GSM850 Mid-Touch-Left/Area Scan (6x8x1): Measurement grid: dx=20mm, dy=20mm Configuration/GSM850 Mid-Touch-Left/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Area Scan sam_direct_droit2_surf8mm.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Left head Device Position Cheek Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-56.00, Y=-16.00 SAR 10g (W/Kg) 0.137496 SAR 1g (W/Kg) 0.181537 Report No.: AGCX0M130301S1 Page 43 of 154 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1893 0.1548 0.1116 0.0788 3D screen shot Hot spot position Report No.: AGCX0M130301S1 Page 44 of 154 Test Laboratory: AGC Lab Date: Mar.21, 2013 GSM 850 Mid-Tilt-Left <SIM 1> DUT: WCDMA MOBILE PHONE ; Type: Orbit 5700T Communication System: Generic GSM; Communication System Band: GSM 850; Duty Cycle: 1:8.3; Conv.F=6.05; Frequency: 836.6 MHz; Medium parameters used: f = 850 MHz; σ=0.91 mho/m; εr =41.68 ; ρ= 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (°C): 21.0, Liquid temperature(°C): 21.0 Satimo Configuration: Probe: EP159; Calibrated: 12/11/2012 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM1; Type: SAM • Measurement SW: OpenSAR V4_02_01 Configuration/GSM850 Mid-Tilt-Left/Area Scan (6x8x1): Measurement grid: dx=20mm, dy=20mm Configuration/GSM850 Mid-Tilt-Left/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm,dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Very fast Phantom Left head Device Position Tilt Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-26.00, Y=-1.00 SAR 10g (W/Kg) 0.084269 SAR 1g (W/Kg) 0.134386 Report No.: AGCX0M130301S1 Page 45 of 154 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1390 0.0916 0.0637 0.0461 3D screen shot Hot spot position Report No.: AGCX0M130301S1 Page 46 of 154 Test Laboratory: AGC Lab Date: Mar.21, 2013 GSM 850 Mid-Touch-Right <SIM 1> DUT: WCDMA MOBILE PHONE ; Type: Orbit 5700T Communication System: Generic GSM; Commu…

Text truncated - open the document above for the full version.

Report No.: AGCX0M130301S1 Page 118 of 154 Appendix D. Probe Calibration Data Report No.: AGCX0M130301S1 Page 119 of 154 Report No.: AGCX0M130301S1 Page 120 of 154 Report No.: AGCX0M130301S1 Page 121 of 154 Report No.: AGCX0M130301S1 Page 122 of 154 Report No.: AGCX0M130301S1 Page 123 of 154 Report No.: AGCX0M130301S1 Page 124 of 154 Report No.: AGCX0M130301S1 Page 125 of 154 Report No.: AGCX0M130301S1 Page 126 of 154 Report No.: AGCX0M130301S1 Page 127 of 154

Report No.: AGCX0M130301S1 Page 128 of 154 Appendix E. Dipole Calibration Data Report No.: AGCX0M130301S1 Page 129 of 154 Report No.: AGCX0M130301S1 Page 130 of 154 Report No.: AGCX0M130301S1 Page 131 of 154 Report No.: AGCX0M130301S1 Page 132 of 154 Report No.: AGCX0M130301S1 Page 133 of 154 Report No.: AGCX0M130301S1 Page 134 of 154 Report No.: AGCX0M130301S1 Page 135 of 154 Report No.: AGCX0M130301S1 Page 136 of 154 Report No.: AGCX0M130301S1 Page 137 of 154 Report No.: AGCX0M130301S1 Page 138 of 154 Report No.: AGCX0M130301S1 Page 139 of 154 Report No.: AGCX0M130301S1 Page 140 of 154 Report No.: AGCX0M130301S1 Page 141 of 154 Report No.: AGCX0M130301S1 Page 142 of 154 Report No.: AGCX0M130301S1 Page 143 of 154 Report No.: AGCX0M130301S1 Page 144 of 154 Report No.: AGCX0M130301S1 Page 145 of 154 Report No.: AGCX0M130301S1 Page 146 of 154 Report No.: AGCX0M130301S1 Page 147 of 154 Report No.: AGCX0M130301S1 Page 148 of 154 Report No.: AGCX0M130301S1 Page 149 of 154 Report No.: AGCX0M130301S1 Page 150 of 154 Report No.: AGCX0M130301S1 Page 151 of 154 Report No.: AGCX0M130301S1 Page 152 of 154 Report No.: AGCX0M130301S1 Page 153 of 154 Report No.: AGCX0M130301S1 Page 154 of 154

Report No.: AGCX0M130301F2A Page 1 of 66 FCC Test Report Report No.: AGCX0M130301F2A FCC ID : ONGORBIT5700T APPLICATION PURPOSE Original Equipment PRODUCT DESIGNATION : WCDMA MOBILE PHONE BRAND NAME : MAXWEST MODEL NAME : Orbit 5700T CLIENT : MAXWEST TELECOM DATE OF ISSUE : Mar. 21, 2013 STANDARD(S) : FCC Part 22H & 24E&27(L)Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGCX0M130301F2A Page 2 of 66 VERIFICATION OF COMPLIANCE Applicant: MAXWEST TELECOM 11037 warner ave #201 fountain valley,ca,92708 USA Manufacturer: MAXWEST TELECOM 11037 warner ave #201 fountain valley,ca,92708 USA Product Designation: WCDMA MOBILE PHONE Brand name: MAXWEST Test Model: Orbit 5700T FCC ID: ONGORBIT5700T Date of Test: Mar.15, 2013 to Mar.20, 2013 We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003 and TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 22H and 24E and 27(L). The test results of this report relate only to the tested sample identified in this report. Tested By : Bart Xie Mar. 21, 2013 Reviewed By : Forrest Lei Mar. 21, 2013 Approved By: Solger Zhang Mar. 21, 2013 Report No.: AGCX0M130301F2A Page 3 of 66 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................. 5 1. GENERAL INFORMATION ............................................................................................................................. 5 1.1 PRODUCT DESCRIPTION ............................................................................................................................ 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................... 7 1.3 TEST METHODOLOGY ................................................................................................................................ 7 1.4 TEST FACILITY ............................................................................................................................................. 7 1.5 MEASUREMENT INSTRUMENTS ................................................................................................................ 7 1.6 SPECIAL ACCESSORIES ............................................................................................................................. 7 1.7 EQUIPMENT MODIFICATIONS .................................................................................................................... 7 2. SYSTEM TEST CONFIGURATION ................................................................................................................ 8 2.1 EUT CONFIGURATION ................................................................................................................................. 8 2.2 EUT EXERCISE ............................................................................................................................................ 8 2.3 GENERAL TECHNICAL REQUIREMENTS .................................................................................................. 8 2.4 CONFIGURATION OF EUT SYSTEM ......................................................................................................... 9 3. SUMMARY OF TEST RESULTS .................................................................................................................. 10 4. DESCRIPTION OF TEST MODES ................................................................................................................ 10 5. OUTPUT POWER ......................................................................................................................................... 11 5.1 CONDUCTED OUTPUT POWER ............................................................................................................... 11 5.2 RADIATED OUTPUT POWER .................................................................................................................... 16 5.3 PEAK-TO-AVERAGE RATIO ...................................................................................................................... 18 6. SPURIOUS EMISSION ................................................................................................................................. 20 6.1 CONDUCTED SPURIOUS EMISSION ....................................................................................................... 20 6.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 22 7. MAINS CONDUCTED EMISSION ................................................................................................................. 25 7.1 MEASUREMENT METHOD ........................................................................................................................ 25 Report No.: AGCX0M130301F2A Page 4 of 66 7.2 PROVISIONS APPLICABLE ....................................................................................................................... 25 7.3 MEASUREMENT RESULT .......................................................................................................................... 26 8. FREQUENCY STABILITY ............................................................................................................................. 28 8.1 MEASUREMENT METHOD ........................................................................................................................ 28 8.2 PROVISIONS APPLICABLE .....................................…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION RADIATED SPURIOUS EMISSION
