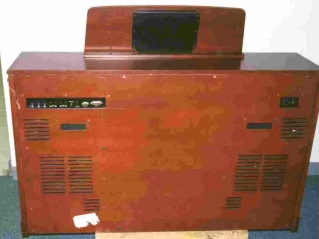

FCC ID:OP7VK-P1010-01 Page 1 of 1 External Photos of EUT Front of EUT Rear of EUT

FCC ID:OP7VK-P1010-01 EXHIBIT #1 FCC/UL Label Characteristics THERMLfilm SELECT 22940 THERMLfilm SELECT 22940 is a UL/CSA recognized, 2.0 mil gloss topcoated thermal transfer printablesilve matte polyester, coated with an aggressive, permanent solvent-based acrylic adhesive, and backed with a roll form release liner. • THERMLfilm MM-200-SM - 2.0 mil silver matte polyester designed for high performance label applications • T/C-390 – Topcoat resists smudging and abrasion when printed with super premium (resin) and premium (wax/resin) thermal transfer ribbons. Offers static dissipating properties and is fan-foldable. • L-344 – Aggressive, high performance permanent solvent-based acrylic adhesive. • S50K-8 – 50lb. Bleached Kraft release liner. Applications: Industrial:UL/CSA rating plates and nameplates, materials tracking. Automotive:Under the hood labels/parts identification Healthcare:Pharmaceutical, diagnostic, and laboratory specimen tracking. Physical Properties:Gauge [mils (microns)] Film:2.0 (51) +/- 10% Adhesive:0.8 - .09 (20-23) +/- 0.1 (3) Liner:3.1 (79) +/- 10% Dimensional Stability:Excellent: No measurable shrinkage observed on applied parts. Sample applied to aluminum for 24 hours at 160 degrees F. Chemical Resistance: (non printed stock) Household Cleaners:No effect on topcoat or adhesive Mild Acid:No effect on topcoat or adhesive Oil:No effect on topcoat or adhesive Water:No effect on topcoat or adhesive Adhesive Performance:72 Hour Peel Adhesion from: Expected Range (oz/in)(N/m) Stainless Steel50-85(550-935) Acrylic55-90(605-990) Glass55-90(605-990) Polypropylene35-65(385-715) Expected Shear (hours):50 Exterior Durability:Two years Service Temp Range:-40 F to 302 F (-40 C to 150 C) Minimum Application Temp50 F (10 C) Storage StabilityShelf life of two years when stored under conditions of 70 F (21 C) and 50% relative humidity.

EXHIBIT #1 FCC/UL Label Characteristics THERMLfilm SELECT 22940 THERMLfilm SELECT 22940 is a UL/CSA recognized, 2.0 mil gloss topcoated thermal transfer printablesilve matte polyester, coated with an aggressive, permanent solvent-based acrylic adhesive, and backed with a roll form release liner. • THERMLfilm MM-200-SM - 2.0 mil silver matte polyester designed for high performance label applications • T/C-390 – Topcoat resists smudging and abrasion when printed with super premium (resin) and premium (wax/resin) thermal transfer ribbons. Offers static dissipating properties and is fan-foldable. • L-344 – Aggressive, high performance permanent solvent-based acrylic adhesive. • S50K-8 – 50lb. Bleached Kraft release liner. Applications: Industrial:UL/CSA rating plates and nameplates, materials tracking. Automotive:Under the hood labels/parts identification Healthcare:Pharmaceutical, diagnostic, and laboratory specimen tracking. Physical Properties:Gauge [mils (microns)] Film:2.0 (51) +/- 10% Adhesive:0.8 - .09 (20-23) +/- 0.1 (3) Liner:3.1 (79) +/- 10% Dimensional Stability:Excellent: No measurable shrinkage observed on applied parts. Sample applied to aluminum for 24 hours at 160 degrees F. Chemical Resistance: (non printed stock) Household Cleaners:No effect on topcoat or adhesive Mild Acid:No effect on topcoat or adhesive Oil:No effect on topcoat or adhesive Water:No effect on topcoat or adhesive Adhesive Performance:72 Hour Peel Adhesion from: Expected Range (oz/in)(N/m) Stainless Steel50-85(550-935) Acrylic55-90(605-990) Glass55-90(605-990) Polypropylene35-65(385-715) Expected Shear (hours):50 Exterior Durability:Two years Service Temp Range:-40 F to 302 F (-40 C to 150 C) Minimum Application Temp50 F (10 C) Storage StabilityShelf life of two years when stored under conditions of 70 F (21 C) and 50% relative humidity.

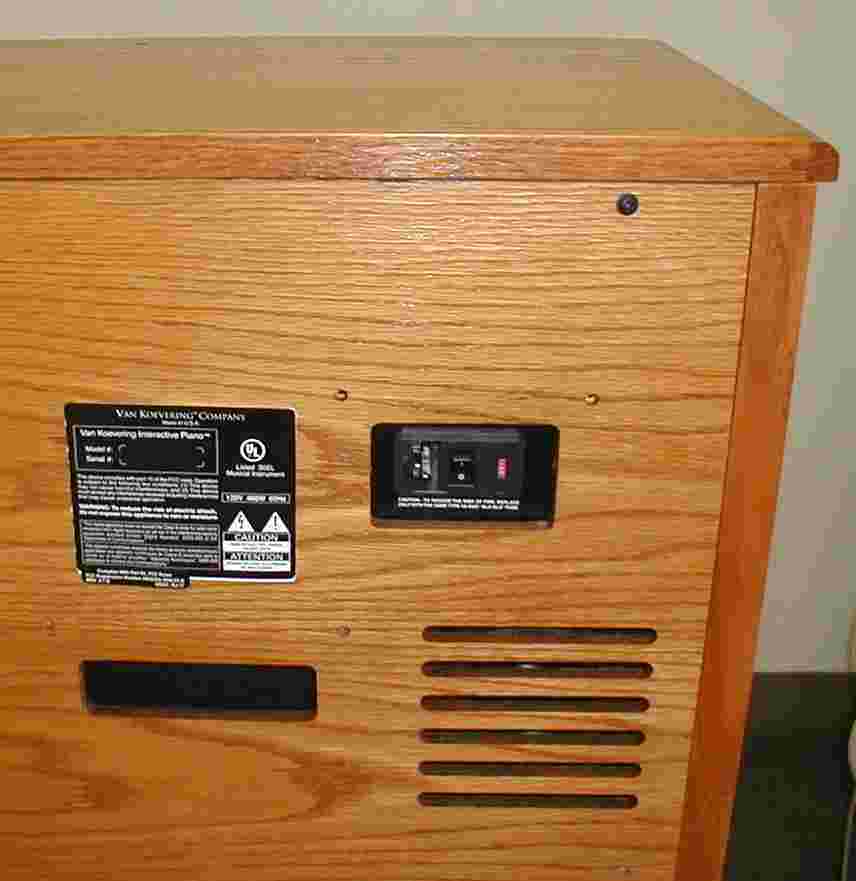

Van Koevering products and technology protected by US Patent No’s 5908997, 5864078 and other patents pending US LISTEDC Label for P1010 Based Products (FCC, Model/Serial, Patents and Canadian/US UL Listing Information) 11324 Aurora Avenue • Des Moines, IA 50322 • Tel 515.253.0300 • Fax 515.253.0400 Date Drawn By Scale 9/21/1999 Lance Lyda 1:1 Description Doc NamePart # RevisionSheetA01File Ref Label UL-US,Canada.fh8 Contact Lance Lyda/Steve Edgerton This device complies with part 68, FCC rules. FCC Registration Number XXXVK-P1010-01 REN: X.XXUSDC: RJ-11 This device complies with part 15, FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interferences, and (2) This device must accept any interference received including interferences that may cause undesired operation. To reduce the risk of electric shock, do not expose this appliance to rain or moisture. WARNING Output Notes: Film Positive (Black - Black, White - Clear) Document size - 11 x 8.5 1200 + dpi Right Reading/Emulsion Up Sticker Dimensions: 4.0” Wide x 3.5” Tall

FCC ID:OP7VK-P1010-01 Internal Photographs of EUT Inside cover of EUTBack of EUT Jack and front panelJack Panel Power Supply Power Supply – Component SidePower Supply – Foil Side Power Amp – Component Side Power Amp – Foil Side

Page 1 of 9 FCC ID:OP7VK-P1010-01 Jack Panel – Component Side Page 2 of 9 Jack Panel – Foil Side Back Panel – Component Side Page 3 of 9 Back Panel – Foil Side Cross Over – Component Side Cross Over - Foil Page 4 of 9 Page 5 of 9 Drive Filter Board – Component Side Drive Filter Board – Foil Side Page 6 of 9 Foot Pedal – Component Side Foot Pedal – Foil Side Front Panel - Component Side Front Panel – Foil Side Page 7 of 9 MFIO Filter Board – Component Side MFIO Filter Board – Foil Side Page 8 of 9 Modem – Component Side Modem – Foil Side Page 9 of 9 Video Card – Component Side Video Card – Foil Side

FCC ID:OP7VK-P1010-01 CPU Case - Interior Mother Board – Component Side Mother Board – Foil Side Display Assembly - Front Display Assembly - Back Display PC Board – Component Side Display PC Board – Foil Side

EXHIBIT #9 VAN KOEVERING COMPANY VIP-1300 Operational Narrative The Van Koevering Interactive Piano combines traditional piano cabinetry with the latest computer technology to provide an exciting platform for musical performance, education and fun. Our quality cabinets have been designed to incorporate the following features: • 88 key – weighted hammer action piano keyboard • 10.4” LCD color touchscreen (integrated into the music rack) • 100 watt per channel amplified speaker system (6 or 8 speakers) • DVD Rom drive • 3.5” floppy drive • 56K modem • Printer / Mouse / PC Keyboard / MIDI Ports • Headphone / Microphone / Audio In-Out Jacks All of these items are managed by our integrated custom PC, which is based on the Pentium II-Celeron processor. Our CPU contains a motherboard, power supply, hard drive, and a series of off-the-shelf and custom circuit boards for processing video, audio, and other functions. To remove the look, feel, and complexity of a normal PC, we’ve created our own user interface called the IMT Player Shell, which runs on an embedded Windows 98 operating system. The IMT interface gives the user access to a wide range of features: • Change the “voice” of the piano to any of 128 different instruments • Audio CD and MIDI file player • Integrated 6 track recording studio • Programs section for loading and running a wide range of educational and entertainment software titles

Page 1RP-4057A MEASUREMENT/TECHNICAL REPORT Van Koevering Company Model (VIP 1300) FCC ID: OP7VK-P1010-01 APPLICATION FOR CERTIFICATION RF Emission Measurements Performed For Determination of Compliance with the US Code of Federal Regulations Title 47, Chapter I, FCC Part 15 Subpart B As Required for Certification for Unintentional Radiators Issue Date: September 22, 1999 This report concerns: Original grant Equipment type: Interactive Digital Piano Transition Rules per 15.37 are not requested. Report Prepared by: Jeffrey E. Tomes Senior EMC Technician Application Approved by: Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Telephone: (815) 293-0772 FAX: (815) 293-0820 E-Mail: [email protected] FCC ID: OP7VK-P1010-01 Page 2RP-4057A Table of Contents 1.0 General Information ..................................................................................................................3 1.1 Product Description ...............................................................................................................3 1.2 Related Submittals ................................................................................................................3 1.4 Tested System Details ..........................................................................................................3 1.5 Test Methodology..................................................................................................................4 1.6 Test Facility ...........................................................................................................................4 1.7 Test Equipment .....................................................................................................................4 2.0 System Test Configuration........................................................................................................5 2.1 Test System and Justification................................................................................................5 2.2 EUT Exercise Software .........................................................................................................5 2.3 Special Accessories ..............................................................................................................5 2.4 Equipment Modifications .......................................................................................................6 3.0 Conducted Emission Data ........................................................................................................8 4.0 Radiated Emissions Data..........................................................................................................9 4.1 Field Strength Calculation ...................................................................................................10 FCC ID: OP7VK-P1010-01 Page 3RP-4057A 1.0 General Information 1.1 Product Description The Model VIP 1300 (referred to as the EUT in this report) is an interactive digital piano with a Pentium II Celeron, 333 MHz CPU. The system that measures (L)57 in X (W)22 in X (H)44 inches and weighs approximately 300 pounds. The system includes an LCD display, floppy disk drive, CD Rom, hard drive, and six speakers. The EUT has the following ports: 1 VGA, 3 MIDI, 1 parallel, 1 nine pin serial, 1 RJ-11, 1 MIDI controller, 1 pair of audio in and 1 pair audio out, 1 keyboard, 1 USB, 2 headphones, and 1 microphone. The EUT has an internal power supply. The Van Koevering Company manufactures the EUT. 1.2 Related Submittals Van Koevering is not submitting any other submittals related to the EUT. 1.4 Tested System Details The FCC ID's for all equipment, plus descriptions of all cables used in the tested system which have grants, are: Model & Serial Number Manufacturer & FCC ID DescriptionCable Descriptions (EUT) VIP 1300 S/N: None Van Koevering OP7VK-P1010-01 interactive digital piano -1.8 m, shielded, 3 wire Integral Power cord M/N: Multisync 4FGe S/N: None NEC A3DJC-1531VMA VGA Monitor-1.8 m, unshielded power cord –1.8 m, Integral Cable M/N:RT6656TW S/N: 22Y39DM12912 Compaq AQ6-MTN4XZ15 Keyboard-2 m, Integral Cable M/N: M-M34 S/N: LCA55039367 Logitech DZL210365 Serial Mouse-2 m, Integral Cable M/N: X03-98121 S/N: 0078204-0000 Microsoft DOC USB Mouse-2 m, Integral Cable M/N: K10156 S/N: XCW08392 Canon AZDK10156 Parallel Printer-3 m, Supplied Parallel Cable K30080 AC/DC Brick M/N: A-70B S/N: NONE Audio Plus NONE Dynamic Mic-3 m, Integral Cable M/N: CVP-1 S/N: NONE Ensoniq NONE CV Pedal-2 m, Integral Cable M/N: AMX-21 S/N: None Optomus None Amplified Speakers-1.8 m, Integral Cable M/N: TB49 S/N: 4243036 Fatar None Electronic Music Keyboard -1.8 m, MIDI Cable 1-YAC AC/DC Brick M/N: M-GS64 S/N: ZH72720 Roland Crop. None Sound Expander-(2) 3m, RCA Cables (3) 2m MIDI Cables 1.8m unshielded power cord M/N: N/A S/N: N/A N/AN/A-22 m, RJ-11 Cable FCC ID: OP7VK-P1010-01 Page 4RP-4057A 1.5 Test Methodology The test procedures used are in accordance with the ANSI document C63.4-1992, (July 17, 1992) "Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The specific procedures are described herein. Radiated testing was performed at an antenna to EUT distance of 3 meters. 1.6 Test Facility The open area test site used to collect the radiated data is located on 8625 Helmar Road in Newark, Illinois. The open field test site has a metal ground screen. Details of the site characteristics are on file with the FCC. Conducted emission measurements and preliminary radiated emission scans were performed in shielded enclosure “B” at Radiometrics' Romeoville, Illinois EMI test lab. These sites have been fully described in a report and accepted by the FCC in a letter dated October 1, 1996 (31040/SIT 1300F2). Conducted emission measurements were performed using an Electrometrics Model FCC/VDE 50/2 Line Impedance Stabilization N…
