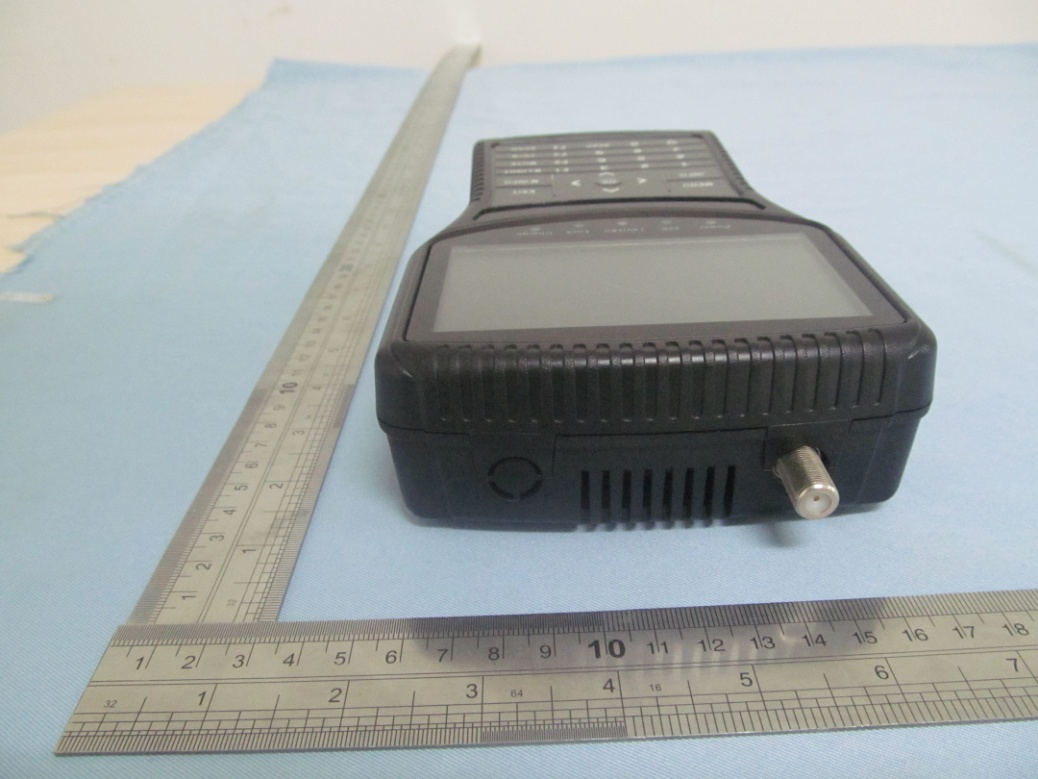

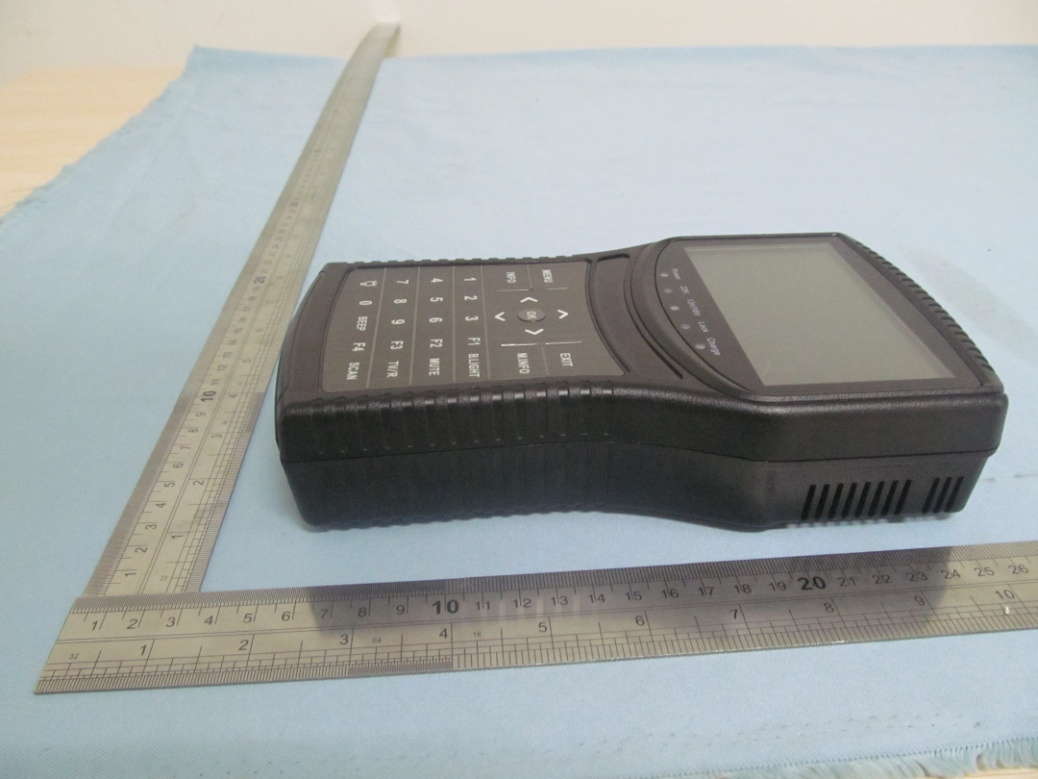

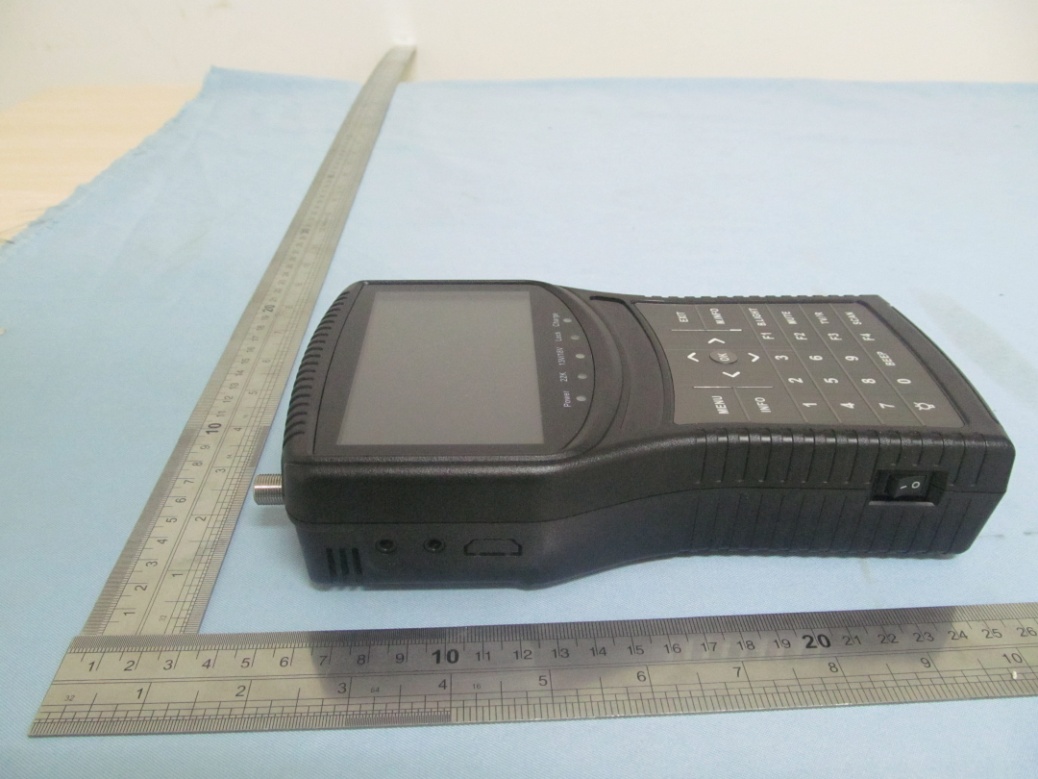

OPJDSM101Digital Satellite Meter

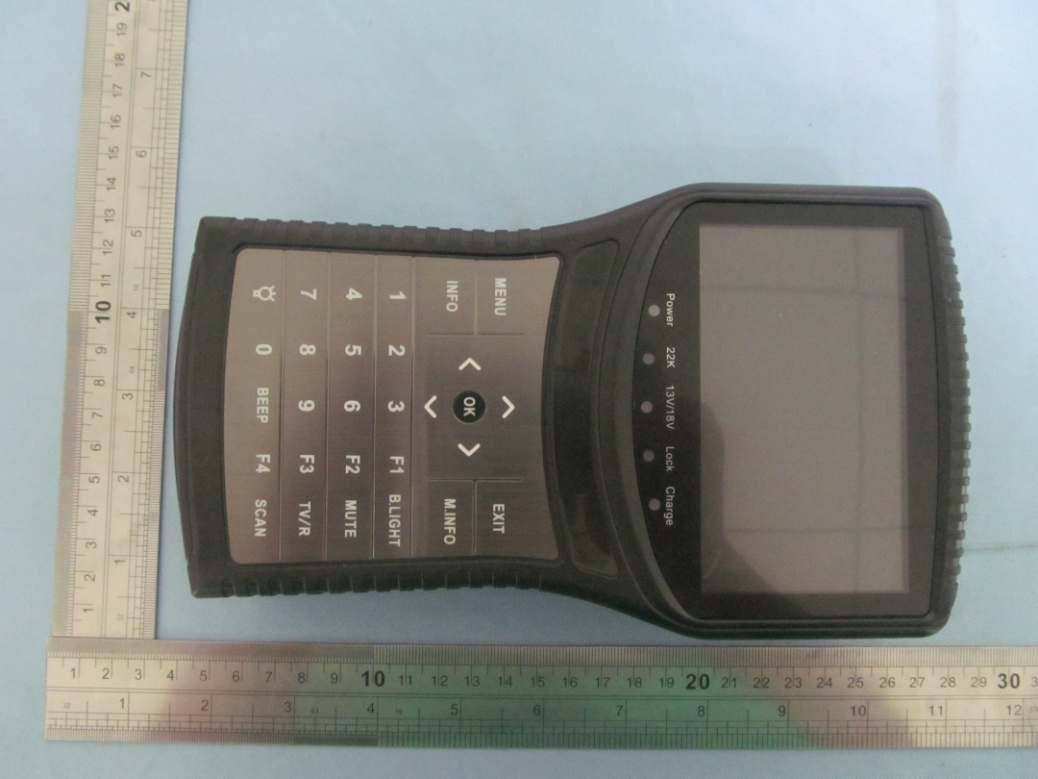

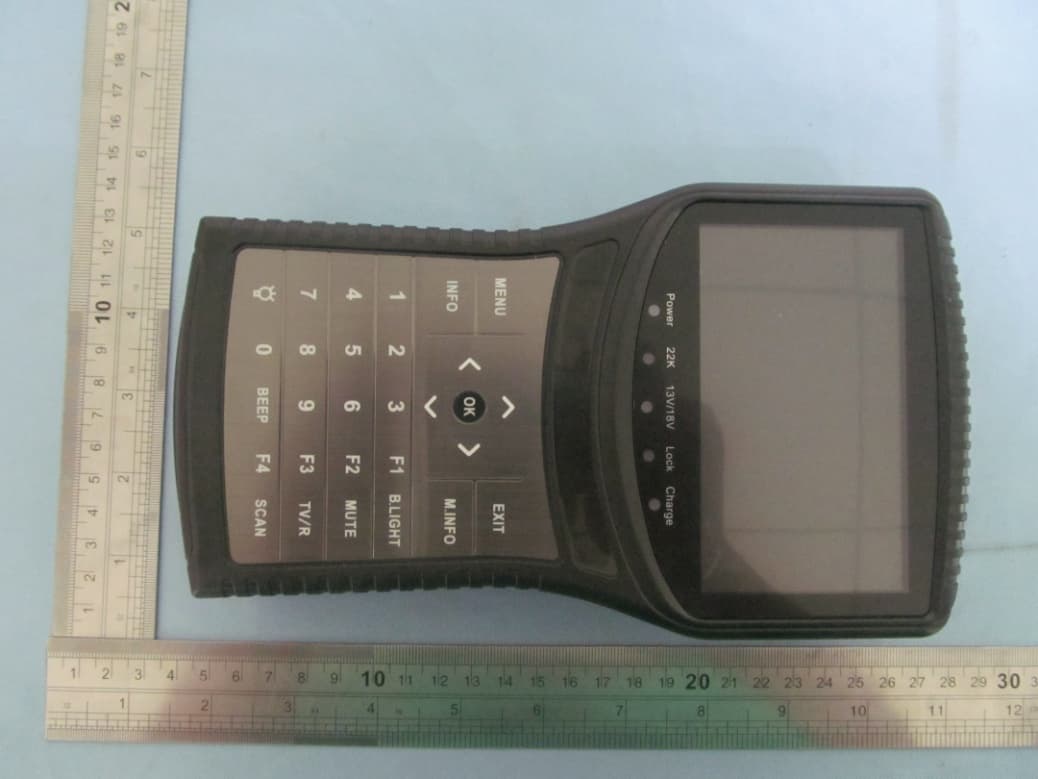

Product Description 1.Guide 1.1 Face Panel & Button 1.2 Power On/Off 1.3Power Supply & Battery 2. Menu 2.1 Channel Scan 2.2 Channel Check 2.4 System Setup Product Description 2 3 4 4 4 5 9 15 2.3 Multimedia 12 CONTENTS CONTENTS 2.5 Shortcut Buttons THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| 3. Specification Digita Satellite Meter 1 | It is a battery powered hand held Satellite alignment meter demodulating DVB-S Signal. It's very convenient for installer to catch quick and accurate Alignment for Antenna to the best position. It's with microprocessor controller, reliable and stable performance. When it's turned on, channel picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local DVB-S Parameter. Also, it enables you to select big menu window for data figure which is helpful for alignment. It shows Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound. It detects very faint signal, and supports antenna power OFF/13V/18V selectable. It's with auto-protection for LNB short-circuit It includes both AV IN and AV OUT for Camera, LCD...etc It has the AV in and AV out function. It assist with key backlighting, flashlight 18 22 4.Warring 23 It includes high capacity Lithium Battery 8.4V 3000mAh which works for more than 4 hours after it's fully charged. It's used with 12V Power Adaptor when you need to use external power. 5.Product Standard Package 25 NO. Name Functio n 1 Signal Input To connect it with external antenna 2 LCD Screen To show menu and channel pictures...etc 3 Signal Lo ck Indicator Light To lock signal w hen it lights 4 Charging Indicator Light T he light is on when it’s charging; It’s off when charging is co mplete. 5 Power Indicator L ight T he light is on when meter is turned on 6 22K Switch Indicator Light 22K Switch is on w hen it lights 7 13/18V Indicator Light To show H /V sw itch o utp ut 8 F1 F2 F3 F4 Functio n Buttons 9 O K A rrow for Cursor Moving O K for Confirmation 10 MEN U To sh ow main menu or return to previous menu 11 EXIT To cancel selecti on or exit from current menu 12 0-9 Nu merical Button To input numerical for setting parameters 13 BE EP Singal lock alarm 14 B.Light LCD Screen Switch 15 Mute Sound On/O ff Switch 16 TV/Radio Switch b etween TV Channel and Radio Channel 17 SCAN E nter into Q ui ck Seach 18 INFO To show parameter of current channel 19 USB Port Port for U pgrade or connecting to multimedia 20 Power Connection port Port for connecting to external power supply 21 Power Switch Power Switch for machine power 22 AV O uput AV Output 23 AV Input AV In put 24 Flashlig ht holes flashlight 1.GUIDE Panel keypads1.1 THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| Digita Satellite Meter 3 Digita Satellite Meter | 2 | 1.2 Power On/Off To turn on the meter when Power Switch moves to I position To turn off the meter when Power Switch moves to 0 position Please turn off the meter to charge the meter in time when system information for showing low power popes up 1.3Power Supply and Battery It's used with 12V 1.5A Power Adaptor. It charges through external power when battery is out of power. It's used with 8.4V 3000 AH Lithium Battery. It needs 5hours charging time by connecting power adaptor with external power or car charging. After it's full charge, it works for more than 5 hours (It also depends on the load of external antenna). 2.MENU Press “ MENU” key to enter into main menu, and 2.1Quick Search THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| Digita Satellite Meter 5 Digita Satellite Meter | 4 | Notice: For initial charge, please make battery fully- charged(We suggest it charge for 8 hours). use Arrow key to move cursor, and then press “OK” key to select sub-menu. THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| Digita Satellite Meter 7 Digita Satellite Meter | 6 | 2.1.1 Satellite Name To select the satellite name for receiving signal 2.1.2 LNB Type Select LNB Type 2.1.3 LNB Low Freq/ LNB High Freq Use the numerical button to input Freq Value of LNB 2.1.4 Frequency Use the numerical button to input the Value of Frequency Use the numerical button to input Value of SYMBOL RATE. 2.1.5 Symbol Rate 2.1.6 Polarity Select Polar Mode 2.1.7 LNB Power Choose LNB Power type (OFF/13V/18V). 2.1.13 Set parameters, and press “OK” button to enter the Sub-menu, and then adjust the dish according to the interface parameters. 2.1.8 22K Tone Choose 22K TONE(ON/OFF） 2.1.9 Toneburst Choose Toneburst Mode.（OFF/A/B） 2.1.10 DiSEqc1.0 Choose DisEqc 1.0 Mode（OFF/LNB1/LNB2/LNB3/LNB4） 2.1.11 DiSEqc1.1 Choose DisEqc 1.1 Mode（OFF/LNB1/LNB2/LNB3/LNB4 /LNB5/LNB6/LNB7/LNB8/ LNB9/LNB10/LNB11/LNB12 /LNB13/LNB14/LNB15/LNB16） 2.1.12 Longitud Use the numerical button to input Longitude of Satellite. 2.1.13.1 TP Scan Scan all programs of the current frequency, and automatically store them after scanning, and then return back to the previous menu. 2.1.13.2 Scan All Scan all programs of all channels, and automatically store them after scanning, and then return back to the previous menu. THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| Digita Satellite Meter 9 Digita Satellite Meter | 8 | 2 . 2 S at e l l i t e I n s t a l l Use ◄ ► button to select Zoom, and press “OK” button to enter the Sub-menu, and then adjust the dish to the best direction。 2.1.13.3 Zoom 2 . 2 . 2 T P M a n a g e r P r e s s “ O K ” b u t t o n t o e n t e r t h e S u b - M e n u , a n d t h e n m a k e o p e r a t i o n s a c c o r d i n g t o t h e i n s t r u c t i o n s . THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL|THE PROFESSIONAL EQUIPMENT------------------|USER’S MANUAL| Digita Satellite Met…
