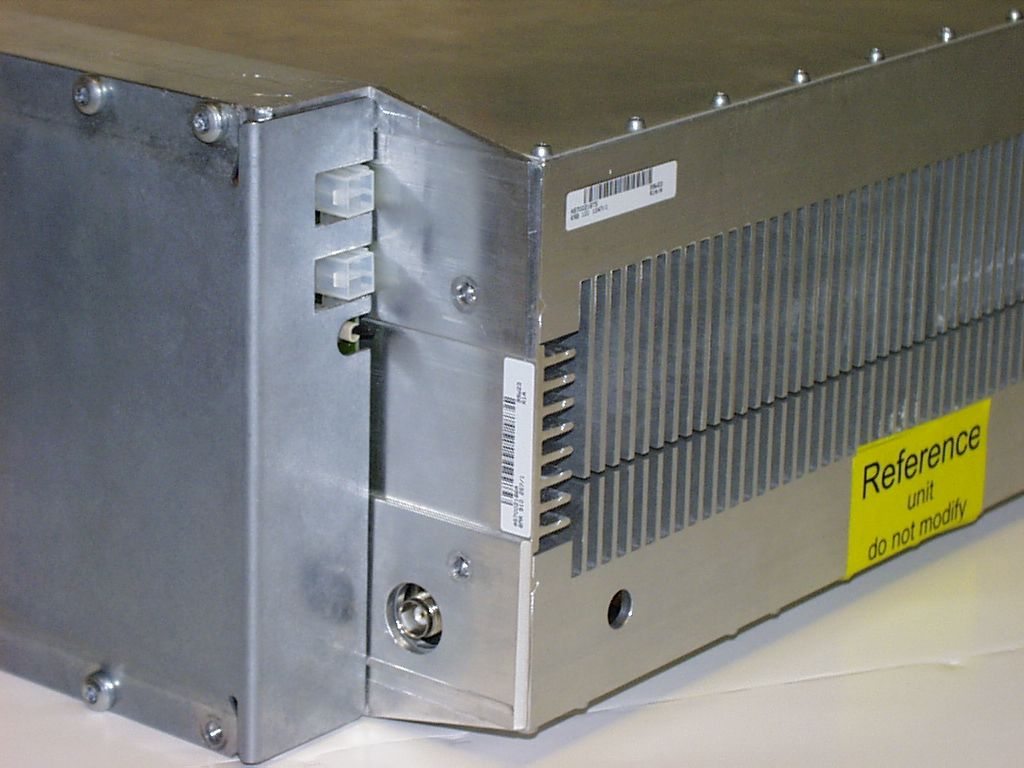

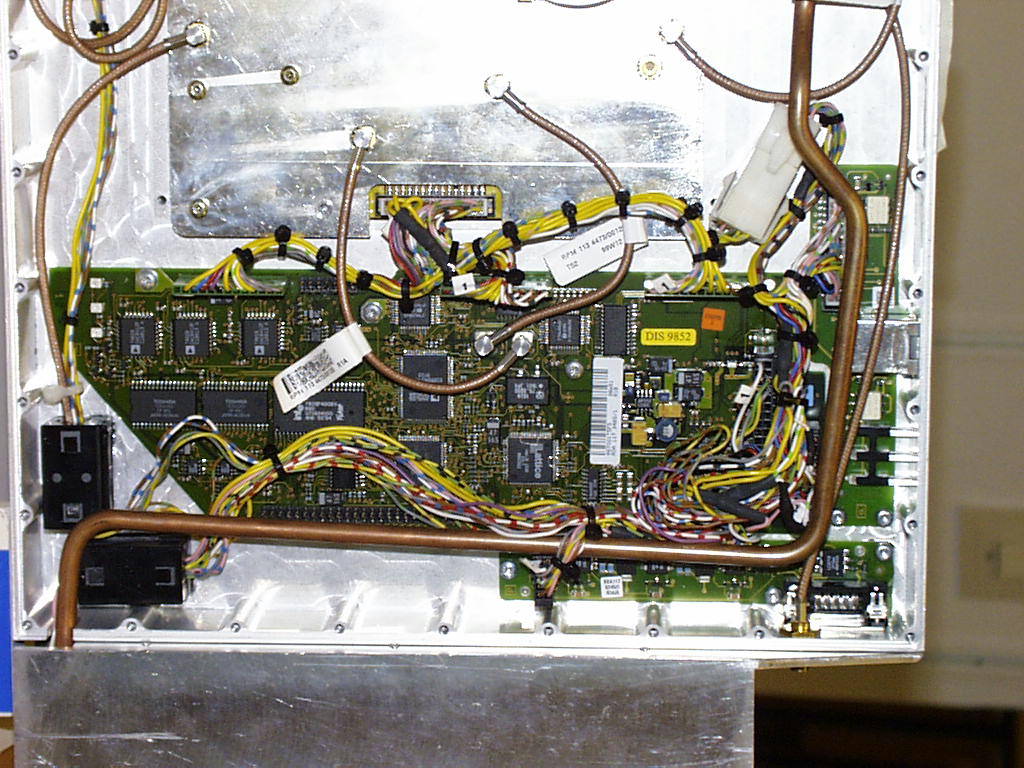

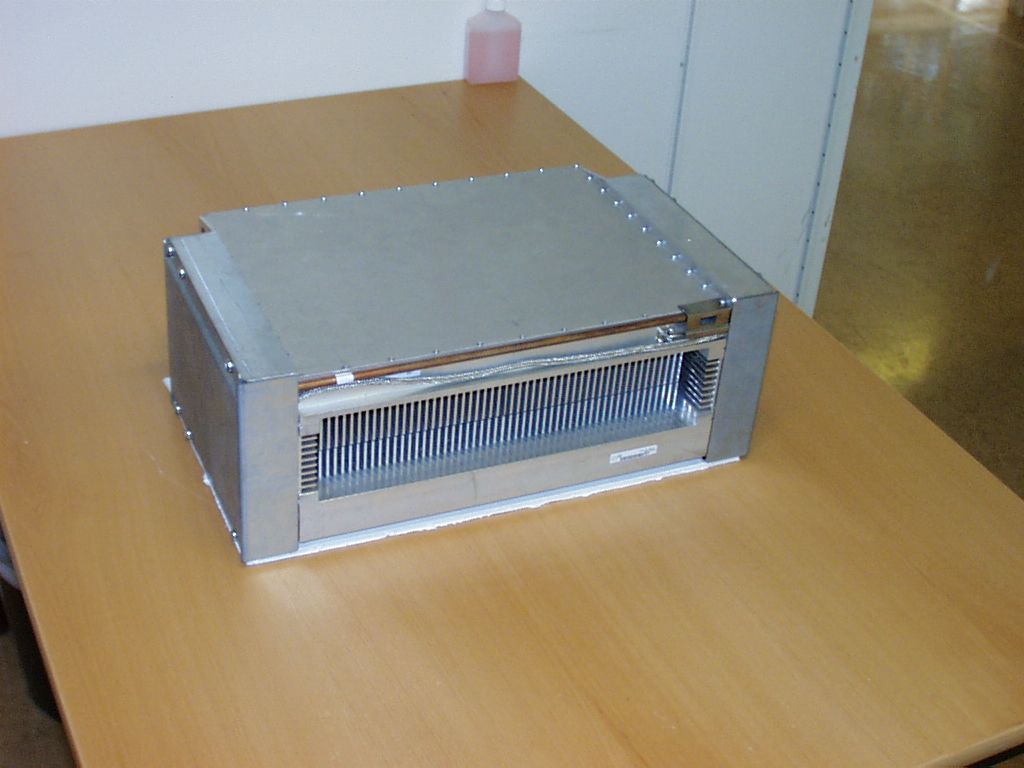

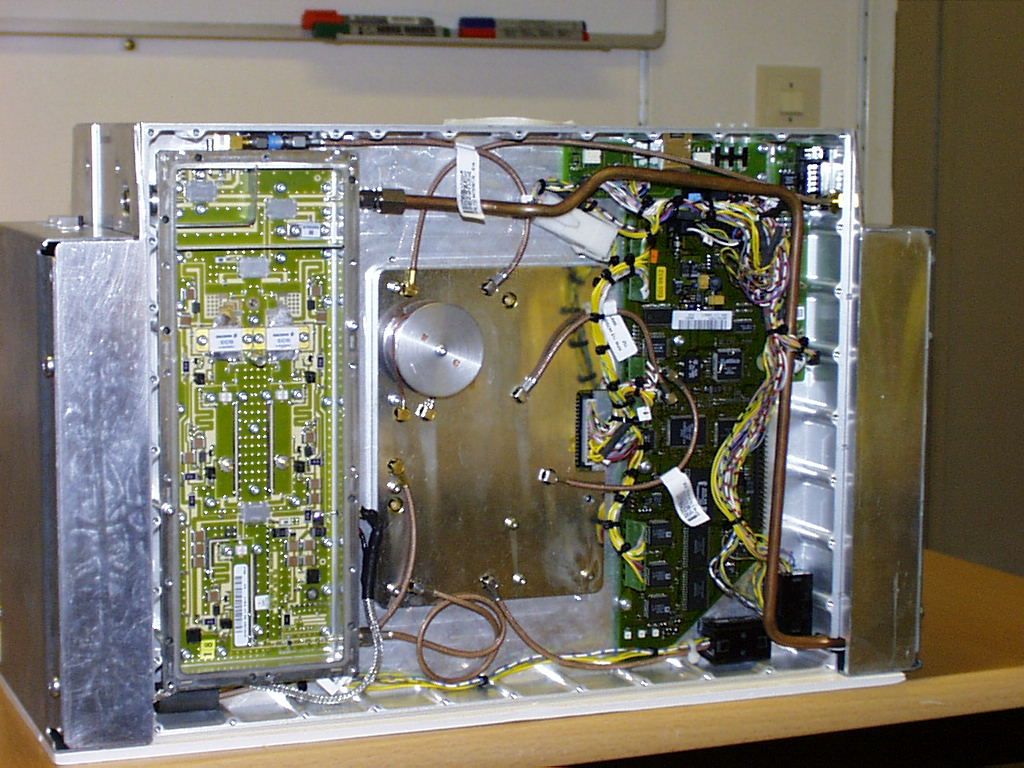

OPVKRB1011047-1Multicarrier cellular amplifier

Multi Carrier Power Amplifier MCPA 50/100 W Installation Instruction for RBS884 Micro

MCPA 50/100 W Installation Instruction EN/LZT 123 539699-08-20 1 Abstract The installation instruction shall be used when installing the Multi Carrier Power Amplifier MCPA 50/100W with the RBS 884. Application This document can be a part of the site installation of the RBS 884 library. Contents 1Introduction ..........................................................................................2 1.1Revision Information ............................................................................2 1.2About this manual ................................................................................2 1.3Document information ..........................................................................3 1.3.1 Terminology .........................................................................................3 1.4Safety Consideration............................................................................3 1.4.1 High Frequency....................................................................................3 1.4.2 ESD .....................................................................................................4 1.4.3 High Voltage ........................................................................................5 1.5Legal Information .................................................................................5 1.6Support ................................................................................................6 2System Description ..............................................................................7 2.1General ................................................................................................7 2.2RBS 884 Micro 800 MHz with MCPA ...................................................7 2.3Definitions ............................................................................................7 2.4Installation Configurations ....................................................................8 2.4.1 General ................................................................................................8 2.5Included Equipment in the mounting kit................................................9 2.6MCPA design .....................................................................................10 2.7Technical Specification ......................................................................11 2.8Connectors ........................................................................................11 2.9Indicators ...........................................................................................12 3Installation..........................................................................................13 3.1General ..............................................................................................13 3.2Safety Considerations ........................................................................13 3.2.1 Grounding of the MCPA Cabinet ........................................................13 3.2.2 Radio Frequency Radiation................................................................13 3.2.3 Tool List .............................................................................................14 3.3Installation in an 19-Inch Equipment Cabinet .....................................15 3.3.1 Installation of MCPA...........................................................................15 3.3.2 Mounting of brackets including fan unit ..............................................16 4Cabling of the MCPA and HPC/LPS...................................................21 5Installation Test..................................................................................23 6Maintenance ......................................................................................24 6.1Replacement of HPC/LPS..................................................................24 6.2Replacement of MCPA.......................................................................24 MCPA 50/100 W Installation Instruction EN/LZT 123 539699-08-20 2 1 Introduction This part describes the information contained in the manual and the conventions used in its presentation . 1.1 Revision Information[J1] This is the first issue of the manual. 1.2 About this manual This manual contains the information required to install. troubleshoot, and maintain the MCPA Multi Carrier Power Amplifier 50/100 W. The manual has references to the RBS 884M Installation and Maintenance manual. It is assumed that before the manual is used to perform any of these activities at a Radio Base Station 884M (RBS 884M), the following actions have to be completed: • RBS884 installation (if not, read this manual anyhow) • DC power supply (27V) to MCPA must have been made available The manual is divided into the following parts: Introduction A description of the contents of the manual and how the manual can be used. System Description A description of the MCPA equipment hardware and the available configurations. Installation Procedures for the installation, powering up and adjustment of MCPA equipment on site. Cabling Procedure for the cabling of the MCPA and HPC/LPS units. Maintenance Procedures for basic troubleshooting and replacement of faulty items of equipment. The target audience for the manual is RBS 884M site installation and site main- tenance personnel. The procedures in the manual are normally intended to be performed in the order presented. MCPA 50/100 W Installation Instruction EN/LZT 123 539699-08-20 3 1.3 Document information 1.3.1 Terminology Abbreviations AC/DC Power supply HPC High Power Combiner DPX Duplex Filter MCPA Multi Carrier Power Amplifier MCU Measuring Coupler Unit MSC Mobile Telephony Switching Center NC Normally Closed NO Normally Open RF-IN RF input signal to the MCPA RF-OUT RF output signal from the MCPA RTP Research Triangle Park, NC, USA TRX Transceiver Unit TXBP TX Bandpass filter MCU Measuring Coupler Unit RFTL Radio Frequency Test Loop 1.4 Safety Consideration 1.4.1 High Frequ…

Text truncated - open the document above for the full version.

September 14, 1999 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: Gentlemen: Ericsson Radio Access AB. requests a grant of Certification under Part 22, and Part 24 of the Code of Federal Regulations (CFR) Title 47 for the above mentioned FCC Identifier. This Multi Carrier Power Amplifier is designed for use in the Public Mobile Services, Cellular Radiotelephone Services (Part 22, Subpart H). Ericsson Radio Access AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits are requested: Circuit Diagrams Circuit and Device Description Photographs of the circuit board for the TRX unit Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. The amplifier output power range is from 0 Watts to 50 Watts (47 dBm), and the gain is 30 ±1 dB. If additional information is needed, please contact me at the following numbers: Telephone: +46 8 764 1804 FAX: +46 8 757 3150 Mobile: Email: [email protected] Sincerely, Harald Kalling System Design & Verification Antenna Near Products / MCPA Ericsson Radio Access AB Box 11 SE-164 93 Stockholm Sweden 2.1033 (c)

Use the "contents.xls" to get the document you want to look at, click on the hyperlinks ! When you find something wrong please notify me, use Émail: [email protected]

September 14, 1999 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: OPVKRB1011047-1 Gentlemen: Ericsson Radio Access AB. requests a grant of Certification under Part 22 of the Code of Federal Regulations (CFR) Title 47 for the above mentioned FCC Identifier. This Multi Carrier Power Amplifier is designed for use in the Public Mobile Services, Cellular Radiotelephone Services (Part 22, Subpart H). Ericsson Radio Access AB requests confidentiality under CFR 0.459. Confidentiality for the following exhibits are requested: Circuit Diagrams Circuit and Device Description Photographs of the circuit board for the TRX unit Justification of this request is in order to protect the large investment in developing this technology and to facilitate the circuit miniaturization utilized in this design and protect the innovative design as well as proprietary techniques which are implemented. In order to protect Ericsson’s competitive advantage on these proprietary techniques, we request the above listed exhibits be held as confidential and withheld from the Public Information File. The amplifier output power range is from 1 Watt to 50 Watts (47 dBm) (variable), and the gain is 30 ±1 dB. If additional information is needed, please contact me at the following numbers: Telephone: +46 8 764 1804 FAX: +46 8 757 3150 Email: [email protected] Sincerely, Harald Kalling System Design & Verification Antenna Near Products / MCPA Ericsson Radio Access AB Box 11 SE-164 93 Stockholm Sweden 2.1033 (c)

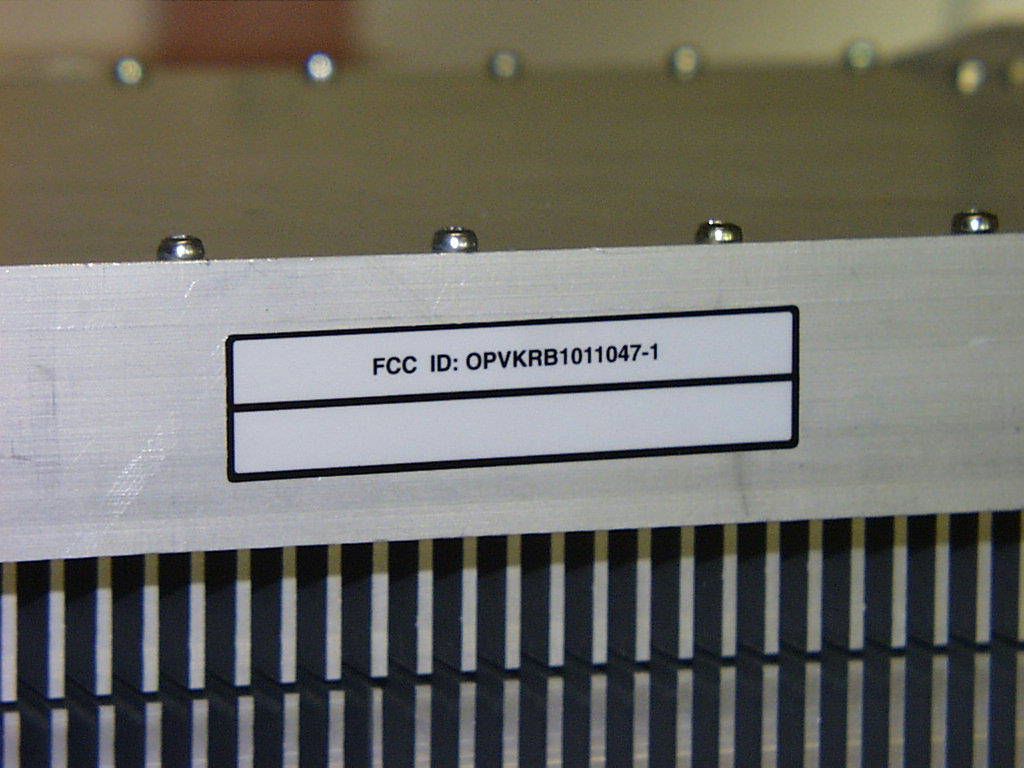

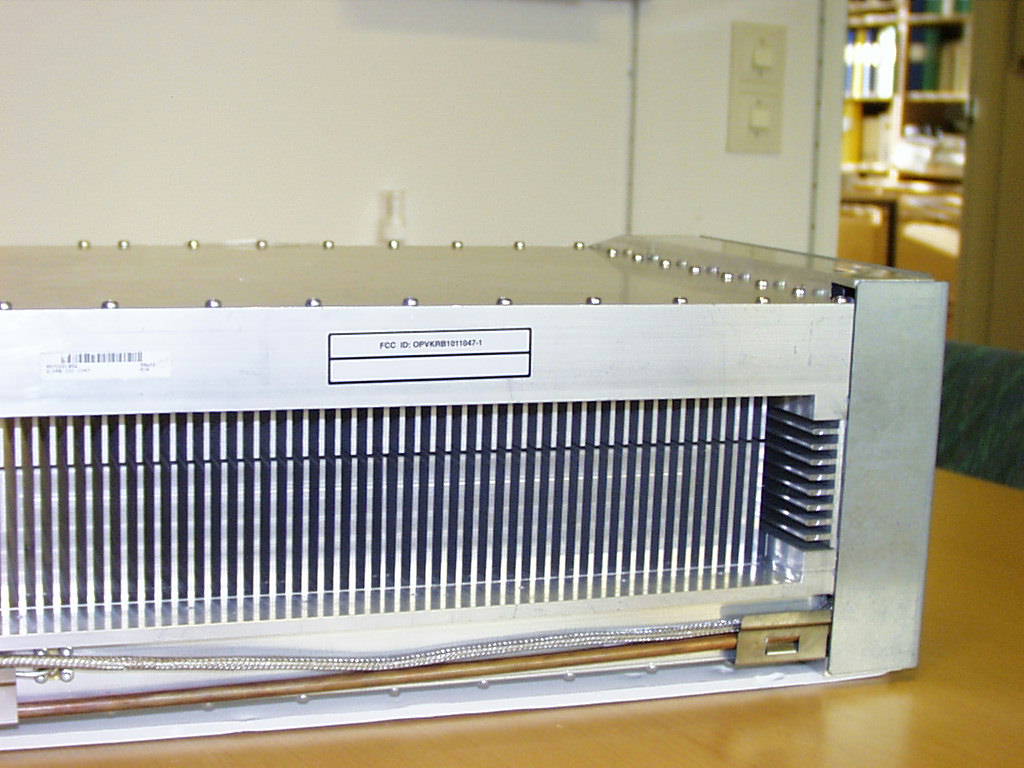

PRODUCT SPECIFICATION1 (3) Uppgjord (även faktaansvarig om annan) -Prepared (also subject responsible if other)Nr -No. RSA/N/FM QSAERIK1301 - SVH 281 163 Uen Dokansv/Godk -Doc respons/ApprovedKontr -CheckedDatum -DateRevFile RSA/N/FMC (J Angseryd)1999-09-21B EN/FAD 109 246 R1B LABEL 1±0,2mmblackframe. Note: see product list for TEXT 1 and TEXT 2. 1GENERAL 1.1DESCRIPTION To be used on smooth areas which are not coated with silicone, resin or wax. The labels are UL recognized. 2DESIGN 2.1GENERAL Material:Polyester 7883 Colour:Grey Type face:Helvetica medium Type height:2 mm, the text shall be placed symmetrical on the label. Delivery form:Roll 2.2DIMENSIONS Dimensions in mm. TEXT 1 TEXT 2 74 A PRODUCT SPECIFICATION2 (3) Uppgjord (även faktaansvarig om annan) -Prepared (also subject responsible if other)Nr -No. RSA/N/FM QSAERIK1301 - SVH 281 163 Uen Dokansv/Godk -Doc respons/ApprovedKontr -CheckedDatum -DateRevFile RSA/N/FMC (J Angseryd)1999-09-21B EN/FAD 109 246 R1B 3MARKING Each component or package shall be marked with the following information: aERICSSON type designation,(type number). bManufacturer’s name and/or trade mark. cDate of manufacture, preferably year and week in a four digit code,(YYWW), or batch code. If limit in space, this can be transferred to the package. The marking shall be resistant to mechanical wearing that can arise at normal handling, storage and operation. The marking must not be affected either by water, trichlorethylene, ethylalcohol nor perchlorethylene. 4PACKING The package shall be marked with the following information: aERICSSON type designation. bManufacturer’s name or trade mark and product code. cData code, year and week in a four digit code,(YYWW), or batch code. 5 REFERENCES 124 41 – 502 U==Handling instructions. 6 INTERNAL INFORMATION 6.1INSPECTION DIRECTION Control of dimensions and finish. 7 PRODUCT LIST Product code, purchased TEXT 1TEXT 2A SVH 281 163/1FCC ID:OPVKRB1011047-118 PRODUCT SPECIFICATION3 (3) Uppgjord (även faktaansvarig om annan) -Prepared (also subject responsible if other)Nr -No. RSA/N/FM QSAERIK1301 - SVH 281 163 Uen Dokansv/Godk -Doc respons/ApprovedKontr -CheckedDatum -DateRevFile RSA/N/FMC (J Angseryd)1999-09-21B EN/FAD 109 246 R1B 8DOCUMENT REVISION INFORMATION RevisionDescription BParagraph 7: FCC ID:OPVKRB1011047-1 has been added.

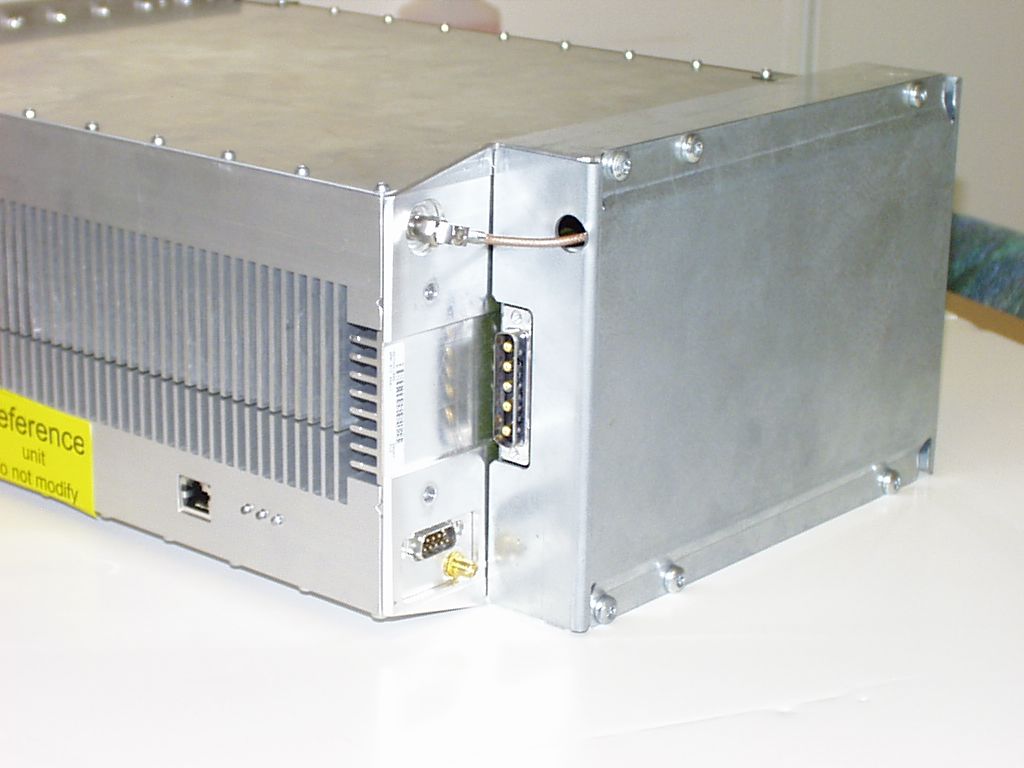

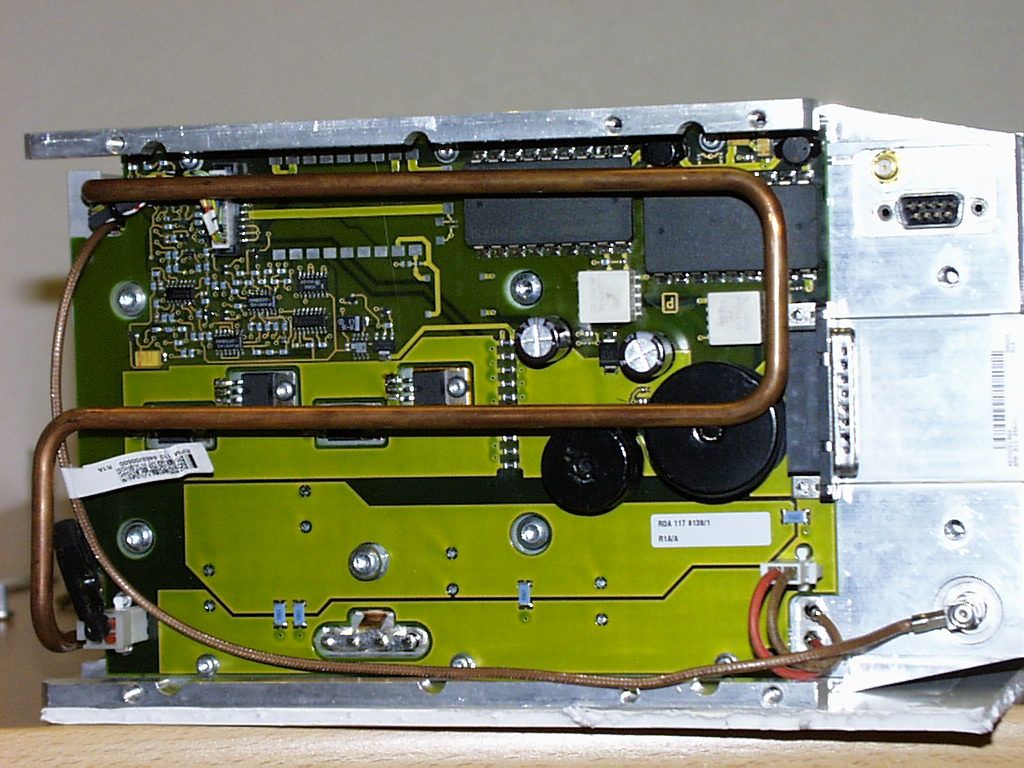

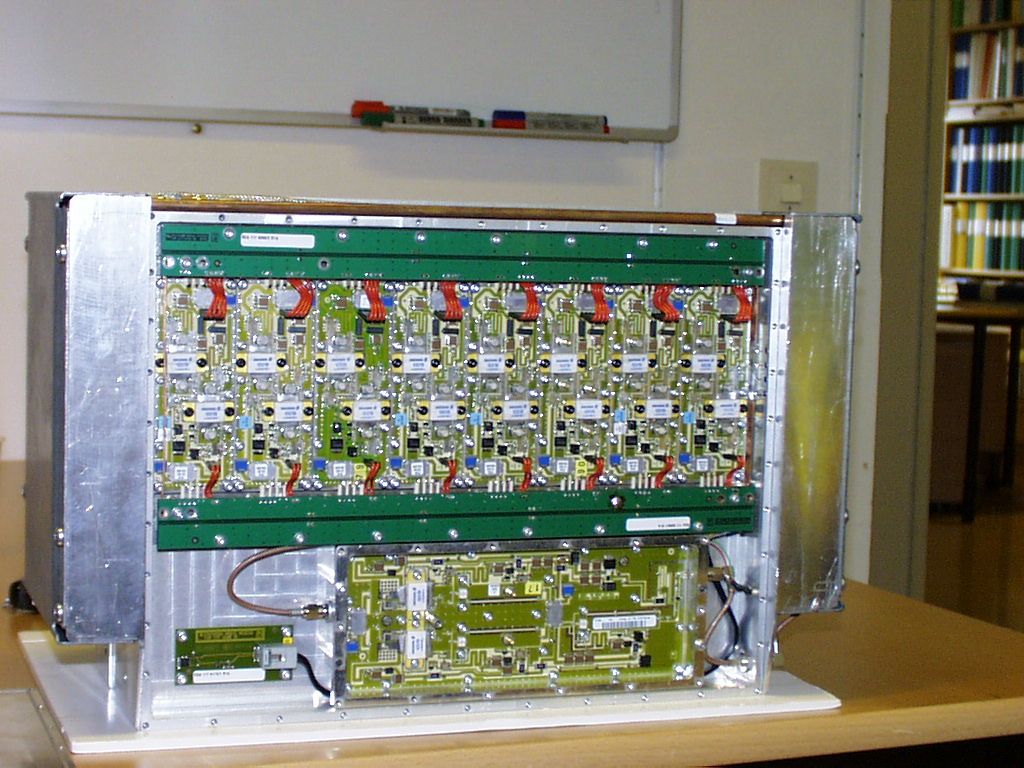

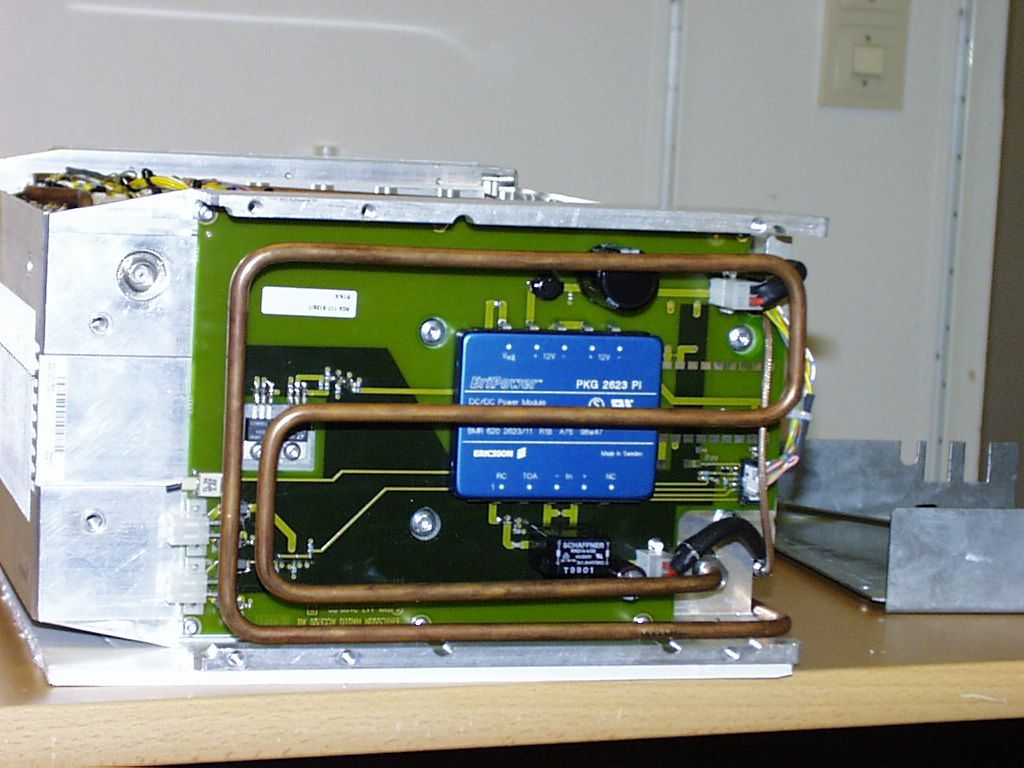

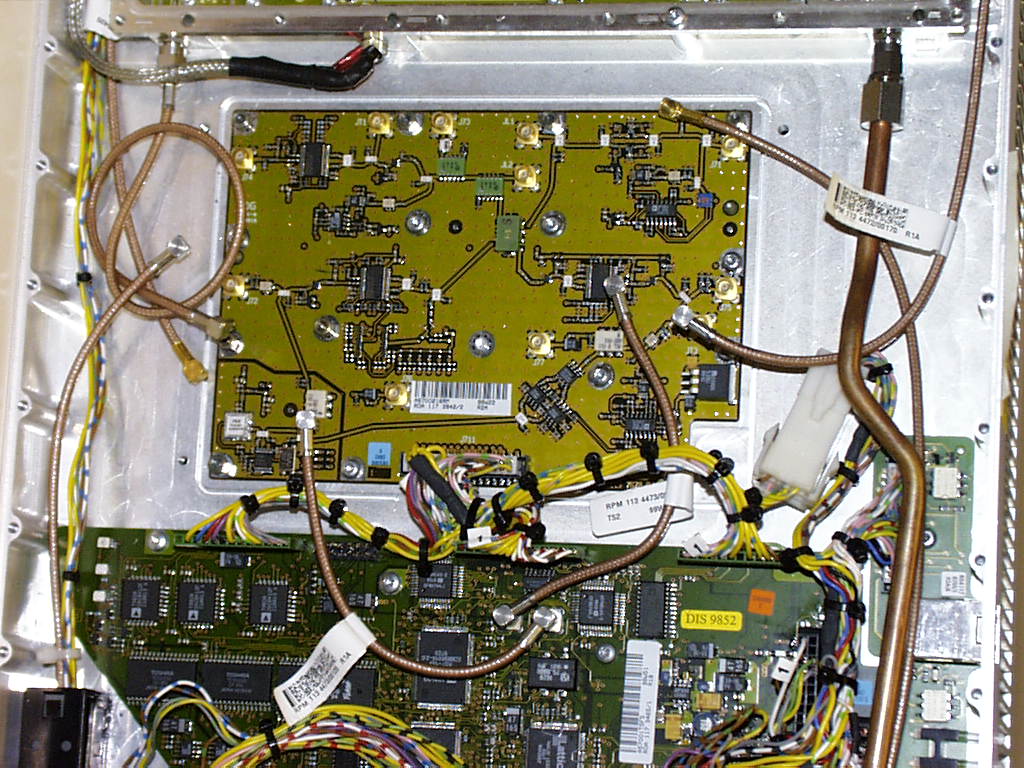

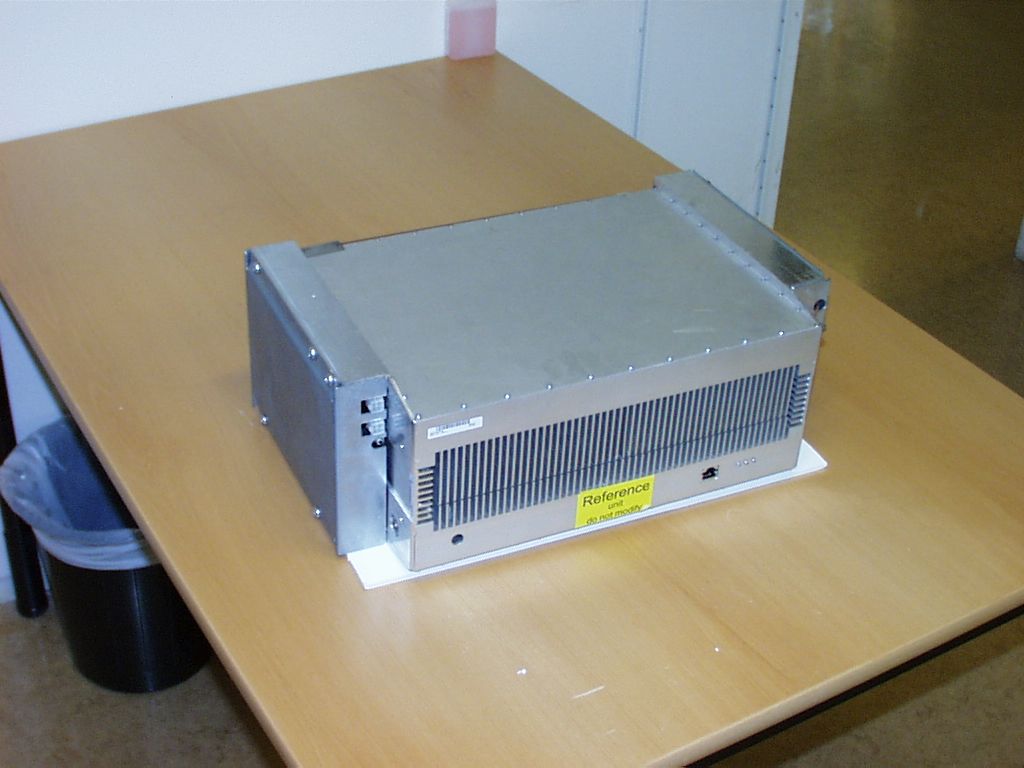

APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 50 W linear power amplifier Application for certification APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 1 APPLICATION FOR CERTIFICATION, §2.1033 (1)Manufacturer:Ericsson Radio Access AB Box 11 SE-164 93 Stockholm Sweden Applicant:Ericsson Radio Access AB Soren Norbeg Box 11 SE-164 93 Stockholm Sweden (2)FCC IdentifierOPVKRB1011047-1 (4)Type of emissions:DXW, F1D, and F8W. This amplifier is for use in the Public Mobile Service (CFR title 47 part 22 Subpart H , and according to 22.901(d) Cellular Radiotelephone Service) (5)Frequency range:869 to 894 MHz (6)Range of operating power: 1 - 50 W (7)Maximum power rating:50 W, distributed to minimum 2 and maximum 32 carriers. (8)DC voltage and current:Voltage:27±1 V DC Current:30 A (MCPA current consumption) (10) Tune up procedure:The amplifier is factory tuned. The only necessary and possible installation tuning is to adjust the RF input power level. When the amplifier is properly installed in a radio base station (as indicated in Figure 1: MCPA environment) the Cellular Radio Exchange (CRE) will supervise and control the output power per carrier. If a fault condition should arise in the amplifier, this is signalled to the CRE. In case of severe faults the amplifier is automatically shut down. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 2 GENERAL AMPLIFIER DESCRIPTION The MCPA Cabinet is a power amplifier, for highly linear amplification of a composite input signal of up to 24 digitally or analogue modulated carriers. The amplifier power output is 50 W. The amplifier is primarily intended for use together with RBS 884 base stations. Figure 1: MCPA environment 2.1 ABBREVIATIONS MCPA Multi Carrier Power Amplifier ALMAlarm module MCUMeasurement Coupler Unit LPCLow Power Combiner RFTLRadio Frequency Test Loop TXBPTransmitter BandPass filter TRXTransmitter & Receiver unit RBS884 MCPA TXBP LPC TRX 1 TRX N MCU RFTL ALM . . . APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 2.2 COMMENT ON FILTER FUNCTIONS To fulfil the cellular standard (e.g. IS-138-A) it is necessary to use a bandpass filter to restrict spurious emissions outside the TX-band. This filter is included in the normal base station structure (cf. Figure 1: MCPA environment) APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 2.2.1 Necessary filter performance In order to fulfil §2.1051, Spurious emission at antenna terminal, a low pass filter must be inserted between the amplifier output terminal and the antenna. The filter attenuation must greater or equal to: Frequency range (MHz) Attenuation (dB) 910 – 178845 1788 – 270020 This text is also included in the installation manual, § 1.5, “Legal information”. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 3 RF OUTPUT POWER, §2.1046 (b) Maximum RF output power is 50 W. If the amplifier is severely overloaded, more than 2 dB, it will shut down. All the following tests are performed at 50 W output power. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 4 TEST RESULTS All results are valid at 50 W RF output power, at MCPA output terminal. 4.1 TEST EQUIPMENT FOR SPURIOUS EMISSION AND OCCUPIED BANDWIDTH RF Signal generatorSolartron Stabilock 4040 Analogue RF signal generation AF Signal generatorHP 33120AModulation input to RF signal generator PreamplifierMini Circuits ZHL-42 Base station transceiver (AMPS / D- AMPS) Ericsson: KRC 121 10/1 Digital RF signal generation AttenuatorR&S RBU 100 JFW 50FHB-020-10 MCPA output signal conditioning Power meterR&S NRVD + NRV-Z51MCPA output power measurement Spectrum analyserR&S FSEA R&S FSEM Network analyserHP 8753DCalibration TXBP (Refer to 2.2, Comment on Filter functions) Ericsson: KRF 102 116/1 Bandpass filter for spurious emissions measurements APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 4.2 BLOCK DIAGRAM AF-Gen. RF-Gen. Pre- amp. T r a n c e i v e r u n i t RBS 884 μ MCPA Att. S p i t t e r Power meter Spectrum analyser TXBP Figure 2: Test equipment block diagram APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 4.3 OCCUPIED BANDWIDTH, §2.1049 Figure 3: Signal generator output occupied bandwidth, analogue modulation. The upper curve is the CW APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT Figure 4: MCPA output occupied bandwidth, analogue modulation. The upper curve is the CW reference. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT Figure 5: Signal generator (RBS 884) output occupied bandwidth, digital modulation. The upper curve is the CW reference. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT Figure 6: MCPA output occupied bandwidth, digital modulation. The upper curve is the CW reference. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 4.4 CONDUCTED SPURIOUS EMISSION, § 2.1051 No spurious emissions within, 20 dB from FCC-limit, found at output terminal. Conducted spurious emissions -33 -23 -13 -3 7 17 27 37 47 01000 2000 3000 4000 5000 6000 7000 8000 9000 1000 0 MHz dBm Results FCC_limit Carrier Figure 7: Spurious emission at output terminal. APPLICANT: Ericsson Radio Access ABFCC ID Number: OPVKRB1011047-1 TEST REPORT 4.5 RADIATED SPURIOUS EMISSION, §2.1053 This test was performed at Soutwest Research Institute, 6220 Culebra Road, San Antonio, Texas 78228-0510. Southwest Research Institute is accredited by the American Association for Laboratory Accreditation to the ISO/IEC Guide 25 for electromagnetic compatibility testing 4.5.1 Equipment used & description Signal generatorsR&S SME03 R&S SME03 PreamplifiersIFI 5500 IFI M5480 Dummy loadBird 8301 Antenna 100 MHzEMCO 3121DB2 Antenna 270 MHzEMCO 3121DB3 Antenna 700 MHzEMCO 3121DB4 Antenna Dual RidgeEMCO 3115 Spectrum…
