OR2AVTRANSTR101FM Transmitter

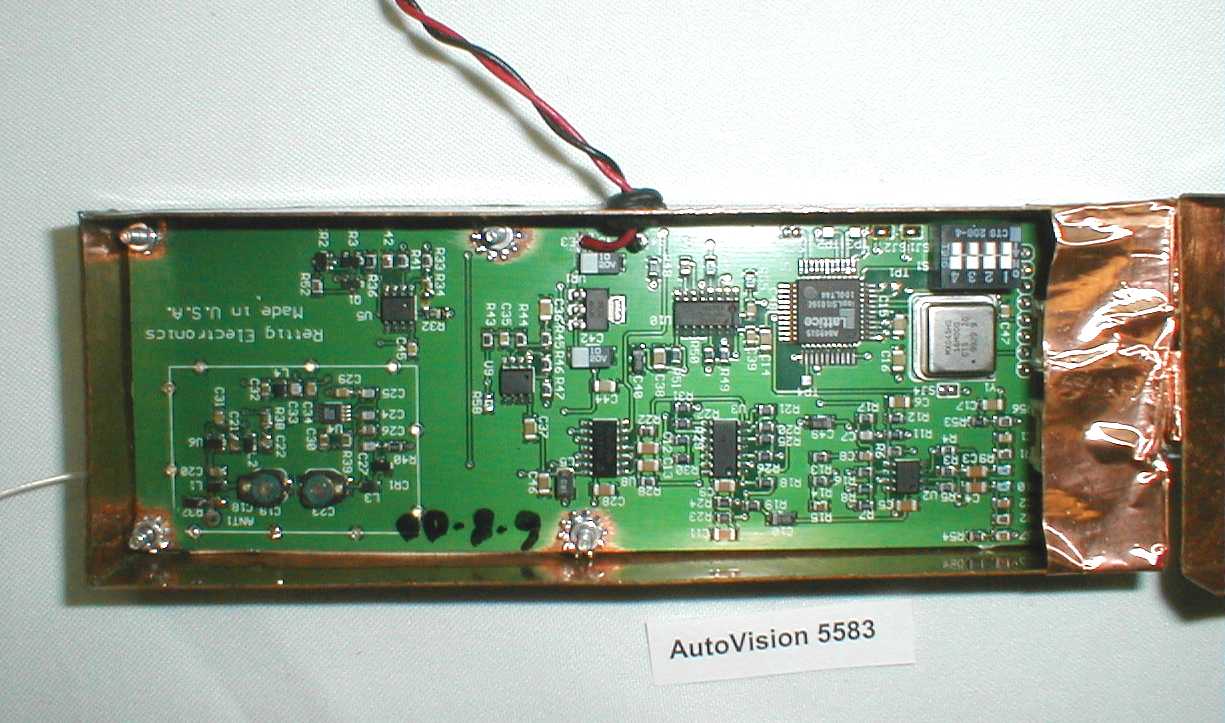

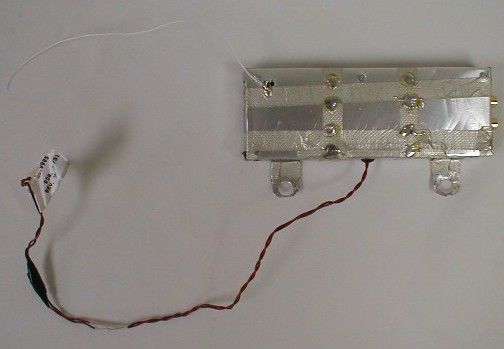

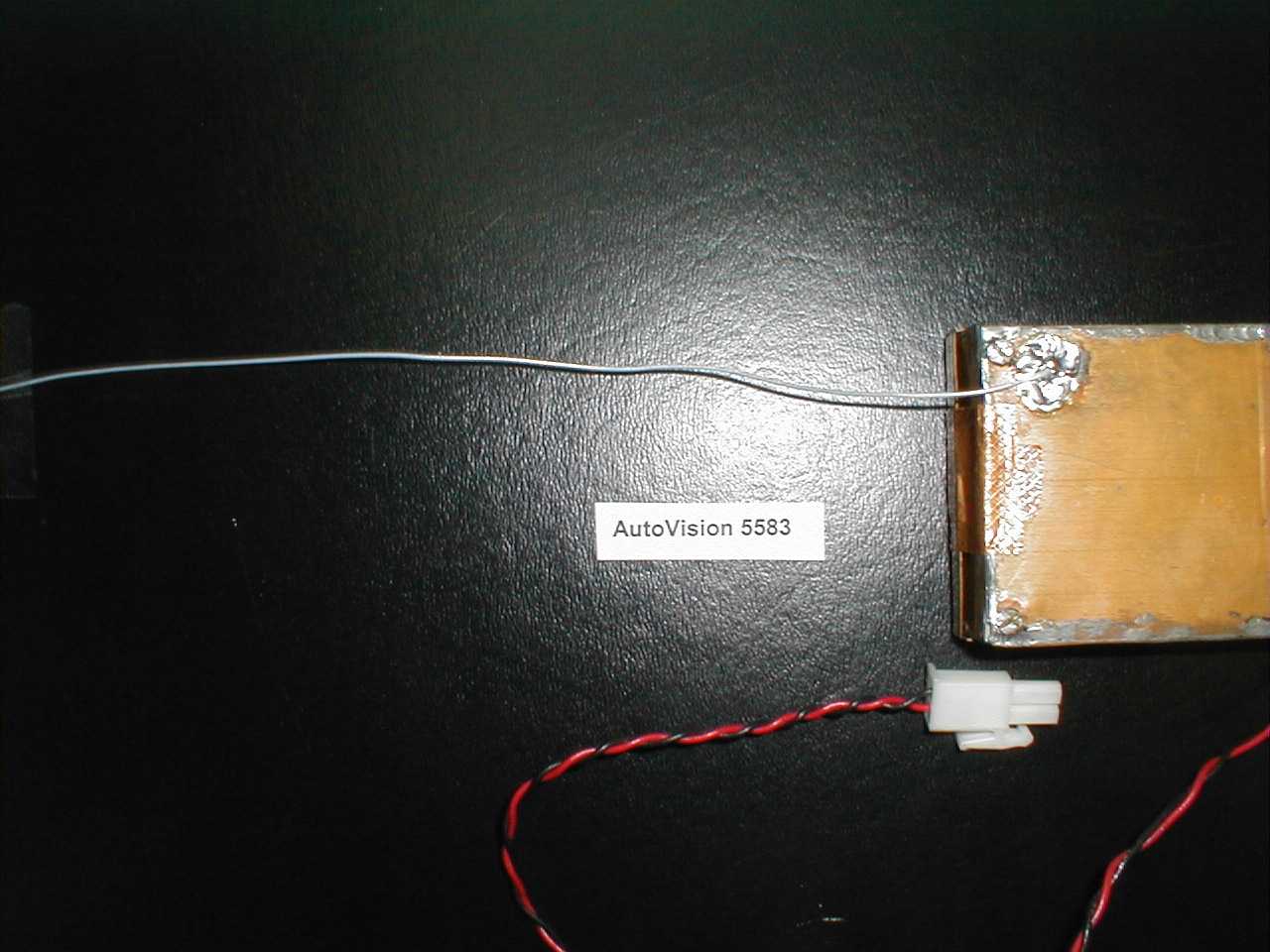

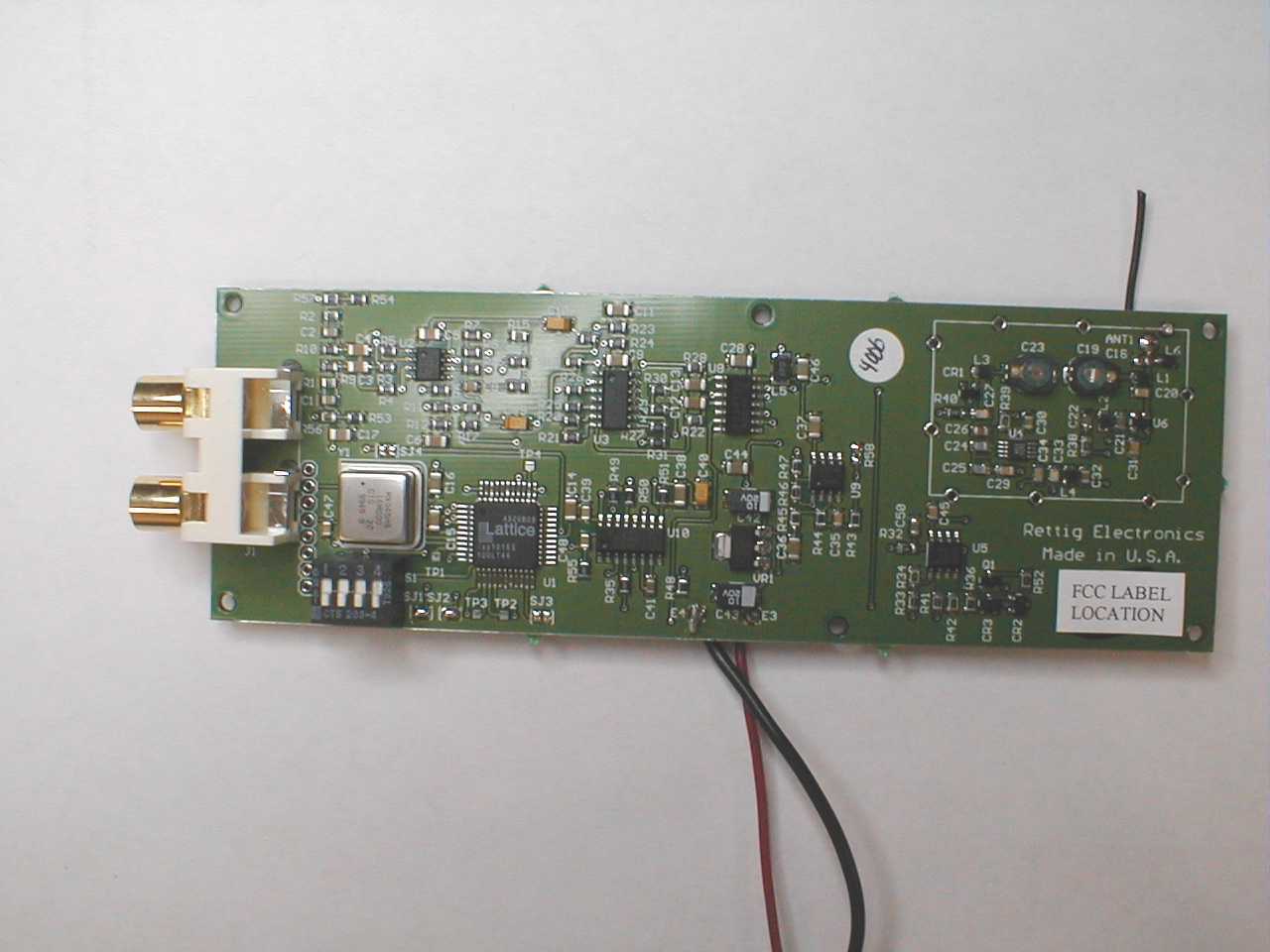

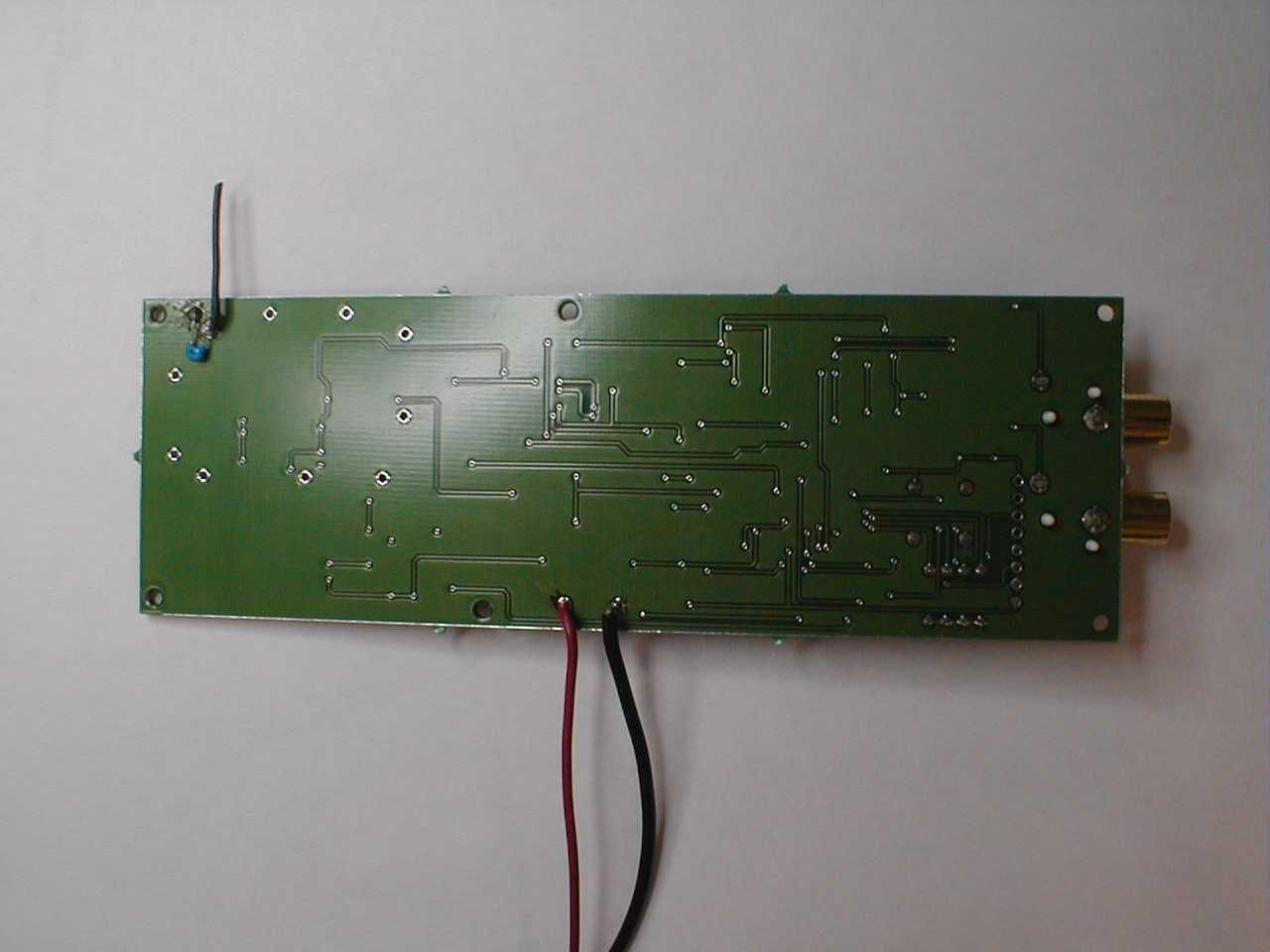

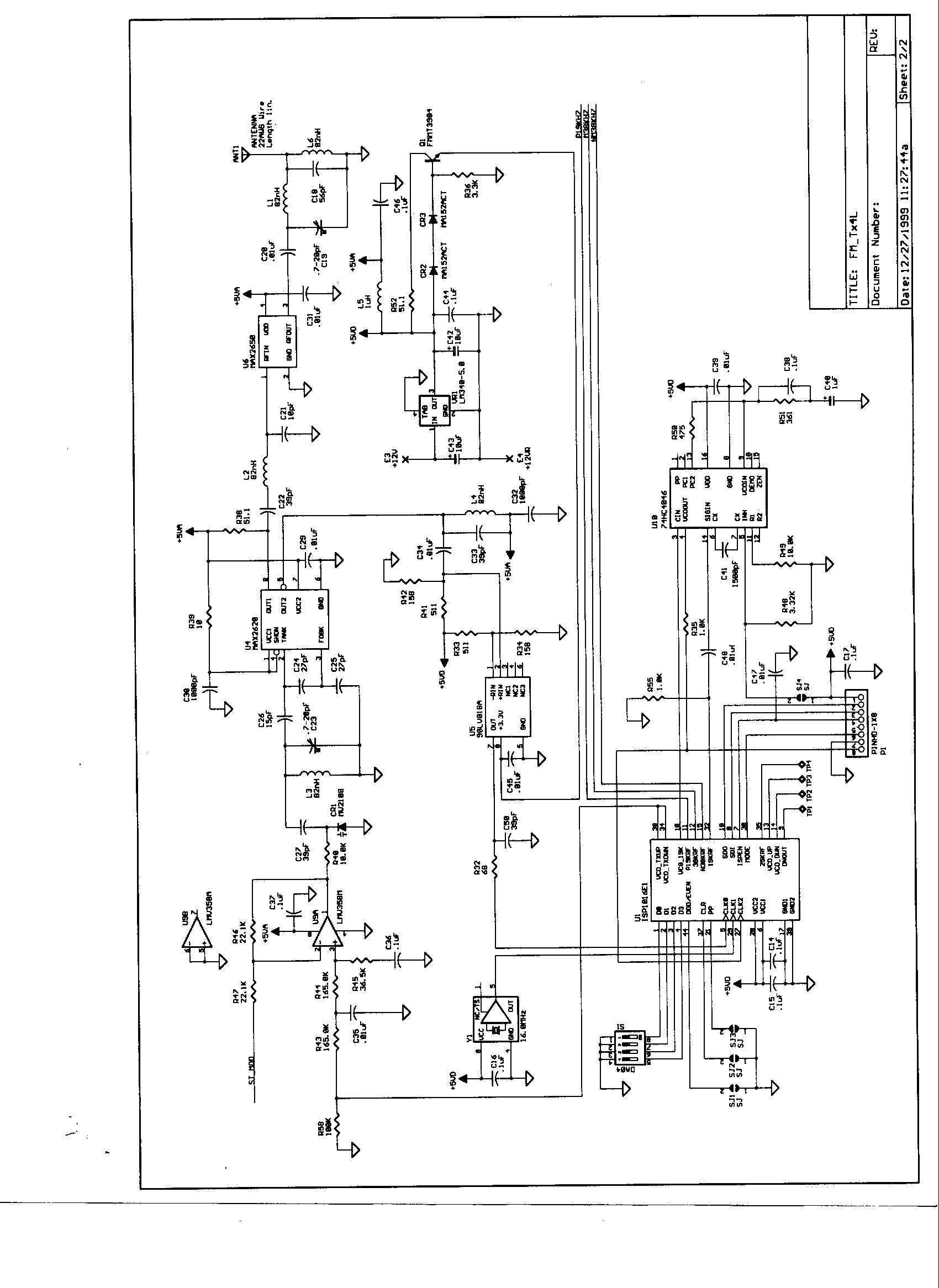

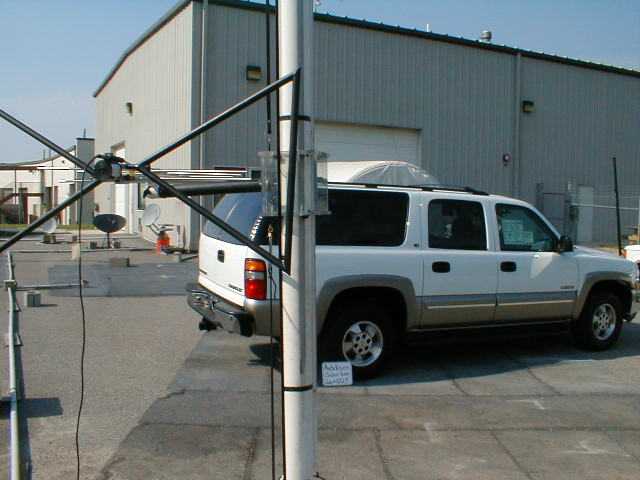

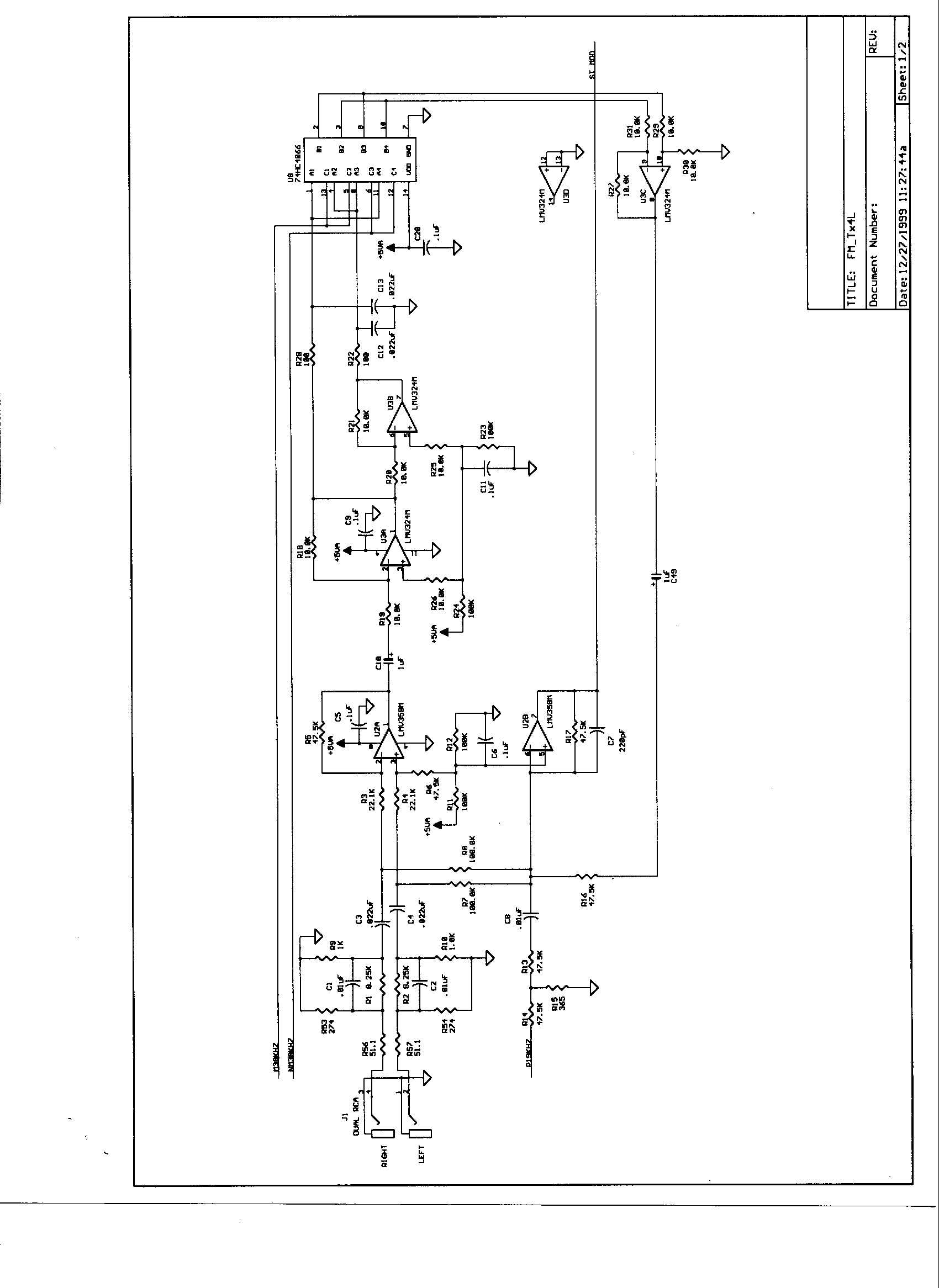

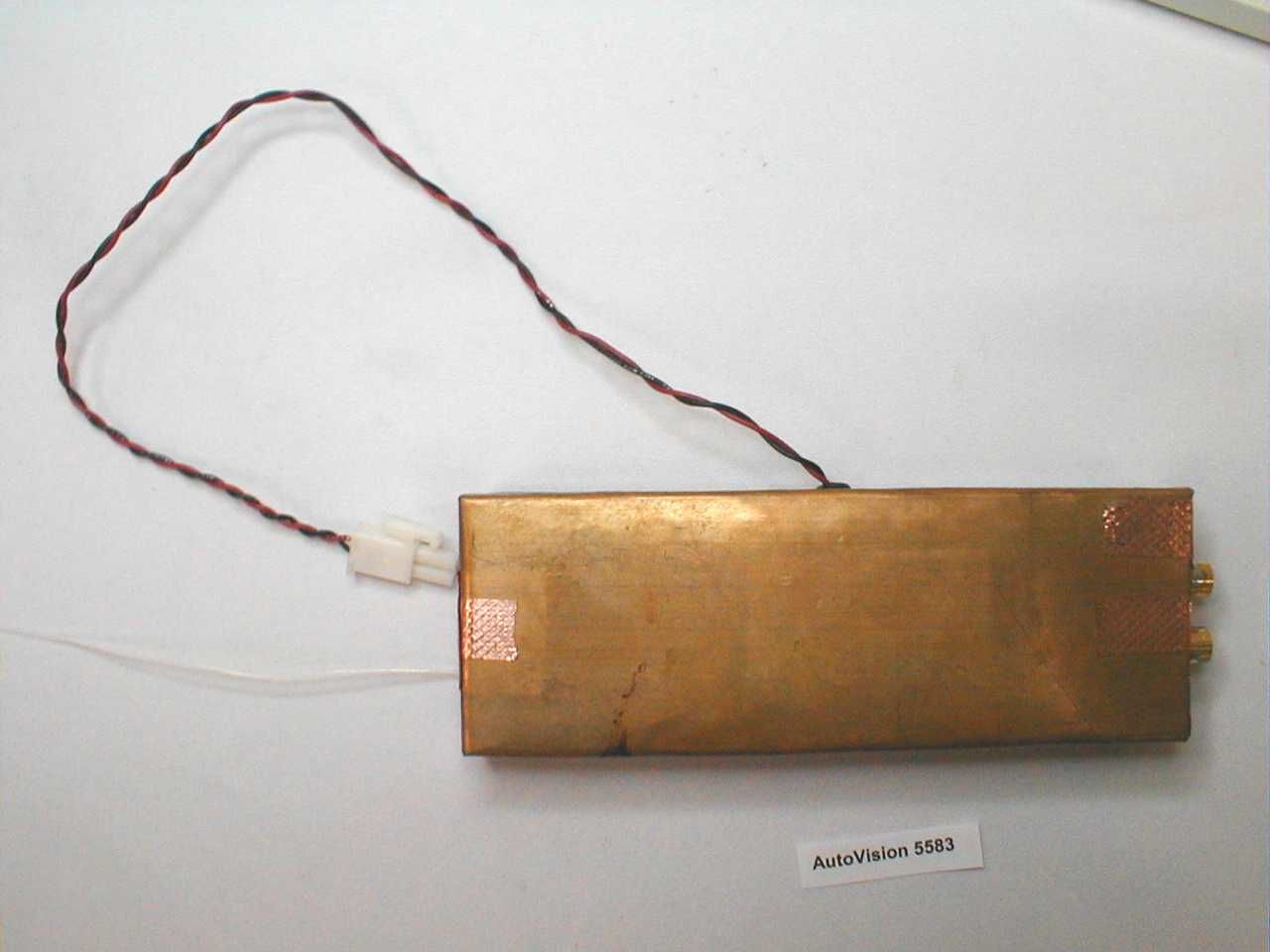

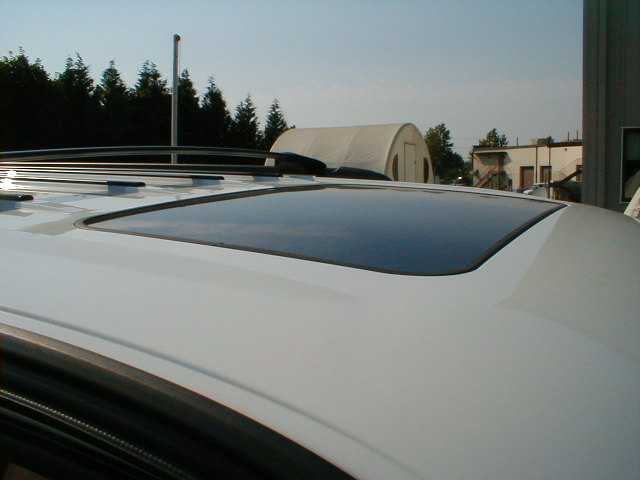

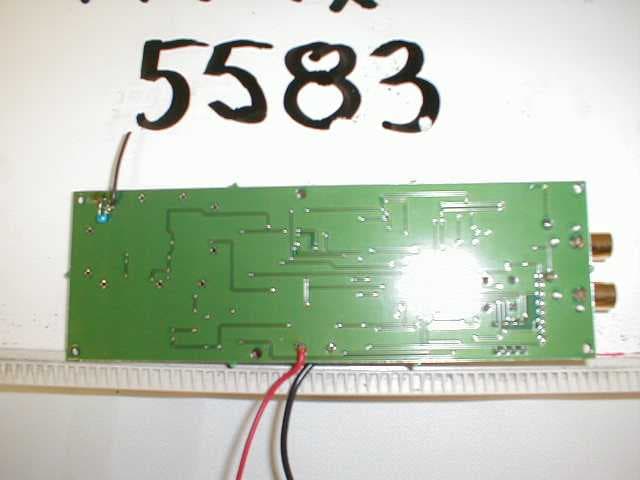

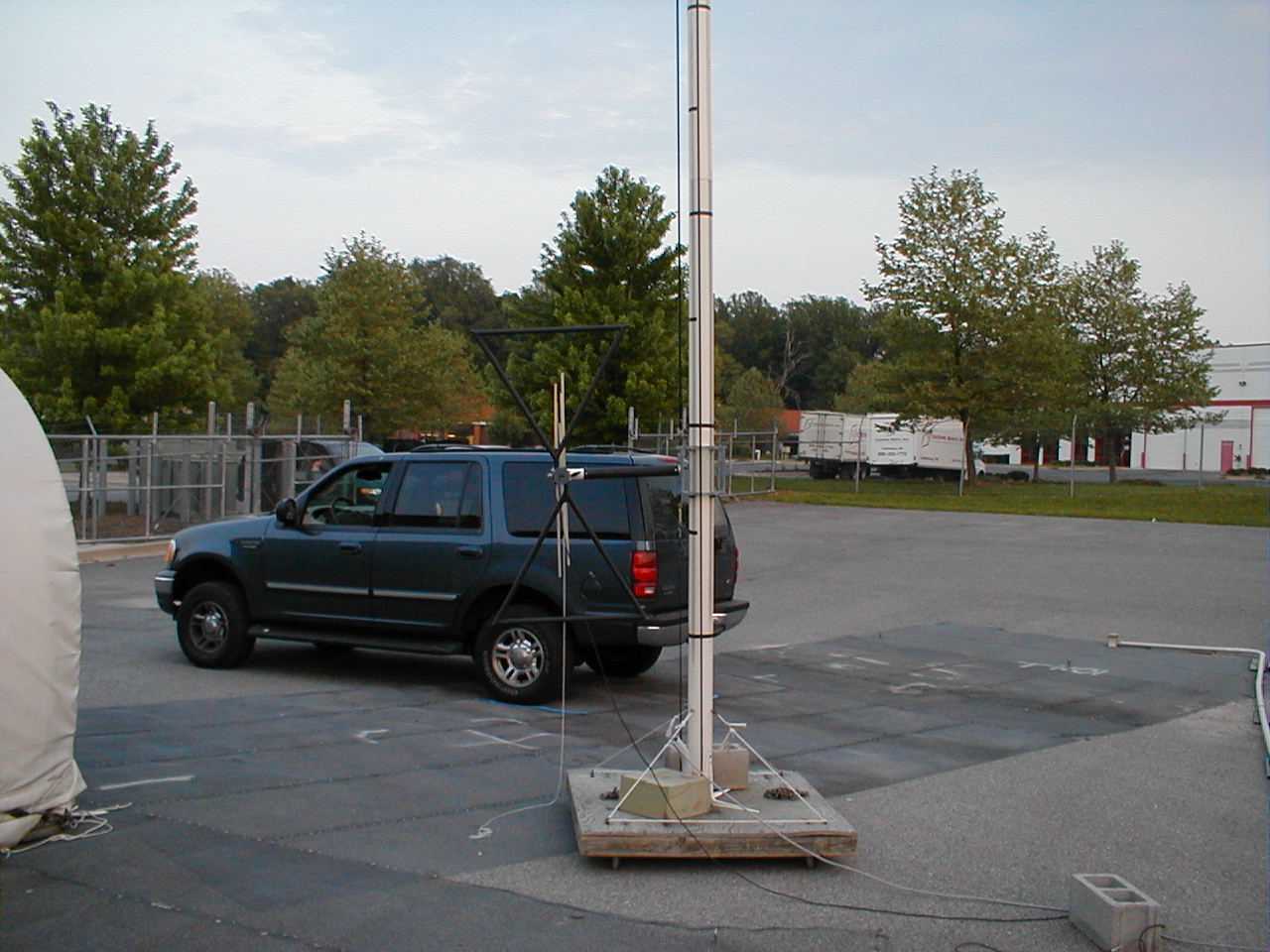

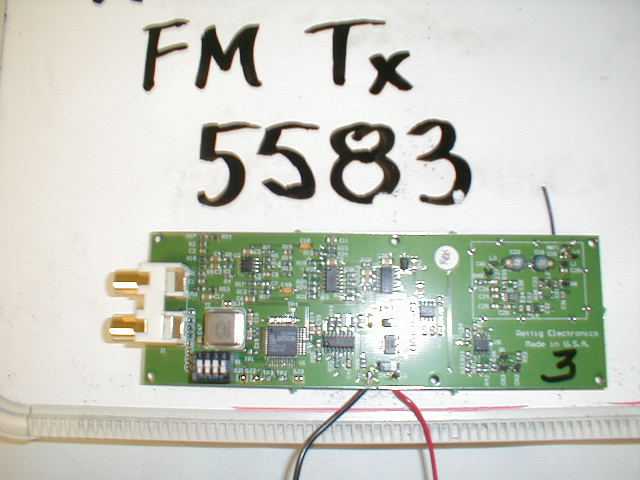

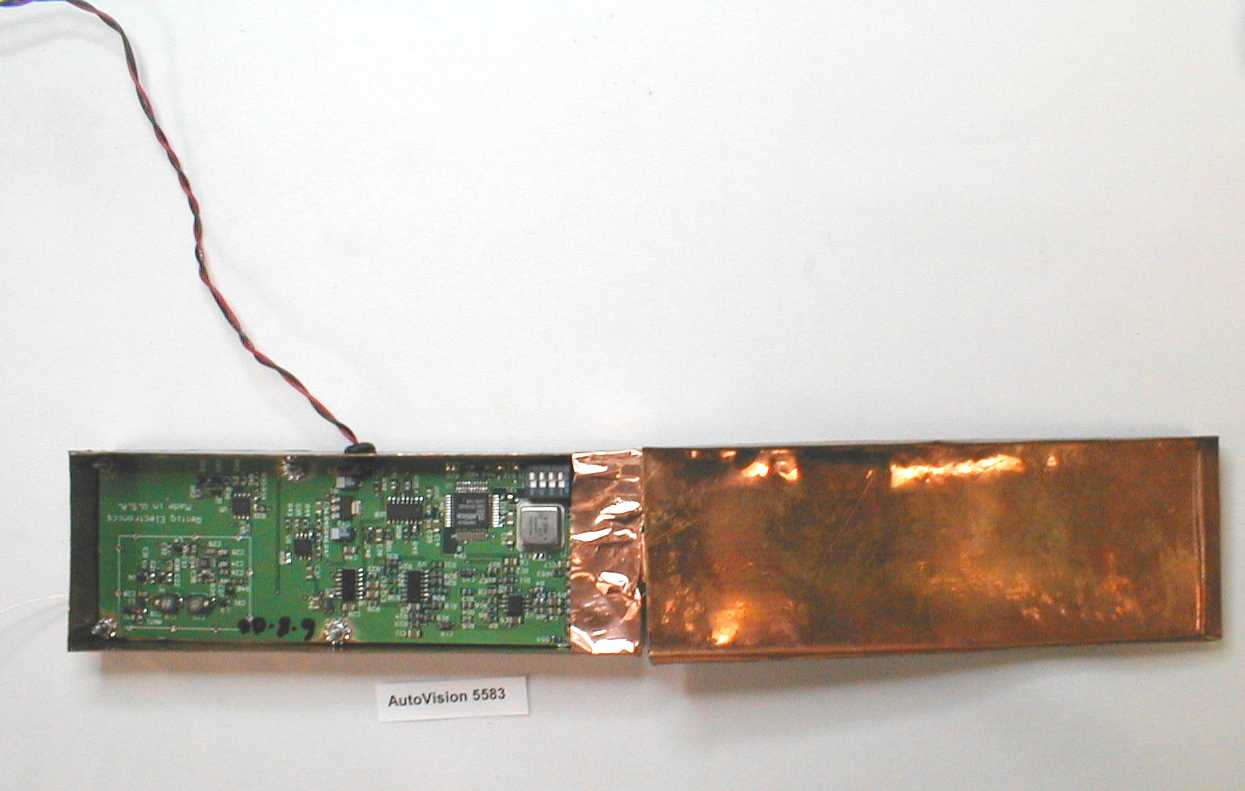

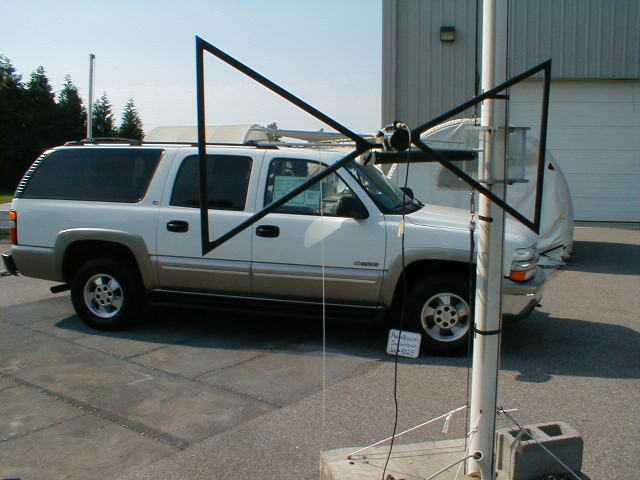

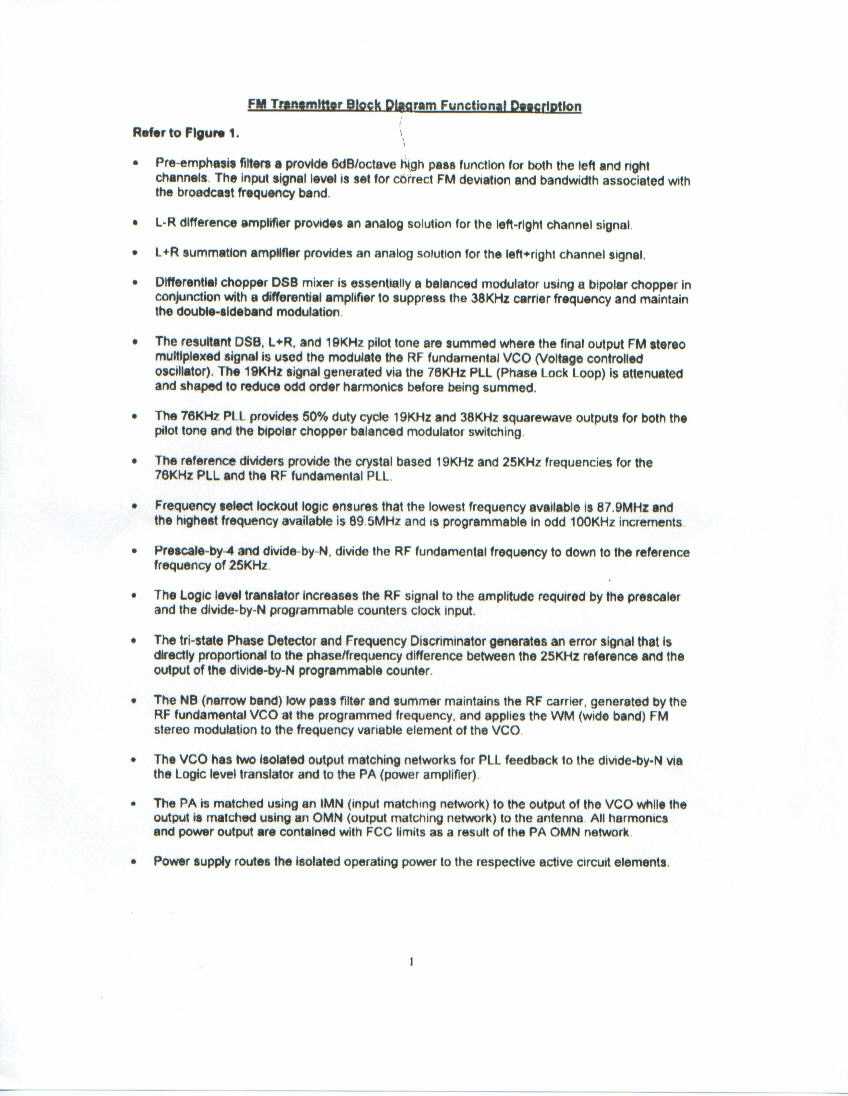

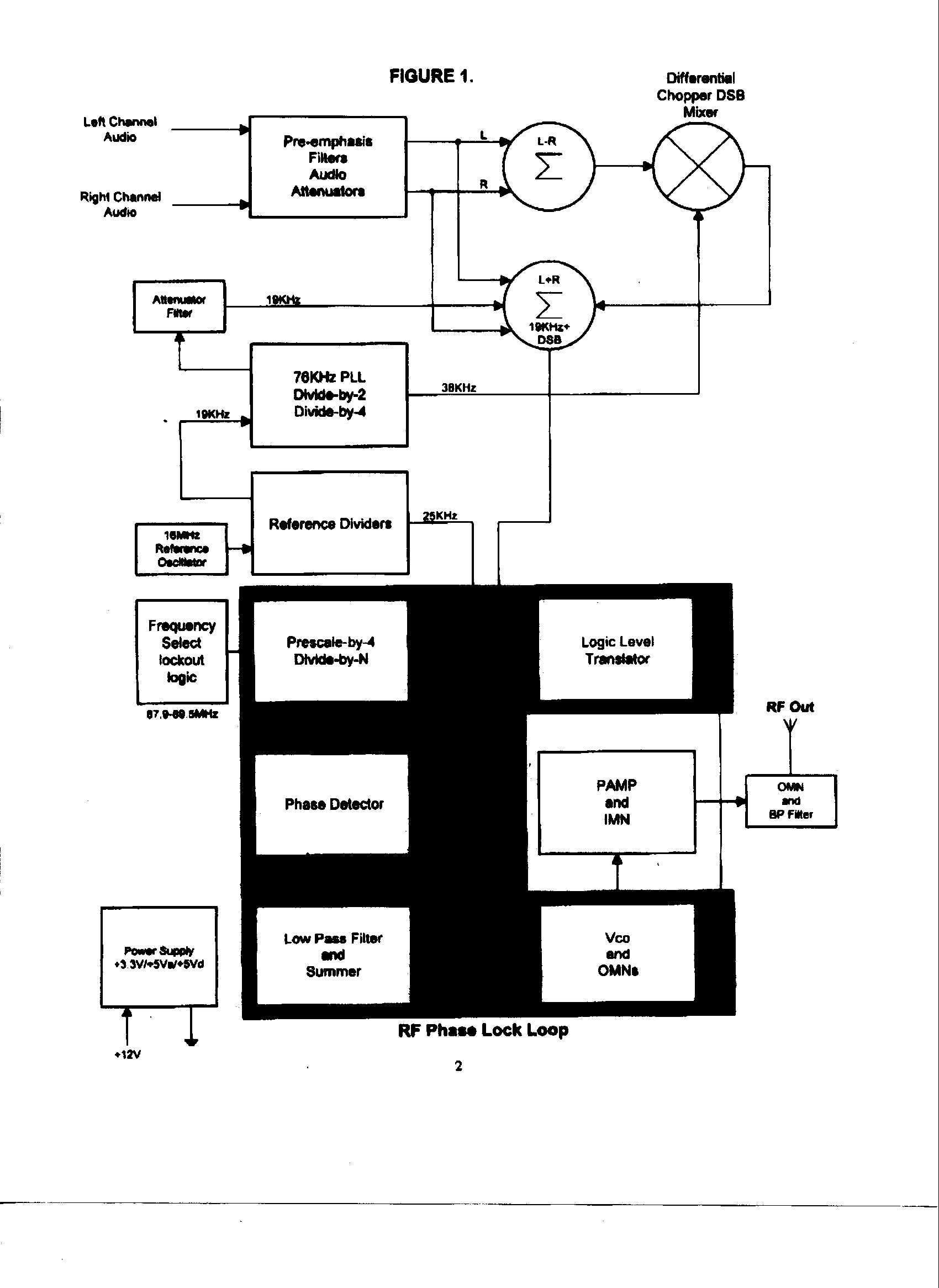

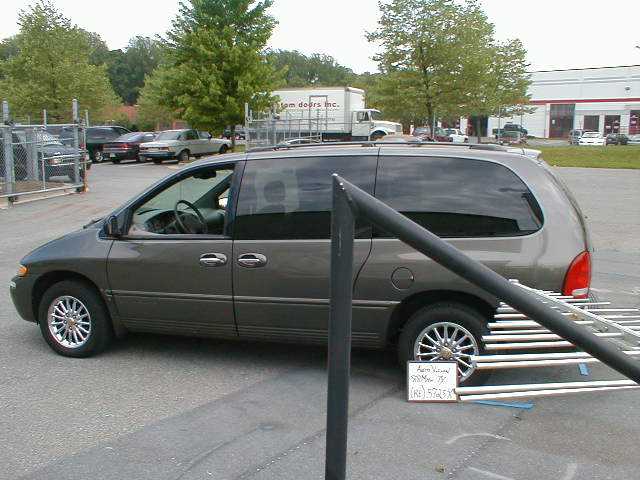

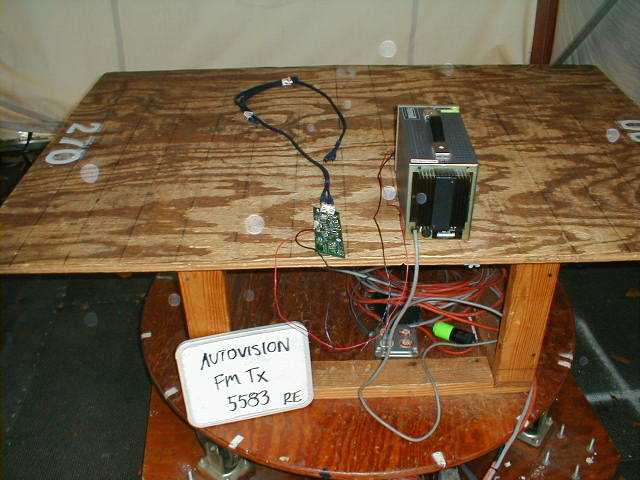

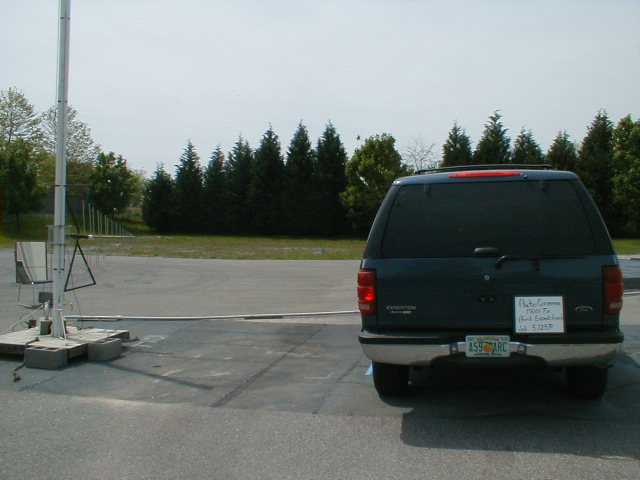

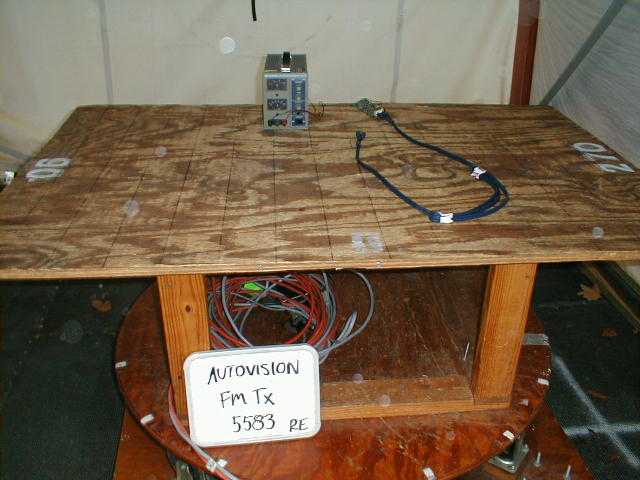

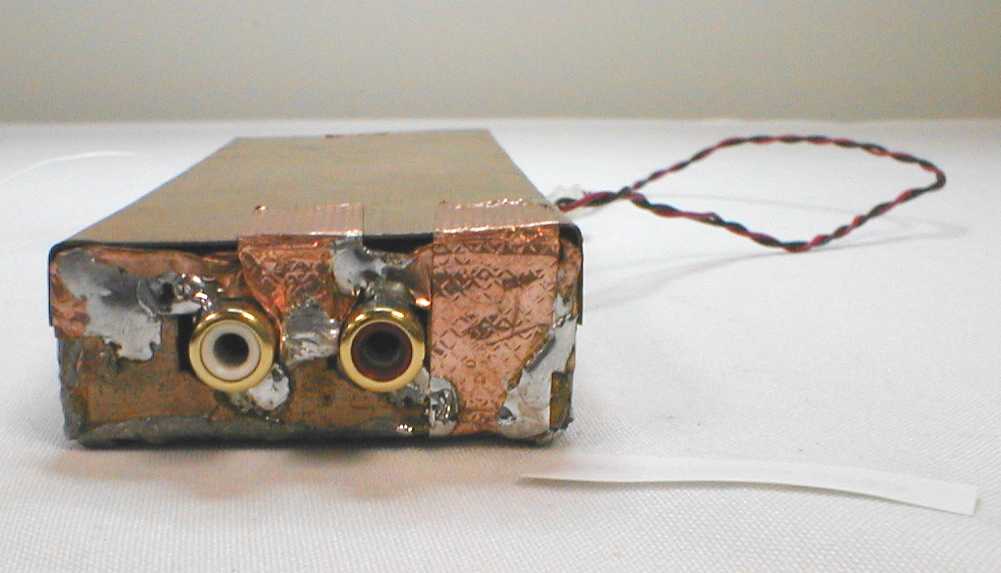

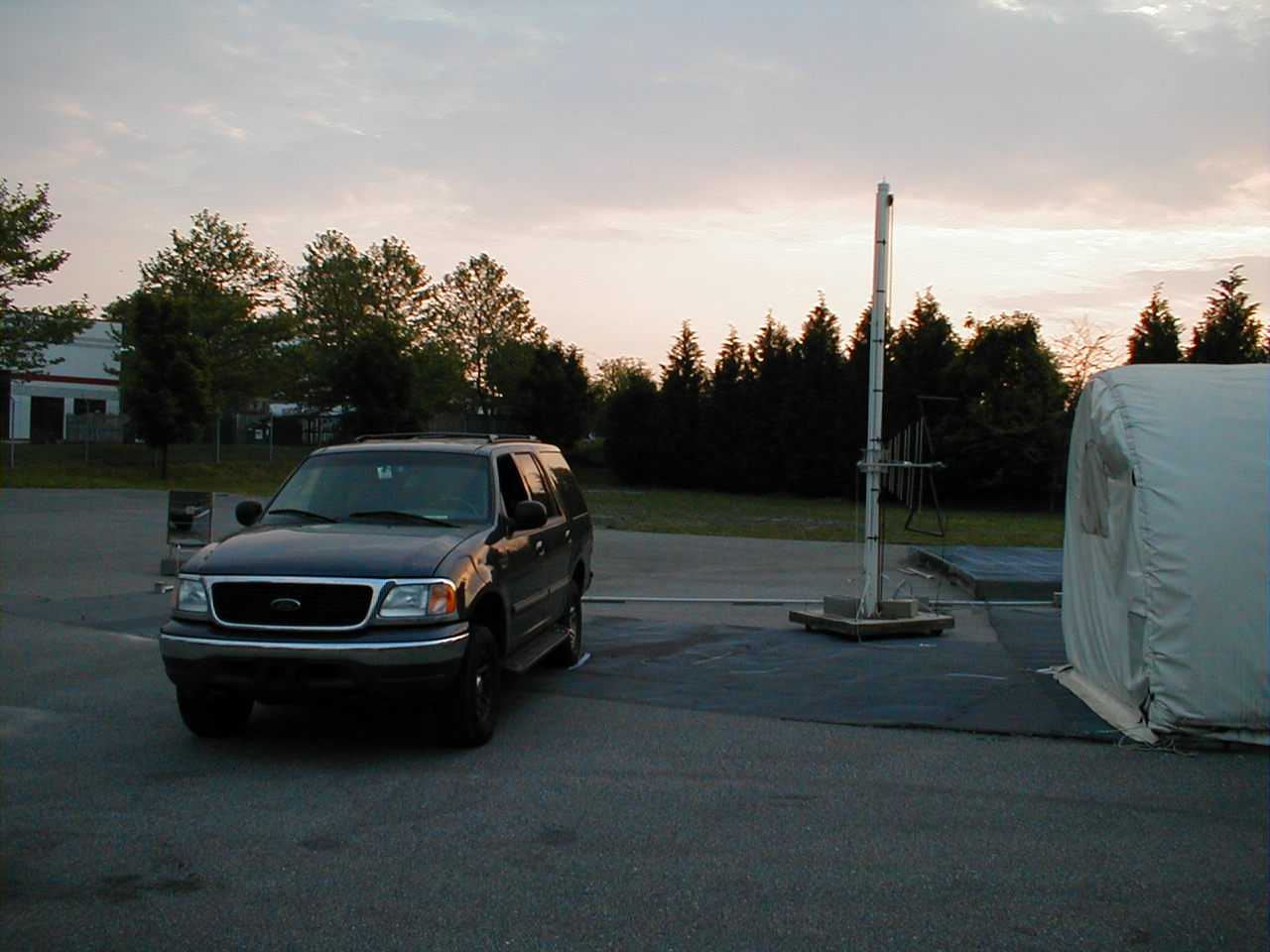

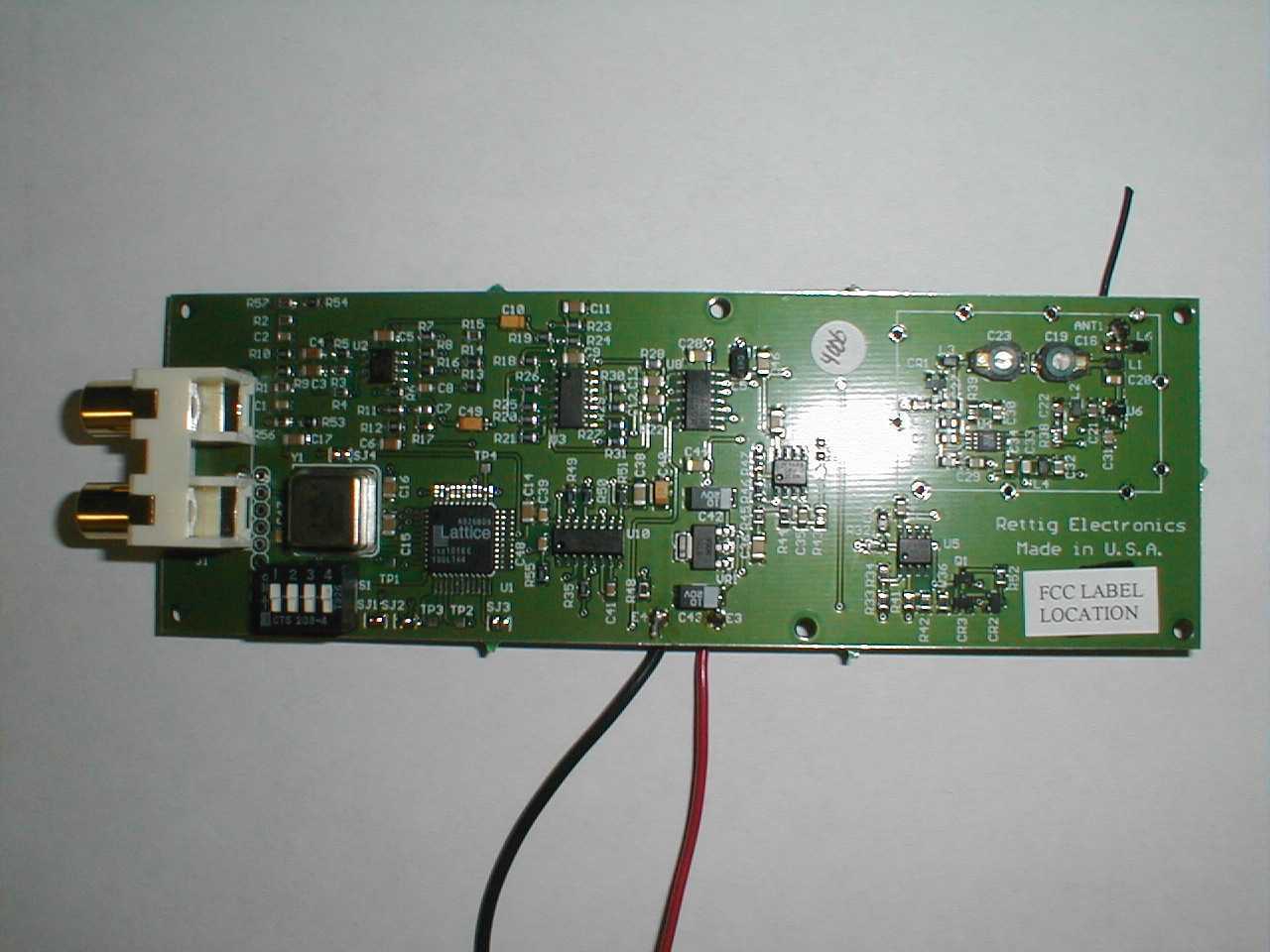

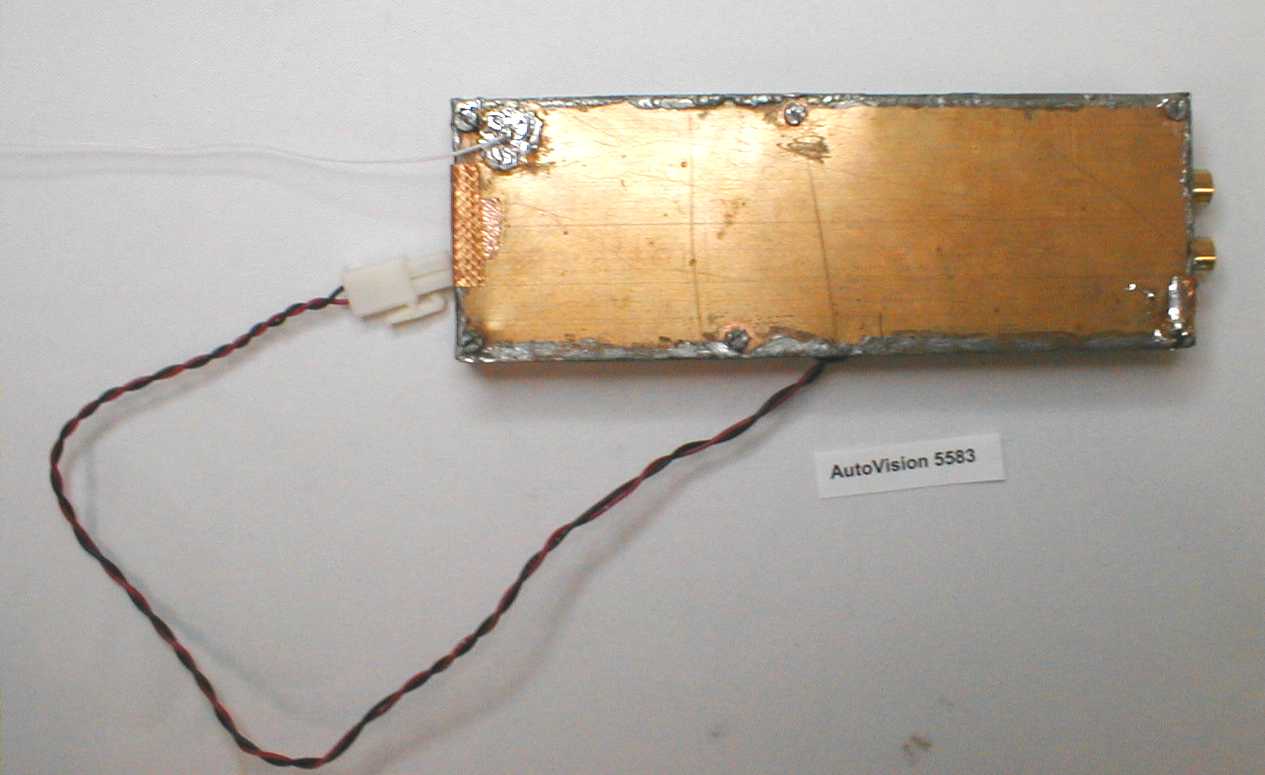

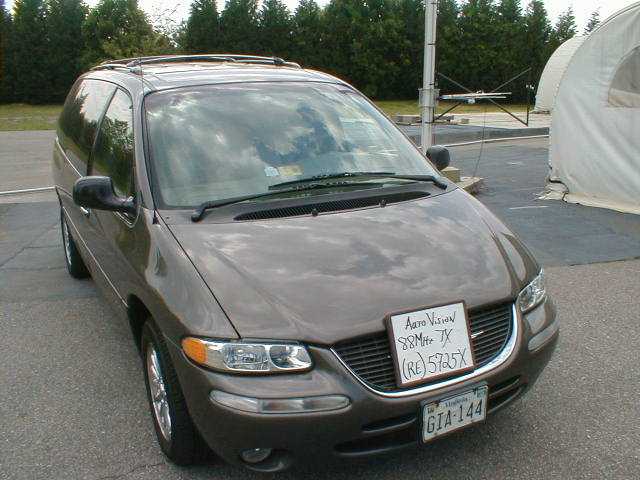

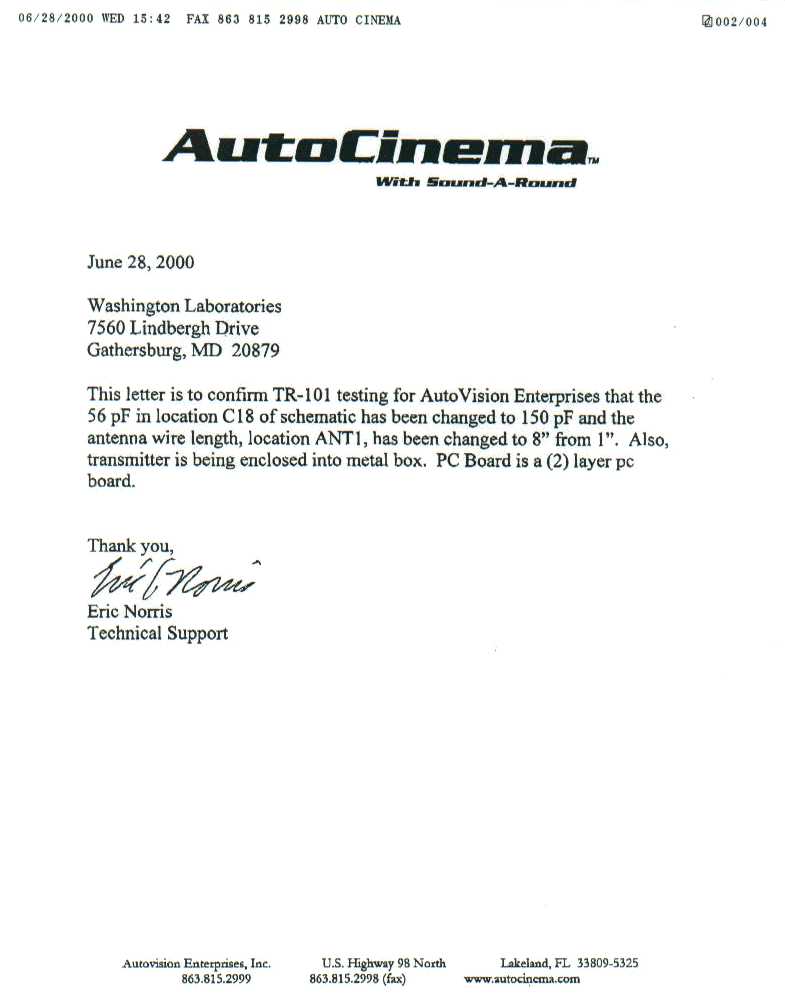

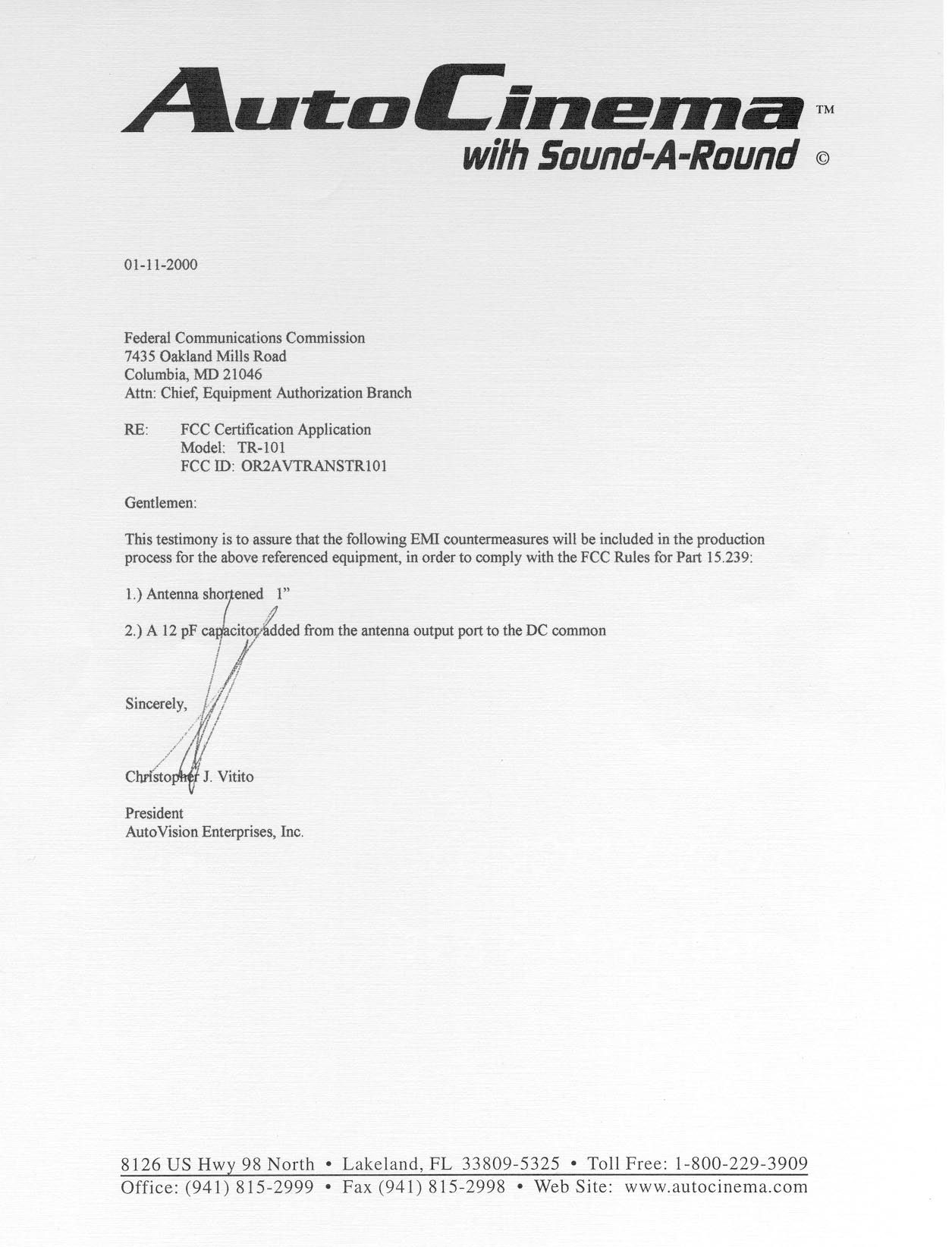

Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, MD 20879 (301) 417-0220(301) 417-9069 [email protected] D:\Ready_To_Convert\Doc\107141.DOC1 20 June 2000 Andy Leimer Federal Communicatio ns Co mmission 7425 Oakland Mills Road Columbia, MD 21046 RE: OR2AVTRANSTR101 EA96690 Dear Mr. Leimer, Enclosed is an amendment to the above-referenced application. In accordance with the understanding between the FCC, Autovision and Fish & Richardson (representing AutoVision), we have performed radiated emissions measurements of three different vehicles with the subject equipment installed. We have collected data at 22.5 o radials from the three vehicles used for the measurements. These data have been reduced from over 1000 data points to the data set presented in the test report attached hereto. The data show the emissions levels that are within 6 dB of the FCC limit. The frequency range of the transmitter is 88.1 to 89.5 MHz (fixed at the installation of the product in the vehicle), a 1.4 MHz span. Thus, the data presented here were collected for the highest and lowest frequencies in the band. Please review the enclosed report and accompanying photographs and let me know if you have any questions. Sincerely, Michael F. Violette MF V/j m

FCC CERTIFICATION TEST REPORT for AutoVision Enterprises, Inc. 8126 US Highway 98 N Lakeland, FL 33809 FCC ID: OR2AVTRANSTR101 February 2, 2000 WLL PROJECT #: 5583X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X TABLE OF CONTENTS Letter of Agency Statement of Qualifications ____________________________________________________ 1.0INTRODUCTION........................................................................................................................................... 3 1.1S UMMARY...................................................................................................................................................... 3 2.0DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ......................................................................... 3 2.1O N-BOARD OSCILLATORS.............................................................................................................................. 3 3.0TEST CONFIGURATION ............................................................................................................................. 4 3.1T ESTING ALGORITHM..................................................................................................................................... 4 3.2C ONDUCTED EMISSIONS TESTING.................................................................................................................. 4 3.3R ADIATED EMISSIONS TESTING...................................................................................................................... 4 3.3.1Radiated Data Reduction and Reporting............................................................................................... 5 FCC 15.239 3M Radiated Emissions Data – Site 2 .............................................................................................................6 TABLES Table 1.Radiated Emissions Results Table 2.System Under Test Table 3.Interface Cables Used Table 4.Measurement Equipment Used APPENDICES Appendix A.Statement of Measurement Uncertainty Appendix B.Modifications AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X FCC CERTIFICATION TEST REPORT for FCC ID: OR2AVTRANSTR101 1.0Introduction This report has been prepared on behalf of AutoVision Enterprises, Inc. to support the attached Application for Equipment Authorization. The test and application are submitted for an Intentional Radiator under Part 15.239 of the FCC Rules and Regulations. The Equipment Under Test was a FM Transmitter which operates from 87.9MHz to 89.5MHz. Refer to correspondence, submitted electronically as a Cover Letter Attachment, between Elite Electronic Engineering and the FCC allowing the use of the 87.9 MHz frequency. All measurements herein were performed according to the 1992 version of ANSI C63.4. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and field Strength Instrumentation. Calibration checks are made periodically to verify proper performance of the measuring instrumentation. All measurements are performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. All results reported herein relate only to the equipment tested. The measurement uncertainty of the data contained herein is ±2.3 dB. Refer to Appendix A for Statement of Measurement Uncertainty. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. 1.1Summary After the implementation of the modification listed in Appendix B, the AutoVision Enterprises, Inc. FM Transmitter complies with the limits for an Intentional Radiator under Part 15.239 of the FCC Rules and Regulations. 2.0Description of Equipment Under Test (EUT) The AutoVision Enterprises, Inc. transmitter (EUT) is an FM transmitter used for transmitting audio from a VCR/TV to a vehicle radio so that the audio may be heard over the automobile speakers. The unit transmits at 87.9MHz to 89.5MHz but is factory set to 87.9MHz. 2.1On-board Oscillators The AutoVision Enterprises, Inc. transmitter contains a 16MHz oscillator: AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X 3.0Test Configuration To complete the test configuration required by the FCC, the transmitter was tested in all three orthogonal planes. All testing was performed at 12VDC. I/O PortsI/O Cables Audio Input LShielded (braid), 2m, Audio In Left Audio Input RShielded (braid), 2m, Audio In Right 3.1Testing Algorithm The transmitter was turned on and constantly transmitting. The system was tested in all three orthogonal planes. The transmitter was tested at the lowest, middle and highest frequency of the selectable range. Worst case emissions are recorded in the data tables. 3.2Conducted Emissions Testing Conducted emissions testing was not performed as the unit is DC powered. 3.3Radiated Emissions Testing The EUT was placed on an 80 cm high 1 x 1.5 meters non-conductive motorized turntable for radiated testing on a 3 meter open field test site. The emissions from the EUT were measured continuously at every azimuth by rotating the turntable. Biconical and log periodic broadband antennas were mounted on an antenna mast to determine the height of maximum emissions. The height of the antenna was varied between 1 and 4 meters. The peripherals were placed on the table in accordance with ANSI C63.4-1992. Cables were varied in position to produce maximum emissi…

Text truncated - open the document above for the full version.

FCC CERTIFICATION TEST REPORT for AutoVision Enterprises, Inc. 8126 US Highway 98 N Lakeland, FL 33809 FCC ID: OR2AVTRANSTR101 June 20, 2000 WLL PROJECT #: 5583X This report may not be reproduced, except in full, without the prior written consent of Washington Laboratories, Ltd. AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X Amendment TABLE OF CONTENTS Letter of Agency Statement of Qualifications ____________________________________________________ 1.0INTRODUCTION.............................................................................................................................................................2 1.1SUMMARY........................................................................................................................................................................2 2.0DESCRIPTION OF EQUIPMENT UNDER TEST (EUT)....................................................................................2 2.1ON-BOARD OSCILLATORS.............................................................................................................................................2 3.0TEST CONFIGURATION..............................................................................................................................................3 3.1TESTING ALGORITHM...................................................................................................................................................3 3.2CONDUCTED EMISSIONS TESTING.............................................................................................................................3 3.3RADIATED EMISSIONS TESTING.................................................................................................................................3 3.3.1Radiated Data Reduction and Reporting..........................................................................................................3 FCC 15.239 3M Radiated Emissions Data – Site 2..........................................................................................................5 FCC 15.239 3M Radiated Emissions Data – Site 2..........................................................................................................7 FCC 15.239 3M Radiated Emissions Data – Site 2..........................................................................................................8 FCC 15.239 3M Radiated Emissions Data – Site 2..........................................................................................................9 FCC 15.239 3M Radiated Emissions Data – Site 2........................................................................................................10 TABLES Table 1.Radiated Emissions Results Table 2.System Under Test Table 3.Interface Cables Used Table 4.Measurement Equipment Used APPENDICES Appendix A.Statement of Measurement Uncertainty Appendix B.Modifications AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X Amendment AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X Amendment FCC CERTIFICATION TEST REPORT for FCC ID: OR2AVTRANSTR101 1.0Introduction This report has been prepared on behalf of AutoVision Enterprises, Inc. to amend a previously submitted Application for Equipment Authorization. The test and application are submitted for an Intentional Radiator under Part 15.239 of the FCC Rules and Regulations. The Equipment Under Test was a FM Transmitter which operates from 88.1 MHz to 89.5MHz, inclusive. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and field Strength Instrumentation. Calibration checks are made periodically to verify proper performance of the measuring instrumentation. All measurements are performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. All results reported herein relate only to the equipment tested. The measurement uncertainty of the data contained herein is ±2.3 dB. Refer to Appendix A for Statement of Measurement Uncertainty. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. 1.1Summary After the implementation of the modification listed in Appendix B, the AutoVision Enterprises, Inc. FM Transmitter complies with the limits for an Intentional Radiator under Part 15.239 of the FCC Rules and Regulations. 2.0Description of Equipment Under Test (EUT) The AutoVision Enterprises, Inc. transmitter (EUT) is an FM transmitter used for transmitting audio from a VCR/TV to a vehicle radio so that the audio may be heard over the automobile speakers. The unit transmits at the following frequencies programmed at the time of installation: • 100kHz increments from 88.1-89.6, inclusive 2.1On-board Oscillators The AutoVision Enterprises, Inc. transmitter contains a 16MHz oscillator: AutoVision Enterprises, Inc. FCC ID: OR2AVTRANSTR101 WLL Project #: 5583X Amendment 3.0Test Configuration Under agreement with the FCC, the EUT was tested in 3 different vehicles as listed below: 1. Ford Expedition SUV 2. Chevy Suburban Jumbo SUV with Sun/Moon Roof 3. Dodge Caravan Mini Van The EUT was installed in the normal fashion in the overhead compartment for each vehicle. The EUT was connected to a VCR system and powered from the 12V vehicle battery system. There are two connections for audio input on the EUT: I/O PortsI/O Cables Audio Input LRCA 2m, Audio In Left Audio Input RRCA 2m, Audio In Right 3.1Testing Algorithm Two frequencies were examined: 88.1 MHz and 89.5 MHz. Data for all positions, orientations and antenna polarizations were collected at a transmit frequency of 88.1 MHz. All frequencies at the worst-case azimu…

Text truncated - open the document above for the full version.
