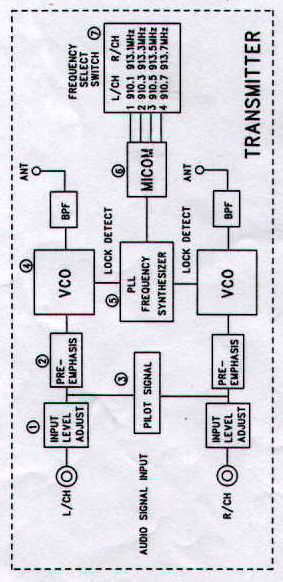

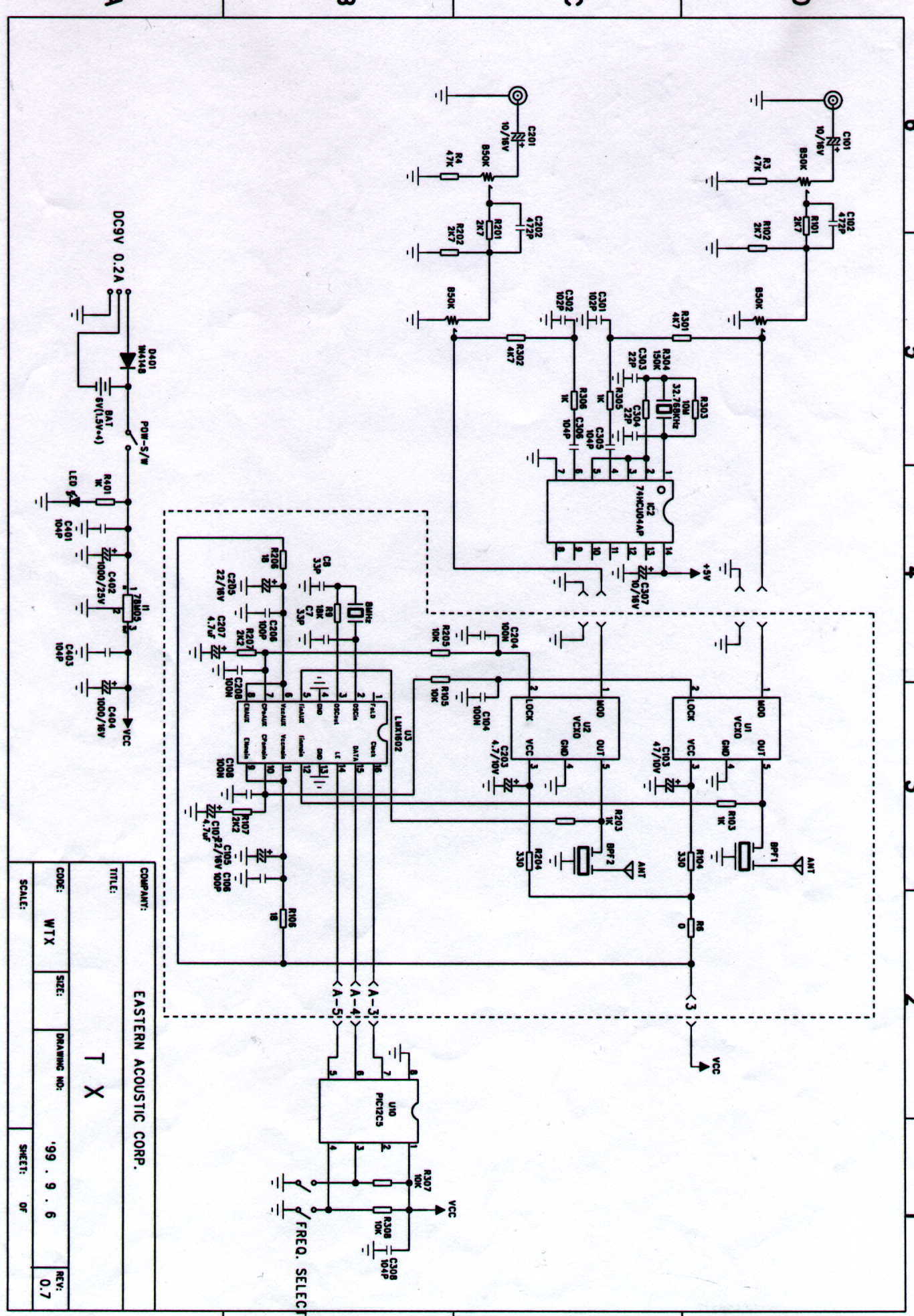

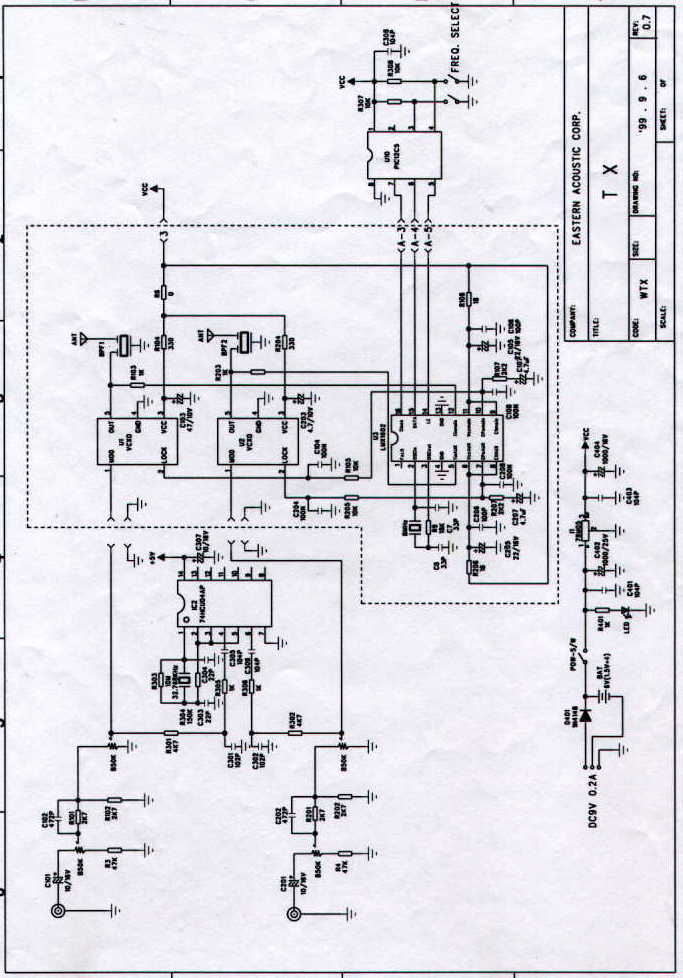

OSRESTAW5154TX900MHz WIRELESS SPEAKER SYSTEM

EASTERN ACOUSTIC CORP Model NO.: AW-5154 900MHz Wireless Speaker System Please read before using these speakers Introduction Your Eastern AW-5154 wireless speakers bring you the latest in RF technology. They operate using the 900 MHz band which can deliver high-quality stereo sound to almost anywhere in or around your home. The signals can easily travel through walls and floors, so you do not need to place the speakers in the same room as your receiver to hear your favorite programs. Two-Way Bass Reflex Speaker Design Provides excellent sound reproduction for even the most demanding audio sources. Bass Boost - Lets you add a deeper, richer bass sound. 10-watts Amplifier - gives you rich, full sound. THE FCC WANT YOU TO KNOW Your AW-5154 might cause TV or radio interference even when it is operating properly. To determine whether your AW-5154 is causing the interference, unplug your AW-5154 transmitter. If the interference goes away, your AW-5154 is causing the interference. Try to eliminate the interference by: - Moving your AW-5154 away from the receiver. - Connecting your AW-5154 to outlets that are on a different electrical circuit from the receiver. If you cannot eliminate the interference, the FCC requires that you stop using your AW-5154. Note: Your AW-5154 Wireless Speaker are subject to interference from other systems such as wireless headphones, corollas phone or other wireless speakers that operate on the same frequencies. If you experience interference, try moving the AW-5154 away from the other device. PREPARATION Installing the transmitter You need to properly install he transmitter to fully enjoy the benefited of your AW-5154. Connecting to your Audio Source You can connect the transmitter either to phone jacks or the headphone jack on your audio source. Caution: Do not connect the transmitter to the audio source's speaker output doing so damages the transmitter. Flow these seps to connect to phone jack. 1. Connect the end of the supplied patch cord to the transmitter's left and right audio jack. 2. Connect the other end of the patch cord to the audio source's left and right audio jacks. Follow these steps to connect to a headphone jack. 1. Connect the supplied Y-cables supplied (EATSERN do not supply Y-cable.) red connector to he transmitter's right audio jack and the black connector to the left audio jack. 2. Plug the other end of the Y-cable into the stereo's headphone. Note: If the Y-cable is too small for the headphone jack, use the supplied 1/8 to 1/4 inch adapter. Connecting to power Plug the supplied AC adapter's barrel plug into the transmitter’s DC 9 Volt jack. Then plug the adapter into a send AC outlet. INSTALLING THE SPEAKERS Select locations for the speakers that are near AC outlets. Then follow these steps for each speaker. 1. Turn off the speaker's power switch and rotate VOLUME fully counter clockwise. 2. Plug the supplied AC adapter's barrel plug into the speaker's DC 12Volt 1.6AMP jack. 3. Plug the AC adapter into a standard AC outlet. OPERATION Follow these steps to use your AW-5154. 1. Turn on your audio source. 2. Adjust the transmitter's VOL control. 3. Set each speaker's POWER ON/OFF switch to ON. 4. Set each speaker's channel switch as follows: L- For the left stereo speaker R- For the right stereo speaker. 5. Rotate VOLUME on each speaker until you hear either he program source or hissing. 6. Select the CH selector of transmitter's and speaker. (You can select channel of 4ea. The set is set by CH 1 when ship out.). 7. Set each speaker's volume to a comfortable and balanced listening level. 8. According to your taste can choose bass boost function of each speaker. Be sure to turn off the speakers when you are not using them. SPECIFICATIONS System Carrier Frequency: 912.1 ~ 913.7MHz Modulation Frequency: FM Frequency Response (RF): 20Hz ~ 20KHz Operating Range: 150 Feet (At open field) Transmitter Oscillation: PLL (Phase locking loop) OSC Antenna: Built-in antenna Power Supply: DC 9Volt 0.2A Adapter Functions: DC input jack, Power Indicator (LED) Stereo input RCA, Channel selector CH~H4 (Slide) Volume (Rotary) Power Switch (seesaw) Cabinet material: HIPS 94 HB Dimensions (WHD): 66 x 139 x 136mm Receiver (2ea) Oscillation: Built-in antenna Power supply: AC/DC Adapter Output Power: 10watts at THD 10% S/N rate: More than 40dB Speaker: Woofer 5 inch cone round type Tweeter 2 inch cone round type Grill: Jersey cloth Functions: Power indicator (LED), Power Switch (Seesaw) Volume (Rotary) DC-in jack, Mode Stereo/mono (Slide), Frequency selector CH1 ~ CH4 (Dip Switch) Bass Control (Rotary) Cabinet material: HIPS94 HB Dimension (WHD): 150 x 245 x 160mm Accessories AC-DC Adapter x 2ea (For RX) AC-DC Adapter x 1ea (For TX) 3.5mm ST-RCA ST cable x 1ea RCA ST-RCA ST CABLE x 1ea 6.5mm Male 3.5mm Female ST plug x 1ea Master Carton size (WHD): 450 x 400 x 390(2sets)

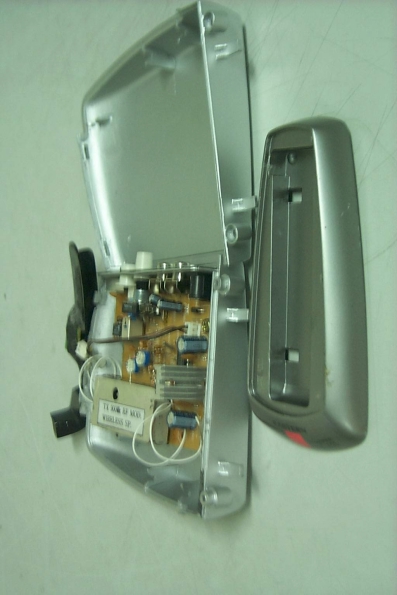

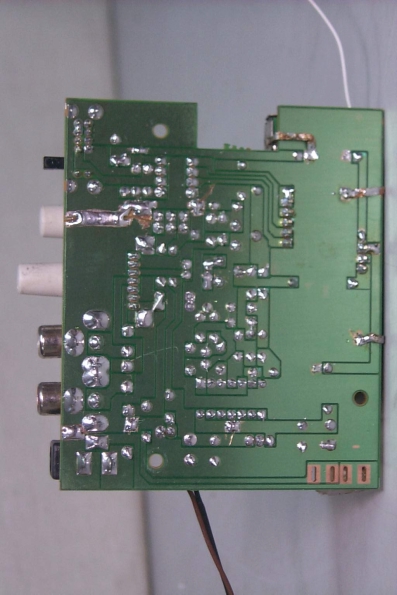

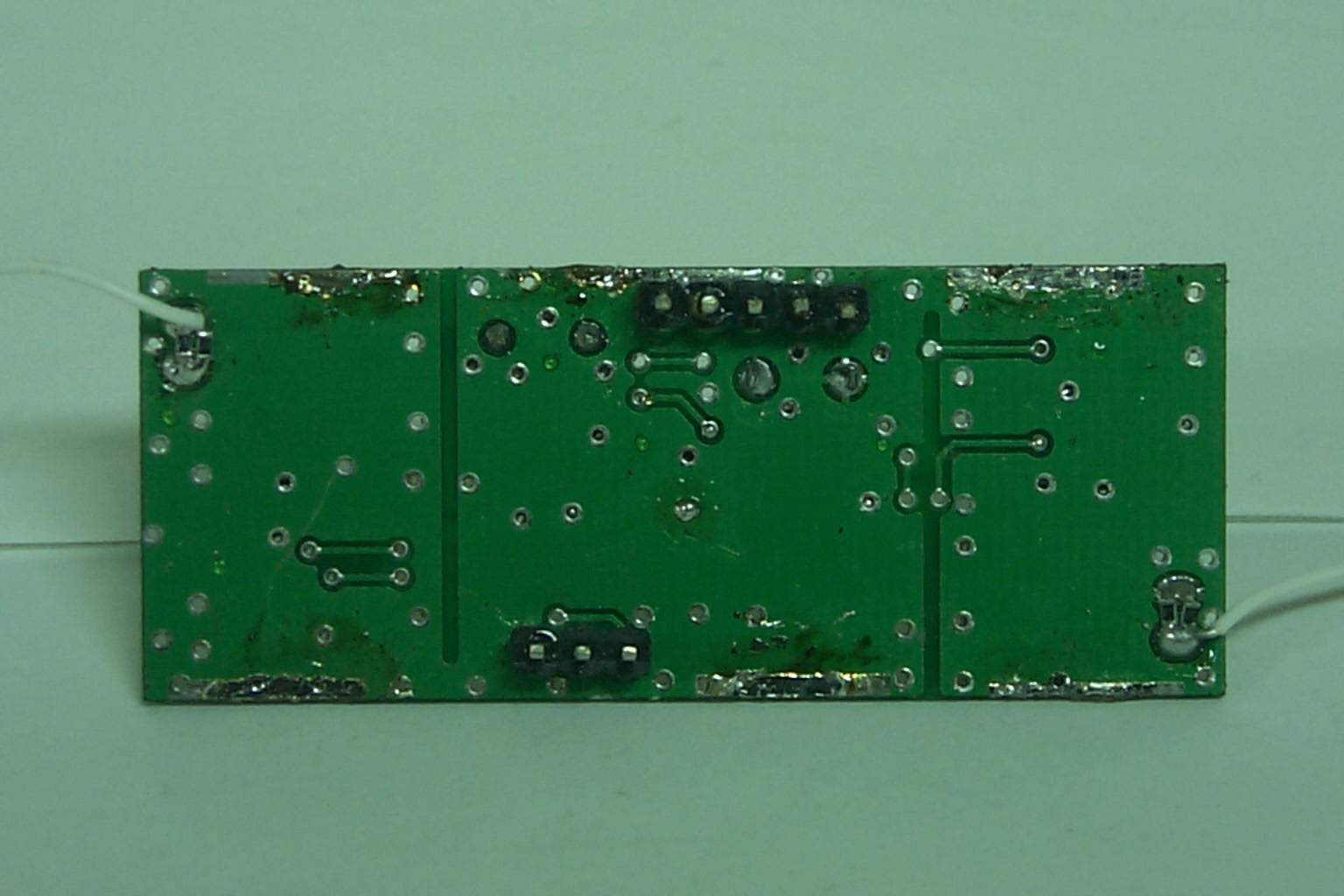

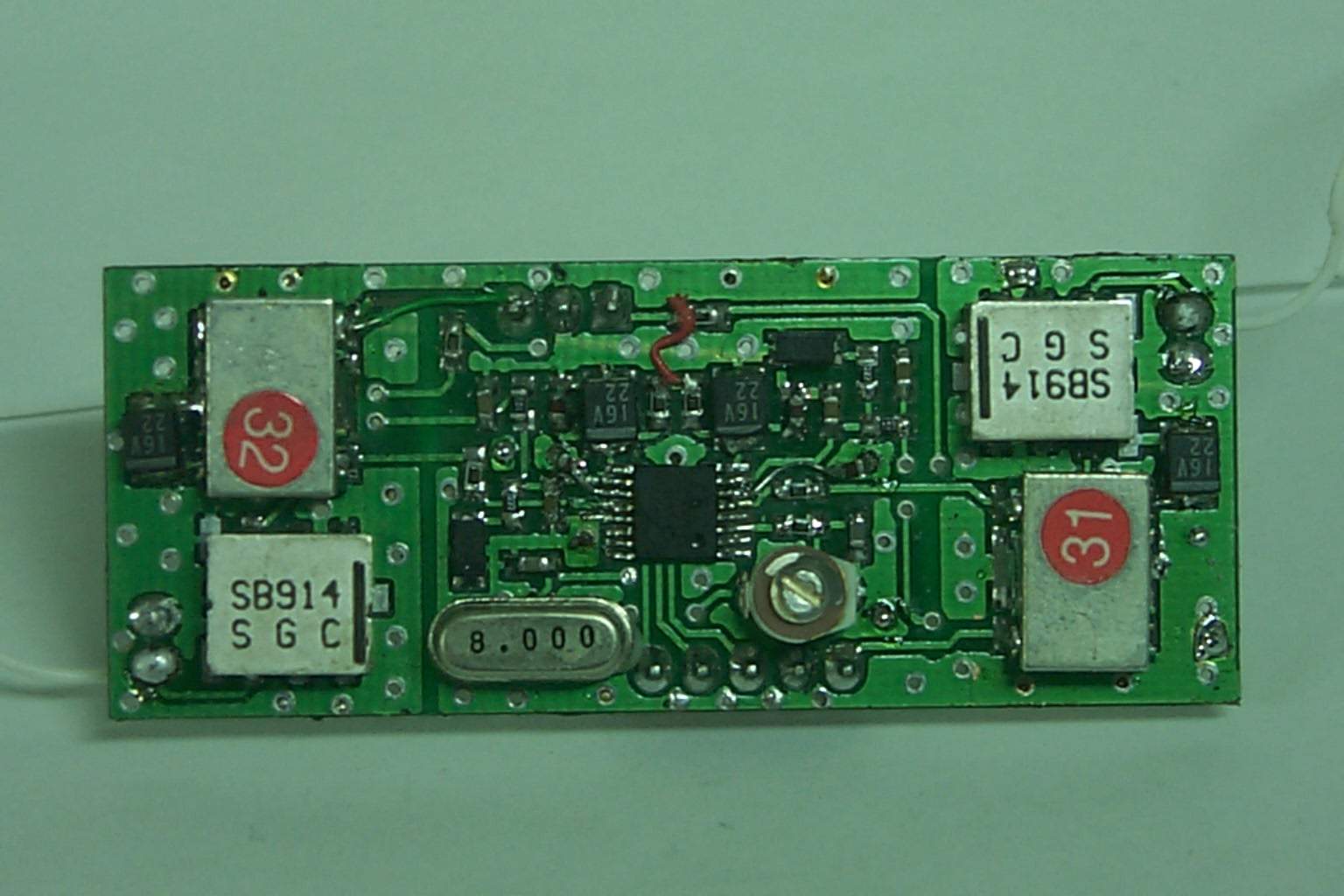

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ONETECH PHOTO REPORT PRODUCT900 MHz WIRELESS SPEAKER SYSTEM FCC IDOSRESTAW5154TX MODEL NO.AW-5154SERIAL NO.N/A APPLICANT & ADDRESS EASTERN ACOUSTIC CORPORATION 5F, OLYMPIA BLDG, 196, JAMSHIL BON-DONG, SONGPA- KU, SEOUL, KOREA REPORT NO.E99NR-024ISSUE DATENovember 16, 1999 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, JUNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) LOW POWER COMMUNICATIONS DEVICE TRANSMITTER CERTIFICATION TO FCC PART 15 REQUIREMENT

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom of product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OSRESTAW-5154TX

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom of product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OSRESTAW5154TX

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ONETECH IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom of product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OSRESTAW5154TX

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCT900 MHz WIRELESS SPEAKER SYSTEM FCC IDOSRESTAW5154TX MODEL NO.AW-5154SERIAL NO.N/A APPLICANT & ADDRESS EASTERN ACOUSTIC CORPORATION 5F, OLYMPIA BLDG, 196, JAMSHIL BON-DONG, SONGPA- KU, SEOUL, KOREA REPORT NO.E99NR-024ISSUE DATENovember 16, 1999 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, JUNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) LOW POWER COMMUNICATIONS DEVICE TRANSMITTER CERTIFICATION TO FCC PART 15 REQUIREMENT REPORT NO.: E99NR-024FCC ID: OSRESTAW5154TX DATE: November 16, 1999 TABLE OF CONTENTS Page 1. VERIFICATION OF COMPLIANCE........................................................................................................................1 2. GENERAL INFORMATION ......................................................................................................................................2 2.1 P RODUCT DESCRIPTION............................................................................................................................................2 2.2 R ELATED SUBMITTAL(S) / GRANT(S) ........................................................................................................................2 2.3 T EST SYSTEM DETAILS.............................................................................................................................................2 2.4 T EST METHODOLOGY................................................................................................................................................2 2.5 T EST FACILITY..........................................................................................................................................................2 3. SYSTEM TEST CONFIGURATION .........................................................................................................................3 3.1 J USTIFICATION..........................................................................................................................................................3 3.2 E QUIPMENT MODIFICATIONS....................................................................................................................................3 3.3 M ODE OF OPERATION DURING THE TEST....................................................................................................................3 3.4 C ONFIGURATION OF TEST SYSTEM............................................................................................................................3 4. PRELIMINARY TESTS ..............................................................................................................................................4 4.1 AC P OWER LINE CONDUCTED EMISSIONS TESTS......................................................................................................4 4.2 R ADIATED EMISSIONS TESTS....................................................................................................................................4 5. CONDUCTED AND RADIATED MEASUREMENT PHOTOS .............................................................................5 6. FINAL RESULT OF MEASUREMENT ....................................................................................................................7 6.1 C ONDUCTED EMISSIONS TESTS.................................................................................................................................7 6.2 F IELD STRENGTH OF THE CARRIER TEST...................................................................................................................9 6.3 H ARMONICS EMISSION TEST...................................................................................................................................10 6.4 S PURIOUS EMISSION TEST.......................................................................................................................................11 7. FIELD STRENGTH CALCULATION.....................................................................................................................12 8. LIST OF TEST EQUIPMENT ..................................................................................................................................13 REPORT NO.: E99NR-024FCC ID: OSRESTAW5154TX DATE: November 16, 1999 - 1 - 1. VERIFICATION OF COMPLIANCE APPLICANT: EASTERN ACOUSTIC CORPORATION ADDRESS: 5F, OLYMPIA BLDG, 196, JAMSHIL BON-DONG, SONGPA-KU, SEOUL, KOREA CONTACT PERSON : Y. R. SONG / MANAGER TELEPHONE NO: 82-2-424-0541(EXT. 430) FCC ID : OSRESTAW5154TXMODEL NO/NAME: AW-5154 SERIAL NUMBER: N/A DATE: November 16, 1999 DEVICE TYPEINTENTIONAL RADIATOR: LOW POWER COMMUNICATIONS DEVICE TRANSMITTER E.U.T. DESCRIPTION900MHz WIRELESS SPEAKER SYSTEM THIS REPORT CONCERNSORIGINAL GRANT MEASUREMENT PROCEDURESANSI C63.4/1992 TYPE OF EQUIPMENT TESTEDPRE-PRODUCTION KIND OF EQUIPMENT AUTHORIZATION REQUESTED CERTIFICATION EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) PART 15 SUBPART C §15.249 MODIFICATIONS ON THE EQUIPMENT TO ACHIEVE COMPLIANCE NO FINAL TESTS WERE CONDUCTED ON3 METER OPEN TEST SITE The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. REPORT NO.: E99NR-024FCC ID: OSRESTAW5154TX DATE: November 16, 1999 - 2 - 2. GENERAL INFORMATION 2.1 Product Description The EASTERN ACOUSTIC CORPORATION, LTD., Model AW-5154 (referred to as the EUT in this report) is a 900 MHz wireless speaker system whitch can deliver high-quality stereo sound to almost anywhere in or around home. The product specification information described herein …
