OST-LUGLOC1018LUGGAGE LOCATOR

To comply with FCC RF exposure compliance requirements, this grant is applica ble to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. To comply with FCC RF exposure compliance requirements, this grant is applica ble to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. P/N : Luggage locator M/N: Lugloc 002 Voltage: 3.7V Modulation Type:GSM BAND Central Frequency: 850MHZ, 1900MHZ Rated current:2.5mA P/N : Luggage locator M/N: Lugloc 002 Voltage: 3.7V Modulation Type:GSM BAND Central Frequency: 850MHZ, 1900MHZ Rated current:2.5mA

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Bag Tracking Systems SA. Add: Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 2012-09-25 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: OST-LUGLOC1018 Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Bag Tracking Systems SA. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: LUGGAGE LOCATOR, Model no.: LUGLOC 002 ，LUGLOC 003， LUGLOC 004，LUGLOC 005，LUGLOC 006，LUGLOC 007，LUGLOC 008， LUGLOC 009， LUGLOC 010. We affirm that between SIEMIC and Bag Tracking Systems SA., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s name / title : Shlomo Shur / Sales Contact information / address : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 E-Mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Bag Tracking Systems SA. Add: Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 2012-09-25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID:OST-LUGLOC1018 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM List - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Shlomo Shur / Sales Contact information / address : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 E-Mail: [email protected]

Bag Tracking Systems SA. Add: Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 Date: 2012-09-25 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: OST-LUGLOC1018 Dear Sir/Madam, We, Bag Tracking Systems SA. Hereby declares the following statement for SIEMIC, INC, PCB board, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: LUGGAGE LOCATOR, Model no.: LUGLOC 002 ，LUGLOC 003，LUGLOC 004 ，LUGLOC 005，LUGLOC 006，LUGLOC 007，LUGLOC 008，LUGLOC 009， LUGLOC 010. Sincerely, Client’s name / title : Shlomo Shur / Sales Contact information / address : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo Uruguay Phone: +598 2518 2478 Fax: +1-615-413-0006 E-Mail: [email protected]

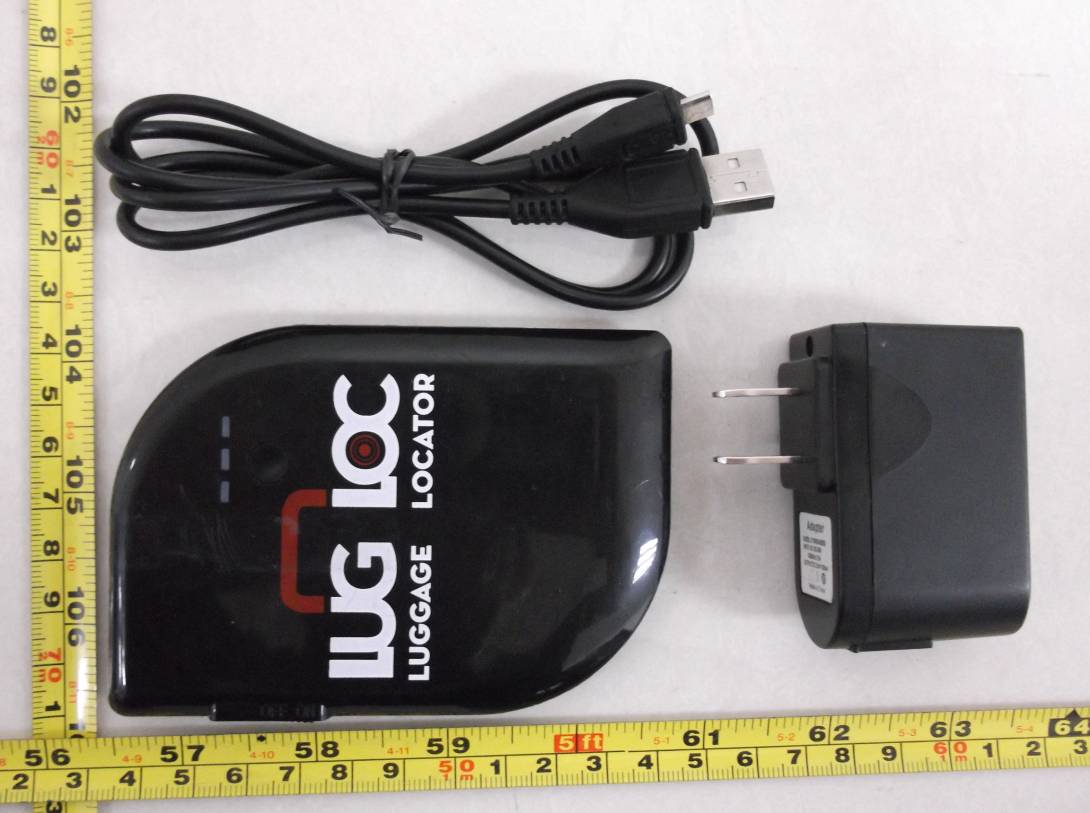

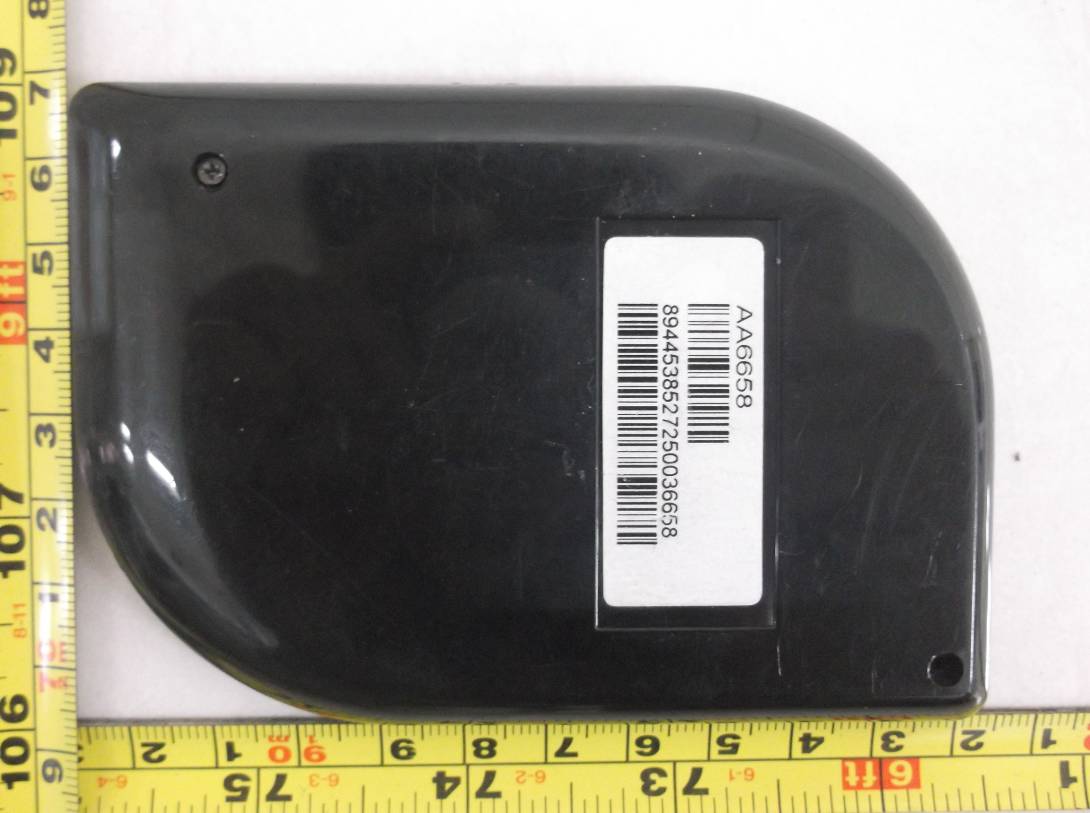

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTRIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 5.6. RF Exposure 5.6.1. Limit According to §1.1310 and §2.1091 RF exposure is calculated. F = frequency in MHz * = Plane-wave equivalent power density 5.6.2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna GPRS 850 Max Peak output Power at antenna input terminal 31.97 dBm Max Peak output Power at antenna input terminal 1574 mW Prediction distance 20 cm Prediction frequency 848.80 MHz Antenna Gain(typical) 1.000 dBi Antenna Gain(numeric) 1.259 Power density at prediction frequency( S) 0.394 mW/cm2 MPE limit for uncontrolled exposure at prediction frequency 0.566 mW/cm2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 GPRS 1900 Max Peak output Power at antenna input terminal 29.19 dBm Max Peak output Power at antenna input terminal 829.9 mW Prediction distance 20 cm Prediction frequency 1880.0 MHz Antenna Gain(typical) 1.000 dBi Antenna Gain(numeric) 1.259 Power density at prediction frequency( S) 0.2080 mW/cm2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm2 5.6.3 Test Results The power density level at 20 cm is 0.394 mW/cm²(GPRS 850), 0.2080 mW/cm²(GPRS 1900), which is below the uncontrolled exposure limit for Cellular & PCS band. Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, it must also have a minimum distance of 20 cm from the body during normal operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 36 RADIO TEST REPORT For Bag Tracking Systems SA. LUGGAGE LOCATOR Model No.: LUGLOC 002 Prepared for : Bag Tracking Systems SA. Address : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo, Uruguay Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 05, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : July 05, 2012 – September 10, 2012 Date of Report : September 10, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 36 RADIO TEST REPORT FCC CFR 47 PART 22 SUBPART H FCC CFR 47 PART 24 SUBPART E Report Reference No. .............. : LCS120705043TF Date of Issue ................................ : September 10, 2012 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Bag Tracking Systems SA. Address ........................................ : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo, Uruguay Test Specification Standard ....................................... : FCC CFR 47 PART 22 SUBPART H FCC CFR 47 PART 24 SUBPART E Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : LUGGAGE LOCATOR Trade Mark : Manufacturer................................ : Huizhou Light Of Science Technology Co., Ltd Model/ Type reference................. : LUGLOC 002 Ratings ......................................... : DC 3.7V, Rated current: 2.5mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang / File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 36 RADIO -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120705043TF September 10, 2012 Date of issue Type / Model........................... : LUGGAGE LOCATOR EUT......................................... : LUGLOC 002 Applicant............................... : Bag Tracking Systems SA. Address.................................. : Ruta 8 KM 17,500 Zonamerica Local 003-010 Edificio Synergia CP91600 Montevideo, Uruguay Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Huizhou Light Of Science Technology Co.,Ltd Address................................... : 3/F., Hongye Building, 2 Yunshan Garden Road, Jiangbei, Huizhou City, Guangdong, China. Telephone............................... : / Fax.......................................... : / Factory................................... : Huizhou Light Of Science Technology Co.,Ltd Address................................... : 3/F., Hongye Building, 2 Yunshan Garden Road, Jiangbei, Huizhou City, Guangdong, China. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ...........................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS............................................................................................. 5 1.3. EXTERNAL I/O CABLE.......................................................................................................................................... 5 1.4. POWER SUPPLY AND LINE FILTERS....................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY........................................................................................................................... 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY...............…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:OST-LUGLOC1018 Report No.: LCS120705043TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Conducted Emission Measurement
