OSY-WSTWireless dongle

WS10i Features: + All-in-one powered speaker with wireless receiver built in + Range up to 25 meters + No interference or delays + Use with any source with Line out + Frequency Range: 50Hz-22KHz Specifications: Active Loudspeaker Specifications Powered Wireless loudspeaker system Texas Instruments DSP & Class D amplification Wireless Solution – STS technology (SMSC) Rear firing reflex port HF unit (x2) 2” full range driver, paper cone with titanium dust-cap. High efficiency, low distortion NdFEB Motor 12W@THD 1% for each channel. LF unit (x1) 4.5” woofer, paper cone, dual voice coil. 18W*2@THD1%. Frequency range: 50~22k Hz (-3dB) Crossover frequency: 250 Hz Dimensions: W320*H200*D113.50 (W/O GRILLE) Page | 2 What's in the box? 1 x Active loudspeaker 1 x Power cords/Power Supply 1 x Desk Stand 1 x Remote control 1 x Line out cable- (RCA – mini jack) 1 x 3.5mm Mini Jack cable (3.5mm mini jack – 3.5mm mini jack) The loudspeaker is covered with a soft faux leather material. Please take care when unpacking the loudspeaker to avoid scratching or indenting the material. Before installing this product please read all of the instructions. The amplifier inside the loudspeaker have built in thermal and short circuit protection.If an amplifier is driven beyond its power output capabilities it will produce distorted sound which may damage your loudspeakers. Make sure you do not leave your loudspeaker unattended when playing and reduce the volume at the first sign of audible distortion.We recommend that you keep all packing until you are completely satisfied with your purchase.Please register your product by completing the form at the back of this manual or by registering on line at www.blueaura.co.uk/register.If your product was purchased outside the UK please return this card to your local distributor. Page | 3 Getting Started Place the speaker in your preferred position but within reach of a wall socket. With the mains socket in the OFF position, connect the a/c lead to the speaker using only the supplied mains leads and power supply. Turn the mains socket ON. Your WS10 i has been supplied with two cables to enable connection to your source devices. Devices with 3.5mm headphone out socket (e.g. Mp3 player) 3.5 - 3.5 cable Connect one end of the 3.5mm to 3.5mm cable to your device with headphone out and the other end to the Line In on the rear of the WS10i loudspeaker. Devices with RCA sockets (e.g. CD player) 3.5 to RCA cable Connect the 3.5mm jack to Line In on the rear of the loudspeaker and the RCA (red/white) plugs to the source device. Once a connection is made to Line In, music can be played through the WS10i Where the (optional) WST transmitter is used, ensure Line In on the rear of the loudspeaker is not connected. Page | 4 When using optional transmitter (WST) Wireless Mode When the transmitter is connected to a source device the LED will flash intermittently When the speaker is connected to mains power the LED on the front of the speaker will light up for 3 seconds then power off. Using the remote control, aim at the speaker and press the Power On button. The speaker will automatically start searching through the channels If a transmitter is connected to a source device that is operational the speaker will lock on, which is confirmed when the speaker LED and transmitter LED are the same colour. Once set, the volume may need to be increased with the remote control If the speaker does not find a channel (no working transmitter) the speaker will power off. In some cases you may need to find a zone by pressing the Station button on the rear of the speaker.By pressing the button briefly, the LED colour on the front of the speaker changes, press the button until it matches the LED colour on the transmitter. The speaker can be put in standby mode by pressing the RED power button on the remote control. This will turn off the LED completely. To bring the speaker out of standby press the RED power button again and the volume will return to the last setting used. If the speaker is to be left unattended for prolonged periods remove the plug from the back of the speaker. If no signal is being received from a transmitter the speaker will go into search mode. If no signal is found after ten minutes the speaker will power off. If a signal is found within that time it will lock on automatically.The speaker can be reset to default setting at any time by powering on then holding the YELLOW mute button for more than 5 seconds, the LED will flash intermittently then power off. When powering on the system it will be in the default setting. Page | 5 To use your speakers with a PC or MAC MAC set-up 1.Insert the USB connector from the transmitter to a free USB socket on your MAC. 2.Go to System Preferences and under Hardware choose Sound. 3.Click Output in Menu and choose USB headset. PC set-up 1.Insert the USB connector from the transmitter to a free USB socket on your PC or laptop. 2.Wait until the software has been installed, usually a confirmation beep or message window alert. If the above instructions do not work you may need to do the following. Click Start button on PC, go to the Control Panel, and choose Sound & Sound Devices Under Playback of Audio; Default unit choose USB headset. If you are still having problems please contact [email protected]. To use your speaker with other devices (RCA connection) The transmitter needs to be powered; by using the USB connector on a PC for example, power is provided. To use the transmitter with equipment that does not have a USB socket the mains adapter is required. Connect the USB connector from the transmitter to the USB socket on the supplied mains adapter. Using the “line out” cable provided, plug the red and white plugs (RCA) into your device with line out, e.g. CD player or TV, connect the other end of the cable (mini jack) to the transmitter. Plug the adapter into to a convenient wall socket and turn on. Push the button in the centre of the transmitter to…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: OSY-WST Date: 2012/07/27 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1207072. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Nick Holland / Director Matrix Sound Limited/ 95 High Street Hail Weston St Neots Cambridgeshire PE19 5JS, Cambridgeshire, United States

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Matrix Sound Limited 2012/07/26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Matrix Sound Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: Wireless dongle Model No.: TX FCC ID: OSY-WST We affirm that between SIEMIC and Matrix Sound Limited, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Nick Holland/ Director Matrix Sound Limited / 95 High Street Hail Weston St Neots Cambridgeshire PE19 5JS

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Matrix Sound Limited 2012/07/26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OSY-WST We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Nick Holland/ Director Matrix Sound Limited

Matrix Sound Limited Declaration of Authorization We Name: Matrix Sound Limited Address: 95 High Street Hail Weston St Neots Cambridgeshire PE19 5JS City: Cambridgeshire Country: United Kingdom Declare that: Name Representative of agent: Miro Chueh Agent Company name: Cerpass Technology (Suzhou) Co.,Ltd Address: No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Sound IC ID: 10515A-WST FCC ID: OSY-WST on our behalf. Date: 2012/07/26 City: Cambridgeshire Name: Nick Holland Function: Director Signature:

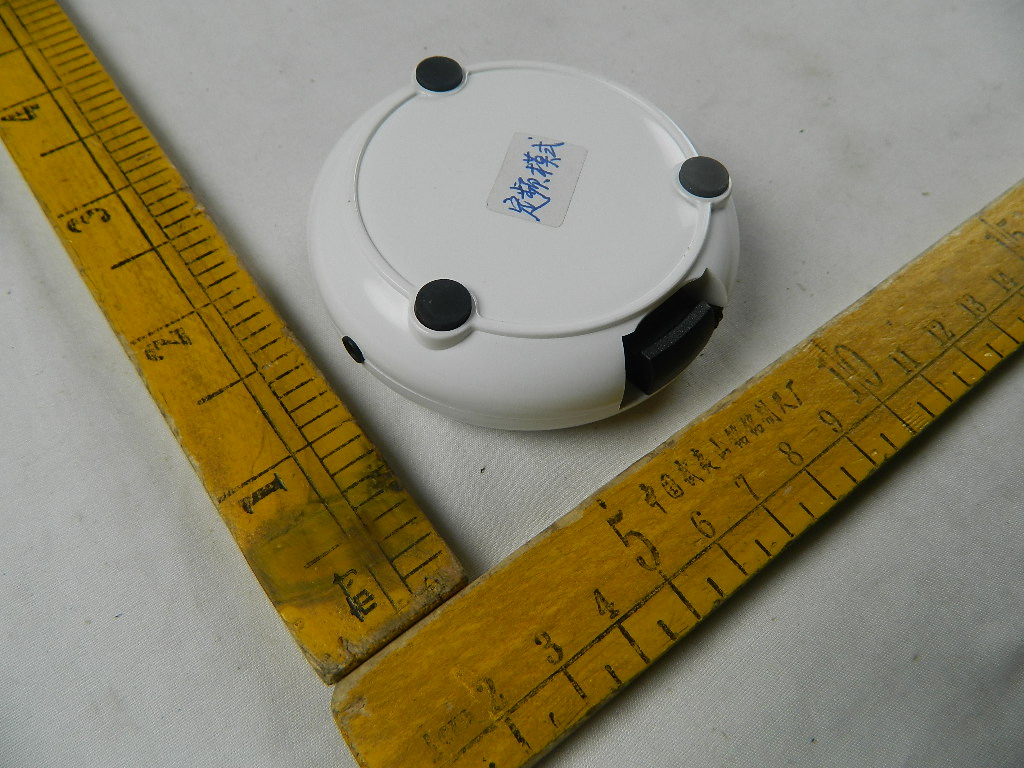

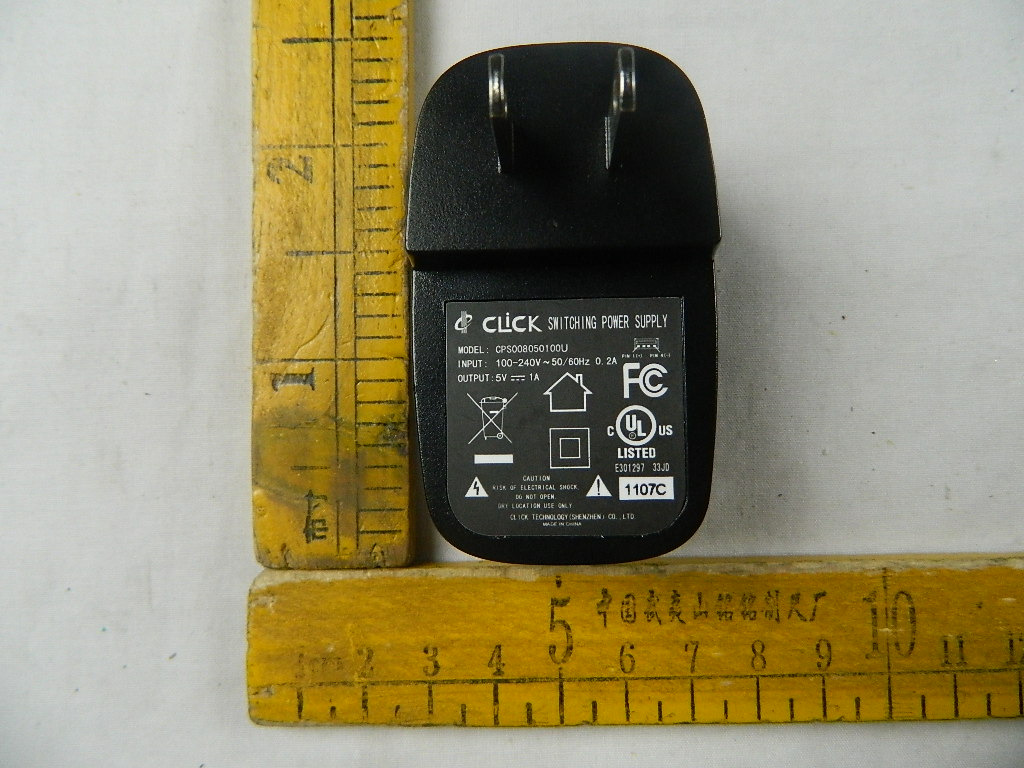

CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 4 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 4 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 4 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 4 7) EUT Photo 8) EUT Photo

Product name: Wireless dongle Model No.: TX FCC ID: OSY-WST IC ID: 10515A-WST This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location

CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo Antenna A Antenna B CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo 4) EUT Photo module

CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : Aug 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless dongle Frequency band (Operating) WLAN: 2.412GHz ~ 2.464GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 17.39dBm Antenna gain (Max) 1.5 dBi (Numeric gain:1.413 ) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 17.39 dBm (54.828 mW) at 2412 MHz (withnumeric 1.413 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : Aug 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : Aug 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 2412-2464 17.39 1.5 20 0.015 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued Date : Aug 10, 2012 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 FCC ID : OSY-WST Page No. : 1 of 39 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : Matrix Sound Limited Address : 95 High Street Hail Weston St Neots Cambridgeshire PE19 5JS Equipment : Wireless dongle Model No. : TX FCC ID : OSY-WST ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued Date : Aug 10, 2012 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 FCC ID : OSY-WST Page No. : 2 of 39 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1. List of Measurements and Examinations ........................................................................................ 6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 7 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System ............................................................................................................ 10 2.5. General Information of Test ............................................................................................................11 2.6. Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1. Standard Applicable ....................................................................................................................... 12 3.2. Antenna Construction and Directional Gain .................................................................................. 12 4. Test of Conducted Emission.................................................................................................................... 13 4.1. Test Limit........................................................................................................................................ 13 4.2. Test Procedures............................................................................................................................. 13 4.3. Typical Test Setup.......................................................................................................................... 14 4.4. Measurement Equipment .............................................................................................................. 14 4.5. Test Result and Data ..................................................................................................................... 15 5. Test of Radiated Emission ....................................................................................................................... 15 5.1. Test Limit........................................................................................................................................ 17 5.2. Test Procedures............................................................................................................................. 17 5.3. Typical Test Setup.......................................................................................................................... 18 5.4. Measurement Equipment .............................................................................................................. 19 5.5. Test Result and Data ..................................................................................................................... 20 6. Occupied Bandwidth ................................................................................................................................ 20 6.1. Test Limit........................................................................................................................................ 24 6.2. Test Procedures............................................................................................................................. 24 6.3. Test Setup Layout .......................................................................................................................... 24 6.4. Measurement Equipment .............................................................................................................. 24 6.5. Test Result and Data ..................................................................................................................... 25 7. Maximum Peak Output Power ................................................................................................................. 27 7.1. Test Limit........................................................................................................................................ 27 7.2. Test Procedure .............................................................................................................................. 27 7.3. Test Setup Layout .......................................................................................................................... 27 7.4. Measurement Equipment .........................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1207072 Cerpass Technology Corp. Issued date : August 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
