OT7-433Remote controller for internet tuner

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 OWNER’S MANUAL / INSTRUCTIONS TO THE USER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 INSTRUCTIONS TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are design to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures" • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the base unit. Modifications made to the equipment without the approval of the manufacturer could void the user's authority to operate this equipment.

last black page inside manual First and Last page 14 HOW IT WORKSHOW IT WORKS PC software receives commands and tunes-in stations on the iM™ Band Wireless RF link lets the remote tuner work throughout your home. DSL Cable Modem ISDN USB Broadband PC (Always on) Remote tuner Any Stereo iM Recevier (not shown) plugs into your stereo and plays iM Band stations through your speakers. QUICK SET-UPQUICK SET-UP Insert 4 AA batteries in back of remote unit as shown. Inserting batteries backwards will ruin your remote. Remote 4 x AA Battery Plug the USB cable (included) into the base unit and into the back of your PC (PC should be turned on). The green light should blink on and off once. Your PC will announce "New Hardware Found" (Windows2000 users, skip this part). Click "Next" when it asks to search for driver. Click "Next" again to perform the recommended search. On the following screen "Windows will search for new device..." uncheck all options and click "Next". Click "Next" on the following screens, then "Finish" to complete installation. Base Unit To USB port 1 2 QUICK SET-UPQUICK SET-UP 5 6 7 4 QUICK SET-UPQUICK SET-UP 3 4 Insert power cord from AC adaptor into the transmitter Power Input Jack and plug the adapter into a wall outlet. Connect the Audio Cable mini plug to the Audio Out of your PC. Pivot the antenna to an upright, vertical position. To PC Audio Out AC Adapter *If the "Stereo" Indicator flashes, try fine tuning. If the light still flashes, adjust the "Level" on the transmitter until the signal is strong enough (the red light on the transmitter should flash steadily.) To recharge the batteries of the receiver, connect the receiver to the transmitter (while it is plugged in) via the recharge cable. Insert two rechargeable AAA batteries (included) in the receiver. Plug the Audio Y cable into the 'Phone' jack of the receiver and into the AUX port of your stereo. Turn the receiver "on" and turn the Tuning dial until the Stereo Indicator lights steadily. To Stereo 59 QUICK SET-UPQUICK SET-UP 8 Band Select Buttons Power Save Preset Press the power button on the remote unit. The screen will turn on and the Software will start. (If the Software does not start, double click the Sonicbox icon to start the Software). Then, start selecting stations. The Band Select buttons scroll through bands A,B,C...Z. The tuning knob changes stations within each band. saves current station to the "Z" band. Please refer to the online documentation in your PC Start menu or the diagram on the inside of the cover for more information on how to use your iM™ Remote Tuner. vol band band vol Tuning knob 5 6 Put included CDROM into the drive or download the Sonicbox iM Software Tuner from: www.sonicbox.com/download Double-click on the installer and follow instructions for software setup. FEATURESFEATURES 12 FEATURES 13 FEATURES Play/Pause For streaming stations, the Play/Pause button will start and stop the current station. You can retry connecting to the current station by pressing Play. For playlists configured in your Z-band, Play/Pause will Play and Pause the current track. Next Song, Previous Song While listening to playlists in your Z-band, hit 'Next Song' to skip forward and 'Previous Song' to skip backward. Preroll While a station is buffering, you will hear a background track which identifies the station genre and a short voice clip which tells you a bit about the station you are tuning in. On the Software Tuner, current buffer status, listening duration and station bandwidth are displayed in the Station Status text field while station and genre descriptions are displayed in the scrolling Station Description field. Band Select Stations are organized into 26 different preset bands A through Y and your custom Z-band. Bands A through Y are preset with stations and each have a unique flavor. 'Next Band' moves you alphabetically through the bands, and 'Previous Band' moves you the reverse. band band Station Select Each band has 32 stations. On hardware, turn the tuning knob to tune through the stations. On software, press 'Station - ' and 'Station + ' to tune through the stations, or click on the gray knob on your screen and turn it with your mouse. For direct access to a specific station, click on the iM™ Band Guide on your screen, go to the band and click on the station itself. Volume Control, Mute Increase the volume by pressing 'vol up' and decrease the volume by pressing 'vol down' Pressing the mute button will mute the station audio. vol vol iM Tuning The best of what is available for broadband audio -- no need to search, hunt, point and click. Up to date stations -- new stations can be offered to you instantly. Stations that go off the air are removed. We do all the heavy lifting so all you have to do is turn the knob and tune in. 16 TROUBLE SHOOTING 17 TROUBLE SHOOTING Definitions of terms Sonicbox iM™ Software Tuner Installer The Sonicbox iM™ Software Tuner Installer is an application that installs the Sonicbox iM™ Software Tuner on your PC. The CDROM included with your Sonicbox iM™ Remote Tuner has the software installer on it. You can also download the Installer from the Sonicbox web site, http://www.sonicbox.com. Sonicbox Desktop Icon The Sonicbox iM™ Software Tuner Installer gives you the option of placing a Sonicbox icon onto your Windows desktop. We recommend that you allow the Software Installer do this because the desktop icon provides a convenient way to start the iM™ Tuner Software. Just double-click on this icon to start the iM™ Tuner Software. Sonicbox Start Center The Sonicbox Start Center lets you perform tasks like start the iM™ Tuner Software, close the iM™ Software Tuner, and check for software upgrades. The Start Center icon will be placed in the row of small icons in the bottom right hand corner of your Windows desktop when you install the software. When the base unit is not connected to the PC, the icon is a purple ring with a brown triangle. With base unit connected, it is a blu…

Text truncated - open the document above for the full version.

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965- LETTER OF AUTHORITY / DRUG ATTESTATION FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965- LETTER OF AUTHORITY / DRUG ATTESTATION FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAMS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EQUIPMENT CONFIGURATION BLOCK DIAGRAM A. PRINTER F. SPEAKER A B. PRINTER'S AC ADAPTER G. SPEAKER B C. MONITOR H. KEYBOARD D. COMPUTER I. MOUSE E. RECEIVER (EUT) J. TRANSMITTER (EUT) Wooden Test Table! ABCEFG HI J D #1 #2 #3 #4 #5 #6 #7 #8 #9 FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAM FOR TRANSMITTER UNIT FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAM FOR RECEIVER UNIT

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAMS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EQUIPMENT CONFIGURATION BLOCK DIAGRAM A. PRINTER F. SPEAKER A B. PRINTER'S AC ADAPTER G. SPEAKER B C. MONITOR H. KEYBOARD D. COMPUTER I. MOUSE E. RECEIVER (EUT) J. TRANSMITTER (EUT) Wooden Test Table! ABCEFG HI J D #1 #2 #3 #4 #5 #6 #7 #8 #9 FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAM FOR TRANSMITTER UNIT FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BLOCK DIAGRAM FOR RECEIVER UNIT

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 April 21, 2000 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Request for a new certification for SonicBox, Inc. SonicBox Remote Tuner Model: 433 FCC ID: OT7-433 Fee: Credit card information is on form 159 for $940.00 for an original application. Gentlemen, Please find enclosed an original package for the SonicBox Remote Tuner Model: 433. SonicBox, Inc. would like to only certify the transmitter portion of the system. Documentation on the receiver is included only to provide complete information on the system as a whole. The receiver portion of the system is approved through the Declaration of Conformity procedure. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (650)965-4000. Sincerely, Kevin Bothmann Lab Manager

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 April 21, 2000 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Request for a new certification for SonicBox, Inc. SonicBox Remote Tuner Model: 433 FCC ID: OT7-433 Fee: Credit card information is on form 159 for $940.00 for an original application. Gentlemen, Please find enclosed an original package for the SonicBox Remote Tuner Model: 433. SonicBox, Inc. would like to only certify the transmitter portion of the system. Documentation on the receiver is included only to provide complete information on the system as a whole. The receiver portion of the system is approved through the Declaration of Conformity procedure. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (650)965-4000. Sincerely, Kevin Bothmann Lab Manager

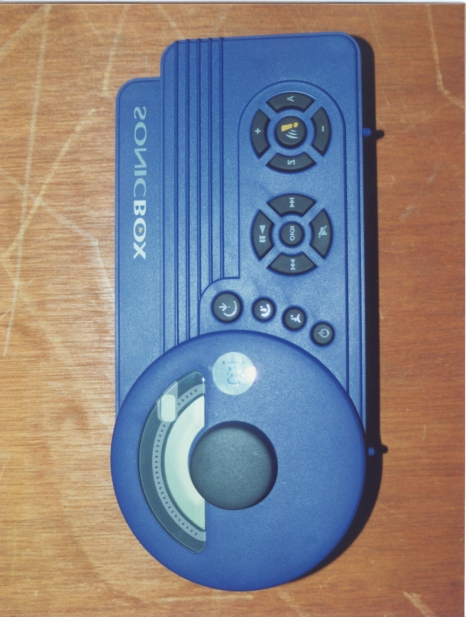

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EXTERNAL PHOTOGRAPHS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF EUT (TRANSMITTER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF EUT (RECEIVER)

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EXTERNAL PHOTOGRAPHS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF EUT (TRANSMITTER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF EUT (RECEIVER)

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FCC LABEL AND ITS LOCATION FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SAMPLE OF FCC LABEL FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LOCATION OF FCC LABEL (TRANSMITTER UNIT) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LOCATION OF FCC LABEL (RECEIVER UNIT)

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FCC LABEL AND ITS LOCATION FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SAMPLE OF FCC LABEL FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LOCATION OF FCC LABEL (TRANSMITTER UNIT) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LOCATION OF FCC LABEL (RECEIVER UNIT)

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 INTERNAL PHOTOGRAPHS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP INSIDE VIEW OF EUT (TRANSMITTER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 COMPONENT SIDE OF BOARD (TRANSMITTER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SOLDER SIDE OF BOARD (TRANSMITTER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP INSIDE VIEW OF EUT (RECEIVER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 COMPONENT SIDE OF BOARD (RECEIVER) FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SOLDER SIDE OF BOARD (RECEIVER)

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 OPERATIONAL DESCRIPTION FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Sonicbox, Inc. Sonicbox iM TM Remote Tuner, brief description The Sonicbox iM Remote Tuner is a PC peripheral device consisting of a base unit and a hand held remote unit. The base unit is connected to the USB port of a PC. It works in conjunction with the Sonicbox iM Software Tuner (a software application) to locate and broadcast the audio (using a third party transmitter) from the internet sites of internet radio stations. The hand held remote communicates with the base unit and is used to change stations, save stations, and control the PC volume.

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATICS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR TRANSMITTER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR TRANSMITTER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCEMATIC DIAGRAM FOR RECEIVER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR RECEIVER

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATICS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR TRANSMITTER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR TRANSMITTER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCEMATIC DIAGRAM FOR RECEIVER FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 SCHEMATIC DIAGRAM FOR RECEIVER

FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 2 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TABLE OF CONTENTS SECTIONTITLEPAGE GENERAL REPORT SUMMARY04 SUMMARY OF TEST RESULTS04 1.PURPOSE05 2.ADMINISTRATIVE DATA06 2.1Location of Testin g06 2.2Traceabilit y Statement06 2.3Cognizant Personnel06 2.4Date Test Sample was Received06 2.5Dis position of the Test Sample06 2.6Abbreviations and Acronyms06 3.APPLICABLE DOCUMENTS07 4.DESCRIPTION OF TEST CONFIGURATIONS08 4.1Descri ption of Test Configuration - EMI08 4.1.1Cable Construction and Termination09 5.LIST OF EUT , ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2EMI Test E quipment11 6.TEST SITE DESCRIPTION12 6.1Test Facilit y Description12 6.2EUT Mountin g, Bonding and Grounding12 7.TEST PROCEDURES13 7.1RF Emissions13 7.1.1Conducted Emissions Test13 7.1.2Radiated Emissions Test14 8.0CONCLUSIONS15 FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 3 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LIST OF APPENDICES APPENDIXTITLE A Radiated and Conducted Emissions Data Sheets Plot of Bandwidth of Fundamental Frequency B Test Setup Diagrams C Antenna and Effective Gain Factors LIST OF FIGURES FIGURETITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site 3 Equipment Configuration Block Diagram FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 4 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Electro Magnetic Test Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Electro Magnetic Test personnel according to the measurement procedure described in the test specification given below and in the "Test Procedures" section of this report. Associated with the data in this report is a ± 2dB measurement uncertainty. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:Sonicbox Remote Tuner Model: 433 S/N: B Product Description:The EUT is a personal computer peripheral device consisting of a base unit and a hand held remote unit. The base unit is connected to the USB port and stereo out port of a PC. It works in conjunction with the Sonicbox imBand software to locate and broadcast the audio from the WebPages of Internet radio stations. The hand held remote communicates with the base unit and is used to change stations, save stations, and control the PC volume. Modifications:The EUT was not modified during the testing. Manufacturer:Sonicbox, Inc. 241 Polaris Avenue Mountain View, California, 94041 Test Date(s):April 15, 2000 Test Specifications:EMI requirements FCC Title 47, Part 15 Subpart B, Class B FCC Title 47, Part 15 Subpart C Test Procedure: ANSI C63.4: 1992. Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 2Radiated RF Emissions, 30 MHz - 1000 MHz. Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 3Radiated RF Emissions, 433 MHz - 4330 MHz.Complies with the limits of FCC Title 47, Part 15 Subpart C. (Section 15.231) FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 5 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Sonicbox Remote Tuner Model: 433. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined in FCC Title 47, Part 15, Subpart B. The EUT was also tested to determine if the electromagnetic emissions were within the limits defined in FCC Title 47, Subpart C, section 15.231. FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 6 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Electro Magnetic Test, 1547 Plymouth Street, Mountain View, California 94043. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The measurement results in this report and the calibration of the test equipment are traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Sonicbox, Inc. Sara FisherProduct Manager Electro Magnetic Test, Inc. Doug MoonTest Technician Neelesh RajTest Technician Kevin BothmannLab Manager 2.4 Date Test Sample was Received The test sample was received on April 14, 2000. 2.5 Disposition of the Test Sample The test sample was returned to Sonicbox, Inc. on April 17, 2000. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network CISPRInternational Special Committee On Radio Interference FCCFederal Communications Commission FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 7 of 15 E…

Text truncated - open the document above for the full version.

FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 2 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TABLE OF CONTENTS SECTIONTITLEPAGE GENERAL REPORT SUMMARY04 SUMMARY OF TEST RESULTS04 1.PURPOSE05 2.ADMINISTRATIVE DATA06 2.1Location of Testin g06 2.2Traceabilit y Statement06 2.3Cognizant Personnel06 2.4Date Test Sample was Received06 2.5Dis position of the Test Sample06 2.6Abbreviations and Acronyms06 3.APPLICABLE DOCUMENTS07 4.DESCRIPTION OF TEST CONFIGURATIONS08 4.1Descri ption of Test Configuration - EMI08 4.1.1Cable Construction and Termination09 5.LIST OF EUT , ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2EMI Test E quipment11 6.TEST SITE DESCRIPTION12 6.1Test Facilit y Description12 6.2EUT Mountin g, Bonding and Grounding12 7.TEST PROCEDURES13 7.1RF Emissions13 7.1.1Conducted Emissions Test13 7.1.2Radiated Emissions Test14 8.0CONCLUSIONS15 FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 3 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LIST OF APPENDICES APPENDIXTITLE A Radiated and Conducted Emissions Data Sheets Plot of Bandwidth of Fundamental Frequency B Test Setup Diagrams C Antenna and Effective Gain Factors LIST OF FIGURES FIGURETITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site 3 Equipment Configuration Block Diagram FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 4 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Electro Magnetic Test Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Electro Magnetic Test personnel according to the measurement procedure described in the test specification given below and in the "Test Procedures" section of this report. Associated with the data in this report is a ± 2dB measurement uncertainty. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:Sonicbox Remote Tuner Model: 433 S/N: B Product Description:The EUT is a personal computer peripheral device consisting of a base unit and a hand held remote unit. The base unit is connected to the USB port and stereo out port of a PC. It works in conjunction with the Sonicbox imBand software to locate and broadcast the audio from the WebPages of Internet radio stations. The hand held remote communicates with the base unit and is used to change stations, save stations, and control the PC volume. Modifications:The EUT was not modified during the testing. Manufacturer:Sonicbox, Inc. 241 Polaris Avenue Mountain View, California, 94041 Test Date(s):April 15, 2000 Test Specifications:EMI requirements FCC Title 47, Part 15 Subpart B, Class B FCC Title 47, Part 15 Subpart C Test Procedure: ANSI C63.4: 1992. Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 2Radiated RF Emissions, 30 MHz - 1000 MHz. Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 3Radiated RF Emissions, 433 MHz - 4330 MHz.Complies with the limits of FCC Title 47, Part 15 Subpart C. (Section 15.231) FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 5 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Sonicbox Remote Tuner Model: 433. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined in FCC Title 47, Part 15, Subpart B. The EUT was also tested to determine if the electromagnetic emissions were within the limits defined in FCC Title 47, Subpart C, section 15.231. FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 6 of 15 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Electro Magnetic Test, 1547 Plymouth Street, Mountain View, California 94043. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The measurement results in this report and the calibration of the test equipment are traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Sonicbox, Inc. Sara FisherProduct Manager Electro Magnetic Test, Inc. Doug MoonTest Technician Neelesh RajTest Technician Kevin BothmannLab Manager 2.4 Date Test Sample was Received The test sample was received on April 14, 2000. 2.5 Disposition of the Test Sample The test sample was returned to Sonicbox, Inc. on April 17, 2000. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network CISPRInternational Special Committee On Radio Interference FCCFederal Communications Commission FCC Class B Report Number: M00415A1 FCC ID: OT7-433 Page 7 of 15 E…

Text truncated - open the document above for the full version.

FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TEST SETUP PHOTOGRAPHS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW SONICBOX, INC. SONICBOX REMOTE TUNER MODEL: 433 FCC CLASS B - RADIATED EMISSIONS - 4-14-00 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: OT7-433 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043…
