OTA55005Inductive Toy

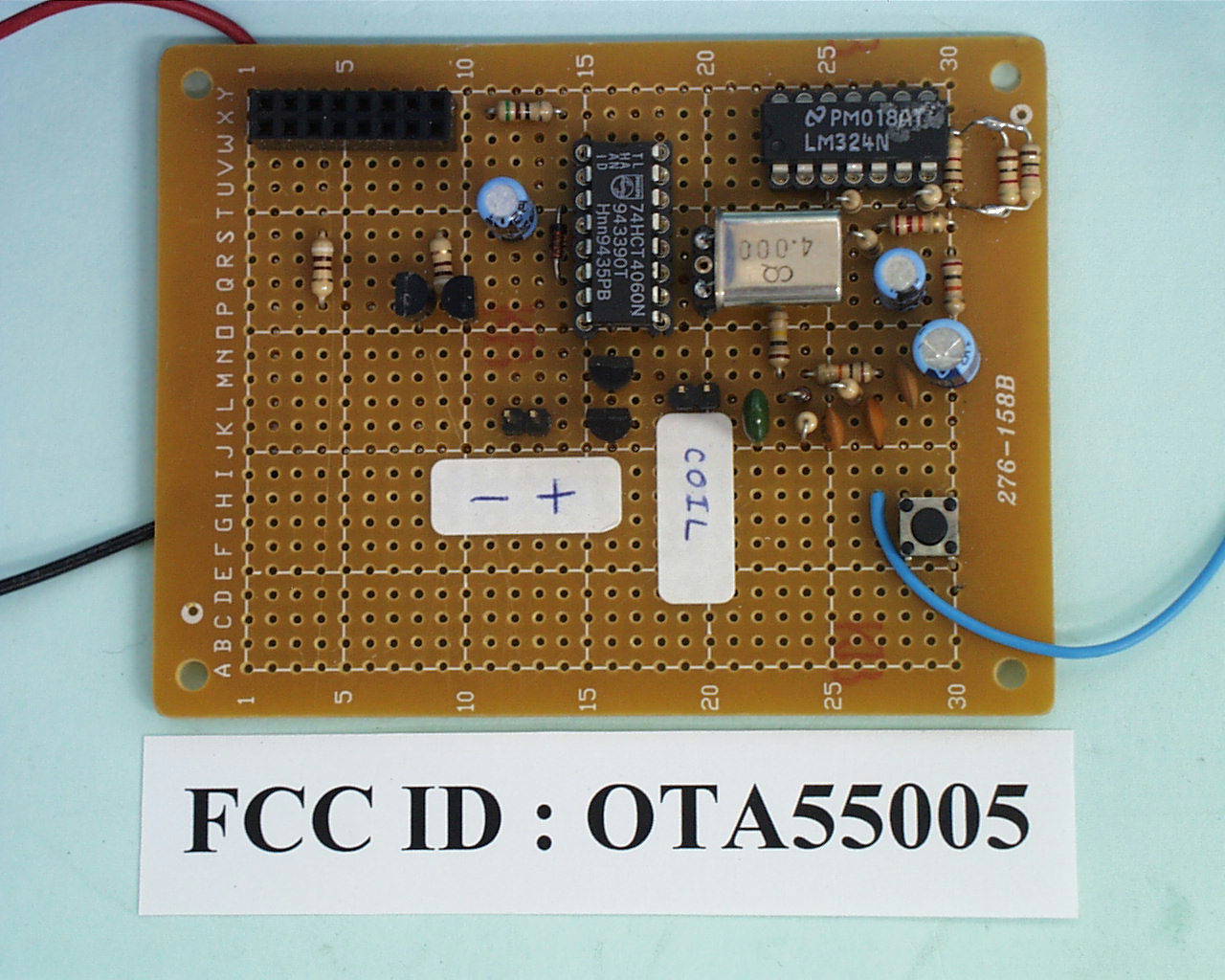

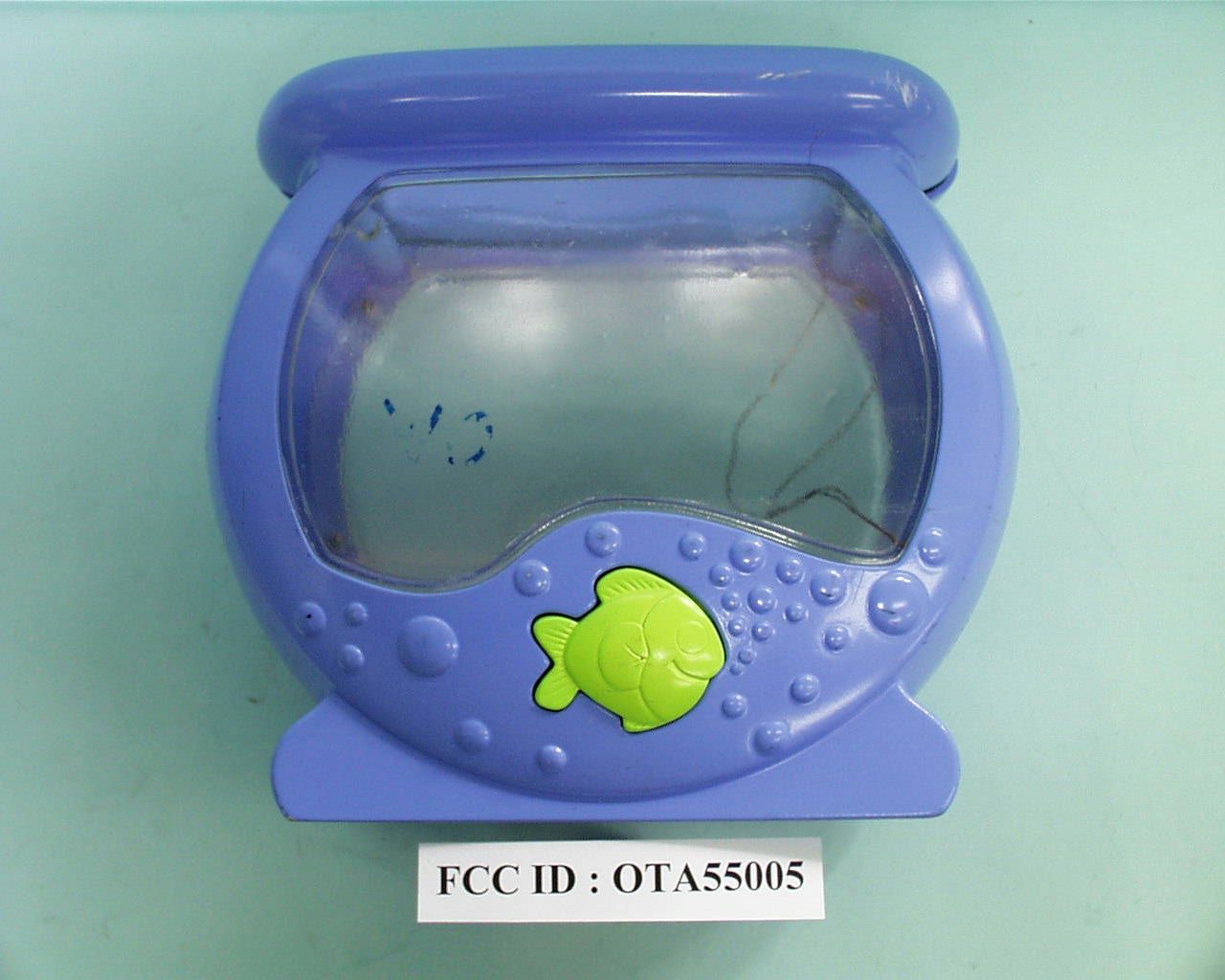

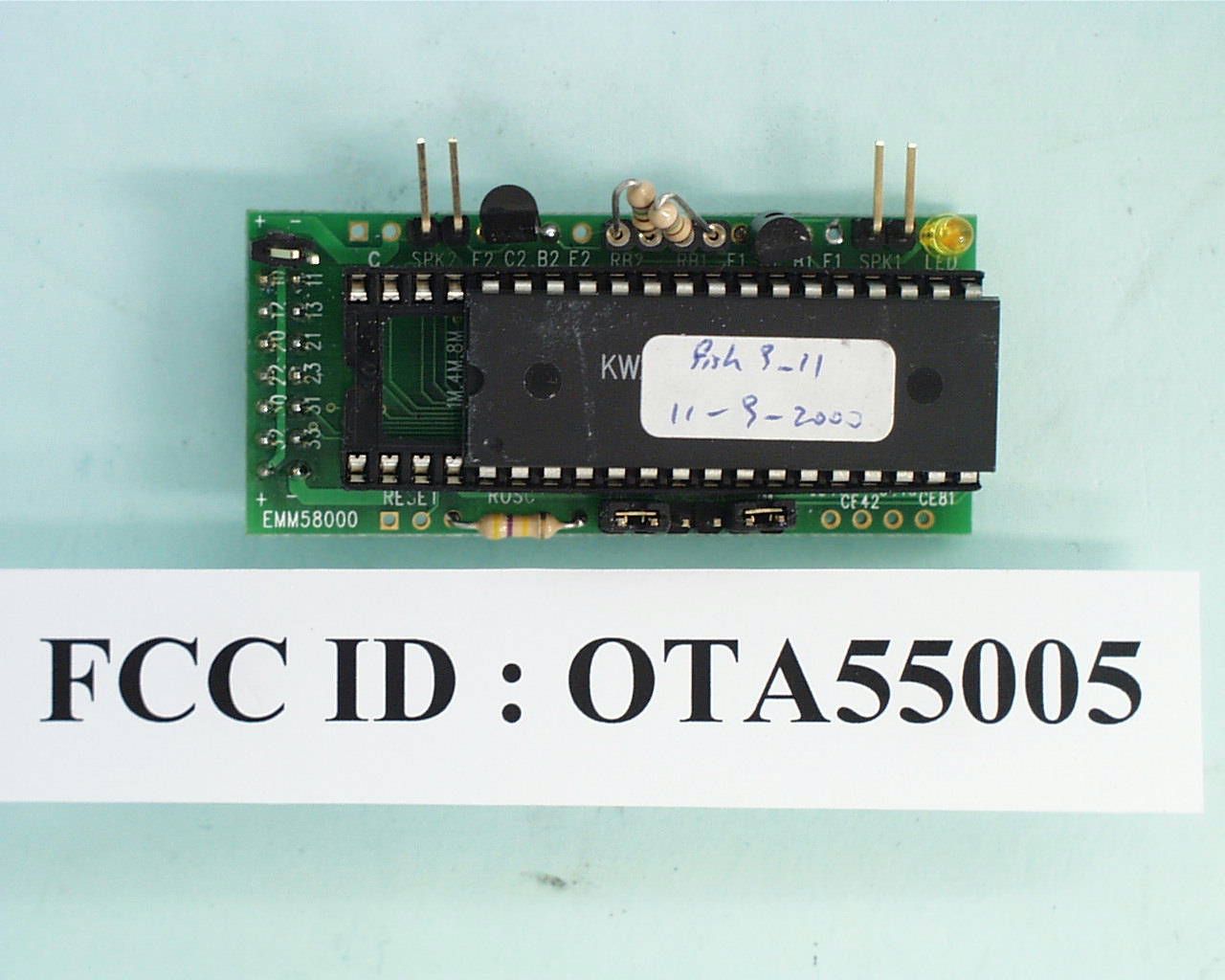

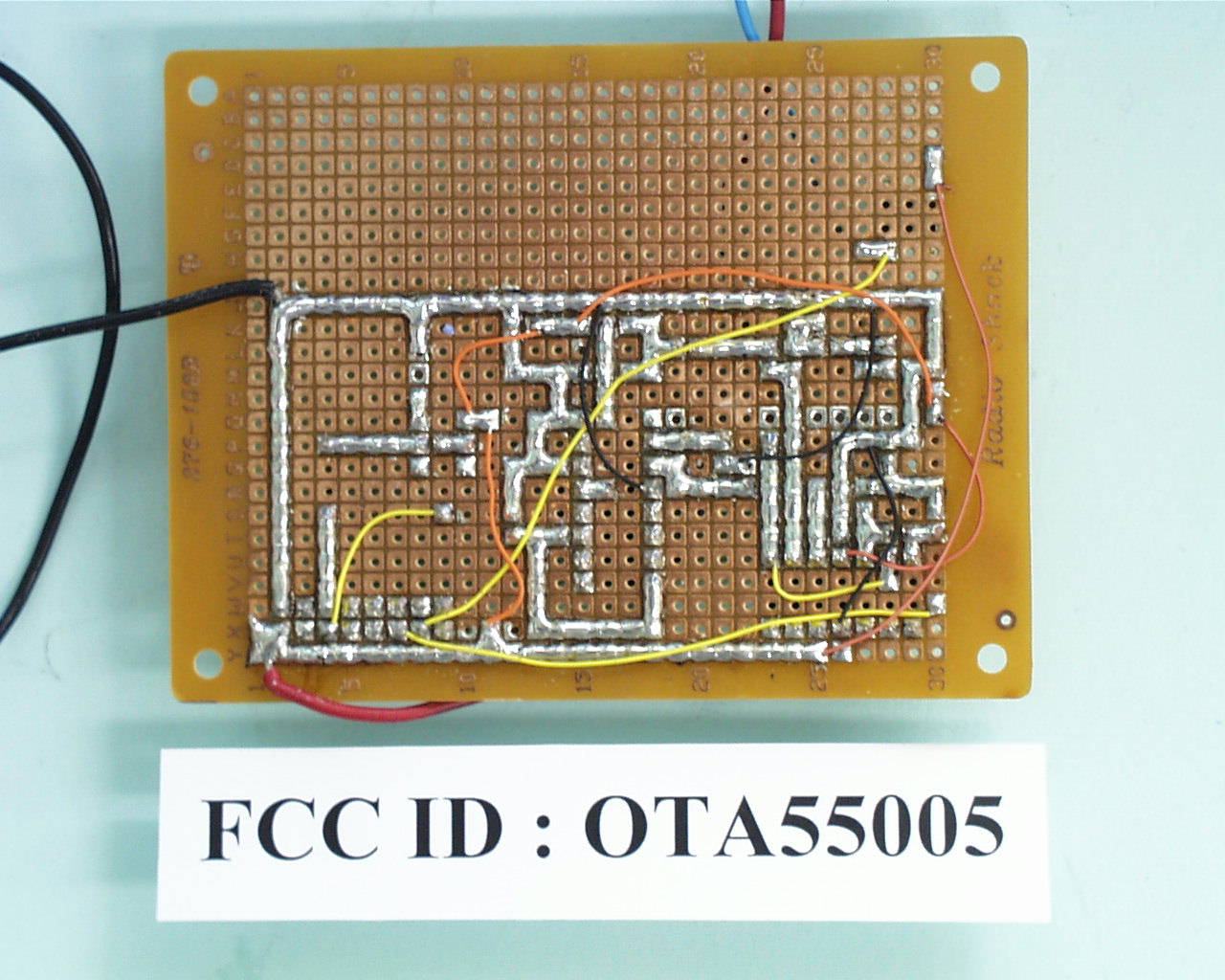

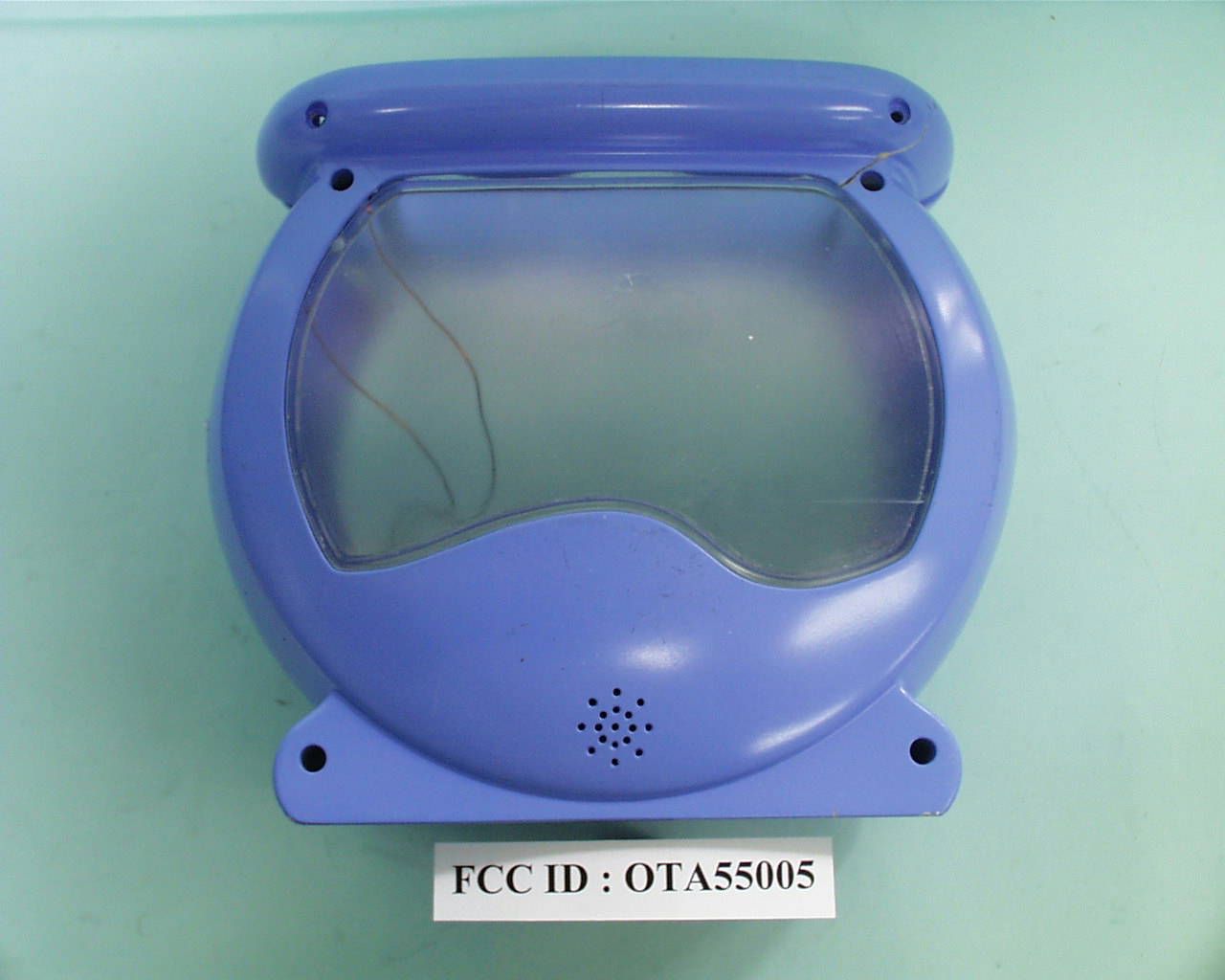

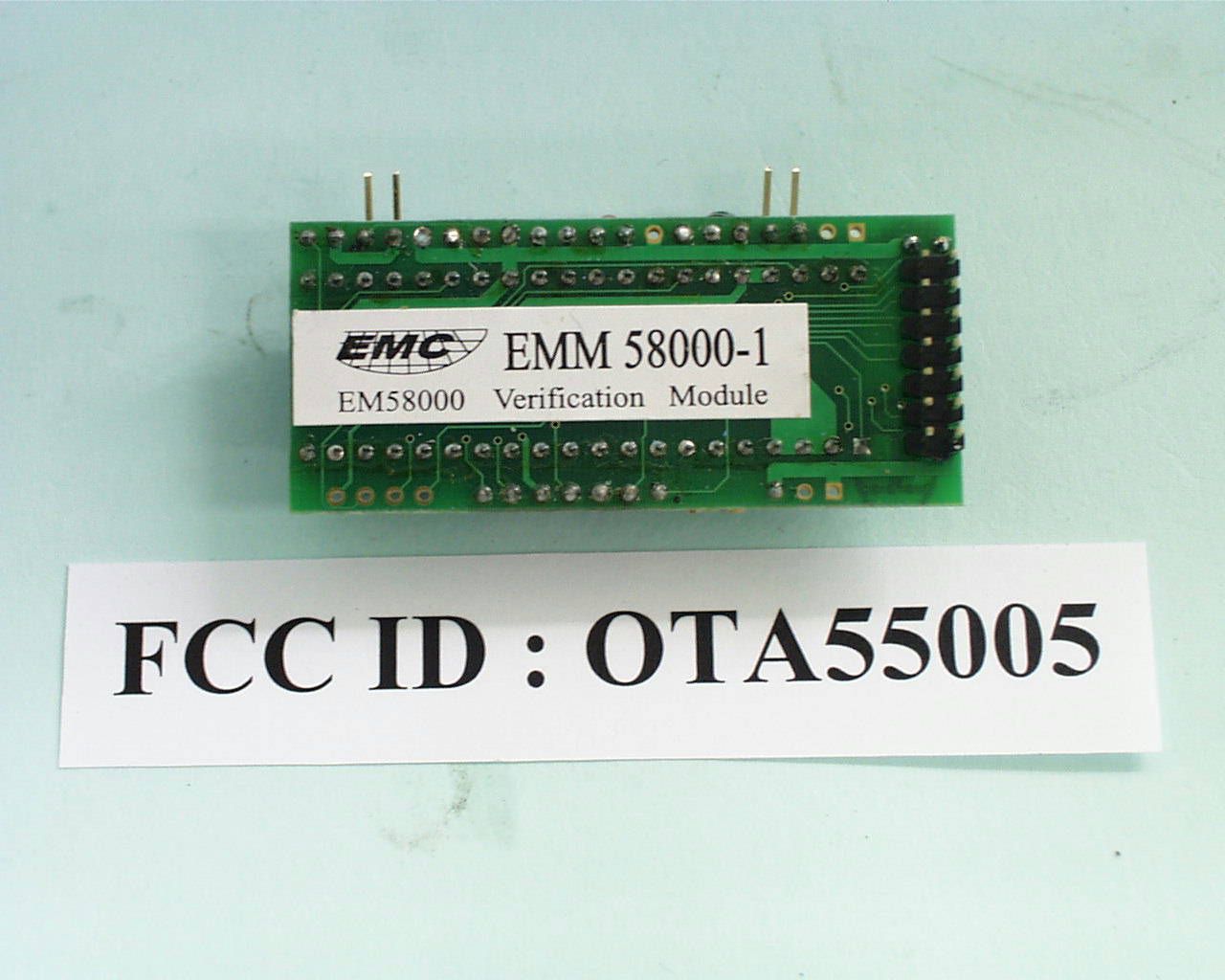

Technical Description (This information is also found in test report, page 2) 1.0 General Description 1.1Product Description The equipment under test (EUT) is a transmitter for Inductive toy operating at 125 KHz which is controlled by a crystal. (a) To start activation, first slide the switch from TRY ME to NORMAL. (b) (SHOW) This turns off the in-package mode and turns on the normal play mode. (c) Push the big green fish button to start the fishbowl fun (SHOW). (d) Each sea creature activates certain phrases when placed through the rim of the bowl, teaching colors, patterns and other interesting “creative trivia”. (e) This fishbowl even asks questions when there is a pause in play, prompting your child to find the animal the bowl asks for. (f) Featuring an automatic turn off, activation begins again each time the green fish button is pushed. The brief circuit description is listed as follows: - I.C. 74HCT4060 and associated circuit act as rectangular waveform generator - Transistor 8050 and 8550 and associated circuit act as Amplifier - I.C. LM324 and associated circuit act as Amplifier - I.C. EM058400 and associated circuit act as data processor

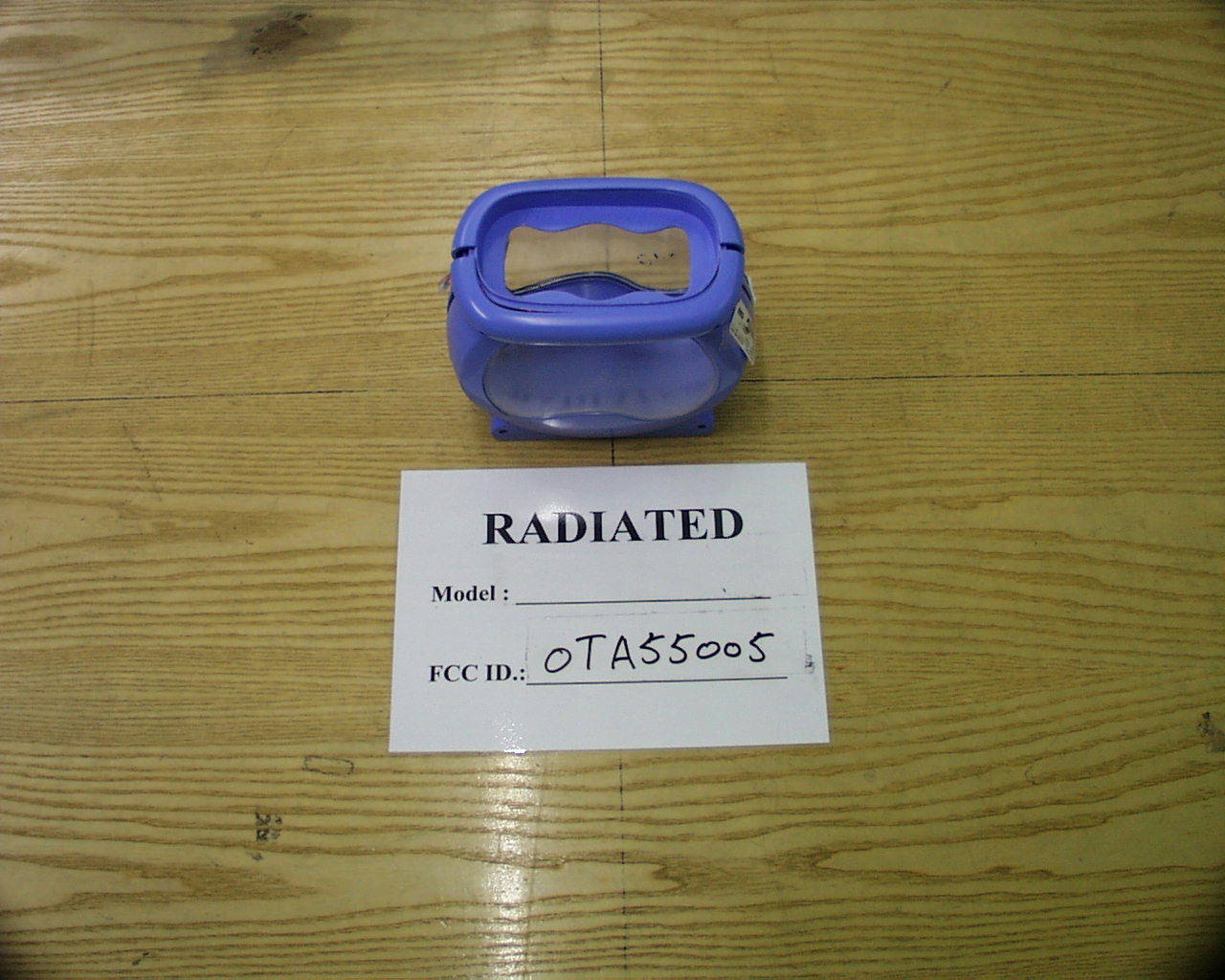

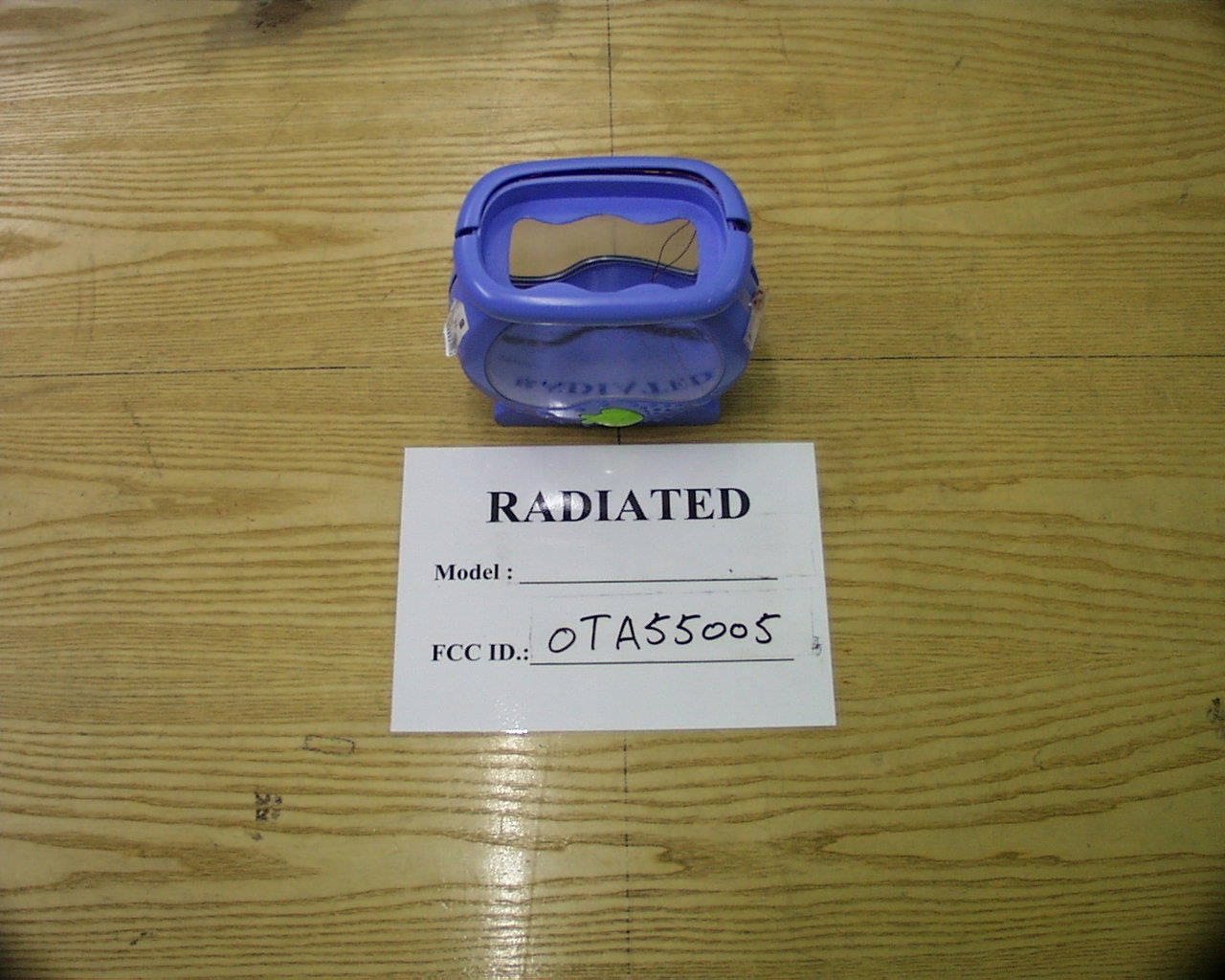

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed FCC ID : OTA55005 Jakks Pacific (HK) Limited Application For Certification (FCC ID: OTA55005) Transmitter WO# 0010817 (S1) WN/at November 28, 2000 INTERTEK TESTING SERVICES FCC ID: OTA55005 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: OTA55005 ii MEASUREMENT/TECHNICAL REPORT Jakks Pacific (HK) Limited - MODEL: C55005 FCC ID: OTA55005 November 28, 2000 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: OTA55005 iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description............................................................................................................. 2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology................................................................................................................ 3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification.......................................................................................................................... 5 2.2 EUT Exercising Software ....................................................................................................5 2.3 Special Accessories ............................................................................................................. 5 2.4 Equipment Modification......................................................................................................6 2.5 Support Equipment List and Description ............................................................................ 6 3.0 Emission Results ...................................................................................................................... 8 3.1 Field Strength Calculation ................................................................................................... 9 3.1 Field Strength Calculation (cont’d) ................................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................................. 11 3.3 Radiated Emission Data .................................................................................................... 12 4.0 Equipment Photographs ....................................................................................................... 15 5.0 Product Labelling .................................................................................................................. 17 6.0 Technical Specifications ........................................................................................................ 19 7.0 Instruction Manual ................................................................................................................ 21 8.0 Miscellaneous Information ................................................................................................... 23 8.1 Measured Bandwidth.........................................................................................................24 8.2 Emissions Test Procedures ................................................................................................ 25 8.2 Emissions Test Procedures (cont'd)................................................................................... 26 INTERTEK TESTING SERVICES FCC ID: OTA55005 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto2.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: OTA55005 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: OTA55005 2 1.0 General Description 1.1Product Description The equipment under test (EUT) is a transmitter for Inductive toy operating from a square-wave oscillator at 125 kHz and producing highest emissions at 500 kHz and 750 kHz which are controlled by a crystal. (a) To start activation, first slide the switch from TRY ME to NORMAL. (b) (SHOW) This turns off the in-package mode and turns on the normal play mode. (c) Push the big g…
