Battery Installation Wheel Installation Antenna Installation Operation Battery Safety Information Safety Information Wheel Removal Contents RADIO CONTROL VEHICLE CONTROLLERANTENNA • INSERT ANTENNA INTO ANTENNA SOCKET ON THE CONTROLLER. • ROTATE ANTENNA CLOCKWISE UNTIL IT LOCKS INTO PLACE. • ALIGN TABS ON RADIO CONTROL VEHICLE’S RIGHT SIDE TO GROOVES ON WHEEL’S INNER HUB. • SLIDE WHEEL ONTO THE VEHICLE. • GENTLY INSERT AND TWIST WHEEL COUNTERCLOCKWISE UNTIL IT LOCKS INTO PLACE. • REPEAT WITH ANOTHER WHEEL ON THE LEFT SIDE. NOTE: NOTE: ONLY FLY WHEELS TM WHEELS SIZED 18” OR LARGER WILL WORK WITH THE VEHICLE. WHEELS OF DIFFERENT SIZES WILL AFFECT PERFORMANCE. CAUTION: CAUTION: ALWAYS HAVE THE ON/OFF SWITCH IN THE “OFF” POSITION WHEN INSTALLING BATTERIES. • LOCATE BATTERY COMPARTMENT DOORS ON BOTH BOTH SIDES OF VEHICLE. • USING A PHILLIPS SCREWDRIVER, REMOVE SCREW AND LIFT AWAY BATTERY COVER. • INSTALL 2 AA (LR06) ALKALINE BATTERIES, AS SHOWN. • REPLACE BATTERY COVER AND SCREW. • FLIP RADIO CONTROL VEHICLE OVER AND REPEATFLIP RADIO CONTROL VEHICLE OVER AND REPEAT STEPS. THE VEHICLE REQUIRES BATTERIES STEPS. THE VEHICLE REQUIRES BATTERIES ON BOTH SIDES TO OPERATE. ON BOTH SIDES TO OPERATE. • LOCATE BATTERY COMPARTMENT ON BOTTOM RIGHT SIDE OF CONTROLLER. • USING A PHILLIPS SCREWDRIVER, REMOVE SCREW AND LIFT AWAY BATTERY COVER. • INSTALL 9V (6LR61) ALKALINE BATTERY, AS SHOWN. • REPLACE BATTERY COVER AND SCREW. RADIO CONTROL VEHICLECONTROLLER ON/OFF SWITCH ON/OFF SWITCH • THE RADIO CONTROL VEHICLE IS POWERED BY TWO SEPARATE MOTORS, WHICH CAUSE THE VEHICLE TO MOVE, TURN, AND FLIP OVER. • WHEN VEHICLE FLIPS, THE CONTROLS WILL OPERATE IN THE OPPOSITE FUNCTION, AS SHOWN BELOW. PUSH BOTH CONTROLS UP PUSH AND HOLD TAB LOCATED ON FRONT OF VEHICLE TO UNLOCK WHEEL. GENTLY TWIST CLOCKWISE.REMOVE WHEEL FROM VEHICLE. REPEAT FOR OPPOSITE SIDE. PUSH BOTH CONTROLS DOWNPUSH LEFT CONTROL DOWN PUSH RIGHT CONTROL UP PUSH LEFT CONTROL UP PUSH RIGHT CONTROL DOWN ITEM # 56812 8+ TM RADIO CONTROL Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately wash any clothing or other surface that comes in contact with leaked battery acid. Leaking batteries may make "popping" sounds. Dispose according to Local, State or Federal Laws. ALWAYS have an adult install and change the batteries. ALWAYS remove exhausted batteries from toy. ALWAYS have an adult install batteries consistent with installation instructions. ALWAYS use batteries according to the instructions. NEVER attempt to recharge non-rechargeable batteries. NEVER mix old and new batteries or different brands of batteries. NEVER mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. NEVER use rechargeable batteries with this product. NEVER dispose of batteries in fire, as they may leak and explode. NEVER disassemble, modify, or attempt to short circuit the battery compartment. NEVER leave batteries in the product for long periods (a week or more) of non-use. NEVER leave the product on after the batteries have lost their charge. NEVER put batteries in backwards by placing the negative (-) battery pole into the positive (+) receptor slot. ONLY use batteries specified by manufacturer. JAKKS Pacific ® Battery, Solar or Electrically-Operated Toy 90 DAY LIMITED WARRANTY WARNING! • NEVER drive vehicle in parking lots, near roads, pets, or cars. • NEVER touch the rear wheels or pick up the vehicle while it is in motion. • NEVER operate the vehicle with anything other than Fly Wheels TM Rims and Tires. • NEVER operate the vehicle without a Tire attached. • NEVER operate vehicle with mismatched Rim and Tire sizes. • NEVER steer into other objects. Impact may damage vehicle. • NEVER drive through water or mud as vehicle is not waterproof. • NEVER store near heat or direct sunlight. • ALWAYS keep fingers, hair, and eyes away from the wheels while the vehicle is in the “ON” position. • ALWAYS play in safe surroundings, away from streets or moving vehicles. • ALWAYS remove furniture and other objects from area before playing. • ALWAYS use only Fly Wheels TM Rims and Tires size 18” or larger with the vehicle. • ALWAYS secure the Tire on the Rim before operating vehicle. • ALWAYS be aware of radio frequencies. Avoid operating within range of another unit using the same frequency. Radio frequency is indicated on the package and Controller. • ALWAYS keep ON/OFF switch in "OFF" position when toy is not in use. • ALWAYS operate the Controller within 45 feet of the vehicle. • ALWAYS store Fly Wheels TM in a cool, dry place. ADULT INSTALLATION REQUIRED REQUIRES 4 AA-SIZE (LR06) AND 1 9V (6LR61) ALKALINE BATTERIES. (NOT INCLUDED) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to t…

Text truncated - open the document above for the full version.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

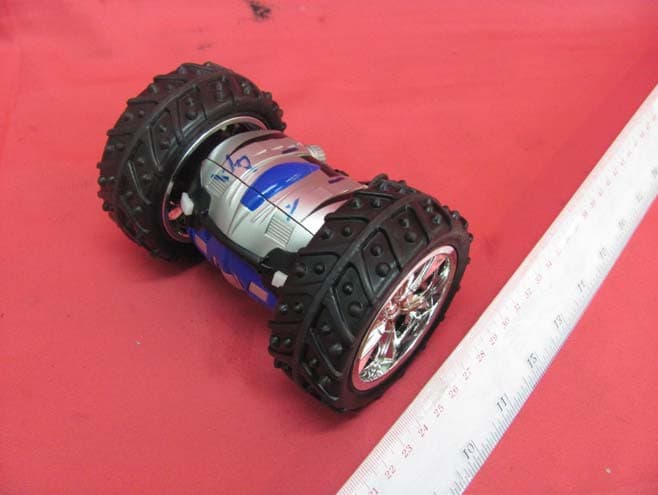

INTERTEK TESTING SERVICE Report No.: HK12080103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (External)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.3cm x 0.85cm FCC ID: OTA56812RX49 2.1cm x 0.2cm

INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK120880103-4 FCC ID: OTA56812RX49 Equipment Photographs Model : 56812 (Internal)

Model:56812 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: L2, C2, C1, L1 ,Q1, L3, C3 2 . Decoder Consisting: IC1 (PT8A978BLW) 3. Drive Motor Circuit Consisting: Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9,Q10,Q11,Q12,Q13 4. A Power Supply Consisting: 4*1.5V AA batteries 5. Clock Frequency Generator Consisting: R6 (220kohm) for Internal clock frequency oscillation 128KHz 6. Regulator Consisting: D2 (3.3V) The receiver uses an internal, integral and non-detachable antenna.
