OTA56812TX49Fly Wheels Radio Control-2 Wheels

Battery Installation Wheel Installation Antenna Installation Operation Battery Safety Information Safety Information Wheel Removal Contents RADIO CONTROL VEHICLE CONTROLLERANTENNA • INSERT ANTENNA INTO ANTENNA SOCKET ON THE CONTROLLER. • ROTATE ANTENNA CLOCKWISE UNTIL IT LOCKS INTO PLACE. • ALIGN TABS ON RADIO CONTROL VEHICLE’S RIGHT SIDE TO GROOVES ON WHEEL’S INNER HUB. • SLIDE WHEEL ONTO THE VEHICLE. • GENTLY INSERT AND TWIST WHEEL COUNTERCLOCKWISE UNTIL IT LOCKS INTO PLACE. • REPEAT WITH ANOTHER WHEEL ON THE LEFT SIDE. NOTE: NOTE: ONLY FLY WHEELS TM WHEELS SIZED 18” OR LARGER WILL WORK WITH THE VEHICLE. WHEELS OF DIFFERENT SIZES WILL AFFECT PERFORMANCE. CAUTION: CAUTION: ALWAYS HAVE THE ON/OFF SWITCH IN THE “OFF” POSITION WHEN INSTALLING BATTERIES. • LOCATE BATTERY COMPARTMENT DOORS ON BOTH BOTH SIDES OF VEHICLE. • USING A PHILLIPS SCREWDRIVER, REMOVE SCREW AND LIFT AWAY BATTERY COVER. • INSTALL 2 AA (LR06) ALKALINE BATTERIES, AS SHOWN. • REPLACE BATTERY COVER AND SCREW. • FLIP RADIO CONTROL VEHICLE OVER AND REPEATFLIP RADIO CONTROL VEHICLE OVER AND REPEAT STEPS. THE VEHICLE REQUIRES BATTERIES STEPS. THE VEHICLE REQUIRES BATTERIES ON BOTH SIDES TO OPERATE. ON BOTH SIDES TO OPERATE. • LOCATE BATTERY COMPARTMENT ON BOTTOM RIGHT SIDE OF CONTROLLER. • USING A PHILLIPS SCREWDRIVER, REMOVE SCREW AND LIFT AWAY BATTERY COVER. • INSTALL 9V (6LR61) ALKALINE BATTERY, AS SHOWN. • REPLACE BATTERY COVER AND SCREW. RADIO CONTROL VEHICLECONTROLLER ON/OFF SWITCH ON/OFF SWITCH • THE RADIO CONTROL VEHICLE IS POWERED BY TWO SEPARATE MOTORS, WHICH CAUSE THE VEHICLE TO MOVE, TURN, AND FLIP OVER. • WHEN VEHICLE FLIPS, THE CONTROLS WILL OPERATE IN THE OPPOSITE FUNCTION, AS SHOWN BELOW. PUSH BOTH CONTROLS UP PUSH AND HOLD TAB LOCATED ON FRONT OF VEHICLE TO UNLOCK WHEEL. GENTLY TWIST CLOCKWISE.REMOVE WHEEL FROM VEHICLE. REPEAT FOR OPPOSITE SIDE. PUSH BOTH CONTROLS DOWNPUSH LEFT CONTROL DOWN PUSH RIGHT CONTROL UP PUSH LEFT CONTROL UP PUSH RIGHT CONTROL DOWN ITEM # 56812 8+ TM RADIO CONTROL Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately wash any clothing or other surface that comes in contact with leaked battery acid. Leaking batteries may make "popping" sounds. Dispose according to Local, State or Federal Laws. ALWAYS have an adult install and change the batteries. ALWAYS remove exhausted batteries from toy. ALWAYS have an adult install batteries consistent with installation instructions. ALWAYS use batteries according to the instructions. NEVER attempt to recharge non-rechargeable batteries. NEVER mix old and new batteries or different brands of batteries. NEVER mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. NEVER use rechargeable batteries with this product. NEVER dispose of batteries in fire, as they may leak and explode. NEVER disassemble, modify, or attempt to short circuit the battery compartment. NEVER leave batteries in the product for long periods (a week or more) of non-use. NEVER leave the product on after the batteries have lost their charge. NEVER put batteries in backwards by placing the negative (-) battery pole into the positive (+) receptor slot. ONLY use batteries specified by manufacturer. JAKKS Pacific ® Battery, Solar or Electrically-Operated Toy 90 DAY LIMITED WARRANTY WARNING! • NEVER drive vehicle in parking lots, near roads, pets, or cars. • NEVER touch the rear wheels or pick up the vehicle while it is in motion. • NEVER operate the vehicle with anything other than Fly Wheels TM Rims and Tires. • NEVER operate the vehicle without a Tire attached. • NEVER operate vehicle with mismatched Rim and Tire sizes. • NEVER steer into other objects. Impact may damage vehicle. • NEVER drive through water or mud as vehicle is not waterproof. • NEVER store near heat or direct sunlight. • ALWAYS keep fingers, hair, and eyes away from the wheels while the vehicle is in the “ON” position. • ALWAYS play in safe surroundings, away from streets or moving vehicles. • ALWAYS remove furniture and other objects from area before playing. • ALWAYS use only Fly Wheels TM Rims and Tires size 18” or larger with the vehicle. • ALWAYS secure the Tire on the Rim before operating vehicle. • ALWAYS be aware of radio frequencies. Avoid operating within range of another unit using the same frequency. Radio frequency is indicated on the package and Controller. • ALWAYS keep ON/OFF switch in "OFF" position when toy is not in use. • ALWAYS operate the Controller within 45 feet of the vehicle. • ALWAYS store Fly Wheels TM in a cool, dry place. ADULT INSTALLATION REQUIRED REQUIRES 4 AA-SIZE (LR06) AND 1 9V (6LR61) ALKALINE BATTERIES. (NOT INCLUDED) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to t…

Text truncated - open the document above for the full version.

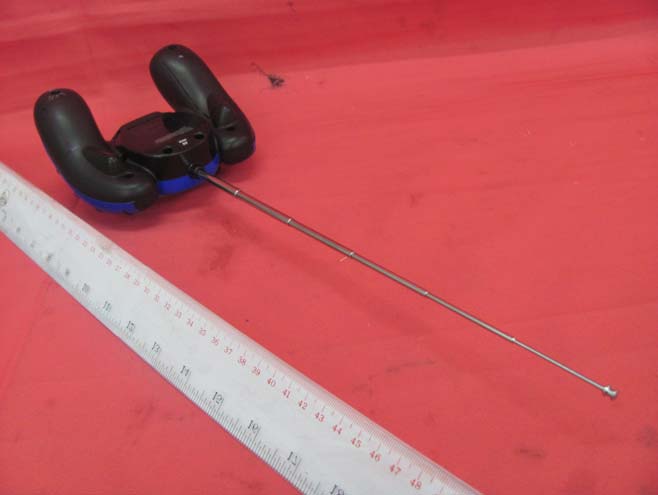

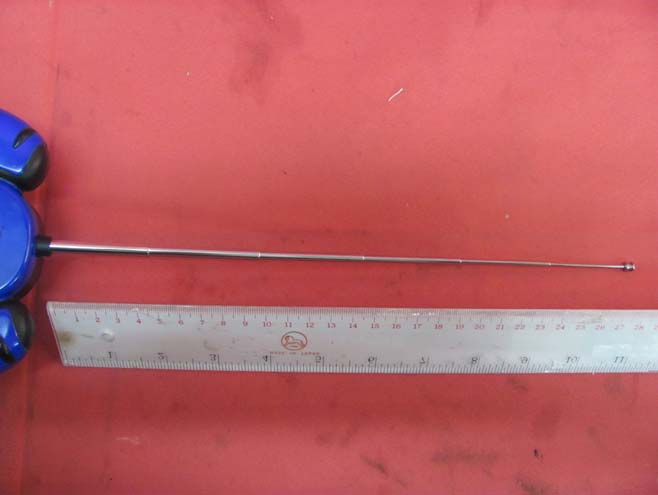

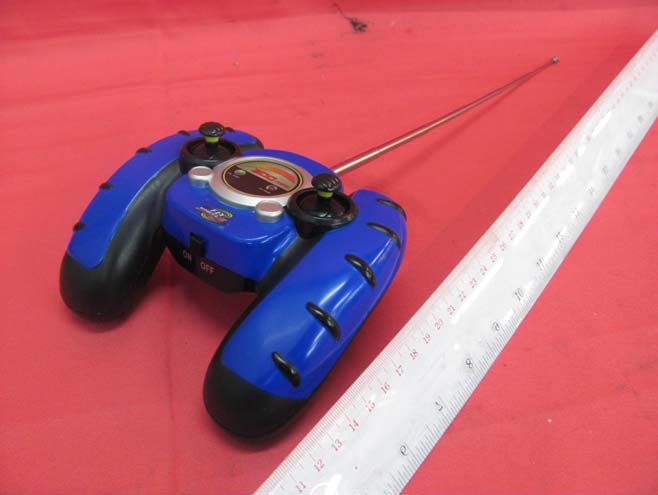

INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID: OTA56812TX49 Equipment Photographs Model : 56812 (External) INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID: OTA56812TX49 Equipment Photographs Model : 56812 (External)

3.1cm 0.9cm This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation. 2.1cm 0.2cm

INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID:OTA56812TX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID:OTA56812TX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID:OTA56812TX49 Equipment Photographs Model : 56812 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080103-3 FCC ID:OTA56812TX49 Equipment Photographs Model : 56812 (Internal)

Model: 56812 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left, right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: IC1 (8A977) and four switches (L,R,B,F) 2. A RF Oscillator (49.860MHz) Consisting: X1, Q2 3. A Filter Network Consisting: C1,C2,VL1 4. A RF Modulator and Amplifier Consisting: Q1 5. A Power Supply Consisting: 9VDC Alkaline Battery 6. Regulator Consisting: D1 7. Clock Frequency Generation Consisting: R6 (220kohm) Internal clock Oscillation 128KHz The antenna used: external, integral, telescope type antenna (with unique antenna connector). Antenna Gain: 0.5dBi Nominal rated field strength: 75.1dBuV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB

Analysis Report Report No.: HK12080103-3 FCC ID: OTA56812TX49 The Equipment Under Test (EUT) is a portable transmitter for a RC car, which is operating at 49.860MHz as dictated by a crystal. The EUT is powered by 1 x 9V Alkaline Battery. The EUT has a power ON/OFF switch, two control levers and a LED indicator. After switching ON the EUT and the corresponding car (i.e. receiver), activating the control key on the EUT can control the car moving forward, backward, left and right. Antenna Type: External, unique dedicated, telescope-type antenna with unique antenna connector Antenna Gain: 0.5dBi Nominal rated field strength: 75.1dBuV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 80.1dBuV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.031mW or EIRP = 10 log(0.031) = -15.1dBm Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain = – 15.1 – 0.5 = – 15.6 dBm So; Conducted Power = 10 ^ (– 15.6 / 10) = 0.028mW The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

F179 FCC TX-49M.sch-1 - Tue Feb 05 10:09:33 2013

INTERTEK TESTING SERVICES Report No.:HK12080103-3 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12080103-3 JAKKS Pacific (HK) Ltd. Application For Certification (Original Grant) (FCC ID: OTA56812TX49) Transmitter Prepared and Checked by: Approved by: Signed On File Lee Shiu Tim, Tim Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: February 08, 2013 INTERTEK TESTING SERVICES Report No.: HK12080103-3 FCC ID:OTA56812TX49 i GENERAL INFORMATION JAKKS Pacific (HK) Ltd. MODEL: 56812 FCC ID: OTA56812TX49 Grantee: JAKKS Pacific (HK) Ltd. Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Daniel Cheng Tel: (852) 2269 7628 Fax: (852) 2265 4593 e-mail: [email protected] / [email protected] Manufacturer: Lung Cheong Toys Limited Factory: Dong Guan L C Technology Co., Ltd. Brand Name: N/A Model: 56812 Asst. No.: 56812 JAKKS Master No.: 56812 Type of EUT: Transmitter Description of EUT: Fly Wheels Radio Control-2 Wheels Serial Number: N/A FCC ID : OTA56812TX49 Date of Sample Submitted: August 02, 2012 Date of Test: August 02, 2012 to August 13, 2012 Report No.: HK12080103-3 Report Date: February 08, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12080103-3 FCC ID:OTA56812TX49 ii SUMMARY OF TEST RESULT JAKKS Pacific (HK) Ltd. MODEL: 56812 FCC ID: OTA56812TX49 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12080103-3 FCC ID:OTA56812TX49 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ...............................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12080103-3 FCC ID: OTA56812TX49 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 56812 INTERTEK TESTING SERVICE Report No: HK12080103-3 FCC ID: OTA56812TX49 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 56812
