OTA58238RXMQ-27 Drone

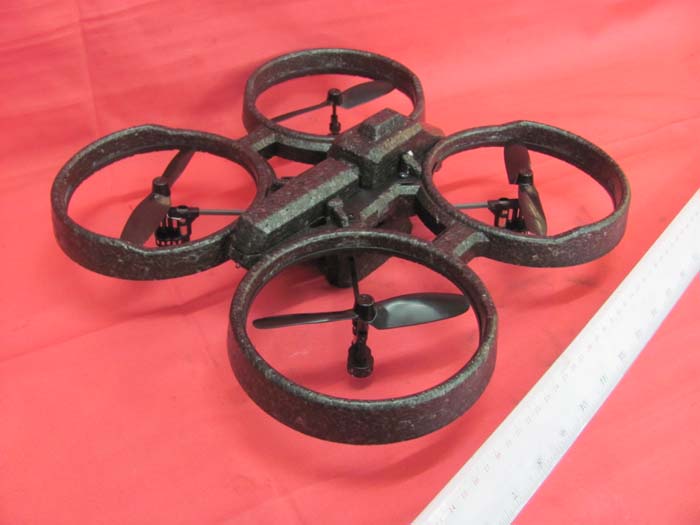

INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (External)

Page 1 of 2 FCC ID Label location Page 2 of 2

INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal) INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal) INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal) INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal) INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal) INTERTEK TESTING SERVICE Report No.: HK12070902-2 FCC ID: OTA58238RX Equipment Photographs Model: 58238 (Internal)

Technical Description The Equipment Under Test (EUT) is a 2.4GHz Transceiver (Helicopter Unit) for a RC helicopter operating at 2412 – 2469MHz with 1 MHz channel spacing. The EUT is powered by 1 X3.7V rechargeable battery (Li-Poly). After switch on the EUT and paired with controller, the EUT can be controlled to fly forward, backward, turning left and right direction by the corresponding controller. To charge the internal battery in the helicopter, either plug the charging connector from the controller into the charging jack on the helicopter for starting the charge process or using USB charging cable for charging via PC. Operating Frequency Band: 2412MHz ~ 2469MHz Modulation Method: GFSK. Channel Spacing: 1MHz The functions of main ICs are mentioned as below. 1) U3 & Q1 acts as Battery Charger 2) U1 Acts as Regulator 3) U4 acts as motion sensor 2) U2 (CWRFE1R) acts as 2.4GHz RF transceiver module 3) U5 & U6 acts as motor driver 4) Y1 acts as 16MHz Clock Oscillator. 5) NRF24LE1 acts as 2.4GHz RF Transceiver. Antenna used: PCB Antenna has been used. Revision 1.2Page 17 of 190 nRF24LE1 OTP Product Specification 3 RF transceiver The nRF24LE1 OTP uses the same 2.4 GHz GFSK RF transceiver with embedded protocol engine (Enhanced ShockBurst™) that is found in the nRF24L01+ single chip RF transceiver. The RF transceiver is designed for operation in the world wide ISM frequency band at 2.400–2.4835 GHz and is very well suited for ultra low power wireless applications. The RF transceiver module is configured and operated through the RF transceiver map. This register map is accessed by the MCU through a dedicated on-chip Serial Peripheral interface (SPI) and is available in all power modes of the RF transceiver module. The embedded protocol engine (Enhanced ShockBurst™) enables data packet communication and supports various modes from manual operation to advanced autonomous protocol operation. Data FIFOs in the RF transceiver module ensure a smooth data flow between the RF transceiver module and the nRF24LE1 OTP MCU. The rest of this chapter is written in the context of the RF transceiver module as the core and the rest of the nRF24LE1 OTP as external circuitry to this module. 3.1 Features Features of the RF transceiver include: •General Worldwide 2.4 GHz ISM band operation Common antenna interface in transmit and receive GFSK modulation 250 kbps, 1 and 2 Mbps on air data rate •Transmitter Programmable output power: 0, -6, -12 or -18dBm 11.1mA at 0dBm output power •Receiver Integrated channel filters 13.3mA at 2 Mbps -82 dBm sensitivity at 2 Mbps -85 dBm sensitivity at 1 Mbps -94 dBm sensitivity at 250 kbps •RF Synthesizer Fully integrated synthesizer 1 MHz frequency programming resolution Accepts low cost ±60ppm 16 MHz crystal 1 MHz non-overlapping channel spacing at 1 Mbps 2 MHz non-overlapping channel spacing at 2 Mbps •Enhanced ShockBurst™ 1 to 32 bytes dynamic payload length Automatic packet handling (assembly/disassembly) Automatic packet transaction handling (auto ACK, auto retransmit) •6 data pipe MultiCeiver™ for 6:1 star networks Jadeson to Jakks for reference only

Q240-RX-SCH.sch-1 - Fri Jul 20 16:08:15 2012 ABCD DCBA Title Number Revision Size B Date: 26-Jul-2012 Sheet of File: E:\ 公司资料 \coo lwav e_pro du ct\ 硬件资料 \COO LWAV E\PCB\xe12 01 -demo.dd b Drawn By: P0.1 1 VDD 2 DEC1 3 DEC2 4 P0.2 5 PROG 6 P0.3 7 VSS 8 VDD 9 P0.4 10 P0.5 11 P0.6 12 P0.7 13 P1.0 14 P1.1 15 P1.2 16 P1.3 17 P1.4 18 RESET 19 VDD_PA 20 ANT1 21 ANT2 22 VSS 23 VDD 24 IREF 25 VSS 26 VDD 27 P1.5 28 P1.6 29 XC2 30 XC1 31 P0.0 32 JP1NRF24LE1 C4100nF C5100nF C7 33nF C8 33nF L16.8nH L24.7nHC96.8nH C102.2nF C11NC C121.5pF C131pF R122K C3100nF Y116M C112pF C212pF VCC VCC VCC C6100nF VCC p0.0 p0.1 p0.2PROGP0.3 P0.4P0.5P0.6P0.7P1.0P1.1P1.2P1.3P1.4REST P1.5 P1.6 P0.0P0.1VCCP0.2PROGP0.3 P0.4 P0.5P0.6P0.7P1.0P1.1P1.2P1.3P1.4REST P1.5P1.6 12345678910 J1CON10 12345678910 J2CON10

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12070902-2 JAKKS Pacific (HK) Ltd. Application For Certification (Original Grant) (FCC ID: OTA58238RX) Transceiver Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven/cl Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: September 17, 2012 INTERTEK TESTING SERVICES Report No.: HK12070902-2 FCC ID: OTA58238RX i GENERAL INFORMATION JAKKS Pacific (HK) Ltd. BRAND NAME: MQ-27 Drone, MODEL: 58238 FCC ID: OTA58238RX Grantee: JAKKS Pacific (HK) Ltd. Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Dick Au Tel: (852) 2269 7631 Fax: (852) 2265 4593 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Factory Name: Dong Guan L C Technology Co., Ltd. Vendor: Lung Cheong Toys Limited Brand Name: MQ-27 Drone Model: 58238 JAKKS Master No.: 58238 Type of EUT: Transceiver Description of EUT: MQ-27 Drone (JAKKS Ref. No.: J492) Serial Number: N/A FCC ID: OTA58238RX Date of Sample Submitted: July 19, 2012 Date of Test: August 13, 2012 Report No.: HK12070902-2 Report Date: September 17, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12070902-2 FCC ID: OTA58238RX ii SUMMARY OF TEST RESULT JAKKS Pacific (HK) Ltd. BRAND NAME: MQ-27 Drone, MODEL: 58238 FCC ID: OTA58238RX TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12070902-2 FCC ID: OTA58238RX iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12070902-2 Sample No.: 1/2 (Helicopter) Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass)

INTERTEK TESTING SERVICE Report No: HK12070902-2 FCC ID: OTA58238RX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 58238 Radiated Emission Job: HK12070902-2 Model: 58238 A; B… INTERTEK TESTING SERVICE Report No: HK12070902-2 FCC ID: OTA58238RX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 58238 Radiated Emission Job: HK12070902-2 Model: 58238 A… B;
