OTA74045T27MXS RC Asst. #3 - ONeal 27MHz

Block Diagram (FCC ID: OTA74045T27) Filter RF power amplifier and Modulator Oscillator 27.147MHz Encoder Control key 27.147MHz ANT U1

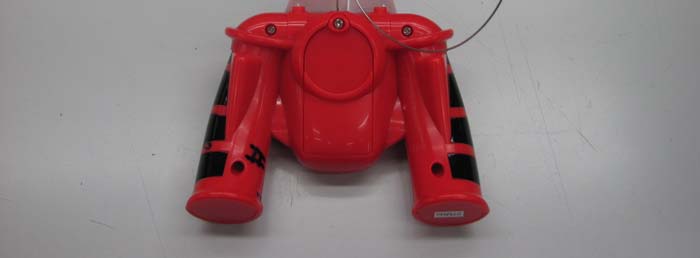

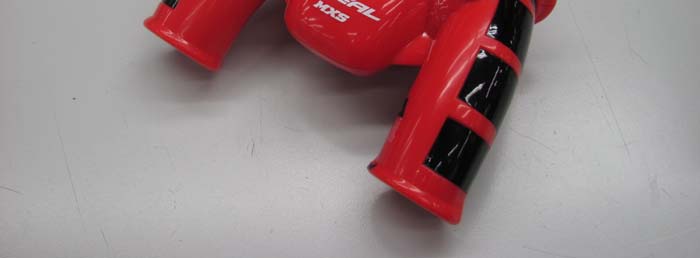

INTERTEK TESTING SERVICE Report No.: HK11070374-1 FCC ID: OTA74045T27 Equipment Photographs Model : Style No.: 18813-01 (External)

INTERTEK TESTING SERVICE Report No.: HK11070374-1 FCC ID: OTA74045T27 Equipment Photographs Model: Style No.: 18813-01 (Internal) INTERTEK TESTING SERVICE Report No.: HK11070374-1 FCC ID: OTA74045T27 Equipment Photographs Model: Style No.: 18813-01 (Internal) INTERTEK TESTING SERVICE Report No.: HK11070374-1 FCC ID: OTA74045T27 Equipment Photographs Model: Style No.: 18813-01 (Internal)

Technical description of Tx (FCC ID: OTA74045T27) Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions VL1, C7, C8 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q2 Oscillator Generate 27.145 MHz carrier Q1,Y1 (27.145MHz) Encoder IC Generate code signal to modulator U1 (SCTX2BD) Type of antenna: External, Integral antenna Type of modulation: Pulse modulation (27.145MHz, single channel)

INTERTEK TESTING SERVICES Report No.: HK11070374-1 Sample No.: 1/2 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11070374-1 JAKKS Pacific (HK) Limited Application For Certification (Original Grant) (FCC ID: OTA74045T27) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: July 28, 2011 INTERTEK TESTING SERVICES Report No.: HK11070374-1 FCC ID: OTA74045T27 i GENERAL INFORMATION JAKKS Pacific (HK) Limited MODEL: Style No.: 18813-01 FCC ID: OTA74045T27 Grantee: JAKKS Pacific (HK) Limited Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Rebecca Ho / Dick Au Tel: 22697628 Fax: 22654593 e-mail: [email protected] / [email protected] Vendor Name: Kidtoys Factory Ltd. Factory Name: Chit Wang Toy Factory Brand Name: N/A Model: Style No.: 18813-01 Asst. No.: 74045 Master No.: 18813 Type of EUT: Transmitter Description of EUT: MXS RC Asst. #3 – ONeal 27MHz Serial Number: N/A FCC ID: OTA74045T27 Date of Sample Submitted: July 07, 2011 Date of Test: July 12, 2011 Report No.: HK11070374-1 Report Date: July 28, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11070374-1 FCC ID: OTA74045T27 ii SUMMARY OF TEST RESULT JAKKS Pacific (HK) Limited MODEL: Style No.: 18813-01 FCC ID: OTA74045T27 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11070374-1 FCC ID: OTA74045T27 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information................................................................................. 6 8.1 Measured Bandwidth / …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11070374-1 FCC ID: OTA74045T27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: Style No.: 18813-01 INTERTEK TESTING SERVICE Report No: HK11070374-1 FCC ID: OTA74045T27 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: Style No.: 18813-01
