OTA78433Hero Portal - Power Rangers (Red, Blue, Green, Pink, Yellow, Silver Ranger)

RFID Block

Dec 2013 Letter of Agency "I, an officer of JAKKS Pacific(HK) Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 16 day June of 2014__ By Signature Dick Au Printed Name Senior Manager, Product Integrity Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

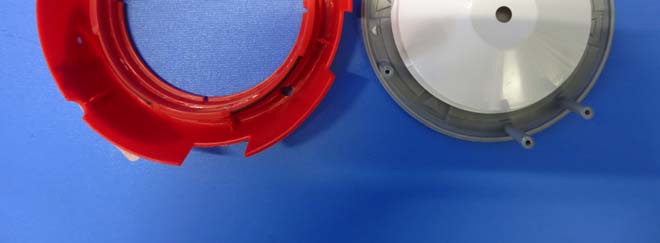

INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal) INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal) INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal) INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal) INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal) INTERTEK TESTING SERVICE Report No.: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Equipment Photographs Model : 78433 (Internal)

Technical Description The brief circuit description is listed as below: 1) U1 acts as MCU (GPL32612B). 2) U2 acts as Nand Rom (H27U518S2CTR-BC). 3) U3 acts as RFID Reader (HL5233). 4) U4 acts as Voltage regulator. 5) Y1 act as 12MHz Crystal Oscillator. 6) Y2 acts as 32.768kHz Crystal Oscillator. 7) Y3 acts as 13.560MHz Crystal Oscillator. 8) U7 acts as EEPROM 9) SW1~SW8 act as control key buttons Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal field strength: 71.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/-3dB Holylite Microelectronics Corp. Sino Matrix Technology Inc. HL5233 HF RFID Reader IC Aug.2012 1/9 Features ̇ Low standby current. ̇ Low power consumption. ̇ Simple application circuit. ̇ Stable performance. ̇ The system and oscillator can be enable separately. ̇ 3 kinds of decoder outputs. ̇ Level hold mode and one-shot trigger mode. ̇ High active and low active output selectable. Applications <Patent： ：： ：US6731177B2> ̇ Toy RFID. ̇ Asset control. ̇ Contactless entry control. ̇ Education. General Description HL5233 is a CMOS IC used to perform the function of a RFID Reader. A RFID contains two parts: RFID TAG (HL5230) and RFID Reader (HL5233). HL5233 contains of a 13.56MHz crystal oscillator, a 13.56MHz output buffer, a preamplifier and data decoder. The output buffer drives an antenna which can transmits RF signal to the RFID TAG. If TAG is close enough to the Reader, the encoder of TAG will send out a data train. The data train is used to modulate the RF signal in the TAG, and the amplitude of RF signal in the Reader will be modulated also. Preamplifier is used to amplify the modulating signal. The decoder is used to decoder the encoded data transmitted from TAG. There are three kinds of output data: Synchronous, Asynchronous and Direct drive outputs. In order to interface to most of power Speech IC, the data rate of the outputs is slower than the data rate of the RFID TAG. Block Diagram IN COM VDD2 VSS2 OENB SL READY PLAYMODE LHOLD ENB VDD VSS OUT0 OUT1 OUT2 OUT3 OUT4 OUT5 AO1IN2AO2AO3 OSC1 OSC2 VDD1 VSS1 DRVI1 DATAI CLOCKI SDATAI Decoder BUF OSCAmp. Stage Holylite Microelectronics Corp. Sino Matrix Technology Inc. HL5233 2/9 Pin Connection HL5233 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 VSS VSS2 COM IN1 A01 IN2 AO2 AO3 OSC1 OSC2 ENB OENB VDD2 VDD VSS1 DRIV1 SL READY PLAYMODE LHOLDN SDATAI/OUT7 CLOCKI/OUT6 DATAI/OUT5 OUT4 OUT3 OUT2 OUT1 OUT0 VDD VDD1 Holylite Microelectronics Corp. Sino Matrix Technology Inc. HL5233 3/9 Pin Description PIN NO. PIN NAME DESCRIPTION 1 SL Data Bit Rate Select Pin. It is used to determine the bit rate received from TAG. SL = 1, Bit rate = 8KHz; SL = 0, Bit rate = 4KHz 2 READY Play Mode Select Pin. When PLAYMODE pin is high, this pin is used as Output Polarity Control Pin. When PLAYMODE pin is low this pin is used as Ready input pin. When READY = 0, output signal is not available. 3 PLAYMODE Output DATA Mode Control Pin. When PLAYMODE = 1, Out0 ~ Out4, DATAI, CLOCKI, and SDATAI is used as direct output pin. When PLAYMODE = 0, Out0 ~ Out4 is also used as direct output, but DATAI, CLOCKI and SDATAI is used as serial data output pin. 4 LHOLDN Level-Hold Control Pin. When LHOLDN = 0, DATA will be sent out continuously or output will active as long as TAG is closed to Reader. When LHOLDN = 1, only one set of DATA will be sent out or output will active for a short time. 5 SDATAI Serial Data Output. When PLAYMODE = 0, this pin is used as serial data output, i.e., DATA and CLOCK exist at same output. When PLAYMODE = 1, this pin is used as one of the direct output. 6 CLOCKI CLOCK Output. When PLAYMODE = 0, this pin (combined with DATAI,) is used as synchronous DATA output pin. When PLAYMODE = 1, this pin is used as one of the direct output pins. 7 DATAI DATA Output. ( As illustrated in CLOCKI ) 8~12 Out0~Out4 Direct Output Pin. 13 VDD Positive Power Supply Terminal. 14 VDD1 Positive Power Supply Terminal. 15 DRIV1 Coil Driver Output of 13.56MHz oscillator. 16 VSS1 Negative Power Supply Terminal. 17 VDD Positive Power Supply Terminal. 18 VDD2 Positive Power Supply Terminal of Preamplifier. 19 OENB Coil Driver Enable Pin. When OENB = 0, coil driver will disable, others circuit still work. When OENB = 1, coil driver enable. 20 ENB Enable Input Pin of the whole system. 21 OSC2 Oscillator Output Pin. 22 OSC1 Oscillator Input Pin. 23 AO3 Output Pin of 3 rd stage of Preamplifier. 24 AO2 Output Pin of 2 nd stage of Preamplifier. 25 IN2 Inverting Input Pin of 2 nd stage of Preamplifier. 26 AO1 Output Pin of 1 st stage of Preamplifier. 27 IN1 Inverting Input Pin of 1 st stage of Preamplifier. 28 COM Common Input Pin of Preamplifier. 29 VSS2 Negative Power Supply Terminal of Preamplifier. 30 VSS Negative Power Supply Terminal. Holylite Microelectronics Corp. Sino Matrix Technology Inc. HL5233 4/9 Absolute Maximum Ratings Power Supply .......................................5V Input Voltage ........................................ VSS-0.3V to VDD+0.3V Operating Temperature..................................0 O C to 60 O C Storage Temperature .....................................-65 O C to 125 O C Electrical Characteristics 1. LIMIT SYSTEM DESCRIPTION TEST CONDITION MIN. TYP. MAX. UNIT VDD Supply Voltage 3 4.5 5 V VIL Input Voltage Low VDD=4.5V 0.3*VDD V VIH Input Voltage High VDD=4.5V 0.7*VDD V VOSC Oscillator Starting Voltage 2.2 V IOP1 Operating Current 1 VDD=4.5V 19* mA IOP2 Operating Current 2 (Driver Off) VDD=4.5V 1 mA IST Stand-by Current VDD=4.5V 0.5 uA * IOP depends on external coil. 2. LIMIT SYSTEM DESCRIPTION TEST CONDITION MIN. TYP. MAX. UNIT VDD Supply Voltage 2.4 3 3.6 V VIL Input Voltage Low VDD=3V 0.3*VDD V VIH Input Voltage High VDD=3V 0.7*VDD V VOSC Oscillator Starting Voltage 2.2 V IOP1 Operating Current 1 VDD=3V 10* mA IOP2 Operating Current 2 (Driver Off) VDD=3V 0.7 mA IST Stand-by Current VDD=3V 0.5 uA * IOP depen…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 14060242HKG-001 The equipment under test (EUT) is a 13.56MHz RFID transmitter for a game console unit (RFID toy reader) operating at 13.560MHz which is controlled by a crystal. The EUT is powered by 4 x AA size batteries. This product consists of a controller, a portal (RFID tag reader) and six figures of Power Rangers (passive tags). The EUT has an ON/OFF switch and a RFID tag reader on the portal. It can also connect to the TV monitor for game playing. After switched on the EUT, the TV monitor can show the game mode while the Figure (passive tags) was placed on the portal. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal field strength: 71.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 74.1 dBμV/m at 3m in frequency 13.56MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0077mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0077mW. The SAR Exclusion Threshold Level for 13.56MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 442.7mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

9.Mar.2013 JAKKS COMPANY: DWG NO: DATE: DRAWN: CHECK: APPROVED: ENG: RELEASED: TITLE: REV: 1.0 EEPROM 78433 POWER RANGERS POWER Internal Boot PAL=H NSTC=L BUTTON KEY AV Wire Y1 12MHZ S1SS-12F45 Y2 32768KHZ 1 GND 2 OUT 3 IN U4 AMS1117-3.3V 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCK 7 WP 8 VDD U7 FT24C16A 6 R/B2 7 R/B 8 RE 9 CE 12 VCC 13 VSS 16 CLE 17 ALE 18 WE 19 WP 29 I/O0 30 I/O1 31 I/O2 32 I/O3 36 VSS 37 VCC 41 I/O4 42 I/O5 43 I/O6 44 I/O7 1 NC 2 NC 3 NC 4 NC 5 NC 10 CE2 11 NC 14 NC 15 NC 20 NC 21 NC 22 NC 23 NC 24 NC 25 NC 26 NC 27 NC 28 NC 33 NC 34 NC 35 NC 38 NC 39 NC 40 NC 45 NC 46 NC 47 NC 48 NC U2 H27U518S2CTR-BC Q1 8050D + C4 220uF R7 10KΩ P1 R8 1KΩ C7 0.1uF R9 10KΩ R10 10KΩ C8 0.1uF R11 10KΩ C9 0.1uF R17 33KΩ C10 150PF R18 33K Ω C11 0.01uF R1933KΩ R20 4.7KΩ C12 0.1uF R21330Ω C13 0.1uF 1 J2-A L3 390 ohm 2 J2-B 3 J2-C L4 390 ohm R22 47Ω + C14 220uF Q2 8050D R23 75Ω R24 2.2KΩ C15 0.1uF + C16 220uF L5 390 ohm C17 100PF C21 10uF C22 150pF C23 150pF C24 150pF C25 0.1uF C26 0.1uF C27 0.1uF C28 0.1uF C29 0.1uF C30 0.1uF C31 0.1uF C32 0.1uF C33 0.1uF C34 0.1uF C35 0.1uF C36 0.1uF R28 1KΩ L6 390 ohm L8 390 ohm + C37 470uF C38 0.1uF C40 NC C41 30PF C42 30PF C44 1uF BAT+ R1 1Ω R2 100KΩ P11 C49 NC R5 NC R12 1Ω 1 V12_FB 2 VSS_REG 3 V33_REG 4 FB1/IOG14 5 FB0/IOG11 6 VSS_IO 7 PWM1/IOG13 8 VC1/IOG15 9 PWM0/IOG10 10 AVSSRX 11 DM 12 DP 13 AVDDRX 14 VDD33 15 IOB2 16 IOB3 17 IOC11 18 BKCSB2/IOF2 19 BKCSB1/IOF1 20 VSS 21 V33_RTC 22 X32KI 23 X32KO 24 ALM 25 VSS_CLK 26 X12MI 27 X12MO 28 V33_CLK 29 V33_VDAC 30 AOUT 31 CBU 32 VSS_VDAC 3 3 I O A 1 5 3 4 I O A 1 4 3 5 I O A 1 3 3 6 I O A 1 2 3 7 I O A 1 1 3 8 I O A 1 0 3 9 I O A 9 4 0 I O A 8 4 1 I O A 7 4 2 I O A 6 4 3 I O A 5 4 4 I O A 4 4 5 I O A 3 4 6 I O A 2 4 7 I O A 1 4 8 I O A 0 4 9 V S S 5 0 V D D 1 2 5 1 V D D 3 3 5 2 I O I 0 5 3 I O I 1 5 4 I O I 2 5 5 I O I 3 5 6 I O I 4 5 7 I O I 5 5 8 I O I 6 5 9 I O I 7 6 0 I O I 8 6 1 I O I 9 6 2 V 3 3 _ A D C 6 3 L I N E I N 0 / I O F 6 6 4 L I N E I N 1 / I O F 7 65 LINEIN2/IOF8 66 LINEIN3/IOF9 67 LINEIN4/IOH6 68 LINEIN5/IOH7 69 MICIN/IOH8 70 VREF/IOH9 71 VSS_ADC 72 IOC9 73 IOC8 74 IOC7 75 IOC6 76 IOC5 77 IOC4 78 EXT_A/IOF5 79 BM2/IOF15 80 VDD33 81 VDD33 82 VSS 83 VDD33 84 VDD33 85 XA20/IOG5 86 XA19/IOG6 87 BKOEB/IOH0 88 VDD12 89 IOE2 90 IOE3 91 IOB5 92 IOB6 93 VSS_MIPI 94 VDDQ 95 VOL 96 VSS_DA16 9 7 V R E F _ D A 1 6 9 8 V 3 3 _ D A 1 6 9 9 V O R 1 0 0 I O C 3 1 0 1 I O C 2 1 0 2 I O C 1 1 0 3 I O C 1 0 1 0 4 I O B 7 1 0 5 I O B 4 1 0 6 I O B 1 5 1 0 7 I O B 1 4 1 0 8 I O B 1 3 1 0 9 I O B 1 2 1 1 0 I O B 1 1 1 1 1 I O B 1 0 1 1 2 V D D 3 3 1 1 3 N C 1 1 4 N C 1 1 5 V S S 1 1 6 I O B 9 1 1 7 I O B 8 1 1 8 R E S E T B 1 1 9 B M 1 / I O F 1 4 1 2 0 T E S T 1 2 1 B K C S B 3 / I O F 3 1 2 2 T M S / I O H 5 1 2 3 T C K / I O H 4 1 2 4 T D O / I O H 3 1 2 5 T D I / I O H 2 1 2 6 I O B 0 1 2 7 I O B 1 1 2 8 V D D 1 2 U1 GPL32612B BAT- C1 0.1uF C2 0.1uF R15 100KΩ R16 100KΩ P2 P3 L1 102 ohm C3 NC C5 0.1uF R29 102OHM C43 10uF C48 0.1uF P6 P7 R31 10KΩ C50 0.1uF R32 1KΩ C51 0.1uF R33 1KΩ R34 NC R35 NC C62 3-15pF C52 0.1uF C53 10uF C54 0.1uF C55 0.1uF C56 0.01uF Y3 13.56MHZ C57 10PF C58 10PF R36 1MΩ L2 HL5232-ANT C59 22PF C6030PF R38 10KΩ R44 10KΩ J1-1 J1-2 J1-3 J1-4 J1-5 J1-6 J1-7 J1-8 J1-9 R31KΩ R41KΩ R461KΩ R47 1KΩ R48 1KΩ R49 1KΩ R501KΩ R51 1KΩ C18 150pF C19 150pF C20 150pF C39 150pF C45 150pF C46 150pF R25 47Ω TDI TMS TCK TDO RESET GND VCC 1 SL 2 READY 3 PLAYMODE 4 LHOLDN 5 SDATAI/OUT7 6 CLOCKI/OUT6 7 DATAI/OUT5 8 OUT4 9 OUT3 10 OUT2 11 OUT1 12 OUT0 13 VDD 14 VDD1 15 DRIV1 16 VSS1 17 VDD 18 VDD2 19 OENB 20 ENB 21 OSC2 22 OSC1 23 AO3 24 AO2 25 IN2 26 AO1 27 IN1 28 COM 29 VSS2 30 VSS U3 HL5233 R260R C47 0.1uF SW1 SW2 SW3 J3-1 J3-2 J3-3 J3-4 J3-5 J3-6 J3-7 J3-8 J3-9 SW4 SW5 SW6 SW7 SW8 LED1 White LED R13 1.8KΩ P4 L7 3.9uH C63 56PF R6 102ohm L10 102ohm R40 0Ω R39 1MΩ R2710KΩ C66 39PF NAND_D0 NAND_D1 NAND_D2 NAND_D3 NAND_D4 NAND_D5 NAND_D6 NAND_D7 DVCC33 NF_RDY NF_OEB NF_CS1 NF_CLE NF_ALE NF_WEB NF_WP DVCC33 AVCC33 DACR AVCC33 V12DVCC33 DVCC33 DVCC33 EEP_SDA EEP_SCL DVCC33 DVCC33 IOB3 BM1 BM2 V12 DVCC33 NF_WEB NF_OEB DVCC33 DVCC33 IOB3 NF_RDY NF_CS2 NF_CS1 X32KI X32KO X12MI X12MO DVCC33 AVCC33 DVCC33 I O A 1 5 N F 2 _ D E T E N B I O A 1 2 I O A 1 1 I O A 1 0 I O A 9 I O A 8 E E P _ S D A E E P _ S C L I O A 5 I O A 4 I O A 3 I O A 2 I O A 1 I O A 0 V 1 2 D V C C 3 3 N A N D _ D 0 N A N D _ D 1 N A N D _ D 2 N A N D _ D 3 N A N D _ D 4 N A N D _ D 5 N A N D _ D 6 N A N D _ D 7 V C C 3 3 - A D C BM2 DVCC33 NF_ALE NF_CLE V12 UART_TX UART_RX DACL DVCC33 DVCC33 D A C R D A T A I C L O C K I D V C C 3 3 R E S E T B M 1 T M S T C K T D O T D I V12 X12MI X12MO X32KI X32KO DVCC33 RESET IOA5 DVCC33 TDI TMS TCK TDO RESET CLOCKI DATAI DVCC33V DVCC33V IOA15 IOA10 IOA11 IOA12 IOA3 IOA4 IOA8 IOA9 MENU A B C LEFT RIGHT DOWN UP VCC33 DVCC33 ENB VCC33-ADC VCC33 MENU A B C UP DOWN LEFT RIGHT DVCC33 DVCC33 DVCC33V PDF created with pdfFactory Pro trial version www.pdffactory.com

lntertek Valued Quality. fÞliveæd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS hås aæredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specif¡c laboratory acliv¡ties ss listed in the HOKLAS diroctory of accreditsd laborator¡ss. TEST REPORT Report No. : 1 406 0242HKG-001 JAKKS Pacific (HK) Limited Application For Certification (Original Grant) (FCC lD: OTA78433) (lC: 7783A-78433) Transmitter Prepared and Checked by: Lead Engineer wok Yeung, Kenneth Th¡s report shell not b€ reprcduced, excepl in full Th¡s r€port is for lho €xclus¡v€ uss of lntort6k'B Cl¡enl and ¡9 prov¡dgd purgugnt lo lh€ Egr€ement b€twegn lnterlek gnd ilg Clignl lnterlek'g responsibility €nd liabil¡ty are l¡mited to tho tems and condilionE of th6 Egrcêmônl lnterlek assumes no lieb¡l¡ly to ¿ny party, olher than to lhe Cliônl in Ecærdance with the egreemgnt, for gny loss, expense or dsmag6 oc@sionod by the uge of this report. Only lhe cl¡gnl is sulhorized to pem¡l copylno or d¡gtribut¡on of lhis report snd th€n only ¡n ¡ts enl¡rety Any u6g ol lhe lnterlek n€me or on6 of ils msrks for the salo or adv€¡lisêmnl of tho t€gted materi¡|, product or soryÌco musl first bo approvod in witing by lnteriek Thê obseryaliono End lest results in this roporl aro relevant only to th6 sEmplo lested This rôport by ilself does not imply lhat lhe m6terial, producl, or sery¡æ is or has gver been qndår an lnterlek c€rtilìøt¡on progEm lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 2'173 8888 Fax: (852) 2785 5487 Website: www.hk ¡ntertek-otlsemko.com Approved by: Charf Ctli Hung, Terry Supervisor Date:July 11,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060242HKG-001 i FCC ID: OTA78433 IC: 7783A-78433 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: JAKKS Pacific (HK) Limited Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Dick Au Tel: 2269 7631 Fax: 2366 8247 e-mail: [email protected] Manufacturer: Root Land Plastic Factory Manufacturer Address: Bai Yun Keng Industrial, Danshui Town, Huiyang Zone, Huizhou City, Guangdong, Province China. Vendor: Root Land Ltd. Brand Name: N/A Model: 78433 FCC Additional Model: 82642 Asst. No.: 78433, 78433-CAN, 78433-EU, 82642, 82642-CAN, 82642-EU GL Class No.: 3500.8020.105 Type of EUT: Transceiver Description of EUT: Hero Portal - Power Rangers (Red, Blue, Green, Pink, Yellow, Silver Ranger) (78433) Hero Portal - Power Ranger With Six Figure (Red, Blue, Green, Pink, Yellow, Silver Ranger) (82642) Serial Number: N/A FCC ID / IC: OTA78433 / 7783A-78433 Date of Sample Submitted: June 05, 2014 Date of Test: June 05, 2014 to June 15, 2014 Report No.: 14060242HKG-001 Report Date: July 11, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060242HKG-001 ii FCC ID: OTA78433 IC: 7783A-78433 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength Frequency Stability 15.225 / RSS-210 A2.6 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060242HKG-001 iii FCC ID: OTA78433 IC: 7783A-78433 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software.........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 78433 Radiated Emission Job: 14060242HKG-001 Model: 78433 A INTERTEK TESTING SERVICE Report No: 14060242HKG-001 FCC ID: OTA78433 IC: 7783A-78433 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 78433 Radiated Emission Job: 14060242HKG-001 Model: 78433 B
