RF tracker Block Diagram 2407-2470MHz RX side 2 x AAA battery MCU 2.4G RF modules CWDP125 5x Led I/O A7125 16MHz I/O Buzzer JL8PE53 FCC ID: OTA80073RXIC: 7783A-80073RX A7125 2.4GHz FSK Transceiver Nov., 2010, v1.2AMICCOM Electronics Corporation 8 6. Block Diagram GIO1GIO2 SDIOBP_BG RFI RFO RFC CKO REGI VDD_VCO XI GND SCS VDD_D BP_RSSI SCK VDD_PLL VDD_A CPXO LNA VCOPAPLL MODEM Packet Handler BSP RXFIFO SPI 1 3 2 4 5 687910 15 13 14 12 11 2018191716 XOSC Regulator/ Thermal sensor Radio Control ADC TXFIFO Figure 6.1 A7125 Block Diagram

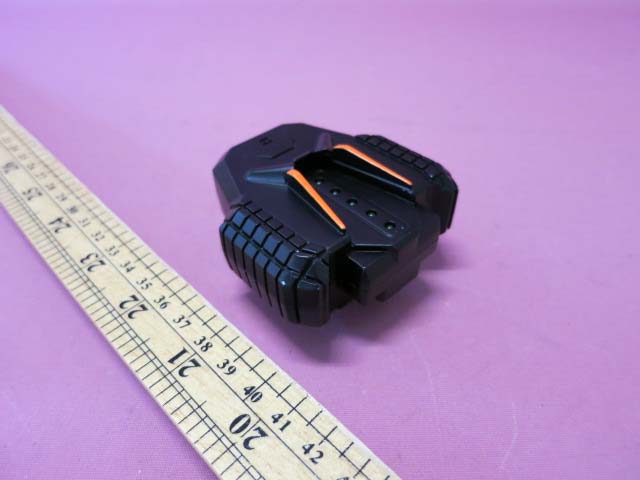

INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (External)

INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073RX IC: 7783A-80073RX Equipment Photographs Model : 80073 (Internal)

14060199HKG-002 FCC ID: OTA80073RX IC: 7783A-80073RX Technical Description FCC Model: 80073 IC Model: 80073RX Description: Covert OPS Recon Tracker Frequency: 2407 – 2470MHz The brief circuit description is listed as follows: The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Receiver) for a Recon Tracker. The EUT is powered by 3.0V (1.5V X 2) AAA size battery. It is designed to operate frequency range in the 2407-2470 MHz with 1MHz channel spacing. It is a fix channel used for communication between Tracker and Receiver after pairing. It has ON/OFF switch, a Mute Key and five green LED lights. The EUT can be paired with the Tracker while they are both ON. The number of the flashing LED lights and the beeping sound can indicate the distance between the Tracker and the Receiver. Antenna gain: 0dBi Nominal rated field strength: 88.8 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB A7125 (U1) A7125 is a high performance and low cost 2.4GHz ISM band wireless transceiver. It integrates high sensitivity receiver (-90dBm @2Mbps), high efficiency power amplifier (up to 3dBm), frequency synthesizer and base-band modem. In typical system, A7125 is used together with MCU (microcontroller) with very few external passive components. A7125 supports both FIFO mode and direct mode that contains clock recovery circuit CKO pin to MCU. A7125 supports very fast settling time (90 us) for frequency hopping system. For packet handling, A7125 has built-in separated 64-bytes TX/RX FIFO (could be extended to 256 bytes) for data buffering and burst transmission, CRC for error detection, FEC for 1-bit data correction per code word, RSSI for clear channel assessment, data whitening for data encryption/decryption, thermal sensor for monitoring relative temperature. Those functions are very easy to use while developing a wireless system. All features are integrated in a small QFN 4X4 20 pins package. JL8PE53 (U1) The JL8PE53 series is a family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers. It employs a RISC architecture with only 42 instructions. All instructions are single cycle except for program branches which take two cycles. The easy to use and easy to remember instruction set reduces development time significantly. The JL8PE53 series consists of Power-on Reset (POR), Brown-out Reset (BOR), Power- up Reset Timer (PWRT), Oscillator Start-up Timer(OST), Watchdog Timer, EPROM/ROM, SRAM, tri-state I/O port, I/O 14060199HKG-002 FCC ID: OTA80073RX IC: 7783A-80073RX pull-high/open-drain/pull-down control, Power saving SLEEP mode, real time programmable clock/counter, Interrupt, Wake-up from SLEEP mode, and Code Protection for EPROM products. There are three oscillator configurations to choose from, including the power-saving LP (Low Power) oscillator and cost saving RC oscillator. The JL8PE53 address 1K×13 of program memory. The JL8PE53 can directly or indirectly address its register files and data memory. All special function registers including the program counter are mapped in the data memory.

Analysis Report Report No.: 14060199HKG-002 The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Receiver) for a Recon Tracker. The EUT is powered by 3.0V (1.5V X 2) AAA size battery. It is designed to operate frequency range in the 2407-2470 MHz with 1MHz channel spacing. It is a fix channel used for communication between Tracker and Receiver after pairing. It has ON/OFF switch, a Mute Key and five green LED lights. The EUT can be paired with the Tracker while they are both ON. The number of the flashing LED lights and the beeping sound can indicate the distance between the Tracker and the Receiver. Antenna Gain: 0dBi Nominal rated field strength: 88.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 91.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.454mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.454mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014-5-8Sheet of File:E:\\..\DETECTOR_RX.SCHDOCDrawn By: 12 34 56 78 910 1112 1314 JP1 CWDP125-D GIO1 GIO2 VDD SDIO SCK SCS GND R1 330R DLED_1LED(G) R2 330R DLED_2LED(G) R4 330R DLED_3LED(G) R6 330R DLED_4LED(G) R7 330R DLED_5LED(G) R8 330R VCC PA3 P1 P2 GND BATTREY 3V C3 1u VCC C1 1u R3 10R VCC LED1 Q1 BC849 R9 330R LS1 Buzzer VCC SCS C2 4.7uF R5 1K PA5/PRSTB 8 VSS 5 PA0 7 PA3 9 VDD 10 PA6/XOUT 11 PA7/XIN 12 PA4 13 PB3 6 PC0 1 PB0 2 PB1 3 PB2 4 PC5 14 U1 GIO1 GIO2 SDIO SCK LED2 LED3 LED4 LED5 LED1LED2 LED3 LED4 LED5 PA3 VCC 2 3 1 S1 MK12C01 P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0DLED0101 P0DLED0102 P0DLED0201 P0DLED0202 P0DLED0301 P0DLED0302 P0DLED0401 P0DLED0402 P0DLED0501 P0DLED0502 P0JP101 P0JP102 P0JP103 P0JP104 P0JP105 P0JP106 P0JP107 P0JP108 P0JP109 P0JP1010 P0JP1011 P0JP1012 P0JP1013 P0JP1014 P0LS101 P0LS101A P0LS102 P0LS102A P0P101 P0P201 P0Q101 P0Q102 P0Q103 P0R101 P0R102 P0R201 P0R202 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0R601 P0R602 P0R701 P0R702 P0R801 P0R802 P0R901 P0R902 P0S101 P0S102 P0S103 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0JP104 P0U103 N0GIO1 N0GIO1 P0JP102 P0U102 N0GIO2 N0GIO2 P0C101 P0C202 P0C301 P0JP101 P0JP103 P0JP105 P0JP107 P0JP109 P0JP1011 P0JP1013 P0JP1014 P0Q102 P0U105 N0GND P0DLED0102 P0U101 N0LED1 N0LED1 P0DLED0202 P0U1014 N0LED2 N0LED2 P0DLED0302 P0U1013 N0LED3 N0LED3 P0DLED0402 P0U1012 N0LED4 N0LED4 P0DLED0502 P0U1011 N0LED5 N0LED5 P0DLED0101 P0R101 P0DLED0201 P0R201 P0DLED0301 P0R401 P0DLED0401 P0R601 P0DLED0501 P0R701 P0LS101 P0LS101A P0R802 P0LS102 P0LS102A P0Q103 P0P101 P0S101 P0P201 P0Q101 P0R902 P0R502 P0U108 P0S103 P0R901 P0U109 N0PA3 N0PA3 P0JP1010 P0U106 N0SCK N0SCK P0JP1012 P0U107 N0SCS N0SCS P0JP108 P0U104 N0SDIO N0SDIO P0C201 P0C302 P0R102 P0R202 P0R301 P0R402 P0R501 P0R602 P0R702 P0R801 P0S102 P0U1010 P0C102 P0JP106 P0R302 N0VDD N0GIO1 P0JP104 P0U103 N0GIO2 P0JP102 P0U102 N0GND P0C101 P0C202 P0C301 P0JP101 P0JP103 P0JP105 P0JP107 P0JP109 P0JP1011 P0JP1013 P0JP1014 P0Q102 P0U105 N0LED1 P0DLED0102 P0U101 N0LED2 P0DLED0202 P0U1014 N0LED3 P0DLED0302 P0U1013 N0LED4 P0DLED0402 P0U1012 N0LED5 P0DLED0502 P0U1011 P0DLED0101 P0R101 P0DLED0201 P0R201 P0DLED0301 P0R401 P0DLED0401 P0R601 P0DLED0501 P0R701 P0LS101 P0LS101A P0R802 P0LS102 P0LS102A P0Q103 P0P101 P0S101 P0P201 P0Q101 P0R902 P0R502 P0U108 P0S103 N0PA3 P0R901 P0U109 N0SCK P0JP1010 P0U106 N0SCS P0JP1012 P0U107 N0SDIO P0JP108 P0U104 P0C201 P0C302 P0R102 P0R202 P0R301 P0R402 P0R501 P0R602 P0R702 P0R801 P0S102 P0U1010 N0VDD P0C102 P0JP106 P0R302 ABCD DCBA Title Number Revision Size B Date: 19-Sep-2012 Sheet of File: E:\ 公司资料 \coo lwav e_pro du ct\ 硬件资料 \COO LWAV E\PCB\xe12 01 -demo.dd b Drawn By: C21nF C3100pF C113.9pFC12 3.9pF L43.3nH C23100pF VDD_A C50.1uF L52.2nH L3 2.7nH C15NP ANT C81pF L138.2nH R211M C1 NP C308.2pF R12.7k C142.2nF C16 180pF C70.1uF VDD_A C19100pF C1712pF C1812pF U2 16M X'tal U2 10ppm CL:9pF △ C102.2uF SDIOSCKSCS VDD_A CKO GIO2 GIO1 VIN C92.2uF C44.7uF Source:MD7125-A04-06.SCH MD7125-A08-01 2008.10.14 SCSSCKSDIOGIO1GIO2VINGND GND 1 BP_RSSI 2 GND 3 BP_BG 4 GND 5 RFI 6 GND 7 RFO 8 GND 9 RFC 10 GND 11 VDD_VCO 12 GND 13 CP 14 GND 15 VDD_PLL 16 GND 17 XI 18 XO 19 GND 20 SCS 21 SCK 22 VDD_D 23 NC 24 SDIO 25 GND 26 GIO1 27 GIO2 28 CKO 29 REGI 30 VDD_A 31 U1A7125 R2018R 1234567 J1CON7 C21 3.9pF
