OTA80073TXCovert OPS Recon Tracker

8+ SPY NET COVERT OPS™ INSTRUCTIONS RECON TRACKER Recon tracker set X 1 TM & © 2014 Manufactured by JAKKS Pacific, Inc., 22619 PCH, Malibu, CA 90265 U.S.A. MADE IN CHINA Contents may vary in style, color, shape and decoration from images shown on package or in advertising. Questions or comments? www.jakks.com, [email protected], 1-877-875-2557 in North America. ATTENTION! Remove and discard packaging ties and fasteners before giving toy to child. ™ PLAY WITH OTHERS WHO ARE PLAYING WITH YOU AND KNOW THIS IS A TOY. ALWAYS PLAY RESPONSIBLY AND RESPECT OTHERS’ PRIVACY. TRACK OTHERS ONLY WITH THEIR PERMISSION. CONTENTS JAKKS Pacific ® Battery, Solar or Electrically-Operated Product 90 DAY LIMITED WARRANTY Thanks for purchasing a great JAKKS Pacific® product! Please immediately register your product online at www.jakks.com/warranty. Registration is not required for the effectiveness of this limited warranty. IMPORTANT NOTICE TO CONSUMER: This 90 DAY LIMITED WARRANTY applies to the original product purchaser, provided the product: 1) was purchased from an authorized JAKKS™ distributor/dealer/retailer,and 2) is returned at your expense, postage pre-paid and insured, along with the original dated sales receipt to the address noted below. Please save a copy of your original sales receipt, as the original receipt will not be returned to you. If you return the product to us without the original dated sales receipt, this warranty coverage will not apply. If the product is determined by JAKKS to be defective and returned to JAKKS within the 90 day warranty period, we will (at our option) repair or replace it. Return shipment to you may take up to 6 weeks, depending upon your location. If your product is repaired or replaced, it will be warranted for the longer of the original warranty or for 30 days after warranty service. SCOPE OF LIMITED WARRANTY: The product is warranted to be: a) tested and inspected before shipment, and b) free of defects in material and workmanship for 90 days from date of purchase. If a covered defect occurs within the warranty period, then at our sole option, we will repair or replace the product or provide you with another product of equal value. WHAT IS NOT COVERED BY LIMITED WARRANTY: THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN MODIFIED OR REPAIRED BY USER OR OTHERS OR IF IT HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, IMMERSION IN WATER, NEGLECT, ABUSE, MISUSE, BATTERY LEAKAGE, IMPROPER BATTERY INSTALLATION, UNAUTHORIZED SERVICE, LOSS OF PARTS, WEATHER, ACTS OF GOD, ANY ACTION OR OMISSION WHICH CONSTITUTES A DEVIATION FROM THE OPERATING INSTRUCTIONS, OR ANY OTHER CAUSES NOT ARISING OUT OF DEFECTS IN WORKMANSHIP OR MATERIALS. EXCLUSIONS FROM LIMITED WARRANTY: THIS WARRANTY IS EXCLUSIVE OF AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES RELATED TO THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARISING FROM POSSESSION, USE, OR MALFUNCTION OF THIS PRODUCT ARE EXCLUDED BOTH FOR PROPERTY DAMAGE AND PERSONAL INJURY TO THE EXTENT LEGALLY PERMITTED. ADDITIONAL LEGAL RIGHTS: This warranty provides specific legal rights. You may have other or different rights in your state or country. QUESTIONS OR COMMENTS: If you experience product difficulties or have questions or comments, you may contact our Consumer Relations department as follows: Phone: 877-875-2557 (toll-free, North America only) or 909-594-7771 x560 (Monday-Friday, 7:30AM-4:30PM Pacific/GMT -8). Mail: JAKKS Consumer Relations, 21749 Baker Parkway, Walnut, California USA 91789. Email: [email protected] WHEN WRITING TO US: Please include: 1) product name; 2) item number; 3) purchase date; 4) description of the problem being experienced; and 5) your name, address and phone number. Additionally, if eligible under the warranty and so advised by JAKKS Consumer Relations, also include the defective product and the ORIGINAL dated sales receipt evidencing product purchase. Please retain a copy of your receipt. 080309 IMPORTANT SAFETY INFORMATION – BATTERY WARNINGS AND PROPER USE WARNING: Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately wash any clothing or other surface that comes in contact with leaked battery acid. Leaking batteries may make "popping" sounds. Dispose according to Local, State or Federal Battery Laws. TO AVOID BATTERY PROBLEMS: • NEVER mix old and new batteries or different brands of batteries. • NEVER mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium) batteries with this product. • NEVER dispose of batteries in fire, as they may leak and explode. • NEVER use rechargeable batteries. • NEVER attempt to charge non-rechargeable batteries. • ALWAYS remove exhausted batteries from toy. • ALWAYS have an adult install batteries consistent with installation instructions. • ONLY use batteries specified by manufacturer. • Batteries are to be inserted with the correct polarity. • The supply terminals are not to be short-circuited. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not ins…

Text truncated - open the document above for the full version.

RF tracker Block DiagramTX side 2407-2470MHz 3V battery MCU 2.4G RF modules 2032 A7125 16MHz JL8PE53 FCC ID: OTA80073TXIC: 7783A-80073TX A7125 2.4GHz FSK Transceiver Nov., 2010, v1.2AMICCOM Electronics Corporation 8 6. Block Diagram GIO1GIO2 SDIOBP_BG RFI RFO RFC CKO REGI VDD_VCO XI GND SCS VDD_D BP_RSSI SCK VDD_PLL VDD_A CPXO LNA VCOPAPLL MODEM Packet Handler BSP RXFIFO SPI 1 3 2 4 5 687910 15 13 14 12 11 2018191716 XOSC Regulator/ Thermal sensor Radio Control ADC TXFIFO Figure 6.1 A7125 Block Diagram

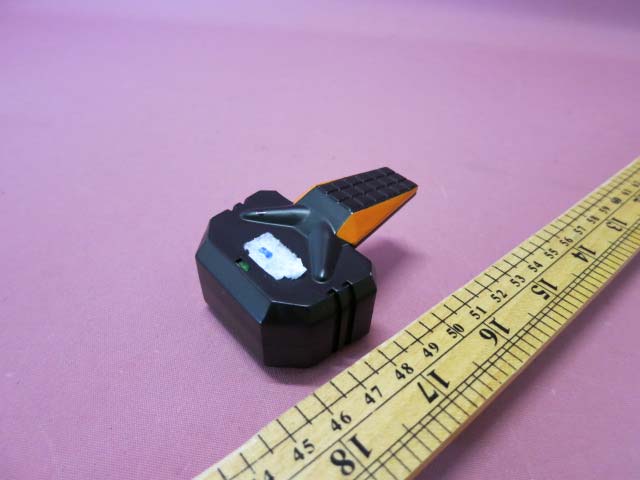

INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Equipment Photographs Model : 80073 (External)

Label size: 2mm x 20mm Label size: 14.1mm x 3.9mm

INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Equipment Photographs Model : 80073 (Internal) INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Equipment Photographs Model : 80073 (Internal)

14060199HKG-001 FCC ID: OTA80073TX IC: 7783A-80073TX Technical Description FCC Model: 80073 IC Model: 80073TX Description: Covert OPS Recon Tracker Frequency: 2407 – 2470MHz The brief circuit description is listed as follows: The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Tracker) for a Recon Tracker. The EUT is powered by 3.0V (3.0V X 1 CR2032) battery. It is designed to operate frequency range in the 2407-2470 MHz with 1MHz channel spacing. It is a fix channel used for communication between Tracker and receiver after pairing. It has ON/OFF switch and a green LED light. It can be paired with the Receiver while they are both ON. The light and beep can indicate the distance between the Tracker and the Receiver. Antenna gain: 0dBi Nominal rated field strength: 78.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB A7125 (U2) A7125 is a high performance and low cost 2.4GHz ISM band wireless transceiver. It integrates high sensitivity receiver (-90dBm @2Mbps), high efficiency power amplifier (up to 3dBm), frequency synthesizer and base-band modem. In typical system, A7125 is used together with MCU (microcontroller) with very few external passive components. A7125 supports both FIFO mode and direct mode that contains clock recovery circuit CKO pin to MCU. A7125 supports very fast settling time (90 us) for frequency hopping system. For packet handling, A7125 has built-in separated 64-bytes TX/RX FIFO (could be extended to 256 bytes) for data buffering and burst transmission, CRC for error detection, FEC for 1-bit data correction per code word, RSSI for clear channel assessment, data whitening for data encryption/decryption, thermal sensor for monitoring relative temperature. Those functions are very easy to use while developing a wireless system. All features are integrated in a small QFN 4X4 20 pins package. JL8PE53 (U1) The JL8PE53 series is a family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers. It employs a RISC architecture with only 42 instructions. All instructions are single cycle except for program branches which take two cycles. The easy to use and easy to remember instruction set reduces development time significantly. The JL8PE53 series consists of Power-on Reset (POR), Brown-out Reset (BOR), Power- up Reset Timer (PWRT), Oscillator Start-up Timer(OST), Watchdog Timer, EPROM/ROM, SRAM, tri-state I/O port, I/O 14060199HKG-001 FCC ID: OTA80073TX IC: 7783A-80073TX pull-high/open-drain/pull-down control, Power saving SLEEP mode, real time programmable clock/counter, Interrupt, Wake-up from SLEEP mode, and Code Protection for EPROM products. There are three oscillator configurations to choose from, including the power-saving LP (Low Power) oscillator and cost saving RC oscillator. The JL8PE53 address 1K×13 of program memory. The JL8PE53 can directly or indirectly address its register files and data memory. All special function registers including the program counter are mapped in the data memory.

Analysis Report Report No.: 14060199HKG-001 The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Tracker) for a Recon Tracker. The EUT is powered by 3.0V (3.0V X 1 CR2032) battery. It is designed to operate frequency range in the 2407-2470 MHz with 1MHz channel spacing. It is a fix channel used for communication between Tracker and receiver after pairing. It has ON/OFF switch and a green LED light. It can be paired with the Receiver while they are both ON. The light and beep can indicate the distance between the Tracker and the Receiver. Antenna Gain: 0dBi Nominal rated field strength: 78.3dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 81.3dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.04mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.04mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014-5-8Sheet of File:E:\\..\DETECTOR_TX.SCHDOCDrawn By: P1 P2 GND BATTREY 3V C11 4.7u 2 3 1 S1 MK12C01 VCC R2 330R DLED_1 LED(G) VCC SCS C7 4.7uF R3 1K PA5/PRSTB 8 VSS 5 PA0 7 PA3 9 VDD 10 PA6/XOUT 11 PA7/XIN 12 PA4 13 PB3 6 PC0 1 PB0 2 PB1 3 PB2 4 PC5 14 U1 GIO1 GIO2 SDIO SCK BP_RSSI 1 BP_BG 2 RFI 3 RFO 4 RFC 5 VDD_VCO 6 GND 7 VDD_PLL 8 XI 9 XO 10 SCS 11 SCK 12 VDD_D 13 SDIO 14 GND 15 GIO1 16 GIO2 17 CKO 18 REGI 19 VDD_A 20 U2 A7125 C8 3.9PF C10 3.9PF C4 1.5nF C5 100PF C2 2.2uF C1 2.2uF C9 2.2uF C12 100PF C13 0.1uF C14 0.1uF C19 2.2nF C18 180PF C15 100PF C16 33PF C17 33PF 1 Y1 R4 2.7K L2 2.7nH L4 1.5nH L3 1.2nH SCS SCK SDIO GIO1GIO2 VDD_A VDD_A VCC R1 10R L1 2.7nH C6 3.9PF C3 3.9PF E1 Antenna 2.4G RF VCC P0101 P0102 P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C401 P0C402 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0C801 P0C802 P0C901 P0C902 P0C1001 P0C1002 P0C1101 P0C1102 P0C1201 P0C1202 P0C1301 P0C1302 P0C1401 P0C1402 P0C1501 P0C1502 P0C1601 P0C1602 P0C1701 P0C1702 P0C1801 P0C1802 P0C1901 P0C1902 P0DLED0101 P0DLED0102 P0E101 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0L401 P0L402 P0P101 P0P201 P0R101 P0R102 P0R201 P0R202 P0R301 P0R302 P0R401 P0R402 P0S101 P0S102 P0S103 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U109 P0U1010 P0U1011 P0U1012 P0U1013 P0U1014 P0U201 P0U202 P0U203 P0U204 P0U205 P0U206 P0U207 P0U208 P0U209 P0U2010 P0U2011 P0U2012 P0U2013 P0U2014 P0U2015 P0U2016 P0U2017 P0U2018 P0U2019 P0U2020 P0U103 P0U2016 N0GIO1 N0GIO1 P0U102 P0U2017 N0GIO2 N0GIO2 P0C102 P0C201 P0C302 P0C402 P0C502 P0C702 P0C901 P0C1101 P0C1201 P0C1301 P0C1401 P0C1501 P0C1601 P0C1701 P0C1801 P0C1901 P0P201 P0U105 P0U2015 P0101 P0C1602 P0U209 P0102 P0C1702 P0U2010 P0C101 P0R102 P0U2019 P0C301 P0C601 P0E101 P0C401 P0U202 P0C501 P0U201 P0C602 P0L102 P0C801 P0L201 P0C802 P0C1001 P0L101 P0C902 P0U2013 P0C1002 P0L302 P0U204 P0C1402 P0C1502 P0U208 P0C1802 P0R402 P0U207 P0C1902 P0R401 P0DLED0101 P0R201 P0DLED0102 P0U101 P0L202 P0U203 P0L402 P0U205 P0P101 P0S101 P0R302 P0U108 P0S103 P0U109 P0U1011 P0U1012 P0U1013 P0U1014 P0U2018 P0U106 P0U2012 N0SCK N0SCK P0U107 P0U2011 N0SCS N0SCS P0U104 P0U2014 N0SDIO N0SDIO P0C701 P0C1102 P0R101 P0R202 P0R301 P0S102 P0U1010 P0C202 P0C1202 P0C1302 P0L301 P0L401 P0U206 P0U2020 N0GIO1 P0U103 P0U2016 N0GIO2 P0U102 P0U2017 P0C102 P0C201 P0C302 P0C402 P0C502 P0C702 P0C901 P0C1101 P0C1201 P0C1301 P0C1401 P0C1501 P0C1601 P0C1701 P0C1801 P0C1901 P0P201 P0U105 P0U2015 P0101 P0C1602 P0U209 P0102 P0C1702 P0U2010 P0C101 P0R102 P0U2019 P0C301 P0C601 P0E101 P0C401 P0U202 P0C501 P0U201 P0C602 P0L102 P0C801 P0L201 P0C802 P0C1001 P0L101 P0C902 P0U2013 P0C1002 P0L302 P0U204 P0C1402 P0C1502 P0U208 P0C1802 P0R402 P0U207 P0C1902 P0R401 P0DLED0101 P0R201 P0DLED0102 P0U101 P0L202 P0U203 P0L402 P0U205 P0P101 P0S101 P0R302 P0U108 P0S103 P0U109 P0U1011 P0U1012 P0U1013 P0U1014 P0U2018 N0SCK P0U106 P0U2012 N0SCS P0U107 P0U2011 N0SDIO P0U104 P0U2014 P0C701 P0C1102 P0R101 P0R202 P0R301 P0S102 P0U1010 P0C202 P0C1202 P0C1302 P0L301 P0L401 P0U206 P0U2020

lntertek Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKI,AS) for specific laboratory activities as listed in the HOKLAS directory of accredited laborator¡es. The results shown ¡n this report were determ¡ned by th¡s laboratory in accordance with lts terms of accreditation. Report No.: 140601 99HKG-001 TEST REPORT JAKKS Pacific (HK) Limited For Ceftification (Original Grant) (FCC lD: OTA80073TX) (lC: 77834-80073TX) Transceiver Application Prepared and Checked by: Woñg Kwok Yeung, Kenneth Lead Engineer Th€ test report only allows to bê rev¡sed w¡thin ths rslênt¡on per¡od unlsss furlhsr standard or th€ roqu¡rement was not¡ced. Th¡s rsporl is for the sxclusive use of lntertek's Cl¡€nt and ¡s provided pursuant to lhs sgresment betw€sn lnterlek and its Cl¡ent. lnterl€Ks responsibil¡ty End liability are lim¡ted to the terms and cond¡t¡ons of tho agr€smsnt. lntortsk assumes no l¡ability to any parly, othêr than to the Client ¡n acærdance with the agreement, for any loss, expense or damagê occas¡on€d by the use of lh¡8 report, Only lhs Client is euthor¡zed to pem¡t copying or distribution of this report ând then only in its entirsly Any uss of ths lntertok name or one of ¡ts marks for th€ sele or advêrtisement of tho testsd mater¡al, product or s€ry¡æ musl f¡rst be approvsd in writ¡ng by lntertek The obseruations and test rosults in this reporl are relevant only to ths sample tôsted This r€porl by its€lf does not imply that the mater¡al, product, or seryiæ ¡s or has sver been und€r ân lnterlêk c€r(if¡c€tion program. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 2173 8888 Fax: (852) 2785 5457 Website: www.hk.¡ntertek-etlsemko.com Approved by: Chan Chi Hung, Terry Supervisor Date: June 26, 2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14060199HKG-001 i FCC ID: OTA80073TX IC: 7783A-80073TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: JAKKS Pacific (HK) Limited Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Dick Au Tel: 2269 7631 Fax: 2311 1386 e-mail: [email protected] Manufacturer: HUAWEI TECHNOLOGY CO., LTD. Manufacturer Address: Yuting Road, Chenghua Industry Park, Chenghai District, Shantou City, Guangdong Province, China Vendor: Sang Sang Industries Ltd. Brand Name: N/A FCC Model: 80073 IC Model: 80073TX Asst. No.: 80073, 80073-CAN, 80073-EU GL Class: 3510.8020.103 Type of EUT: Transceiver Description of EUT: Covert OPS Recon Tracker Serial Number: N/A FCC ID / IC: OTA80073TX / 7783A-80073TX Date of Sample Submitted: June 04, 2014 Date of Test: June 04, 2014 to June 12, 2014 Report No.: 14060199HKG-001 Report Date: June 26, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14060199HKG-001 ii FCC ID: OTA80073TX IC: 7783A-80073TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14060199HKG-001 iii FCC ID: OTA80073TX IC: 7783A-80073TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80073 Radiated Emission 80073 HK14060199HKG-001 A5 B… INTERTEK TESTING SERVICE FCC ID: OTA80073TX IC: 7783A-80073TX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80073 Radiated Emission 80073 HK14060199HKG-001 A…B5
