OTA80078TXCovert Ops Ultra Tuff Video Recon Bot

8+ ULTRA TUFF VIDEO RECON BOT ROBOT VIDÉO DE RECONNAISSANCE ULTRA RÉSISTANT ULTRA TUFF VIDEO RECON BOT X 1 CONTROLLER X 1 ROBOT VIDÉO DE RECONNAISSANCE ULTRA RÉSISTANT X 1 MANETTE X 1 ™ TM & © 2014 Manufactured by JAKKS Pacific, Inc., 22619 PCH, Malibu, CA 90265 U.S.A. MADE IN CHINA Contents may vary in style, color, shape and decoration from images shown on package or in advertising. Questions or comments? www.jakks.com, [email protected], 1-877-875-2557 in North America. ATTENTION! Remove and discard packaging ties and fasteners before giving toy to child. THIS IS A REAL VIDEO RECORDING DEVICE! RECORD OTHERS ONLY WITH THEIR PERMISSION. ALWAYS PLAY RESPONSIBLY AND RESPECT OTHERS’ PRIVACY. TM ET © 2014 FABRIQUÉ PAR JAKKS PACIFIC, INC., 22619 PCH, MALIBU, CA 90265 U.S.A. FABRIQUÉS EN CHINE. Le contenu peut être différent de celui présenté sur les images de l’emballage ou dans les publicités au niveau du style, des couleurs, des formes ou des décorations. Questions ou commentaires? www.jakks.com, [email protected] ou composez le 1-877-875-2557 à partir de l’Amérique du Nord. ATTENTION! Retirer et jeter les attaches et les pièces de fixation de l’emballage, avant de donner le jouet à l’enfant. VÉRITABLE ÉQUIPEMENT D’ENREGISTREMENT! L’ENREGISTREMENT CE QU'ILS SE DISENT SANS LEUR PERMISSION. JOUE TOUJOURS DE FAÇON RESPONSABLE EN RESPECTANT LA VIE PRIVÉE D’AUTRUI. SPY NET COVERT OPS™ INSTRUCTIONS MODE D’EMPLOI CONTENTS/CONTENU JAKKS Pacific® Battery, Solar or Electrically-Operated Toy 90 DAY LIMITED WARRANTY Pour produit à fonctionnement électrique, solaire ou à piles de JAKKS Pacific® GARANTIE LIMITÉE DE 90 JOURS Thanks for purchasing a great JAKKS Pacific® product! Please immediately register your product online at www.jakks.com/warranty. Registration is not required for the effectiveness of this limed warranty. IMPORTANT NOTICE TO CONSUMER: This 90 DAY LIMITED WARRANTY applies to the original product purchaser, provided the product: 1) was purchased from an authorized JAKKS™ distributor/dealer/retailer,and 2) is returned at your expense, postage pre-paid and insured, along with the original dated sales receipt to the address noted below. Please save a copy of your original sales receipt, as the original receipt will not be returned to you. If you return the product to us without the original dated sales receipt, this warranty coverage will not apply. If the product is determined by JAKKS to be defective and returned to JAKKS within the 90 day warranty period, we will (at our option) repair or replace it. Return shipment to you may take up to 6 weeks, depending upon your location. If your product is repaired or replaced, it will be warranted for the longer of the original warranty or for 30 days after warranty service. SCOPE OF LIMITED WARRANTY: The product is warranted to be: a) tested and inspected before shipment, and b) free of defects in material and workmanship for 90 days from date of purchase. If a covered defect occurs within the warranty period, then at our sole option, we will repair or replace the product or provide you with another product of equal value. WHAT IS NOT COVERED BY LIMITED WARRANTY: THIS WARRANTY IS VOID IF THE Pv RODUCT HAS BEEN MODIFIED OR REPAIRED BY USER OR OTHERS OR IF IT HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, IMMERSION IN WATER, NEGLECT, ABUSE, MISUSE, BATTERY LEAKAGE, IMPROPER BATTERY INSTALLATION, UNAUTHORIZED SERVICE, LOSS OF PARTS, WEATHER, ACTS OF GOD, ANY ACTION OR OMISSION WHICH CONSTITUTES A DEVIATION FROM THE OPERATING INSTRUCTIONS, OR ANY OTHER CAUSES NOT ARISING OUT OF DEFECTS IN WORKMANSHIP OR MATERIALS. EXCLUSIONS FROM LIMITED WARRANTY: THIS WARRANTY IS EXCLUSIVE OF AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES RELATED TO THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARISING FROM POSSESSION, USE, OR MALFUNCTION OF THIS PRODUCT ARE EXCLUDED BOTH FOR PROPERTY DAMAGE AND PERSONAL INJURY TO THE EXTENT LEGALLY PERMITTED. ADDITIONAL LEGAL RIGHTS: This warranty provides specific legal rights. You may have other or different rights in your state or country. QUESTIONS OR COMMENTS: If you experience product difficulties or have questions or comments, you may contact our Consumer Relations department as follows: Phone: 877-875-2557 (toll-free, North America only) or 909-594-7771 x560 (Monday-Friday, 7:30AM-4:30PM Pacific/GMT -8). Mail: JAKKS Consumer Relations, 21749 Baker Parkway, Walnut, California USA 91789. Email: [email protected] WHEN WRITING TO US: Please include: 1) product name; 2) item number; 3) purchase date; 4) description of the problem being experienced; and 5) your name, address and phone number. Additionally, if eligible under the warranty and so advised by JAKKS Consumer Relations, also include the defective product and the ORIGINAL dated sales receipt evidencing product purchase. Please retain a copy of your receipt. Nous vous remercions d’avoir fait l’acquisition de cet article de JAKKS Pacific® ! Veuillez enregistrer immédiatement votre article en ligne à www.jakks.com/warranty. L’enregistrement n’est pas requis pour bénéficier de cette garantie limitée. AVIS IMPORTANT AU CONSOMMATEUR : Cette GARANTIE LIMITÉE DE 90 JOURS est cédée à l'acheteur original du produit, à condition que ce dernier : 1) ait été acheté auprès d’un revendeur/distributeur/détaillant agréé de JAKKS™ et 2) soit renvoyé à vos frais, sous pli préaffranchi et assuré, accompagné du reçu daté d’achat original à l’adresse indiquée plus bas. Veuillez conserver une copie du reçu d’achat original car celui-ci ne vous sera pas renvoyé. Si vous nous renvoyez le produit sans le reçu d’achat original, l’article ne sera pas couvert. Si le produit est jugé défaillant par JAKKS et nous a été renvoyé dans le délai de garantie de 90 jours, nous nous réservons l’option de le réparer ou le remplacer. L’expédition de retour peut prendre jusqu’à 6 semaines en fonction d…

Text truncated - open the document above for the full version.

Dec 2013 Letter of Agency "I, an officer of JAKKS Pacific(HK) Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 16 day June of 2014__ By Signature Dick Au Printed Name Senior Manager, Product Integrity Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

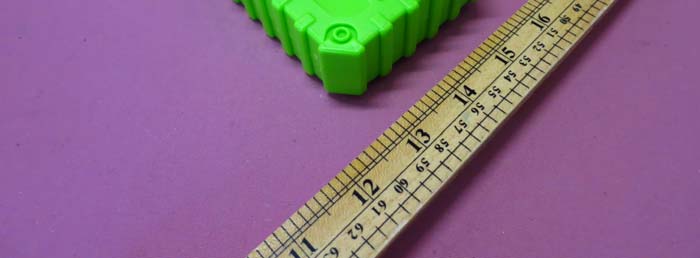

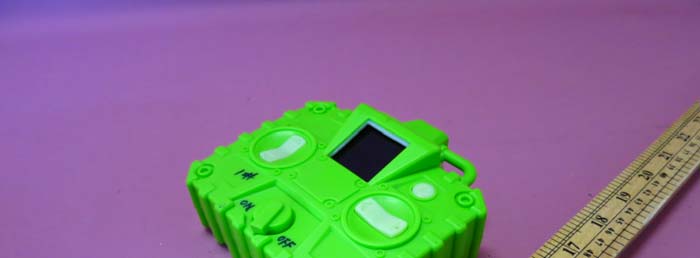

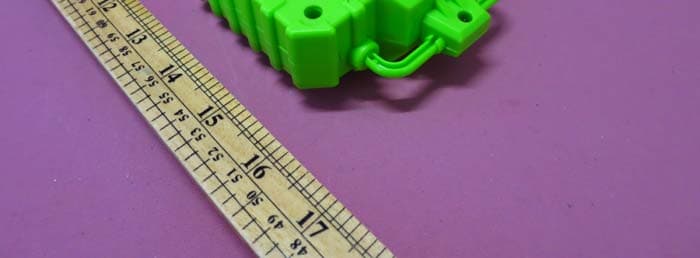

INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (External)

   P P       5 ;       7 ;    P P     P P    P P     P P    P P     P P   P P    P P   P P    P P     P P    P P    P P   P P     P P

INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal) INTERTEK TESTING SERVICE Report No.: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Equipment Photographs Model : 80078TX (Internal)

14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Technical Description Model: 80078TX Description: Covert Ops Ultra Tuff Video Recon Bot Frequency: 2410 – 2473MHz The brief circuit description is listed as follows: The Equipment Under Test (EUT) is a portable 2.4GHz transceiver (i.e. Controller) for a RC toy Video Recon Car. The EUT is powered by DC6.0V (4 X 1.5V) AA batteries. It is designed to operate frequency hopping system in 2410 – 2473MHz with 16 frequency hopping channels when communication with corresponding transceiver (i.e. RC Video Recon Car). The EUT has 5 control buttons, an ON/OFF switch and a display (can see the instant video from the camera on the Video Recon Car). The 2 buttons on the left hand side are used to control the RC Video Recon moving forward/backward. The other 2 buttons on the right hand side are used to control the RC Video Recon Car turning left/right. There is a button on the upper right hand corner is used to turn the RC Video Recon Car 360 degree. 16 frequency hopping channels are shown as below; Antenna gain: 0dBi Nominal rated field strength: 100.7dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB CWDP125 (IC4) --- included A7125 The CWDP125B-D2B module is designed for 2.4GHz ISM band with10dBm output power wireless applications using AMICCOM’s A7125 FSK transceiver. This module features a fully programmable frequency synthesizer by SPI. The data rate is 2Mbps. A7125 is a high performance and low cost 2.4GHz ISM band wireless transceiver. It integrates high sensitivity receiver, high efficiency power amplifier, frequency synthesizer and baseband modem. For package handling, A7125 has built-in separated 64 bytess TX/RX FIFO for data buffering and burst transmission, CRC for error detection, FEC for 1-bit data correction per code word, RSSI for clear channel assessment, data whitening for data encryption/decryption, thermal sensor for monitoring relative temperature, one channel 8- bits ADC for sensing external analog voltage, TWWS function for MCU wakeup. Those 2410MHz 2415MHz 2420MHz 2425MHz 2429MHz 2430MHz 2434MHz 2435MHz 2439MHz 2445MHz 2449MHz 2454MHz 2459MHz 2464MHz 2469MHz 2473MHz 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX functions are very easy to use while developing a wireless system. All features are integrated in a small QFN 4x4 20 pins package. JL288 (IC1) It is a video codec chipis a true single chip solution for digital video/audio applications. The key building blocks of this chip are: high performance motion JPEG and audio u-law codec, VCL for flexible sensor interface, ADC, DAC and amplifier for audio IOs, 3 LDO to simplify power circuit, 18/16/8 bit LCD module interface, built-in power on save mode RTC, SD card, and USB 1.1 interface that is fully compatible with SDHC and supports USB mass storage class driver. In additional to the highly integrated functions and superior quality, this chip has video buffers fully integrated to avoid external SRAM/SDRAM buffers. It achieves the lowest power consumption comparing with other competitors and makes it the most attractive solution for battery-powered portable applications. FP6206 (IC3) Voltage Regulator 25L4006 (U1) Flash memory

Analysis Report Report No.: 14061336HKG-001 The Equipment Under Test (EUT) is a portable 2.4GHz transceiver (i.e. Controller) for a RC toy Video Recon Car. The EUT is powered by DC6.0V (4 X 1.5V) AA batteries. It is designed to operate frequency hopping system in 2410 – 2473MHz with 16 frequency hopping channels when communication with corresponding transceiver (i.e. RC Video Recon Car). The EUT has 5 control buttons, an ON/OFF switch and a display (can see the instant video from the camera on the Video Recon Car). The 2 buttons on the left hand side are used to control the RC Video Recon moving forward/backward. The other 2 buttons on the right hand side are used to control the RC Video Recon Car turning left/right. There is a button on the upper right hand corner is used to turn the RC Video Recon Car 360 degree. 16 frequency hopping channels are shown as below; Antenna Gain: 0dBi Nominal rated field strength: 100.7dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.7dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 7.033mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 7.033mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. 2410MHz 2415MHz 2420MHz2425MHz 2429MHz 2430MHz 2434MHz 2435MHz 2439MHz2445MHz 2449MHz 2454MHz 2459MHz 2464MHz 2469MHz2473MHz

R590 80078 -TX-SCH TITLE: FUNCTION: DWG NO: DESIGN BY: DRAWING BY: LUNG CHEONG QW SHI 2014-04-22 SHEET THROW BOT RC CAR 1 LCD_RST 2 LCD_A0 3 LCD_WR 4 MCP15 5 AMCLK 6 SYNC 7 ASDI 8 ASDO 9 BCLK 10 MCP35 11 MCP30 12 MCP31 13 MCP34 14 VDD 15 LED1 16 BTN1 17 LCD_BKLT 18 VSS 19 XSCI12 20 XSCO12 21 VDD33 22 NC 23 AGNDPLL 24 AVDDPLL 25 VIN5V_PRG12 26 PRG3_33 27 AVSS 28 PRG2_28 29 VIN5V_PRG12 30 PRO2_18 31 VDDUSB 32 DP 96 VSS 95 AVMCLK 94 MCP32 93 ARAW7 92 VDD 91 ARAW6 90 ARAW5 89 ARAW4 88 MCP33 87 AVCLK 86 ARAW3 85 ARAW2 84 ARAW1 83 ARAW0 82 GPIO9 81 VDDRTC 80 XSCO32 79 XSCI32 78 VSS 77 RTC_RSTN 76 RTC_INTR 75 MICVIAS25 74 ADC_VCM 73 ADCMIP_P 72 ADCMIC_N 71 BAT_DET 70 PGAOUT 69 AGNDDA 68 AVDDDA 67 LINEOUT 66 ROUT 65 DACVREF 9 7 A L E 9 8 V D D 3 3 9 9 P S E N 1 0 0 N C 1 0 1 L E D 0 1 0 2 B T N 0 1 0 3 L C D _ D 7 1 0 4 L C D _ D 6 1 0 5 L C D _ D 5 1 0 6 M C P 1 3 1 0 7 L C D _ D 4 1 0 8 L C D _ D 3 1 0 9 V S S 1 1 0 L C D _ D 2 1 1 1 M C P 1 4 1 1 2 L C D _ D 1 1 1 3 L C D _ D 0 1 1 4 V D D 1 1 5 A H D 1 1 6 A V D 1 1 7 S P I _ C K 1 1 8 S P I _ D I 1 1 9 S P I _ D O 1 2 0 G P I O A 1 2 1 R S T N 1 2 2 G P I O 1 1 2 3 V S S 1 2 4 G P I O 0 1 2 5 N C 1 2 6 V D D 3 3 1 2 7 G P I O 2 1 2 8 G P I O 3 6 4 S D _ D 0 6 3 S D _ D 1 6 2 S D _ D 2 6 1 S D _ D 3 6 0 S D _ S C K 5 9 V S S 5 8 V D D 3 3 _ 1 5 7 S D _ C M D 5 6 M C P 0 0 5 5 M C P 3 7 5 4 M C P 0 1 5 3 M C P 3 6 5 2 M C P 0 2 5 1 M C P 0 3 5 0 M C P 0 4 4 9 M C P 0 5 4 8 V D D 4 7 M C P 0 6 4 6 M C P 0 7 4 5 V S S 4 4 X S C O 2 4 4 3 X S C I 2 4 4 2 V D D 3 3 _ 1 4 1 S D 2 _ S C K 4 0 G P I O 8 3 9 S D 2 _ C M D 3 8 S D 2 _ D 3 3 7 S D 2 _ D 2 3 6 S D 2 _ D 1 3 5 S D 2 _ D 0 3 4 V S S U S B 3 3 D M IC1 JL288 L1 3.3UH C1 1UF R1 1M Y2 12MHz C2 20P C3 20P C4 104 C5 104 C6 1UF C7 1UF R2 47K R3 100K 1 V B U S 2 D M 3 D P 4 G N D 5 G N D J1 HEADER5 R4 NC R5 NC C8 104 C9 104 C10 104 C11 104 C12 104 C13 104 C14 104 C15 104 C16 104 R8 10K D1 1N4148 C20 1UF R9 10K R 1 0 1 0 K R 1 1 1 0 K R12 10K R13 10K R14 10K R15 10K R16 10K R17 10K SW1 TUNE SW5 RIGHT SW3 UP SW4 BACK SW2 LEFT 1 C S 2 S O 3 W P 4 G N D 8 V C C 7 H O L D 6 S C K 5 S I IC2 25L4006 C21 104 R19 4.7k 2 VIN 3 VOUT 1 G N D IC3 FP6206 BAT 6.0V 2 1 3 S1 C24 10UF + C25 10UF10V L3 3.3uH 1 VIN33 2 SCS 3 GND 4 SCK 5 SDIO 6 GIO1 7 GIO2 8 CKO 9 RXEN 10 TXEN 13 GND 12 ANT 11 GND IC4 CWDP125B_D2 ANT R23 10K R24 10K R25 10K R26 10K R27 10K R28 10K 1 V D D 2 V S S 3 N C 4 N C 5 / C S 6 / D C 7 R D 8 W / R 9 R E S E T 1 0 D 0 1 1 N C 1 2 D 1 1 3 N C 1 4 D 2 1 5 N C 1 6 D 3 1 7 N C 1 8 D 4 1 9 N C 2 0 D 5 2 1 N C 2 2 D 6 2 3 N C 2 4 D 7 2 5 N C 2 6 L E D K 2 7 L E D A LCD R 3 5 1 0 K R21 NC L4 3.3uH C26 10UF R29 10K 2 1 3 S2 R6 10R R20 0R DGND TP1 TP2 VCC1V8 VCC1V8 VCC2V8 VCC1V8 VCC3V3 DGND VUSB5 DGND DGND V U S B 5 DGND DGND DGND DGND DGND VSYSTEM VBAT RF_VCC3V3 ENT7 ENT6 ENT5 ENT4 DGND VCC3V3 BTN1 NET10 BTN0 BTN0 VCC3V3 RF_VCC3V3 RF_GND RF_GND DGND DGND GND DGND NET0 NET10 DGND 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Title NumberRevisionSize A3 Date:2014-5-13Sheet of File:E:\\7125-10DBM\v3\7125-10.SCHDOCDrawn By: SCS SCK SDIO GIO1 GIO2 GND TXEN VIN33 CKO 1 2 3 4 5 6 7 8 9 10 J2 CON/10P 2.0 R5 180R C4 22pF C3 1nF C2 100pF L5 2.7nH C15 100pF VDD_A C29 0.1uF R10 2.7K C32 2.2nF C31 180pF C30 0.1uF 12 Y1 16MHz C34 12pF C35 12pF C20 2.2uF SDIO SCK SCS C5 2.2uF VDD_ACKOGIO2GIO1VIN33 C18 2.2uF L6 2.7nH BP_RSSI 1 BP_BG 2 RFI 3 RFC 5 RFO 4 VDD_VCO 6 CP 7 VDD_PLL 8 XI 9 XO 10 GND 15 SCS 11 SCK 12 SDIO 14 VDD_D 13 CKO 18 GIO2 17 GIO1 16 REGI 19 VDD_A 20 A7125PKG U2 A7125PKG C22 nc VDD_A LNA_OUT PA_IN C16 1.8nH LNA_IN L1 1.5nH C23 10nF LNA_OUT B 2 C 4 E 3 Q3 BFG425 C350 100nF RXEN TXEN R1 43R C9 56pF C21 3.9pF PA_OUT B 2 C 4 E 3 Q2 BFG425 PA_IN C11 100pF C1 100pF RF2 1 GND 2 RF1 3 V1 4 RFIN 5 V2 6 U5HWS314 C2851p LNA_IN ANT E1 ANTENNA Vin 1 GND 2 Vout 3 U1 BF1608 L2 1nF C17 nc GND C19 3.9pF L4 27nH C25 4.7pF C7 4.7pF E 2 C 3 B 1 Q1 MMBT3906 R6 47k R3 1k R4 1k V1 VIN33C24 100nF RXEN E 2 C 3 B 1 Q4 MMBT3906 R7 47k R8 1k R9 1K V2 VIN33C6 100nF V1 V2 PA_OUT R11 120R R90 5.6K R91 10k L21 2.2pF P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C401 P0C402 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0C901 P0C902 P0C1101 P0C1102 P0C1501 P0C1502 P0C1601 P0C1602 P0C1701 P0C1702 P0C1801 P0C1802 P0C1901 P0C1902 P0C2001 P0C2002 P0C2101 P0C2102 P0C2201 P0C2202 P0C2301 P0C2302 P0C2401 P0C2402 P0C2501 P0C2502 P0C2801 P0C2802 P0C2901 P0C2902 P0C3001 P0C3002 P0C3101 P0C3102 P0C3201 P0C3202 P0C3401 P0C3402 P0C3501 P0C3502 P0C35001 P0C35002 P0E101 P0J201 P0J202 P0J203 P0J204 P0J205 P0J206 P0J207 P0J208 P0J209 P0J2010 P0L101 P0L102 P0L201 P0L202 P0L401 P0L402 P0L501 P0L502 P0L601 P0L602 P0L2101 P0L2102 P0Q101 P0Q102 P0Q103 P0Q202 P0Q203 P0Q204 P0Q302 P0Q303 P0Q304 P0Q401 P0Q402 P0Q403 P0R101 P0R102 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0R601 P0R602 P0R701 P0R702 P0R801 P0R802 P0R901 P0R902 P0R1001 P0R1002 P0R1101 P0R1102 P0R9001 P0R9002 P0R9101 P0R9102 P0U101 P0U102 P0U103 P0U201 P0U202 P0U203 P0U204 P0U205 P0U206 P0U207 P0U208 P0U209 P0U2010 P0U2011 P0U2012 P0U2013 P0U2014 P0U2015 P0U2016 P0U2017 P0U2018 P0U2019 P0U2020 P0U501 P0U502 P0U503 P0U504 P0U505 P0U506 P0Y101 P0Y102 P0C1702 P0E101 P0L201 N0ANT P0J208 P0U2018 N0CKO N0CKO P0J206 P0U2016 N0GIO1 N0GIO1 P0J207 P0U2017 N0GIO2 N0GIO2 P0C101 P0C201 P0C301 P0C502 P0C601 P0C701 P0C1101 P0C1502 P0C1602 P0C1802 P0C2002 P0C2202 P0C2401 P0C2501 P0C2902 P0C3002 P0C3102 P0C3202 P0C3402 P0C3502 P0C35001 P0J203 P0Q203 P0Q303 P0U102 P0U2015 P0U502 N0GND P0C1901 P0U503 N0LNA0IN N0LNA0IN P0C401 P0C1601 P0C2301 N0LNA0OUT N0LNA0OUT P0C202 P0U201 P0C302 P0U202 P0C402 P0U203 P0C702 P0L101 P0R502 P0R9102 P0C902 P0L402 P0Q204 P0C1701 P0C1902 P0Q302 P0R9101 P0C2001 P0U2013 P0C2102 P0Q202 P0R9001 P0C2302 P0L102 P0Q304 P0C2502 P0L401 P0R102 P0R9002 P0C2801 P0U103 P0C2802 P0U505 P0C3101 P0R1002 P0U207 P0C3201 P0R1001 P0C3401 P0U209 P0Y101 P0C3501 P0U2010 P0Y102 P0L202 P0L2101 P0L602 P0R1101 P0U205 P0L2102 P0U101 P0Q101 P0R302 P0R602 P0Q103 P0R401 P0R501 P0Q401 P0R702 P0R802 P0Q403 P0R101 P0R901 P0C2101 …

Text truncated - open the document above for the full version.

lntertek Valued Quality. Delivered. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specifc laboratory activ¡ties as listed in the HOKLAS directory of accred¡ted laborator¡es. TEST REPORT Report No.: I 4061 336HKG-001 JAKKS Pacific (HK) Limited Application For Ceftification (Original Grant) (FCC lD: OTA80078TX) (lC: 77834-80078TX) Transceiver Prepared and Checked by: Wo Kwok Yeung, Kenneth Engineer Th¡s report shall not b€ r€produced, except ¡n full This report is for the ôxclusive use of lntertek's Client and ¡s prov¡ded pursusnt lo the agreement between lnterl€k and ¡ts Client lntert€k's rssponsibilily and liability are lim¡tsd to the terms and ænd¡t¡ons of lhe agreement, lnterlek assumes no l¡ability to any party, othsr than to th6 Cl¡6nt in aæordance with ths agroement, for any loss, sxpense or damag6 oæas¡oned by the use of lhis report Only ths Cl¡ent ¡s author¡zed to perm¡t æpy¡ng or d¡stribution of this reporl and then only ¡n its sntiroty Any use of tho lntertek nsme or ona of ¡ts marks for thê sale or advsrtisemênt of the teslêd mat€r¡al, product or s€ru¡ce must f¡rst be âpproved ¡n writ¡ng by lntertek Ths observetions end test rssults ¡n th¡s report ar6 rôlevant only to the sample têsted This report by ¡lself do€s not imply that tho maler¡al, product, or sery¡ca is or has ever been under an lnt€rl6k ært¡f cation program. lntertek Testing Services Hong Kong Ltd. 2F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Approved by: SupervisorDate: July 07, 2014 Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com iHung, Terry Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14061336HKG-001 i FCC ID: OTA80078TX IC: 7783A-80078TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: JAKKS Pacific (HK) Limited Grantee Address: 12/F., Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Dick Au Tel: 2269 7631 Fax: 2366 8247 e-mail: [email protected] Manufacturer: Dongguan L C Technology Co., Ltd. Manufacturer Address: Chang Huang Road, Qiao Li Village, Changping Town, Dongguan City, Guangdong Proviance, China Vendor: Lung Cheong Digitech (HK) Co., Ltd. Brand Name: N/A FCC Model: 80078 IC Model: 80078TX Type of EUT: Transceiver Description of EUT: Covert Ops Ultra Tuff Video Recon Bot Serial Number: N/A FCC ID / IC: OTA80078TX / 7783A-80078TX Date of Sample Submitted: June 26, 2014 Date of Test: June 26, 2014 Report No.: 14061336HKG-001 Report Date: July 07, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14061336HKG-001 ii FCC ID: OTA80078TX IC: 7783A-80078TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14061336HKG-001 iii FCC ID: OTA80078TX IC: 7783A-80078TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 2 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ................................................................................... 3 2.1 Justification.......................................................................................................... 3 2.2 EUT Exercising Software..................................................................................... 3 2.3 Special Accessories ............................................................................................ 3 2.4 Measurement Uncertainty......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80078TX INTERTEK TESTING SERVICE Report No: 14061336HKG-001 FCC ID: OTA80078TX IC: 7783A-80078TX Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80078TX
