OTARC73630T2727 MHz Transmitter

Jakks Pacific (HK) Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Nov 06, 2005
Application Purpose: Original Equipment
Date of Application: Nov 06, 2005
Equipment Note: 27 MHz Transmitter
Frequency Range: 27.14500000 - 27.14500000
Company: Jakks Pacific (HK) Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

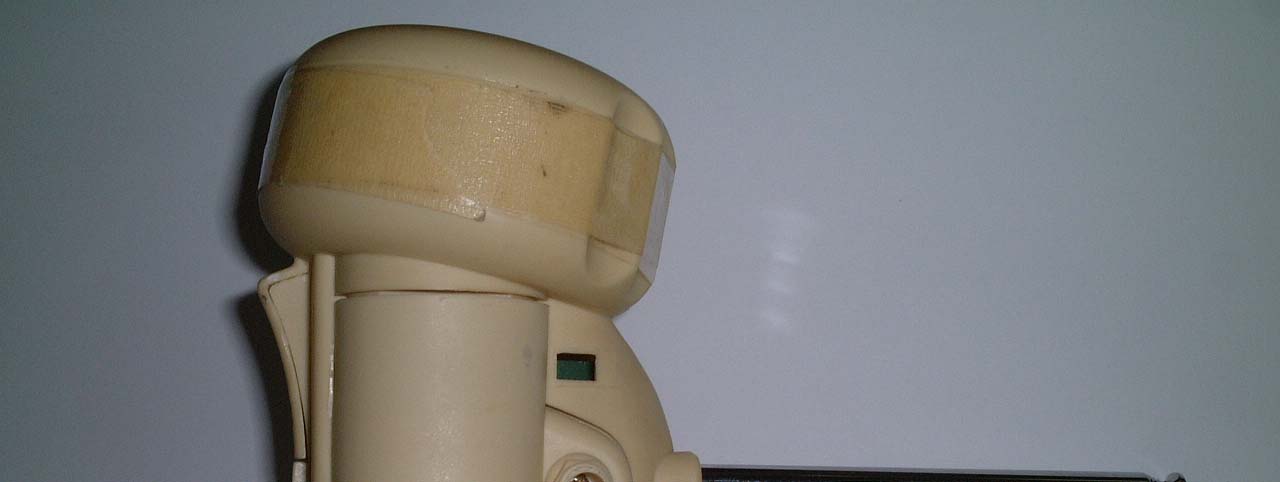

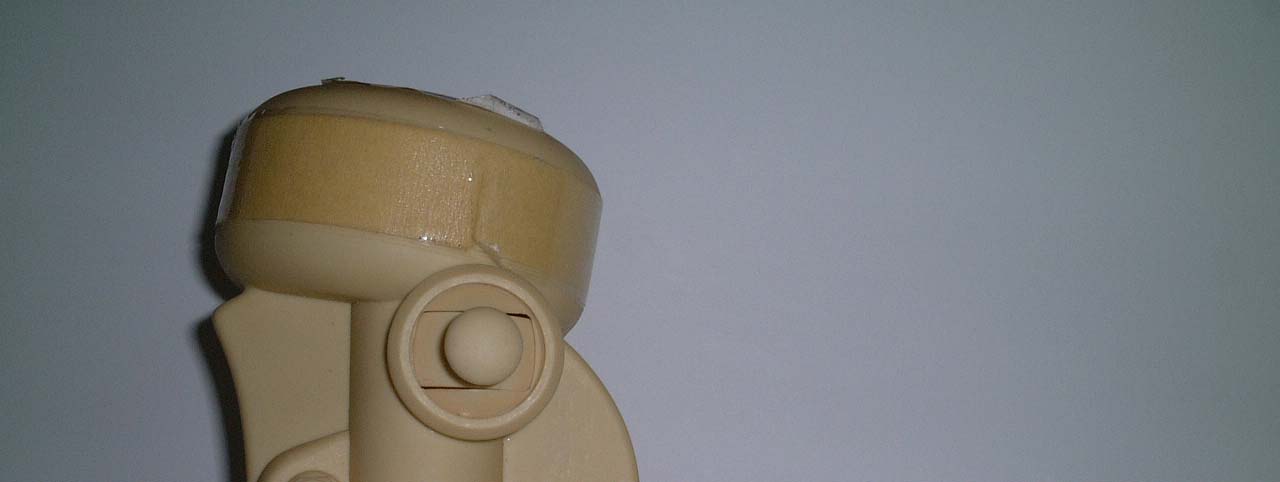

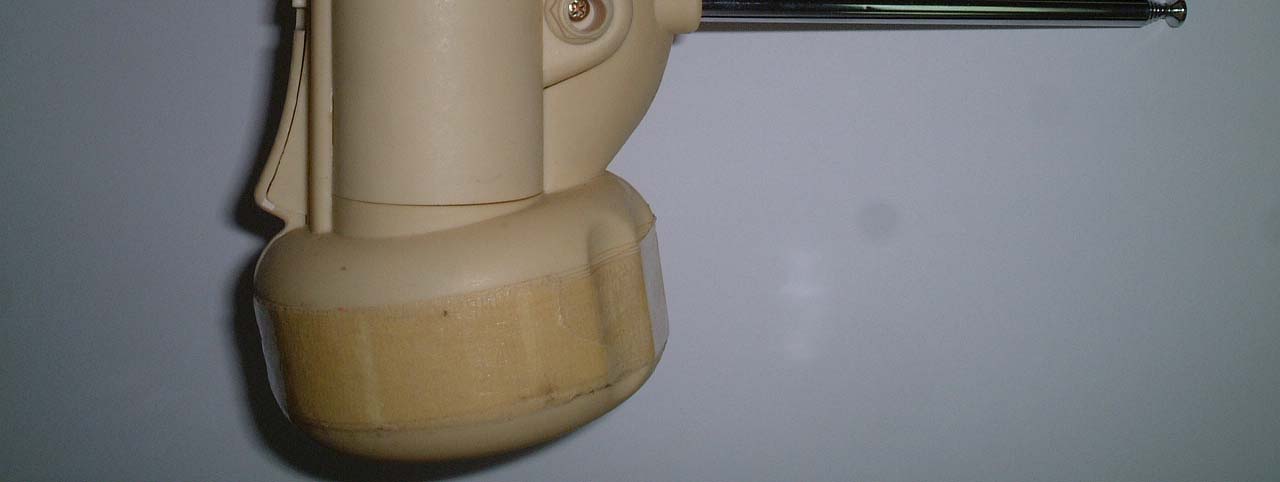

Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 1 of 2 Photographs: EUT Exterior Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 1 : The Front View Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 2 of 2 Photographs: EUT Exterior Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 2 : The Back View

ID Label/Location Info

JAKKS PACIFIC (HK) LTD. Technical Report: (5205)270-0633 Nov. 4, 2005 LABEL Sample Description: FLY WHEELS R/C SKATE RF Remote Controller (27.145 MHz) FCC ID (if applicable): OTARC73630T27 a) Label and Location: JAKKS PACIFIC (HK) LTD. Technical Report: (5205)270-0633 Nov. 4, 2005 B) Location: - Marking of Country of Origin:

Internal Photos

Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 1 of 3 Photographs: EUT Interior Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 1 : PCB Solder Side Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 2 of 3 Photographs: EUT Interior Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 2 : PCB Component Side Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 3 of 3 Photographs: EUT Interior Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 3 : The component placement and the assembly

Operational Description

Description of EUT Operation : SAMPLE DESCRIPTION: FLY WHEELS R/C SKATE RF Remote Controller (27.145 MHz) APPLICANT: Jakks Pacific (HK) Ltd FCC ID: OTARC73630T27 Circuit Description Q1 the 27.145 MHz crystal oscillator drives the base of Q2 the final/ buffer amplifier. Summed into the same base (Q2) is the modulation provided by IC1. The output of Q2 has the matching network consisting of T1, L3, L2, C10, C11, and C12 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna consists of a 48 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by 1pcs 9Volt primary storage cell.

Test Setup Photos

Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 1 of 3 Photographs: Test Setup Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 1 : Test Setup – Vertically Erected (z – direction) Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 2 of 3 Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 2 : Test Setup – Horizontal (y – direction) Technical Report: (5205) 270-0633 Date: 13 October 2005 Page 3 of 3 Sample Description: Fly Wheels R/C Skate Radio Remote Control Transmitter (27.145 MHz) FCC ID (if applicable): OTARC73630T27 Photo No. 3 : Test Setup – Horizontal (x-direction)
