OTARC73964T49XPV TERRANATOR

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:9-Jul-2007 Sheet of File:E:\Prod-Data 2007\Jakks Pacific 水陸車\74146-G0404.DdbDrawn By: Switch L Switch R Switch FEST005 Encoder RF Oscillator 49.860MHz Modulation And Power Amplifier ANTENNA Battery Supply DC9V 74147# Transmitter 49.860MHz Block Diagram Switch B Switch HF Switch HB

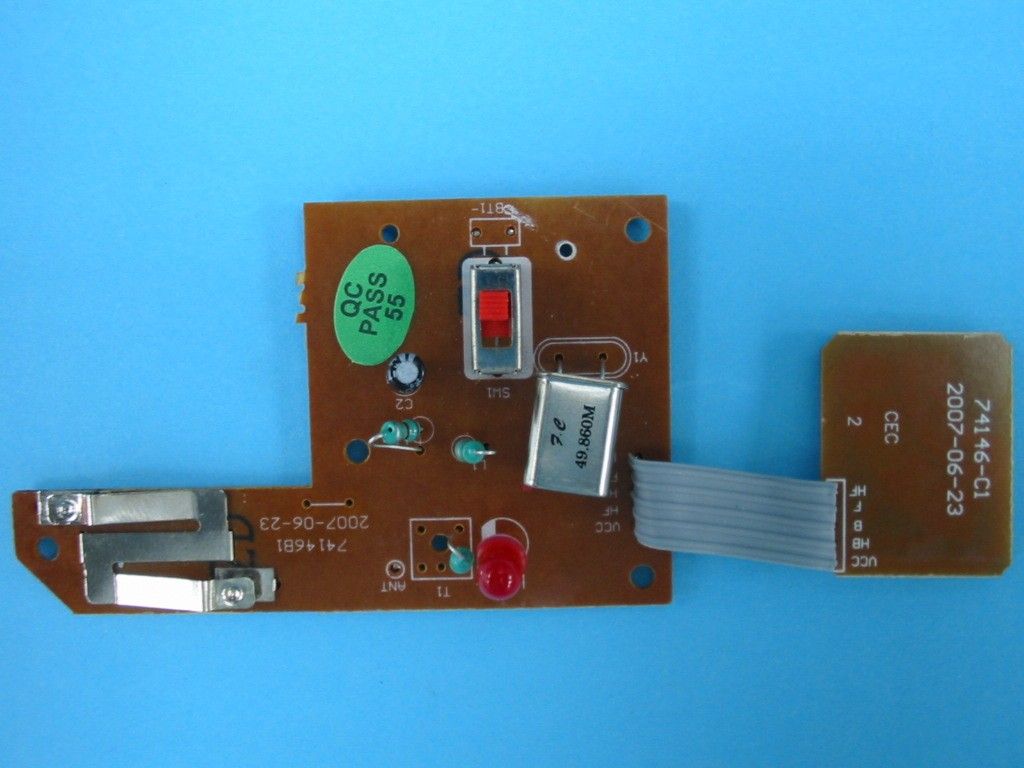

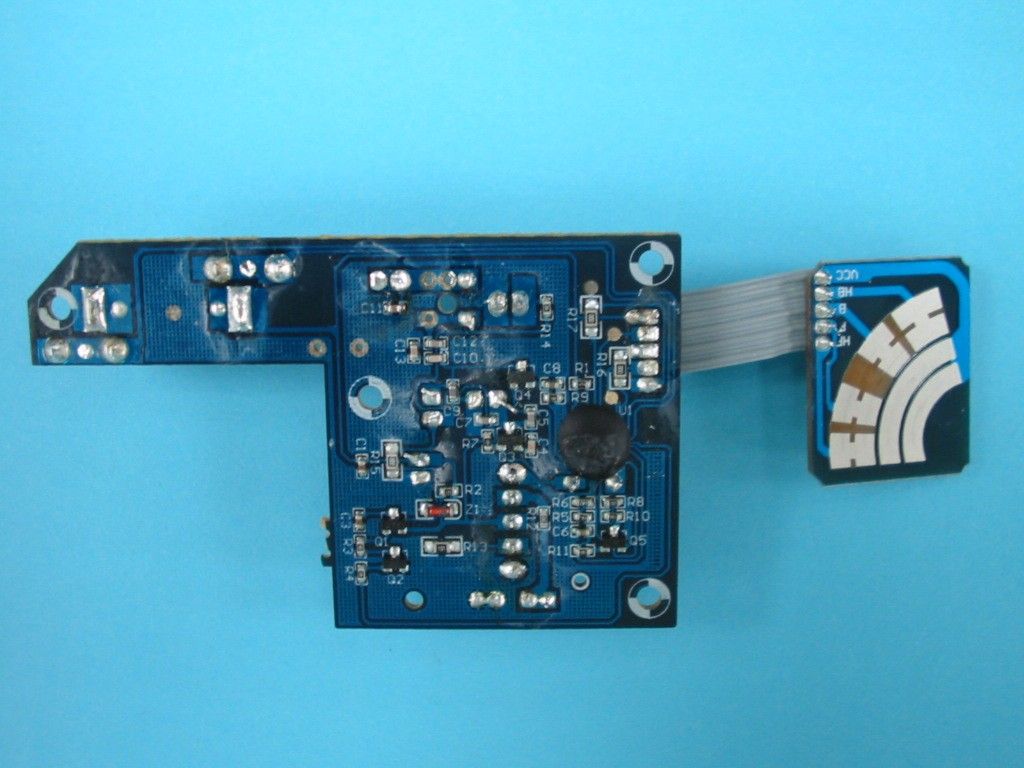

Operation Description for XPV Terranator The XPV Terranator is powered by 1 x 9V size battery. The radio frequency channel is 49.860MHz. The encoder U1 is responsible for output different code signal to receiver and function control. The crystal Y1 and transistor Q3, Q5 is an oscillator circuit which generate the radio frequency. The transistor Q4 is a amplifier for transmit the radio signal to receiver.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:31-Jul-2007Sheet of File:E:\Prod-Data 2007\Jakks Pacific 水陸車\74146.DDBDrawn By: 74147A# Transmitter 40.685MHz Schematic L1 0.82uH C4 5P C5 47P R8 2.2KΩ R7 100KΩ Y1 49.865MHz R5 18KΩ R9 10Ω ANT C11 15P C13 25P C12 47P HF S1 HB S2 R S3 L S4 C1 0.1uF R2 220Ω R1 470KΩ BT1 9V C3 0.1uF C8 0.01uF C6 0.01uF R6 6.8KΩ R3 1KΩ R4 10KΩ P1.0 18 P1.1 17 P1.2 16 P1.3 15 P2.0 14 P2.1 13 P2.2 12 P2.3 11 P3.0 10 P3.1 9 P3.2 8 P3.3 7 VCC 1 VDD 6 VSSD 19 VSSC 3 VO 2 VO1 4 OSCI 20 U1 EST005 C10 5P C9 33P C7 51P R10 10Ω R11 10KΩ F S5 B S6 C2 47uF L2 0.82uH T1 HF HB R L F B Q1 8550 Z1 4.7V Q2 8050 Q3 945 Q5 945 Q4 C945 BT VCC4.7V R12 2.2Ω SW1 R13 100Ω VCC R14 1KΩ LED1

TEST REPORT Report No. : AJ022497-001 Date : 2007 August 17 Page 1 of 11 FCC ID: OTARC73964T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ213148(8) Applicant : Jakks Pacific (HK) Ltd 12/F, Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Hong Kong Sample Description : One(1) submitted sample(s) stated to be XPV Terranator of Model No. 73964 Radio Frequency : 49.860MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) *** Date Received : 2007 June 27 Test Period : 2007 June 27 ñ 2007 July 17 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ022497-001 Date : 2007 August 17 Page 2 of 11 FCC ID: OTARC73964T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 5.4 Power Spectral Density ..............................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ022497-001 Date : 2007 August 17 Page 3 of 11 FCC ID: OTARC73964T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for XPV Terranator. It operates at 49.860MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 1 x 9V size battery. There are two control sticks in the center of EUT. When the stick is pushed once, it transmits the radio control signal to receiver. The antenna terminal is using unique connector and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U1 and associated circuit act as a decoder. - Q1, Q2, Z1 and associated circuit act as voltage controller. - Q5, Q3, Y1 and associated circuit act as oscillator. - Q4 and associated circuit act as RF amplify. TEST REPORT Report No. : AJ022497-001 Date : 2007 August 17 Page 4 of 11 FCC ID: OTARC73964T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial D…

Text truncated - open the document above for the full version.

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 3
