OTARC74000T49Mini XPV

1234 A B C D 4321 D C B A BLOCK DIAGRAM OF G775 ANTENNA TX2B BATTERY OSC F O R W A R D T U R B O L E F T R I G H T ANTENNA RF DEMO 27.145&49.86MHZ G775 TX G775 RX FILTER ENCODER DECODER MOTOR 1 DRIVE MOTOR 2 DRIVE CIRCUIT CIRCUIT 9V SW1 LED3 LED1 VOLTAGE REGULATOR SAMPLING CIRCUIT REFERENCE CIRCUIT CURRENT PROTECT CIRCUIT INDICATOR CIRCUIT VOTLAGE OUTPUT CH+ CH- RX2B FORWARD LEFT RIGHT CHARGE PROTECT CIRCUIT 3.7V LITHIUM BATTERY CH+ CH- S1 REGULATOR CIRCUIT REGULATOR CIRCUIT PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

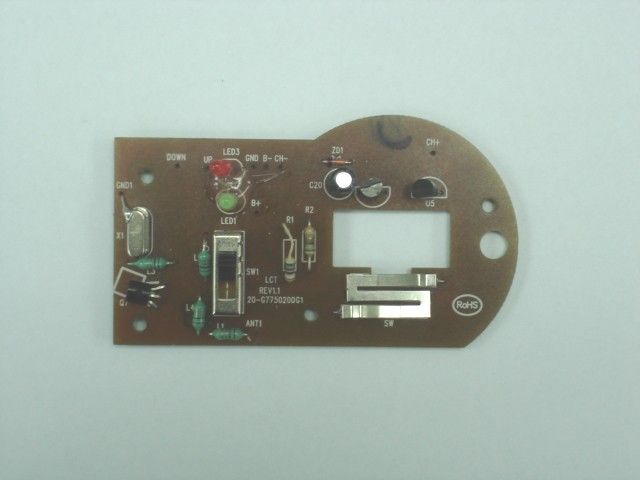

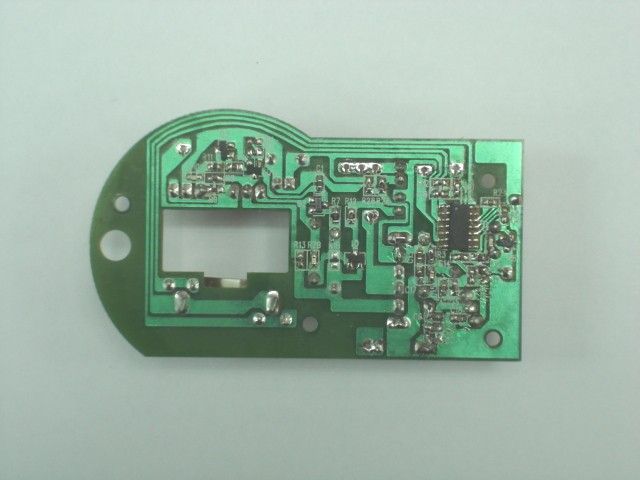

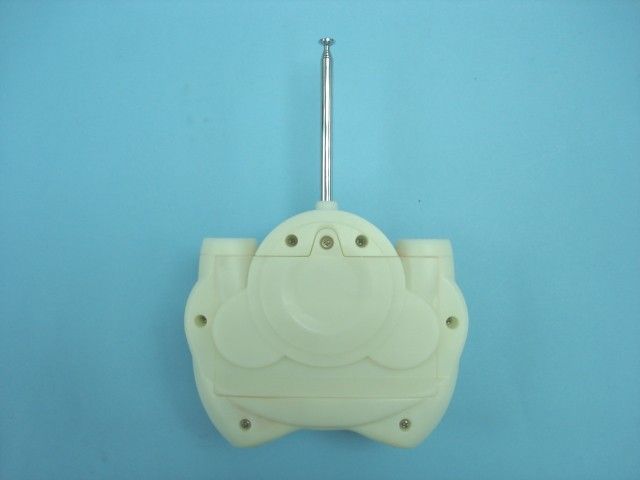

Operation Description for Mini XPV (27MHz / 49MHz) The transmitter of the Mini XPV (27MHz / 49MHz) is powered by six 1.5V AA size batteries. The radio frequency channel is 27.145MHz / 49.860MHz. There are two control sticks and one push button on the transmitter. When the push button is pushed to ìONî and the control sticks are pressed, it will transmit different radio control signals. When the push button is pushed to ìCHî and the external line is connected to receiver, the rechargeable battery inside the receiver will be charged up. The receiver of the Mini XPV (27MHz / 49MHz) is powered by a 3.7V rechargeable battery. The radio frequency channel is 27.145MHz / 49.860MHz. There are two motors on the receiver. When it receives the radio controls, it will fly to the corresponding direction. Referring to the transmitter circuit design, the circuit description is listed below: - U1 and associated circuit act as an encoder. - X1, Q6 and associated circuit act as an oscillator. - Q7 and associated circuit act as a RF amplifier. - Q5 and associated circuit act as a voltage regulator. - Q4 and associated circuit act as a reference circuit. - Q1 and associated circuit act as an indicator circuit. - Q2, Q3 and associated circuit act as a current protect circuit. Referring to the receiver circuit design, the circuit description is listed below: - Q1 and associated circuit act as a RF amplifier. - U1 and associated circuit act as a decoder. - Q2, Q3 and associated circuit act as a voltage regulator. - Q4, Q5 and associated circuit act as a motor driver for M1. - Q6, Q7 and associated circuit act as a motor driver for M2. - U2, U3, Q10 and associated circuit act as a charge protect circuit.

49M TX FCC.sch-1 - Thu Nov 16 14:44:30 2006 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

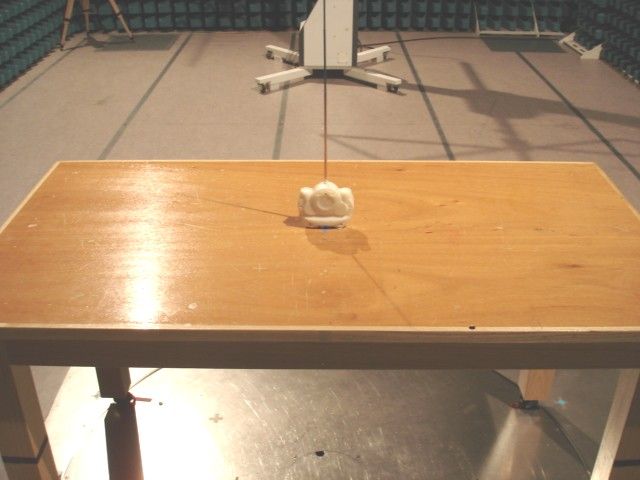

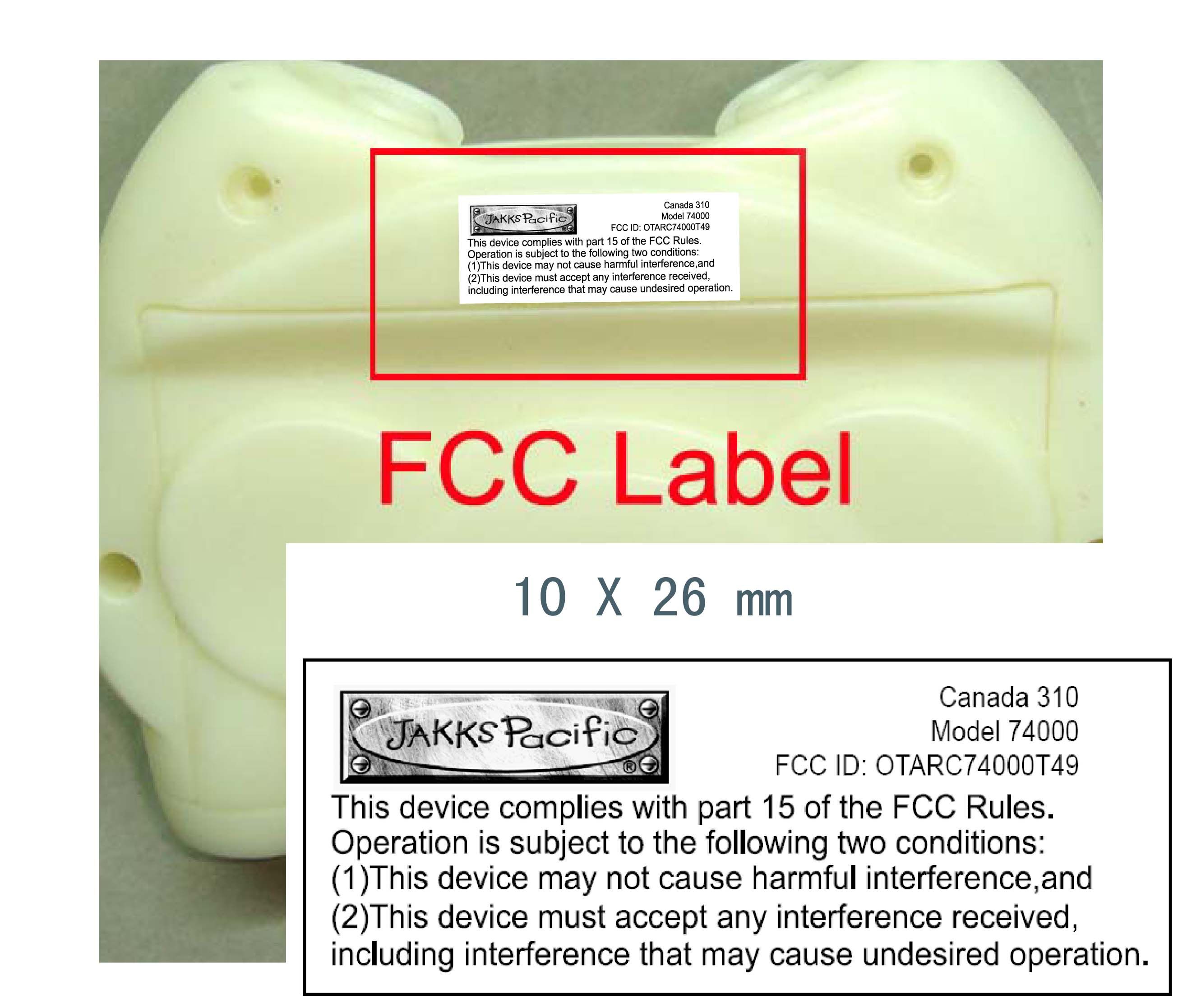

TEST REPORT Report No. : AG029718-001 Date : 2007 January 05 Page 1 of 11 FCC ID: OTARC74000T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG225584(4) Client : Jakks Pacific (HK) Ltd. Room 718, 7/F., AIA Tower, New World Centre, 20 Salisbury Road, Tsim Sha Tsui East, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Mini XPV of Model No. 74000 Radio Frequency : 49.860MHz Transmitter Rating : 6 x 1.5V AA size batteries No. of submitted sample : Two (2) piece(s) *** Date Received : 2006 November 13 Test Period : 2006 November 14 ñ 2006 November 15 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG029718-001 Date : 2007 January 05 Page 2 of 11 FCC ID: OTARC74000T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AG029718-001 Date : 2007 January 05 Page 3 of 11 FCC ID: OTARC74000T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Mini XPV. It operates at 49.860MHz which is controlled by a crystal. The EUT is powered by six AA size batteries. There are two control sticks and one push button on the EUT. When the push button is pushed to ìONî and the forward, left or right stick is pressed once, it will transmit different radio control signal to receiver. When the push button is pushed to ìCHî, it will charge up the battery in the receiver. The brief circuit description is listed as follows: - U1 and associated circuit act as an encoder. - X1, Q6 and associated circuit act as an oscillator. - Q7 and associated circuit act as a RF amplifier. - Q5 and associated circuit act as a voltage regulator. - Q4 and associated circuit act as a reference circuit. - Q1 and associated circuit act as an indicator circuit. - Q2, Q3 and associated circuit act as a current protect circuit. TEST REPORT Report No. : AG029718-001 Date : 2007 January 05 Page 4 of 11 FCC I…

Text truncated - open the document above for the full version.

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 3
