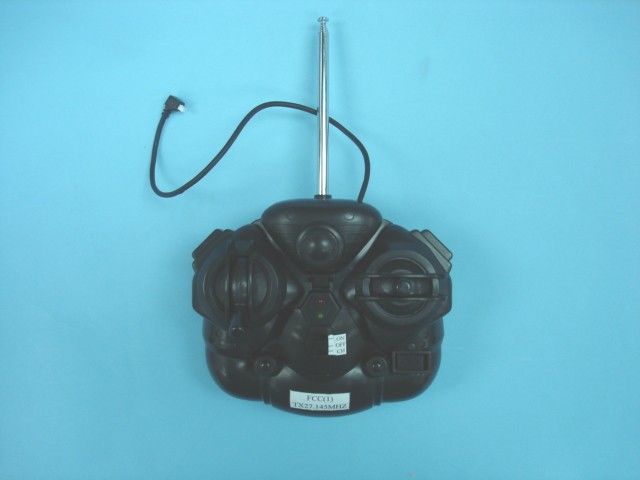

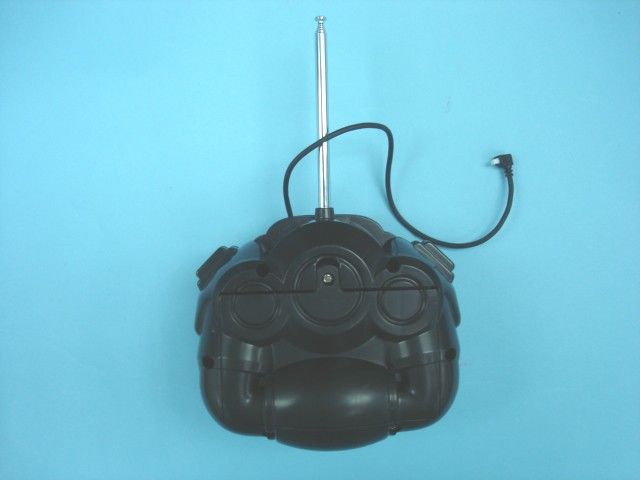

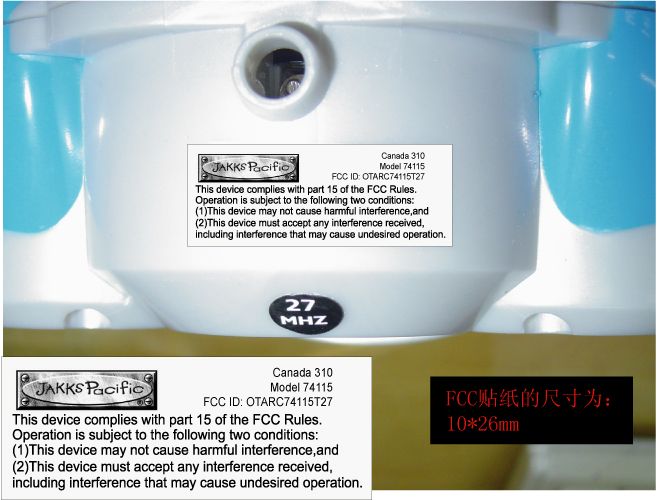

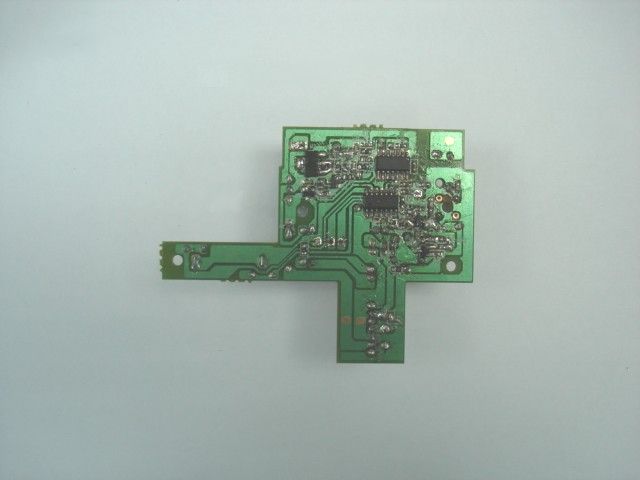

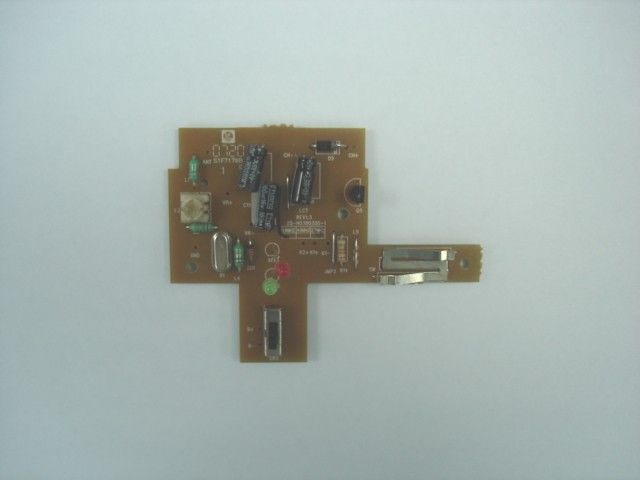

XPV MINI RAD 27.145MHZ Transmitter Operational Description The XPV MINI RAD radio control transmitter is a low powered, hand held unit for controlling the movement of a toy RAD
the transmitter is powered by a 9.0V battery(6XAA) ,it is designed to operate on a single fixed frequency in the 27.105-27.185MHZ band . Please see the attached block diagram and schematic. Position of VR trigger(single use the L/R or tact key isnít function) an integrated circuit(U1)which produces the control signals that will modulate the carrier signal .The carrier signal is generated by a crystal oscillator circuit comprised of a 27.145MHZ crystal (X1) and a NPN transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage (Q1). The modulated output of the RF amplifier stage is capacitive coupled (via C3) to the antenna through a ìpiî matching network comprised of C2,L2 C1.It is sent out. When the user need charge about RX battery, the U2 and Q3 would adjust out current. When working finish the LED2 would crush out. If charger jack will by short, then the U3 will send out one high voltage and the Q5 will be by cut out to U2. When user always command the transmitter VR is same one space and other keys is not pressed ,the transmitter will be by stop out the control signals after 30 second. LED1 is act as a power-on indicator. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the User. No external ground is required or used with this transmitter

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:15-Jun-2007Sheet of File:D:\data\JAKKS\H038\SCH\EP H038.Ddb做板用线路原理图Drawn By: CH+ CH- SW2 9.0V BAT1 1 2 3 4 5 6 78 9 10 11 12 13 14 U1 SN8P2501 K1 K2 R5 1K LED1 POWER C14 0.1UF C15 100UF 3.0V R6 680R R4 270K L4 2.2UH X1 27.145MHZ C8 0.022UF C9 0.022UF Q2 1815GR R3 510R C10 56PF Q1 1959 L3 2.2UH C3 47PF C2 120PF C12 47PF R2 5.6K C5 120PF C6 NC R1 22R C4 0.01UF L1 3.3UH C1 27PF ANT 1 23U2 AMS1117 C17 0.1UF Q3 3904 R11 100R R9 75R R10 330R C20 2.2UF C19 0.1UF C18 100UF R12 2R+/-1% R14 2.2K LED2 CHARGE Q4 8050 R13 1.2K Q5 772 8 9 14 - + 3 1 2 U3 LM339 R16 10K R17 20K R18 6.2K R15 10K R8 2R C13 10UF D5 1N5819 R7 1K C7 10PF C21 2.2UF L R V.L V.R P2.2 P2.1 P2.0 VDD P1.3/XIN P1.2/XOUT P1.1/RST/VPP P5.4/BZO/PWM0 P1.0 P0.0/INT0 VSS P2.5 P2.4 P2.3 K3 K4 R19 1K+/-1% R20 1K+/-1% VR5K C16 1UF L2 2.2UH 27.145MHZ ZD1 PDF created with pdfFactory Pro trial version www.pdffactory.com

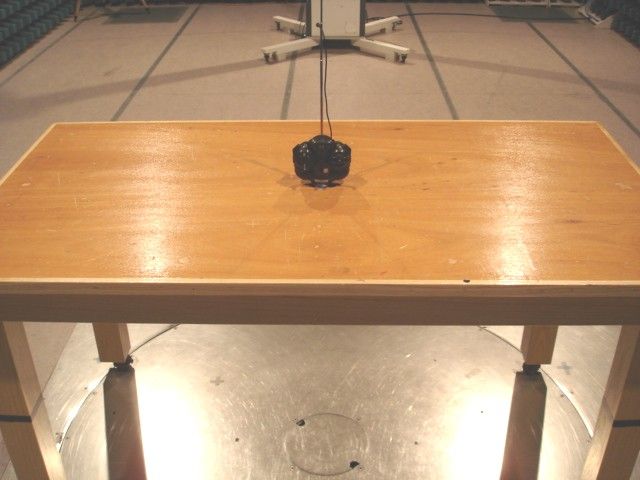

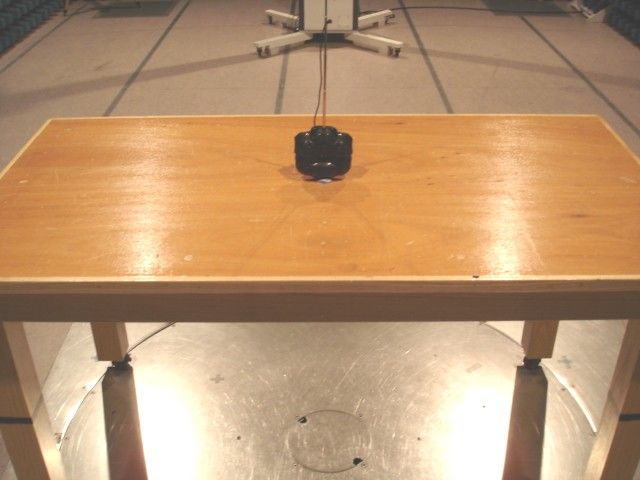

TEST REPORT Report No. : AJ014863-001 Date : 2007 July 04 Page 1 of 11 FCC ID: OTARC74115T27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ212114(0) Client : Jakks Pacific (HK) Ltd 12/F, Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Mini RAD of Model No. 74115 Radio Frequency : 27.145MHz Transmitter Rating : 6 x 1.5V AA size batteries No. of submitted sample : Two (2) piece(s) *** Date Received : 2007 June 01 Test Period : 2007 June 12 ñ 2007 June 15 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ014863-001 Date : 2007 July 04 Page 2 of 11 FCC ID: OTARC74115T27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ............................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 5.4 Power Spectral Density ..............................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ014863-001 Date : 2007 July 04 Page 3 of 11 FCC ID: OTARC74115T27 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Mini RAD. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 6 x 1.5V AA size batteries. There are two control sticks on the EUT. When the accelerated, turn right or turn left stick is pushed, it will transmit different radio control signal to the receiver. The brief circuit description is listed as follows: - Q1 and associated circuit act as a RF amplifier. - X1, Q2 and associated circuit act as an oscillator. - U1 and associated circuit act as an encoder. - ZD1 and associated circuit act as a voltage regulator. - U2, Q3, Q4 and associated circuit act as a charger regulator. - U3, Q5 and associated circuit act as a high current protector. TEST REPORT Report No. : AJ014863-001 Date : 2007 July 04 Page 4 of 11 FCC ID: OTARC74115T27 This document shall not be reproduced except in fu…

Text truncated - open the document above for the full version.

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 3
