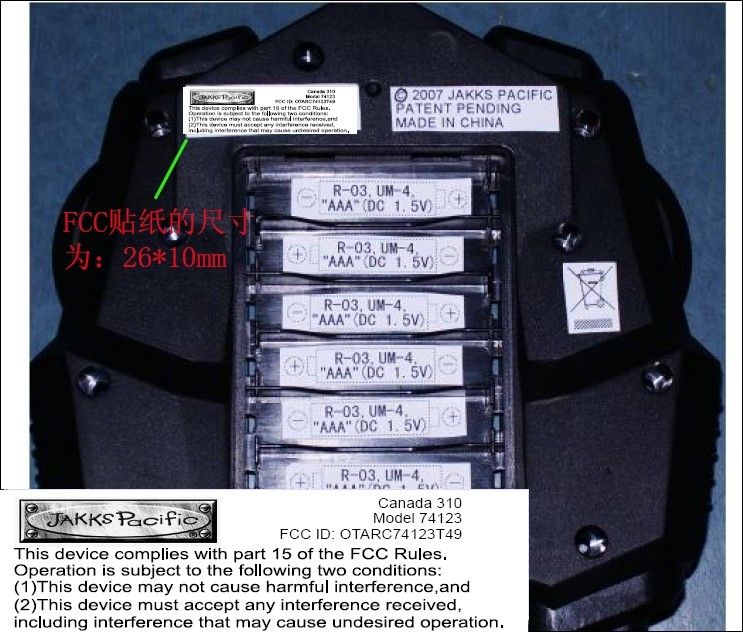

OTARC74123T49Shadow Hawk

ALKALINE BATTERY ADDITIONAL SAFETY INFORMATION Replace all batteries at the same time once exhausted. NEVER mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. NEVER mix old and new batteries. NEVER mix different brands of batteries. NEVER use rechargeable batteries, as product performance may be diminished. For longer life, only use alkaline batteries. LITHIUM-ION POLYMER (LIPO) BAlTERY PACK SAFETY INFORMATION WARNING! Battery Pack contains potentially volatile Lithium-ion Polymer batteries! WARNING! ONLY ADULTS SHOULD CHARGE BAlTERY PACK AFTER READING ALL INSTRUCTIONS AND WARNINGS. The user assumes all risks associated with use and charging of Lithium-ion Polymer batteries. If you do not agree with these conditions, return the Battery Pack and Charger prior to use. Technical Specifications Type: Lithium-ion Polymer (LiPo or Li-Poly) Capacity: 650 mAh Voltage: 7.4V (two cells) Charge time: 60 minutes = approximately 90% charged; 80 minutes = 100% charged. Warnings and Cautions WARNING: Handle Battery Pack and Battery Charger with extreme care! Only charge Battery Pack with the compatible Battery Charger from Battery Pack Manufacturer! NEVER cut or remove Battery Pack wires! NEVER disassemble, modify, or solder Battery Pack! NEVER leave Battery Pack unattended at any time while being charged! NEVER handle Battery Pack while wearing metallic objects such as a ring, watch, or bracelet! NEVER allow Battery Pack internal electrolyte contents to get in eyes or skin! NEVER immerse Battery Pack in water, seawater or other liquids. NEVER handle or recharge Battery Pack until it has cooled to surrounding temperature. NEVER charge Battery Pack on or near combustible materials including paper, plastic, wood, carpet, vinyl, leather, wood, or automobiles. NEVER overcharge Battery Pack. NEVER leave Battery Pack near heat source such as fire or oven. NEVER connect Battery Pack to an electrical outlet. NEVER use or recharge Battery Pack if it appears damaged, cracked, becomes discolored or deformed, gives off an odor, or otherwise appears abnormal. NEVER strike or throw Battery Pack against a hard surface. NEVER puncture or cut Battery Pack. Storage and Transportation ALWAYS store Battery Pack in a secure, dry, ventilated location. ALWAYS store Battery Pack where it cannot be handled by children. NEVER allow Battery Pack to come into contact with water or other liquid. NEVER leave Battery Pack near flames, stoves, fireplaces, or other high-temperature locations. NEVER expose Battery Pack to direct sunlight for extended periods. NEVER transport or store Battery Pack where it can come into contact with metal objects. Recommended Temperature Ranges for Battery Storage: 40°F 1 4°C and 80°F 127°C. Charging: 50°F 1 10°C to 113'F 145'C. Usage: Recommended temperature range during use: 32°F 10°C to 122°F 150°C. Transporting in a vehicle: 20°F I-7°C and 150°F 165OC. Charging andlor operating of Battery Pack outside of its specified range can reduce battery performance and cause the battery to leak, overheat, or explode. Battery Pack Disposal Battery Pack should be properly disposed of or recycled according to local, state, and federal regulations and only after being cooled to surrounding temperatures. To dispose or recycle, insulate the output wires with tape, puncture a plastic garbage bag, insert Battery Pack into the garbage bag, immerse garbage bag containing Battery Pack into salt water for several hours, and dispose or recycle accordingly. Wear rubber gloves during procedure. JAKKS Pacific, Inc. is not responsible in any way for any bodily injury(s) andlor property damage that may occur from any contrary use in any way of Battery Pack andlor Battery Charger offered andlor distributed by JAKKS Pacific, Inc. ADDITIONAL INFORMATION FOR ALL BAlTERY PRODUCTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radiorrV technician for help. TM & QM07 JAKKS Pacific Inc., Malibu, CA 90265 U.SA All rights reserved. All other symbols, marks, logos and designs (collectively "Trademarks") are Trademarks of and proprietary to their respective owners and used under license by JAKKS Pacific, Inc. MADE IN CHINA Contents may vary in style, color, shape and decoration from images shown on package or in advertising. Questions or cornmen$ in North America. Visit www.XPV. corn for additional information, instructions, and cool video! - Not retommended for children under 8 yeoa of o e. As i d ~vmll~~~,,~~ P eleh pmduck, pretoufions should be ohwed unng hondling XTREME PERFORMANCE VEHICLEm .) ond use to reduce he Y …

Text truncated - open the document above for the full version.

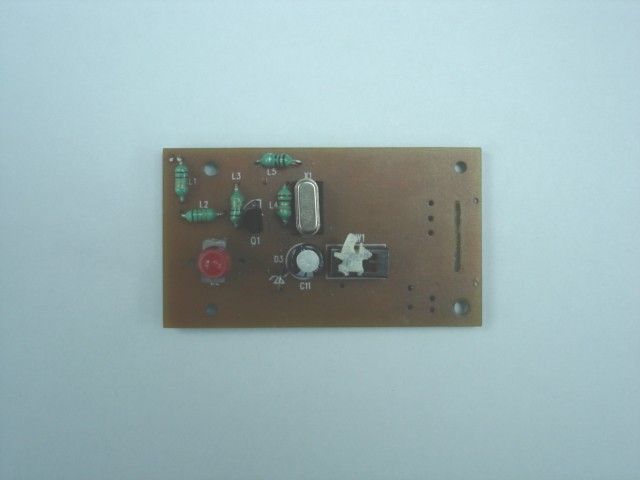

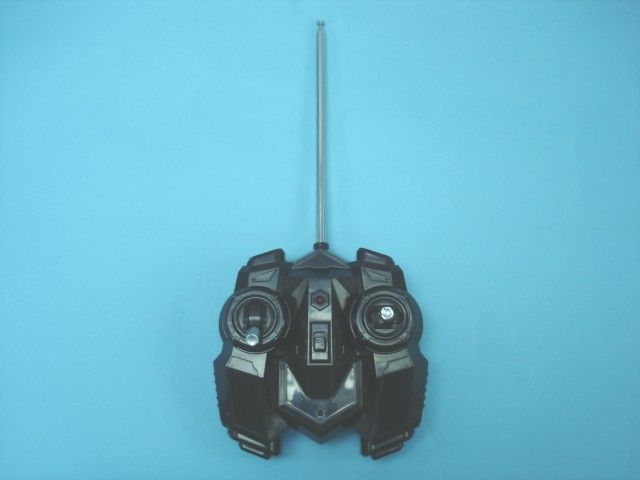

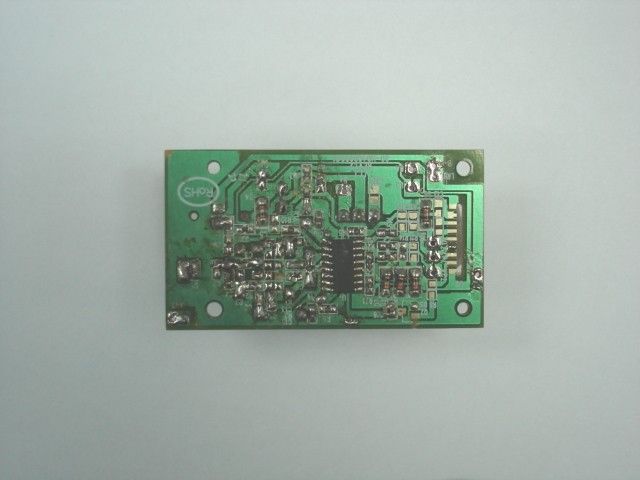

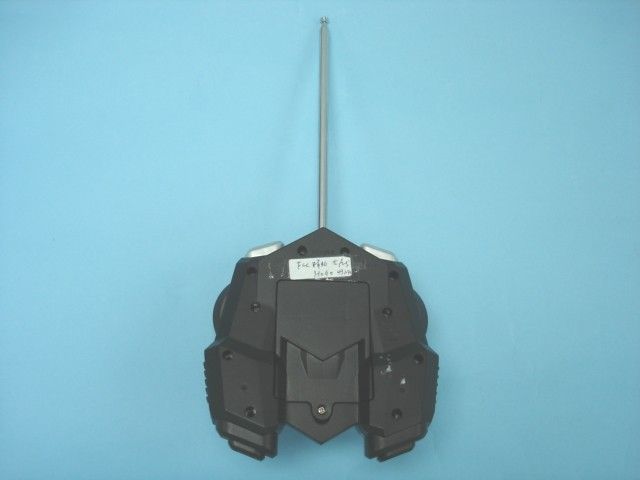

Transmitter Operational Description The transmitter device is used 1.5v *6 ëAAAí batteries, it is designed to operate a single fixed frequency in the 49.860MHz. Please see the attached block diagram and schematic. Transmitter is using a five-function Remote Control Encorder-SPRC205A integrated circuit, the SPRC205A is able to encode five sequences of binary information into a serial bit-stream data. When push any one of the button keys, it will have information activated, via built-in crystal oscillator and power amplifier, the controlling signal will be encoder into a bit-stream data. the red LED D2 is Power-ON indicated. When power-switching put ON position , D2 is lighting . After five information sequences are becomes inactive, the SPRC205A will transmitter addition fifteen data frames to increase transmission reliability. Furthermore, capacitors C1, C2, L1, L2 form a high frequency attenuator, it using to match antenna and reduce harmonic emission of carrier wave signal. The five button is left/right(direction) and low/mid/high(rating).

H040205kk.sch-1 - Wed Apr 18 15:54:58 2007 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

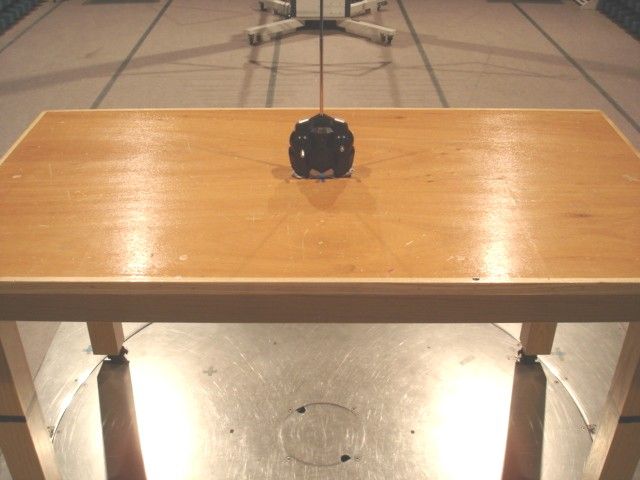

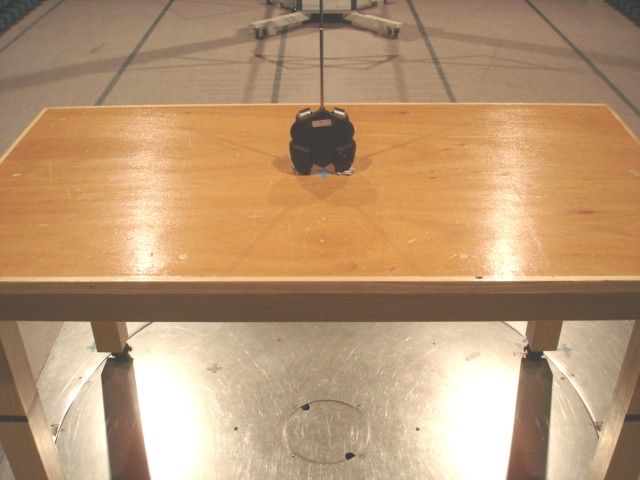

TEST REPORT Report No. : AJ018466-001 Date : 2007 July 25 Page 1 of 11 FCC ID: OTARC74123T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ210253(2) Client : Jakks Pacific (HK) Ltd 12/F, Wharf T&T Centre, 7 Canton Road, Tsim Sha Tsui, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Shadow Hawk of Model No. 74123 Radio Frequency : 49.860 Transmitter Rating : 6 x 1.5V AAA size batteries No. of submitted sample : Two (2) piece(s) *** Date Received : 2007 April 27 Test Period : 2007 April 30 ñ 2007 May 30 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ018466-001 Date : 2007 July 25 Page 2 of 11 FCC ID: OTARC74123T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 5.4 Power Spectral Density ..............................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ018466-001 Date : 2007 July 25 Page 3 of 11 FCC ID: OTARC74123T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Shadow Hawk. It operates at 49.860MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 6 x 1.5V AAA size batteries. There are two control sticks on the EUT. When the control stick is pushed to accelerated, decelerated, turn right or turn left, the EUT will transmit different radio control signal to the receiver. The brief circuit description is listed as follows: - Q1 and associated circuit act as a RF amplifier. - X1, U1, Q2 and associated circuit act as an oscillator and encoder. - D3 and associated circuit act as a voltage regulator. - U2 and associated circuit act as a switch controller. TEST REPORT Report No. : AJ018466-001 Date : 2007 July 25 Page 4 of 11 FCC ID: OTARC74123T49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development …

Text truncated - open the document above for the full version.

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 3
