OUJCYTEL-1900900 MHz Cordless Telephone (40 Channel)

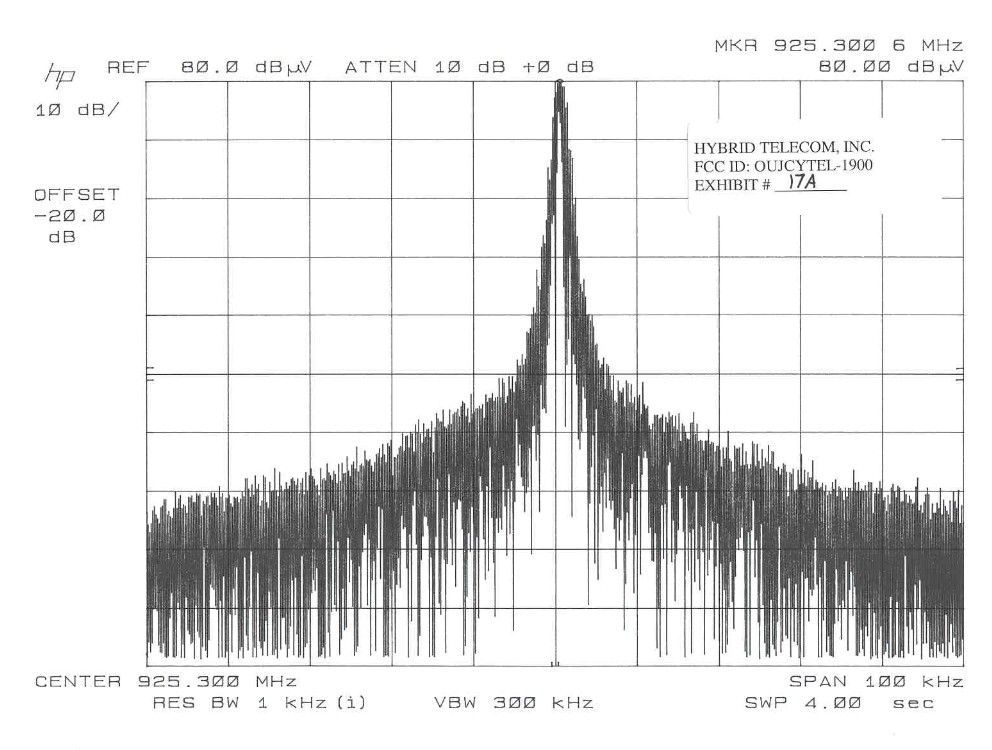

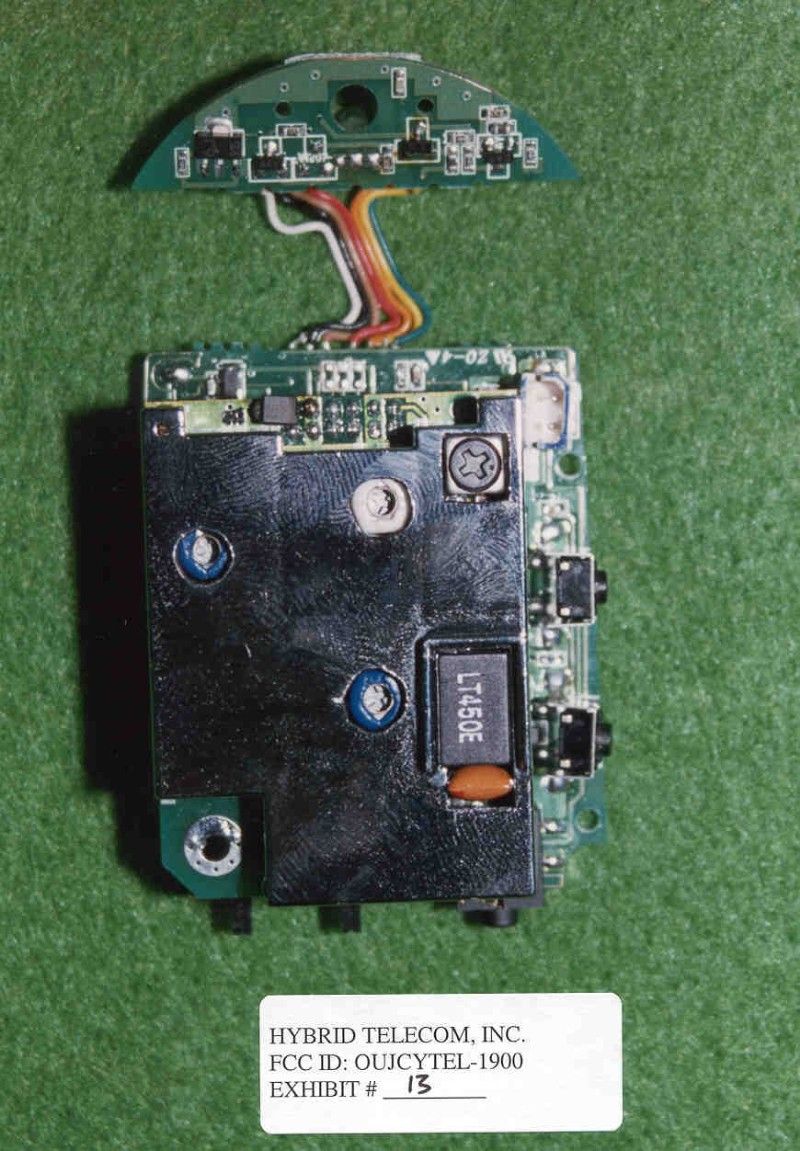

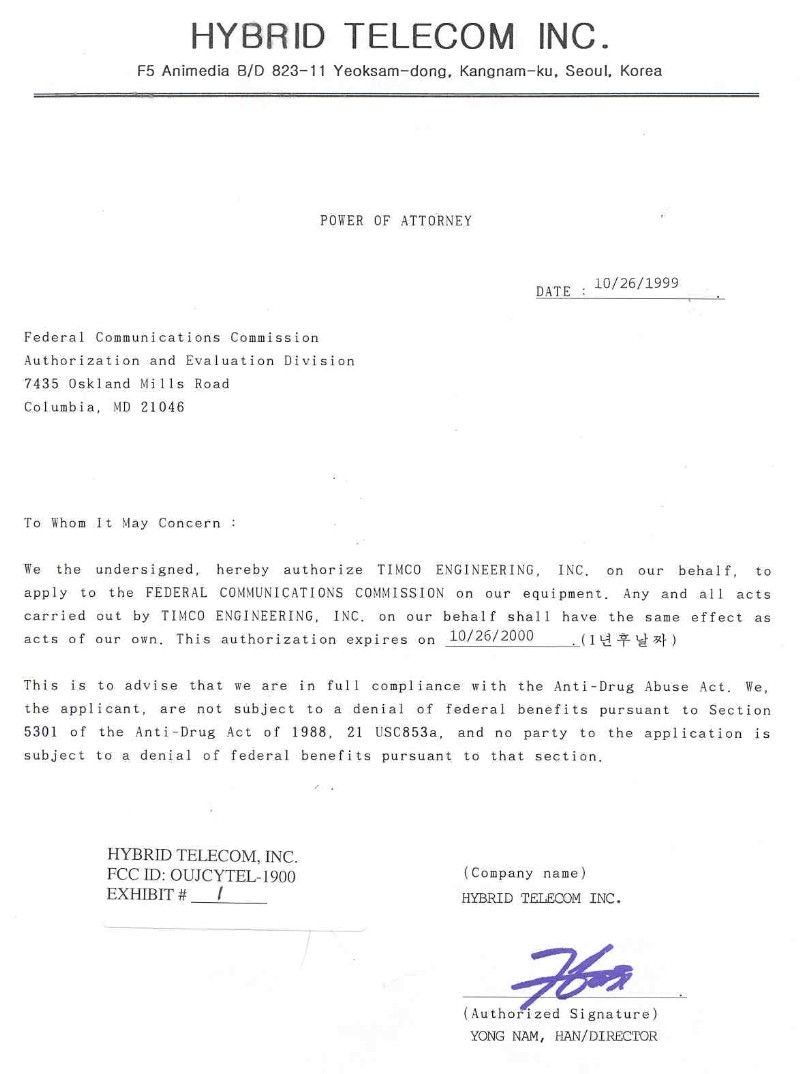

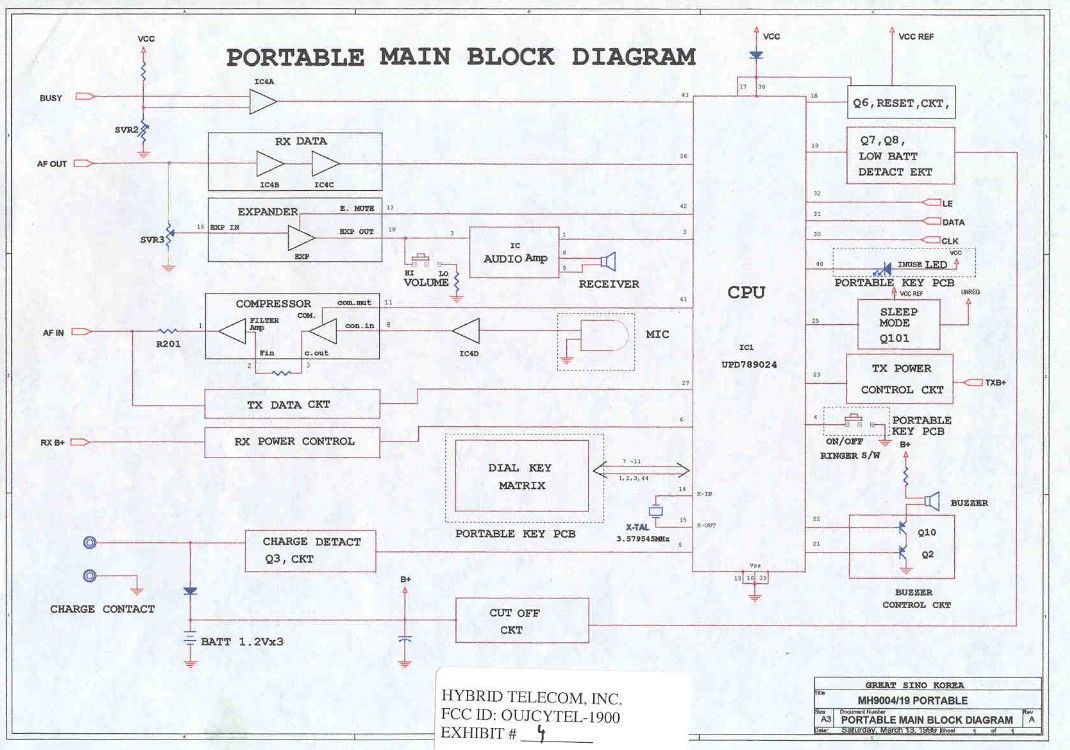

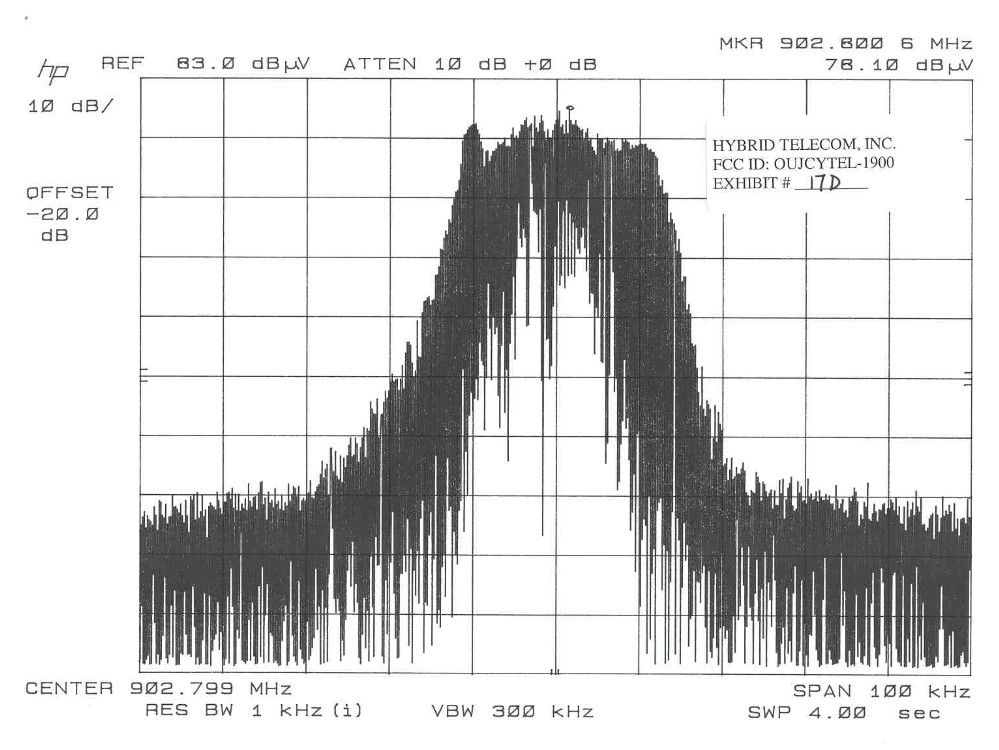

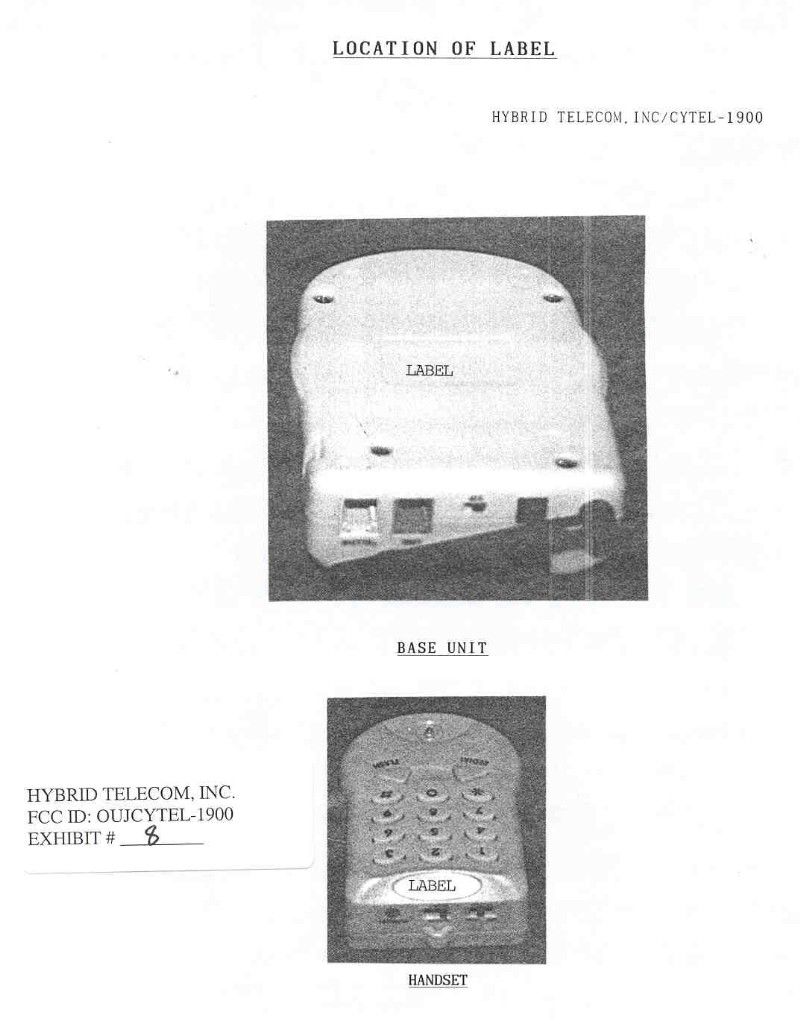

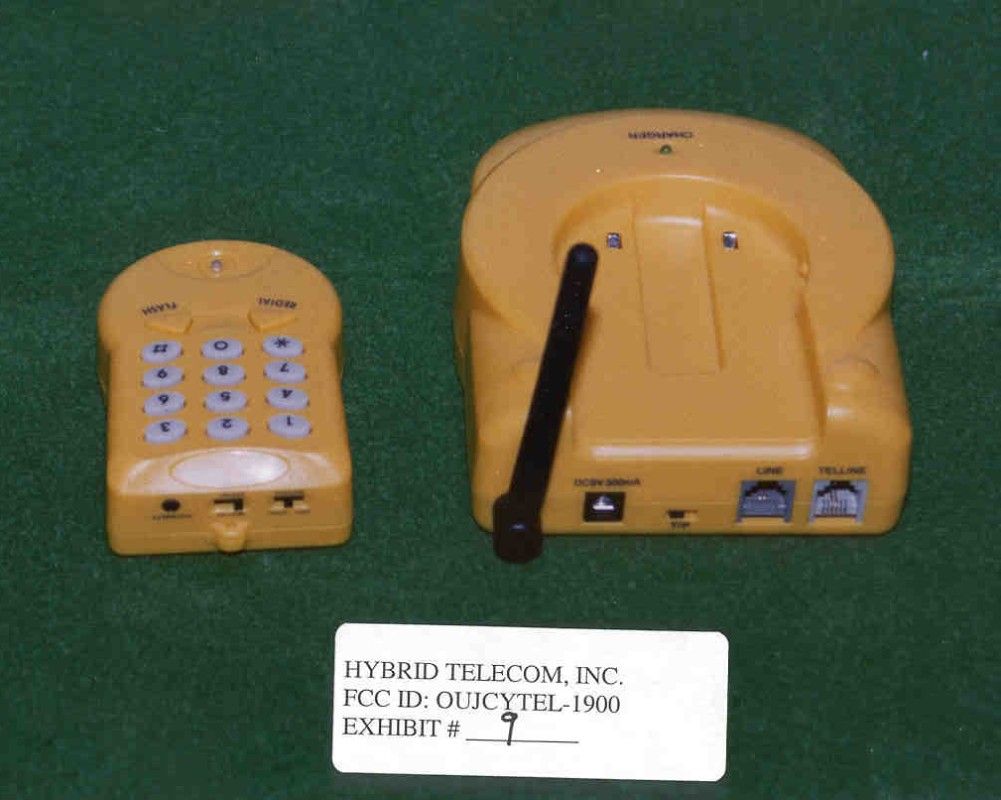

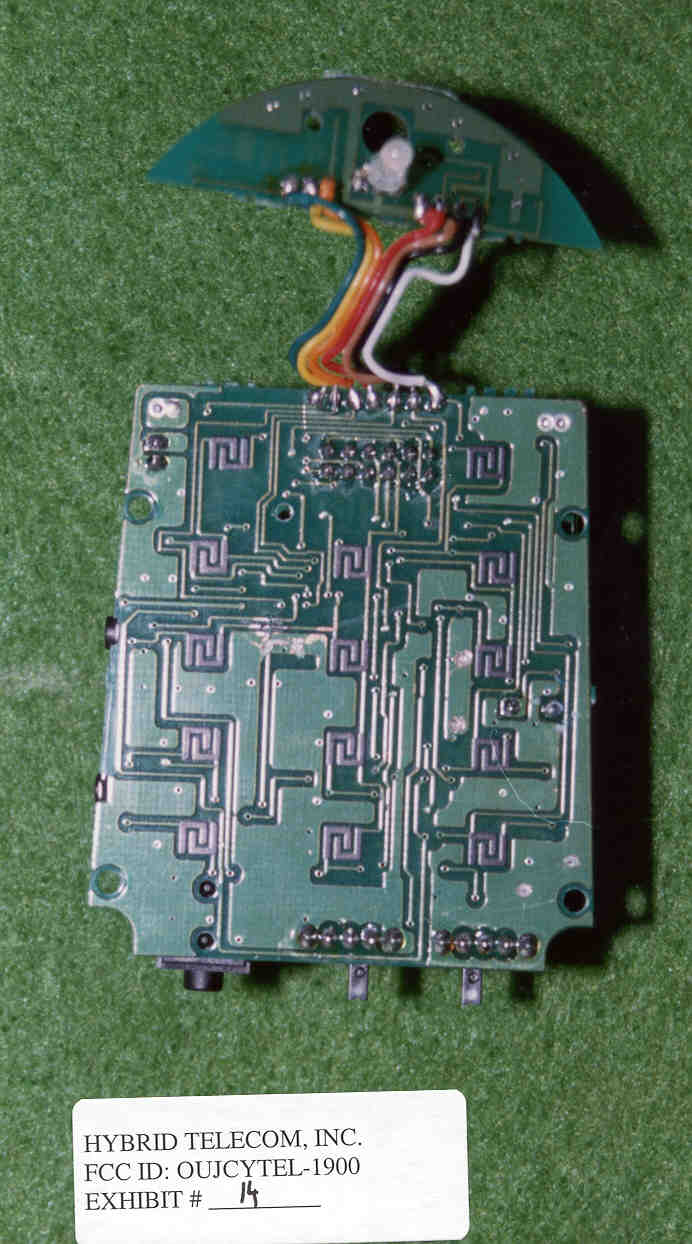

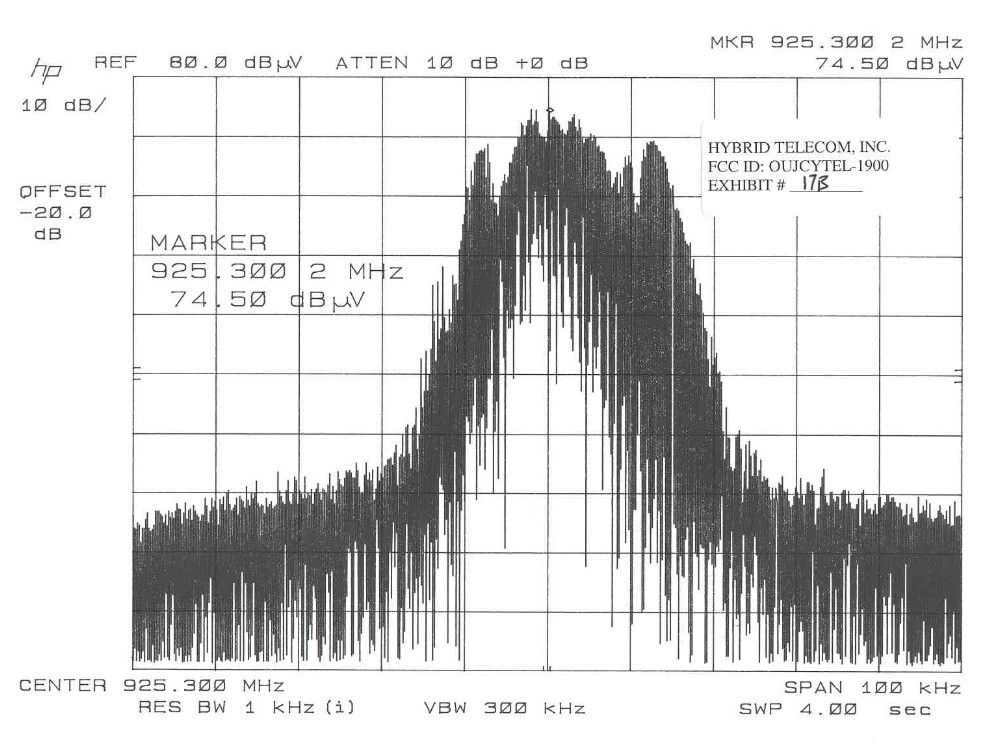

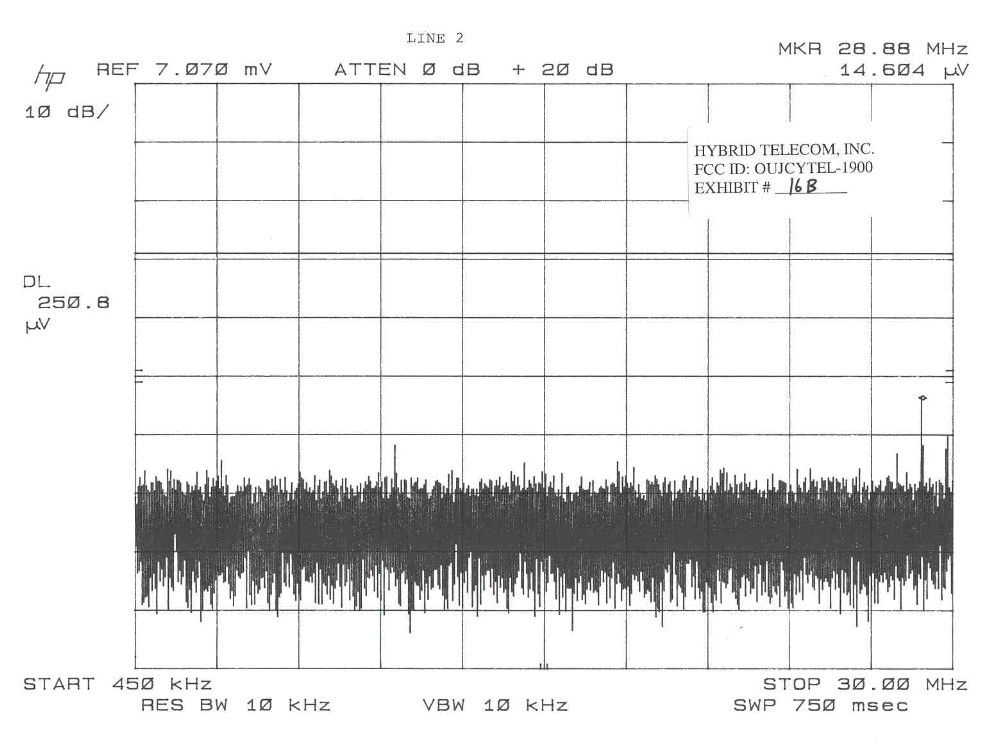

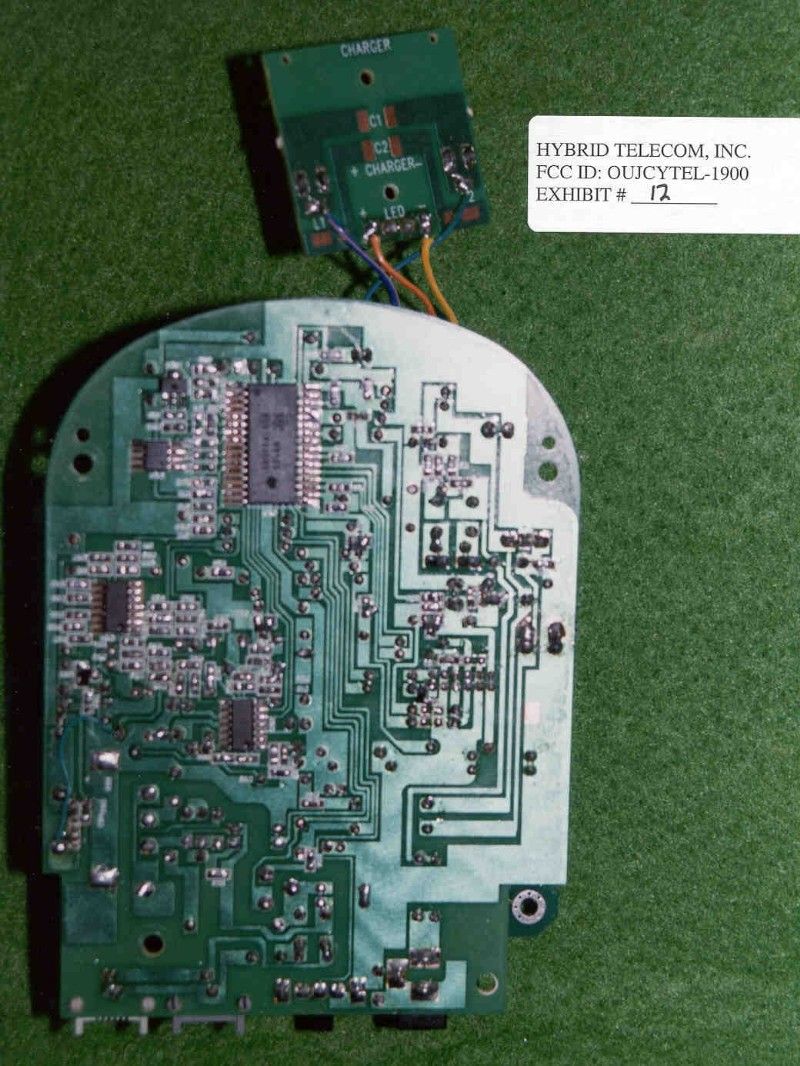

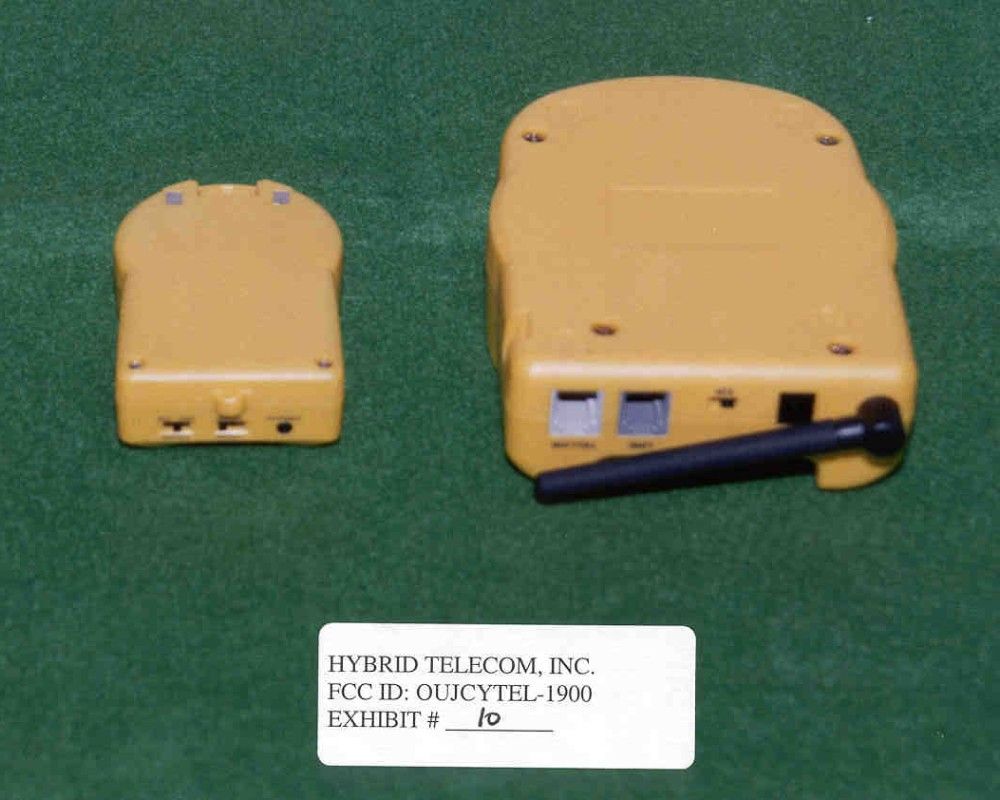

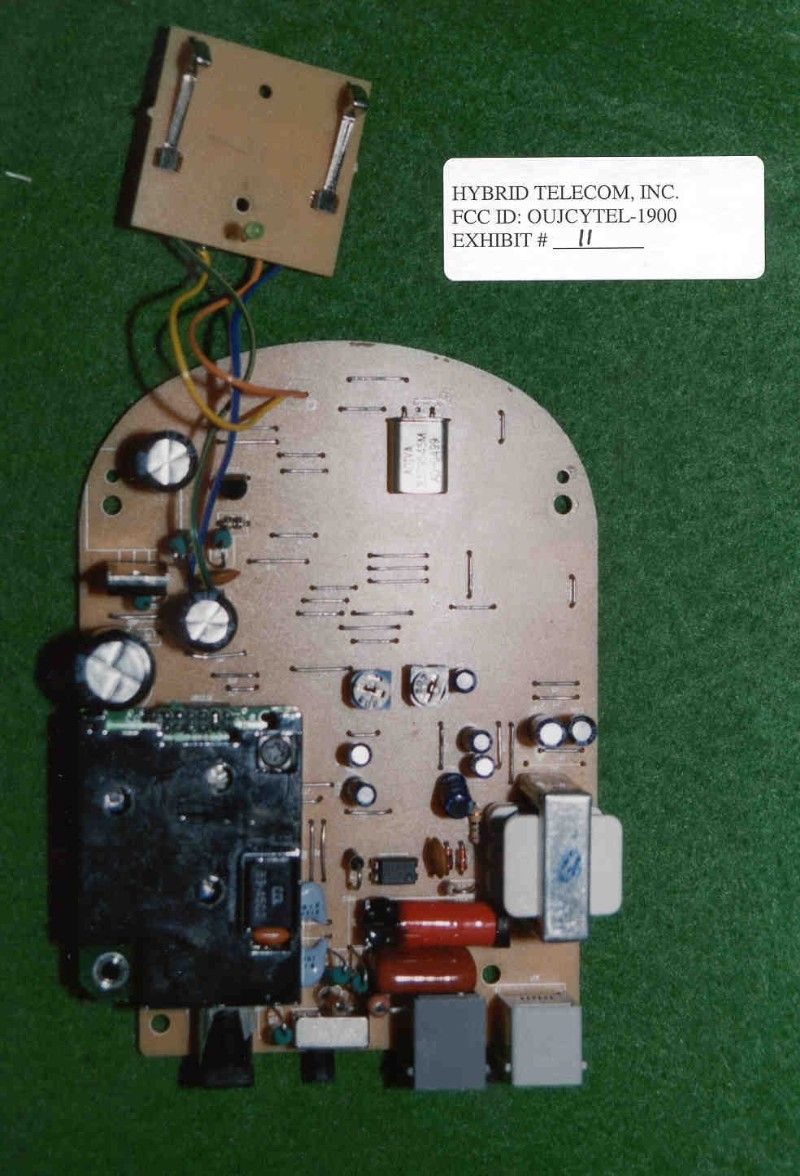

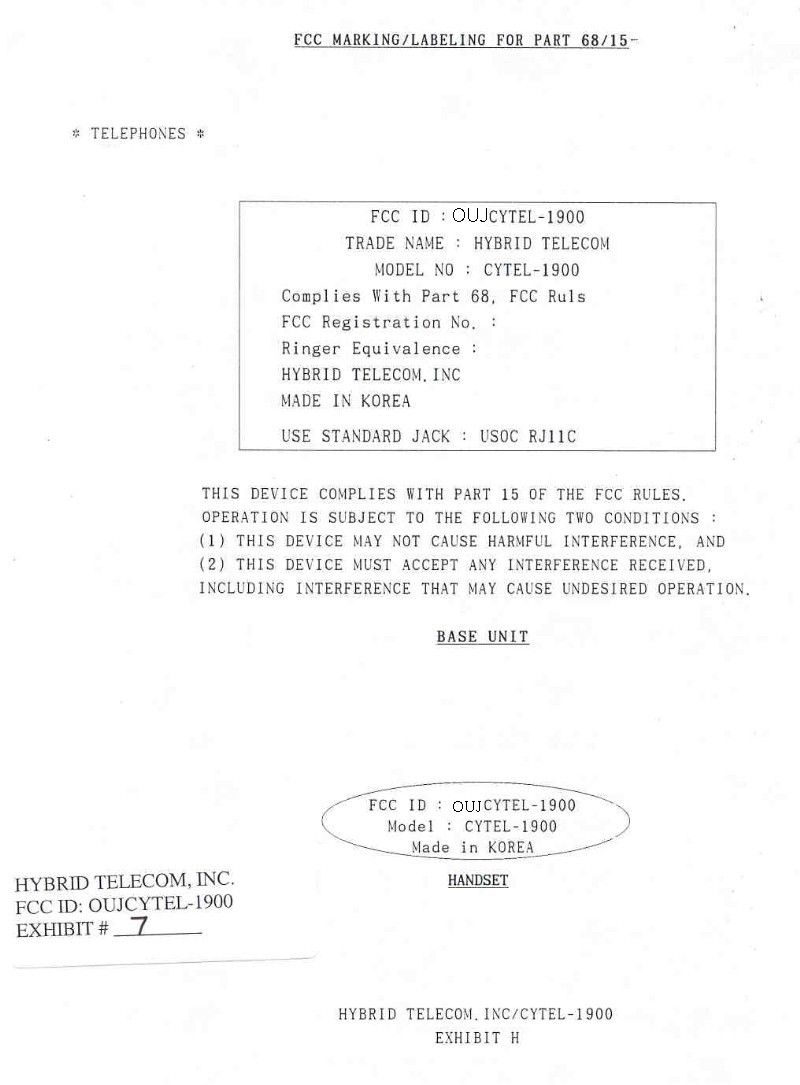

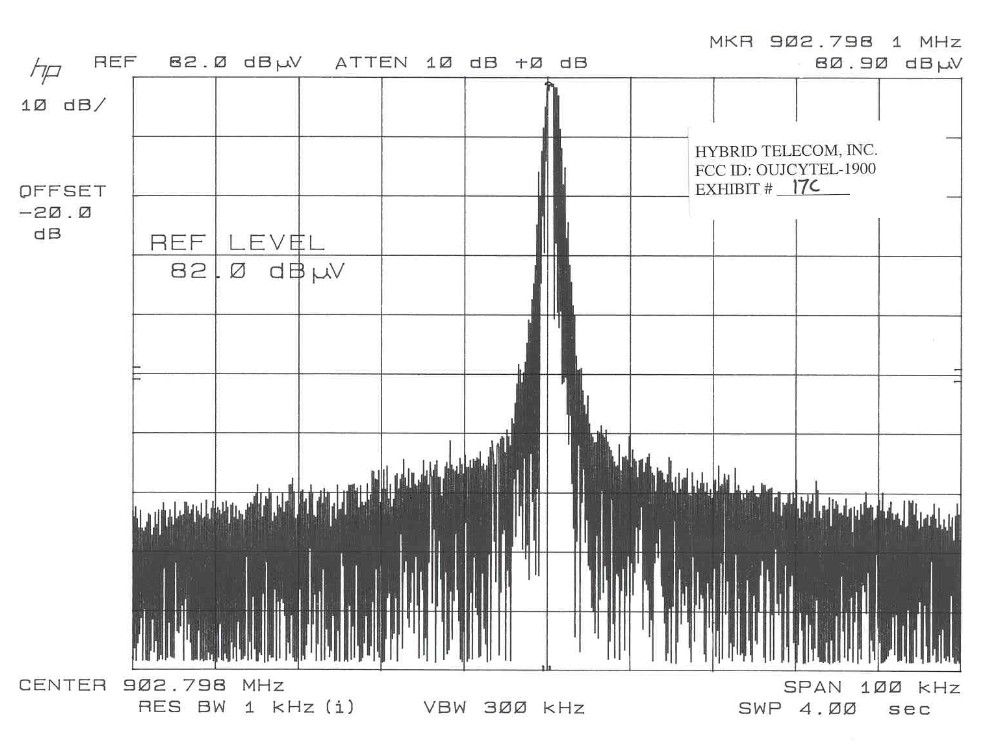

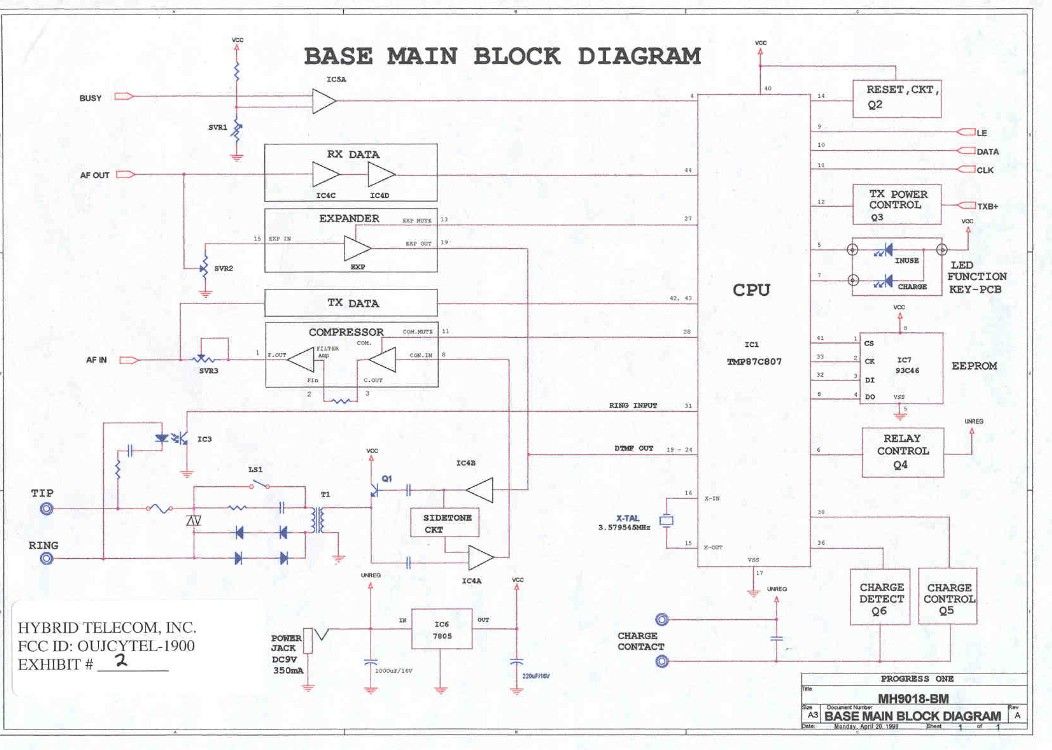

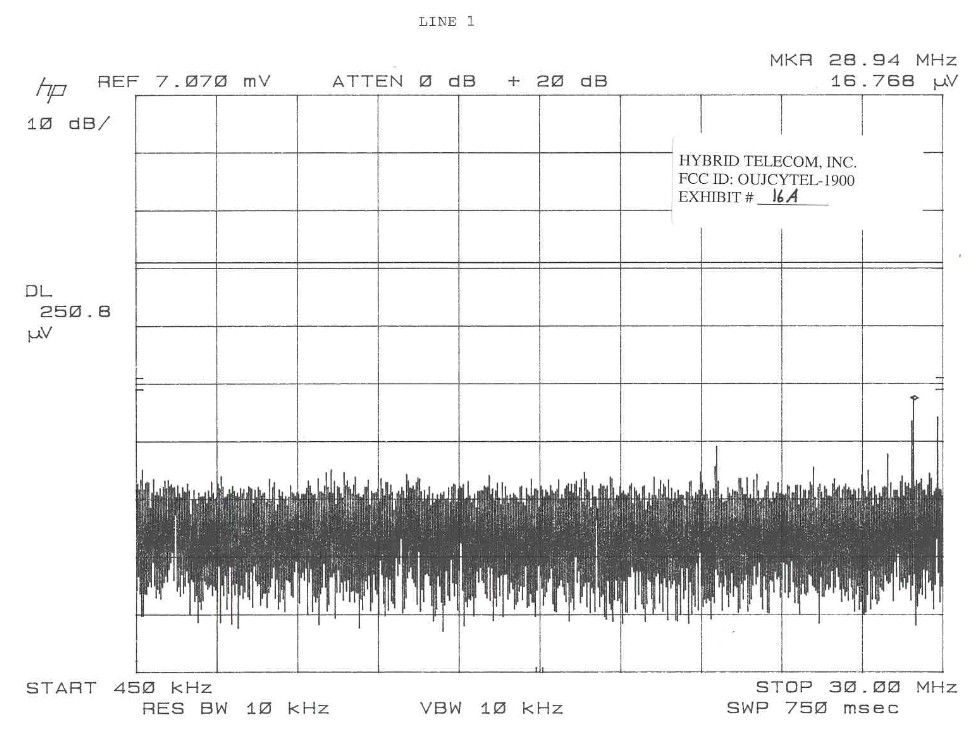

TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1........15.214(d) - SECURITY CODING INFORMATION AND TEST PROC. PAGE 2........TEST PROCEDURE CONTINUED PAGE 3-4......CIRCUIT DESCRIPTIONS PAGE 5........RADIATION INTERFERENCE TEST DATA - BASE PAGE 6........RADIATION INTERFERENCE TEST DATA - HANDSET PAGE 7........OCCUPIED BANDWIDTH TEST DATA PAGE 8........POWERLINE CONDUCTED TEST DATA EXHIBITS CONTAINING: EXHIBIT 1..........POWER OF ATTORNEY LETTER EXHIBIT 2..........BLOCK DIAGRAM - BASE MAIN EXHIBIT 3..........BLOCK DIAGRAM - BASE RF EXHIBIT 4..........BLOCK DIAGRAMS - HANDSET RF EXHIBIT 5..........SCHEMATIC - BASE MAIN EXHIBIT 6..........SCHEMATIC - HANDSET MAIN EXHIBIT 7..........FCC ID LABEL SAMPLES EXHIBIT 8..........SKETCH OF FCC ID LABEL LOCATION - BASE & HANDSET EXHIBIT 9..........EXTERNAL PHOTO FRONT VIEW TELEPHONE SET EXHIBIT 10.........EXTERNAL PHOTO REAR VIEW HANDSET AND BASE EXHIBIT 11.........INTERNAL PHOTO - COMPONENT BASE EXHIBIT 12.........INTERNAL PHOTO - SOLDER BASE EXHIBIT 13.........INTERNAL PHOTO - COMPOENT HANDSET EXHIBIT 14.........INTERNAL PHOTO - SOLDER HANDSET EXHIBIT 15A-15F....INSTRUCTION MANUAL EXHIBIT 16A........POWERLINE CONDUCTED INTERFERENCE PLOT - LINE 1 EXHIBIT 16B........POWERLINE CONDUCTED INTERFERENCE PLOT - LINE 2 EXHIBIT 17A........OCCUPIED BANDWIDTH PLOT - HANDSET - CW EXHIBIT 17B........OCCUPIED BANDWIDTH PLOT - HANDSET EXHIBIT 17C........OCCUPIED BANDWIDTH PLOT - BASE - CW EXHIBIT 17D........OCCUPIED BANDWIDTH PLOT - BASE APPLICANT: HYBRID TELECOM, INC. FCC ID: OUJCYTEL-1900 REPORT #: T:\CUS\H\HYBRID\HYB467B9\HYB467B9.RPT PAGE: TABLE OF CONTENTS SECURITY CODING INFORMATION 15.214(d) - THIS DEVICE COMPLIES WITH THE SECURITY CODE REQUIRE- MENTS OF 15.214(d)(1)(2) AND (3) BY MEANS OF THE FOLLOWING: THIS PHONE IS EQUIPPED WITH A DIGITAL SECURITY SYSTEM WITH OVER 1 MILLION CODE COMBINATIONS. WHEN MAKING A CALL, THE TELEPHONE SEARCHES THROUGH ITS 60 AVAIL- ABLE CHANNELS AUTO CHANNEL SCAN TO FIND THE CLEAEREST ONE. THE RECEIVER PORTION OF THIS TELEPHONE, FCC ID: OUJCYTEL-1900, WAS TESTED WITH PASSING RESULTS. A VERIFICATION REPORT HAS BEEN ISSUED PER FCC RULES PART 15.109. TEST EQUIPMENT LIST 1. Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2. Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 3. Signal Generator: HP 8614A, S/N 2015A07428 Cal. 5/29/99 4. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/23/97 5. Biconnical Antenna: Eaton Model 94455-1, S/N 1057 6. Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 7. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 8. Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 9. Horn 40-60GHz: ATM Part #19-443-6R 10. Line Impedance Stabilization Network: Electro-Metrics Model FCC-25/2, S/N 2512 Cal. 11/18/99 11. Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 11/30/99 12. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, S/N 2682 Cal. 12/1/99 13. Line Impedance Stabilization Network: Electro-Metrics Model EM-7821, S/N 101 Cal. 12/1/99 14. Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 15. AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 16. Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 17. Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 18. Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 19. Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. APPLICANT: HYBRID TELECOM, INC. FCC ID: OUJCYTEL-1900 REPORT #: T:\CUS\H\HYBRID\HYB467B9\HYB467B9.RPT PAGE #: 1 TEST PROCEDURE (CONT) RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz. Above 1.0GHz the RBW = 1.0MHz and the VBW=3.0MHz. The ambient temperature of the UUT was 53oF with a humidity of 70%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed flush with the back of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correc- tion factors are stated in terms of dB. The gain of the Preselec- tor was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appropriate sweep speed. The ambient temperature of the UUT was 53oF with a humidity of 70%. APPLICANT: HYBRID TELECOM, INC. FCC ID: OUJCYTEL-1900 REPORT #: T:\CUS\H\HYBRID\HYB467B9\HYB467B9.RPT PAGE #: 2 APPLICA…
