OV2BU-1000BU-1000 Data Transceiver Board

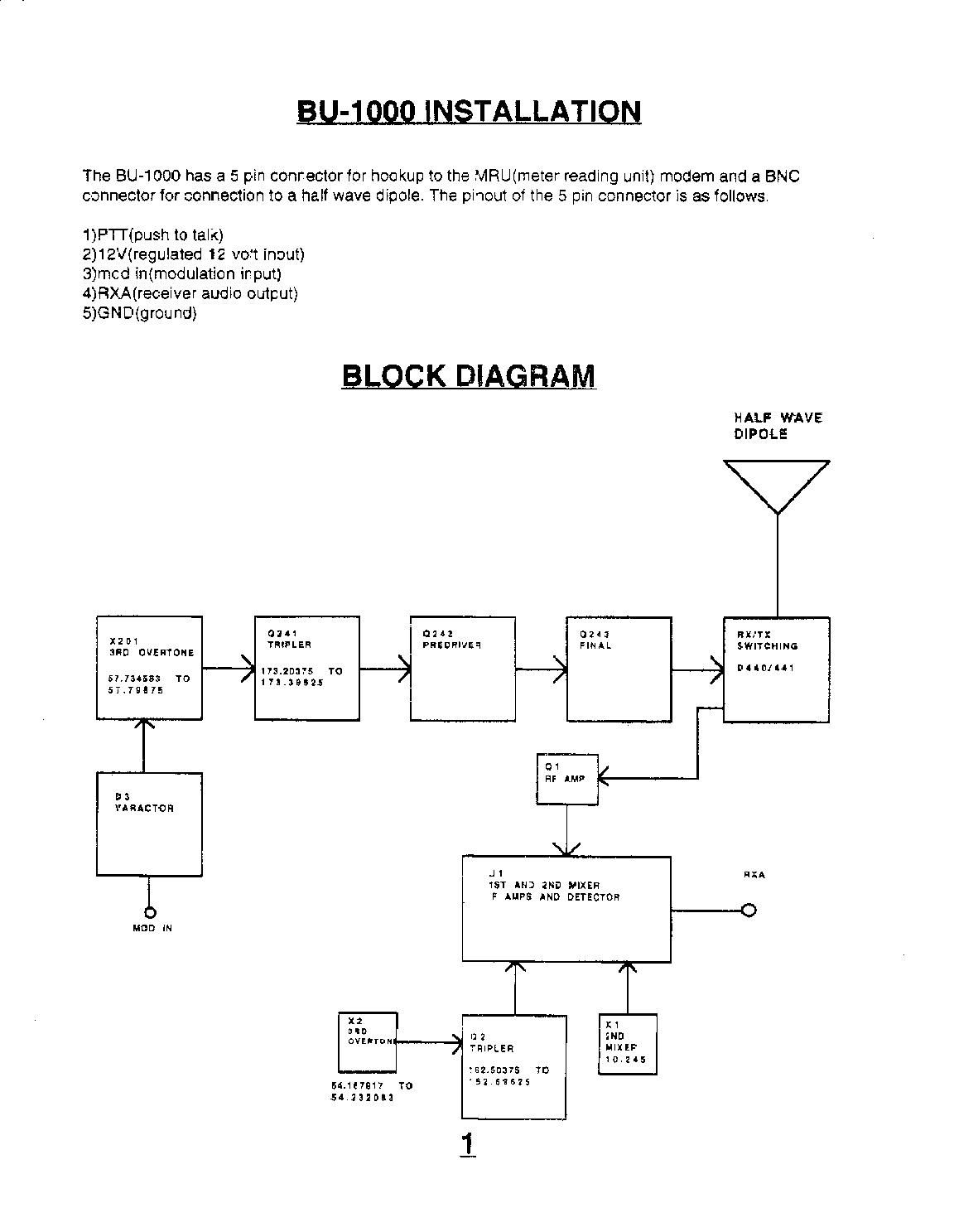

BU-1000 INSTALLATION The BU-1000 has a 5 pin connector for hookup to the MRU(meter reading unit) modem and a BNC connector for connection to a half wave dipole. The Pin-out of the 5 pin connector is as follows. 1)PTT(push to talk) 2)12V(regulated 12 volt input) 3)mod in(modulation input) 4)RXA(receiver audio output) 5)GND(ground) THEORY OF OPERATION The BU-1000 is a low power data transceiver. RECEIVER SECTION The receiver is a double conversion superhetrodyne design. When in the receive mode, signal is allowed to pass to Q1 RF AMP where it is amplified and sent to U1 for the first mix. X2 is a 3rd overtone crystal which is tripled by Q2 to produce the first mix frequency. The first mixer is located in U1 and produces a 10.7MHZ first IF. X1 produces the 2nd mix frequency of 10.245MHZ. It is mixed in U1 to produce a 455KHZ 2nd IF frequency. Receiver audio is then detected in U1 to produce RXA out. TRANSMIT SECTION Modulation is applied to D3 varactor and is used to shift the frequency of X201 to produce FM modulation. X201 is a 3rd overtone crystal. Its frequency is tripled by Q241 to give the apropriate output frequency. It is then amplified by Q242 predriver and Q243 final. It is passed through D440/441 switching when in transmit mode and from there applied to the antenna. BU-1000 SPECIFICATIONS GENERAL FREQUENCY COVERAGE:1 CHANNEL (173.20375/173.21/173.2375/173.2625/173.2875/173.3125/173.3375/173.3625/ 173.39/ OR 173.39625 MHZ) TX CURRENT DRAW: 250MA RX CURRENT DRAW: 120MA RECEIVER SENSITIVITY: 10DB SINAD AT .8UV AUDIO OUTPUT LEVEL: 2VPP AT 3KHZ DEVIATION 1ST IF FREQUENCY: 10.7 MHZ 2ND IF FREQUENCY: 455 KHZ TRANSMITTER POWER: 250MW BU-1000 DATA TRANSCEIVER BOARD PARTS LIST VERSION 2 RECEIVER SECTION C2,8,10,11,13,16,17,18,19,20,23,24 .1UF NEWARK 07WX6808 C6 33PF DIGIKEY PCC330CCT-ND C7 18PF DIGIKEY PCC180CCT-ND C14 120PF DIGIKEY PCC121CCT-ND C4 4.7PF DIGIKEY PCC4R7CCT-ND C15 47PF DIGIKEY PCC470CCT-ND C5 22PF DIGIKEY PCC220CCT-ND C12 1UF TANTILUM NEWARK 93F2694 C3 100PF DIGIKEY PCC101CCT-ND C25 1000PF DIGIKEY PCC102BCT-ND C21 2200PF DIGIKEY PCC222BCT-ND R6,2 470 NEWARK 07WX0214 R10,12 39K NEWARK 08WX8266 R3,7,8 1K NEWARK 07WX0211 R4 5.6K NEWARK 08WX8274 R5 15K NEWARK 08WX7826 R1 100K NEWARK 96F6995R100.0K R9 10K NEWARK 08WX8237 R11,13 22K NEWARK 08WX8252 R14 330 OHM 1/2 WATT DIGIKEY 330H-ND FL1 E10.7V NEWARK 87F2439 FL2 455KHZ NEWARK 90F2264 L1 43NH DIGIKEY DN4010-ND L2 1.5UH DIGIKEY TK1412-ND L3 .108UH DIGIKEY TK2713-ND L4 .64MH DIGIKEY TK1302-ND U1 MC13135DW NEWARK 07F2896 U2 78L05ACP NEWARK 07F7397 X1 10.245 MHZ BOMAR X2 SELECTED BOMAR Q1 MRF901 NEWARK 08F1298 Q2 2N3904 NEWARK 09F5663 ZD1 6.8 V 1/2 WATT ZENER NEWARK 09F4090 TRANSMITTER SECTION C265,252,259,260,261,263,272 .1UF NEWARK 07WX6808 C253,254 47PF DIGIKEY PCC470CCT-ND C255 18PF DIGIKEY PCC180CCT-ND C262,250 220PF DIGIKEY PCC221BCT-ND C267 2.2PF DIGIKEY PCC2R2CCT-ND C271,273 1000PF DIGIKEY PCC102BCT-ND C268 .01UF DIGIKEY PCC103BCT-ND R210 470 OHM NEWARK 07WX0214 R212 15K NEWARK 08WX7826 R221,216,211,217 1K NEWARK 07WX0211 R214 5.6K NEWARK 08WX8274 R215,220 18K DIGIKEY P18KECT-ND R219,223 100K NEWARK 96F6995R100.0K R222,218 10 OHM DIGIKEY P10ECT-ND R224 4.7K DIGIKEY P4.7KECT-ND R225 330 OHM 1/2 WATT DIGIKEY 330H-ND R226 150 OHM DIGIKEY P150ECT-ND L290 1.5UH DIGIKEY TK1412-ND L291 .137UH DIGIKEY TK2714-ND L292,296,297,299 43 NH DIGIKEY DN4010-ND L294,300 1UH DIGIKEY PCD1131CT-ND L295 .241UH DIGIKEY TK2707-ND L293 .375UH DIGIKEY TK2729-ND L298 .211UH DIGIKEY TK2706-ND Q242,241 MRF901 NEWARK 08F1298 Q243 2N4427 NEWARK 10WX2083 X201 SELECTED ZD2 6.8V ZENER NEWARK 09F4090 D3 MV2105 VARACTOR NEWARK 08F2197 COMM ON SECTION R401,402,403,400 1K NEWARK 07WX0211 C460,461 .1UF NEWARK 07WX6808 L475 56UH DIGIKEY PCD1106CT-ND D440,441 MPN3404 NEWARK 07F9506 Q450 2N3906 DIGIKEY 2N3906DICT-ND LED1 GREEN LED DIGIKEY 67-1059-ND LED2 RED LED DIGIKEY 67-1065-ND CN1 5 PIN JACK DIGIKEY H2097-ND CN2 BNC JACK DIGIKEY ARF1178-ND 2 PIN JACK(OPTIONAL) DIGIKEY H2094-ND 5 PIN PLUG(ACCESSORY) DIGIKEY H2086-ND 2 PIN PLUG(OPTIONAL) DIGIKEY H2083-ND PINS(ACCESSORY) DIGIKEY H2138-ND VERSION 2(173 MHZ) C1 56PF DIGIKEY PCC560CT-ND C258,221 3.9PF DIGIKEY PCC3R9CCT-ND C9,222 2.2PF DIGIKEY PCC2R2CCT-ND C224 3.3PF DIGIKEY PCC3R3CCT-ND C257,251 33PF DIGIKEY PCC330CCT-ND C256 8.2PF DIGIKEY PCC8R2CCT-ND C269 6.8PF DIGIKEY PCC6R8CCT-ND C264 18PF DIGIKEY PCC180CCT-ND

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423

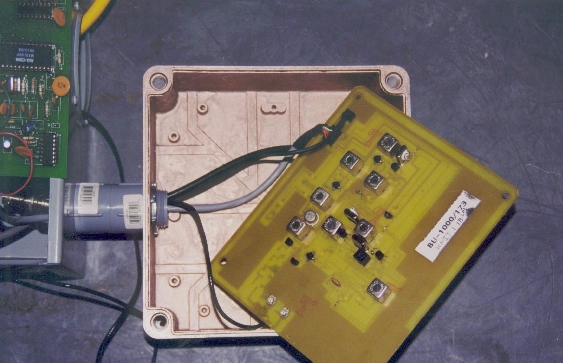

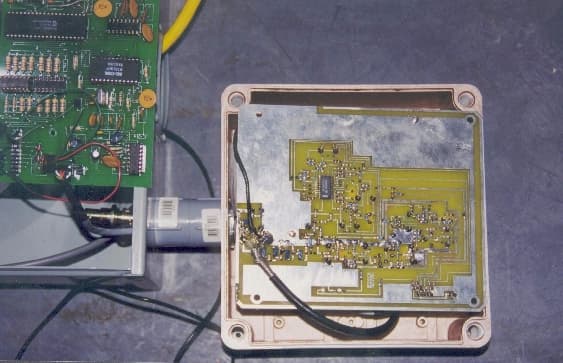

860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page1 of 5 Photo Pages PHOTOGRAPH 1 TOP VIEW OF BU-1000 DATA TRANSCEIVER BOARD PHOTOGRAPH 2 BOTTOM VIEW OF BU-1000 DATA TRANSCEIVER BOARD Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page2 of 5 Photo Pages PHOTOGRAPH 3 VIEW OF BU-1000 AND SUPPORT EQUIPMENT: (MRU Board, Meter Dial Encoder, Enclosure and 173 MHz Dipole) PHOTOGRAPH 4 TERMINAL DISTURBANCE VOLTAGE EMISSIONS CONNECTION TO MEASURING SET

BU-1000 INSTALLATION The BU-1000 has a 5 pin connector for hookup to the MRU(meter reading unit) modem and a BNC connector for connection to a half wave dipole. The Pin-out of the 5 pin connector is as follows. 1)PTT(push to talk) 2)12V(regulated 12 volt input) 3)mod in(modulation input) 4)RXA(receiver audio output) 5)GND(ground) THEORY OF OPERATION The BU-1000 is a low power data transceiver. RECEIVER SECTION The receiver is a double conversion superhetrodyne design. When in the receive mode, signal is allowed to pass to Q1 RF AMP where it is amplified and sent to U1 for the first mix. X2 is a 3rd overtone crystal which is tripled by Q2 to produce the first mix frequency. The first mixer is located in U1 and produces a 10.7MHZ first IF. X1 produces the 2nd mix frequency of 10.245MHZ. It is mixed in U1 to produce a 455KHZ 2nd IF frequency. Receiver audio is then detected in U1 to produce RXA out. TRANSMIT SECTION Modulation is applied to D3 varactor and is used to shift the frequency of X201 to produce FM modulation. X201 is a 3rd overtone crystal. Its frequency is tripled by Q241 to give the apropriate output frequency. It is then amplified by Q242 predriver and Q243 final. It is passed through D440/441 switching when in transmit mode and from there applied to the antenna. BU-1000 SPECIFICATIONS GENERAL FREQUENCY COVERAGE:1 CHANNEL (173.20375/173.21/173.2375/173.2625/173.2875/173.3125/173.3375/173.3625/ 173.39/ OR 173.39625 MHZ) TX CURRENT DRAW: 250MA RX CURRENT DRAW: 120MA RECEIVER SENSITIVITY: 10DB SINAD AT .8UV AUDIO OUTPUT LEVEL: 2VPP AT 3KHZ DEVIATION 1ST IF FREQUENCY: 10.7 MHZ 2ND IF FREQUENCY: 455 KHZ TRANSMITTER POWER: 250MW BU-1000 DATA TRANSCEIVER BOARD PARTS LIST VERSION 2 RECEIVER SECTION C2,8,10,11,13,16,17,18,19,20,23,24 .1UF NEWARK 07WX6808 C6 33PF DIGIKEY PCC330CCT-ND C7 18PF DIGIKEY PCC180CCT-ND C14 120PF DIGIKEY PCC121CCT-ND C4 4.7PF DIGIKEY PCC4R7CCT-ND C15 47PF DIGIKEY PCC470CCT-ND C5 22PF DIGIKEY PCC220CCT-ND C12 1UF TANTILUM NEWARK 93F2694 C3 100PF DIGIKEY PCC101CCT-ND C25 1000PF DIGIKEY PCC102BCT-ND C21 2200PF DIGIKEY PCC222BCT-ND R6,2 470 NEWARK 07WX0214 R10,12 39K NEWARK 08WX8266 R3,7,8 1K NEWARK 07WX0211 R4 5.6K NEWARK 08WX8274 R5 15K NEWARK 08WX7826 R1 100K NEWARK 96F6995R100.0K R9 10K NEWARK 08WX8237 R11,13 22K NEWARK 08WX8252 R14 330 OHM 1/2 WATT DIGIKEY 330H-ND FL1 E10.7V NEWARK 87F2439 FL2 455KHZ NEWARK 90F2264 L1 43NH DIGIKEY DN4010-ND L2 1.5UH DIGIKEY TK1412-ND L3 .108UH DIGIKEY TK2713-ND L4 .64MH DIGIKEY TK1302-ND U1 MC13135DW NEWARK 07F2896 U2 78L05ACP NEWARK 07F7397 X1 10.245 MHZ BOMAR X2 SELECTED BOMAR Q1 MRF901 NEWARK 08F1298 Q2 2N3904 NEWARK 09F5663 ZD1 6.8 V 1/2 WATT ZENER NEWARK 09F4090 TRANSMITTER SECTION C265,252,259,260,261,263,272 .1UF NEWARK 07WX6808 C253,254 47PF DIGIKEY PCC470CCT-ND C255 18PF DIGIKEY PCC180CCT-ND C262,250 220PF DIGIKEY PCC221BCT-ND C267 2.2PF DIGIKEY PCC2R2CCT-ND C271,273 1000PF DIGIKEY PCC102BCT-ND C268 .01UF DIGIKEY PCC103BCT-ND R210 470 OHM NEWARK 07WX0214 R212 15K NEWARK 08WX7826 R221,216,211,217 1K NEWARK 07WX0211 R214 5.6K NEWARK 08WX8274 R215,220 18K DIGIKEY P18KECT-ND R219,223 100K NEWARK 96F6995R100.0K R222,218 10 OHM DIGIKEY P10ECT-ND R224 4.7K DIGIKEY P4.7KECT-ND R225 330 OHM 1/2 WATT DIGIKEY 330H-ND R226 150 OHM DIGIKEY P150ECT-ND L290 1.5UH DIGIKEY TK1412-ND L291 .137UH DIGIKEY TK2714-ND L292,296,297,299 43 NH DIGIKEY DN4010-ND L294,300 1UH DIGIKEY PCD1131CT-ND L295 .241UH DIGIKEY TK2707-ND L293 .375UH DIGIKEY TK2729-ND L298 .211UH DIGIKEY TK2706-ND Q242,241 MRF901 NEWARK 08F1298 Q243 2N4427 NEWARK 10WX2083 X201 SELECTED ZD2 6.8V ZENER NEWARK 09F4090 D3 MV2105 VARACTOR NEWARK 08F2197 COMMON SECTION R401,402,403,400 1K NEWARK 07WX0211 C460,461 .1UF NEWARK 07WX6808 L475 56UH DIGIKEY PCD1106CT-ND D440,441 MPN3404 NEWARK 07F9506 Q450 2N3906 DIGIKEY 2N3906DICT-ND LED1 GREEN LED DIGIKEY 67-1059-ND LED2 RED LED DIGIKEY 67-1065-ND CN1 5 PIN JACK DIGIKEY H2097-ND CN2 BNC JACK DIGIKEY ARF1178-ND 2 PIN JACK(OPTIONAL) DIGIKEY H2094-ND 5 PIN PLUG(ACCESSORY) DIGIKEY H2086-ND 2 PIN PLUG(OPTIONAL) DIGIKEY H2083-ND PINS(ACCESSORY) DIGIKEY H2138-ND VERSION 2(173 MHZ) C1 56PF DIGIKEY PCC560CT-ND C258,221 3.9PF DIGIKEY PCC3R9CCT-ND C9,222 2.2PF DIGIKEY PCC2R2CCT-ND C224 3.3PF DIGIKEY PCC3R3CCT-ND C257,251 33PF DIGIKEY PCC330CCT-ND C256 8.2PF DIGIKEY PCC8R2CCT-ND C269 6.8PF DIGIKEY PCC6R8CCT-ND C264 18PF DIGIKEY PCC180CCT-ND

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 27 PLOT 1 OCCUPIED BANDWIDTH FOR 173.2030 MHz, PLOT 2 OCCUPIED BANDWIDTH FOR 173.3125 MHz, Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 27 PLOT 3 OCCUPIED BANDWIDTH FOR 173.39625 MHz, PLOT 4-a RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.2030 MHz, Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 27 PLOT 4-b RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.2030 MHz PLOT 5-a RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.3125 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 4 of 27 PLOT 5-b RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.3125 MHz PLOT 6-a RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.39625 MHz, Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 5 of 27 PLOT 6-b RELATIVE LEVEL OF SPURIOUS EMISSIONS FOR 173.39625 MHz, PLOT 7 FREQUENCY STABILITY FOR –10° C TO 50 C° 173.2030 MHz

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 27 PLOT 8 FREQUENCY STABILITY FOR 85% TO 115% POWER VOLTAGE VARIATION 173.2030 MHz PLOT 9 FREQUENCY STABILITY FOR –10° C TO 50 C° 173.3125 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 27 PLOT 10 FREQUENCY STABILITY FOR 85% TO 115% POWER VOLTAGE VARIATION 173.3125 MHz PLOT 11 FREQUENCY STABILITY FOR –10° C TO 50 C° 173.39625 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 27 PLOT 12 FREQUENCY STABILITY FOR 85% TO 115% POWER VOLTAGE VARIATION 173.39625 MHz PLOT 13 173.2030 MHz WITH AND WITHOUT 1 KHZ TEST SIGNAL MODULATION Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 4 of 27 PLOT 14 FREQUENCY SHIFT AFTER KEYING OF 1 KHZ TEST SIGNAL FOR 173.2030 MHz

THE ELECTROMAGNETIC EMISSIONS ACCORDING TO FCC PART 90, 1998 AND FCC PART 15, SUBPART B, CLASS B, 1997 OF THE BURGHARDT INC. BU-1000 DATA TRANSCEIVER DATA TRANSCEIVER BOARD PREPARED FOR BURGHARDT INC. 710 10 th STREET SW P.O. BOX 73 WATERTOWN, SD 57201-0073 PREPARED BY GLOBAL CERTIFICATION LABORATORIES, LTD. 4 MATTHEWS DRIVE EAST HADDAM CT 06423 DATE RELEASED 2/14/00 FILE REF: BUR0001 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page ii of iii SIGNATURE PAGE THIS REPORT WAS PREPARED BY: ________________________________ STEPHEN M. PETIX TESTING WAS PERFORMED BY: ________________________________ STEPHEN M. PETIX THIS REPORT WAS REVIEWED BY: ________________________________ JAMES COSTELLO Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page iii of iii TABLE OF CONTENTS Title Page..........................................................................................................................i Signature Page.................................................................................................................ii Table of Contents ...........................................................................................................iii Introduction .....................................................................................................................1 Product Identification ......................................................................................................2 Technical Description......................................................................................................3 Compliance Statement.....................................................................................................6 Test Instrumentation........................................................................................................7 Test Procedures, Terminal Disturbance Voltage Test.....................................................8 Block Diagram, Terminal Disturbance Voltage Test ......................................................9 Test Data Explanation (Conducted) ..............................................................................10 Terminal Disturbance Voltage Test Data Printout........................................................11 Test Procedures, Unintentional Radiated Electric Field Emissions Test ......................15 Test Procedures, Effective Radiated Power & Intentional Emissions Test...................16 Block Diagram, Radiated Electric Field Emissions Test Set-up...................................18 Test Data Explanation (Radiated) .................................................................................19 Radiated Electric Field Emissions Test Data Printout ..................................................20 Occupied Bandwidth Measurements; Procedures & Results........................................33 Spurious Emissions At The Antenna Terminals ...........................................................34 Frequency Stability Measurements; Procedures & Results ..........................................35 Transient Frequency Response; Procedures & Results.................................................36 Test Summary................................................................................................................37 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 37 INTRODUCTION This report describes the results of electromagnetic emissions testing on the BURGHARDT INC. BU-1000 DATA TRANSCEIVER, The Equipment U nder Test. The EUT was subjected to the following tests: FCC PART 90, using emission mask “C” and FCC PART 15, SUBPART B, CLASS B. The tests and measurements included in the standards above are: TERMINAL DISTURBANCE VOLTAGES (CONDUCTED EMISSIONS) ANALYSIS RADIATED ELECTRIC FIELD EMISSIONS ANALYSIS (EFFECTIVE RADIATED POWER & ABSOLUTE FIELD STRENGTH MEASUREMENTS) OCCUPIED BANDWIDTH FREUENCY STABILITY DUE TO TEMPERATURE & POWER VOLTAGE VARIATIONS SP URIOUS EMISSIONS (MEASURED AS FIELD STRENGTHS AND RELATIVE LEVELS AT ANTENNA TERMINALS) TRANSIENT FREQUENCY RESPONSE The FCC ID Code number of the BU-1000 DATA TRANSCEIVER is: OV2BU-1000 The results reported in this document relate only to the unit(s) tested. All testing was performed at the facilities of Global Certification Laboratories, Ltd. East Haddam CT. All test equipment calibration is N.I.S.T. traceable. This report contains detailed descriptions of the test procedures, test data and a written summary of the results. The report may not be reproduced, except in its entirety, without the permission of Global Certification Laboratories. This report contains 37 numbered pages, plus Title, Signature and Table of Contents Pages. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 37 PRODUCT IDE NTIFICATION EQUIPMENT UNDER TEST (EUT):BURGHARDT INC. MODEL: BU-1000 DATA TRANSCEIVER Three transceiver boards at the following frequencies were examined: 1) 173.203 MHz 2) 173.3125 MHz 3) 173.39625 MHz SERIAL: NONE DEVIATIONS FROM SPECIFICATIONS: NONE EUT SUPPORT EQUIPMENT:ENCLOSURE: Consisting of a GENERAL ELECTRIC “Rr13%” power meter with a Meter Reading Unit (MRU) and pulse initiator inc luded inside the meter housing. DIPOLE ANTENNA: ½ wave resonant at 173 MHz. OMNI-PRO SOFTWARE (Madison SD) This software is used to control the MRU. This software defines the test modulation. The test modulation is representative of an actual condit…

Text truncated - open the document above for the full version.

THE TRANSMITTER PERFORMANCE THE ELECTROMAGNETIC EMISSIONS ACCORDING TO FCC PART 90, 1998 AND FCC PART 15, SUBPART B, CLASS B, 1997 OF THE BURGHARDT INC. BU-1000/173 DATA TRANSCEIVER DATA TRANSCEIVER BOARD PREPARED FOR BURGHARDT INC. 710 10 th STREET SW P.O. BOX 73 WATERTOWN, SD 57201-0073 PREPARED BY GLOBAL CERTIFICATION LABORATORIES, LTD. 4 MATTHEWS DRIVE EAST HADDAM CT 06423 DATE RELEASED 3/29/00 FILE REF: BUR0001 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000/173 TRANSCEIVER FCC ID:OV2BU-1000/173 3/30/00 FCC PARTS 15, 90 Page ii of iii SIGNATURE PAGE THIS REPORT WAS PREPARED BY: ________________________________ STEPHEN M. PETIX TESTING WAS PERFORMED BY: ________________________________ STEPHEN M. PETIX THIS REPORT WAS REVIEWED BY: ________________________________ JAMES COSTELLO Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000/173 TRANSCEIVER FCC ID:OV2BU-1000/173 3/30/00 FCC PARTS 15, 90 Page iii of iii TABLE OF CONTENTS Title Page..........................................................................................................................i Signature Page.................................................................................................................ii Table of Contents ...........................................................................................................iii Introduction .....................................................................................................................1 Product Identification ......................................................................................................2 Technical Description......................................................................................................3 Compliance Statement.....................................................................................................7 Test Instrumentation........................................................................................................8 Test Procedures, Terminal Disturbance Voltage Test.....................................................9 Block Diagram, Terminal Disturbance Voltage Test ....................................................10 Test Data Explanation (Conducted) ..............................................................................11 Terminal Disturbance Voltage Test Data Printout........................................................12 Test Procedures, Unintentional Radiated E-Field Emissions Test................................16 Test Procedures, Effective Radiated Power & Intentional Emissions Test...................17 Block Diagram, Radiated Electric Field Emissions Test Set-up...................................19 Test Data Explanation (Radiated) .................................................................................20 Radiated Emissions Data (including FCC Part B, ERP, & Radiated Spurious)...........21 Modulation Characteristics............................................................................................34 Occupied Bandwidth Measurements.............................................................................35 Spurious Emissions & RF Power at Antenna Terminals...............................................36 Frequency Stability Measurements ...............................................................................37 Transient Frequency Behavior ......................................................................................39 Test Summary................................................................................................................40 Due to their size, the Plot & Photographic sections are in separate exhibits. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000/173 TRANSCEIVER FCC ID:OV2BU-1000/173 3/30/00 FCC PARTS 15, 90 Page 1 of 40 INTRODUCTION This report describes the results of electromagnetic emissions testing on the BURGHARDT INC. BU-1000/173 DATA TRANSCEIVER, The Equipment U nder Test. The EUT was subjected to the following tests: FCC PART 90, using emission mask “C” and FCC PART 15, SUBPART B, CLASS B. The tests and measurements included in the standards above are: PART 15 TERMINAL DISTURBANCE VOLTAGE (CONDUCTED EMISSIONS) ANALYSIS RADIATED ELECTRIC FIELD EMISSIONS ANALYSIS (PART 90 EFFECTIVE RADIATED POWER & SPURIOUS EMISSIONS FROM ENCLOSURE, PART 15) MODULATION CHARACTERISTICS OCCUPIED BANDWIDTH FREUENCY STABILITY DUE TO TEMPERATURE & POWER VOLTAGE VARIATIONS SP URIOUS EMISSIONS AT THE ANTENNA TERMINALS TRANSIENT FREQUENCY RESPONSE w/1kHz MODULATION The FCC ID of the BU-1000/173 DATA TRANSCEIVER is: OV2BU-1000 The results reported in this document relate only to the unit(s) tested. All testing was performed at the facilities of Global Certification Laboratories, Ltd. East Haddam CT. All test equipment calibration is N.I.S.T. traceable. This report contains detailed descriptions of the test procedures, test data and a written summary of the results. The report may not be reproduced, except in its entirety, without the permission of Global Certification Laboratories. This report contains 40 numbered pages, plus Title, Signature and Table of Contents Pages. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000/173 TRANSCEIVER FCC ID:OV2BU-1000/173 3/30/00 FCC PARTS 15, 90 Page 2 of 40 PRODUCT IDE NTIFICATION EQUIPMENT UNDER TEST (EUT):BURGHARDT INC. MODEL: BU-1000/173 DATA TRANSCEIVER Three transceiver boards at the following frequencies were examined: 1) 173.2030 MHz 2) 173.3125 MHz 3) 173.39625 MHz SERIALS: NONE DEVIATIONS FROM SPECIFICATIONS: NONE EUT SUPPORT EQUIPMENT:METER ENCLOSURE: Consisting of a GENERAL ELECTRIC “Rr13%” power…

Text truncated - open the document above for the full version.

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 5 Photo Pages PHOTOGRAPH 5 RADIATED ELECTRIC FIELD EMISSIONS TESTS: FRONT VIEW OF TEST SETUP PHOTOGRAPH 6 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 30 TO 300 MHz MEASUREMENTS Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 4 of 5 Photo Pages PHOTOGRAPH 7 RADIATED ELECTRIC FIELD EMISSIONS TESTS: SUBSTITUION MEASUREMENTS PHOTOGRAPH 8 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 300 TO 1000 MHz MEASUREMENTS Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 5 of 5 Photo Pages PHOTOGRAPH 9 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 1 TO 5 GHz MEASUREMENTS PHOTOGRAPH 10 RADIATED ELECTRIC FIELD EMISSIONS TESTS: SET UP USED FOR OCCUPIED BANDWIDTH, FREQUENCY STABILTY AND TRANSIENT FREQUENCY RESPONSE MEASUREMENTS

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 4 PLOT SECTION PLOT 1 OCCUPIED BANDWIDTH FOR 173.2030 MHz, 8dBm PEAK CARRIER LEVEL PLOT 2 OCCUPIED BANDWIDTH FOR 173.3125 MHz, 10 dBm PEAK CARIER LEVEL Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 4 PLOT SECTION PLOT 3 OCCUPIED BANDWIDTH FOR 173.39625 MHz, 10 dBm PEAK CARIER LEVEL PLOT 4 RELATIVE LEVEL OF SPURIOUS EMISSIONS @ ANTENNA TERMINALS FOR 173.2030 MHz, Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 4 PLOT SECTION PLOT 5 RELATIVE LEVEL OF SPURIOUS EMISSIONS@ ANTENNA TERMINALS FOR 173.2030 MHz PLOT 6 RELATIVE LEVEL OF SPURIOUS EMISSIONS @ ANTENNA TERMINALS FOR 173.3125 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 4 of 4 PLOT SECTION PLOT 7 RELATIVE LEVEL OF SPURIOUS EMISSIONS @ ANTENNA TERMINALS FOR 173.3125 MHz PLOT 8 RELATIVE LEVEL OF SPURIOUS EMISSIONS @ ANTENNA TERMINALS FOR 173.39625 MHz

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/30/00 FCC PARTS 15 & 90 Page 5 of 6 PLOT SECTION PLOT 9: RELATIVE LEVEL OF SPURIOUS EMISSIONS @ ANTENNA TERMINALS FOR 173.39625 MHz PLOT 10: 173.2030 MHz WITH & WITHOUT 1 K H Z TEST SIGNAL MODULATION Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/30/00 FCC PARTS 15 & 90 Page 6 of 6 PLOT SECTION PLOT 11 FREQUENCY SHIFT AFTER KEYING OF 1 K H Z TEST SIGNAL FOR 173.2030 MHz

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/31/00 FCC PARTS 15, 90 Page 1 of 5 PHOTOGRAPH 1 TOP VIEW OF BU-1000 DATA TRANSCEIVER BOARD PHOTOGRAPH 2 BOTTOM VIEW OF BU-1000 DATA TRANSCEIVER BOARD Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/31/00 FCC PARTS 15, 90 Page 2 of 5 PHOTOGRAPH 3 VIEW OF BU-1000 AND SUPPORT EQUIPMENT: (MRU, Meter Dial Encoder, Enclosure and 173 MHz Dipole) PHOTOGRAPH 4 TERMINAL DISTURBANCE VOLTAGE EMISSIONS CONNECTION TO MEASUREMENT SET Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/31/00 FCC PARTS 15, 90 Page 3 of 5 PHOTOGRAPH 5 RADIATED ELECTRIC FIELD EMISSIONS TESTS: FRONT VIEW OF TEST SETUP PHOTOGRAPH 6 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 30 TO 300 MHz MEASUREMENTS Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/31/00 FCC PARTS 15, 90 Page 4 of 5 PHOTOGRAPH 7 RADIATED ELECTRIC FIELD EMISSIONS TESTS: SUBSTITUTION MEASUREMENTS PHOTOGRAPH 8 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 300 TO 1000 MHz MEASUREMENTS Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 3/31/00 FCC PARTS 15, 90 Page 5 of 5 PHOTOGRAPH 9 RADIATED ELECTRIC FIELD EMISSIONS TESTS: 1 TO 5 GHz MEASUREMENTS PHOTOGRAPH 10 RADIATED ELECTRIC FIELD EMISSIONS TESTS: SET UP USED FOR OCCUPIED BANDWIDTH, FREQUENCY STABILTY AND TRANSIENT FREQUENCY RESPONSE MEASUREMENTS
